USER MANUAL IR150MBT HAMA

Technical line drawing of a front view of a washing machine (no text or symbols)

Quick Guide

Kurzanleitung

Further information and features are available on:

QR code image containing encoded data, no visible human-readable text

17 5 9 108 4 1 3 11 12 14 16 POWER 100-20Hz 20kHz LAN OPTICAL OUT LINE OUT AUX IN 18 20 23 24

Two identical diagrams of a cylindrical device with battery and indicator lights, no text or symbols present.

Controls and Displays

Radio

Front

1. [SETTINGS/MENU] button
2. [PRESET 1] button
3. [MEMORY] button
4. [PRESET 2] button
5. [INFO] button
6. [PRESET 3] button
7. [MUTE] button
8. [PRESET 4] button
9. [MODE] button
10. [PRESET 5] button
11. [HOME] button
12. [PRESET 6] button
13. [BACK] button
14. [POWER] button** / [VOLUME] / [ENTER] / [NAVIGATE]
15. Infrared receiver
16. Headphone socket
17. 2.8" colour display

Rear

1. Power switch
2. Mains power supply
3. LAN connection
4. Optical connection
5. USB connection
6. Line-out socket
7. AUX-In socket

Remote Control

1. [POWER] button
2. [MUTE] button
3. Internet Radio - Mode
4. DAB Radio - Mode
5. FM Radio - Mode
6. AUX - Mode
7. Backlight Level
8. Media-Player - Mode
9. [MODE] button
10. [EQUALIZER] button
11. [ALARM] button
12. [SLEEP] button
13. [SNOOZE] button
14. [MENU] button
15. [PREVIOUS] button
16. [NEXT] button
17. Navigation buttons
    ▲ Up
    ▼ Down
    Back
    Forward, okay
18. [SELECT] (Enter/OK) button
19. [REWIND] button
20. [FAST-FORWARD] button
21. [VOLUME] +/- buttons
22. Presets Up/Down buttons
23. [PLAY / PAUSE] button
24. [BACK] button
25. Presets buttons (1-10)
26. [PRESETS/ FAVORITES] Menu
27. [INFO] button

Important note – Operating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF files / eManuals on www.hama.com.
• Use the search function with the item number of your product to easily find the product documentation.
• Alternatively, scan the QR code below to be taken directly to the location of the operating instructions.
• Save the operating instructions to your computer's hard drive for future reference, or print it out if necessary.

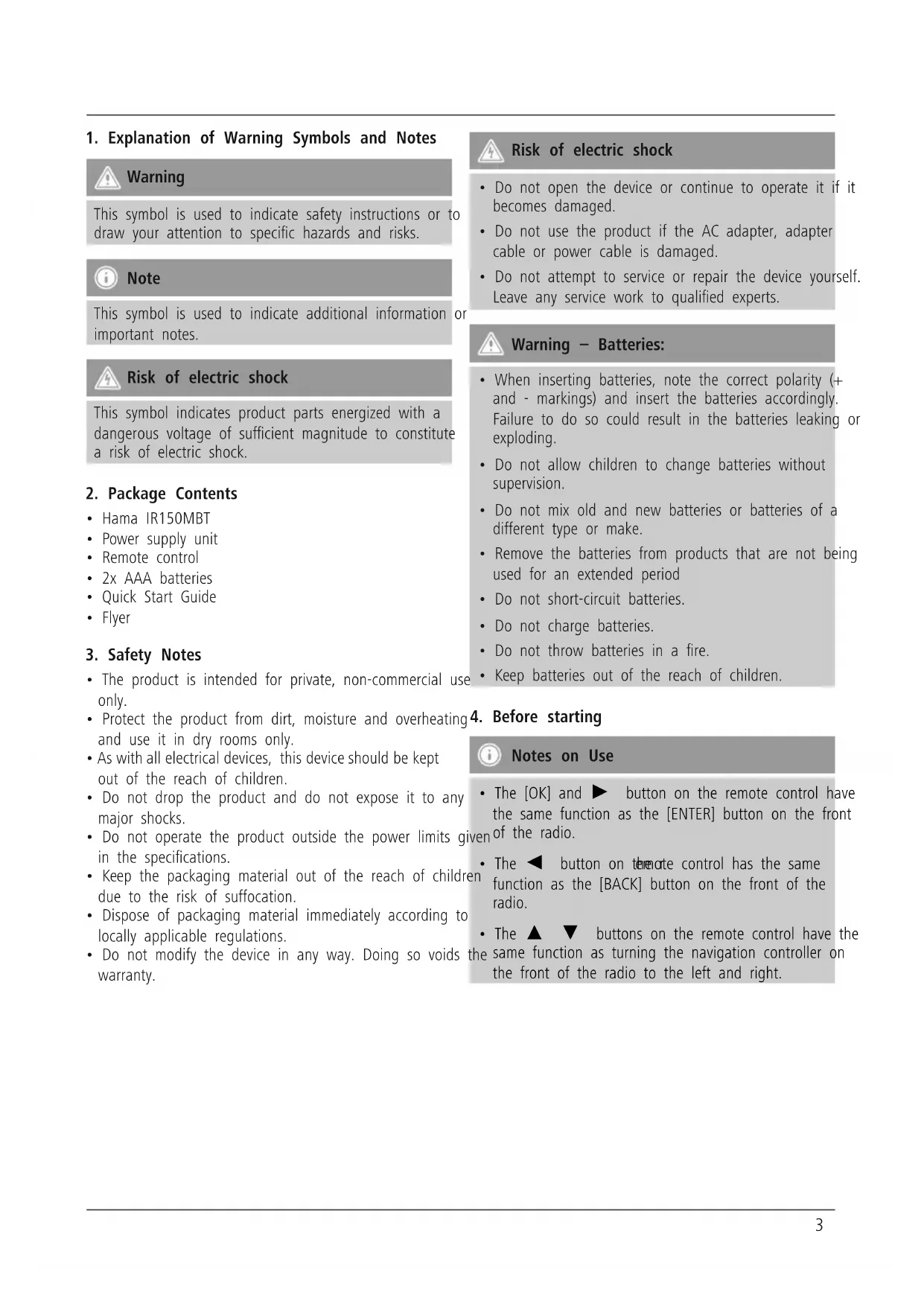

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

Risk of electric shock

This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

2. Package Contents

• Hama IR150MBT
• Power supply unit
• Remote control
• 2x AAA batteries
• Quick Start Guide
• Flyer

3. Safety Notes

- The product is intended for private, non-commercial use only.

- Protect the product from dirt, moisture and overheating and use it in dry rooms only.

- As with all electrical devices, this device should be kept out of the reach of children.

- Do not drop the product and do not expose it to any major shocks.

- Do not operate the product outside the power limits given in the specifications.

- Keep the packaging material out of the reach of children due to the risk of suffocation.

- Dispose of packaging material immediately according to locally applicable regulations.

- Do not modify the device in any way. Doing so voids the warranty.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

Warning – Batteries:

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not throw batteries in a fire.
• Keep batteries out of the reach of children.

4. Before starting

Notes on Use

• The [OK] and ▶ button on the remote control have the same function as the [ENTER] button on the front of the radio.
• The ◀ button on the note control has the same function as the [BACK] button on the front of the radio.
• The ▲▼ buttons on the remote control have the same function as turning the navigation controller on the front of the radio to the left and right.

Activating the remote control

Open the battery compartment cover. It is located on the rear of the remote control and can be opened by sliding in the direction indicated. Two AAA batteries are included in the delivery, they should be inserted in the battery compartment of the remote control. Observe the correct polarity when inserting batteries. The polarity (+ / -) is indicated in the battery compartment.).

Setting up a network connection

4.1 LAN (wired network)

• Connect the LAN connection of your router to the LAN connection on your radio. You will require an Ethernet cable, which is not included in the delivery, to do this.
• Make sure that the router is on and working properly, that you have an Internet connection.
• See the operating instructions for your router regarding a properly functioning LAN connection.
• Then proceed as described in point 5, "Getting Started"

4.2 WLAN (wireless network)

• Ensure that the router is switched on, is functioning correctly and that there is a connection to the internet.
• Activate the WLAN function of your router.
• Follow your router's operating instructions as regards the correct functioning of the WLAN connection.
• Then proceed directly as described under section 5, 'Getting started'.

5. Getting started

5.1 Switching the device on

- Connect the power cable to a properly installed power socket.

Warning

• Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.

• Disconnect the product from the power supply using the on/off switch — if this is not available, unplug the power cord from the socket.

• Switch the power on using the power switch.

• Wait until the radio initialisation procedure has finished.
• Press the [POWER] button to switch the radio on.

5.2 Language and setup wizard

The first time the system starts the radio uses English. To change this, proceed as follows:

^a Press [MENU] > System settings > Language > Select language

Confirm your selection by pressing the [ENTER] or [OK] button.

Note

- You can choose from the following languages: English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish, Czech and Slovak.

6. Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store it in a clean, dry place out of direct sunlight.

7. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

8. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

9. Recycling Information

Note on environmental protection:

After the implementation of the European

Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies:

Electric and electronic devices as well as batteries

must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

10. Declaration of Conformity

Hama GmbH & Co. KG hereby declares that the

device complies with the essential requirements

and other relevant provisions of Directive 2014/53/

EU. See www.hama.com for the declaration of conformity with the relevant directive.

00054850

Hotline: [phone] (Ger/Ang)

86652 Monheim/ Germany

www.hama.com

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
