Technical Specifications	Model: PROFOON TX560
Phone Type	Wireless landline phone
Screen	Backlit LCD screen
Battery Life	Up to 10 hours of talk time
Range	Up to 300 meters outdoors
Features	Built-in answering machine, caller ID
Usage	Easy to use with large buttons and an intuitive menu
Maintenance	Clean regularly with a soft cloth, avoid moisture
Security	Wireless communication encryption
General Information	2-year warranty, technical support available

Frequently Asked Questions - TX560 PROFOON

How do I turn on the PROFOON TX560?

Press and hold the power button located on the side of the phone for a few seconds until the logo appears.

How do I charge the PROFOON TX560?

Use the supplied USB cable and plug it into the charging port at the bottom of the phone, then connect the other end to a power adapter or a computer USB port.

How do I reset the PROFOON TX560?

To reset the phone, go to settings, then to 'System', and select 'Factory data reset'. Follow the on-screen instructions.

Why won\u0027t the PROFOON TX560 connect to the network?

Check if airplane mode is enabled. If so, disable it. Also, make sure your SIM card is properly inserted and that you are in a coverage area.

How do I add a contact on the PROFOON TX560?

Open the 'Contacts' app, tap 'Add contact', then enter the necessary information before saving.

How do I take a photo with the PROFOON TX560?

Open the 'Camera' app, aim at your subject, and press the capture button to take a photo.

How do I increase the volume on the PROFOON TX560?

Use the volume buttons located on the side of the phone to increase or decrease the volume.

What should I do if the PROFOON TX560 won\u0027t turn on?

Make sure the phone is charged. If the screen remains black after trying to turn it on, try forcing a restart by holding the power button for 10 seconds.

How do I uninstall an app on the PROFOON TX560?

Go to the home screen, press and hold the icon of the app you want to uninstall, then select 'Uninstall' from the menu that appears.

How do I connect the PROFOON TX560 to a Wi-Fi network?

Go to 'Settings', select 'Wi-Fi', turn it on, then choose your network and enter the password if necessary.

USER MANUAL TX560 PROFOON

Close-up of a silver telephone with a keypad and photo collage on the front (no visible text or symbols)

ProFoon®

TX-560

NETWERKCOMPATIBILITEIT

Diagram showing a telephone handset connected to a keypad with labeled buttons and a plug inserted into the phone.

Technical line drawing of a mechanical component with a black cable inserted (no text or symbols)

Diagram of a device rear panel with labeled components and directional arrows indicating movement or flow.

Technical line drawing of a curved mechanical component with mounting holes and a directional arrow (no text or symbols)

Technical line drawing of a curved electronic device with labeled ports and an upward arrow indicator (no text or symbols present)

20mm 28mm

Close-up of a silver telephone with a keypad and photo collage on the front (no visible text or symbols)

ProFoon®

21

TX-560

COMPATIBILITE DU RESEAU

Diagram showing a telephone handset connected to a keypad with labeled buttons and a plug inserted into the phone.

Technical line drawing of a mechanical component with a black cable inserted (no text or symbols)

Diagram of a device rear panel with labeled components and directional arrows indicating movement or flow.

Technical line drawing of a curved electronic device with mounting points and directional arrows (no text or symbols)

Technical line drawing of a curved mechanical component with mounting holes and a directional arrow (no text or symbols)

Diagram of a curved electronic device with labeled ports and an upward arrow indicating direction (no text or symbols present)

20mm 28mm

Close-up of a silver telephone with a keypad and photo collage on the front (no visible text or symbols)

ProFoon®

41

TX-560

NETZWERKKOMPATIBILITÄT

Diagram showing a telephone handset connected to a keypad with labeled buttons and a plug inserted into the phone.

Technical line drawing of a mechanical component with a black cable inserted (no text or symbols)

Diagram of a device rear panel with labeled components and directional arrows indicating movement or flow.

Technical line drawing of a curved mechanical component with mounting holes and a directional arrow (no text or symbols)

Diagram of a curved electronic device with labeled ports and an upward arrow indicating orientation (no text or symbols present)

20mm 28mm

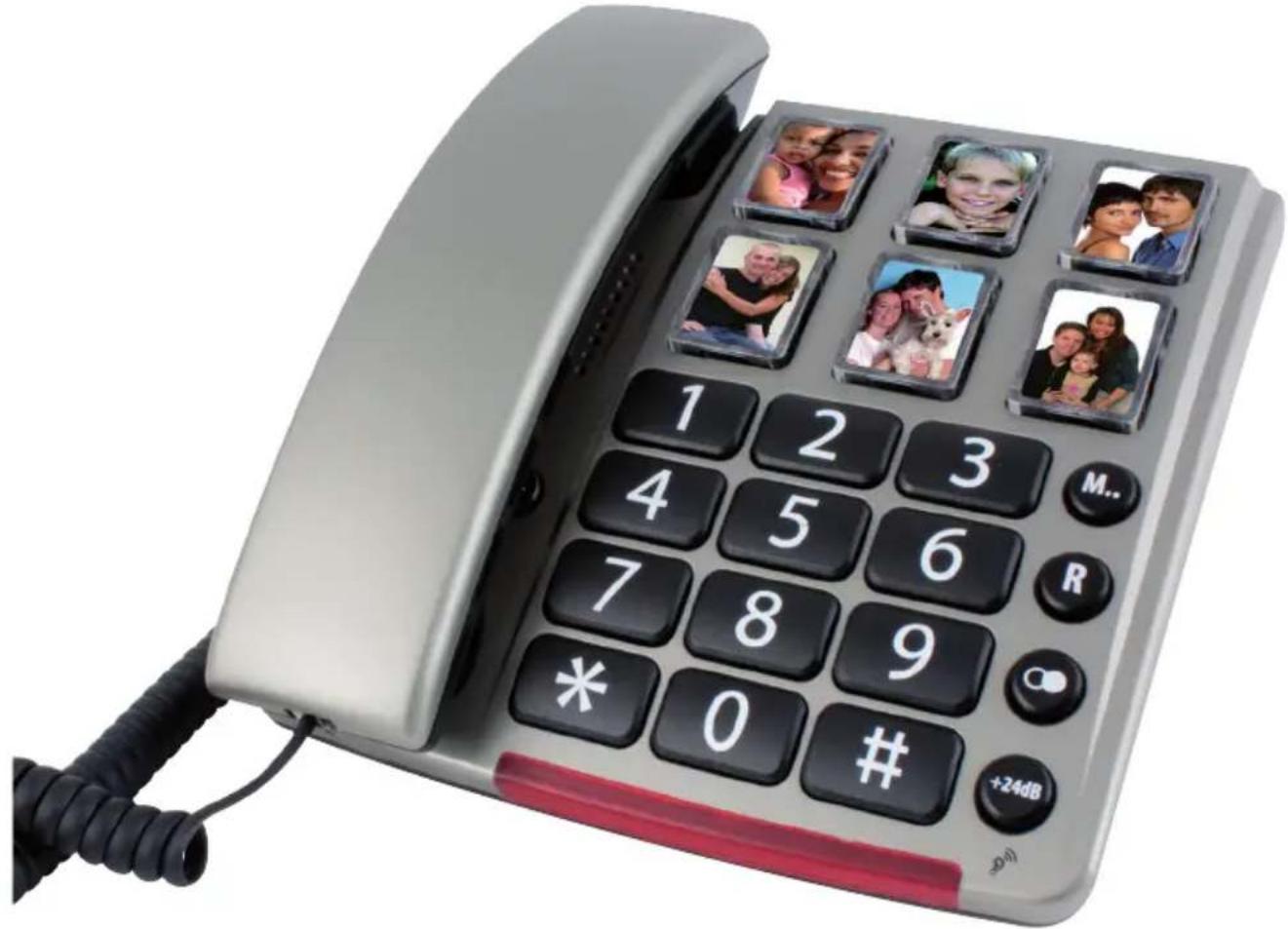

Close-up of a silver telephone with a keypad and photo collage on the front (no visible text or symbols)

ProFoon®

61

TX-560

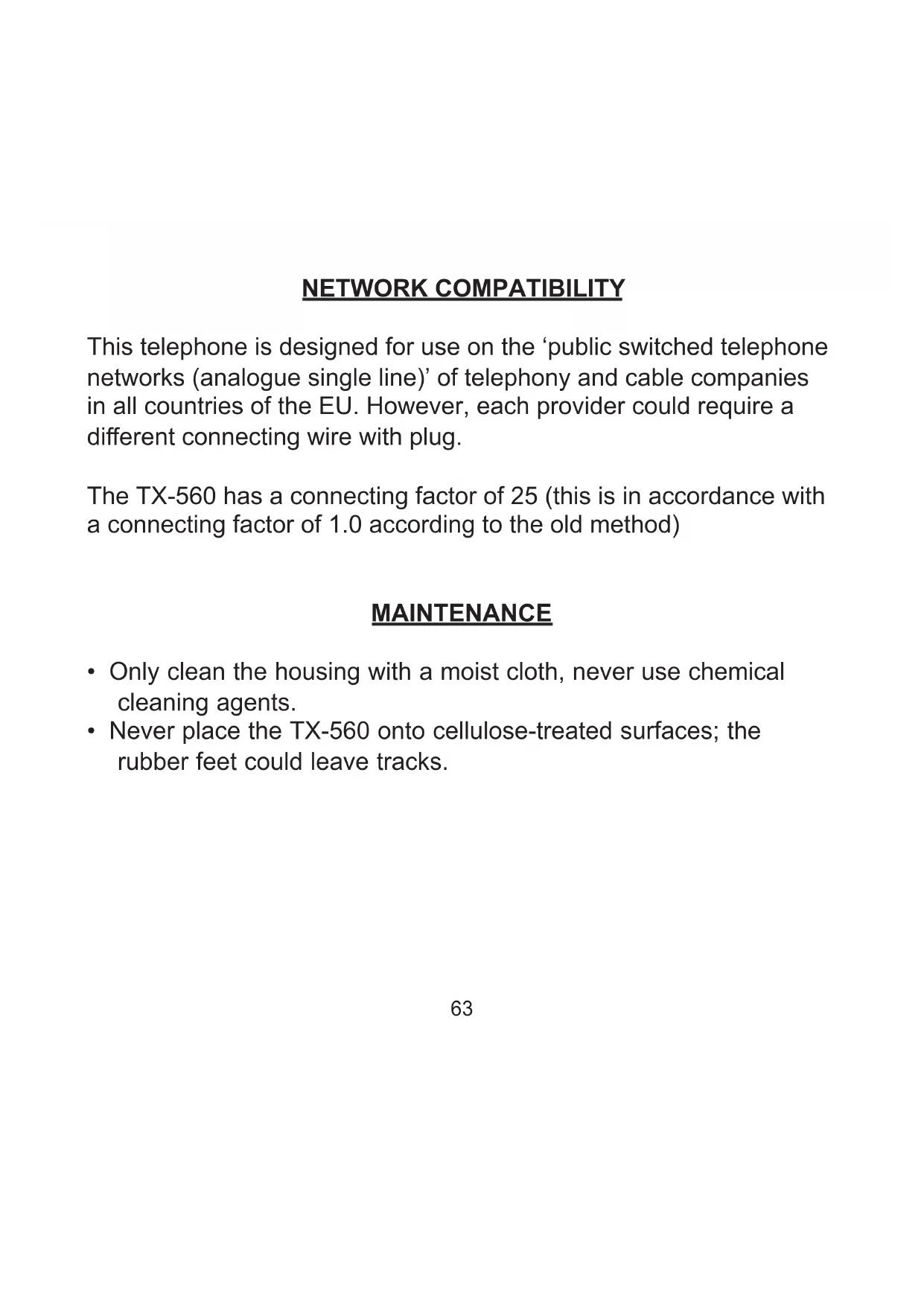

NETWORK COMPATIBILITY

This telephone is designed for use on the ‘public switched telephone networks (analogue single line)’ of telephony and cable companies in all countries of the EU. However, each provider could require a different connecting wire with plug.

The TX-560 has a connecting factor of 25 (this is in accordance with a connecting factor of 1.0 according to the old method)

MAINTENANCE

• Only clean the housing with a moist cloth, never use chemical cleaning agents.
• Never place the TX-560 onto cellulose-treated surfaces; the rubber feet could leave tracks.

PHONE OVERVIEW

6 photo buttons: to dial numbers directly M... button: for access to the indirect memories 1 through 0 R button: button for e.g. accepting a waiting call ● button: to redial the last dialled number +24dB button: to amplify the receiver volume Call indicator: illuminates when receiving a call keypad: to dial numbers (the * (asterisk) and # (pound) buttons are used for, amongst others, tele-banking) ◆ button: program button, for programming memories 0...9 buttons: to set the receiver volume

switch: switch for call volume setting switch: switch for call rhythm selection switch: switch for microphone volume setting slide control: slide control for the receiver sound pitch

INSTALLATION

Receiver:

Diagram showing a telephone handset connected to a keypad with an attached plug, illustrating the connection or usage principle.

1. connect the receiver with the telephone by attaching one side of the spiral cable to the bottom of the receiver and the other side to the left side of the telephone

2. push in the plugs until they're securely connected

Telephone:

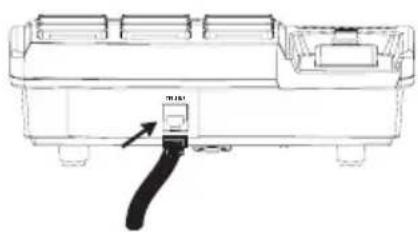

Technical line drawing of a mechanical component with a black cable inserted (no text or symbols)

1. plug the telephone wire into the bottom of the telephone

2. insert the telephone plug into a telephone wall socket

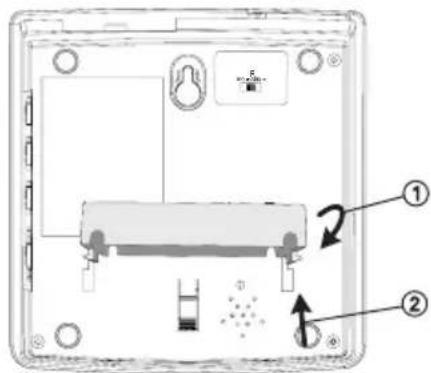

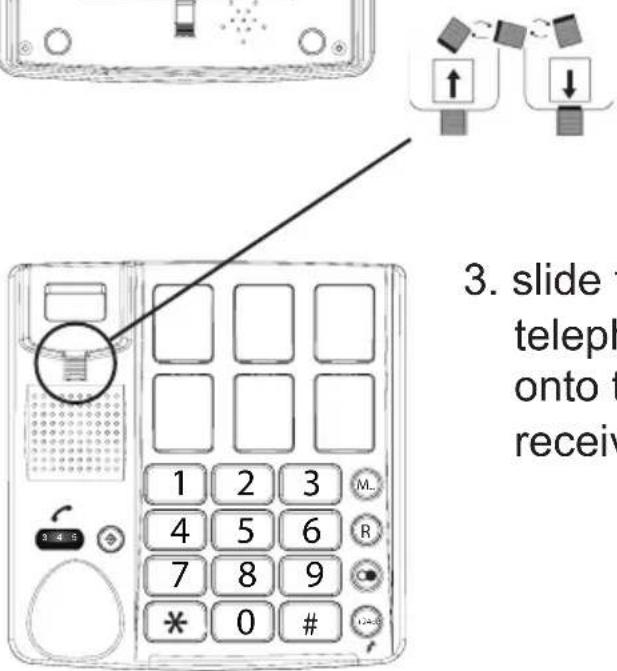

Wall-mounting:

Diagram of a device rear panel with labeled components and directional arrows indicating movement or flow.

1. click the wall bracket onto the bottom of the phone (1) and press it upward (2) according to the illustration below

85mm

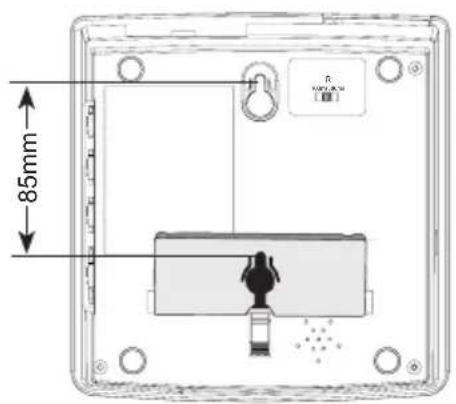

1. in a vertical line, drill 2 holes at a distance of 8.5 ~cm from each other and insert plugs and screws; let the head of the screws protrude for 5 ~mm

3. slide t teleph onto t receiv

1. slide the receiver clamp out of the telephone, turn it 180^ and place it back onto the telephone; this clamp will hold the receiver in case of wall-mounting

2. hook the telephone with the screw holes over the screws and press it downward

3. fix the telephone wire to the wall using the cable clips

USING THE TELEPHONE

Dialling numbers:

pick up the receiver

1 2 3 4 5 6 7 8 9 0

input the phone number using the keypad

at the end of your conversation, put down the receiver to disconnect the call

Answering calls:

pick up the receiver to accept incoming calls

at the end of your conversation, put down the receiver to disconnect the call

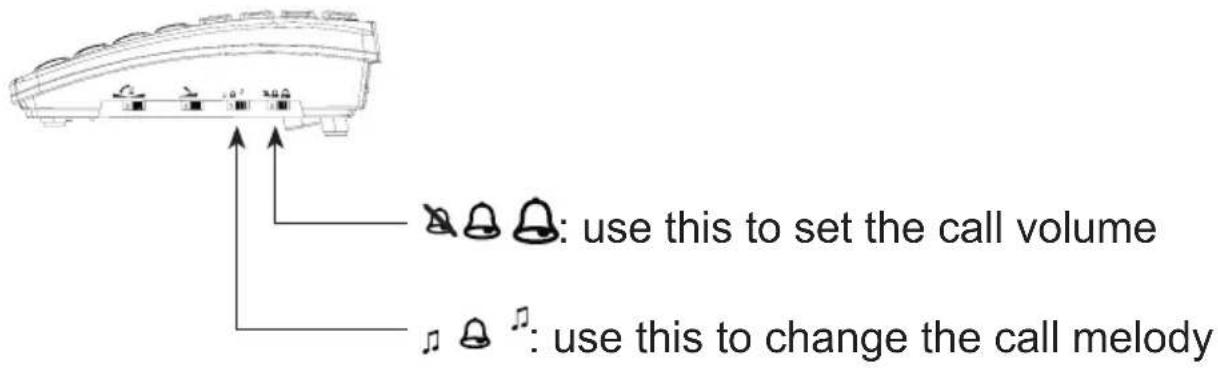

Call signal:

use this to set the call volume use this to change the call melody

Redialling:

pick up the receiver and press the ○ button to redial the last dialled number

Photo dialling:

pick up the receiver and press the desired photo button to dial the corresponding number (see page 13 for programming the photo buttons)

Memory dialling:

pick up the receiver

press 1x the M... button

1 2 3 4 5 6 7 8 9 0

press the desired memory button (0 \~ 9) to dial the corresponding memory number (see page 14 for programming the memories)

Call volume:

ATTENTION: EXCESSIVE VOLUMES CAN LEAD TO HEARING LOSS. IF SHARING THE PHONE WITH MULTIPLE USERS, ALWAYS TURN THE CONTROL BACK TO 0 AFTER EVERY CONVERSATION.

use the rotary control underneath the receiver to adjust the receiver sound

press the +24dB button to amplify the sound to 24dB (you can use this in combination with the rotary control 3 4 5)

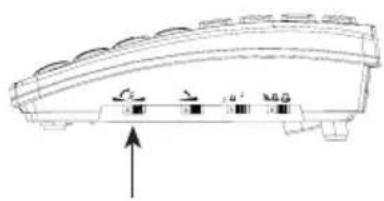

Pitch:

Technical line drawing of a curved mechanical component with mounting holes and internal features (no text or symbols)

use the slide control to adjust the pitch of the receiver sound

Technical line drawing of a curved electronic device with labeled ports and an upward arrow indicator (no text or symbols present)

use the slide control to slightly lower the microphone signal (slide to the left) or to amplify it (slide to the right); slide to the middle for a neutral microphone volume

Extra functions:

'asterisk' and 'pound' buttons:

the * and # buttons are used mainly for tele-banking:

• press the * button when asked to press the ASTERISK button
• press the # button when asked to press the POUND button

R button:

you can use the R button to accept or start a 2nd call

keep in mind that this service is not offered by every telephone service provider and that it most likely requires an additional subscription

when connected to a switchboard, you can also use this button to forward calls; for this, refer to the user manual of your telephone switchboard or the installer

dial pause:

press the 🔊 button to insert a dialling pause

MEMORIES

Your phone has a memory capacity for 6 phone numbers to be stored under the photo buttons and 10 number memories to be stored under the dial buttons 0-9.

Programming photo buttons:

Pick up the receiver and put it next to your phone

press 1x the button

use the keypad to input the desired phone number (press the o button to insert a pause)

press 1x the button

press the photo button under which you'd like to save the number

put the receiver back onto the phone

Programming number memories:

Pick up the receiver and put it next to your phone

press 1x the ➕ button

use the keypad to input the desired phone number (press the o button to insert a pause)

press 1x the ➕ button

press one of the 0-9 buttons to save the number

put the receiver back onto the phone

Dialling photo buttons:

pick up the receiver

press the photo button to dial the corresponding assigned number

Dialling number memories:

pick up the receiver

press 1x the M... button

press one of the 0-9 buttons to dial the corresponding assigned phone number

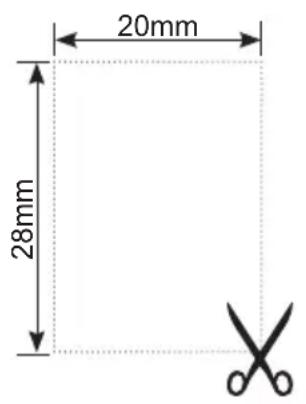

Replacing photos of photo buttons:

20mm 28mm

the frames of the photo buttons are provided with an indentation at the sides; use this indentation to lift up the frames with your fingernail

cut your photos to the dimensions 20mm wide x 28mm high

put your photo on the phone and replace the frame over this button

instead of photos, you can also use logos or icons (for example, a red cross for your doctor, a police car for the police, etc.).

Tips and remarks:

The phone uses the voltage of the telephone connectors to store the memories, which means you don't need to insert batteries. However, make sure to keep the phone connected at all times. A brief interruption, e.g. for quickly moving the phone, is possible without losing the memories.

A memory number may contain up to a maximum of 32 digits.

In addition to normal phone numbers, you can also store the numbers of mobile phones.

Editing or deleting:

• You can change a number by programming the new number over the old number. This will overwrite and delete the old number.
• You can delete a number by programming a non-existing number (e.g. 0000) over the old number. This will overwrite and delete the old number.

TIPS AND WARNINGS

General:

• Read the user manual carefully and follow all instructions.
• Always disconnect the phone plug from the phone socket before cleaning your phone.
• Never place or use the phone in a wet or moist room or environment.
  • Take care of proper heat dissipation; never cover the phone and do not place them directly beside a heat source.
  • Take care that the cable of the phone and the adapter do not get damaged, and prevent that they cause tripping or falling.
• Never disassemble the phone. This may only be done by qualified personnel.

Installation:

• Connect or disconnect the cables of the phone only to the base station when the power supply adapter has been unplugged from the mains socket, and the phone connector has been disconnected from the phone socket.
• Do not install the phone during a lightning storm.
• Do not install a phone connection point in a wet or moist environment.
• Do not touch uninsulated phone, unless they are disconnected from the phone network or the mains power.

Environment:

The packaging of this telephone can be collected as old paper. However, we recommend you to save it, to adequately protect the phone during transport. When replacing this telephone, please return it to the supplier to ensure environment-friendly processing.

WARRANTY

For the Profoon TX-560 you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors. All this subjected to the final assessment of the importer.

HOW TO HANDLE: If you notice any defect, first refer to the user's manual. If the manual provides no definite answer, please contact the supplier of this baby video monitor or contact customer service of Profoon on www.profoon.com

THE WARRANTY BECOMES NULL AND VOID: In case of improper use, incorrect connections, leaking and/or incorrectly installed batteries, use of unoriginal parts or accessories, negligence and in case of defects caused by moisture, fire, flooding, lightning and natural disasters. In case of unauthorised modifications and/or repairs performed by third parties. In case of incorrect transportation of the device without adequate packaging and when the device is not accompanied by this warranty card and proof of purchase.

The warranty does not cover connecting cables, plugs and batteries. All further liability, especially concerning any consequential damages, is excluded.

Profoon®

Service Help

WWW.PROFOON.COM

[e-mail]

Commaxx B.V.

Wiebachstraat 37

6466 NG, Kerkrade

The Netherlands
