USER MANUAL Orbit Pacer 16 Bremshey

OWNER'S MANUAL P. 2-7

MANUALE D'USO P.26-31

MANUAL DEL USUARIO P. 32-37

BRUKSANVISNING S. 38-43

KÄYTTÖOHJE S. 44-49

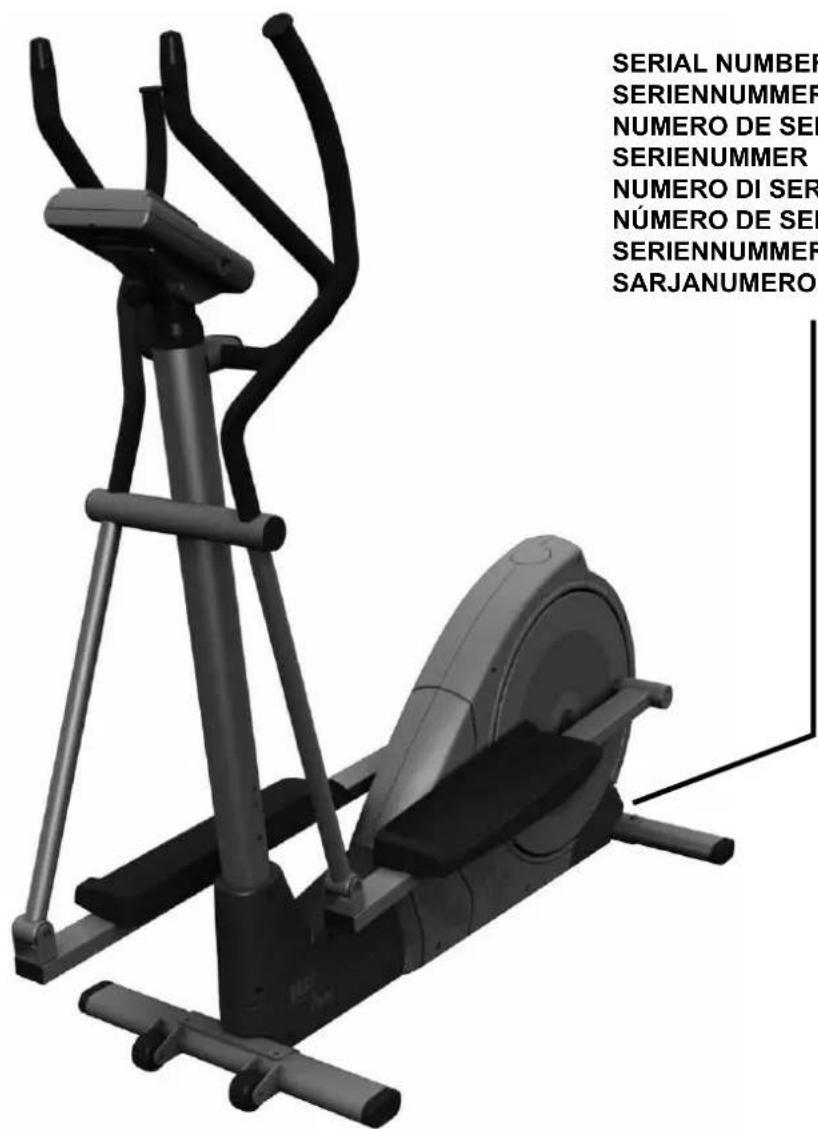

SERIAL NUMBER SERIENNUMMER NUMERO DE SER SERIENUMMER NUMERO DI SER NÚMERO DE SER SERIENNUMMER SARJANUMERO

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ......2

ASSEMBLY 50

EXERCISING 4

CONSOLE 5

MAINTENANCE 7

TRANSPORT AND STORAGE....7

TECHNICAL SPECIFICATIONS ....7

IMPORTANT SAFETY INSTRUCTIONS

Read this guide through carefully before assembling, using or servicing your fitness equipment. Please keep the guide somewhere safe; it will provide you now and in the future with the information you need to use and maintain your equipment. Always follow these instructions with care.

YOUR HEALTH

• Before you start any training, consult a physician to check your state of health.
• If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.
• To avoid muscular pain and strain, begin each workout by warming up and end it by cooling down (slow pedaling at low resistance). Don't forget to stretch at the end of the workout.

EXERCISING ENVIRONMENT

• The equipment is not to be used outdoors.
• Place the equipment on a firm, level surface. Place the equipment on a protective base to avoid any damages to the floor beneath the equipment.
• Make sure that the exercising environment has adequate ventilation. To avoid catching cold, do not exercise in a draughty place.

- In training, the equipment tolerates an environment measuring +10°C to +35°C. The equipment can be stored in temperatures ranging between -15°C and +40°C. Air humidity in the training or storage environment must never exceed 90%.

USING THE EQUIPMENT

• If children are allowed to use the equipment, they should be supervised and taught to use the equipment properly, keeping in mind the child's physical and mental development and their personality.
• Before you start using the equipment, make sure that it functions correctly in every way. Do not use a faulty equipment.
• Press the keys with the tip of the finger; your nails may damage the key membrane.
• Never lean on the interface.
• Never remove the side covers. Do not step on the frame casing.
• Only one person may use the equipment at a time.
• Hold the stationary handlebar for support when getting on or off the equipment.
• Wear appropriate clothing and shoes when exercising.
• Protect the meter from sunlight and always dry the surface of the meter if there are any drops of sweat on it.
• The equipment has been designed for home use. The Bremshey Sport warranty applies only to defects and malfunctions in home use (24 months). Further information on warranty terms can be obtained from your national Bremshey Sport distributor. Please note that the warranty terms may vary from one country to another.
• Please note that the warranty does not cover damage due to shipping or negligence of adjustment or maintenance instructions described in this manual.

- The equipment must not be used by persons weighing over 135 kg.

- Make sure the equipment is unplugged before carrying out any assembly or maintenance procedures.

- Do not attempt any servicing or adjustments other than those described in this guide. Everything else must be left to someone familiar with the maintenance of electromechanical equipment and authorized under the laws of the country in question to carry out maintenance and repair work.

- This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER:

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THIS INSTRUCTION MANUAL

NOTE ABOUT SAFETY FOR UNITS WITH ELECTRICAL POWER

Before connecting the equipment to a power source, make sure that the local voltage matches that indicated on the type plate: the equipment operates at either 230 v or 115 v (north american version). Note! The equipment must be connected to a grounded wall socket. Do not use extension wires when connecting the equipment to the power source. Always switch off the power and unplug the equipment from the electrical outlet immediately after using!

To reduce the risk of burns, fire, electric shock or injury to persons:

1. The equipment should never be left unattended when plugged in. Unplug the equipment from the outlet when not in use, before carrying out any maintenance or repair procedures, and before moving the unit.

2. Do not operate the equipment under a blanket or other combustive material. Excessive heating can occur and cause fire, electric shock or injury to persons.

3. Do not connect the equipment to a power source, or operate the equipment if there is any sort of damage to the power cord or the unit itself.

4. Do not connect the equipment to a power source or operate the equipment outdoors or in damp locations.

5. Keep the power cord away from hot objects.

6. Do not route the power cord beneath a carper or place any objects on the cord. Also make sure that the power cord does not run underneath the equipment.

7. Do not alter (for example lengthen) the cord between the transformer and the unit.

NOTE ABOUT ASSEMBLING THE EQUIPMENT

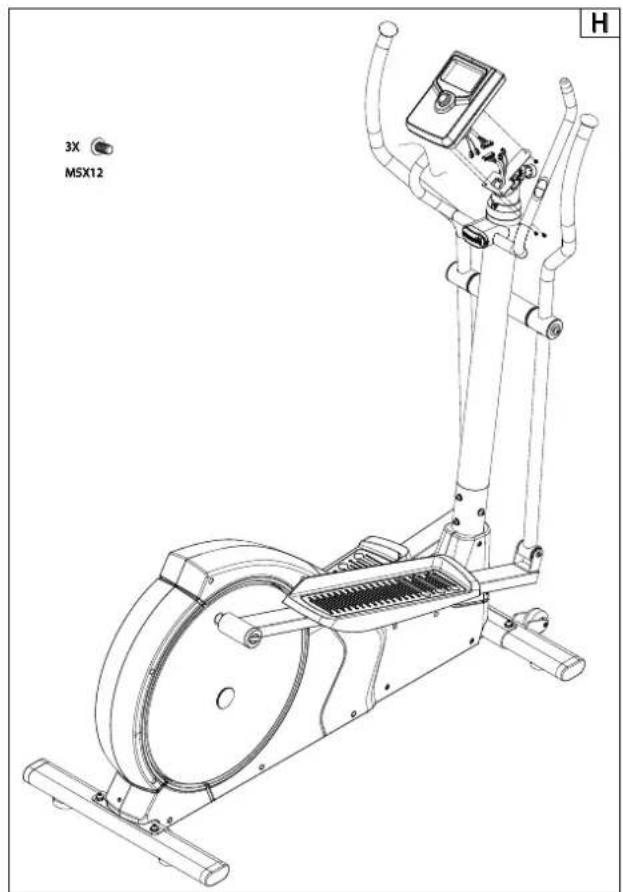

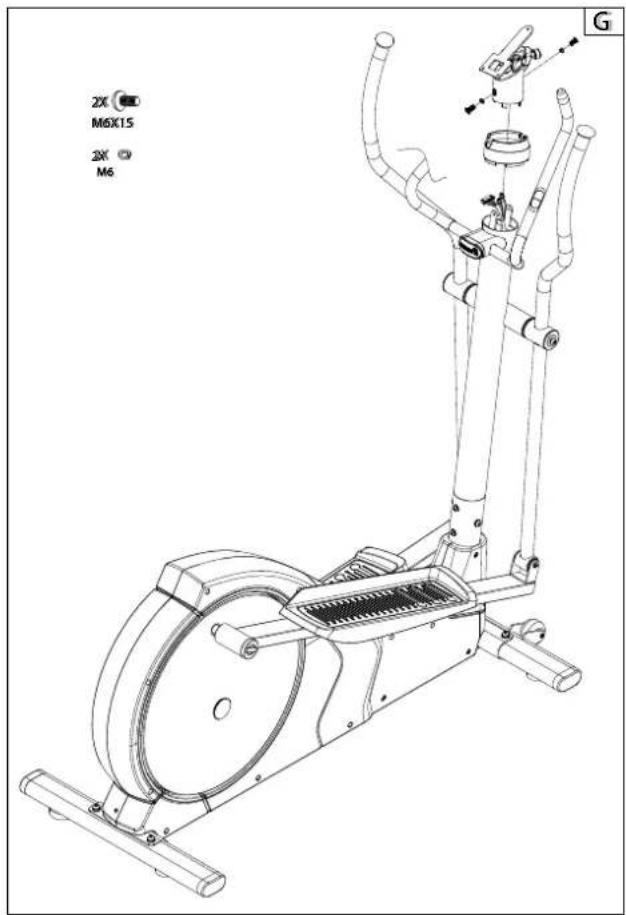

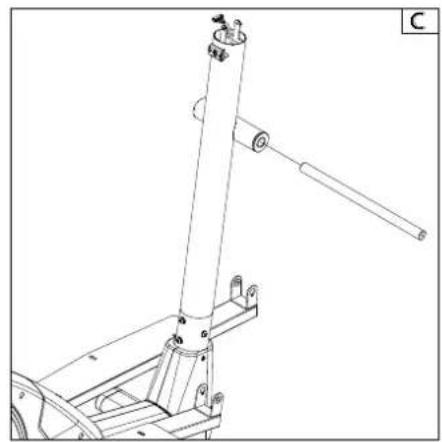

Start by unpacking the equipment. The detailed assembly instructions can be found at the back of this guide. Follow the instructions in given order.

Before assembly, check the contents of the package. If a part is missing, please contact your dealer with the model, equipment serial no. and spare part no. of the missing part. You'll find a spare part list at the back of this guide. The

hardware kit contents are marked with * in the spare parts list. The directions left, right, front and back are defined as seen from the exercising position. Keep the assembly tools, as you may need them e.g. for adjusting the equipment. Note that two people are needed for the assembly.

The packaging includes a silicate bag for absorbing moisture during storage and transportation. Please dispose of the bag once you have unpacked the equipment. Allow at least 100 cm of clearance around the equipment. We also recommend opening the package and assembling the product on a protective base.

WELCOME TO THE WORLD OF

BREMSHEY SPORT EXERCISING!

Your choice shows that you really want to invest in your well being and condition; it also shows you really value high quality and style. With Bremshey Sport Fitness Equipment, you've chosen a high quality, safe and motivating product as your training partner. Whatever your goal in training, we are certain this is the training equipment to get you there. You'll find information about using your exercise equipment and what makes for efficient training at Bremshey Sport's website at W W W. ACCELLFI TNESS.CO M.

EXERCISING

Working out using an elliptical trainer is excellent aerobic exercise, the principle being that the exercise should be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. The ability of the body to burn fat as a fuel is directly dependent on its oxygen-uptake capacity. Aerobic exercise should above all be pleasant. You should perspire, but you should not get out of breath during the workout. You must, for example, be able to speak and not just pant while pedaling.

You should exercise at least three times a week, 30 minutes at a time, to reach a basic fi tness level. Maintaining this level requires a few exercise sessions each week. Once the basic condition has been reached, it is easily improved simply by increasing the number of exercise sessions. Exercise is always rewarding for weight loss, because it is the only way of increasing the energy spent by the body. This is why it is always worthwhile to combine regular exercise with a healthy diet. A dieter should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour.

You should start slowly at a low pedaling speed and low resistance, because for an overweight person strenuous exercise may subject the heart and circulatory system to excessive strain. As fitness improves, resistance and pedaling speed can be increased gradually. Exercise efficiency can be measured by monitoring the pulse. The pulse meter helps you monitor your pulse easily during exercise, and thus to ensure that the exercise is sufficiently effective but not over-strenuous. Start your workout with slow tempo and low resistance. Gradually increase tempo and resistance according to your own condition. Keep your head up and neck long in order to avoid stress on your neck, shoulders and back. Keep also your back straight. Make sure that your feet are centered on the foot pedals and that your hips, knees, ankles and toes are facing forward. Keep your body weight centered over your lower body regardless of whether you lean forward or stand upright. Stop your workout by gradually decreasing tempo and resistance.

Don't forget to stretch afterwards. To strengthen cardiovascular system, maintain low resistance but high tempo. Exercising with higher resistance and slow tempo strengthens correspondingly your back and hips.

HEART RATE

No matter what your goal, you'll get the best results by training at the right level of effort, and the best measure is your own heart rate.

The Pacer meter has a heart rate receiver compatible with Polar equipment, so you can also use Polar uncoded heart rate transmitter belts for heart rate measurement.

NOTE! If you are fitted with a pacemaker, please consult a physician before using a heart rate transmitter belt.

The most reliable heart rate measurement is achieved with a telemetric device, in which the electrodes of the transmitter fastened to the chest transmit the pulses from the heart to the console by means of an electromagnetic field. If you want to measure your heart rate this way during your workout, moisten the grooved electrodes on the transmitter belt with saliva or water. Fasten the transmitter just below the chest with the elastic belt, firmly enough so that the electrodes remain in contact with the skin while exercising, but not so tight that normal breathing is prevented. If you wear the transmitter and belt over a light shirt, moisten the shirt slightly at the points where the electrodes touch the shirt. The transmitter automatically transmits the heart rate reading to the console up to a distance of about 1 m.

If the electrode surfaces are not moist, the heart-rate reading will not appear on the display. If the electrodes are dry, they must be moistened again. Allow the electrodes warm up properly to ensure accurate heart rate measurement. If there are several telemetric heart rate measurement devices next to each other, the distance between them should be at least 1.5 m. Similarly, if there is only one receiver and several transmitters in use, only one person with a transmitter should be within transmission range. the transmitter is switched to an active state only when it is being used for measurement. sweat and other moisture can, however, keep the transmitter in an active state and waste battery energy. therefore it is important to dry the electrodes carefully after use.

When selecting training attire, please note that some fibers used in clothes (e.g. polyester, polyamide) create static electricity, which may prevent reliable heart rate measurement. Please note that a mobile phone, television and other electrical appliances form an electromagnetic field around them, which will cause problems in heart rate measurement.

HAND GRIP PULSE MEASUREMENT

(HGP-VERSION)

Pulse is measured by sensors in the handlebars. Pulse is measured when the user of Pacer is touching both sensors simultaneously. Reliable pulse measurement requires that the skin is constantly touching the sensors and that the skin is slightly moist. Too dry or too moist skin weakens the reliability of hand pulse measurement.

HEART RATE IN TRAINING

First find your maximum heart rate i.e. where the rate doesn't increase with added effort. If you don't know your maximum heart rate, please use the following formula as a guide:

220 - AGE

The formula gives an average value, the maximum varies from person to person. The maximum heart-rate diminishes on average by one point per year. If you belong to a risk group, ask a doctor to measure your maximum heart rate for you.

We have defined three different heart-rate zones to help you with targeted training.

BEGINNER ● 50-60 % of maximum heart-rate

Also suitable for weight-watchers, convalescents and those who haven't exercised for a long TIME. Three sessions a week of at least a half-hour each is recommended. Regular exercise considerably improves beginners' respiratory and circulatory performance and you will quickly feel your improvement.

TRAINER ● 60-70 % of maximum heart-rate

Perfect for improving and maintaining fitness. Even reasonable effort develops the heart and lungs effectively, training for a minimum of 30 minutes at least three TIMES a week. To improve your condition still further, increase either frequency or effort, but not both at the same time!

ACTI V E TR AINER ● 70-80 % of maximum heart-rate

Exercise at this level suits only the fittest and presupposes long-endurance workouts.

CONSOLE

BUTTONS

1. SELECTION DIAL

The selection dial functions in two ways:

A) Rotating the dial (+ / -). By rotating the dial clockwise, you can scroll the menus to the right, and increase values or resistance. By rotating the dial counter-clockwise, you can scroll the menus to the left, and decrease values or resistance.

B) Pressing the dial (ENTER). By pressing the dial, you can accept the selection you made when rotating the dial.

2. START/STOP

Starts, pauses, and stops training. During training, pressing this button once activates the pause mode. Pressing the button again starts the program again.

3. RESET

Single push: return to the program menu. Long push: restarts the meter.

4. RECOVERY

Calculates your recovery heart rate index.

DISPLAY

Small window: Time (mm:ss), speed (km/h or ml/h), RPM (revolutions per min), distance (km or ml), energy consumption (kcal), heart rate (bpm) and power (W) are displayed.

Big window: Starts to automatically scan between the values of time – speed – RPM – distance – energy – heart rate – power every 6 seconds. Scanning can be stopped by pressing ENTER button. By pressing ENTER again you can change the big window to display information for the next value.

PROGRAMS

1. MANUAL PROGRAM

Set target time and/or distance and/or energy consumption and/or upper heart rate limit by using the SELECTION DIAL.

Start training by pressing START/STOP button. If you have set target/targets, the target/targets start to count down. Adjust resistance with SELECTION DIAL.

2. PRESET PROGRAMS

Preset program profile is shown for two seconds while programs are browsed. Select desired preset program by using the SELECTION DIAL.

Set time for training and/or target distance and/or energy and/or upper heart rate limit by SELECTION DIAL.

Start training by pressing START/STOP button.

If you have set target/targets, the target/targets start to count down. During training you can scale the load by SELECTION DIAL.

3. USER PROGRAM

The program profile used last time is displayed. You can either start training with your personal memorized training targets by pressing START/STOP or modify the program. The program profile bar (1/20) that can now be modified blinks. If you want to change, modify the blinking bar and confirm. Next bar will blink. After the last bar, the display switches back to the first bar. By pressing the ENTER button for 2 seconds you can finish the profile modifying. Now program is ready with your memorized personal training data (time, distance, energy targets and heart rate limit). Modify your targets if needed. Start training by pressing START/STOP button.

If you have set target/targets, the target/targets start to count down. During training you can scale the load by SELECTION DIAL

4. HEART RATE CONTROL (H.R.C.)

Select your age and confirm. Select between four different training intensities (55%, 75%, 90% or TARGET.) By selecting TARGET you can insert target heart rate.

Start training by pressing START/STOP button. If you have set target/targets, the target/targets start to count down.

During the training the equipment will automatically adjust the resistance so that your heart rate target will be reached and maintained.

5. CONSTANT WATT

Set target power in watts and target time and/or distance and/or energy consumption and/or upper heart rate limit by SELECTION DIAL.

Start training by pressing START/STOP button.

If you have set target/targets, the target/targets start to count down. During training the equipment will adjust resistance dependently on your pedaling speed, so that target power level is achieved and

maintained. You can change the target power by SELECTION DIAL.

6. RECOVERY

Start the recovery calculation after training by pressing RECOVERY button. Recovey heart rate calculation can be started only if the heart rate measurement is activated and the heart rate value is shown on the display. The measurement takes 60 seconds. After 60 seconds, the display shows your recovery index F1-F6 (F1 = best result). To get back to main menu, press RECOVERY button once again.

SETTING USER DATA

Right after restarting the meter you can choose the user. Select the user and confirm. Personal exercise data (time, distance, energy, heart rate limit and age) will be memorized and recalled as defaults every time when the user is selected.

ADDITIONAL NOTES

1. For speed and distance you can choose either metric or English units by using the KM/ML switch located on the back cover of the meter. The power cord has to be unplugged and replugged to apply the change.

2. If you are not training and buttons are not pressed, the meter switches into the Sleep mode after about four minutes. Room temperature is displayed.

3. Training is paused for a maximum of 4 minutes by pressing the START/STOP button. Pressing the button again allows you to continue the paused training session using the previous training data.

4. Entering training targets (time, distance, energy, heart rate limit) is possible only in the STOP mode (not during training).

5. This equipment cannot be used for therapeutic purposes.

6. Energy consumption is calculated based on average values. The energy expenditure is displayed in kilocalories. To convert this into joules, use the formula: 1 Kcal = 4.187 KJ.

7. If you are training with heart rate measurement (either chest belt or handgrip heart rate) you can set maximum heart rate limit. When limit is exceeded while training meter will give alarm beeps.

8. Preset programs are divided into 20 steps. Duration of the one step depends on the time set for the whole training. If time is not set, duration of one step will be 100 m in distance.

9. If you have set targets to count down, a signal sounds and training automatically stops when any of target reaches zero. You can restart training by pressing START/STOP.

10. Note that recovery index is in relation to the heart rate frequency in both the beginning and the end of the measurement.

11. In H.R.C program heart rate target ranges (55%, 75% and 90%) are calculated as percent from your age predicted maximum heart rate (calculation formula: maximum heart rate = 220 - age).
12. Automatic adjustment of the resistance during H.R.C program occurs upwards every 30 seconds and downwards every 15 seconds, if needed.

MAINTENANCE

The equipment requires very little maintenance. Check, however, from time-to-time that all screws and nuts are tight.

● After exercising, clean the equipment with a soft, absorbent cloth. Do not use solvents.
- Never remove the equipment's protective casing.
● The electromagnetic brake forms a magnetic field that may damage the mechanism of a watch, or the magnetic identification strip on a credit or cash card, should they come into immediate contact with the magnets. Never attempt to detach or remove the electromagnetic brake!
- The electromagnetic brake is based on electromagnetic resistance; resistance level is electronically measured and shown as watt reading on the display. Due to the measurement system, your Bremshey Sport crosstrainer need not be re-calibrated when assembled, serviced and used according to this Owner's Manual.

MALFUNCTIONS

Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair, as it's usually sufficient to replace the defective part.

If the equipment does not function properly during use, contact your Bremshey Sport dealer immediately. Always give the model and serial number of your equipment. Please state also the nature of the problem, conditions of use and purchase date.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

TRANSPORT AND STORAGE

Please follow these instructions when carrying and moving the equipment about, because lifting it incorrectly may strain your back or risk other accidents:

Always switch the power off and unplug the power cord before you start moving the equipment

around!

For transportation or moving of the device, two grown-ups are needed. Remain standing in front of the device on each side and take a sturdy grip at the handles. Lift the front of the device so as to lift the rear of the device on the wheels. Move the device and carefully put it down to its new place.

NOTE! Transport the equipment with caution over uneven surfaces, for example over a step. The equipment should never be transported upstairs using the wheels over the steps, instead it must be carried. We recommend that you use a protective base when transporting the equipment.

To prevent the equipment malfunctioning, store in a dry place with as little temperature variation as possible and protected from dust.

TECHNICAL SPECIFICATIONS

Length 135 cm

Width 62 cm

Height 158 cm

Weight 57 kg

The Bremshey Sport Pacer meets the requirements of the EU's EMC Directives on electromagnetic compatibility (89/336/EEC) and electrical equipment designed for use within certain voltage limits (73/23/EEC). This product therefore carries the CE label.

The Bremshey Sport model Pacer meets EN precision and safety standards (Class A, EN-957, parts 1 and 9) for fitness devices. The precision of the capacity measurement is secured during manufacturing by adjusting the brake with a dynamometer. Calculation of exercise capacity is based on rotation speed and moment.

Due to our continuous policy of product development, Bremshey Sport reserves the right to change specifications without notice.

NOTE! The instructions must be followed carefully in the assembly, use and maintenance of your equipment. The warranty does not cover damage due to negligence of the assembly, adjustment and maintenance instructions described herein. Changes or modifications not expressly approved by Bremshey Sport will void the user's authority to operate the equipment!

WE WISH YOU MANY ENJOYABLE TRAININGS WITH YOUR NEW BREMSHEY SPORT TRAINING PARTNER!

INHALT

HANDSTÜTZEN (HGP-VERSION)

SENSORI NEL MANUBRIO

TRANSPORT OCH FÖRVARING ....43

TEKNISKA DATA 43

BRUKSANVISNING

TRANSPORT OCH FÖRVARING

	[IMAGE]
	D No.1-16 Ms.4mm Ear/face BcBtT4)
	X3W3
	REV0

B 4X M8X15 4X M8 4X M8X16X1.2

A 4X M8X58 4X M8 4X M8X16X1.2

Technical line drawing of a mechanical support structure with no visible text or symbols

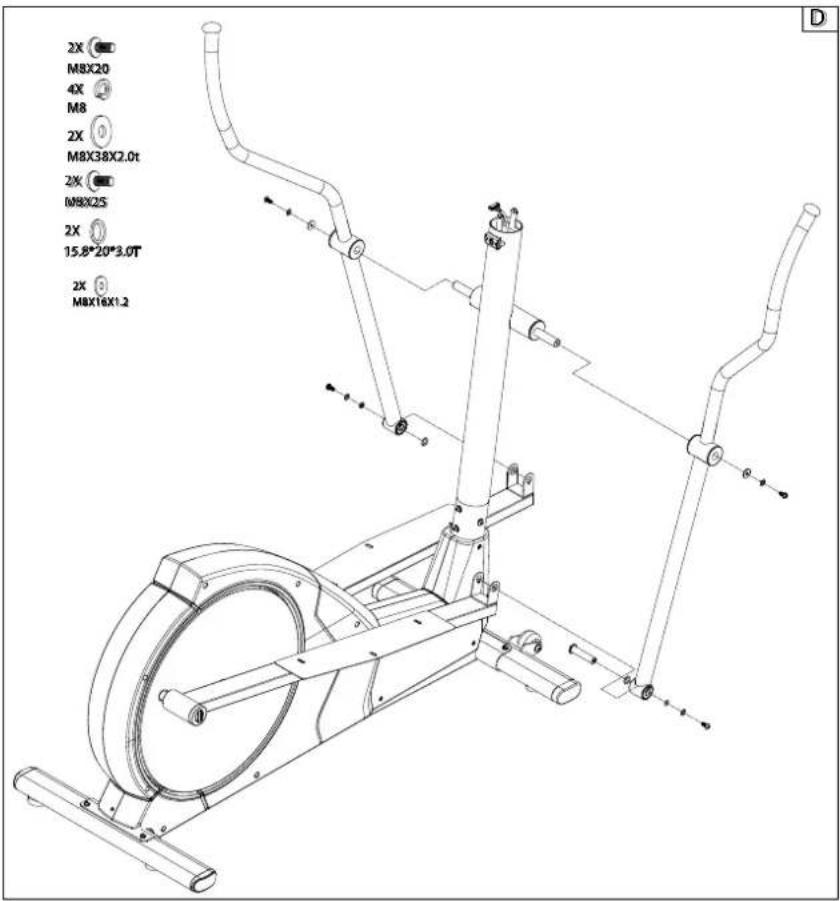

2X MSX20 4X M8 2X M8X38X2.0t 2X M8X2S 2X 15.8*20*3.0T 2X M8X16X1.2

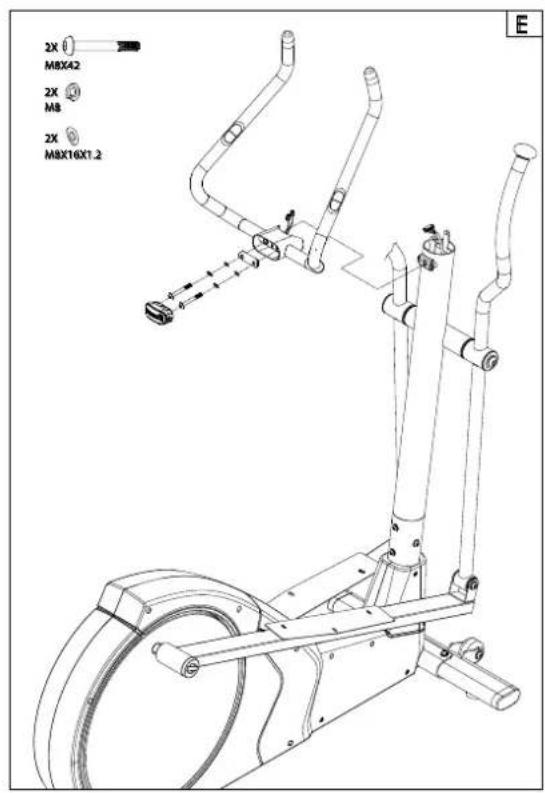

2X MBX42 2X MB 2X MBX16X1.2 E

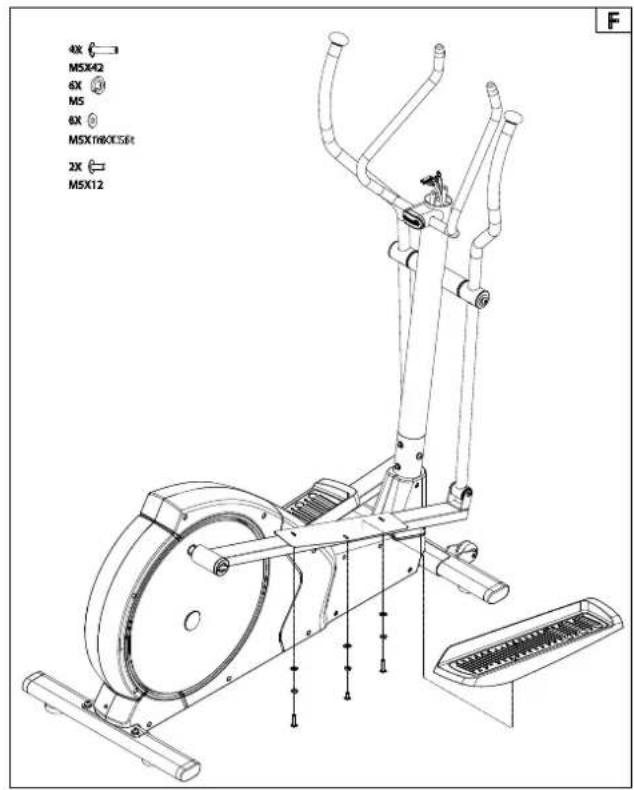

4X MSX42 6X MS 6X MSX180CX5E4 2X MSX12

2X M6X15 2X M6 G

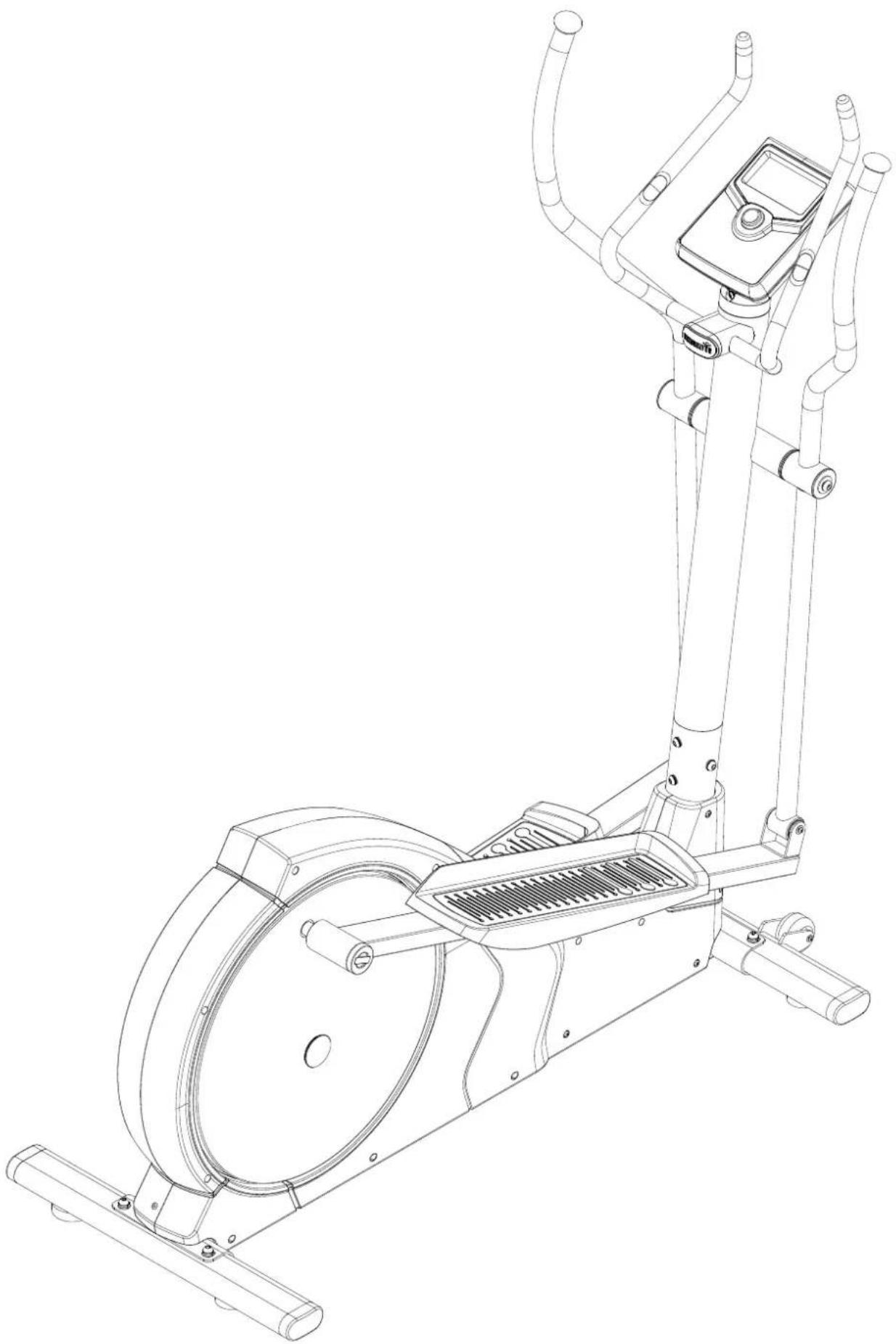

Line drawing of an exercise bike with labeled components (no text or symbols on the diagram itself)

Line drawing of a stationary exercise bike with visible components and wheels (no text or symbols)

PARTS LIST

1 BASE FRAME 1

2 UPRIGHT TUBE (incl. part 59) 1

3 MOVING HANDLE BAR (L) (incl. part 56,58,59,87) 1

4 MOVING HANDLE BAR (R) (incl. part 56,58,59,87) 1

5 PEDAL TUBE (L) (incl. part 46, 50, 55) 1

6 PEDAL TUBE (R) (incl. part 46, 50, 55) 1

7 FIXED HANDLEBAR (incl. part 62,86,95,98) 1

8 FRONT FOOT (incl. part 14,25,37,43,48,57,79,80) 1

9 REAR FOOT (incl. part 43,57,80)

10 CROSS FRAME 2

11 AXLE FOR PULLEY 1

12 AXLE FOR MOVING HANDLE BARS 1

13 PEDAL SHAFT 2

14 TRANSPORT WHEEL BUSHING 4

15 PEDAL TUBE BUSHING

16 FIXED HANDLE BAR BRACKET 1

17 METER BRACKET AXLE 1

18 METER BRACKET 1

19 MAGNET BOW 1

20 M8*15mm ISO 7380 ALLEN HEAD SCREW 4

21 M8*20mm ISO 7380 ALLEN HEAD SCREW 4

22 M8*25mm ISO 7380 ALLEN HEAD SCREW 2

23 M8*42mm ISO 7380 ALLEN HEAD SCREW 2

24 M8*58mm ISO 7380 ALLEN HEAD SCREW 4

25 M8*60mm ISO 7380 ALLEN HEAD SCREW 2

26 M6*18mm DIN 933 BOLT

27 M5*15mm DIN 7985 A SCREW 2

28 M6*15mm DIN 7985 A SCREW 2

29 M5*12mm DIN 7985 A SCREW 2

30 M5*42mm DIN 85 A SCREW 4

31 M5*20mm DIN 7981 C SELF TAPPING SCREW 16

32 M8*52mm DIN 931 BOLT 1

33 M6*12mm DIN 7981 C SCREW 1

34 M5*1,5mm DIN 125 A WASHER 6

35 M6*16*1.5 BK DIN 9021 WASHER BK 3

36 M8 DIN 985 NYLOC NUT 1

37 M8*16*1,2mm DIN 125 A WASHER 14

38 M8*22mm DIN 125 A WASHER 3

39 M8*38*2mm WASHER 2

40 15,8*20*3T WASHER 2

41 M5 DIN 127 B SPRING WASHER 6

42 SPRING 1

43 M4*15mm DIN 7981 C SCREW 8

44 M8 DIN 127 B SPRING WASHER 16

45 M8 DIN 137 A CURVE WASHER 2

46 PEDAL FRONT END CAP 2

47 M6 DIN 985 NYLOC NUT 5

48 M8 DIN 985 NYLOC NUT 2

49 3/8" TURNING PLATE AXLE NUT 2

50 40*1.75mm DIN 471 RETAINING RING 2

51 17*1mm DIN 471 RETAINING RING 3

55 SELF-ALIGN-BALL-BEARING 2

56 6002 ZZ BEARING 4

57 FOOT END CAP 4

58 MOVING HANDLEBAR END CAP 2

59 MOVING HANDLE BAR BUSHING 6

60 OVAL END CAP 1

61 SQUARE CAP for 30 x 70mm TUBE 1

62 FIXED HANDLEBAR END CAP 2

63 MAIN COVER(L) 1

64 MAIN COVER (R) 1

65 FRONT COVER (L) 1

66 FRONT COVER (R) 1

67 M6*14mm DIN 933 BOLT 3

68 TURNING PLATE 2

69 TURNING PLATE CAP 2

70 SPRING 1

71 M8*15mm DIN 933 BOLT 2

72 M6 DIN 985 NYLOC NUT 1

73 M6*1,2mm DIN 126 WASHER 1

74 M6 DIN 125 A NYLON WASHER 1

75 M6*65mm DIN 933 SCREW 1

76 PEDAL REAR END CAP 2

77 METER SOCKET (incl. part 17,18,27,38,81)

78 HEAD TUBE ADAPTOR 1

79 TRANSPORT WHEEL BR 2

80 HEIGHT ADJUSTMENT SCREW 5

81 ADJUSTMENT KNOB 1

82 PULLEY (inc. part 97) 1

83 BELT 1

84 WIRE ROD

85 MAGNET ADJUSTMENT BRACKET 1

86 FIXED HANDLEBAR FOAM 2

87 MOVING HANDLEBAR FOAM 2

88 SENSOR BRACKET 1

89 USER INTERFACE 1

90 SERVO MOTOR 1

91 UPPER U.I. CABLE 1

92 PEDAL, LEFT 1

93 SENSOR WIRE 1

94 DC WIRE 1

95 HAND PULSE WIRE 2

96 ADAPTOR - 6V/500mA 1

97 MAGNET 1

98 HAND PULSE SET W/O WIRE 2

99 PEDAL, RIGHT 1

100 M6*10mm DIN 7985 A SCREW 4

101 6203 ZZ BEARING 4

102 M6*2T DIN 127 B SPRING WASHER 2

103 FLYWHEEL SET (incl. part 104-108) 1

104 6001 ZZ BEARING 2

105 FLYWHEEL AXLE 1

106 12*1mm DIN 471 RETAINING RING 2

107 M10*2mm DIN 1440 WASHER 2

108 3/8" FLYWHEEL AXLE NUT 2

109 IDLE WHEEL BRACKET (incl. part 51,70,101) 1

110 SPACER SLEEVE 3

111 M5*12mm DIN 7985 A SCREW 3

112 M8 DIN 126 WASHER 2

113 M8 DIN 127 B SPRING WASHER 2

- HARDWARE KIT 1

- OWNER'S MANUAL 1

- WARRANTY BOOKLET 1

- LABEL SET 1

Technical schematic diagram of a mechanical device with numbered components and exploded views

08BRC40X50

Technical schematic diagram of a mechanical assembly with numbered components and dimension annotations

BREMSHEYU SPORT®

Benelux

accell Fitness Benelux

Koningsbeltweg 51

1329 AE ALMERE

The Netherlands

Tel: [phone]

Fax: + 31 36 5460055

Scandinavia

Accell Fitness Scandinavia

Varusmestarintie 26

20361 TURKU

Finland

Tel: [phone]

Fax: [phone]

Germany

Accell Fitness United Kingdom

Boland House

Nottingham South Industrial Estate

Ruddington Lane

Wilford

Nottingham NG11 7EP

United Kingdom

Tel: [phone]

Fax: [phone]

North America

Accell Fitness North America Inc.

130 Hayward Ave, Suite 2

N2C 2E4

Kitchener, ON Canada

Tel. [phone]

Fax: [phone]

www.accellfitness.com
