JL037006NPF - Swimming gear JILONG - Free user manual and instructions

Product Type	Inflatable Swimming Gear
Brand	JILONG
Model	JL037006NPF
Operating Pressure	0.03 bar
Maximum Load	80 kg
Number of Users	1 adult
Recommended Use	Pool only
Safety Distance from Shore	10 meters
Main Functions	Flotation Stability
Inflation	Manual or foot pump
Maintenance	Clean with fresh water, store in shade
Storage	Temperature above 5°C, out of direct sunlight
Safety	Does not protect against drowning, constant supervision of children
Included Spare Parts	Repair patch
Repairability	Small punctures repairable with patch or silicone adhesive
Prohibitions	Prohibited for children under 14 years, no diving, no jumping

Frequently Asked Questions - JL037006NPF JILONG

How to inflate the product?

Use a manual or foot pump. Do not use high-pressure air. Do not inflate by mouth. Inflate all air chambers completely and close the valves.

What is the maximum supported load?

The maximum load is 80 kg. Distribute the mass evenly.

Can I use this product in the sea?

No, this product is designed for pool use only. Do not use in currents or offshore winds.

How to repair a leak?

Locate the leak, deflate and dry the area. Apply the provided repair patch pressing firmly. Let dry for 24 hours before reuse. For leaks larger than 2.5 cm, use a silicone or rubber-based adhesive.

What safety precautions should I take?

Always supervise children in the water. Do not dive or jump from the product. Does not protect against drowning. Appoint a safety supervisor. Prohibit rough play.

How to clean and maintain the product?

Clean with fresh water only. Do not use alkaline or acidic detergent. Let dry in the shade before storing.

Where to store the product after use?

Store in a cool, shaded place, inside the original packaging. Avoid temperatures below 5°C. Do not fold sharp objects into the packaging.

How many people can use the product simultaneously?

The product is designed for 1 adult. Children are not allowed to use it alone.

What is the minimum recommended age?

The product is prohibited for children under 14 years. An adult must always supervise.

What is the recommended inflation pressure?

The operating pressure is 0.03 bar. Do not over-inflate to avoid damaging the product.

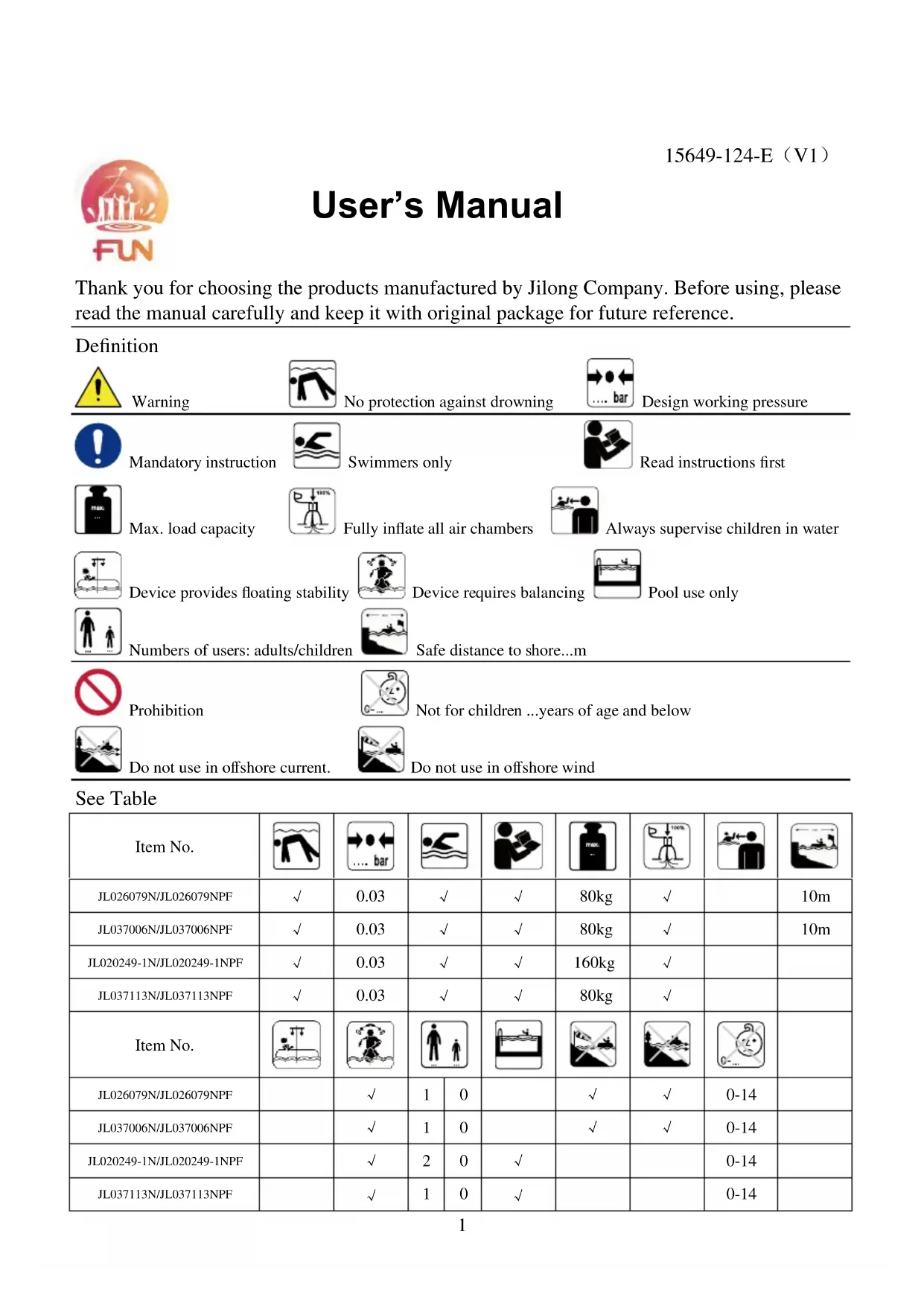

USER MANUAL JL037006NPF JILONG

Thank you for choosing the products manufactured by Jilong Company. Before using, please read the manual carefully and keep it with original package for future reference.

Definition

Warning

No protection against drowning

Design working pressure

Mandatory instruction

Swimmers only

Read instructions first

Max. load capacity

Fully inflate all air chambers

Always supervise children in water

Device provides floating stability

Device requires balancing

Pool use only

Numbers of users: adults/children

Safe distance to shore...m

Prohibition

Not for children ...years of age and below

Do not use in offshore current.

Do not use in offshore wind

See Table

Item No.		... bar
JL026079N/JL026079NPF	✓	0.03	✓	✓	80kg	✓		10m
JL037006N/JL037006NPF	✓	0.03	✓	✓	80kg	✓		10m
JL020249-1N/JL020249-1NPF	✓	0.03	✓	✓	160kg	✓
JL037113N/JL037113NPF	✓	0.03	✓	✓	80kg	✓
Item No.
JL026079N/JL026079NPF		✓	1	0		✓	✓	0-14
JL037006N/JL037006NPF		✓	1	0		✓	✓	0-14
JL020249-1N/JL020249-1NPF		✓	2	0	✓			0-14
JL037113N/JL037113NPF		✓	1	0	✓			0-14

SAFETY ADVICES:

1. Designate a person to be in charge of safety.
2. More supervision efforts are required when there are several persons inside the product.
3. If possible, teach your child to swim.
4. Wet the neck, arms and legs before child enter the water.
5. Prohibit running or active games on product edges.
6. The children not good at swimming or unattended must wear life vest.
7. Never put toys nearby and upside the unattended product.
8. Read the manual and follow the instructions relating to safety tips, correct and complete product.
9. For your own safety, always heed the advice and warnings in these instructions.
10. Teach the child the self-rescue actions.
11. Non-compliance with these operating instructions may expose you to serious danger. Only use the product in the places and conditions for which it is intended.
12. Not suitable for non-swimmers! Do not use if an offshore wind is blowing! Do not use in areas subject to currents! Does not protect against drowning! Do not swim under the frame! Do not jump unless the area is clear! Do not use in breaking waves! Do not leave the air tube deflated! Supervise children at all times.
13. When accident occurs: Pull the child out of water as early as possible. Change the wet clothes and cover the child with warm blanket. Ask for help and act according to the method told to you.
14. Remember first-aid number and post it near the product.
15. Distribute the weight of load and accessories evenly so that the product use level fore to aft and side to side.

,! WARNING! Keep away from fire. Do not use around sharp objects. Do not dive or jump.

USING INSTRUCTION:

1. Choose a flat ground make sure there are no stone, gravel, glass, and any other sharp and edgy objects.
2. Take out the product from package and check if any parts missing, unfold it on the ground, lay flat, locate and open inflation valve(s).
3. It is recommended that you use only a hand or foot pump for inflation.

Caution: Do not use the high-pressure air to inflate! Do not over-inflate! Never image to inflate the products with mouth, as it will be so much difficult.

1. Slowly Inflate all parts and accessories until full one by one. Close and press all valves tightly after inflation to firm and supportive.

CAUTION: It needs one adult to set up the product and it will let you quickly use the product within 10 minutes.

NOTE: When using this product, ensure that the valves are accessible to the user and remain out of the water.

1. After use, open and squeeze valves to release air, or insert a slim object such as a deflation tube to hold valve inner stopper open. Being careful not to puncture your product or force air out of product. Allow air to escape slowly and naturally.

STORAGE AND MAINTENANCE

Clean the product with clear water, then leave it in shady and cool place for airing, fold it into original package and place it indoor for next use.

Pay attention to the fact that no sharp edges are shaped in the plastic foil while folding up the item. In winner, the pool is not allowed to be placed at a temperature that is below 5^ , otherwise the plastic film would be damaged.

Caution: Do not use the alkali or acid detergent to clean product! Do not leave product exposed under sunlight directly because it will shorten the using-life of product.

WARNING: Noncompliance of the maintenance rules may result in serious hazards for health and especially for the children.

Repair Patch Instructions

(Small pinhole and small puncture leaks can be repaired with the included repair patch)

a)Locate the leak place.
b) Deflate the air.
c) Clean the area surrounding the leakage and wipe up all water from the surface.
d) Take out the repair patch, cut it into required shape and size, which should be litter larger than the leaking area, put the patch on leaking area and press firmly.
e) You can use it again after 24 hours drying of the repaired position.

If the damage is bigger than 1" (2.5cm), we recommend using a Silicone or rubber based glue for repair. Please read warning statement on glue prior to use.

Shanghai Jilong Plastic Products Co. Ltd.

No. 460 Lanxue Road, Huanglou, Pudong Area, Shanghai, 201205, P.R. China

Tel: [phone] E-mail: [e-mail] Web: www.jilong.com
