19222 - Digital timer Rösle - Free user manual and instructions

Product type	Digital timer
Brand	Rösle
Model	19222
Power supply	2 CR2032 button cell batteries (3V)
Display	Large screen with red backlight
Clock mode	12h/24h integrated
Number of timers	2 independent (T1 and T2)
Maximum time per timer	10 hours
Display precision	Up to 9h59 in hours/minutes, beyond that in minutes/seconds
Alarm signal	Visual (flashing) and audible (continuous or intermittent)
Pre-alarm	5 minutes before the end for times > 15 minutes
Alarm duration	1 minute, then automatic stop
Extension after alarm	30 minutes without new setting
Mounting	Magnetic back for ferromagnetic surfaces
Housing material	Stainless steel plate, plastic
Non-slip feet	Silicone
Max mounting temperature	50 °C
Dimensions (approx.)	8 x 8 x 2 cm
Weight (with batteries)	Approx. 100 g
Care	Dry cloth, glass cleaner, do not immerse
Warranty	5 years (excluding batteries)
Standards	CE (89/336/EWG)

Frequently Asked Questions - 19222 Rösle

How to set the time on the Rösle 19222 timer?

Press the Set button for 3 seconds to enter time setting mode. Choose 12h or 24h display with the rotary knob, then confirm with Set. Set hours, minutes and confirm with Set at each step.

How to start the first timer (Timer 1)?

Turn the rotary knob clockwise until you see 00M:00S. Turn to set minutes, then press Set to confirm. To set seconds, repeat the operation. Press Set to start the countdown.

How to use the second timer (Timer 2)?

The first timer must be active. Turn the rotary knob clockwise to see 00M:00S for T2. Set the time as for T1. The audible alarm of T2 is an intermittent signal to distinguish it from T1.

How to stop the audible alarm?

Press the Set button to stop the audible signal. The timer continues to measure the overtime. To stop the timer completely, press Set again.

What is the maximum setting time for a timer?

The maximum setting is 9 hours and 59 minutes for a timer. Beyond that, the display automatically changes to hours and minutes.

Does the timer work with rechargeable batteries?

No, use only non-rechargeable CR2032 button cell batteries. Rechargeable batteries could damage the device.

How to clean the Rösle 19222 timer?

Clean it with a dry or slightly damp cloth. You can use a glass cleaner, but never spray into the openings. Do not immerse it in water or put it in the dishwasher.

Is the timer magnetic?

Yes, the back is magnetic and allows the device to be attached to ferromagnetic surfaces such as a refrigerator or hood. Note: the temperature must not exceed 50°C.

What to do if the screen shows nothing?

First check the batteries: open the compartment, make sure they are inserted correctly (observe polarity). Replace the batteries if necessary. If the problem persists, contact customer service.

How to recycle the timer at the end of its life?

Do not dispose of it in household waste. Take it to a recycling center or collection point for waste electrical and electronic equipment (WEEE). Used batteries must be disposed of separately.

USER MANUAL 19222 Rösle

T1 T2 AM PM 88:88 M S ROSLE

Batteriefachdeckel

Magnetfl äche

Silikonfüße

Pure electrical circuit lines without any symbols

T1 T2 AM PM 88:00 H M S

CR-2032 CR-2032

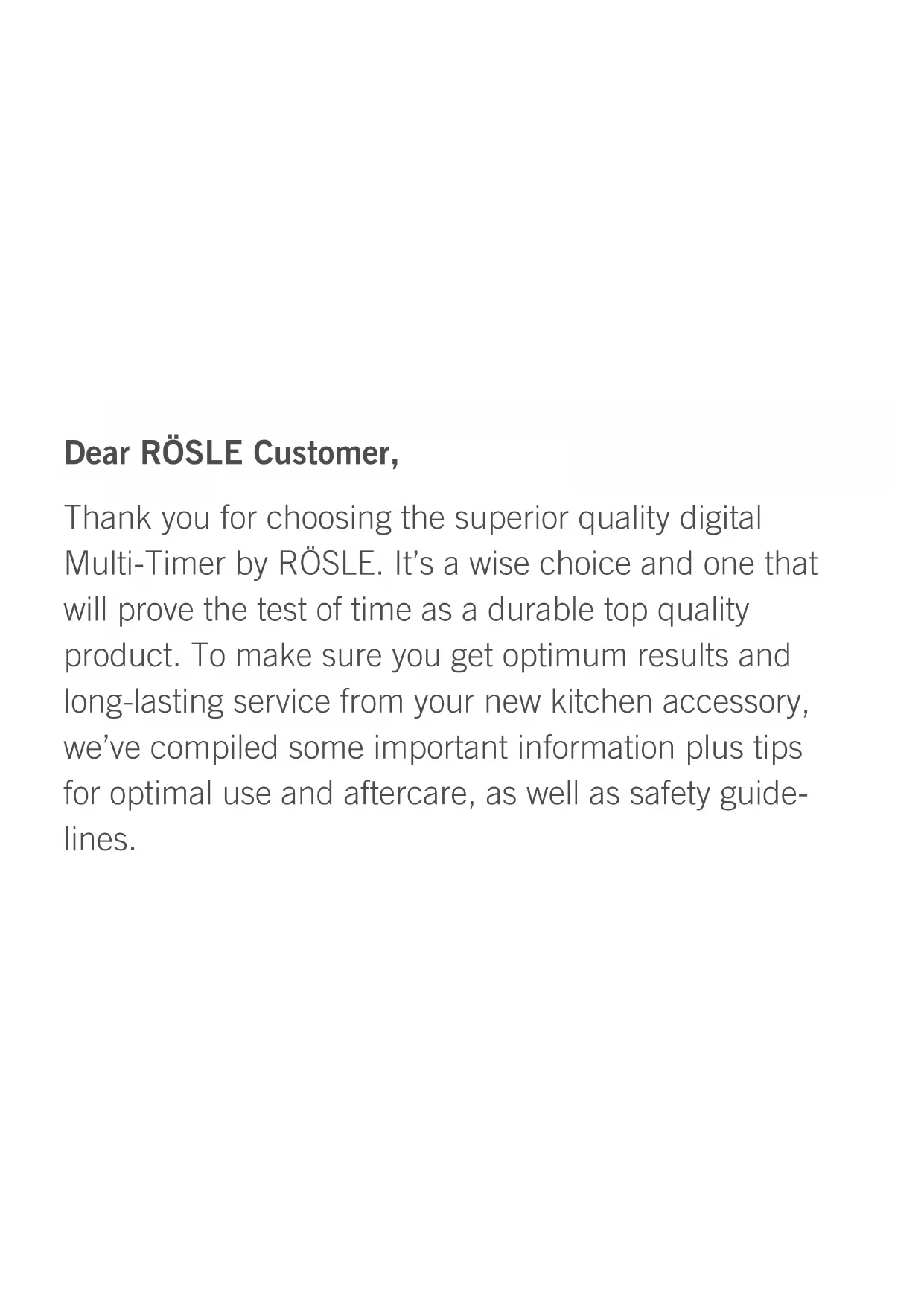

Thank you for choosing the superior quality digital Multi-Timer by RÖSLE. It’s a wise choice and one that will prove the test of time as a durable top quality product. To make sure you get optimum results and long-lasting service from your new kitchen accessory, we’ve compiled some important information plus tips for optimal use and aftercare, as well as safety guidelines.

Outstanding product features at a glance:

The digital Multi-Timer from RÖSLE is a reliable and practical aid when cooking, baking and barbecuing.

→ Comfortable and flexible time control with two separate digital timing functions for settings of up to ten hours
Timer also features an →inbuilt digital clock
Large ergonomic setting dial for →convenient setting of time span
Big format display with red back light for →easy readability
→ Clear audio and visual signals at rundown of pre-set timing
→ Magnetic rear plate for convenient positioning on metal surfaces such as fume extraction hoods, etc.
→Classic flat design with stainless steel front face
Uses commonly available batteries (2 pieces of type CR2032, 3V) →

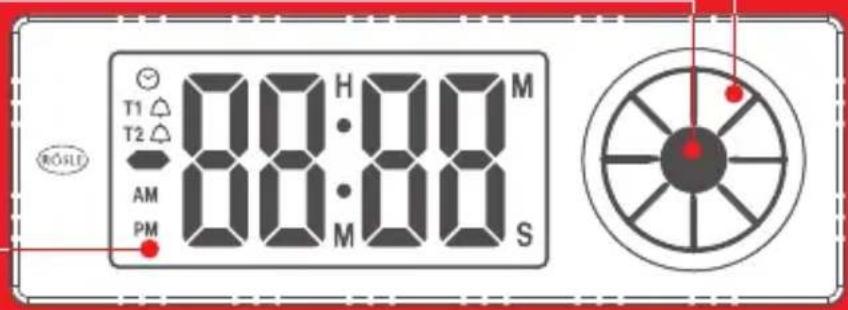

1. Close-up on the digital Multi-Timer

Setting Dial

Set Button

Display

T1 T2 AM PM 88:88 M S ROSLE

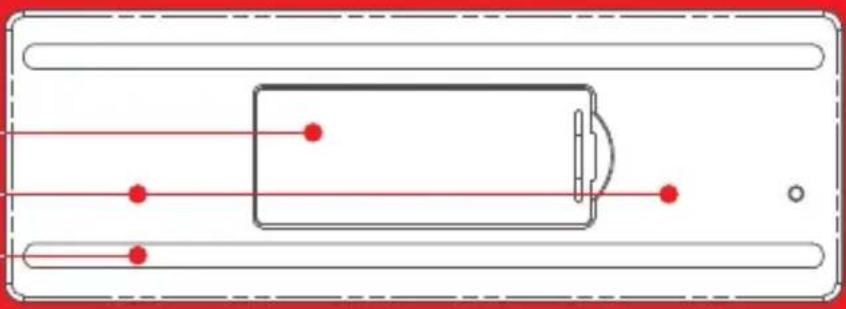

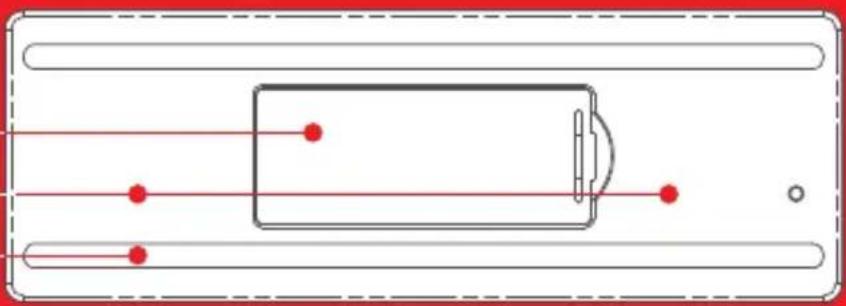

Battery compartment lid

Magnetic plate

Silicone feet

Pure diagram of a rectangular device with red dots and connecting lines, no text or symbols present

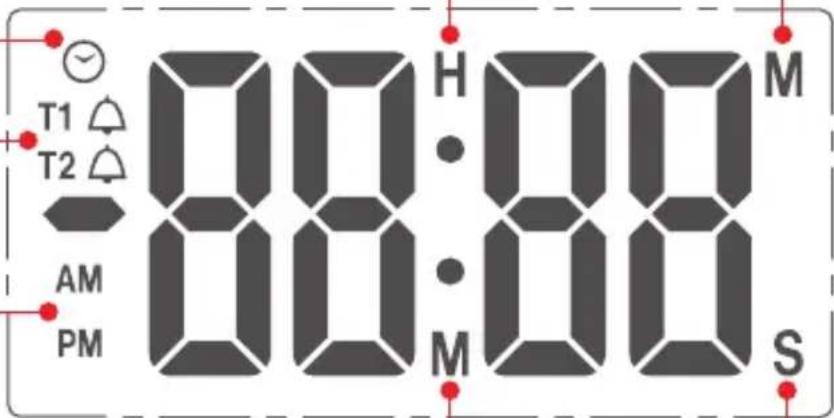

Hours/minutes display

Symbol for clock function

Symbol for timer function

12 hour mode display

Minutes/seconds display

T1 T2 AM PM 88:00 H M S

2. First time use / Setting time

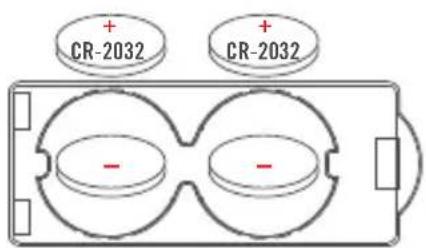

Open the battery compartment on the rear side of the timer and position the two provided batteries according to the indications on the lid. Close the battery compartment lid.

CR-2032 CR-2032

The clock is now ready for setting and you can choose a display in either a 12 hour mode (i.e. from 0:00 AM to 11:59 PM) or a 24 hour mode (from 0:00 to 23:59). Use the setting dial to make your choice and confirm it by pressing the set button.

The appliance is now ready for setting the actual time in hours by using the setting dial. When done press the set button to confi rm. Minutes can be set next. Press the set button afterwards to confi rm. The set time will now appear on the display.

For re-setting press the set button and hold it down for three seconds. Re-setting is now possible starting with the choice of the 12 hour or 24 hour mode.

3. The Timer function

Starting Timer 1

To switch from the clock to the timer function, turn the setting dial clockwise. The timer mode will be activated and the display will change to 00M:00S.

Note:

When the timer is in operation the display shows minutes and seconds. If the set time span exceeds one hour, the display will change to hours and minutes. The corresponding indicators will appear in the display (see page 5). If you want to set a time span that exceeds one hour, the minutes and seconds can be set separately. To do this press the set button for three seconds while in the timer mode (00M:00S). The hour display will begin to flash and can be set using the setting dial. Confirm the change by pressing the set button. The timer will then switch to the minutes setting function. Once confirmed the timer will start - maximum time span is 9 hours 59 minutes.

To set the time span, turn the setting dial clockwise to choose the desired minutes setting and confirm by pressing the set button. The seconds can now be set in the same way and the timer can be started by pressing the set button. The display will now show the countdown of the minutes and seconds.

Note:

If the set timing period exceeds 15 minutes, a signal of 4 brief tones will be emitted 5 minutes before rundown to signal the approaching end of countdown. Cooking can be stopped earlier if desired.

If you wish to interrupt the countdown, simply press the set button. Another press on the set button will re-activate and continue the countdown.

Should you wish to reset the timer before the previous countdown has been completed, please proceed as follows: Briefly press the Set button to stop the count-down. Then press the Set button again and hold it pressed for three seconds. The display will change to 00M:00S and the timer can then be set to a new setting. If no new countdown is set within 5 seconds the Multi-Timer will return to Timer 1 (if Timer 1 is set) or otherwise to its clock function.

Once the countdown is complete (00M:00S) an alarm signal will be emitted (a continuous sequence of beeps) and the display will flash. The display will then show the time lapse since the completion of the countdown. A minus symbol (-00M:05S) will appear as an indicator. Cooking time can be extended if desired. The timer will continue to run for up to 30 minutes without reactivation. However, no further signal will be emitted so it is necessary to keep an eye on the cooking from then on.

To stop the acoustic signal, simply press the set button – the timer display will not be affected. When the timer is no longer required, press the set button to de-activate the timer function.

If the timer function is not used for a longer period the display of the appliance automatically reverts to its clock function.

Note:

In order to preserve the battery the acoustic signal and backlight are restricted to a maximum duration of one minute after which both will be switched off.

The timing display will continue to run for a maximum of 30 minutes after completion of countdown.

After that the timing will be terminated and a long acoustic signal will be emitted.

Starting Timer 2

In order to start the second timer, the first timer must already be in operation. Turn the setting dial clockwise. The display will show OOM:00S for Timer 2. Set the desired time span as described for Timer 1. The acoustic signal is distinctly different with an interrupted tone pattern. To return to Timer 1 simply turn the setting dial. A T1 or T2 symbol will be on display in the upper left corner to clearly indicate which timer is in use.

4. Attachment

The digital Multi-Timer is fitted with a magnetic rear plate and can be attached to ferromagnetic surfaces such as fridge doors, extraction hoods and oven doors.

Please test carefully beforehand whether the surface gets hot and if the timer can be attached to it safely. The timer should never be attached to a base that heats up above 50 °C/122 °F.

18/10 stainless steel surfaces are not ferromagnetic and the magnet of the timer will not stick to them.

5. Cleaning

The appliance should be wiped clean using a dry cloth with a drop of glass cleaning fluid if necessary. Never spray into the apertures of the Multi-Timer. The product should not get wet or be put into the dishwasher as this would cause damage to the Multi-Timer.

6. Note on correct disposal of batteries

To open the battery compartment and remove the batteries, please follow instructions listed in point 2. The Lithium coin cell batteries provided with this product are not re-chargeable. Batteries should never be damaged, drilled through or thrown into an open fire. Never use a combination of old and new batteries. Used batteries should never be disposed of with ordinary household waste. Used batteries may

contain hazardous material which can be harmful to health and the environment. Please deliver used batteries to retailers' recycling facilities or to your local waste disposal service for battery return. This service is free of charge and is a legal obligation in Europe. Please use provided containers only for the disposal of empty batteries. All batteries will be recycled. In this way valuable natural resources such as iron, zinc and nickel, will be re-used. Recycling of batteries is an important contribution to environment protection. Your local waste disposal facility will provide you with further information on request.

7. Disposal

This product should not be disposed of in ordinary household waste but must be channeled to an appropriate recycling facility for electric and electronic equipment. For further information contact your local authority, communal waste disposal facilities or the shop where you purchased the item.

General Safety Guidelines

The digital Multi-Timer is not a toy and should be handled with caution at all times. Small components could be accidentally swallowed by small children so please keep the appliance safely out of their reach.

We grant you a 5 year Warranty on this product (the Warranty does not cover the batteries).

CE Conformity. This apparatus complies with EU Directive 89/336/EWG pertaining to electro-magnetic interference.

We reserve the right to technical modification without prior notice.

5 Year RÖSLE Warranty

We wish you long lasting service from your new RÖSLE Kitchen Accessory.

Your RÖSLE Team
