Product Type	Portable phone charger (external battery)
Brand	IKEA
Model	VARMFRONT 705.556.47
Battery Capacity	5200 mAh / 18.72 Wh
Battery Type	Lithium-ion (rechargeable)
Input Voltage	5.0 Vdc
Max Input Current	2.1 A (via USB-C)
Output Voltage	5.0 Vdc
Total Max Output Current	2.4 A (USB-C + USB-A combined)
Output Ports	1x USB-C, 1x USB-A
Input Port	USB-C
LED Indicators	Yes, 4 LEDs for charge level
Power Button	Yes (POWER)
Low Current Mode	Yes (for charge < 100 mA)
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 25 °C
Usage	Indoor only
Maintenance	Soft cloth and mild detergent
Safety	Do not open, short-circuit, heat >60°C
Recycling	Recyclable battery, separate collection
Package Contents	VARMFRONT charger, user manual
Warranty	According to IKEA conditions

Frequently Asked Questions - VARMFRONT 705.556.47 IKEA

How to recharge the VARMFRONT portable charger?

Plug a USB-C cable into the charger's USB-C port, then into a wall adapter (5V/2.1A min.) or a computer USB port. The LEDs indicate the charging progress.

How to charge my phone with this charger?

Connect your device's USB cable to the charger's USB-C or USB-A port. The charger starts charging automatically and the LEDs display the remaining level.

What do the LED indicators mean?

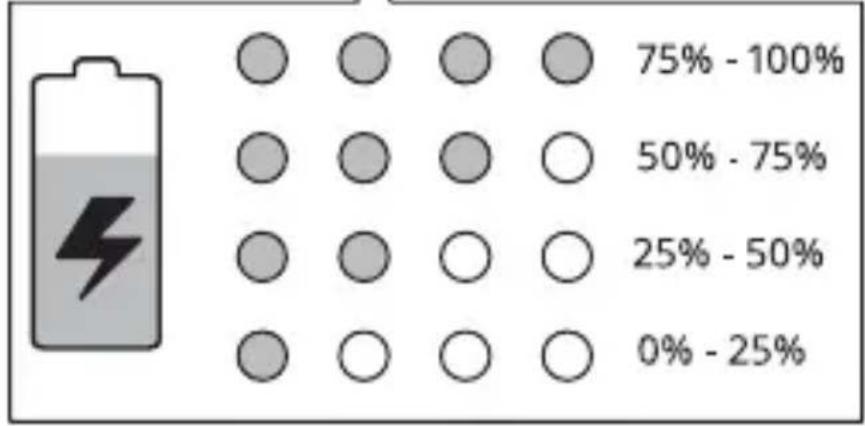

The 4 LEDs indicate the remaining charge level: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%. While charging, they flash then stay solid.

What if my device does not charge?

Check that the cable is properly connected. Press the POWER button once to activate the USB-A port. If the problem persists, try another cable or activate Low Current Mode.

How to activate Low Current Mode?

While charging a device, press the POWER button for 8 seconds. This mode is useful for devices requiring less than 100 mA. To exit, press for 3 seconds or wait 2 hours.

Can I charge two devices at the same time?

Yes, both ports (USB-C and USB-A) can be used simultaneously. The total output current is 5V/2.4A shared between the two devices.

What safety precautions should I follow?

Do not open, puncture, crush, expose to heat above 60°C or fire. Use only indoors in dry conditions. Keep out of reach of children. Do not short-circuit.

How to clean the portable charger?

Unplug it first. Wipe with a soft cloth slightly dampened with mild detergent, then dry with a dry cloth. Do not use abrasive cleaners.

What is the battery capacity?

The capacity is 5200 mAh (18.72 Wh). This can charge a typical smartphone (3000 mAh) about 1.5 times.

Can I use this charger with a non-IKEA wall adapter?

Yes, any adapter providing at least 5V/2.1A via USB-C works. Use a good quality cable for optimal performance.

USER MANUAL VARMFRONT 705.556.47 IKEA

Diagram of a cylindrical device with a handle and arrow indicating assembly or operation (no text or symbols)

i

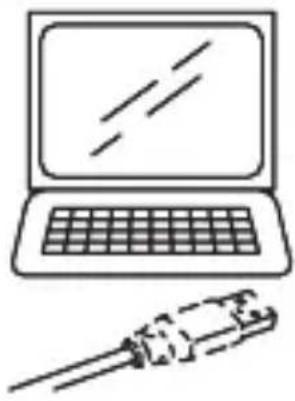

Line drawing of a laptop and a handheld device (no text or symbols)

Pure electrical circuit lines without any symbols

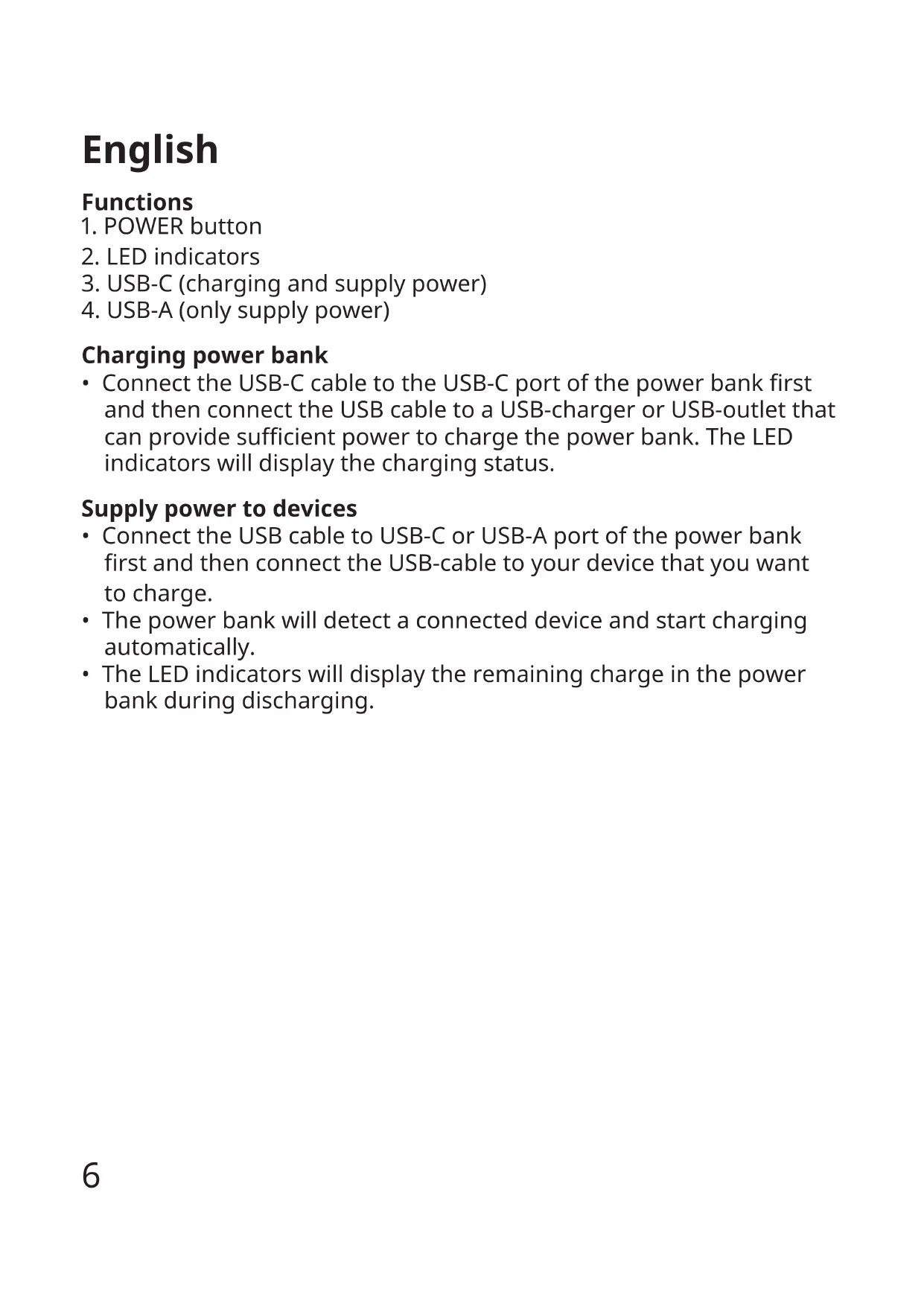

1. POWER button
2. LED indicators
3. USB-C (charging and supply power)
4. USB-A (only supply power)

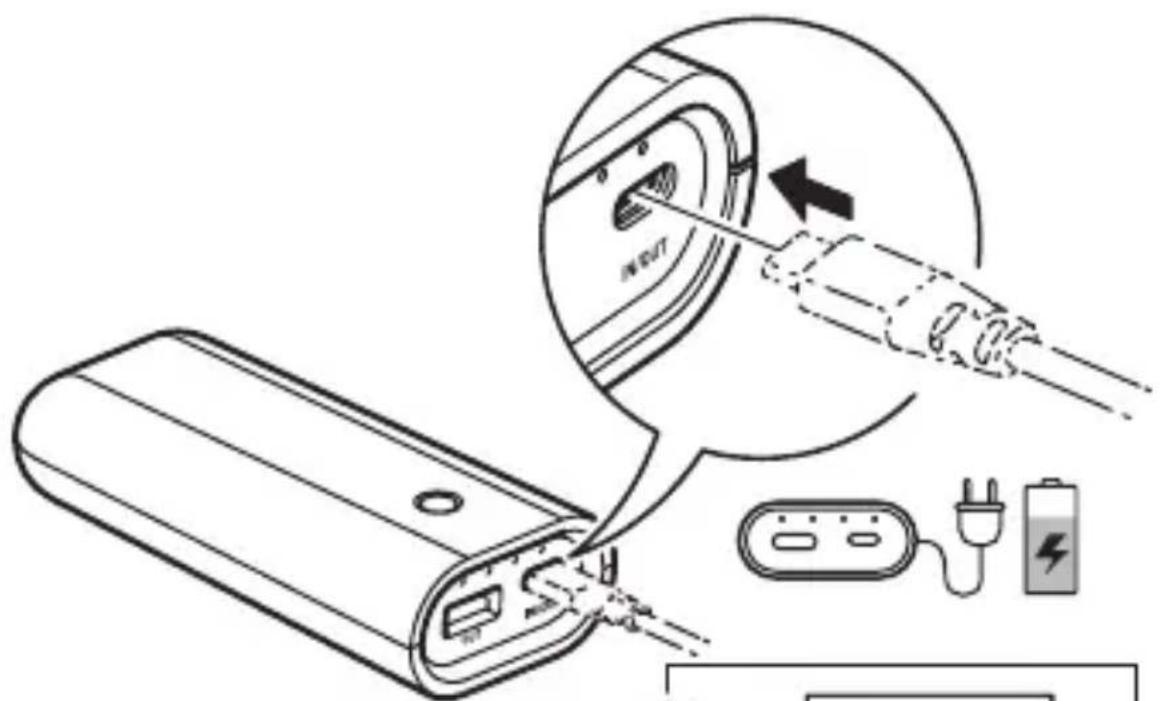

Charging power bank

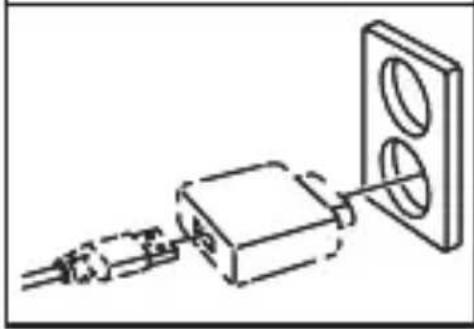

- Connect the USB-C cable to the USB-C port of the power bank first and then connect the USB cable to a USB-charger or USB-outlet that can provide sufficient power to charge the power bank. The LED indicators will display the charging status.

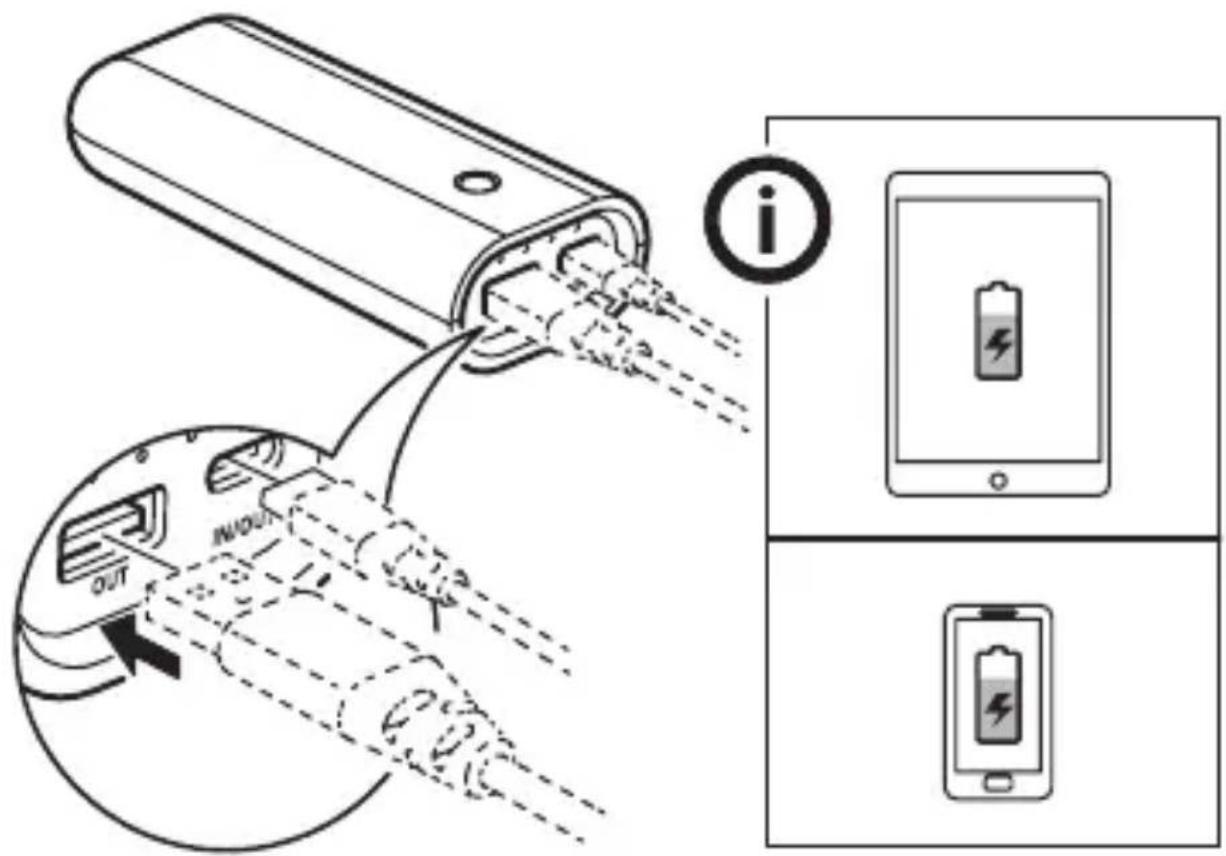

Supply power to devices

• Connect the USB cable to USB-C or USB-A port of the power bank first and then connect the USB-cable to your device that you want to charge.
• The power bank will detect a connected device and start charging automatically.
• The LED indicators will display the remaining charge in the power bank during discharging.

Power button function (E2037)

Current mode	Sleeping mode	Charging mode	Supply power mode
Single press	Shows via LED the remaining charge and that USB-A is ready to use.	USB-A is ready to use.	No action
Double press	No action	No action	Stop supplying power
Long press	No action	No action	No action Switch to the small current supply power mode or back to normal supply power mode

Check power status

- Click once on the POWER button and the LED indicators will light up and indicate the remaining power status.

- If the USB cable is not disconnected while the charging process finishes, push the POWER button first to restart the charging.

Small current supply mode

- Press the POWER button for 8 seconds when your device is being charged.

- The function is mainly used to charge certain wearable electronic devices. When charging a device that needs a charging current less than 100mA via a USB-A port, this mode should be activated. You can press the button for 3 seconds to exit this mode, it also automatically closes after 2 hours.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
  • Storage temperature: -10^ to 25^ .
  • Power bank operating temperature: 0°C to 40°C.
• Unplug the power bank from the power source before cleaning and when it is not in use.
  • Power bank should not be left discharged for a longer period.
• Power bank should not be charged while in contact with flammable materials like textiles.

WARNING

• Do not modify, disassemble, open, drop, crush, puncture or shred product.
• Only use in dry locations.
• Risk of fires and burns. Do not open, crush, heat above 60°C (140°F) or incinerate.
• Do not subject the product to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Keep the product away from open flames or sunlight to prevent heat buildup.
• Keep the product away from high voltage devices.
• Children should be supervised to ensure they do not play with the product.
• Do not short-circuit the product or its cells.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.

CARE INSTRUCTION

To clean the unit, wipe with a soft cloth moistened with a little mild detergent. Use another soft dry cloth to wipe dry.

Product servicing

Do not attempt to repair this product yourself. If you open or remove parts, you may expose yourself to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2037

Capacity: 5200mAh/18.72Wh

Input: 5.0Vdc, max 2.1A (USB-C)

Output: 5.0Vdc, 2.4A, 12W total (USB-C, USB-A)

When both ports are used at the same time, they share 5.0V/2.4A in total.

For indoor use only

Rechargeable Li-Ion battery cell inside.

Manufacturer: IKEA of Sweden AB

Address: Box 702 SE-343 81 Älmhult SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste.

The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
