VT 1210 - Wine cellar Orbegozo - Free user manual and instructions

Product Type	Wine cellar
Brand	Orbegozo
Model	VT 1210
Volume	35 L
Dimensions (W x H x D)	260 x 650 x 503 mm
Net weight	12.4 kg
Gross weight	13.4 kg
Power supply	220-240 V ~ 50 Hz
Power	70 W
Energy consumption	0.8 kWh/24h (at 15°C)
Temperature range	11-18 °C
Digital display	Yes
Interior lighting	LED, touch control
Temperature control	Electronic (▲/▼ buttons)
°C/°F switch	Yes
Cooling type	Thermoelectric
Shelves	4 shelves included
Rear filter	Removable, cleanable
Water collection tray	Yes, to be emptied
Maintenance	Interior cleaning with warm water, filter cleaning, tray emptying
Safety	Wall installation: 5 cm from sides and 10 cm at rear; use by children over 8 years with supervision
Compliance	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU

Frequently Asked Questions - VT 1210 Orbegozo

How to adjust the temperature of the wine cellar?

Use the ▲ and ▼ buttons on the control panel to increase or decrease the temperature. The desired temperature is displayed on the screen. The recommended temperature is 14-16°C for red wine and 11-12°C for white wine.

What to do if the wine cellar does not cool enough?

First check that the appliance is plugged in and the fuse has not blown. Make sure it is not near a heat source, ventilation is sufficient (5 cm on sides, 10 cm at rear), and the door is properly closed and not opened too often.

How to clean the wine cellar?

Unplug the appliance and remove the bottles. Clean the interior with a damp cloth and warm water, then dry thoroughly. For the exterior, use a mild cleaner. Also clean the rear filter with a brush or water, and empty the water collection tray.

Can I put warm bottles in the wine cellar?

No, it is recommended to let foods and drinks cool to room temperature before placing them in the appliance. Warm bottles prevent reaching the selected temperature.

How to save energy with the wine cellar?

Avoid opening the door too often, especially in hot and humid weather. Ensure good ventilation around the appliance. Set the thermostat to a higher temperature if possible (depending on the load). Always cool foods to room temperature before placing them.

Why does the door not close properly?

Check that no object obstructs the closure and that the hinges are properly aligned. Make sure the appliance is level. If the door gasket is dirty, clean it with a damp cloth.

How to turn the interior lighting on or off?

Press the lighting button (labeled 'light') to turn the interior LED lighting on or off.

Is it normal for the appliance to make noise?

A slight operating noise is normal, due to the fan and thermoelectric module. If the noise becomes loud or unusual, check that the appliance is level and that nothing is vibrating against it.

Where to install the wine cellar?

Place it on a smooth, level, and stable surface, away from any heat source and moisture. Ensure at least 5 cm of space on the sides and 10 cm at the rear for ventilation. Avoid direct sunlight.

What to do in case of a power outage?

When power returns, the wine cellar resumes operation automatically. If the internal temperature has risen too much, let the appliance run empty for about an hour before placing bottles back.

USER MANUAL VT 1210 Orbegozo

Black double-chip refrigerator with illuminated glass doors and colorful wine bottles on the wall (no visible text or symbols)

VT 1210

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).

16. WARNING: Keep vents clear of the casing of the appliance or furniture inlay.
17. WARNING: Do not use electrical appliances inside compartments where food conservation.
18. The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.
19. The use of adaptors, multiple sockets and or extension cables is not recommended.
20. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.
21. The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by nonqualified personnel.
22. Place the appliance on a dry, firm and stable surface.
23. In the event of fault or malfunction, turn off the appliance and do not attempt to repair. If a repair is required, contact with Technical Assistance Service authorized by the manufacturer and request the use of original spare parts.

24. Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).

25. Do not use detergents or abrasive sponges to clean the appliance.

26. When installing the appliance, make sure that there is at least 5 cm of free space at the sides and 10 cm at the rear of the appliance. This will allow for the appropriate amount of ventilation.
27. Do not place hot food or drinks in the wine cooler until they have cooled down to room temperature.
28. Close the door properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.
29. Do not place anything on top of the appliance.

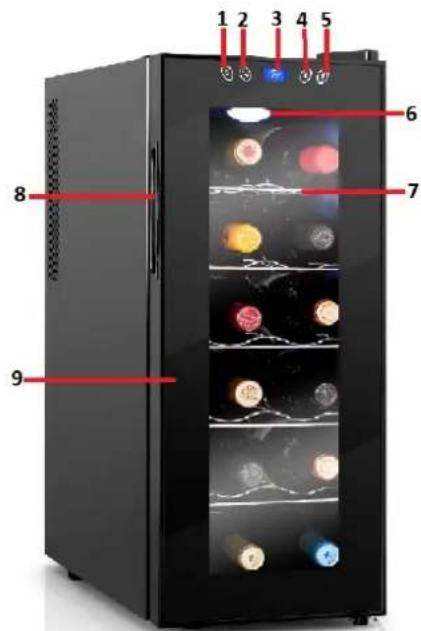

2. DESCRIPTION

1. Light button
2. °C/°F button
3. Temperature display screen
4. Increase temperature button
5. Reduce temperature button
6. LED Light
7. Shelf
8. Side handle
9. Door

3. TECHNICAL CHARACTERISTICS

Model No.	VT 1210
Volume	35L
Rated Power	220-240V
Rated Frequency	50Hz
Input Power	70W
Power Consumption kW·h/24h	0.8 (15°C)
Temperature Control Range	11-18°C
Net Weight	124Kg
Gross Weight	13.4Kg
Shape Size (WXHXD)mm	260* 650* 503

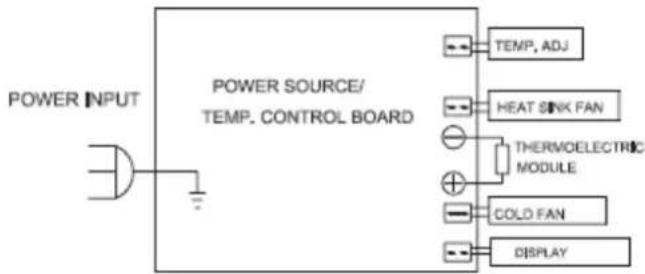

4. ELECTRIC DIAGRAM

5. OPERATING INSTRUCTIONS

1. Place the wine cooler on an even, horizontal and stable surface, well away from hot surfaces and humidity.

2. Open the door (5) and place the shelves (6) onto the guides inside the wine cooler. Close the door (5).

3. Plug the wine cooler into a power socket and select the desired temperature (see "Adjusting the temperature" section).

4. Leave the wine cooler on, and empty, for approximately one hour in order for it to reach the selected temperature.

5. Once the wine cooler has reached the selected temperature, open the door

(5) and place the bottles of wine at room temperature on to the shelves (6). The bottles will reach the selected temperature within approximately one hour.

The wine cooler will automatically set an on-and-off cycle in order to constantly maintain the selected temperature.

Press the light button (4) to turn the inside light on and see what is inside the wine cooler. To turn the light off, press the same button again.

Important: Close the door (5) properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.

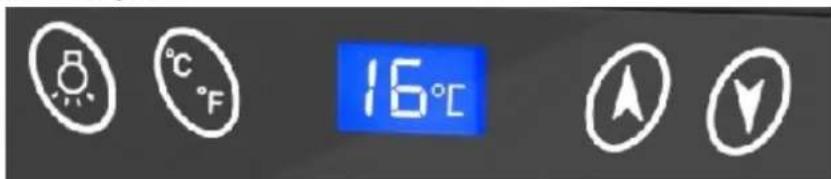

6. ADJUSTING THE TEMPERATURE

Select the temperature inside the wine cooler by pressing the increase/reduce temperature buttons (2 & 3). Press the “▲” button (2) to increase the temperature and press the “▼” button (3) to reduce it. The selected temperature will appear on the temperature display screen (1).

Advice and recommendations:

• The recommended temperature for red wine is 14-16°C

• The recommended temperature for white wine is 11-12°C.

The temperature inside the wine cooler will depend on the room temperature.

7. TROUBLESHOOTING

Problem	Possible causes	Solution
The wine cooler is not working	1. Fault in the power supply.2. A fuse has blown.	1. Make sure that the wine cooler is plugged in and that the power socket is switched on.2. Change the blown fuse.
The wine cooler is not reaching the selected temperature	1. The wine cooler has been placed too near a heat source.2. Lack of ventilation.3. The door is being opened too often or for a long period of time.	1. Keep the wine cooler well away from sunlight and other heat sources.2. Place the wine cooler in a well-ventilated position and keep all objects away from the ventilation grilles.3. Close the door properly and do not open it too often or for a long period of time.

8. CARE AND MAINTENANCE

Cleaning your wine refrigerator

• Unplug the wine refrigerator and remove the bottles.
• Wash the inside with cloth and warm water. Dry well once finished.
• The outside of wine refrigerator should be cleaned with mild detergent and warm water.
• Draw out the water box at the bottom, and wash.
• Remove the rear filter, clean with a brush or water and put it back in place. Important: only remove the filter to clean it, do not connect the unfiltered wine bar.

Moving your wine refrigerator

• Remove all the bottles.
• Securely tape down all loose items inside your wine refrigerator.
• Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine refrigerates stays in the upright position during transportation.

Tips for Energy Savings

• Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation around the appliance).
• Set thermostat from higher to lower settings as soon as possible (depends on how loaded the appliance is ambient temperature etc.).
• Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient temperature. For hot foods, please cool to room temperature before placing it in the refrigerator.
• Set it on higher temperature can minimize the energy consumption of the household refrigerating appliance at ordinary temperature.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
