MicroPod SE MK2 - Speaker Podspeakers - Free user manual and instructions

Product Type	Satellite speaker
Brand	Podspeakers
Model	MicroPod SE MK2
Dimensions (approx.)	Height 180 mm, Width 120 mm, Depth 150 mm
Weight (approx.)	1.9 kg
Nominal impedance	8 ohms
Power rating	50 W RMS
Sensitivity	87 dB (1W/1m)
Frequency response	85 Hz - 22 kHz
Connectors	Binding posts (accept bare wires or banana plugs)
Magnetic shielding	Yes, magnetically shielded speakers
Recommended use	Satellite speaker for stereo or home theater (front, rear, or surround channels)
Mounting	Recessed spike feet for floor; optional wall mount
Height and tilt adjustment	Possible via optional wall mount
Maintenance	Dust or clean with a soft damp cloth (cold water only). Avoid solvents. Do not touch the speakers.
Warranty	1 year limited (parts and labor) for the original purchaser
Environmental standards	Compliant with RoHS and WEEE
Included accessories	Not specified, generally sold without cables

Frequently Asked Questions - MicroPod SE MK2 Podspeakers

What is the ideal placement for MicroPod SE MK2 speakers?

For stereo listening, place the speakers at ear height when seated, about 1 meter on each side of your TV. For a home theater system, follow the placement diagrams (figures 1 to 4) in the manual. Try different positions to find the best sound quality.

How to connect the speakers to an amplifier?

Turn off all devices before connecting. Use bare wires or banana plugs. Connect the speaker's positive (+) terminal to the amplifier's positive terminal, and negative (-) to negative. Make sure the connections are tight.

Are MicroPod SE speakers magnetically shielded?

Yes, the main speakers and tweeters are magnetically shielded, allowing them to be placed near a TV without risk of image interference.

Can MicroPod SE be used in a 5.1 home theater system?

Absolutely. The MicroPod SE can be used as front, center, or surround speaker. For a 5.1 system, place the front speakers at ear height and the rear speakers on the sides or behind the listening area, as shown in the manual.

How to clean MicroPod SE speakers?

Use a soft, slightly damp cloth (clean cold water) to dust the cabinet. Avoid any solvents or abrasive cleaners. Do not touch the speakers, especially the tweeter.

What is the recommended break-in period?

The manual mentions a break-in period (no specific duration) for the speakers to reach optimal performance. It is recommended to let them play at moderate volume for several hours.

What does Podspeakers' limited warranty cover?

The one-year warranty covers material and manufacturing defects for the original purchaser. It does not cover damage due to accident, misuse, normal wear, incorrect installation, or unauthorized repairs.

How to adjust the height and tilt of the speakers?

Adjustment is done via the optional wall mount which allows height and tilt adjustment. The integrated spike feet provide stability on the floor.

Can the speakers be mounted on the wall?

Yes, an optional wall mount is available. It allows positioning the speaker at the desired height and improving sound quality.

What types of cables are accepted by the terminals?

The binding posts accept bare conductors (stripped wire) or banana plugs. Make sure connections are tight to avoid signal loss.

USER MANUAL MicroPod SE MK2 Podspeakers

on the purchase of your new MicroPod SE from Scandyna

Thank you for choosing MicroPod SE from Scandyna.

We encourage you to please read this manual to properly acquaint yourself with MicroPod SE and its features.

We hope that you will enjoy the sound of MicroPod SE and welcome you into the Podspeaker family.

ENGLISH /

5 Welcome to a new world of sound. Loudspeaker positioning
6 Home Theatre Systems Magnetic interference
7 Connecting your loudspeakers Running-in period Care and cleaning Environmental information
8 Limited warranty

MicroPod SE

Loudspeaker

ENGLISH / Welcome to a new world of sound

MicroPod SE is best used with the tweeters approximately at ear level when seated. Spikes are enclosed and wall mounting is optional and offers opportunity for optimizing the sound through selecting the height and angle of the loudspeaker position. If you place the loudspeakers on a shelf or furniture unit, the enclosed feet or spikes should be attached for protection from unwanted resonances and from scratches.

ENGLISH / Loudspeaker positioning

Variations in placement of MicroPod SE can produce significant differences in the way the music sounds. No listening rooms are the same and therefore we encourage you to spend some time experimenting with which placements work best in your listening room. - Trust your ears and be willing to experiment freely.

You can start with our basic recommendations illustrated on the following page:

Fig. 1 / stereo 2.1 Fig. 2 / surround 5.1 Fig. 3 / surround 6.1 Fig. 4 / surround 7.1

ENGLISH / Home Theatre Systems

MicroPod SE can be used as front channels in a surround sound home theatre system.

Positioning the front loudspeakers within approximately 1 metre of the sides of your TV will create the best sound image in scale with the visual image.

The height of MicroPod SE should ideally be between the centre and top of the TV screen.

If the loudspeakers are to be used for reproducing the surround channels in a multi channel home theatre system, we suggest you place them as illustrated in Figures 2 to 4 depending on the number of channels.

ENGLISH / Magnetic interference

MicroPod SE tweeter and woofer drive units are magnetically shielded ensuring that the magnetic field outside the cabinet, except the front, is too low to cause distortion of the TV picture, and you can place MicroPod SE as close to the TV screen as possible without causing visual interference or electromagnetic interference.

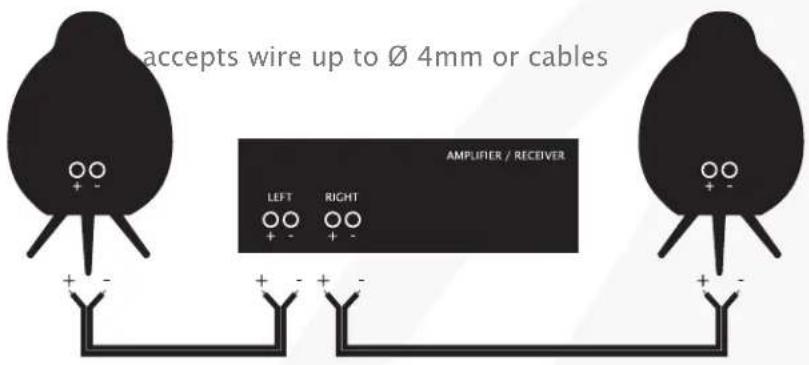

ENGLISH / Connecting your loudspeakers

We recommend that you read the manual of your amplifier or av-receiver carefully before connecting your MicroPod SE loudspeakers. Please switch off all equipment when connecting MicroPod SE.

You are now ready to enjoy the great sound of MicroPod SE.

ENGLISH / Running-in period

We recommend a running-in period of your new MicroPod SE loudspeaker of approximately 15-20 hours at normal listening level before you decide on the final positioning of the loudspeaker. During the running-in period, the drive units will settle in and perform as intended.

ENGLISH / Care and cleaning

We strongly advise against the use of any solvents or cleaners on the lacquered MicroPod SE cabinet. The cabinet surface usually only requires dusting or cleaning with a damp soft cloth (only use cold clean water). Avoid touching the drive units, especially the tweeter, as damage may result.

ENGLISH / Environmental information

MicroPod SE complies with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE) - the crossed bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

The binding posts

with bananaplugs.
Make sure that the
binding posts on Micro
connected to the positive output
terminal binding posts
fier and that the
on MicroPod SE (-)
the negative output ter
amplifier.

ENGLISH / Limited warranty

Dear Customer

This product has been designed and manufactured to the highest quality standards, however if something goes wrong with this product, Scandyna A/S and the country distributor, warrants free replacement parts or repair by the official Scandyna distributor.

This limited warranty is valid for the original owner for a period of one year from the date of purchase and it is not transferable.

What is covered by the limited warranty:

The limited warranty covers all production and material defects of the product, except for the damages stated below.

What is not covered by the limited warranty:

• Damages caused by packing and transport.
  Defect caused by accidents, misuse, normal wear and tear, mis-maintenance, voltage variation and overloading.
• Damages caused by incorrect installation or operation.
• Damages caused by modification or repair by a non-authorized service center and use of non-original spareparts.
  Other damages due to the conditions beyond Scandyna's control such as fire, rain, stroke of lightning, war and other force majeure events.

How to claim parts or repair under warranty:

To have your product serviced under warranty, you must contact the dealer from where you bought the MicroPod SE.

You will need to produce this warranty booklet completed and stamped by your dealer on the date of purchase. Alternatively you will need the original sales invoice or other proof of ownership and date of purchase.

The supplier is liable only to repair or replace defective parts or products.

The supplier is not responsible for indirect losses or damages arising from the use of this product.

Transportation costs for servicing are not covered by this warranty.

A service repair or replacement cannot exceed the value of the product under warranty.

In no event shall the supplier be responsible or liable for special incidental, consequential or indirect damages.

Date of purchase

Dealer name and stamp

FRANÇAIS /

PODSPEAKERS by Scandyna®

Scandyna A/S

Jegindoevej 4

DK-8800 Viborg

Denmark

Tel. [phone] / [e-mail] / www.podspeakers.dk

Designs and specifications are

subject to change without notice.
