USER MANUAL Fruitower M 10031937 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 10

Declaration of Conformity 10

Safety Instructions 11

Product description 12

Getting Started 13

Operation 14

Drying Tips 15

Care and Cleaning 16

Hints on Disposal 16

TECHNICAL DATA

Item number 10031937
Power supply 220-240 V ~ 50-60 Hz
Power consumption 200-240 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Read all the safety and operating instructions carefully and retain them for future reference.
• Do not operate this Appliance on a flammable material such as a wood surface or on any tablecloth. Do not operate this appliance on a non-heat-resistant glass cooktop or cutting board.
• It is imperative that an additional heat-resistant cooking surface protected with a heat resistant finish at least the size of the unit or larger be placed underneath this unit. This will serve to protect the surface beneath from heat that can be generated by the food dehydrator.
• Before using the Dehydrator, check that all parts are operating properly and perform their intended functions. Check for any conditions that may affect the unit operation. DO NOT use if the power cord is damaged or frayed.
• To avoid starting appliance unintentionally, make sure the power switch is in OFF position before connecting Dehydrator to power outlet.
• Always disconnect Dehydrator from power source before servicing, changing accessories, displacing or cleaning unit. Unplug Dehydrator when not in use.
• Keep children away. Never leave the appliance unattended. Monitor Dehydrator while in use.
• Manufacturer declines any responsibility in case of improper use of Dehydrator. Improper use of Dehydrator will void warranty.
• Electrical repair must be done by authorized service centre. Use only factory original parts and accessories. Modification of Dehydrator voids warranty.
• Never open rear panel of dehydrator. Never remove back screen from dehydrator.
• If extension cord is used be sure the marked electrical rating is at least as great as the electrical rating of this appliance.
• Be sure dehydrator is stable during use. All four feet should be secure on a level surface. Dehydrator should not move during operation.
• Do not operate dehydrator outdoors or near any flammable or combustible materials. Indoor use only. Not for commercial use.
• Use in a well ventilated location. Do not block air vents on door or at rear of dehydrator. Keep dehydrator at least (30.5cm) away from any wall to allow for proper air circulation.
• Do not operate dehydrator on flammable surfaces such as carpeting, etc.
• To prevent electric shock. Do not immerse unit and control panel in water or liquid. Serious injury from electric shock could result. Do not use appliance with wet hands or bare feet. Do not operate near running water.
• Disconnect from power outlet before cleaning components. Read all instructions before cleaning dehydrator.

• After cleaning, make sure dehydrator is completely dry before reconnecting to the power outlet - if not; electric shock may result.

• Do not place or use the unit or any parts on or near hot gas or electric burner, in a heated oven, or on stove top. Do not let power cord hang over edge of table or counter or touch any hot surfaces.

• Do not use appliance for other than intended use.
• Lf appliance malfunctions during use, shut down unit immediately and discontinue use. Do not attempt to open control panel. This product has no user-serviceable parts. Always contact authorized service centre if unit malfunctions or for service. Do not use or replace with any unauthorized parts not intended for this unit. All parts for this appliance must be used according to Instruction Manual. ONLY use manufacturer approved parts from authorized Service Center. Any other parts or accessories not intended for use with this appliance is strictly prohibited and will void warranty.

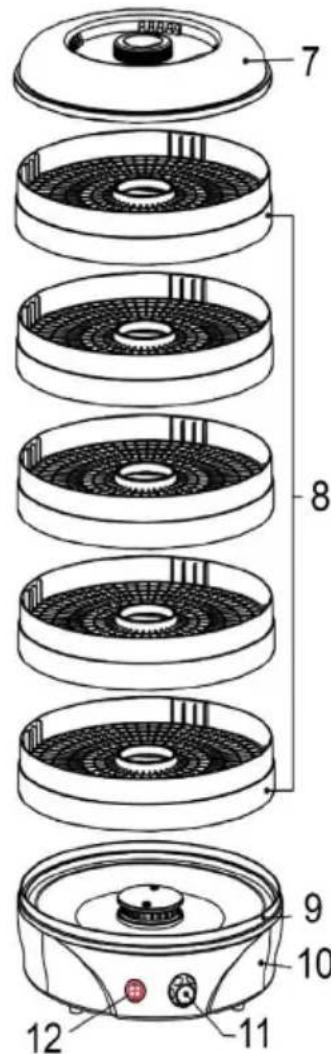

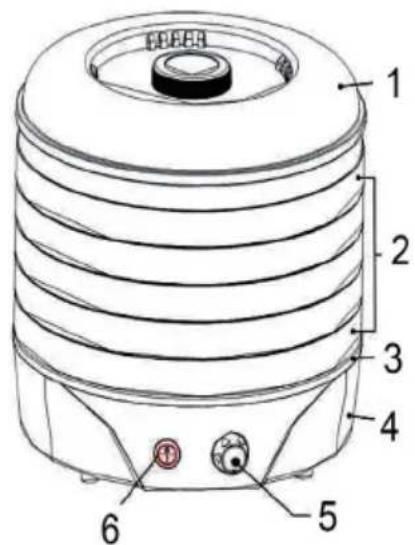

PRODUCT DESCRIPTION

1 Cover
2 Trays
3 Underpan
4 Base
5 Temperature knob
6 Power switch
7 Cover
8 Trays
9 Underpan
10 Base
11 Temperature knob
12 Power switch

GETTING STARTED

Important Hints

Note: Do not run the appliance for more than 20 hours in one single use. After 20 hours, turn switch to [O] position. Unplug and let it cool down for at least 2 hours before operating again.

• Do not operate near gas spray cans.
• Incorrect operation and improper handling can lead to malfunction of the appliance and injuries to the user.
• The power cord can not be squeezed by something heavy or sharp, otherwise it will cause a fire or electric shock.
• The temperature of accessible surface may be HIGH when the appliance is operating.

Before first Use

Before using the first time, wipe all parts of the appliance. Clean the 5 trays with a lightly moistened cloth. Use detergent as needed. Do not wash the BASE in a dishwasher or immerse it in water or any other liquid!

After cleaning the unit must be run in for 30 minutes without placing any food for drying during this period. Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation. After the running in period, rinse the racks in water and dry all parts. This act is only necessary for the first time

Assembly

1 Make sure that the dehydrator sits steadily on a solid, level surface.
2 Stock the drying trays and connect the plug with a wall socket.

Note: The height of dehydrator can be increased from 308mm to 395mm by turning the upper trays into the clips of lower ones, which make it possible to load thicker food.

OPERATION

1 Put the clean food in the trays. - Do not overload the trays and never overlap the food. Close the cover.

Note: Always start to load the food from the bottom tray to the top tray.

2 Connect the power supply. Turn on the switch then adjust the temperature.

Note: Set low temperature for thin/small pieces of food or for a small load of food. Set high temperature for drying thick/big pieces of food and large loads. The thermostat can also be used to decrease the temperature as the food is near the end of its drying cycle making it easier to control the final moisture level in the food.

3 Close the cover. Put the cover on the top of the first working tray and press the power switch to 'I' position - the indicator light will light up red.

Note: Make sure that the fan base is always in place when operating the dryer. If you do not have time to dry all the food in one day, you can dry them the next day. In this case, you should store the food in a container/polyethylene bag and put it in the freezer.

4 Turn off the appliance (press the power switch to the 'O' position) when you have finished drying the food. Allow the food to cool. Store the food items in polyethylene bags or food containers and place in the refrigerator (See "STORAGE" section for more information).

5 Unplug the unit from the power point.

Note: It is recommended to stack at least 3 working trays, whether you have food on them or not.

DRYING TIPS

Fruit and vegetables dried in your food dehydrator will be different in appearance from those sold in health food stores and supermarkets. This is due to your food dehydrator uses no preservatives, no artificial coloring and only natural additives.

Records of humidity, weight of produce before and after drying times, will be helpful to improving your drying techniques for the future.

Drying time for pre-treatment fruit will vary according to the following factors:

• Tthickness of pieces or slices
  Number of trays with food being dried
  Volume of food being dried
• Moisture or humidity in your environment

It is recommended to:

• Check your food every hour.
• Rotate and/or re-stack your trays if you notice uneven drying.
• Correct food storage after drying also will help to keep food in good quality and save the nutrients.

Food Storage

• You may store the food only after the tray has cooled down, The food should be stored in clean dry and sealed containers, such as glass tanks, food preservation bags to be used in refrigerator etc. If you use a plastic bag to store the food, the air must be pumped out. When you use other containers to store the food, you should try to fill the container as much as possible and compact it so as to reduce the amount of air, thus preventing the food from getting damp.
• Indicate the food name and date of storage.
  Except for meat/poultry. other food can be stored and put in a dry and cool place. Food that will not be consumed immediately should be put in refrigerator. If put in a sunlit or hot place, the food will deteriorate easily.
• Meat or chicken should be stored in refrigerator.
• You had better check the food sored about once a month to prevent the food from getting damp.

CARE AND CLEANING

Unplug the dehydrator from the power supply and let it cool down before cleaning. Use a soft brush to remove food sticking. Dry all parts before storing the dehydrator.

Do not clean the appliance with aggressive chemicals or abrasives in order not to damage the surface.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
