EER79SWM - Vacuum Cleaner ELECTROLUX - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	Electrolux
Model	EER79SWM
Power supply	Rechargeable 18V lithium-ion battery
Battery capacity	36.5 Wh
Runtime	Up to 45 minutes
Charge time	Approximately 4 hours
Filtration	Washable fine filter and pre-filter
Dust bin capacity	Not specified
Special function	BRUSHROLLCLEAN® for automatic brush cleaning
Lighting	Front LED
Included accessories	Crevice tool, upholstery brush, wall-mountable and freestanding charging stand
Weight	Not specified
Dimensions (L x W x H)	Approximately 25 x 18 x 115 cm
Noise level	Not specified
Maintenance	Filters washable with warm water, dry for 12 hours
Safety	Do not use on liquids or hot objects
Spare parts	EF150 filter (ref. 900 168 3748), Auto kit KIT10B (ref. 900 167 9803)
Repairability	Battery replaceable only by authorized service center

Frequently Asked Questions - EER79SWM ELECTROLUX

How to charge the ERGORAPIDO®?

Place the device on the connected charging stand. The charging indicator turns on. Full charge takes approximately 4 hours. For the first use, charge for 24 hours to optimize the battery.

How to clean the filters?

Remove the dust bin, take out the filters by pressing the unlocking buttons. Separate the inner filter from the outer filter. Rinse with warm water without detergent, shake, and let dry at least 12 hours before putting them back.

What to do if the rotating brush stops turning?

The brush may be blocked by objects. Open the brush cover, remove it and eliminate threads or debris with scissors. Make sure it rotates freely before reassembling. If the BRUSHROLLCLEAN function was used for too long, recharge the device for 15 minutes to reactivate.

How to use the BRUSHROLLCLEAN® function?

Place the vacuum on a hard, flat surface (not on carpet). While operating, press the BRUSHROLLCLEAN pedal with your foot for 5 seconds. A cutting noise is normal. Repeat if necessary. The function stops after 30 seconds to avoid overheating.

How to empty the dust bin?

Press the dust bin unlocking buttons on the device to remove it. Take out the filters, empty the contents into a trash can. Never wash the bin in the dishwasher.

How to detach the handheld vacuum?

Press the handheld vacuum unlocking button on the handle to detach it from the body. You can then attach the crevice tool or the upholstery brush to clean hard-to-reach areas.

What accessories are included?

The vacuum comes with a crevice tool, an upholstery brush, a wall-mountable charging stand, and a freestanding charging stand. Accessories can be stored on the stand or attached to the handle.

What are the important safety instructions?

Do not use the vacuum on liquids, hot objects, or in a humid environment. Keep packaging out of reach of children. Do not use it without the filters. Avoid exposure to sunlight or excessive heat. The battery must not be disassembled.

How to replace the battery?

Battery removal should only be performed by an authorized Electrolux service center or a collection service for recycling. Only remove the batteries if the device is being disposed of. Make sure they are discharged before.

What to do in case of loss of runtime?

Loss of runtime due to age or use is not covered by the warranty. To preserve performance, store the device between 5 °C and 35 °C, charge the battery to 50% for prolonged storage, and clean the filters regularly.

USER MANUAL EER79SWM ELECTROLUX

Cordless vacuum cleaner

10	HOTATO CHOCOLI	7
11	MUSCULPHIA	7
12	PUMA CHIL	13
13	CHOCOLICHTON BING	11
14	KATHUA KATU	16
15	GODRIGUESDAYA CHIL	19
16	VODRIGUESDAYA CHIL	22
17	KASIKUASHAND	25
18	LEMONSCHYCHO	14
19	CHINA CHINA	11

K	JETOGRAU GUEBAN	—
K	GURGICA SUTAVANA	—
K	MUSCALESHUTUZ LINDA	—
T	JASIKOSI	—
T	MADELA ELLINOVA	—
T	JETOGRAU BUSTELENEA	—
T	LIACTRICE DOCK	—
O	MILKARSHIN NO.	—
L	HOTATO IN CHINA	—
T	LARC DE INSTRUCES	—

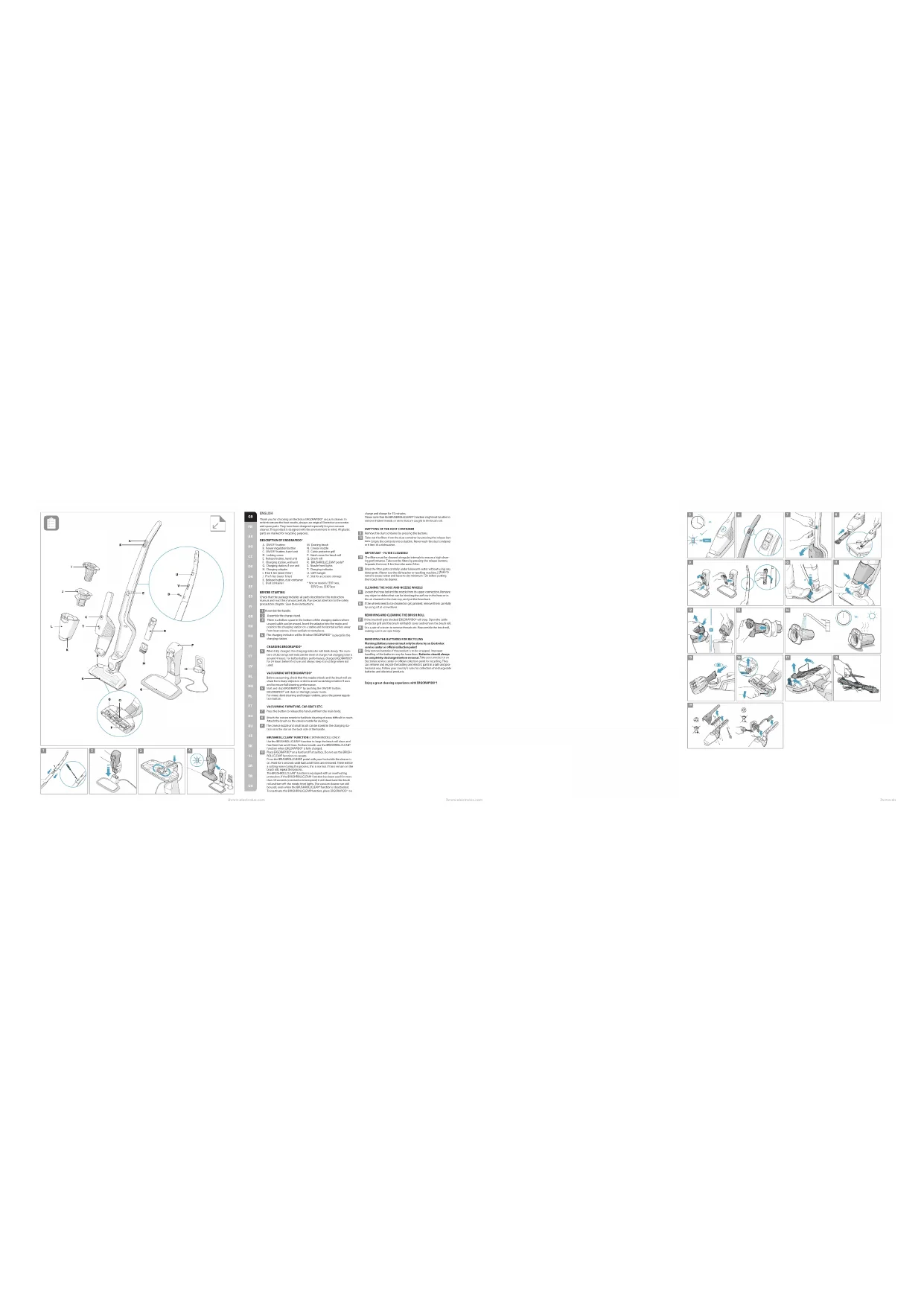

Technical diagram of a vacuum cleaner with labeled parts and exploded views

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

ERGORAPIDO ^® should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

• In wet areas.
• Close to flammable gases, etc.
• When the product shows visible signs of damage.
• On sharp objects or liquids.
• On hot or cold cinders, lighted cigarette butts, etc.
• On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Do not leave the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.
• Mind your fingers if cleaning the inside of the floor nozzle. The metal blade of the BRUSHROLLCLEAN® function is sharp and could cause injury.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5^ or exceeding 35^ . If the product is stored in a temperature below 5^ or exceeding 35 ^ C , let the product cool down or warm up and dry for a few hours before usage.
• A humidity level below 20% or exceeding 80% (non-condensing).

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product.

Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage.

INDICATION LAMPS

CHARGING	WHAT DOES IT MEAN?	DURING USAGE	WHAT DOES IT MEAN?
	Blink slowly = 100 % fully charged 75 - 100 % capacity
	50 – 95 % charged 50- 75 % capacity remaining
	0 – 50 % charged 25 – 50 % capacity remaining
			ERGORAPIDO ^ needs to be recharged.

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories and Consumables for your appliance: www.electrolux.com/shop

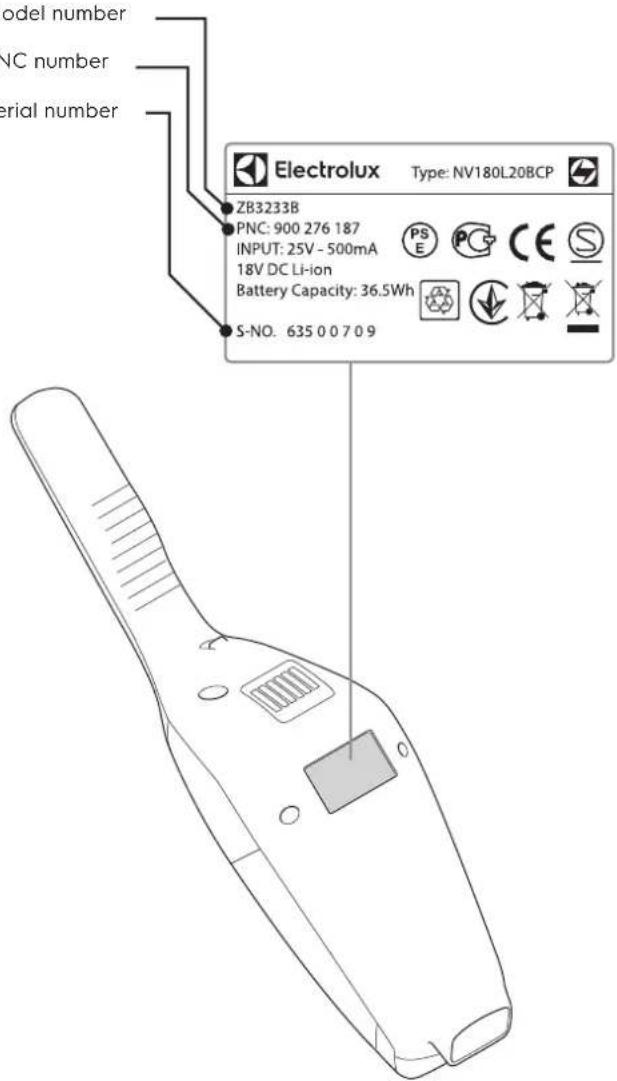

CUSTOMER CARE AND SERVICE

When contacting the Electrolux service center, ensure that you have following data available:

• Model number,
• PNC number
• Serial number

The information can be found on the rating plate.

Model number

PNC number

Serial number

Model number NC number Serial number Electrolux Type: NV180L20BCP ZB3233B PNC: 900 276 187 INPUT: 25V - 500mA 18V DC Li-ion Battery Capacity: 36.5Wh S-NO. 635 0 0 7 0 9

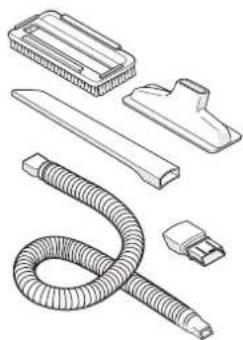

CONSUMABLES & ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Car Kit

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

RUNNING TIMES FOR ERGORAPIDO®

Modell Volt Long runtime mode
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

The battery should be removed from The product before disposal. Dispose of or recycle The battery in accordance with local regulations. The symbol

on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FRANÇAIS

www.electrolux.com/productregistration

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Réf: ZE125

PNC: 900 168 0819

AUTONOMIES POUR ERGORAPIDO®

Technical line drawing of various mechanical components including a coiled hose, plastic housing, and connector (no text or symbols)

Technical line drawings of various electronic components including a coiled hose, plastic clip, and connector (no text or symbols)

BedPro™ MINI

Peφ: ZE125

PNC: 900 168 0819

BPEME HA PABOTA 3A ERGORAPIDO®

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a small rectangular component on the handle (no text or symbols)

SPOTŘEBNÍ ZBOŽÍ A PŘÍSLUŠENSTVÍ

www.electrolux.com/shop

Filtr

Ref: EF150

PNC: 900 168 3748

Sada pro automobil

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

DOBA PROVOZU VYSAVAČE ERGORAPIDO®

Technical line drawings of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Bez.: ZE125

T∅MNING AF ST∅VBEHOLDEREN

Technical line drawing of various electronic components including a rectangular block, ribbon cable, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

K∅RETIDERR FOR ERGORAPIDO®

Model Volt Lang driftstidstilstand
45xx 18V HD	45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawings of various electronic components including a rectangular block, cable, and coiled hose (no text or symbols)

BedPro™ MINI Viide: ZE125 PNC: 900 168 0819

ERGORAPIDO® TÖÖAJAD

Mudel Volt Pika tööaja režiim
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Line drawing of a handheld electronic device with a gray rectangular component and a vertical line indicating a connection point (no text or symbols present)

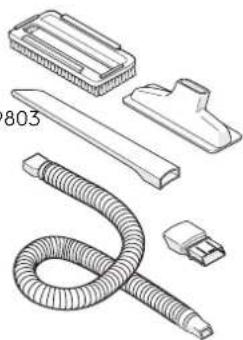

CONSUMIBLES Y ACCESORIOS

www.electrolux.com/shop

Filtro

Ref: EF150

Número de producto (PNC): 900 168 3748

Kit para el coche

Ref: KIT10B

Número de producto (PNC): 900 167 9803

Technical line drawings of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

Technical line drawing of various mechanical components including a hose, clip, and connector (no text or symbols)

BedPro™ MINI

Viite: ZE125

PNC: 900 168 0819

ERGORAPIDO®-PÖLYNIMURIN KÄYTTÖAJAT

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Avap: ZE125

PNC: 900 168 0819

Technical line drawing of various electronic components including a rectangular block, handle, cable, and connector (no text or symbols)

BedPro™ MINI Ref: ZE125 PNC: 900 168 0819

TRAJANJA ZA ERGORAPIDO®

Model Volt		Način duljeg vremena rada
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a rectangular button and ventilation slots (no text or symbols)

Technical line drawing of various electronic components including a connector, cable, and housing (no text or symbols)

BedPro™ MINI

Ref: ZE125

Technical line drawing of various electronic components including a rectangular block, plastic clip, coiled cable, and USB port (no text or symbols)

BedPro™ MINI Rif: ZE125 PNC: 900 168 0819

TEMPI DI UTILIZZO PER ERGORAPIDO®

Modello Volt		modalit’ tempo di utilizzoprolungato
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various mechanical components including a coiled hose, plastic clip, and connector (no text or symbols)

BedPro™ MINI

Norāde: ZE125

PNC: 900 168 0819

ERGORAPIDO® IZPILDES LAIKI

Modelis Volt Ilgi runtime režimā
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a gray square button and ventilation slots (no text or symbols)

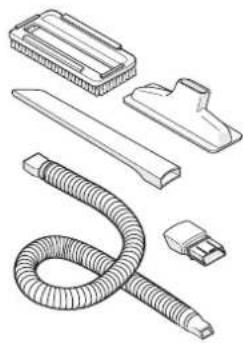

VARTOJIMO REIKMENYS IR PRIEDAI

www.electrolux.com/shop

Filtras

Nr. EF150

Gamyklinis numeris

(PNC) 900 168 3748

Automobilio komplektas Nr. KIT10B

Gamyklinis numeris

(PNC) 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

„BedPro™ MINI"

Nr. ZE125

Gamyklinis numeris

(PNC) 900 168 0819

„ERGORAPIDO®“ NEPERTRAUKIAMO DARBO TRUKMĚ

Modelis įtampa	Ilgo nepertraukiamo veikimo režimas
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

VOOR U VAN START GAAT

Line drawing of a handheld electronic device with a gray square button and ventilation slots (no text or symbols)

VERBRUIKSARTIKELEN & ACCESSOIRES

Technical line drawing of various electronic components including a rectangular block, cable, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

BEDRIJFSTIJDEN VOOR ERGORAPIDO®

Model Volt Lange werkingstijd modus
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electronic components including a rectangular block, plastic clip, coiled cable, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

GANGTIDER FOR ERGORAPIDO®

Modell Volt Laneffektmodus
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

ZAPRASZAMY NA NASZA WITRYNE INTERNETOWA, ABY:

Line drawing of a handheld electronic device with a gray rectangular component and a vertical line above it (no text or symbols)

AKCESORIA I MATERIAŁY EKSPLOATACYJNE

www.electrolux.com/shop

Filtr

Typ: EF150

Nr produktu: 900 168 3748

Zestaw Car

Typ: KIT10B

Nr produktu: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Typ: ZE125

Nr produktu: 900 168 0819

CZAS PRACY ERGORAPIDO®

ASSISTÊNCIA E GARANTIA

Line drawing of a handheld electronic device with a gray rectangular component and a vertical line above it (no text or symbols)

CONSUMÍVEIS E ACESSÓRIOS

www.aeg.com/shop

Filtros Ref.§: EF150 PNC: 900 168 3748

Technical line drawing of various mechanical components including a rectangular block, curved pipe, and connector (no text or symbols)

BedPro™ MINI Ref.§: ZE125 PNC: 900 168 0819

Line drawing of a handheld electronic device with a gray square button and ventilation slots (no text or symbols)

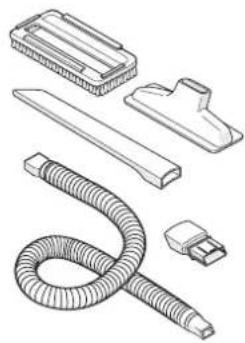

CONSUMABILE ŞI ACCESORII

www.electrolux.com/shop

Filtru

Ref: EF150

PNC: 900 168 3748

Set pentru maşină

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various mechanical components including a hose, clamped parts, and a clip (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

DURATELE DE FUNCTIONARE PENTRU ERGORAPIDO®

Model Tensiune Mod functionare indelungată
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electrical connectors and tubing components (no text or labels)

BedPro™ MINI

Technical line drawing of various electronic components including a coiled hose, plastic clip, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

KÖRTIDER FÖR ERGORAPIDO®

Modell Volt Långt körtidsläge
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electrical connectors and tubing components (no text or labels)

BedPro™ MINI

Kód: ZE125

Č. ANC: 900 168 0819

DOBA POUŽITIA ERGORAPIDO®

Model Volt Dlhá doba použitia
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a small rectangular component and a vertical line above it (no text or symbols)

POTROŠNI MATERIAL IN PRIPOMOČKI

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Avtomobilski komplet

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various mechanical components including a coiled hose, plastic clip, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

ČAS DELOVANJA ZA ERGORAPIDO®

Model Volt Način za dolgo delovanje
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electronic components including a connector, cable, and housing (no text or symbols)

BedPro™ MINI

Реф: ZE125

PNC (број артикла):

900 168 0819

ВРЕМЕ ИЗВРШАВАЊА ЗА ERGORAPIDO®

MOBİLYALARIN, ARABA KOLTUKLARININ VB. VAKUMLANMASI

Line drawing of a handheld electronic device with a button and handle (no text or symbols)

SARF MALZEMELERI VE AKSESUARLAR

www.electrolux.com/shop

Filtre

Ref: EF150

PNC: 900 168 3748

Araç Kiti

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled hose, plastic clip, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

ERGORAPIDO® IÇIN ÇALIŞMA ZAMANLARI

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a small rectangular component and a vertical line indicating a measurement or connection point (no text or symbols present)

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Посилання: ZE125
