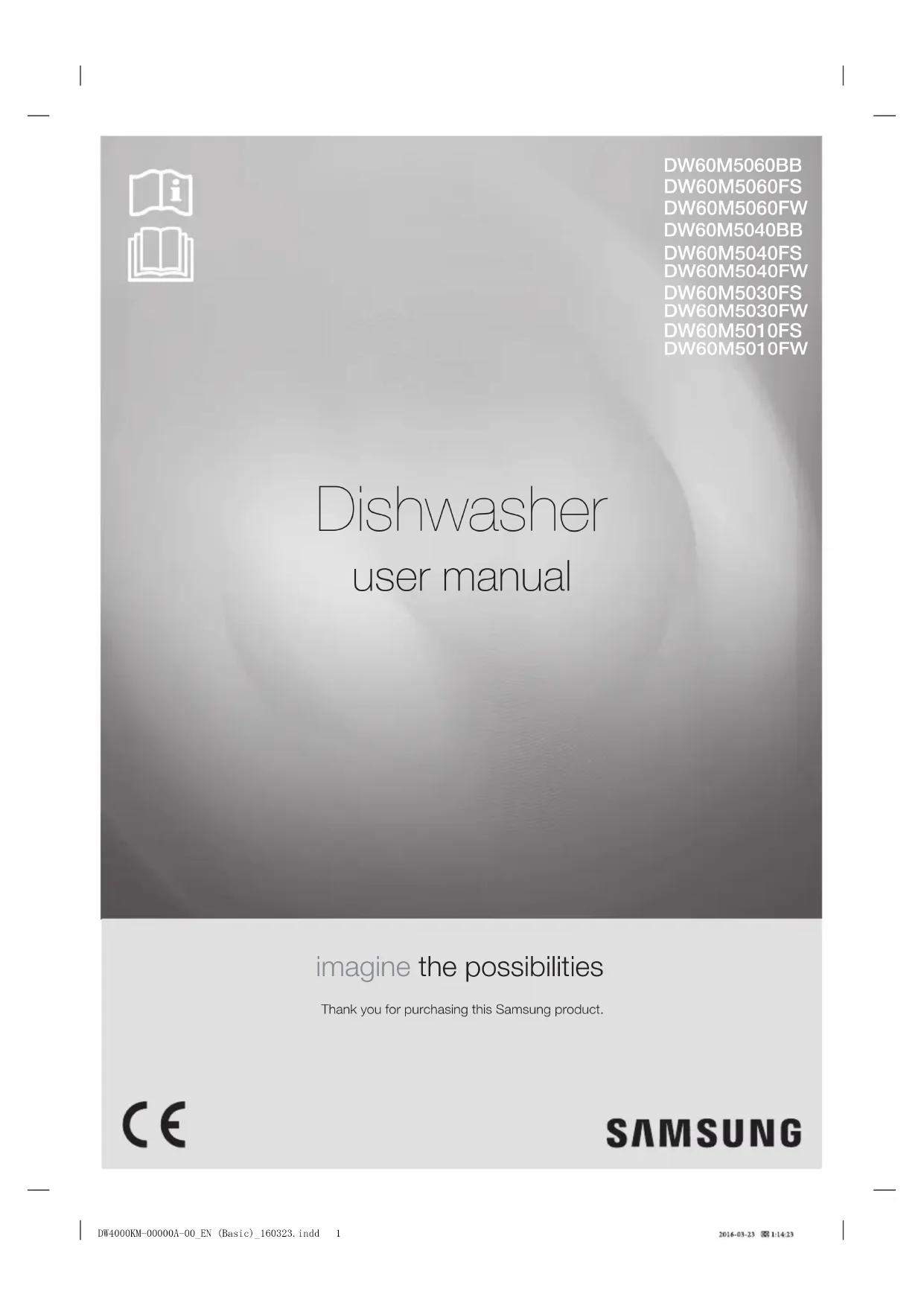

USER MANUAL DW60M5040FW SAMSUNG

DW60M5060BB DW60M5060FS DW60M5060FW DW60M5030FS DW60M5010FS DW60M5040FS DW60M5040FWDW60M5030FWDW60M5010FWDW60M5040BB Dishwasher user manual imagine the possibilities Thank you for purchasing this Samsung product.DW4000KM-00000A-00_EN (Basic)_160323.indd 12_ Contents Contents SAFETY INFORMATION

5 Hydrogen gas is explosive 5 Proper use 6 Disposal 6 Instruction about the WEEE mark OPERATION INSTRUCTION

7 Control panel 13 Displays 18 Dishwasher features

20 Set the water softener 21 Loading the salt into the softener 22 Fill the rinse aid dispenser 22 Rinse aid dispenser 23 Function of detergent

LOADING THE DISHWASHER RACKS

26 Loading the upper basket 27 Loading the lower basket 29 Cutlery basket and fork shelf 30 For washing in the dishwasher the following cutlery/dishes

MAINTENANCE AND CLEANING

38 Filtering system 38 Filter assembly 39 Cleaning the spray arms 39 Caring for the dishwasher 39 Protect against freezing 39 Cleaning the door 40 How to keep your dishwasher in shape INSTALLATION INSTRUCTION

41 Positioning and leveling 42 Connecting the water and electricity supplies 44 Built-in dishwasher 49 Start of dishwasher TROUBLESHOOTING TIPS

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY SAVE THESE INSTRUCTIONS

Safety information Please read this User Information carefully and keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. This manual contains sections of Safety Instructions, Part and Features, Installation your dishwasher and Troubleshooting etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly. The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.

WARNING: When using your dishwasher, follow the below basic precautions including the following:

1. This appliance is not to be used by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. For use in Europe: This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Children should be supervised to ensure that they do not

play with the appliance.

4. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard. DW4000KM-00000A-00_EN (Basic)_160323.indd 34_ Safety information

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY SAVE THESE INSTRUCTIONS

5. The new hose-sets supplied with the appliance are to be

used and that old hose-sets should not be reused.

6. For appliances with ventilation openings in the base, that

a carpet must not obstruct the openings.

7. For use in Europe: Children of less than 3 years should

be kept away unless continuously supervised.

8. CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly by the utility.

9. This appliance is intended to be used in household and

similar applications such as: ces and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments.

10. The door should not be left in the open position since

12. Please do not overload your dishwasher. There is only

space for 13／14 standard dishes. Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consumption. this could present a tripping hazard.

11. WARNING: Knives and other utensils with sharp points

must be loaded in the basket with their points down or placed in a horizontal position. Safety information DW4000KM-00000A-00_EN (Basic)_160323.indd 4Safety information _5 01 SAFETY INFORMATION

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY SAVE THESE INSTRUCTIONS

Hydrogen gas is explosive Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. Proper use

• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

• Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.

• When loading items to be washed: - Locate sharp items so that they are not likely to damage the door seal; - Load sharp knives with the handles up to reduce the risk of cut-type injuries;

• Warning : knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• Check that the detergent receptacle is empty after completion of the wash cycle.

• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

• Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3 mm contact separation in all poles.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

• Young children should be supervised to ensure that they do not play with the appliance.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

• The door should not be left in the open position since this could present a tripping hazard.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• Please dispose of packing materials properly.

• Use the dishwasher only for its intended function.

• During installation, the power supply must not be excessively or dangerously bent or flattened.

• Do not tamper with controls.

• The appliance is to be connected to the water mains using new hose sets and the old hose-sets should not be reused. DW4000KM-00000A-00_EN (Basic)_160323.indd 56_ Safety information

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY SAVE THESE INSTRUCTIONS

Disposal Dispose of the dishwasher packaging material correctly.All packaging materials can be recycled.Plastic parts are marked with the standard international abbreviations:PE for polyethylene, e.g. sheet wrapping materialPS for polystyrene, e.g. padding materialPOM polyoxymethylene, e.g. plastic clipsPP polypropylene, e.g. Salt fillerABS Acrylonitrile Butadiene Styrene, e.g. Control Panel.WARNING: Packaging material could be dangerous for children!power supply cable and make the door closing device unusable.Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.your household waste disposal service. Instruction about the WEEE mark Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html Safety information DW4000KM-00000A-00_EN (Basic)_160323.indd 6the button for 3 seconds. Operation Instruction _7 02 OPERATION INSTRUCTION Operation instruction Control panel DW60M5060FS/DW60M5060FW

1 Press this button to turn on your dishwasher : the screen lights up.2 Program To select washing program press this button.3 Half load To select Half load function. With this Half load function you can only use it to wash either basket, and you will see less water and energy consumption. It can only be used with all program expect Pre Wash． 4 Delay startPress this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hours.5 Display Running indicator, delay time, information codes and etc.6 Rinse AddTo select Rinse Add function, you can use it when you want to add once rinse after the program. It can be used with all program expect Pre Wash.7 HygienePush the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash. Multi tab(Control lock) To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive、Eco ） Another option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold down Multi in 1

In power on condition, close the dishwasher door and select the cycle and desired options. Press the button to begin the cycle.When you want to pause the dishwasher while running, press the button and make sure to open the door slowly and carefully.You can reset the machine by pressing the button for 3 seconds during washing. After reset, the dishwasher goes to the initial state except salt consumption setting of water softener.• When the door is open only the

• You can select options (Multi in 1, Delay start, Half load, Hygiene and Rinse Add) before starting a cycle.DW4000KM-00000A-00_EN (Basic)_160323.indd 7 button will operate.8_ Operation Instruction Operation instruction Control panel DW60M5040FS／DW60M5040FW

1 Press this button to turn on your dishwasher : the screen lights up. 2 Program To select washing program press this button. 3 Half load 4 Delay start Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hours. 5 Display Running indicator, delay time, information codes and etc. 6 Hygiene 7 Multi tab Push the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash.

Control lock To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive, Eco and normal). To lock and unlock the buttons on the control panel, hold down the Control lock button for 3 seconds.

In power on condition, close the dishwasher door and select the cycle and desired options. Press the button to begin the cycle. When you want to pause the dishwasher while running, press the button and make sure to open the door slowly and carefully. You can reset the machine by pressing the button for 3 seconds during washing. After reset, the dishwasher goes to the initial state except salt consumption setting of water softener.

• When the door is open only the button will operate.

• You can select options (Multi in 1, Delay start, Half load, Hygiene and Rinse Add) before starting a cycle. DW4000KM-00000A-00_EN (Basic)_160323.indd 8 Control lock option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To select Half load function. With this Half load function you can only use it to wash either basket, and you will see less water and energy consumption. It can only be used with all program except Pre Wash．Operation Instruction _9 02 OPERATION INSTRUCTION Operation instruction Control panel DW60M5030FS/DW60M5030FW 1 Press this button to turn on your dishwasher : the screen lights up.2 Program To select washing program press this button.3 Half load4 HygienePush the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash. Multi tab(Control lock) To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive, Eco and normal ). Another option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold down the button for (3) seconds. In power on condition, close the dishwasher door and select the cycle and desired options. Press the button to begin the cycle.When you want to pause the dishwasher while running, press the button and make sure to open the door slowly and carefully.You can reset the machine by pressing the button for 3 seconds during washing. After reset, the dishwasher goes to the initial state except salt consumption setting of water softener.• When the door is open only the
• You can select options (Multi in 1, Delay start, Half load, Hygiene and Rinse Add) before starting a cycle.DW4000KM-00000A-00_EN (Basic)_160323.indd 7 button will operate. 2 3 4 5Multi in 1 To select Half load function. With this Half load function you can only use it to wash either basket, and you will see less water and energy consumption. It can only be used with all program except Pre Wash．Operation instruction Control panel DW60M5010FS/DW60M5010FW 1 Press this button to turn on your dishwasher : the screen lights up. 2 Program To select washing program press this button. 3 Half load 4 Hygiene Push the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash.

In power on condition, close the dishwasher door and select the cycle and desired options. Press the button to begin the cycle. When you want to pause the dishwasher while running, press the button and make sure to open the door slowly and carefully. You can reset the machine by pressing the button for 3 seconds during washing. After reset, the dishwasher goes to the initial state except salt consumption setting of water softener.

• When the door is open only the

• You can select options (Multi in 1, Delay start, Half load, Hygiene and Rinse Add) before starting a cycle. DW4000KM-00000A-00_EN (Basic)_160323.indd 7 button will operate.

10_ Operation Instruction To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive、Eco ） Another option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold down the button for (3) seconds. Multi in 1 To select Half load function. With this Half load function you can only use it to wash either basket, and you will see less water and energy consumption. It can only be used with all program except Pre Wash.Operation Instruction _11 DW60M5060BB DW60M5040BB 1 Press this button to turn on your dishwasher : the screen lights up.2 Cycle To select washing program press this button.3 UpperWhen you select Upper, only the upper rack nozzle is activated.The lower nozzle will not operate.Use this feature to wash a small load of dishes or glasses placed in the upper rack.When you select Upper, place dishes, glasses, etc. in the upper rack only. The dishwasher will not wash items placed in the lower rack.Selecting Upper reduces both the cycle time and the amount of electricity consumed.4 LowerWhen you select Lower, only the lower rack nozzle is activated. The upper nozzle will not operate.Use this feature to wash a small load of dishes or glasses placed in the lower rack. When you select Lower, place items, glasses, etc. in the lower rack only. The dishwasher will not wash items placed in the upper rack.Selecting Lower reduces both the cycle time and the amount of electricity consumed.5 HygienePush the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash.6 Rinse AddTo select Rinse Add function, you can use it when you want to add once rinse after the program. It can be used with all program expect Pre Wash.7 Multi tab To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive, Eco andnormal ). 8 Control lockControl lock option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. Operation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 113 4 5 10 116 8 971 2 02 OPERATION INSTRUCTION Control panel9 Indicator If Rinse Refill or Salt Refill indicator is lit, it means rinse or salt is needed to refill. Salt Refill Indicator

• If the “Salt Refill” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Rinse Refill Indicator

• If the “Rinse Refill” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. Control lock Indicator

• If the “Control lock” indicator id fit, it means the dishwasher is locked, you cannot do any operate. 10 Delay start Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hours.

In power on condition, close the dishwasher door and select the cycle and desired options. Press the button to begin the cycle. When you want to pause the dishwasher while running, press the button and make sure to open the door slowly and carefully. You can reset the machine by pressing the button for 3 seconds during washing. After reset, the dishwasher goes to the initial state except salt consumption setting of water softener.

• You can select options (Multi tab, Half load, Delay, Hygiene and Rinse Add) before starting a cycle. DW4000KM-00000A-00_EN (Basic)_160323.indd 12 12_ Operation InstructionQuick WashDelicate Displays DW60M5060FS/DW60M5060FW/DW60M5040FS/DW60M5040FW 1 PROGRAM ICONS When press the Program button, each program is selected. Eco Normally soiled daily using items, with reduced energy and water consumptions.Intensive Heavily soiled items include pots and pans.Lightly soiled with very short cycle time.Lightly soiled delicate items.Express Normally soiled daily using items, with short cycle time.Pre WashCold rinse for remove only dirt on dishes stored for a long time or soaking dishes which are dried up before other programme running.2 3*8 SEGMENT Display the remaining time, information code, or delay time. Operation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 13

Operation Instruction _13 Normal For normally soiled loads, such as pots, plates, glasses, and lightly Is optimiz according to the soiled loads, such as pots, pans, utensils and cutlery, with the aid of sensors.soiled pans. Standard daily cycle.（DW60M5060FS）（DW60M5060FW）（DW60M5060FS）（DW60M5060FW）（DW60M5060FS）（DW60M5060FW）（DW60M5040FS）（DW60M5040FW）02 OPERATION INSTRUCTIONIn below market, the Eco program is the one which is tested when getting the certification, same as Eco program: edDW4000KM-00000A-00_EN (Basic)_160323.indd 12 14_ Operation Instruction SALT REFILL INDICATOR If the “Salt Refill” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. RINSE REFILL INDICATOR If the “Rinse Refill” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. CONTROL LOCK INDICATOR If the “Control lock” indicator id fit, it means the dishwasher is locked, you cannot do any operate. DELAY START INDICATOR If the “Delay Start” indicator is fit, it means the dishwasher start will delay several hours which you setup. 3 OPTION ICONS When pressing the option icons, the corresponding option function is selected. 4 INDICATORS When the indicator is on, it reminds of that client has chosen delay function, client need to add salt and etc. Rinse Add To select Rinse Add function, you can use it when you want to add once rinse after the program. It can be used with all program expect Pre Wash. Hygiene Push the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash. Multi tab (Control lock) To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive, Eco and normal ). Another option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold down both the Multi in 1 button for (3) seconds. （DW60M5060FS）

（DW60M5060FW）SALT REFILL

INDICATOR If the “Salt Refill” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. RINSE REFILL INDICATOR If the “Rinse Refill” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. CONTROL LOCK INDICATOR If the “Control lock” indicator id fit, it means the dishwasher is locked, you cannot do any operate. DW60M5030FS/DW60M5030FW/DW60M5010FS/DW60M5010FW DW4000KM-00000A-00_EN (Basic)_160323.indd 14 Operation Instruction _15 1 PROGRAM ICONS When press the Program button, each program is selected. Eco Normally soiled daily using items, with reduced energy and water consumptions. Intensive Heavily soiled items include pots and pans. Express Normally soiled daily using items, with short cycle time. 2 OPTION ICONS When pressing the option icons, the corresponding option function is selected. 3 INDICATORS When the indicator is on, it reminds of that client has chosen delay function, client need to add salt and etc. Hygiene Push the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash. Multi tab (Control lock) Normal For normally soiled loads, such as pots, plates, glasses, and lightly soiled pans. Standard daily cycle. （DW60M5030FS） （DW60M5030FW）

To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive, Eco and normal ). Another option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold down both the Multi in 1 button for (3) seconds. 02 OPERATION INSTRUCTIONQuick Wash Delicate 1 PROGRAM ICONS When press the Program button, each program is selected. Normally soiled daily using items, with reduced energy and water consumptions. Intensive Heavily soiled items include pots and pans. Lightly soiled with very short cycle time. Lightly soiled delicate items. Express Normally soiled daily using items, with short cycle time. Pre Wash Cold rinse for remove only dirt on dishes stored for a long time or soaking dishes which are dried up before other programme running. Normal For normally soiled loads, such as pots, plates, glasses, and lightly soiled pans. Standard daily cycle. （DW60M5060BB） （DW60M5060BB） （DW60M5060BB） （DW60M5040BB） DW60M5060BB DW60M5040BB 2 3*8 SEGMENT Display the remaining time, information code, or delay time. DW4000KM-00000A-00_EN (Basic)_160323.indd 15

16_ Operation Instruction Eco Is optimiz according to the soiled loads, such as pots, pans, utensils and cutlery, with the aid of sensors. ed02 OPERATION INSTRUCTION DW4000KM-00000A-00_EN (Basic)_160323.indd 12 Operation Instruction _17 SALT REFILL INDICATOR If the “Salt Refill” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. RINSE REFILL INDICATOR If the “Rinse Refill” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. CONTROL LOCK INDICATOR If the “Control lock” indicator id fit, it means the dishwasher is locked, you cannot do any operate. DELAY START INDICATOR If the “Delay Start” indicator is fit, it means the dishwasher start will delay several hours which you setup. 3 OPTION ICONS When pressing the option icons, the corresponding option function is selected. 4 INDICATORS When the indicator is on, it reminds of that client has chosen delay function, client need to add salt and etc. Rinse Add To select Rinse Add function, you can use it when you want to add once rinse after the program. It can be used with all program expect Pre Wash. Hygiene Push the Hygiene button for the best possible hygiene in your dishwasher. At the final rinse it heat up to 70 °C and hold this temperature for a several minutes. This function is available with all program except Pre Wash. Multi tab (Control lock) To select Multi in 1 option which needs salt and rinse aid but a Multi in 1 tablet. This option can be used with other programme ( Intensive, Eco and normal ). Another option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold down both the Multi in 1 button for (3) seconds. （DW60M5060BB）Dishwasher features Front & Rear View Free standing Dishwasher ( 13 place setting ) DW60M5040FS/DW60M5040FW/DW60M5030FS/DW60M5030FWDW60M5010FS/DW60M5010FWDW60M5040BB Full built in Dishwasher ( 13 place setting ) 1 Upper Basket 2 Spray Arms 3 Lower Basket 4 Water Softener 5 Filters 6 Detergent Dispenser 7 Rinse Aid Dispenser

Cutlery basket Fork shelf Operation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 16 18_ Operation Instruction

9Dishwasher features Front & Rear View 1 Upper Basket 2 Spray Arms 3 Lower Basket 4 Water Softener 5 Filters 6 Detergent Dispenser 7 Rinse Aid Dispenser

Cutlery Tray Cup Holder Operation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 16 Operation Instruction _19 Free standing Dishwasher ( 14 place setting ) DW60M5060FS/DW60M5060FWDW60M5060BB Full built in Dishwasher ( 14 place setting )

6Prior using for the first time Before using your dishwasher for the first time: A. Set the water softenerB. Loading the salt into the softenerC. Fill the rinse aid dispenserD. Fill in detergent Set the water softener The water softener is designed to remove minerals and salts from the water, which would have a detrimental harder the water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Setting The amount of salt dispensed can be set from H0 to H7.Salt is not required at the set value H0.

1. Find out about the hardness value of your tap water. Your water utility company will help you

with this.2. Set value can be found in the water hardness table.3. Close the door.4. Switch on "Power" switch.

5. Hold down "Delay" button and then press "Program" button (for freestanding dishwasher) or

"Start" button (for full built-in dishwasher) for 5 seconds. The buzzer rings one time and H.fl ashes on the digital display. (factory setting is H4) To change the setting: 1. Press "Delay" button.Water hardness adjusting scheme ( DW60M5060FS/DW60M5060FW/DW60M5060BB/DW60M5040FS/DW60M5040FW/DW60M5040BB )Each time the button is pressed, the set value increases by one level; when the value of H7

2. Press "Program" or "Start" button. The chosen setting has now been stored.

Contact your local water board for information on the hardness of your water supply. Water hardness table WATER HARDNESSmmol/l Value setting°Clark Range 0H1.1~0 tfos8~0 1H 4.1~2.1 tfos01~9 2H 8.1~5.1 muidem21~11 3H 1.2~9.1 muidem51~31 4H 9.2~2.2 muidem02~61 5H 7.3~0.3drah62~12 27~38 hard 3.8~5.4 H6 7H 9.8~5.5drah26~93 DW4000KM-00000A-00_EN (Basic)_160323.indd 17 20_ Prior Using for the First TimeLoading the salt into the softener Always use salt intended for use with dishwasher.If your model has no water softener, you may skip this sectionWATER SOFTENERThe hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.The appliance is equipped with a special softener that uses salts specifically designed to eliminate lime and minerals from the water.The salt container is located beneath the lower basket and should be filled as follows: CAUTION: Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.Only fill with salt just before starting one of the complete washing programmes.This will prevent any grains of salt or salty water, which may have been split, remaining on the bottom of the machine for any period of time, which may cause corrosion.After the first wash cycle the control panel light expires. Prior using for the first time DW4000KM-00000A-00_EN (Basic)_160323.indd 181. Remove the lower basket and then unscrew and remove the cap from the salt container.

Prior Using for the First Time _21

03 PRIOR USING FOR THE FIRST TIME

water hardness adjusting scheme

Water hardness adjusting scheme ( DW60M5030FS/DW60M5030FW/ DW60M5010FS/DW60M5010FW ) When dishwasher is in standby mode, press the program button and the start button for 5s (at the same time), then with a buzzle sound, the LED will show the water hardness spec setting,release the button. Each time pressing the Delay button, the setting value will add "1" with a buzzle sound. The value can be set from H0 to H7 repeatedly.After setting, press the start button, the chosen value will be saved and the dishwasher will operate according to the setting. For the indicator of the water hardness value setting, please refer to below table: WATER HARDNESS mmol/l Value setting Indicator °Clark Range on on on on Flash on on Flash Flash Flash on on Flash on Flash Flash Flash on Flash Flash Flash on on Flash 1.1~0 tfos8~0

7H 9.8~5.5drah26~93Fill the rinse aid dispenser Function of rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. CAUTION: Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance. When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse- aid by the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full. As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3/4 full 1/2 full 1/4 full : Should refill to eliminate spotting Empty D (Rinse-Aid indicator) Rinse aid dispenser

1. To open the dispenser, turn the cap to the "open" (left) arrow

2. Pour the rinse aid into the dispenser, be careful not to overfi ll.

3. Replace the cap by inserting it aligned with "open" arrow

and turning it to the "closed" (right) arrow. DW4000KM-00000A-00_EN (Basic)_160323.indd 19

22_ Prior Using for the First Time

2. If you are fi lling the container for the fi rst time, fi ll 2/3 of its volume with water (around 500ml).

3. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is normal for a

small amount of water to come out of the salt container.

4. Carefully screw the cap back on.

in 2-6 days after the salt container is fi lled with salt.

• The salt container must be refilled when the salt warning light in the control panel comes on. Though the salt container is filled enough, the indicator light may not black out before the salt fully dissolve. If there is no salt warning light in the control panel (for some models), you can judge when to load the salt into the softener by the cycles that the dishwasher had run (see the following schema).

• If there are spills of the salt, a soak program could be run to wipe them out.The rinse aid is released during the final rinse to prevent water from forming droplets on your the dishes. Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 130ml.Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.CAUTION: Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the next wash. Adjusting Rinse Aid Dispenser Adjust the amount of rinse aid released during the rinse operation.You can choose one of six levels (1-6). The higher the number, the larger the amount of rinse aid released. The factory default is 5.The use of a rinse aid greatly improves the drying performance after the final rinse. Function of detergent Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose. Concentrated detergent Based on their chemical composition, dishwasher can be split in two basic types:• conventional, alkaline detergents with caustic components• low alkaline concentrated detergents with natural enzymesThe use of “normal” washing programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes; these wash programmes are specially matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal” wash programmes in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programmes. Detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals. Detergent dispenser The dispenser must be refilled before the start of each washing cycle following the instructions provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed fora normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly. Prior using for the first time DW4000KM-00000A-00_EN (Basic)_160323.indd 20 Prior Using for the First Time _23

1. If the lid is closed: press release

before starting each wash cycle. Only use branded detergent aid for dishwasher.

WARNING: When using your dishwasher, follow the basic precautions including the

following: Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes. Fill in the detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

1. The place of main wash cycle detergent placed, which

has dosing level in the interior of it.

2. For the pre-wash cycle detergent, add it into the

dishwasher directly, approximately 5g of detergent.

Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging. Close the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent You find information about the amount of detergent for the single programme on the last page. Please be aware that according to the level soiling and the specific hardness of detergent packaging. DW4000KM-00000A-00_EN (Basic)_160323.indd 21 24_ Prior Using for the First TimeUse of Multi in 1 Detergent Tablets General Advice

1. Before using these products you should fi rst check that the water hard-ness in your supply

is compatible with the use of these products as per the detergent manufacturers instructions (on the product packaging).

2. These products should be strictly used according to the detergent manufacturers

contact the detergent manufacturers care line (the telephone number is given on the product packaging). These products are detergents with integrated and combined detergent/rinse aid and salt functions. Before using these products you should fi rst check that the water hardness in your supply is compatible with the use of these products as per the detergent manufacturers (on the product packaging). Special Advice When using combination products, the rinse-aid and salt lights are no longer useful. It may be helpful to select the lowest possible setting for water hardness. To select "Multi in 1" function:

To cancel "Multi in 1" function: To cancel "Multi in 1" function by pressing the "Multi tab" button or follow the "Cancelling a programme in progress" instruction. If you decide to switch to the use of a standard detergent system we advise that you:

1. Refi ll both the salt and rinse aid compartments.

2. Switch the water hardness setting to the highest possible position and run for three normal

cycles without load.

3. Readjust the water hardness setting again according to the conditions for your region (For

more information please refer to your instruction manual). Multi in 1 washing cycle is additional function, they must be used with other programme (Intensive, Eco and Normal). Prior using for the first time DW4000KM-00000A-00_EN (Basic)_160323.indd 22 Prior Using for the First Time _25 03 PRIOR USING FOR THE FIRST TIMELoading the dishwasher racks For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and silverware baskets may vary from your model. Attention before or after Loading the Dishwasher Baskets water. Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are stood upside down.

3. They are stacked securely and can not tip over.

4. They do not prevent the spray arms from rotating while washing takes place.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets. Removing the Dishes To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket. Loading the upper basket tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water. Upper basket (13 Place setting) Type Item puCA ssalGB C Saucer D Serving bowl E Serving bowl Upper basket (14 Place setting) Type Item puCA ssalGB C Saucer D Serving bowl E Serving bowl DW4000KM-00000A-00_EN (Basic)_160323.indd 23( DW60M5060BB/DW60M5060FS/DW60M5060FW ) ( DW60M5040BB/DW60M5040FS/ DW60M5040FW/DW60M5030FS/ DW60M5030FW/DW60M5010FS/ DW60M5010FW ) 26_ Loading the dishwasher racksAdjusting the upper basket If required, the height of the upper basket can be adjusted in order to create more space for large utensils either in the upper basket or lower basket. The upper basket can be adjusted servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or removed when not be required for use. Loading the lower basket pans, lids, serving dishes and bowls, as shown in the figure below.It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking the rotation of the top spray arm.Pots, serving bowls, etc. must always be placed top down.Deep pots should be slanted to allow water to flow out.The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded. Loading the dishwasher racks DW4000KM-00000A-00_EN (Basic)_160323.indd 24

( DW60M5060BB/DW60M5060FS/DW60M5060FW/DW60M5040BB/DW60M5040FS/DW60M5060FW )( DW60M5030FS/DW60M5030FW/DW60M5010FS/DW60M5010FW )Loading the dishwasher racks _27

04 LOADING THE DISHWASHER RACKSUpper and lower basket folding racks Folding racks consisting of two parts that are located on the lower basket of your machine are designed in order to let you place big items easier as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger can be obtained. You can use folding racks by raising then upwards, or by folding. DW4000KM-00000A-00_EN (Basic)_160323.indd 25Lower basket (14 Place setting)( DW60M5060BB/DW60M5060FS DW60M5060FW ) Type ItemF Serving bowlG Soup plateH Dinner plateI Dessert plateJ Oval plate

28_ Loading the dishwasher racks ( DW60M5040BB/DW60M5040FS DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS DW60M5010FW ) Lower basket (13 Place setting)Type ItemF Serving bowlG Soup plateH Dinner plateI Dessert plateJ Oval plate

DW4000KM-00000A-00_EN (Basic)_160323.indd 26 Cutlery basket and fork shelf Cutlery should be placed in the cutlery basket with handles at the bottom: If the basket has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket. Door side Fork shelf Cutlery basket (13 Place setting) Type Item 1 Tea spoons 2 Dessert spoons 3 Soup spoons 6 Forks ( DW60M5040BB/DW60M5040FS/DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS/DW60M5010FW )

Loading the dishwasher racks _29 Lower basket (14 Place setting)Upper basket (13／14 Place setting)Lower basket (13 Place setting)( DW60M5060BB/DW60M5060FS DW60M5060FW ) ( DW60M5040BB/DW60M5040FS DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS DW60M5010FW )

04 LOADING THE DISHWASHER RACKSDW4000KM-00000A-00_EN (Basic)_160323.indd 27 For washing in the dishwasher the following cutlery/dishes ytilibatius detimil fo erAelbatius ton erA Cutlery with wooden, horn china or mother-of-pearl handles. Plastic items that are not heat resistant Older cutlery with glued parts that is not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Lead crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres.

WARNING: Do not let any item extend

through bottom Some types of glasses can become dull after a large number of washes. Silver and aluminium parts have a tendency to discolour during washing. Glazed patterns may fade if machine washed frequently. 30_ Loading the dishwasher racks Cutlery tray Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water runs o freely. ( DW60M5060BB/DW60M5060FS/DW60M5060FW ) Cutlery basket (14 Place setting)04 LOADING THE DISHWASHER RACKS Damage to glassware and other dishes :ydemer detsegguS:sesuac elbissoP

• Type of glass or manufacturing process. Chemical composition of detergent.

• Water temperature and duration of dishwasher programme.

• Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.

• Use a mild detergent that is described as kind of dishes. If necessary, seek further information from detergent manufacturers.

• Select a programme with a low temperature.

• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended. At the end of the wash When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better. DW4000KM-00000A-00_EN (Basic)_160323.indd 27 Loading the dishwasher racks _31 Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy new dishes please make sure that they are suitable for dishwashers. Please do not overload your dishwasher. There is only space for 9 standard dishes. Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consumption. Loading cutlery and dishes Before loading the dishes, you should: Remove large left-over Soften remnants of burnt food in pans. When loading the dishes and cutlery, please note Dishes and cutlery must not impede the rotation of the spray arms. Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other Dishes and items of cutlery must not lie inside one another, or cover each other.

• To avoid damage to glasses, they must not touch.

• The upper basket is designed to hold more delicate and lighter dishware such as ATTENTION Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.32_ Starting a Washing Programme Starting a washing programme Wash cycle table（13 Place setting） Program Description of cycle Detergent (g) (Pre wash / Main wash) Running time (min) Energy (KWh) Water (L) Intensive Pre Wash 40 °C 5/27.5 213 1.65 15.3 Main Wash 60 °C Rinse Hot Rinse 65 °C Drying Intensive + Hygiene Pre Wash 40 °C 5/27.5 213 1.65 15.3 Main Wash 60 °C Rinse Hot Rinse 70 °C Drying Intensive + Half load Pre Wash 40 °C 5/27.5 213 1.35 15.3 Main Wash 60 °C Rinse Hot Rinse 65 °C Drying Intensive + Rinse Add Pre Wash 40 °C 5/27.5 251 1.85 18.0 Main Wash 60 °C Rinse Hot Rinse 65 °C Drying Eco Pre Wash 5/27.5 211 12

• EN 50242: The information for comparability test in accordance with EN50242,as follows:

• Capacity: 13 settings

• Position of upper basket: Lower position

• Rinse aid setting: 6 Express Pre Wash 50 °C 5/20 60 1.03 9.6 Main Wash 50 °C Hot Rinse 60 °C Drying (DW60M5040BB/DW60M5040FS)(DW60M5040FW/DW60M5030FS)(DW60M5030FW)(DW60M5040BB/DW60M5040FS)(DW60M5040FW/DW60M5030FS)(DW60M5030FW)(DW60M5040BB/DW60M5040FS)(DW60M5040BB/DW60M5040FS)(DW60M5040FW)(DW60M5040BB/DW60M5040FS)(DW60M5040FW)(DW60M5040BB/DW60M5040FS)(DW60M5040FW)(DW60M5040BB/DW60M5040FS)(DW60M5040FW)(DW60M5040FW/DW60M5030FS)(DW60M5030FW)Wash cycle table（14 Place setting） Program Description of cycle Detergent (g) (Pre wash / Main wash) Running time (min) Energy (KWh) Water (L) AUTO Pre Wash 40 °C 5/30 5/30 5/30 140-228 0.93-1.95 6.5-18 145-238 1.03-2.05 6.5-18 140-228 1.52-1.95 9.2-18 Main Wash 40°C-60 °C Rinse Hot Rinse 65 °C Drying ( DW60M5060BB/DW60M5060FS /DW60M5060FW ) 34_ Starting a Washing Programme DW4000KM-00000A-00_EN (Basic)_160323.indd 24 The wash time varies depending on the pressure and temperature of the supplied water. Quick Wash, Express, Pre Wash: Continuous use of the Quick Wash, Express, Pre Wash cycles for an extended time is not recommended. This may reduce the performance of the water softener. Intensive Pre Wash 40 °C 5/30 213 1.68 15.3 Main Wash 60 °C Rinse Hot Rinse 65 °C Drying Intensive + Hygiene Pre Wash 40 °C 5/30 213 1.68 15.3 Main Wash 60 °C Rinse Hot Rinse 70 °C Drying Intensive + Half load Pre Wash 40 °C 5/30 213 1.38 15.3 Main Wash 60 °C Rinse Hot Rinse 65 °C Drying Intensive + Rinse Add Pre Wash 40 °C 5/30 251 1.88 18.0 Main Wash 60 °C Rinse Hot Rinse 65 °C Drying Pre Wash 5/30 216 1.20 Main Wash 45 °C Rinse Hot Rinse 70 °C Drying Eco + Hygiene Eco Pre Wash 5/30 211

• EN 50242: The information for comparability test in accordance with EN50242,as follows:

• Capacity: 14 settings

• Position of upper basket: Lower position

• Rinse aid setting: 6 The wash time varies depending on the pressure and temperature of the supplied water. Quick Wash, Express, Pre Wash: Continuous use of the Quick Wash, Express, Pre Wash cycles for an extended time is not recommended. This may reduce the performance of the water softener. Starting a washing programme DW4000KM-00000A-00_EN (Basic)_160323.indd 26 Turning on the appliance Starting a wash cycle...

1. Draw out the lower and upper basket, load the dishes and push them back.

It is recommended to load the lower basket fi rst, then the upper one (see the section entitled "Loading the dishwasher racks").

2. Pour in the detergent (see the section entitled "Loading the Salt into the Softener").

3. Insert the plug into the socket. The power supply is 220-240 V AC 50 Hz, the specifi cation of the socket

is 10 A 250 VAC. 50 Hz.

4. Make sure that the water supply is turned on to full pressure. Close the door, press the "Power" button,

Press the "Program” button to select a desired "Wash cycle". (See the section entitled "Wash Cycle Table"). With a little force to ensure the door is properly closed. A click could be heard when the door is closed perfectly.Starting a Washing Programme _37 DW4000KM-00000A-00_EN (Basic)_160323.indd 27

05 STARTING A WASHING PROGRAMME

Change the programme Premise:

1. A cycle that is underway can only be modifi ed if it has only been running for a short time. Otherwise,

the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refi lled (see the section entitled "Fill in the Detergent").

2. Press ”Power” button or "reset" button 3 seconds to cancel the programme, and turn on it again, then

you can change the programme to the desired cycle setting (see the section entitled "Starting a wash cycle...") or press programme button while you press "reset" button. If you open the door when washing, the machine pauses and warning alarm rings, the display appears E1. When you close the door, the machine will keep on working after 10 seconds. These programme lights show the state of the dishwasher: a) One of the programme lights on --> cycle running b) One of the programme lights blinking --> pause power and water supply before calling a service. Forget to add dish Switch o the Dishwasher A forgotten dish can be added any time before the detergent cup opens

1. Open the door a little to stop the washing.

2. After the spray arms stop working, you can open the door completely.

3. Add forgotten dishes.

4. Close the door, the dishwasher will work after ten seconds.

WARNING: It is dangerous to open the door when washing, because the hot water may scald you.

The digital display appears "---" and the buzzer rings 6 times, only in this case the programme has ended.

the dishwasher by pressing the "Power" button.

the water tap! Open the door carefully. Hot steam may escape when the door is opened!

• Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

• Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved. Unloading the dishwasher It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket onto the dishes in the lower one.38 _ Maintenance and cleaning Maintenance and cleaning Filtering system The filter is used to avoid the big remnants and other sundries getting inside the pump. The residue can obstruct the filter in sometime. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

1. Fine fi lter: Food and debris will be trapped by a special jet on the

2. Coarse fi lter: Big debris, such as bone and glass that could clog the

drain will be trapped in the coarse fi lter. To remove an item caught in this fi lter, gently squeeze the taps on the top of this fi lter and lift it out.

3. Micro fi lter: This fi lter holds soil and food residue in the sump area

and prevents it from being redeposit on the dishes during a cycle. - Inspect the filters for obstructions every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Step 1 Contrarotate the Coarse filter ,and then lift it up; Step 2 L ift the Flat filter up If operate from step 1 to step 2, the filter system will be removed; while operate from step 2 to step 1, the filter system will be installed. Filter assembly particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures above and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

WARNING: Never run the dishwasher without the filters in place. When cleaning the filters, don't

knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be debased. DW4000KM-00000A-00_EN (Basic)_160323.indd

2Maintenance and cleaning _39 Cleaning the spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arms, screw remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing thoroughly. Caring for the dishwasher To clean the control panel, use a lightly dampened cloth then dry thoroughly. To clean the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. Protect against freezing If your dishwasher is left in an unheated place during the winter, ask a service technical to:

electrical power to the dishwasher.

the water supply and disconnect the water inlet pipe from the water valve.

3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the fi lter in the tub and the bottom and use a sponge to use up water in sump.

Cleaning the door To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

WARNING: Never use a spray cleaner to clean the door panel for it could damage the door lock and

electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface. DW4000KM-00000A-00_EN (Basic)_160323.indd 29 06 MAINTENANCE AND CLEANING40_ Maintenance and cleaning How to keep your dishwasher in shape

• After Every Wash moisture and odors are not trapped inside.

• Remove the Plug Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

• No Solvents or Abrasive Cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

• When You Go on holiday When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and slightly ajar. This will help the seals last longer and prevent odors from forming in the appliance.

• Moving the Appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

• Seals One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this. Maintenance and cleaning DW4000KM-00000A-00_EN (Basic)_160323.indd 30Installation Instruction _41 07 INSTALLATION INSTRUCTION Installation instruction WARNING : Electrical Shock Hazard!Disconnect electrical power before installing dishwasher.Failure to do so can result in death or electrical shock. CAUTION: The installation of the pipes and electrical equipment should be done by professionals.

• Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.
• Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.
• If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back. Positioning and leveling 1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed and further with the installation process.

2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent

cabinets or even with the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet).

3. Position the dishwasher on a level and sturdy fl oor. If the fl oor is uneven, the front feet of the appliance

may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operation. Connecting the water and electricity supplies

• Connection to the water and electricity supplies should only be performed by a qualified technician.
• The dishwasher should not stand on top of the water hoses or the electricity supply cable.
• The appliance must be connected to the water supply network using new piping. Do not use old piping. Connecting the water inlet hose Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and the appliance could be damaged.DW4000KM-00000A-00_EN (Basic)_160323.indd 3142_ Installation Instruction Connecting the water outlet hose Fit the drainage hose of your machine to the drainage pipe without bending. authorized service for an extension made from the same material as the original. Remember that the length of the hose should not exceed 4meters even when with an extension. If the drainage hose is longer the 4 m. the dishes will not be cleaned properly secure your hose firmly to the drainage pipe Max 1000 mmMin 400 mmMin 120 mmMin ø40 mm Electrical connection Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current regulations;

• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door(see description of the appliance);

• the power supply voltage falls within the values indicated on the data plate on the inside of the door;

• the socket is compatible with the plug of the appliance. If this is not the case, ask an authorized technician to replace the plug (see assistance); do not use extension cables or multiple sockets.

• Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.

• The cable should not be bent or compressed.

• If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards.(See Assistance)

• The company shall not be held responsible for any incidents that occur if these regulations are not observed. Installation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 32Installation Instruction _43 07 INSTALLATION INSTRUCTION Advice regarding the first wash cycle After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with and add approximately 1.2 Kg of salt (see Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW SALT indicator light continues to flash for a few cycles after the salt has been loaded. Positioning the appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Leveling the appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the dishwasher, making it level. In any case, the appliance should not be inclined more than 2. The maximum adjustment height of the feet is 20 mm. How to drain excess water from hoses If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable container that is held outside and lower than the sink. Water outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed. Extension hose If you need a drain hose extension, observe to use a similar drain hose. reduced. Syphon connection The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. DW4000KM-00000A-00_EN (Basic)_160323.indd 3344_ Installation Instruction Built-in dishwasher WARNING : Electrical Shock Hazard!Disconnect electrical power before installing dishwasher.Failure to do so can result in death or electrical shock.CAUTION: Water pipe and electric device should be installed by professionals Step 1. Before installation

• Dishwasher place requirement. The back of dishwasher should face to the wall, and the dishwasher has inlet and outlet pipe, which can be connected on the right or left side conveniently.• To protect the cabinet from steam, attach the protective film under the cabinet as shown.• The dimensions of installation Cabinet. Installation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 34 Install the dishwasher into the cabinet The connectors for power cord and inlet/outlet hose 580mm(Min.) 600mm(Min.) 810-880mmInstallation Instruction _45 07 INSTALLATION INSTRUCTION Step 2. The dimension of the front ornamental plate Step 3. Fix the ornamental plate DW4000KM-00000A-00_EN (Basic)_160323.indd 35

the hole with 10mm depth

ornam46_ Installation Instruction Step 4. Tension adjustment of the door spring After placed the panel on the dishwasher, please try open and close the door to test the balance to check out whether the door can remain a same place. If not, please adjusting the screw in the direction of clockwise or counter-clockwise to adjust the balance of the door. Or it has been adjusted. Step 5. Connecting the water inlet hose (for cold water) After placed the panel on the dishwasher, please try open and close the door to test the balance to check out whether the door can remain a same place. If not, please adjusting the screw in the direction of clockwise or counter-clockwise to adjust the balance of the door. Or it has been adjusted. Connection the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water hoses are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities, If this precaution is not taken, there is a risk that the water inlet can get blocked and the appliance could be damaged. Step 5-1. Electrical connection Make sure the socket is compatible with the plug of the appliance, The socket must have ground wire and can hold 250V/10A, otherwise damage or accidence may occur,Other electric appliance with big power can not use the same socket with the dishwasher. Installation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 36

Hexnut toolsCR-V 4mm30°~90°balance3~8 KGInstallation Instruction _47 07 INSTALLATION INSTRUCTION Step 6. Connecting the water outlet hose Put the hose into drainage hose which diameter is more than 40 mm or into the sink, both should make sure the outlet pipe is straight ,and the height of the end of pipe should be less than 1000 mm. Note: The connector of the outlet pipe should be tight. Step 7. Level adjustment Allowable slope under entire dishwasher is 2 degree. Adjust the height by turning the feet to make sure the dishwasher is level. DW4000KM-00000A-00_EN (Basic)_160323.indd 37Drain hose hook sink Max:1000mmMin:400mmoutlet hoseMin:40mm

Adjust the back feetAdjust the front feet + - + -48_ Installation Instruction Step 8. Installation of skirting board ornamental plate125 maxplate the skirting board75 min 708 max658 min Serial number Referenced dimension(Fully built in) ornamental plate Plate to ornament the skirting board 1 mm 57mm 807

mm 521mm 856 Note: The required height of the skirting board is as per the principle of aesthetic and opening closing the door smoothly, Please check the suggested chart for the reference. Installation instruction DW4000KM-00000A-00_EN (Basic)_160323.indd 38Installation Instruction _49 07 INSTALLATION INSTRUCTION Step 9. Fixation of dishwasher

1. Fixing the dishwasher with the cabinet by turning the screws.

2. Plug the four hole plugs into the holes in the sketch map.

Dishwasher liner right and left side and the top 4 holes, use wood screws ST4*26 dishwasher fixed on the cabinet. (Self-tapping screws were matching.) Start of dishwasher

1. The followings should be checked before starting the dishwasher:

2. Whether the dishwasher is level and fi xed

3. Whether the inlet valve is opened

4. Whether there is leakage at the connections of the conducts

5. Whether the wires are tightly connected

6. Whether the power is switched on

7. Whether the inlet and drain hoses are knotted

8. All packing materials and printings should be taken out from the dishwasher

CAUTION: After installation, please put this manual into the bags of printings. The content of this manual is very helpful to the user DW4000KM-00000A-00_EN (Basic)_160323.indd 39 S T 4 * 2 6 hole plug50_ Troubleshooting Tips Troubleshooting tips Information codes When some malfunctions happen, the appliance will display information codes to warn you. sesuaC elbissoPsgninaeMsedoCdC Door open The door is opened when the dishwasher is operating4C Water inlet Water inlet malfunction 5C Water drainage Water drainage malfunction Temperature sensor malfunction oC Overflow/leakage Overflow occurs/Water leakage occurs LC Water leakage Water leakage occurs HC Heating element Abnormal heating WARNING in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. DW4000KM-00000A-00_EN (Basic)_160323.indd 40 ( DW60M5060BB DW60M5060FS/W DW60M5040BB DW60M5040FS/W ) Information codes When some malfunctions happen, the appliance will display information codes to warn you. sesuaC elbissoPsgninaeMsedoCDoor open The door is opened when the dishwasher is operatingLED1+LED2 flashingLED1+LED20 flashingLED2+LED20 flashingLED25+ LED18 flashingLED25+ LED19 flashingLED1+LED2+LED18 flashingLED1+LED2+LED19 flashingWater inlet Water inlet malfunction Water drainage Water drainage malfunction Temperature sensor malfunction Overflow/leakage Overflow occurs/Water leakage occurs Water leakage Water leakage occurs Heating element Abnormal heating ( DW60M5030FS/W DW60M5010FS/W ) LED1 LED2LED3 LED20 LED18LED7 LED8 LED17LED19 LED21 LED14LED25Troubleshooting Tips _51 08 TROUBLESHOOTING TIPS Before calling for service Reviewing the charts on the following pages may make you be free of calling for service. oD oT tahWsesuaC elbissoPmelborP Dishwasher doesn’t run

• Fuse blown or the circuit breaker acted.

• Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.

• Power supply is not turned on.

• Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.

• Water pressure is low. • Check that the water supply is connected properly and the water is turned on. Drain pump doesn’t stop

• Overflow. • The system is designed to detect an circulation pump and turns on the drain pump. Noise • Some audible sounds are normal.

• Sound from soft food shredding action and detergent cup opening.

• Utensils are not secure in the baskets or something small has dropped into the basket.

• To ensure everything is secured in the dishwasher.

• Motor hums. • Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist. Suds in the tub • Improper detergent. • Use only the special dishwasher detergent to avoid suds.

• If this occurs, open the dishwasher and let suds evaporate.

• Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then start the “soak” wash cycle to drain out the water. Repeat if necessary.

• Spilled rinse agent. • Always wipe up rinse agent spills immediately. Stained tub interior • Detergent with colorant was used.

• Make sure that the detergent is the one without colorant. Dishes and flatware not clean

• Improper program. • Select a more intensive wash program.

• Improper rack loading. • Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware. DW4000KM-00000A-00_EN (Basic)_160323.indd 4152_ Troubleshooting Tips oD oT tahWsesuaC elbissoPmelborP Spots and filming on glasses and flatware

1. Extremely hard water.

4. Improper loading.

5. Old or damp powder

detergent. To remove spots from glassware:

3. Choose the longest cycle.

4. Start the dishwasher and allow it to run for

about 18 to 22 minutes, then it will be in the main wash.

5. Open the door to pour 2 cups of white

vinegar into the bottom of the dishwasher.

6. Close the door and let the dishwasher

complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml) of citric acid crystals instead of vinegar. Cloudiness on glassware

• Combination of soft water and too much detergent.

• Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean. Yellow or brown film on inside surfaces 3 cups warm water to remove the stains by hand.

WARNING: You have to wait for

20 minutes after a cycle to let the heating elements cool down before cleaning interior; Failing to follow this instruct may result in the risk of burns.

• Iron deposits in water can cause an overall film.

• You have to call a water softener company for a special filter. White film on inside surface

• Hard water minerals. • To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds. The Detergent dispenser lid cannot be closed properly

• Clogged detergent re -sidue is blocking the catch

• Clean the detergent from the catch. Detergent left in dispenser cups

• Dishes block detergent cups.

• Re-loading the dishes properly. Steam • Normal phenomenon. • There is some steam coming through the vent by the door latch during drying and water draining. Black or gray marks on dishes

• Aluminum utensils have rubbed against dishes.

• Use a mild abrasive cleaner to eliminate those marks. Water standing in the bottom of the tub

• This is normal. • A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated. Dishwasher leaks • Overfill dispenser or rinse aid spills.

• Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause overusing and lead to overflowing. Wipe away any spills with a damp cloth.

• Dishwasher isn't level. • Make sure the dishwasher is level. Troubleshooting tips DW4000KM-00000A-00_EN (Basic)_160323.indd 42Appendix _53 09 APPENDIX Appendix Specifications Model DW60M5040

DW60M5040BB DW60M5060BB DW60M5060BB DW60M5040BB Type Built-in Dishwasher Free standing Dishwasher Power 220-240 V / 50 Hz AC only 220-240 V / 50 Hz AC only Water pressure 0.04-1.0 Mpa 0.04-1.0 Mpa Rated power usage 1750-2000 W 1750-2000 W Hot water connection Max 60 °C Max 60 °C Dry type Condensed dry system Condensed dry system Wash type Rotating nozzle spray Rotating nozzle spray Dimensions (mm) (Width x Depth x Height) 596 x 558 x 805 596 x 600 x 835 Wash capacity 13 place setting (DW60M5040BB)(DW60M5060BB) 14 place setting 13 place setting (DW60M5010FS/DW60M5010FW/DW60M5030FSDW60M5030FW/DW60M5040FS/DW60M5040FW)(DW60M5060FS/DW60M5060FW) 14 place setting Weight (Unpacked) Weight (Packed) Product dimension DW4000KM-00000A-00_EN (Basic)_160323.indd 43

Model name DW60M5060BB DW60M5060BB DW60M5040BBDW60M5060FSDW60M5060FWDW60M5040FSDW60M5040FW DW60M5060FS DW60M5060FW DW60M5040BB DW60M5040FS DW60M5040FW DW60M5030FS DW60M5030FW DW60M5010FS DW60M5010FW Rated Capacity (place setting)

A++ A+ A+ Annual energy consumption,

Standard cycle energy consumption,

Power consumption in left-on

Annual water consumption,

A A A Standard programme

DW60M5030FSDW60M5030FW

1) based on 280 standard cleaning cycles using cold water fill and the consumption of the low power

modes. Actual energy consumption will depend on how the appliance is used.

2) based on 280 standard cleaning cycles. Actual water consumption will depend on how the

3) ‘Standard programme’ is the standard cleaning cycle which is suitable to clean normally soiled

4) The wash time varies depending on the pressure and temperature of the supplied water.

A motor that sucks the water remaining on the floor of the dishwater and infects water using high pressure through the internal water passages to the top Middle and lower nozzles.

The pump that drains the polluted water from the dishwater generated while the dishwater is running.

The healer is located on the water passages inside the dishwasher. It heats

Measure the amount of supplied water by counting the pulses of the hall IC located at the next of the inlet valve.

Located at the output end of the sump inside the dishwasher. It turns the (This model does not have this part)

The location where the detergent and rinse aids are stored so they can be used by the dishwasher. The dispenser automatically supplies detergent and rinse aids to the inside of the dishwasher when they are needed.

An internal case mode of stainless steel that makes up the basic framework of the dishwasher.

The place inside the dishwasher where water is collected. The injected water gathers here after circulation. The sump Assy is connected to the circulation motor and drain pump.

An internal case made of stainless steel that makes up internal part of the front door.

10. Base Assy A plastic part that makes up the basic bottom framework.

11. Basket Assy The upper and lower racks where dishes can be loaded.

Top/Middle/Lower Nozzles Washes dishes by rotating and injecting the supplied water through the water passage at high pressure.

A passage that adjusts the air pressure by connecting the pressure of the inside air which is expanded at high temperature during wash and rinse cycles and the outside air pressure.

www.samsung.com/eg/support www.samsung.com/ae/support (English) www.samsung.com/ae_ar/support (Arabic)61 DW4000KM-00000A-00_AR (Basic)_160323 2016-03-23

1:14:27 DW60M5060BB DW60M5060FS DW60M5060FW DW60M5040BB DW60M5040FS DW60M5040FW DW60M5030FS DW60M5030FW DW60M5010FS DW60M5010FW

Samsung.DW4000KM-00000A-00_AR (Basic)_160323 62

2DW4000KM-00000A-00_AR (Basic)_160323 63

3 _ 01 DW4000KM-00000A-00_AR (Basic)_160323 64

4DW4000KM-00000A-00_AR (Basic)_160323 65

01 DW4000KM-00000A-00_AR (Basic)_160323 66

10DW4000KM-00000A-00_AR (Basic)_160323 71

DW60M5060BB DW60M5040BB

12DW4000KM-00000A-00_AR (Basic)_160323 73

DW60M5060FS/DW60M5060FW/DW60M5040FS/DW60M5040FW

2DW4000KM-00000A-00_AR (Basic)_160323 74

Multi in 1 Multi in 1.

14DW4000KM-00000A-00_AR (Basic)_160323 75

Multi in 1 Multi in 1. tablet.

1 2 3DW4000KM-00000A-00_AR (Basic)_160323 76

2016-03-231:14:27 DW60M5060BB DW60M5040BB

43 2DW4000KM-00000A-00_AR (Basic)_160323 77

Multi in 1 Multi in 1.

4DW4000KM-00000A-00_AR (Basic)_160323 78

DW60M5040FS/DW60M5040FW/DW60M5030FS/DW60M5030FW DW60M5010FS/DW60M5010FW

13 ) ( DW60M5040BB _ 18

9DW4000KM-00000A-00_AR (Basic)_160323 79

DW60M5060FS/DW60M5060FW

6DW4000KM-00000A-00_AR (Basic)_160323 80

5.5~8.9 H7 _ 20DW4000KM-00000A-00_AR (Basic)_160323 81

2DW4000KM-00000A-00_AR (Basic)_160323 82

3DW4000KM-00000A-00_AR (Basic)_160323 83

ﻰﻠﻋﻻا دﺣﻟاDW4000KM-00000A-00_AR (Basic)_160323 84

1DW4000KM-00000A-00_AR (Basic)_160323 85

3 .Multi in 1 Multi in 1

"Multi in 1": .1 " Multi tab" "Multi in 1 "Multi in 1. .2 / Multi in 1" Multi in 1." " Multi in 1:" " " " " "Multi in 1".

Multi in 1 ) (. _25 03 DW4000KM-00000A-00_AR (Basic)_160323 86

DW60M5060BB/DW60M5060FS/DW60M5060FW) _26 )DW4000KM-00000A-00_AR (Basic)_160323 87

(DW4000KM-00000A-00_AR (Basic)_160323 88

DW60M5040BB/DW60M5040FS DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS DW60M5010FW) )14

)DW4000KM-00000A-00_AR (Basic)_160323 89

(DW60M5040BB/DW60M5040FS/DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS/DW60M5010FW)

_ 29 ) 13 ( ( DW60M5040BB/DW60M5040FS DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS ) 13/14 ( DW60M5010FW ) )14 ( ( DW60M5060BB/DW60M5060FS DW60M5060FW )

130DW4000KM-00000A-00_AR (Basic)_160323 91

ﺔﻗﺎطﻟاDW4000KM-00000A-00_AR (Basic)_160323 92

)13 ( (DW60M5040BB/DW60M5040FS /DW60M5040FW/DW60M5030FS/DW60M5030FW/DW60M5010FS/DW60M5010FW )

_32DW4000KM-00000A-00_AR (Basic)_160323 93

05 DW4000KM-00000A-00_AR (Basic)_160323 94

1.95-0.93DW4000KM-00000A-00_AR (Basic)_160323 95

05 DW4000KM-00000A-00_AR (Basic)_160323 96

_36DW4000KM-00000A-00_AR (Basic)_160323 97

.2 " " " "3 . ." " ( " " ) E1 . .

DW4000KM-00000A-00_AR (Basic)_160323 98

3DW4000KM-00000A-00_AR (Basic)_160323 99

_40DW4000KM-00000A-00_AR (Basic)_160323 101

_41 07 DW4000KM-00000A-00_AR (Basic)_160323 102

لﯾﻠﻗDW4000KM-00000A-00_AR (Basic)_160323 104

8DW4000KM-00000A-00_AR (Basic)_160323 106

3~8 KGDW4000KM-00000A-00_AR (Basic)_160323 107

+ - + -DW4000KM-00000A-00_AR (Basic)_160323 108

1. " " "Multi in 1" Multi in ..

S T 4 * 2 6 ﺔﺣﺗﻔﻟا ةدادﺳDW4000KM-00000A-00_AR (Basic)_160323 110

)DW60M5060BB DW60M5060FS/W DW60M5040BB DW60M5040FS/W (

( DW60M5030FS/W DW60M5010FS/W )

DW4000KM-00000A-00_AR (Basic)_160323 111

_ 51 08 DW4000KM-00000A-00_AR (Basic)_160323 112

_ 52DW4000KM-00000A-00_AR (Basic)_160323 113

DW60M5060BB DW60M5040BB DW60M5060

0BB DW60M5060BBDW60M506

DW60M5060BB DW60M5060FS DW60M5060FW DW60M5040BB DW60M5040FS DW60M5040FW DW60M5030FS DW60M5030FW DW60M5010FS DW60M5010FW

DW60M5060BB DW60M5060FS DW60M5060FW DW60M5040BB DW60M5040FS DW60M5040FW DW60M5030FS DW60M5030FW DW60M5010FS DW60M5010FW

_ 54DW4000KM-00000A-00_AR (Basic)_160323 115

_ 55DW4000KM-00000A-00_AR (Basic)_160323 116

2016-03-231:14:27 ةظحملاDW4000KM-00000A-00_AR (Basic)_160323 117

2016-03-231:14:27 ةظحملاDW4000KM-00000A-00_AR (Basic)_160323 118

ةظحملاDW4000KM-00000A-00_AR (Basic)_160323 119

2016-03-231:14:27 ةظحملاDW4000KM-00000A-00_AR (Basic)_160323 120

( DW60M5040BB/DW60M5040FS DW60M5040FW/DW60M5030FS DW60M5030FW/DW60M5010FS DW60M5010FW )
