USER MANUAL EBPA500 SAMSUNG

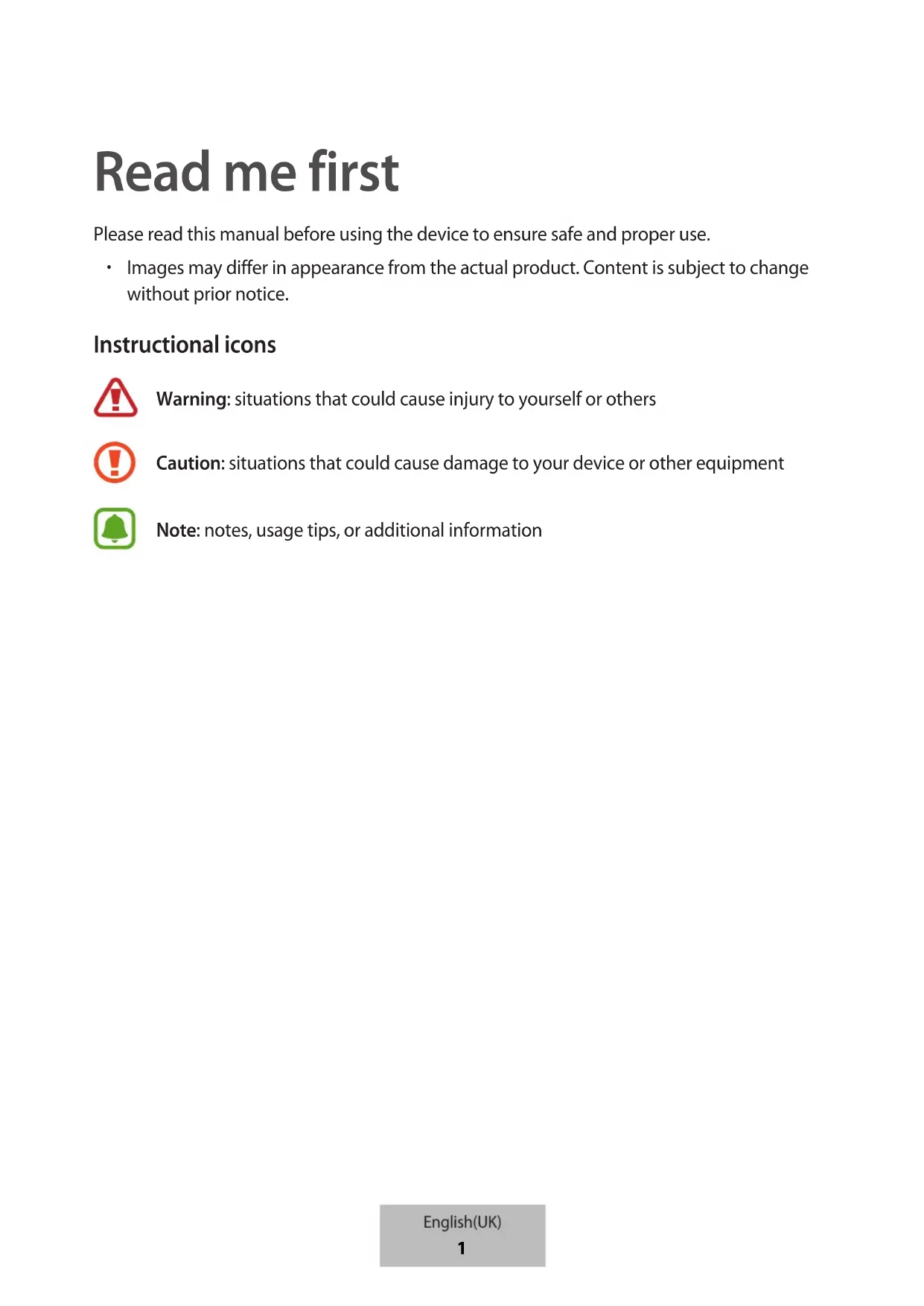

Read me first Please read this manual before using the device to ensure safe and proper use.

Images may differ in appearance from the actual product. Content is subject to change without prior notice. Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information English(UK)

Getting started Package contents Check the product box for the following items:

The items supplied with the device and any available accessories may vary depending on the region or service provider.

The supplied items are designed only for this device and may not be compatible with other devices.

Appearances and specifications are subject to change without prior notice.

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Device layout Reset/Battery Level button USB charging port Charging port Indicator light English(UK) 2Getting started

Charging the device Use the charger to charge the battery before using it for the first time. Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. Connect the device to a computer or the USB power adaptor via the USB cable. Plug the USB power adaptor into an electric socket. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

You can charge the device using the charger (sold separately).

The charger can simultaneously charge the device and a mobile device when both are connected, but charging may take longer.

While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

If the device is not charging properly, take the device and the charger to a Samsung Service Centre. After fully charging, unplug the USB cable from the device, and then disconnect it from the computer or the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

The socket-outlet shall be installed near the equipment and shall be easily accessible. English(UK) 3Getting started

Checking the remaining battery power Check the remaining battery power by pressing the Battery Level button. The indicator lights activate according to the remaining battery power. Remaining battery power Indicator light status 75–100% Four indicator lights on 50–75% Three indicator lights on 25–50% Two indicator lights on 5–25% One indicator light on 0–5% One indicator light blinking English(UK)

Using the device Charging the mobile device

Connect one end of the USB cable to the device’s USB charging port. Then, plug the other end of the USB cable into the mobile device’s multipurpose jack.

After the mobile device is fully charged, disconnect the USB cable from both devices.

If the mobile device is not charging after being connected to the device, press the Reset button.

The device is an auxiliary external battery. It may not fully charge some mobile devices.

If the device is exposed to extremely hot or cold temperatures or an error occurs, four indicator lights will blink. Disconnect the mobile device from the device, and then reconnect them. English(UK) 5Using the device

Removing the battery

To remove the battery, you must visit an authorised service centre with the provided instructions.

For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.

Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung’s negligence.

Cut the plastic between the USB charging port and the charging port using a nipper tool.

Pry open the cover using the nipper tool.

Loosen and remove the screws.

Lift the battery and the circuit board upwards.

Use a nipper to cut the connections between the battery and the circuit board. English(UK) 6Copyright Copyright © 2015 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

All other trademarks and copyrights are the property of their respective owners. English(UK)

Read me first Please read this manual before using the device to ensure safe and proper use.

Images may differ in appearance from the actual product. Content is subject to change without prior notice. Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information English(USA)

Getting started Package contents Check the product box for the following items:

The items supplied with the device and any available accessories may vary depending on the region or service provider.

The supplied items are designed only for this device and may not be compatible with other devices.

Appearances and specifications are subject to change without prior notice.

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Device layout Reset/Battery Level button USB charging port Charging port Indicator light English(USA) 2Getting started

Charging the device Use the charger to charge the battery before using it for the first time. Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. Connect the device to a computer or the USB power adapter via the USB cable. Plug the USB power adapter into an electric socket. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

You can charge the device using the charger (sold separately).

The charger can simultaneously charge the device and a mobile device when both are connected, but charging may take longer.

While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

If the device is not charging properly, take the device and the charger to a Samsung Service Center. After fully charging, unplug the USB cable from the device, and then disconnect it from the computer or the electric socket. To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. English(USA) 3Getting started

Checking the remaining battery power Check the remaining battery power by pressing the Battery Level button. The indicator lights activate according to the remaining battery power. Remaining battery power Indicator light status 75–100% Four indicator lights on 50–75% Three indicator lights on 25–50% Two indicator lights on 5–25% One indicator light on 0–5% One indicator light blinking English(USA)

Using the device Charging the mobile device

Connect one end of the USB cable to the device’s USB charging port. Then, plug the other end of the USB cable into the mobile device’s multipurpose jack.

After the mobile device is fully charged, disconnect the USB cable from both devices.

If the mobile device is not charging after being connected to the device, press the Reset button.

The device is an auxiliary external battery. It may not fully charge some mobile devices.

If the device is exposed to extremely hot or cold temperatures or an error occurs, four indicator lights will blink. Disconnect the mobile device from the device, and then reconnect them. English(USA) 5Copyright Copyright © 2015 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

All other trademarks and copyrights are the property of their respective owners. English(USA)
