Product type	Electric air dehumidifier
Brand	SilverCrest
Model	SLE 500 A1
Dimensions (L x H x D)	approx. 17 x 21.5 x 12.5 cm
Weight	approx. 980 g
Power supply	Power adapter SW-090250EU: 100-240 V ~ 50/60 Hz, 0.68 A; Output: 9 V ⎓ 2.5 A
Power consumption	22.5 W (9 V × 2.5 A)
Dehumidification performance	max. 170 ml/24h (at 30°C, 80% RH)
Recommended area	approx. 8 m² or 20 m³ (ceiling height 2.5 m)
Water tank capacity	approx. 410 ml (auto shut-off at MAX level)
Operating temperature range	+10 to +35 °C
Functions	Auto shut-off when tank is full; LED indicator for operation (green) and tank full (red)
Maintenance and cleaning	Clean the tank every 2 weeks with warm water and dish soap; disinfection possible with alcohol; dust air openings with a soft brush or vacuum cleaner
Safety	Protection against water ingress; auto shut-off if tank is full or incorrectly positioned; do not use outdoors
Warranty	3 years from date of purchase
After-sales service	France: 0800 919270, e-mail: [e-mail] (IAN 273378)

Frequently Asked Questions - SLE 500 A1 SILVERCREST

How to turn on the SilverCrest SLE 500 A1 dehumidifier?

Plug the power adapter into the device and then into a power outlet. Set the on/off switch to the I position. The green ON LED lights up.

Why does the device not turn on?

Check that the power adapter is properly connected and the outlet is powered. Ensure the water tank is correctly engaged. If the tank is full, empty it and reinsert.

How to empty the water tank?

Turn off the device (position O). Grasp the front handle of the tank, remove it keeping it upright to avoid spilling water, then empty it into a sink. Replace the tank until it clicks into place.

What is the tank capacity and when does the device stop?

The tank holds approximately 410 ml. When full (MAX mark), the device automatically stops and the red Full LED lights up.

How to clean the dehumidifier?

Always unplug the device before cleaning. Clean the tank every two weeks with warm water and mild dish soap, then rinse. For disinfection, use high-proof alcohol. Dust the air openings with a soft brush or vacuum cleaner.

The device produces little or no condensation water, what to do?

Check that the air inlet and outlet openings are not blocked or dirty. Make sure windows and doors are closed. Performance decreases with lower ambient temperature, which is normal.

What is the maximum recommended area for this device?

The SLE 500 A1 is designed for rooms up to 8 m² (approx. 20 m³ with ceiling height of 2.5 m).

Can I use the device outdoors or in a bathroom?

No, the device is for indoor use only. It must not be exposed to rain or water splashes. Place it on a flat surface, at least 15 cm from walls and other objects.

What to do in case of persistent malfunction?

Refer to the troubleshooting table in the manual. If the problem persists, contact after-sales service: France 0800 919270, e-mail [e-mail], quoting the IAN number 273378.

How to store the device when not in use?

Unplug the power adapter, empty the water tank and clean it. Store the device in a dry, dust-free place.

USER MANUAL SLE 500 A1 SILVERCREST

www.lidl-service.com SILVERCREST ON FULL

ELECTRIC DEHUMIDIFIER SLE 500 A1

GB IE

ELECTRIC DEHUMIDIFIER

Operating instructions

FR BE

DÉSHUMIDIFICATEUR D'AIR ÉLECTRIQUE

Mode d'emploi

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE Operating instructions Page 1

DK	Betjeningsvejledning	Side	13
FR/BE Mode d'emploi Page 25
NL/BE Gebruiksaanwijzing Pagina 37
DE/AT/CH Bedienungsanleitung Seite 49

SILVERCREST ON FULL ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

White electronic device with attached cable, labeled with numbers 10 and 9 (no text or symbols on the device itself)

Table of contents

Introduction 2

Copyright 2

Limitation of liability 2

Intended use 2

Warnings used 3

Safety....4

Risks from electric current 4

Basic safety instructions 4

Initial operation 6

Items supplied and transport inspection....6

Disposal of packaging 6

Before initial use 6

Electrical connection 6

Appliance description....7

Handling and use 7

Switching the appliance on/off 7

Emptying the water tank 7

Fault rectification 8

Malfunction causes and remedies 8

Cleaning 9

Storage 9

Disposal....9

Appendix 10

Technical details. 10

Notes on the Declaration of Conformity 11

Warranty 11

Service 12

Importer 12

Introduction

Congratulations on the purchase of your new appliance.

You have decided to purchase a high-quality product. The operating instructions are a constituent of this product. They contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this appliance only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limitation of liability

All technical information, data and information for installation, connection and operation contained in these operating instructions correspond to the latest at time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

The appliance is exclusively intended for dehumidifying the air in enclosed rooms. The appliance is suitable for rooms up to 8 m ^2 in size and a temperature of at least 10°C. The appliance is only intended for domestic use, and not for commercial purposes. Any usage other than that described above is not permitted and may result in injury and/or damage to the appliance. The manufacturer accepts no liability for damage caused by improper application or usage. The user is the sole bearer of the risk.

Warnings used

The following warnings are used in these operating instructions:

DANGER

A warning at this risk level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could lead to death or serious physical injury.

▶ Follow the instructions in this warning to avoid a fatality or serious personal injury.

WARNING

A warning of this risk level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in physical injury.

▶ Follow the instructions in this warning to prevent physical injury.

CAUTION

A warning of this risk level indicates potential damage to property.

Failure to avoid this situation could result in damage to property.

▶ Follow the instructions in this warning to prevent damage to property.

NOTE

▶ A note indicates additional information that will assist you in handling the appliance.

Safety

This section provides you with important safety information regarding handling of the appliance. Incorrect usage can lead to personal injury and property damage.

Risks from electric current

DANGER

Danger to life due to electric current!

Danger to life on contact with live cables or components!

Observe the following safety instructions to avoid risks from electrical current:

▶ Do not use the appliance if the power adapter, the power cable or the plug connector are damaged.
On no account open the power adapter. There is a risk of receiving an electric shock if live connections are touched or the electrical and/or mechanical construction is changed.

Basic safety instructions

For safe handling of the appliance, follow the safety information below:

■ Before use, check the appliance for visible external damage. Do not use an appliance that has been damaged or dropped.
■ To avoid possible risks, arrange for damaged cables or connectors to be replaced by an authorised specialist or the Customer Service department.
■ Do not operate the appliance outdoors.
■ Always keep doors and windows closed when operating the appliance so that it can work effectively.
■ Do not operate the appliance in the vicinity of easily flammable gases or materials, in the vicinity of naked flames or in locations where oil or water can splash.

■ This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

■ Only have repairs carried out by authorised specialist companies or the Customer Service department. Improper repairs can pose significant risks to the user. Warranty claims also become void.

■ This appliance must not be exposed to rain. Protect the appliance against moisture and the penetration of liquids and objects into the housing. Never submerge the appliance in water and do not place objects filled with liquids (such as vases) on the appliance. The appliance could be irreparably damaged!

■ Avoid direct sunlight.

■ Operate the appliance only with the supplied power adapter.

In the case of a malfunction occurring or a thunderstorm, disconnect the power adapter from the mains power socket.

■ Always ensure that the air intake and outlet are free of dirt during operation. Never cover the appliance!

■ Always place the appliance on flat, level surfaces so that it cannot tip over.

■ Place the appliance at a minimum distance of 15 cm from walls or other objects so that good air circulation is guaranteed.

■ Before cleaning, always remove the power adapter from the mains power socket.

Initial operation

Items supplied and transport inspection

This appliance is supplied with the following components as standard:

• Electric Dehumidifier
- Power adapter
• This operating manual

NOTE

▶ Check the contents for completeness and for signs of visible damage.
If the contents are not complete, or are damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of packaging

The packaging protects the appliance from transport damage. The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations.

Before initial use

■ Remove all packaging materials and all transport securing appliances from the appliance.

Electrical connection

CAUTION

▶ Before connecting the appliance compare the specifications for the required input voltage on the rating plate with the intended voltage source for operation. This data must agree in order to avoid damaging the appliance.
The power adapter connected to the appliance must always be easily accessible so that the appliance can be quickly disconnected from the mains power supply in an emergency.
▶ Ensure that the appliance power adapter cable is not damaged and that it is not laid over hot surfaces and/or sharp edges, otherwise it could be damaged.
▶ Ensure that the power adapter connecting cable is not tightly stretched or kinked.
Connect the power adapter ^10 to the appliance by plugging the connecting plug ^9 into the connection socket ^6 on the rear of the appliance.

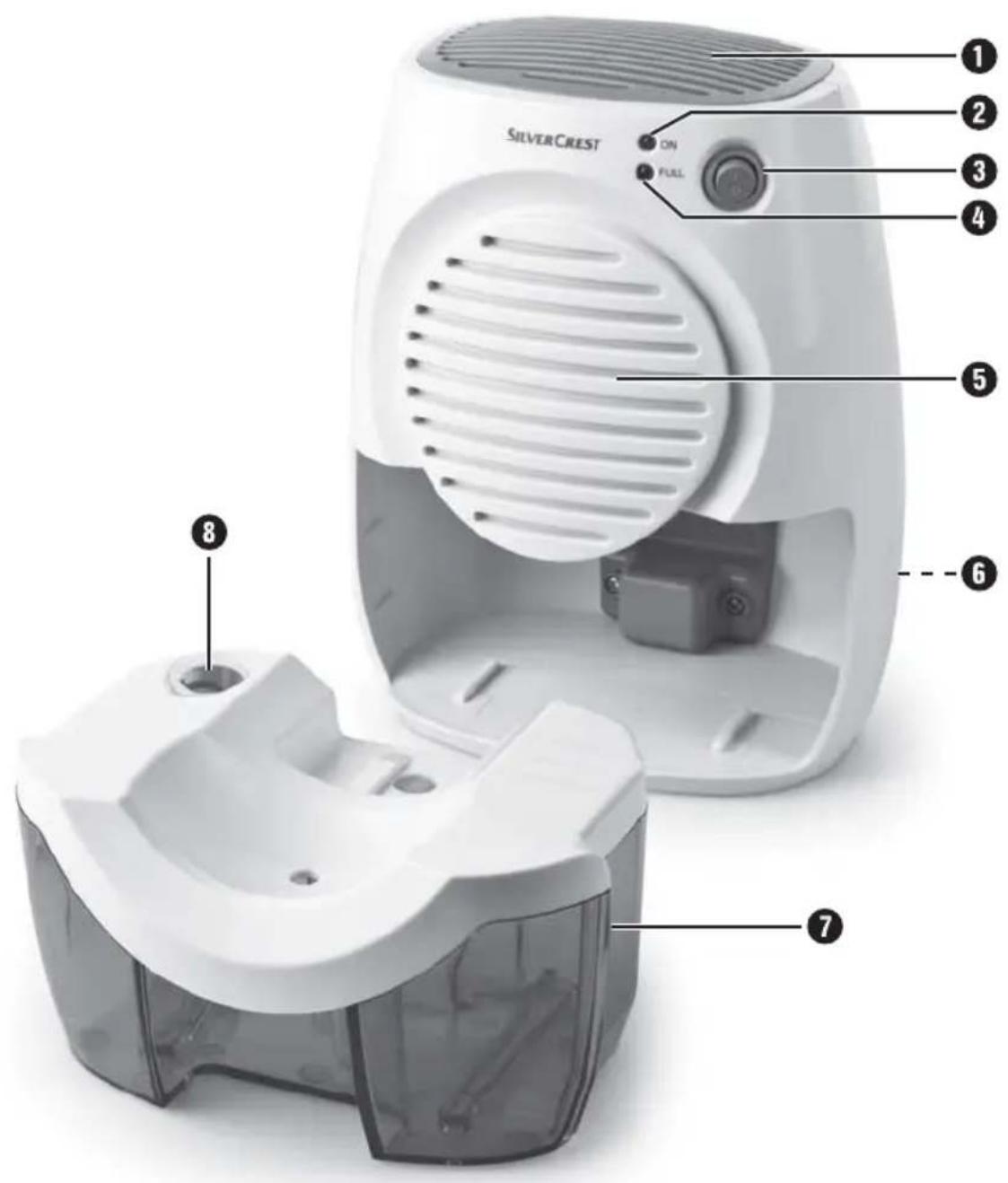

Appliance description

1 Air outlet opening
2 LED "ON" (green)
3 On/Off switch
4 LED "Full" (red)
⑤ Air intake opening
6 Connection socket for power adapter
7 Water tank
8 Spout

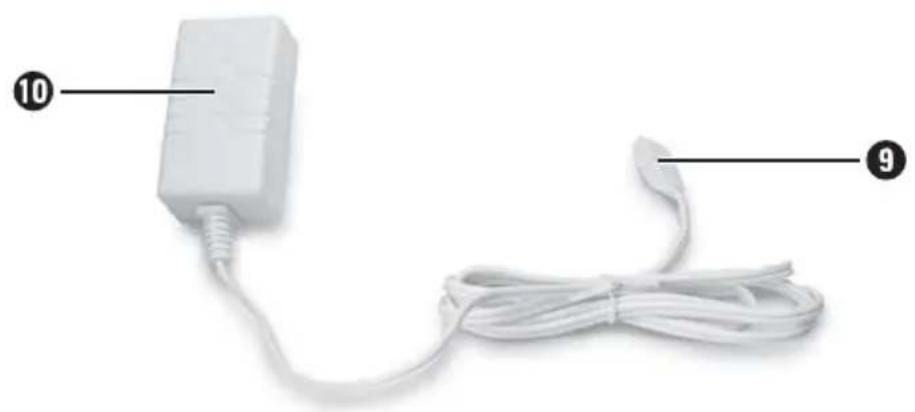

9 Connecting plug
10 Power adapter

Handling and use

This section provides you with important information on handling and using the appliance.

Switching the appliance on/off

◆ Plug the connecting plug ⑨ into the connection socket ⑥ on the appliance.
◆ Plug the power adapter10 into a mains power socket.
Switch the on/off switch ③ to position "I" to switch the appliance on. The green "ON" LED ② lights up.
Switch the on/off switch ③ to the "0" position to switch the appliance off. The green "ON" LED ② goes out.

NOTE

The water tanl ^7 must be completely inserted into the appliance otherwise the condensate will not be collected correctly.

Emptying the water tank

The appliance is fitted with an "auto-stop function" as soon as the water tank ⑦ is filled with around 410ml + / - 10% (MAX marking). The appliance then switches off automatically and the red "Full" LED ④ lights up.

Switch the on/off switch 3 to the "0" position to switch the appliance off.
Hold the water tank using the front grip recess and pull it carefully out of the appliance so that water does not spill out.
Pour out the water by using the spout⑧ and push the water tank ⑦ back into the appliance.

NOTE

The water tank⑦ must be inserted fully into the appliance, otherwise the appliance cannot be switched on.

Switch the on/off switch ③ to position "I" to switch the appliance on. The green "ON" LED ② lights up.

Fault rectification

This section contains important information on fault localisation and rectification.

WARNING

Observe the following safety information to avoid risks and property damage:

▶ Repairs to electrical appliances may only be carried out by specialists trained by the manufacturer. Improper repairs can pose considerable risk to users and can cause damage to the appliance.

Malfunction causes and remedies

The following table will help with localising and remedying minor malfunctions:

Defect Possible cause Rectification
The appliance will not switch on.	The power adapter 10 is not plugged in.	Plug the power adapter 10 into the mains power socket.
	The mains power socket is not supplying power.	Check the house fuse.
	Safety stop due to missing or incorrectly inserted water tank 7.	Ensure the water tank 7 is inserted correctly.
	The water tank 7 is full.	Empty the water tank 7 and reinsert it into the appliance.
The appliance produces no or very little condensate.	The air intake opening 5 or the air outlet opening 1 soiled or covered.	Ensure that the air intake and outlet openings (5 + 1 are clean and free of blockages.
	Windows and doors in the room are open.	Close the windows and doors.

NOTE

▶ If you cannot solve the problem with any of the aforementioned methods, please contact the Customer Service department.

Cleaning

CAUTION

Possible damage to the appliance!

▶ Protect the appliance from moisture and liquid penetration.
▶ To avoid irreparable damage to the appliance, never submerse the appliance in water.
▶ Ensure that you remove the power adapte10 from the mains power socket before cleaning the appliance.
▶ Do not use aggressive or abrasive cleaning agents, as these can damage the surface of the housing.
▶ Never clean the water tan ^7 in a dishwasher. Otherwise it can be damaged.

■ Clean the water tank ⑦ regularly every two weeks to avoid mould and bacteria. To do this, fill the water tank ⑦ with lukewarm water and add a commercial detergent. Rinse it out several times with lukewarm water. Furthermore, we recommend disinfecting after cleaning. To do this, use a commercial, alcohol-based disinfectant or one containing a high percentage of alcohol. Both substances are completely harmless if you rinse out several times with lukewarm water afterwards.

■ Remove any dust deposits on the air intake and outlet openings 5 + 1 using a soft brush or vacuum cleaner. In order to clean the interior cooling ribs, remove the cover on the air outlet opening 1 and pull the water tank 7 out of the appliance. Also clean the cooling ribs with a soft brush or a vacuum cleaner.

■ Clean the housing only with a soft damp cloth and a mild washing-up liquid.

Storage

■ Disconnect the power adapte ^10 from the appliance and empty the water tank 7, if you are not intending to use the appliance for some time.

■ Store the appliance in a dry and dust-free environment.

Disposal

Never dispose of the appliance in normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre should you be in any doubt.

Appendix

Technical details

Power adapter SW-090250EU
Input voltage 100 - 240 V	~ 50/60 Hz
Current consumption max. 0.68 A
Output voltage 9 V	---
Output current 2.5 A
Protection class	II / ☐

Appliance
Input voltage 9 V	==
Current consumption 2.5 A
Dehumidifying performance / 24 h	max. 170 ml*(at 30°C / 80% rel. humidity)
Recommended room size	approx. 8 m2 or approx. 20 m3(for a ceiling height of 2.5 m)
Operating temperature +10 to +35 °C
Dimensions approx. 17 x 21.5 x 12.5 cm
Weight approx. 980 g

* The lower the room temperature and the colder the external temperature, the lower the moisture content stored in the air will be. Air then flows from outside into the room to be dehumidified. For this reason, dehumidifying performance decreases with decreasing temperature, and can drop to zero. This does not indicate a defect of the appliance.

Notes on the Declaration of Conformity

With regard to conformity with the basic requirements and other relevant provisions, this appliance complies with the low-voltage directive 2006/95/EC, the EMC Directive 2004/108/EC as well as the Ecodesign Directive 2009/125/EC.

The full original Declaration of Conformity is available from the importer.

Warranty

The warranty provided for this appliance is 3 years from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact Customer Service by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, wearing parts or for damage to fragile components such as switches and batteries.

This appliance is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifications that were not carried out by one of our authorised service centres.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts.

Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase.

Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 273378

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 273378

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indholdsfortegnelse

Introduktion 14

Ophavsret 14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 26

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 38

Auteursrecht 38

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 50

Urheberrecht 50

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Tilstand af information

Version des informations · Stand van de informatie
