USER MANUAL Fresco 100 Sonnenkönig

Festnetz 14 Cent/Minute

Modifications techniques

Festnetz 14 Cent/Minute

Festnetz 14 Cent/Minute

1 Safety Instructions 51
2 Parts description. 54
3 Accessories 54
4 Display panel and remote control. 55
5 Operating Instructions 56
6 Maintenance 59
7 Troubleshooting 60
8 Warranty / Disposal / Technical change 61

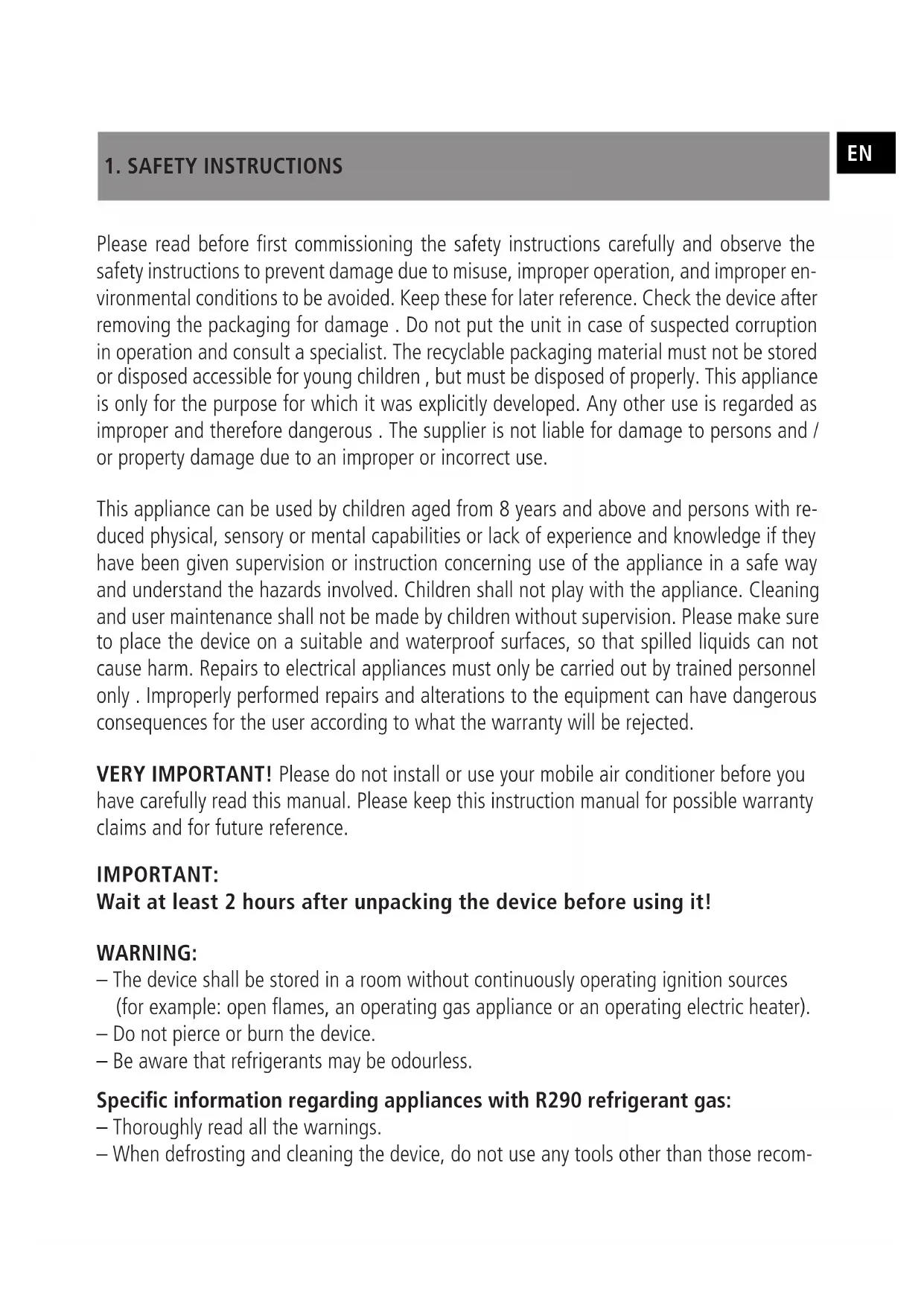

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly. This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm. Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

VERY IMPORTANT! Please do not install or use your mobile air conditioner before you have carefully read this manual. Please keep this instruction manual for possible warranty claims and for future reference.

IMPORTANT:

Wait at least 2 hours after unpacking the device before using it!

WARNING:

• The device shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn the device.
• Be aware that refrigerants may be odourless.

Specific information regarding appliances with R290 refrigerant gas:

• Thoroughly read all the warnings.
• When defrosting and cleaning the device, do not use any tools other than those recom

EN

mended by the manufacturing company.

• The device must be placed in an area without any continuously operating sources of ignition (for example: open flames, gas or electrical appliances in operation).
• Do not pierce or burn the device.
• This device contains 160g (see rating label on the back of the unit) of R290 refrigerant gas.
• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
• If the device is installed, operated or stored in a non-ventilated area, the room must be designed to prevent the accumulation of leaking refrigerant as it poses a risk of fire or explosion if the refrigerant is ignited by electric heaters, stoves or other sources of ignition.
• The device must be stored in such a way as to prevent mechanical failure.
• Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organisation that ensures competence in handling refrigerants according to a specific evaluation recognised by the associations in the industry.
• Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

Safety Awareness:

1. Do not use the device on a socket which is under repair or not installed properly.
2. Do not use the device in the following situations:

A: Near sources of fire.
B: In an area where oil is likely to splash.
C: In an area exposed to direct sunlight.
D: In an area where water is likely to splash.
E: Near a bath, a shower or a swimming pool.

1. Never insert your fingers, sticks or similar objects into the air outlet. Take special care with and warn children of these dangers.

2. Keep the unit upright during transport and storage so the compressor remains properly positioned.

3. Before cleaning the air conditioner, always turn off or disconnect the power supply.
4. When moving the air conditioner, always turn it off first, disconnect the power supply and move it slowly.
5. To avoid a fire hazard, do not cover the air conditioner.

6. All the sockets for the air conditioner must comply with the local electric safety requirements. If necessary, please check the requirements.

7. Young children should be supervised to ensure that they do not play with the device.

8. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
10. The appliance shall be installed in accordance with national wiring regulations.
11. Details of type and rating of fuses: T, 250V AC, 2A.
12. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
13. GWP: R290: 3
14. Contact an authorised service technician for repair or maintenance of this device.
15. Do not pull, deform or modify the power cord or immerse it in water. Pulling or misuse of the power cord can result in damage to the device and cause electrical shock.
16. Compliance with national gas regulations shall be observed.
17. Keep ventilation openings clear of any obstruction.
18. Any person involved in working on or accessing a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an assessment specification recognised by the industry.
19. Servicing shall only be performed as recommended by the manufacturer of the device. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
20. Do not operate or stop the device by inserting or pulling out the power plug, as it may cause electric shock or fire due to heat generation.
21. Unplug the device if strange sounds, smell, or smoke come from it.

Notes:

• T If any parts are damaged, please contact the dealer or a designated repair shop.
• T In case of any damage, please turn off the air switch, disconnect the power supply and contact the dealer or a designated repair shop.
• The power cord must always be firmly grounded.
• To avoid any hazard resulting from a damaged power cord, please turn off the air switch and disconnect the power supply. It must be replaced by the dealer or a designated repair shop.

2. PARTS DESCRIPTION

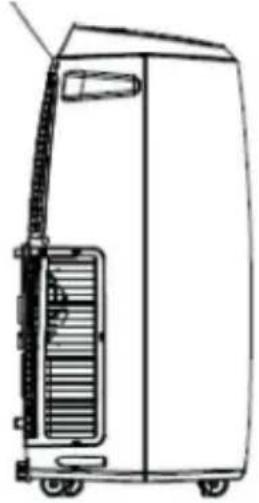

SIDE VIEW

Rear cover

EN

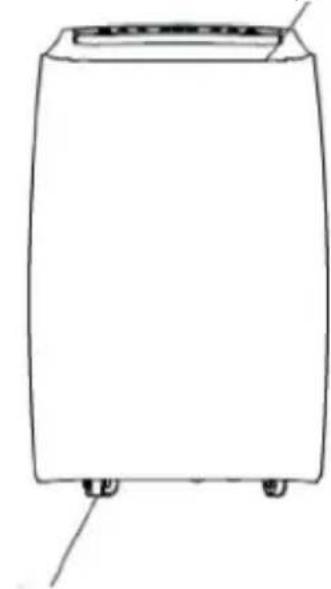

FRONT VIEW

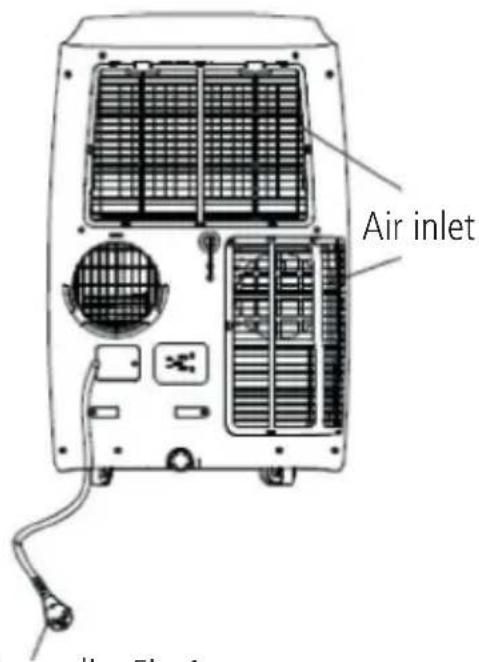

REAR VIEW

Operation Panel

Castor

Power lineFig.1

3. ACCESSORIES

Fig.2

Accessories Description Dimension
	Main air conditioner unit 440 x 715 x 335 mm
	Hot-air exhaust hose length: 1500 mm diameter: 150 mm
	hose connector (window side) diameter: 150 mm
	hose connector (air conditioner side) diameter: 150 mm
	remote control 45 x 100 mm

4. DISPLAY PANEL AND REMOTE CONTROL

EN

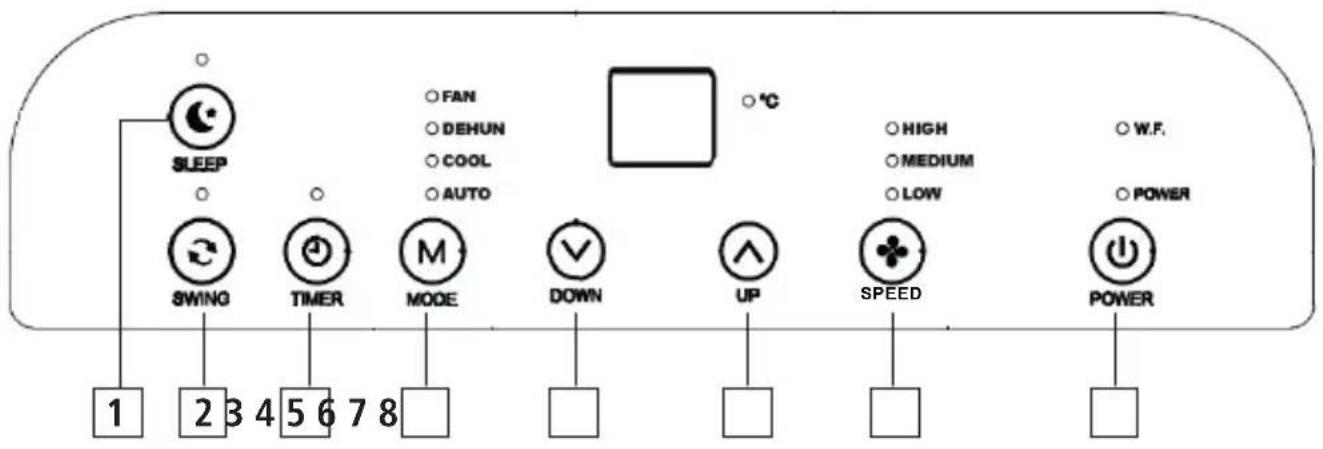

Fig.3

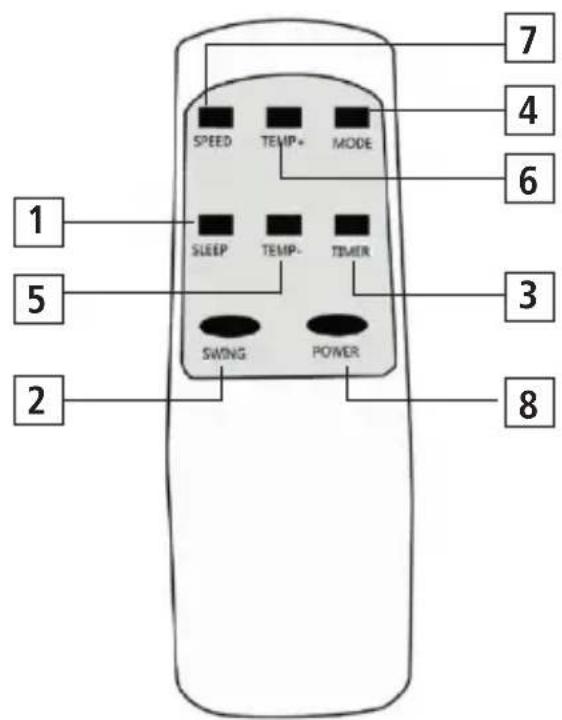

Fig. 4

1 Sleep : Night operation key
2 Swing : Oscillation key
3 Timer : Hour programming
4 Mode: Selection of the mode
5 Down : Selector of Temperature and timer down
6 Up: Selector of Temperature and timer up
7 Speed : Speed selector
8 Power

EN

5. OPERATING INSTRUCTIONS

Before starting to operate the device

Find a place where there is a power supply nearby.

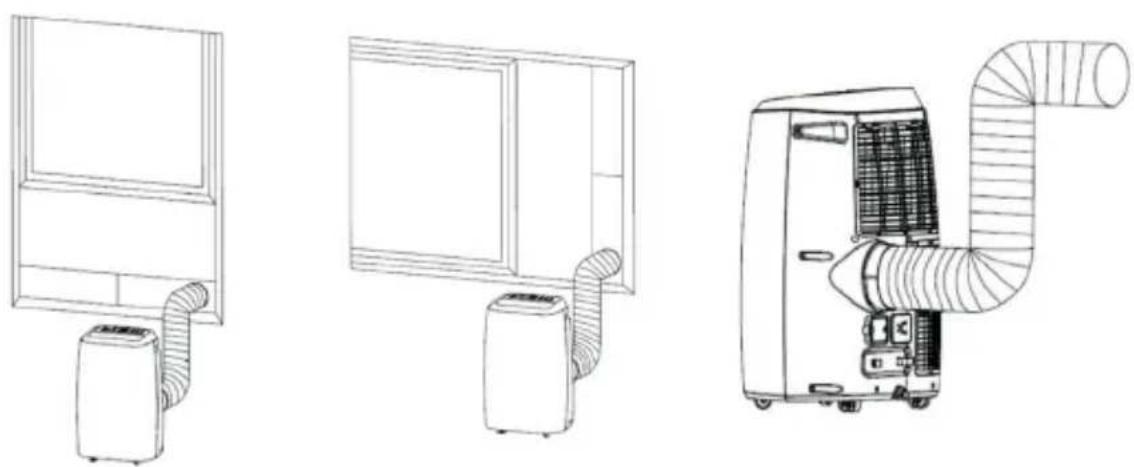

- Install the exhaust hose as shown in Fig. 5 and Fig. 5a and adjust the window position well.

Fig. 5 Fig. 6Fig. 5 A

• Insert the power plug into a grounded AC220-240V/50Hz socket.
• As shown in Fig. 6, connect the drain hose well (only applicable for using a heating model).
• The dehumidifi er/air conditioner shall be installed on a fl at surface and with empty space all around. Do not block the air outlet, and make sure the distance around the device is at least 30~cm .

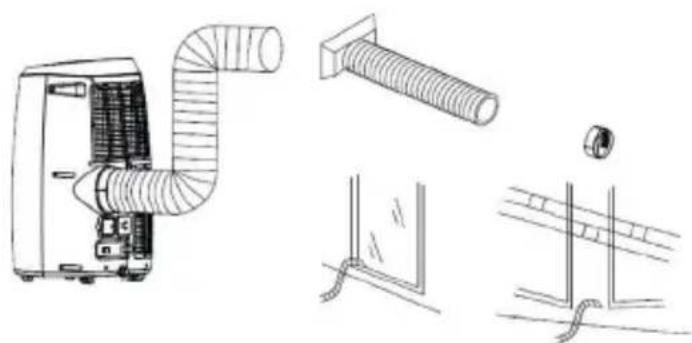

Exhaust hose installation

1. Twist both ends of the exhaust hose into the square fixing clip and the flat fixing clip.
2. Insert the square fixing clip into the openings on the back of the air conditioner (fig. 7)
3. Put the other end of the exhaust hose near the window sill.

Fig. 7

Operating temperature range

	Maximum cooling Minimum cooling
DB/WB (°C) 35/24 18/12

EN

Caution for cooling and dehumidifying operations:

• When using the cooling and dehumidifying functions, wait for at least 3 minutes between each ON/OFF.
• Make sure the power supply meets the requirements.
• Ensure the socket is suitable for AC.
• Do not share one socket with other appliances.
• Ensure the power supply is AC220-240V, 50Hz

Auto mode

According to the current room temperature, auto mode automatically selects the suitable mode: cooling, dehumidifying or fan.

Room temperature (Tr) 23°C ≤ TP < 26°C TP ≥ 26°C
Mode Dehumidifying Cooling
Set temperature 23°C 25°C

Cooling operation

• Press the «Mode» button (4) sino a quando il symbolo «cool» si appears.
• Press the button "Up" (6) or "Down" (5) to select a desired room temperature
  (16^ - 31^)
• Press the «speed» (7) button to select the wind speed.

Dehumidifying operation

• Press the «Mode» (4) button until the "Dehum" icon appears.
• The selected temperature is automatically set to the current room temperature minus 2^ C ( 16^ C - 31^ C ).
• The fan motor is automatically set to low wind speed.

Fan operation

• Press the «Mode» button (4) until the «Fan» icon appears.
• Press the «speed» (7) button to select the wind speed.

EN

Timer operation

Timer ON setting:

• When the air conditioner is OFF, press the "Timer" (3) button and select a desired ON time by using the temperature and time setting buttons.
• "Preset ON Time" is displayed on the operation panel.
  ON time can be set for any time in 0 - 24 hours.

Swing (air flow)

• After turning on the machine, press the «swing» (2) key and the air vents will continuously swing up and down. When this button is pressed again, the movement will stop and the air vents will remain in that position.

Sleep control function

• When in cooling mode, press the «sleep» (1) key to set the temperature. It will increase by 1^ after an hour and at most it will increase by 2^ after 2 hours.
• Press the «sleep» (1) key again can to cancel the setting.

Drainage

• It is the alarm function if the water tank inside is filled up. The water tank in the air conditioner has a water level safety switch which controls the water level. When the water level reaches a certain height, the "water full" indicator lamp will light up. (If the water pump is damaged and the water tank is full, please remove the rubber block at the bottom of the device and all the water will drain out.

6. MAINTENANCE

Caution

• Before cleaning, make sure to disconnect the device from any electrical outlet.
• Do not use gasoline or other chemicals to clean the device.
• Do not wash the device directly.
• If the air conditioner is damaged, please contact the dealer or repair shop.

Air filter

• If the air filter becomes clogged with dust/dirt, it should be cleaned once every two weeks
• Disassembly: Open the air inlet grille and take out the air filter.
• Cleaning: Clean the air filter with a neutral detergent in lukewarm (40^) water and dry it up in the shadow.
  Assembly: Put the air filter back into the inlet grille, place the components back as they were before.

Cleaning the surface of the air-conditioner

• First clean the surface with a neutral detergent and a wet cloth, then wipe it with a dry cloth.

PROBLEM POSSIBLE CAUSE	SUGGESTED SOLUTION
Unit does not start when pressing the on/off button	Water full indicator lamp blinks and water tank is full.	Dump the water out of the water tank.
	Room temperature is lower than the set temperature (cooling mode).	Reset the temperature.
Not cool enough The doors or windows are not closed.		Make sure all the windows and doors are closed.
There are heat sources inside the room.		Remove the heat sources if possible
Exhaust air hose is not connected or blocked.		Connect or clean the exhaust air hose.
Temperature setting is too high		Reset the temperature.
Air inlet is blocked. Clean the air inlet.
Noise The ground is not level	or not flat enough	Place the unit on a flat, level ground if possible.
	The sound comes from the flowing of the refrigerant inside the air conditioner.	This is normal.
Code E0 Room temperature sensor failed.		Replace the room temperature sensor (the device can also work without a replacement.)
Code E2 Water tank full Please empty the water		tank.

Warranty

The products are carefully checked before shipping. Should a defect nevertheless occur on your appliance, please contact your dealer with complete peace of mind. We remind you to bring with you the purchase receipt, which must be presented for each warranty service. The warranty period is 24 months from the date of purchase.

Disposal

Ensure proper disposal of the product. The device can be handed over free of charge to any specialist dealer for disposal.

Technical changes

Subject to technical and aesthetic changes. We are not responsible for any such modifications, differences or omissions contained in this user manual.

Please retain the packaging material of the device.

CE declaration of conformity

This device complies with the following standards:

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/AC:2014

EN 60335-2-40:2003 + A11:2004 + A12:2005 + A1:2006 + Cor.:2006 + A2:2009

• Cor.:2010 + A13:2012 + A13:2012/AC:2013

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 62233:2008

2014/30/EU

2014/35/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.

Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
