USER MANUAL CTS651II CITIZEN

LINE THERMAL PRINTER

MODEL CT-S651 Type II

User's Manual

Mode d'emploi

Benutzerhandbuch

Manuale dell'utente

Manual de Usuario

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

If you want to dispose of this product, do not mix it with general household waste. There is a separate collection systems for used electronics products in accordance with legislation under the WEEE Directive (Directive 2002/96/EC) and is effective only within European Union.

Ge

Declaration of Conformity

This printer conforms to the following Standards:

The Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU, and the WEEE Directive 2002/96/EC.

LVD : EN60950-1

EMC: EN55022 Class A

EN61000-3-2

EN61000-3-3

EN55024

This declaration applies only to the 230-V model.

IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

CAUTION: Use shielded cable for this equipment.

Sicherheitshinweis

This Class A Information Technology Equipment (ITE) complies with Canadian CAN ICES-3(A)/NMB-3(A).

This Information Technology Equipment (ITE) does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

• Before using this product, be sure to read through this manual. After having read this manual, keep it in a safe, readily accessible place for future reference.
• The information contained herein is subject to change without prior notice.
  ● Reproduction or transfer of part or all of this document in any means is prohibited without permission from Citizen Systems.
• Note that Citizen Systems is not responsible for any operation results regardless of omissions, errors, or misprints in this manual.
• Note that Citizen Systems is not responsible for any trouble caused as a result of using options or consumables that are not specified in this manual.
• Except explained elsewhere in this manual, do not attempt to service, disassemble, or repair this product.
• Note that Citizen Systems is not responsible for any damage attributable to incorrect operation/handling or improper operating environments that are not specified in this manual.
• Data is basically for temporary use and not stored for an extended period of time or permanently. Please note that Citizen Systems is not responsible for damage or lost profit resulting from the loss of data caused by accidents, repairs, tests or other occurrences.
• If you find omissions, errors, or have questions, please contact your Citizen Systems dealer.
• If you find any pages missing or out of order, contact your Citizen Systems dealer for a replacement.

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

• iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
  ● EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
  ● QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Ethernet is a registered trademark of Fuji Xerox Corporation.
• Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  ● CITIZEN is a registered trademark of Citizen Watch Co., Ltd. Japan
  ● All other trademarks are the property of their respective owners.
  ● Citizen Systems use these trademarks in accordance with the license of relevant owners.

SAFETY PRECAUTIONS...WHICH SHOULD BE STRICTLY OBSERVED

Before using this product for the first time, carefully read these SAFETY PRECAUTIONS. Improper handling may result in accidents (fire, electric shock or injury).

In order to prevent injury to operators, third parties, or damage to property, special warning symbols are used in the User's Manual to indicate important items to be strictly observed.

• After having read this Manual, keep it in a safe, readily accessible place for future reference.
• Some of the descriptions contained in this manual may not be relevant to some printer models.

The following describes the degree of hazard and damage that could occur if the printer is improperly operated by ignoring the instructions indicated by the warning symbols.

WARNING

Neglecting precautions indicated by this symbol may result in fatal or serious injury.

CAUTION

Neglecting precautions indicated by this symbol may result in injury or damage to property.

This symbol is used to alert your attention to important items.

This symbol is used to alert you to the danger of electric shock or electrostatic damage.

This symbol denotes a request to unplug the printer from the wall outlet.

This symbol is used to indicate that the power supply must be grounded.

This symbol is used to indicate useful information, such as procedures, instructions or the like.

This symbol is used to indicate prohibited actions.

PRECAUTIONS ON PRINTER INSTALLATION

WARNING

■ Do not use or store this product in a place where it will be exposed to:

* Flames or moist air.
* Direct sunlight.
* Hot airflow or radiation from a heating device.
* Salty air or corrosive gases.
* Ill-ventilated atmosphere.
* Chemical reactions in a laboratory.
* Airborne oil, steel particles, or dust.
* Static electricity or strong magnetic fields.

- Neglecting these warnings may result in printer failure, overheating, emission of smoke, fire, or electric shock.

■ Do not drop any foreign object nor spill liquid into the printer. Do not place any object on the printer either.
■ Do not drop any metallic object such as paper clips, pins or screws into the printer.
■ Do not place a flower vase, pot, or anything containing water on the printer.
■ Do not spill coffee, soft drinks, or any other liquid into the printer.
■ Do not spray insecticide or any other chemical liquid over the printer.

- Dropping a metallic foreign object into the printer, may cause printer failure, fire, or electric shock. Should it occur, immediately turn the printer off, unplug it from the supply outlet, and call your local Citizen Systems dealer.

Do not handle the printer in the following ways:

■ Do not subject the printer to strong impacts or hard jolts (e.g., being stepped on, dropped or struck).
■ Never attempt to disassemble or modify the printer.

- Neglecting to handle properly may result in printer failure, overheating, emission of smoke, fire, or electric shock.

■ Install, use, or store the printer out of the reach of children.

• Electric appliances could cause an unexpected injury or accident if they are handled or used improperly.
• Keep the power cord and signal cables out of the reach of children. Also children should not be allowed to gain access to any internal part of the printer.
• The plastic bag the printer came in must be disposed of properly or kept away from children. Wearing it over the head may lead to suffocation.

CAUTION

Do not use the printer under the following conditions.

■ Avoid locations subject to vibration or instability.
■ Avoid locations where the printer is not level.

- The printer may fall and cause an injury.

- The quality of printing may deteriorate.

• Do not obstruct the printer's air vents.
  ■ Do not place anything on the printer.
  ■ Do not cover or wrap the printer in cloth or blankets.

- Doing so could cause heat to build up and deform the case or start a fire.

■ Avoid using the printer near a radio or TV set or from supplying it from the same electric outlet as these appliances.
■ Avoid using the printer interconnected with a cable or cord that has no protection against noise. (For interconnections, use shielded or a twisted pair of cables and ferrite cores, or other anti-noise devices.)
■ Avoid using the printer with a device that is a strong source of noise.

- The printer may have an adverse effect on nearby radio or TV transmissions. There may also be cases when nearby electrical appliances adversely influence the printer, causing data errors or malfunction.

■ Installed in any orientation other than those specified.
- Malfunction, failure, or electric shock may result.

■ Connect the printer to a ground.
• Electric leakage may cause an electric shock.
- Do not connect the printer's ground to any of the following:

* Gas piping

• A gas explosion could result.

* Telephone line ground
* Lightning rod

- If lightning strikes a large surge of current may cause fire or shock.

* Water pipes
- Plastic water pipes should not be used for grounding. (Those approved by a Waterworks Department may be used.)

■ Before connecting or disconnecting the grounding lead to or from the printer, always unplug it from the electric outlet.

PRECAUTIONS IN HANDLING THE PRINTER

WARNING

Please observe the following precautions for power source and power cord:

■ Do not plug or unplug the power cord with a wet hand.
■ Use the printer only at the specified supply voltage and frequency.
■ Use only the specified AC adapter with the printer.
- Check to make sure that the supply outlet from which the printer is powered has a sufficient capacity.
■ Do not supply the printer from a power strip or current tap shared with other appliances.
■ Do not plug the power cord into an electric outlet with dust or debris left on the plug.
■ Do not use a deformed or damaged power cord.
■ Do not move the printer while its power is on.

- Neglecting to handle it properly may result in printer failure, emission of smoke, fire, or electric shock.

- An overload may cause the power cord to overheat, catch fire, or the circuit breaker to trip.

■ Do not allow anything to rest on the power cord. Do not place the printer where the power cord may be stepped on.
■ Do not use or carry the printer with its power cord bent, twisted, or pulled.
■ Do not attempt to modify the power cord unnecessarily.
■ Do not place the power cord near any heating device.

- Neglecting these cautions may cause wires or insulation to break, which could result in electric leakage, electric shock, or printer failure. If the power cord sustains damage, contact your Citizen Systems dealer.

■ Do not leave things around the electric outlet.
■ Supply power to the printer from a convenient electric outlet, readily accessible in an emergency.
- Pull the plug to immediately shut it down in an emergency.

■ Insert the power plug fully into the outlet.
■ If the printer will not be used for a long time, disconnect it from its electric outlet.
■ Hold the plug and connector when plugging or unplugging the power cord or signal cable after turning off the printer and the appliance connected to it.

CAUTION

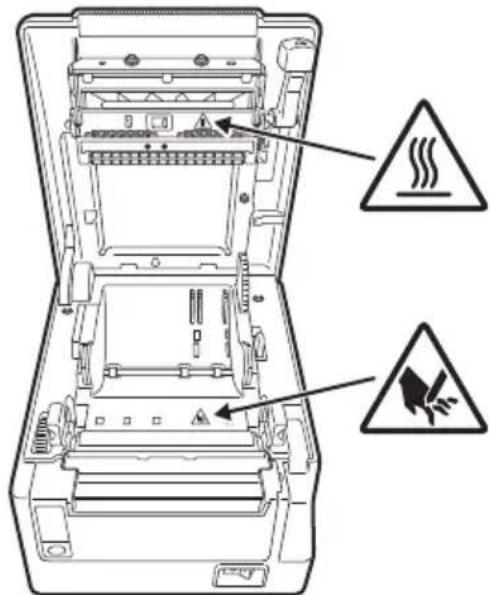

Caution label is attached in the position shown in the following figure. Carefully read the handling precautions before using the printer.

Technical diagram of an electrical enclosure with warning symbols indicating thermal and electrical hazard zones

THIS LABEL INDICATES THE RISK OF BURNS DUE TO THE HIGH TEMPERATURE OF THE PRINT HEAD AND A RISK OF BEING CUT BY THE MANUAL AND AUTO CUTTERS WHILE THE PAPER COVER IS OPEN.

■ Do not transport this printer with the paper roll inside.
- Printer failure or damage may occur.

To prevent possible malfunction or failure observe the following.

■ Do not open the paper cover during printing.
■ Avoid operating the printer without paper properly loaded.
■ Avoid the use of paper not complying with specifications.

- May result in poor print quality.

■ Avoid using torn pieces of paper or paper spliced with plastic adhesive tape.
■ Avoid forcibly pulling already loaded paper by hand.
- Avoid using a sharp pointed device to operate panel buttons.

■ Be sure to firmly insert the cable plugs into their mating sockets.
- A cross connection may damage the printer's internal electronics or the host system's hardware.
■ Only use the printer with devices that have designated solenoid specifications for the cash drawer interface connector.
- Neglecting this caution may result in malfunction or failure.

CAUTION

To prevent injury and printer failures from worsening, observe the following:

■ While the paper cover is open, be careful to not touch the manual cutter that is in the paper eject slot.
■ Do not touch the printing surface of the thermal head.
■ Do not touch any of the moving parts (e.g., paper cutter, gears, active electric parts) while the printer is working.
In case of trouble do not attempt to repair the printer. Ask Citizen Systems service for repair.
■ Be careful that the covers do not pinch your hands or fingers.
■ Be careful of the sharp edges on the printer. Do not allow them to injure you or damage property.
- May result in electric shock, burn, or injury.

If the printer emits smoke, an odd smell, or unusual noise while printing, immediately abort the current print session and unplug the printer from the electric outlet.

DAILY MAINTENANCE

Observe the following precautions for daily maintenance.

■ When cleaning the printer, always turn it off and unplug it from the electric outlet.
■ Use a soft, dry cloth for cleaning the surface of the printer case.

For severe stains, use a soft cloth slightly dampened with water.

Never use organic cleaning solvent such as alcohol, paint thinner, trichloroethylene, benzene, or ketone. Never use a chemically processed cleaning cloth.

■ To remove paper dust, use a soft brush.

CAUTION

- The thermal head is at a dangerously high temperature immediately after printing. Allow it to cool off before starting maintenance work.

Visit the following site to get documentation, drivers, utilities, and other information.

http://www.citizen-systems.co.jp/english/support/index.html

THE TABLE OF CONTENTS

1. GENERAL OUTLINE....9

1.1 Features....9
1.2 Unpacking.... 10
1.3 Model Classification 10
1.4 Basic Specifications.... 11

2. EXPLANATION OF PRINTER PARTS ......12

2.1 Printer Appearance.... 12

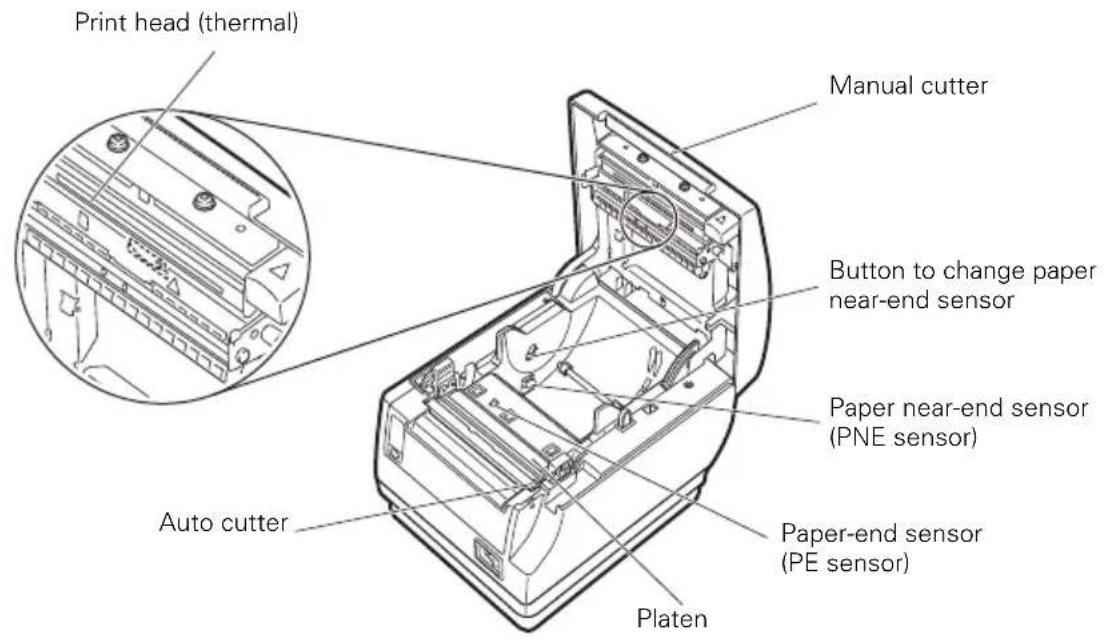

2.2 Inside the Paper Cover 15
2.3 Other Built-in Functions.... 16

3. SETUP....18

3.1 Connecting the AC Power Cord 18
3.2 Connecting Interface Cables 19
3.3 Bluetooth Interface Board 21
3.4 Ethernet (LAN) Interface Board 23
3.5 Wireless LAN Interface Board 26
3.6 Connecting the Cash Drawer 30
3.7 Precautions for Installing the Printer 32
3.8 Partition for Paper Roll.... 33
3.9 Setting the DIP Switch on the Serial Interface Board.... 34
3.10 Adjusting the Paper Near-end Sensor.... 35
3.11 Loading Paper 36

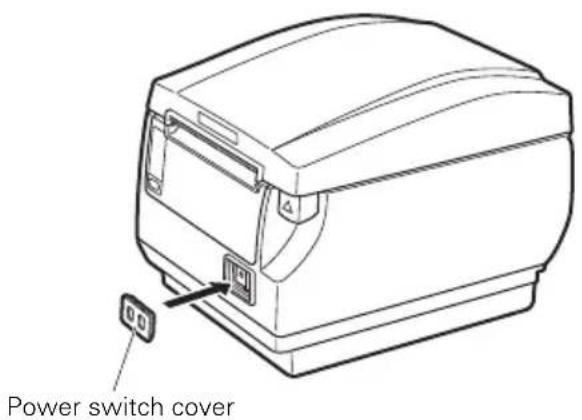

3.12 Attaching the Power Switch Cover 37
3.13 Attaching the Interface Cover 38
3.14 Removing the Interface Cover.... 38
3.15 Installing a Driver 39
3.16 Precautions for Creating Applications and Practical Operations 39

4. MAINTENANCE AND TROUBLESHOOTING......40

4.1 Periodic Cleaning.... 40
4.2 Clearing a Cutter Lock (1) 41
4.3 Clearing a Cutter Lock (2) 41
4.4 Self test 43
4.5 Hexadecimal Dump Printing 44
4.6 Error Messages 45
4.7 Paper Jams 47
4.8 Serial Interface Operation Precautions.... 47

5. OTHER ....48

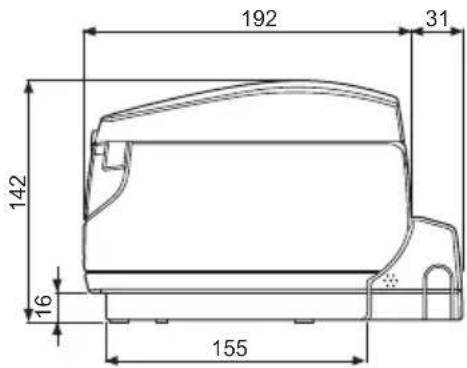

5.1 External Views and Dimensions 48

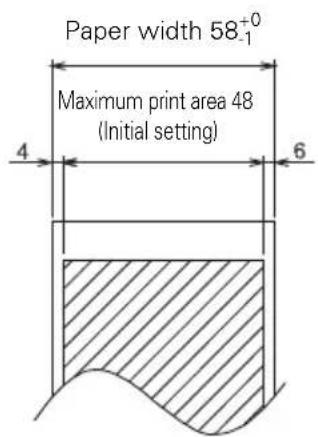

5.2 Printing Paper 49
5.3 Manual Setting of Memory Switches.... 50

1. GENERAL OUTLINE

The CT-S651II line thermal printer series is designed for use with a broad array of terminal equipment including data, POS, and kitchen terminals.

These printers have extensive features so they can be used in a wide range of applications.

1.1 Features

● High-speed (220 mm/s) printing
- Design so compact it can be installed anywhere (maximum 3-inch (83-mm) paper roll size)
● Waterproof construction prevents water from entering through the top
● Paper is output from the front so the printer can be placed in restricted spaces
- Choose from two models with either 3-inch (83/80 mm) or 2-inch (60/58 mm) wide paper rolls
● Built-in power supply or AC adapter types available
● Printer status and errors indicated by LED and a buzzer
● Equipped with a fast and quiet cutter
● Easy to clear cutter jams
- Interchangeable interface
● Built-in cash drawer kick-out interface
- USB power supply OFF
● Memory switches make customization possible
● Store user-defined characters and logos on user memory
- Barcode and 2D barcode printing supported
● 16 level greyscale and clear printing
● Paper saving functions
● Japanese Kanji, Chinese(simplified and traditional) and Hangul supported
- Driver and utility software included
- Apple MFi certified Bluetooth communication support (Bluetooth model)

1.2 Unpacking

Make sure the following items are included with your printer.

• Printer: 1
• Interface cover: 1
• AC power cord: 1
  ● Power switch cover: 1
  ● Sample paper roll: 1 roll

• CD-ROM: 1

• Quick Start Guide: 2

• AC adapter: 1
• USB cable: 1

Notes:

*1: CT-S651IIA only

*2: USB interface types only In designated markets

Line drawing of a mechanical device with no visible text or symbols

CT-S651IIS

(Built-in power supply type) 36AD3/37AD3 AC adapter built in

AC power cord

USB cable

Sample paper roll

Quick Start Guide

Power switch cover

Interface coverCD-ROM

Line drawing of a rectangular electronic device with ports and casing (no text or symbols)

CT-S651IIA (AC adapter type)

AC adapter (36AD2/37AD5)

AC power cord

USB cable

Sample paper roll

Quick Start Guide

Power switch cover

CD-ROM

Interface cover

1.3 Model Classification

Model numbers indicate printer features according to the following system.

CT - S651IIS 3 RS

Power supply

DC: No power source

S: Built-in power supply type

A: AC adapter type

Paper width

3: 3 inch (80/83 mm)

2: 2 inch (58/60 mm) Interface

PA: Parallel

RS: Serial RS-232C

UB: USB only

UH: USB with hub

ET: Ethernet (standard type)

ES: Ethernet (multi-function type)

UP: Powered USB

BT: Bluetooth

WF: WiFi W5: WiFi(5.0GHz)

E - BK - P

-Market\*

J: Japan

E: Europe

U: North America

C: China

A: Asia/Oceania

PNE sensor

: No

P: PNE sensor

Body case color

WH: Cool white

BK: Black

Certain combinations may not be available. Check with Citizen beforehand.

Note:

*: AC power cord, serial I/F screw, firmware and other specifications vary according to markets.

1.4 Basic Specifications

Item Specifications
Model CT-S651II
Print method Line thermal dot print method
Print width *1 80 mm/6	40 dots, 72 mm/576 dots, 64 mm/512 dots, 54.5 mm/436 dots,54 mm/432 dots, 52.5 mm/420 dots, 48 mm/384 dots, 45 mm/360 dots,48.75 mm/390 dots, 68.25 mm/546 dots
Dot density 8 × 8 dots/mm (203 dpi)
Print speed 220 mm/s	fastest, print density 100%, 1760 dot-lines/s)
Number of print columns*2	—	Maximum number of characters(columns)				Dot configuration (dots)
	Paper width Font	83 mm	80 mm	60 mm	58 mm
	F o	n	t	A	5	3
	F o	n	t	B	7	1
	F o	n	t	C	8	0
Character size*3	Font A: 1.50 × 3.00 mmFont B: 1.13 × 3.00 mmFont C: 1.00 × 2.00 mm
Character type	Alphanumeric, international, PC437/850/852/857/858/860/863/864/865/866,WPC1252, katakana, ThaiCode 11/18 (1Pass/3Pass), TCVN-3
User memory	384 KB (capable of storing user-defined characters and logos)
Bar code types	UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE39, CODE128, CODABAR (NW-7),CODE93, PDF417, QR Code, GS1-Databar
Line spacing	4.23 mm (1/6 inch) (changeable using commands)

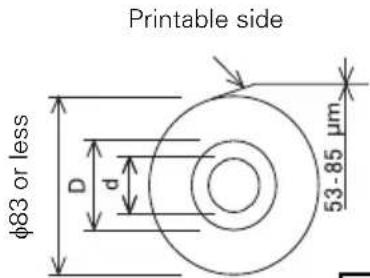

Paper roll	Paper roll: 83_-1^+0 mm/ 80_-1^+0 mm/ 60_-1^+0 mm/ 58_-1^+0 mm × maximum φ83 mmPaper thickness: 65-75 μm (core tube diameter: inner 12 mm/outer 18 mm)75-85 μm (core tube diameter: inner 25.4 mm/outer 32 mm)
Interface	Serial (RS-232C compliant), parallel (IEEE 1284 compliant), USB, USB withhub, Ethernet, Powered USB, Bluetooth(3.0), wireless LAN (802.11b/g or802.11a/b/g/n)
Cash drawer kick-out	Supports 2 cash drawers
Buffer size	4 k bytes/45 bytes
Supply voltage	DC 24 V ±5%
Power consumption	Approximately 45 W (normal printing), 3 W (standby)
AC adapter*4(36AD2/3, 37AD3/5)	Rated input: AC 100 to 240 V, 50/60 Hz, 150 VARated output: DC 24 V, 2.1 A
Weight	CT-S651IIS: Approx. 1.9 kg, CT-S651IIA: Approx. 1.5 kg

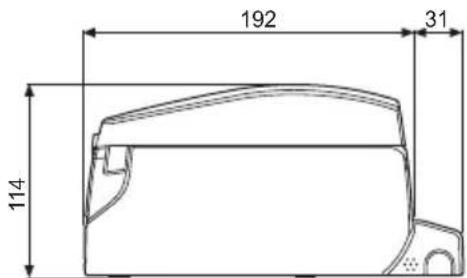

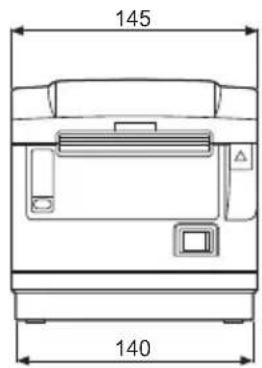

Outside dimensions	CT-S651IIS: 145 (W) × 192 (D) × 142 (H) mmCT-S651IIA: 145 (W) × 192 (D) × 114 (H) mm
Operating temperatureand humidity	5 to 45°C, 10 to 90% RH (no condensation)
Storage temperatureand humidity	-20 to 60°C, 10 to 90% RH (no condensation)
Reliability	Print head life: 150 km, 200 million pulses (at normal temperature/humidity,using recommended paper and paper thickness)Auto cutter life: 2 million cuts (full cut), 1.6 million cuts (partial cut) (at normaltemperature/humidity, using recommended paper and paper thickness)
Safety standard *5	UL, C-UL, FCC Class A, TÜV-Bauart, CE Marking

Notes:

*1: When paper width is 83, 80, 60, or 58 mm.

*2: The number of printable columns is selected using a memory switch.

The numbers of columns noted in this table refer to typical models. The number of columns varies depending on specifications.

*3: Characters appear small because the dimensions include a blank area surrounding each character.

*4: The 36AD2/37AD5 is the AC adapter packaged as an accessory with the CT-S651IIA.

The 36AD3/37AD3 is the AC adapter built in to the CT-S651IIS.

*5: Compliant if the Citizen Systems AC adapter (36AD2/3, 37AD3/5) is used.

2. EXPLANATION OF PRINTER PARTS

2.1 Printer Appearance

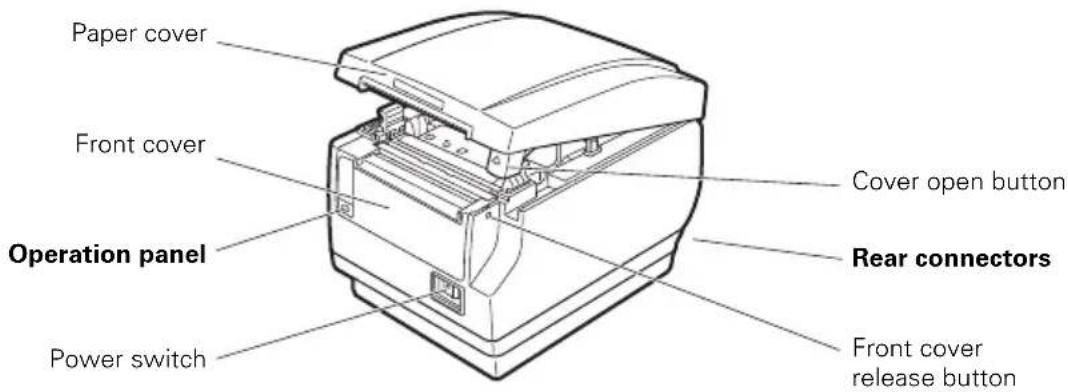

Names of parts

Paper cover Front cover Operation panel Power switch Cover open button Rear connectors Front cover release button

● Paper cover Open to load paper.

- Cover open button Use this button to open the paper cover.

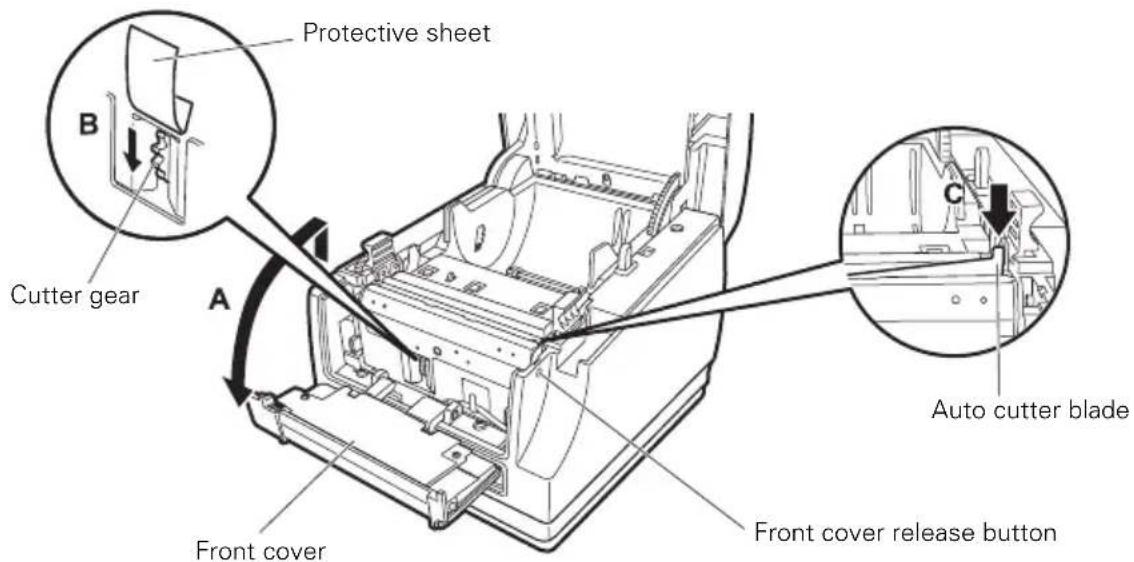

- Front cover Open and close this cover to clear a cutter lock.

Refer to 4.3 Clearing a Cutter Lock (2)

- Front cover release button Press this button to open the front cover.

● Power switch Press this switch to turn the power on or off.

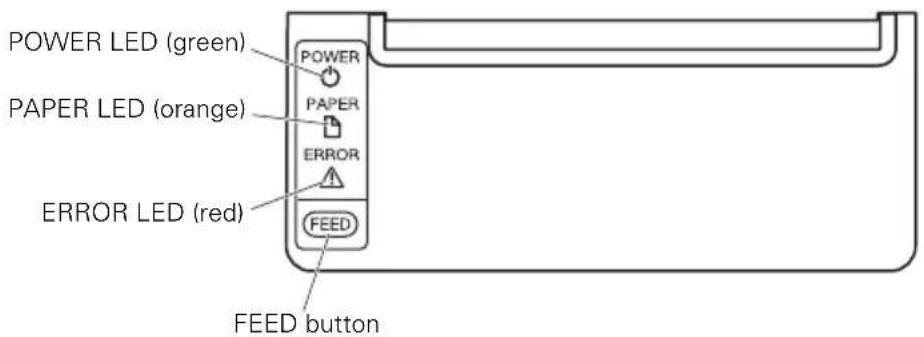

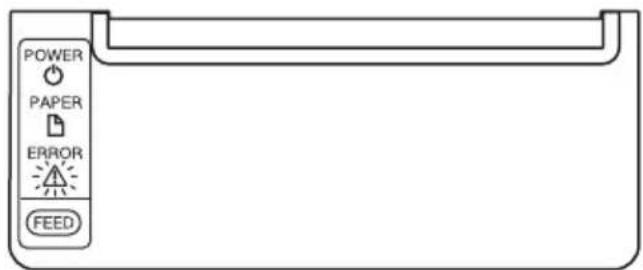

Operation panel

POWER LED (green) PAPER LED (orange) ERROR LED (red) POWER PAPER ERROR FEED FEED button

● POWER LED (green)

Lights when the power is on, turns off when the power is off.

Flashes when data is incoming or a memory error has occurred.

● PAPER LED (orange)

Lights orange when paper is low (paper near-end) or there is no paper (paper end).

- ERROR LED (red)

Flashes if the print head is hot, the paper cover is open, a cutter lock occurs, and so forth.

- FEED button

Press this button to feed paper.

In case of a cutter lock, remove the cause of the lock, close the paper cover, and then press the FEED button.

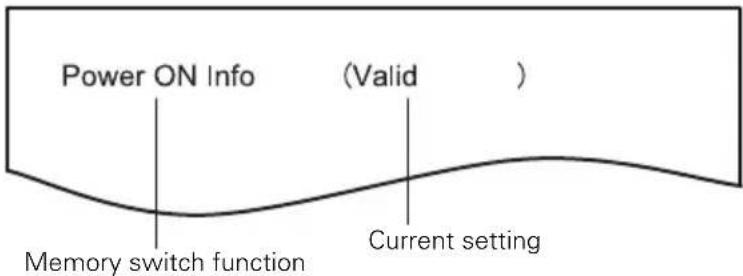

The printer enters the mode for setting memory switches and running self test.

Refer to 4.4 Self test

Refer to 4.6 Error Messages

Refer to 5.3 Manual Setting of Memory Switches

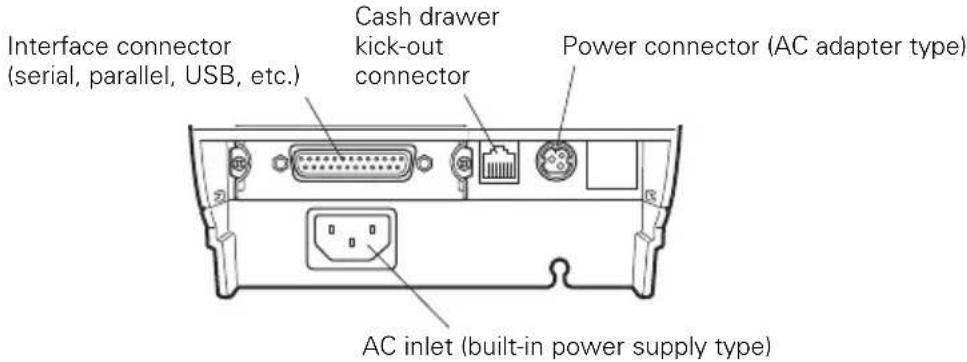

Rear connectors

Interface connector (serial, parallel, USB, etc.) Cash drawer kick-out connector Power connector (AC adapter type) AC inlet (built-in power supply type)

• Interface connector (serial, parallel, USB, etc.) Connects to the interface cable. The serial interface board is equipped with a DIP switch.

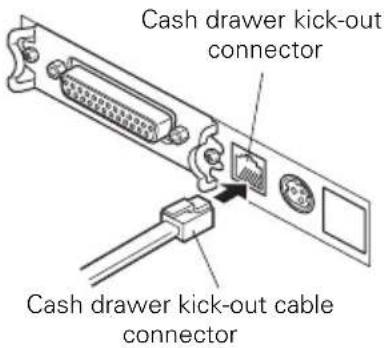

  ● Cash drawer kick-out connector Connects to the cable from the cash drawer.
  ● Power connector (AC adapter type) Connects to the AC adapter cable.
  ● AC inlet (built-in power supply type) Connects to the AC power cord.

2.2 Inside the Paper Cover

Print head (thermal) Manual cutter Button to change paper near-end sensor Paper near-end sensor (PNE sensor) Auto cutter Paper-end sensor (PE sensor) Platen

- Platen

Feeds the paper.

Do not remove the platen except to do maintenance.

● Paper near-end sensor (PNE sensor)

Detects when the paper is near the end of the roll. Adjust the position of the sensor to determine when it detects the end of the paper is near.

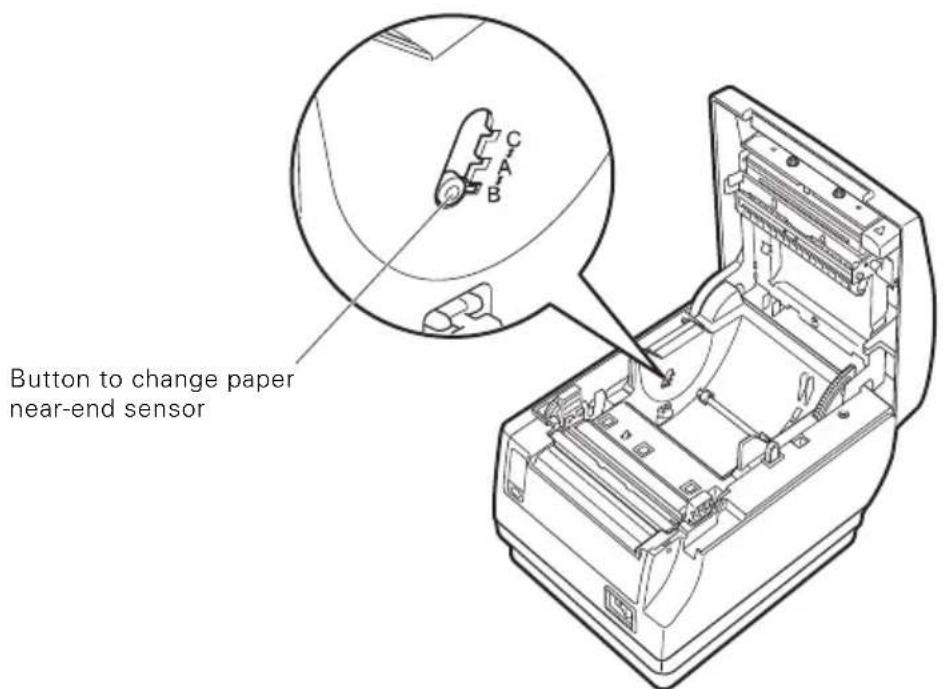

- Button to change paper near-end sensor

Change the position of the paper near-end sensor to match the paper being used.

Refer to 3.10 Adjusting the Paper Near-end Sensor

- Manual cutter

For cutting the paper manually when printing is finished.

- Auto cutter

Automatically cuts the paper when printing is finished.

Refer to 5.3 Manual Setting of Memory Switches

- Print head (thermal)

Prints characters and graphic data on paper (paper rolls).

● Paper end sensor (PE sensor)

Detects when there is no paper. Printing stops when this sensor detects there is no paper.

2.3 Other Built-in Functions

- Buzzer

Buzzes when errors occur or when operations or command operations are performed.

Refer to 4.6 Error Messages

- User memory

You can save user-defined logo and character data in this memory. Data remains stored in this memory even if the printer is turned off. For information on how to save data, refer to the Command Reference.

- Memory switch

Setting of various kinds of functions can be stored in memory. Settings remain stored in the memory even if the printer is turned off.

- USB power supply OFF (When memory switch MSW6-3 is set to ON)

When the printer is connected to a PC by USB, turning off PC power or terminating the USB connection causes printer USB power to turn off three seconds later.

This mode is canceled when the PC is turned back on or when a USB connection is established.

CAUTION

■ The POWER LED is unlit when USB power supply is OFF, and the power OFF state cannot be identified.
- Pressing POWER while USB power is off does not turn on power immediately. After a while, USB power supply OFF is canceled and pressing POWER turns on power normally.

● Paper saving functions

Memory switches MSW8-3 through MSW8-5 can be used to configure the settings below, which save paper.

- Top margin suppression

The printer back feeds the paper before printing which reduces the blank space at the top edge of the paper.

The back feed amount can be specified.

- Line gap reduce

Automatically compresses the linefeed amount between lines. The compression ratio can be specified.

- Text compression vertical/horizontal

Makes the print size smaller.

The compression amount is specified by a combination of vertical and horizontal compression ratios.

● Auto side shift (MSW8-6)

This function dissipates heat load during frequent heat generation by a vertical ruled line or other specific head heating element.

If no data is received within 15 seconds after each cut or print, the print position is automatically slid N* dots to the right. The original print position is returned to at the next slide timing.

* N is the MSW8-6 setting value.

CAUTION

■ Before configuring the top margin suppression setting, first remove any partially cut paper from the printer. Failure to do so can cause the cut paper to be torn off by the next print operation, which can cause printer trouble.
■ Note the following precautions when using text compression.

- Compressed text is more difficult to read than the original text.

- Horizontally compressing text also makes the print range smaller, so the number of print lines does not change. Pay close attention to the print range when using narrow paper.

- Do not use compressed text when printing a bar code. Doing so may make the bar code unreadable.

If the right margin is too narrow, this may result in some print characters being cut off. This function is disabled under initial settings. To enable this function, use MSW8-6 to specify an appropriate value for the maximum slide amount.

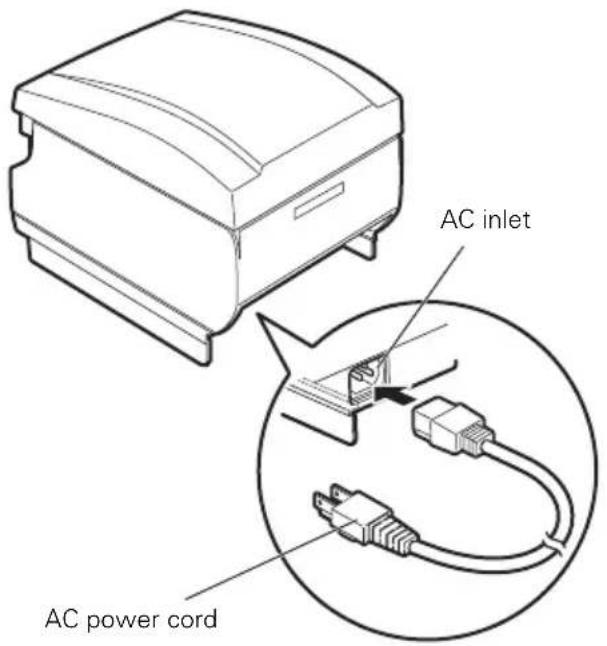

3.1 Connecting the AC Power Cord

1. Turn off the power.

1. ● For the built-in power type printer, connect the AC power cord to the AC inlet, and insert the plug into an electric outlet.

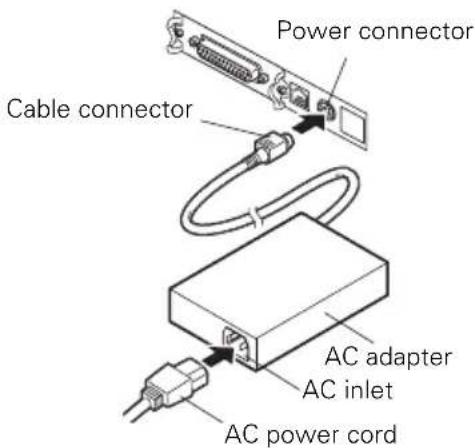

2. For the AC adapter type printer, connect the cable connector of the AC adapter to the power connector. Next, connect the AC power cord to the AC inlet, and insert the plug into an electric outlet.

AC inlet AC power cord

Built-in power supply type

Power connector Cable connector AC adapter AC inlet AC power cord

AC adapter type

CAUTION

■ Use only an AC adapter that complies with the specified ratings.
■ Always hold the AC adapter's cable connector by the connector when removing or inserting it.
■ Use an AC power source that does not also supply power to equipment that generates electromagnetic noise.
■ Pulling on the AC power cord may damage it, cause a fire, electric shock, or break a wire.
■ If a lightning storm is approaching, unplug the AC power cord from the electric outlet. A lightning strike may cause a fire or electric shock.
- Keep the AC power cord away from heat generating appliances. The insulation on the AC power cord may melt and cause a fire or electric shock.
■ If the printer is not going to be used for a long time, unplug the AC power cord from the electric outlet.
■ Place the AC power cord so that people do not trip on it.

3.2 Connecting Interface Cables

1. Turn off the power.
2. Orient the interface cable correctly and insert it into the interface connector.

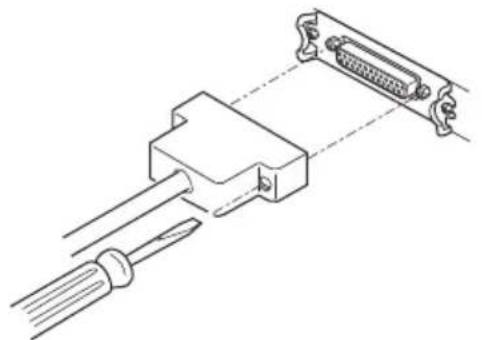

Technical line drawing of a connector assembly showing cable, connector, and connector pin (no text or symbols)

Serial interface

Technical line drawing of a mechanical component with directional arrows indicating assembly or movement (no text or symbols)

Parallel interface

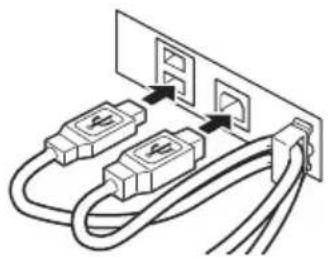

Diagram of two USB connectors connected to a power outlet (no text or symbols)

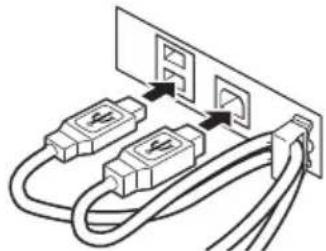

USB interface (hub type) USB interface

Line drawing of a cable connector inserted into a socket (no text or symbols)

Front view

1310/R60E

Ethernet interface

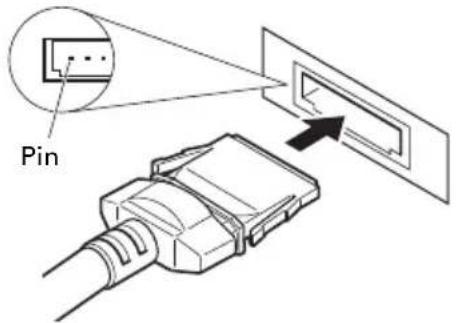

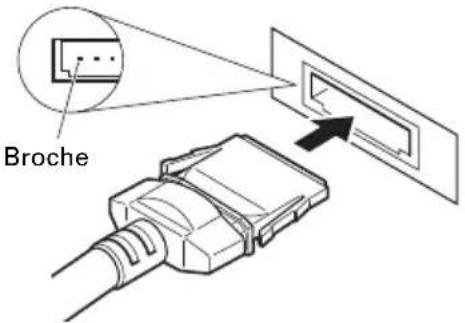

Pin

Powered USB interface

Diagram of a USB cable connector with an attached port (no text or symbols)

Bluetooth + USB Wireless LAN + LAN

Diagram of a USB cable connector with an attached port, showing no text or symbols

CAUTION

■ Always unplug the AC adapter from the printer before connecting the printer to a Powered USB interface. Failure to do so may damage the host PC. For information about installing a Powered USB interface, contact your Citizen Systems dealer.
- Check the orientation of the Powered USB cable connector before connecting it. Insert it straight in so that the pins do not bend. Push it in until it clicks.
■ When disconnecting the cable, always hold the connector.
■ Be careful not to insert the USB interface cable into the cash drawer kick-out connector.
■ To connect more than one printer to a single computer via a USB interface you must change the serial number of the USB interface.
■ Hold the connector of the Ethernet interface cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.

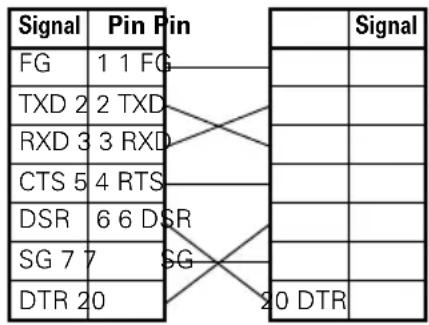

Use a serial interface cable with the connection layout shown below.

25-pin - 25-pin cable

PC Printer

Signal Pin Pin FG 1 1 FG TXD 2 2 TXD RXD 3 3 RXD CTS 5 4 RTS DSR 6 6 DSR SG 7 7 SG DTR 20 Signal 20 DTR

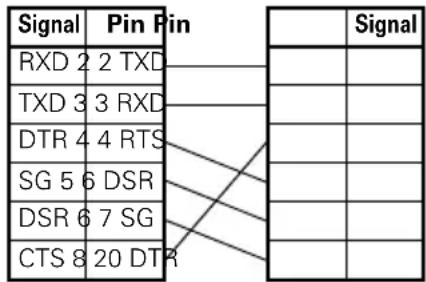

9-pin - 25-pin cable

PC

Signal Pin Pin RXD 2 2 TXD TXD 3 3 RXD DTR 4 4 RTS SG 5 6 DSR DSR 6 7 SG CTS 8 20 DTR Signal

CAUTION

Place the interface cable so people do not trip on it.

3.3 Bluetooth Interface Board

Bluetooth status LED

Status LED Switch

The LED on the Bluetooth interface board on the rear of the printer indicates the status below.

Status Description LED Status
Detection standby (Discoverable)	Standing by for detection and connection	_
Connection standby (Connectable)	Standing by for connection	_
iOS connection Data session unopened		_
Communicating iOS: data session openedOther OS: connection established and communication in progress		_
Error Error or settings being configured		Unlit

Pairing operation

You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.

A: Detect Bluetooth devices

B: Configure pairing settings

A: Detecting Bluetooth devices

Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.

This product will show up as "CT-S651II_XX"(XX is last 2 digits of unique BD address.) when it is detected.

Select this product from among the detected devices.

Note: You can search for devices and change the names.

When memory switch MSW13-5 is set to "No Response" nothing is displayed by device detection.

You can temporarily switch this setting to device detection (detect mode) by pushing the switch on the Bluetooth interface board. Detect mode is exited when the connection between the host PC is terminated.

B: Configuring pairing settings

Normally, selecting the printer during device detection will transition directly to pairing settings.

CAUTION

Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.

The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.

If SSP is enabled on the host PC, pairing can be achieved without additional operations.

If SSP is disabled on the host PC, you will be prompted to input a passkey.

Input the passkey as described below.

Passkey Last four digits of the address on the self test printout

(Letters A through F are uppercase)

Example: If the address is 01:23:45:67:89:AB

the passkey is 89AB.

If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.

To delete printer pairing information, hold down the switch on the Bluetooth interface board for two seconds or more.

Deleting pairing information on the printer will put the printer into discovery mode.

Auto reconnection

With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.

CAUTION

This function is enabled when shipped from the factory. (MSW13-6)

Auto reconnection can take some time to connect when the host is not an iOS device.

■ Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.
- When you want Bluetooth communication to cut off after printing is complete
- When there are multiple iOS devices printing on the same printer

Under such conditions, disable auto reconnection.

Enabling and disabling auto reconnection

To change the setting of this feature, the following method is provided.

Press the FEED button 3 times during self test -> Auto reconnect = Valid

Press the FEED button 4 times during self test -> Auto reconnect = Invalid

At the end of self printing, new setting will be printed as Auto reconnect [Valid] or [Invalid].

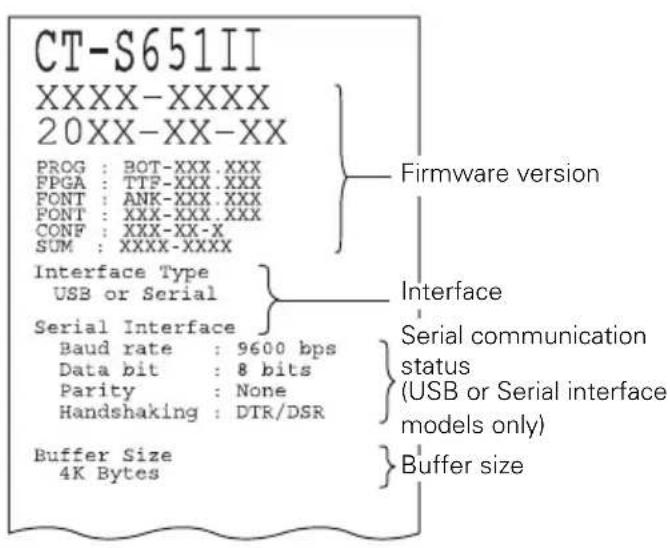

Refer to 4.4 Self test

3.4 Ethernet (LAN) Interface Board

This section provides an overview of the Ethernet (LAN) interface board. For details about this board, refer to the separate manual.

Panel button operation

Board operations are performed using the panel button on the Ethernet board. You can use the button to print setup information and to return the board to its factory settings.

Panel button 10/100BASE

● Printing network setup information Press the panel button.
- Entering setting mode Hold down the panel button. A buzzer* will sound once to indicate that setting mode has been entered.

• You can use setting mode to read factory settings and to print firmware information.
• If you do not perform any operation for three seconds while in setting mode, a buzzer* will sound once to indicate the board has returned to normal mode.
  * Depending on settings, the buzzer may not sound.

- Returning to factory settings Enter the board setting mode, and then hold down the panel button. This returns the board to its factory settings.

CAUTION

■ The board will automatically restart after this operation is complete.
■ If settings are configured to obtain an IP address from a DHCP server automatically, the new IP address may be different from the previous one.

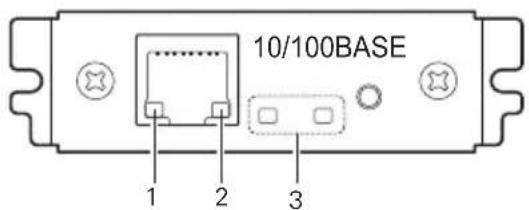

LED Functions

The tables below explain how to interpret LED indications.

10/100BASE 1 2 3

1. Network transmission speed

Transmission speed LED (green)
100Mbps Lit
10Mbps/Not connected Unlit

2. Network status

Status LED (yellow)
Connected Lit
Not connected Unlit
Data transmission in progress	Flashing

3. Board status

Status LED (green)	LED (red) Description
No printer connection Unlit — Board is not connected with a printer.
Connecting with printer	Lit	— Board is connected with a printer.
No network connection	—	Unlit	Board is not connected with a network.
Getting IP address	—	Flashing (0.5-second cycle)	Getting an IP address from the DHCP server.
Connected with network	—	Lit	Network connection complete.
Resource error	Alternate flashing (0.5-second cycle)		Board is unable to operate normally.
System error	Alternate flashing (0.1-second cycle)		Board is unable to operate normally.

Changing network settings

You can use a web browser to access a special settings page to check and change board settings.

- Accessing the special settings page

1. Use a web browser to access the URL of the special settings page. Specify the IP address assigned to the printer as the URL. (Example: For an IP address of 169.254.1.10, input: http://169.254.1.10.)

2. This displays the special settings page menu page.

Print server homepage

Menu

Print server configuration

Printer status

LAN I/F information

Copyright (C) 2010 CITIZEN SYSTEMS JAPAN CO.,LTD. All Rights reserved.

1. Select "Print server configuration" to display the setting screen. For details about settings, refer to the separate manual.

3.5 Wireless LAN Interface Board

This section provides an overview of the wireless LAN interface board. For details about this board, refer to the separate manual.

Connecting USB dongle

Connect the USB WiFi dongle that comes with the wireless LAN interface board to the USB port connector.

To improve signal quality, you can also use a USB extension cable and adjust the position of the dongle.

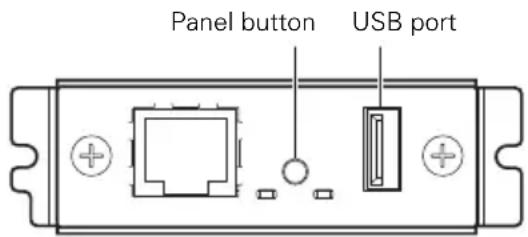

Panel button operation

Board operations are performed using the panel button on the rear of the LAN board.

Panel button USB port

● Enabling wireless LAN connection
Turn on the printer. Operation of this board will start about 20 seconds later.

● Printing wireless LAN setup information Press the panel button.

- Entering setting mode Hold down the panel button. A buzzer* will sound once to indicate that setting mode has been entered.

• You can use setting mode to read factory settings.
• If you do not perform any operation for three seconds while in setting mode, a buzzer* will sound once to indicate the board has returned to normal mode.
  * Depending on the printer model and settings, the buzzer may not sound.

- Returning to factory settings Enter the board setting mode, and then hold down the panel button. This returns the board to its factory settings.

CAUTION

■ The board will automatically restart after this operation is complete. After clearing settings, you will need to re-configure wireless LAN settings.

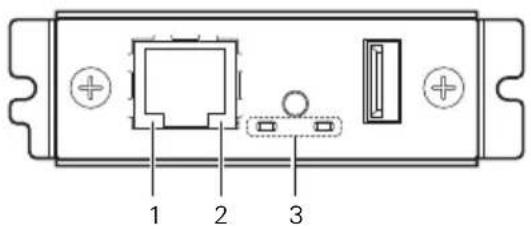

LED Functions

The tables below explain how to interpret LED indications.

1 2 3

1. Wired LAN transmission speed

Transmission speed LED (green)
100Mbps Lit
10Mbps/Not connected Unlit

2. Wired LAN connection/transmission status

Connection status LED (yellow)
Connected Lit
Not connected Unlit
Data transmission in progress	Flashing

3. Wired/Wireless LAN status

Connection status LED		(green) LED (red)	Description
No printer connection Unlit — Board is not connected with a printer.
Printer connection	No network connection	Lit	Unlit	Board is connected with a printer.
	Connected by wired LAN	Lit	Flashing (1-second cycle)	Getting an IP address from the DHCP server over wired LAN.
	Wired LAN operation	Lit	Lit	Network operation being performed over wired LAN.
	Connected by wireless LAN	Flashing (2-second cycle)	Flashing (1-second cycle)	Connecting to an access point or getting an IP address from the DHCP server over wireless LAN.
	Wireless LAN operation	Flashing (2-second cycle)	Lit	Network operation being performed over wireless LAN.
Resource error		Alternate flashing (1-second cycle)		Board is unable to operate normally.
System error		Alternate flashing (0.2-second cycle)		Board is unable to operate normally.

Web Manager

The wireless LAN interface board has a Web Manager function that can be used to connect to the board with a web browser and change board settings.

Starting up Web Manager

1. Start up a web browser.

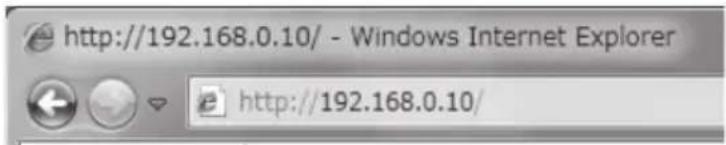

2. In the address field, input the board's IP address and then press [Enter].

http://192.168.0.10/ - Windows Internet Explorer http://192.168.0.10/

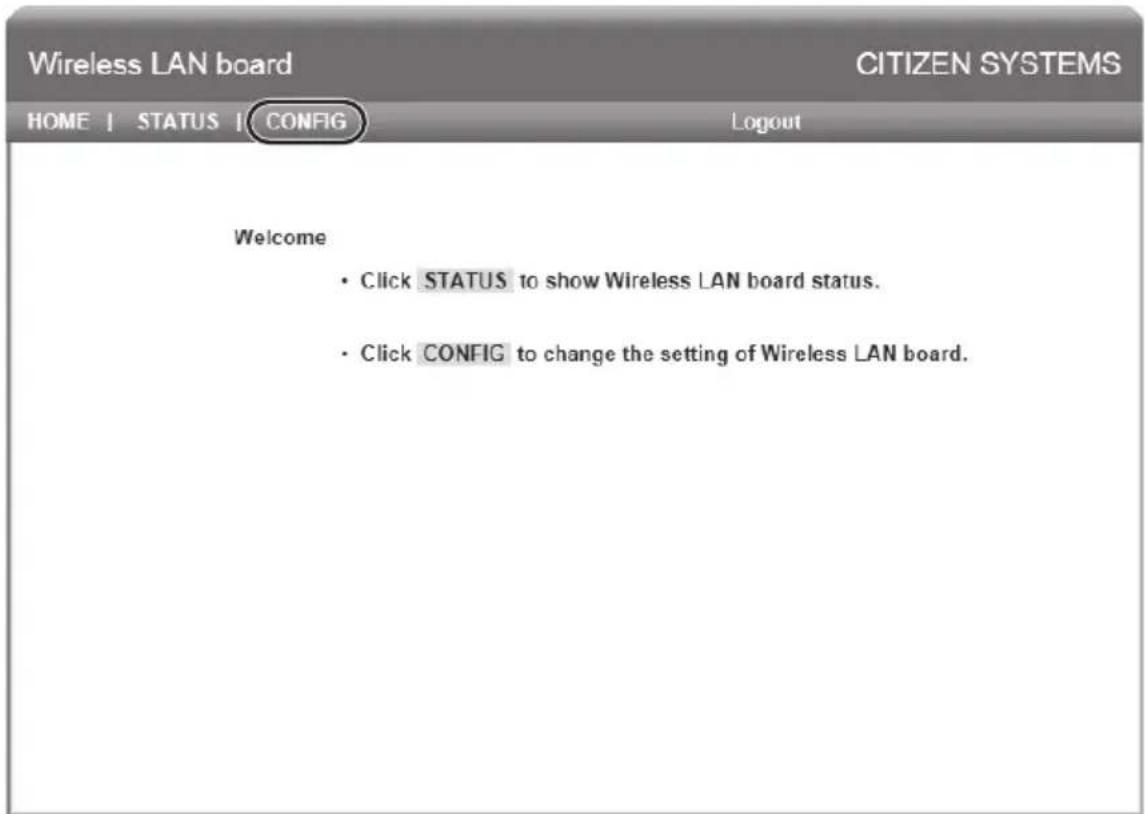

HOME Screen

This is the Web manager home screen.

Wireless LAN board HOME | STATUS | CONFIG CITIZEN SYSTEMS Logout Welcome • Click STATUS to show Wireless LAN board status. • Click CONFIG to change the setting of Wireless LAN board.

Here, press the [CONFIG] button.

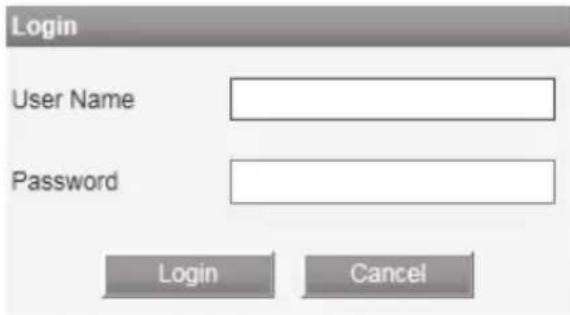

CONFIG Screen

This will display the Login dialog box shown below. Log in as an administrator and then configure wireless LAN interface board settings.

Login User Name Password Login Cancel

• User Name Input a board administrator user name. (Initial setting: admin)
• Password Input the administrator user password. (Initial setting: admin)
• [Login] button After inputting an administrator user name and password, click the [Login] button. This displays the setting screen.

For details about settings, refer to the separate manual.

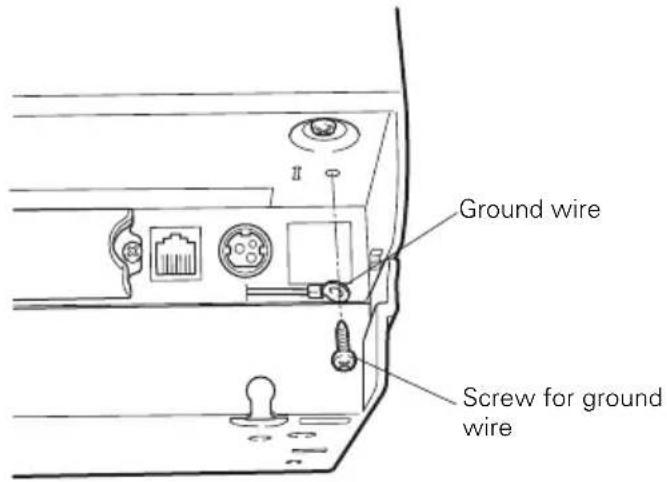

3.6 Connecting the Cash Drawer

1. Turn off the power.
2. Confirm the orientation of the cash drawer kick-out cable connector and connect it to the cash drawer kick-out connector at the back of the printer.
3. Remove the screw for the ground wire.
4. Screw the cash drawer's ground wire to the body of the printer.

Cash drawer kick-out connector Cash drawer kick-out cable connector

Ground wire Screw for ground wire

CAUTION

■ Connect only the cash drawer kick-out cable connector to the cash drawer kick-out connector. (Do not connect a telephone line.)
■ Signals cannot be output from the cash drawer kick-out connector while printing.

(1) Connector pin configuration

No.	Signal Function
1	FG Frame ground Connector used:
2	DRAWER1 Cash drawer 1 drive signal
3	DRSW Cash drawer switch input
4	VDR Cash drawer drive power supply
5	DRAWER2 Cash drawer 2 drive signal
6	GND Signal ground (common ground on circuits)

TM5RJ3-66 (Hirose) or equivalent

Applicable connector: TM3P-66P (Hirose) or equivalent

(2) Electric characteristics

1) Drive voltage: 24 VDC
2) Drive current: Approx. 1 A max. (not to exceed 510 ms.)
3) DRSW signal: Signal levels: "L" = 0 to 0.8 V, "H" = 2 to 3.3 V

(3) DRSW signal

DRSW signal status can be tested with the DLE+EOT, GS+a, or GS+r command or at pin 34 on the parallel interface port.

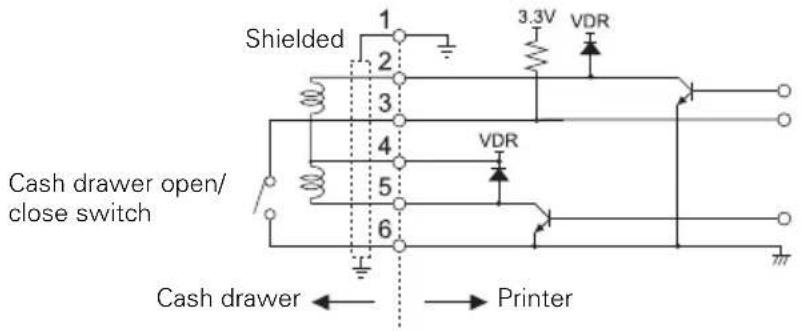

(4) Drive circuit

Cash drawer kick-out connector

Shielded 1 2 3.3V VDR Cash drawer open/ close switch 4 VDR 5 6 Cash drawer ← → Printer

CAUTION

■ Cash drawers 1 and 2 cannot be operated at the same time.
■ The solenoid used for the cash drawer should be 24 Ω or more. Do not allow the electric current to exceed 1 A. Excessive current could damage or burn out the circuits.

3.7 Precautions for Installing the Printer

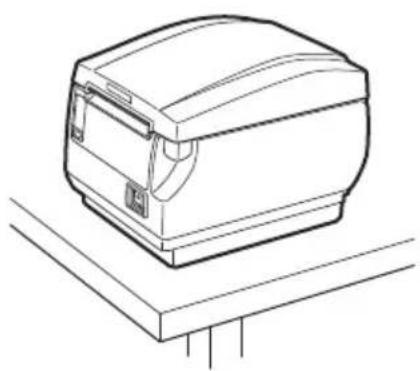

This printer can only be positioned horizontally. It cannot be positioned vertically or on a wall.

Line drawing of a rectangular electronic device with a handle and mounting base (no text or symbols)

Horizontal position

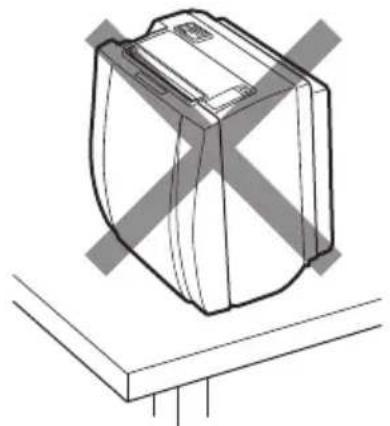

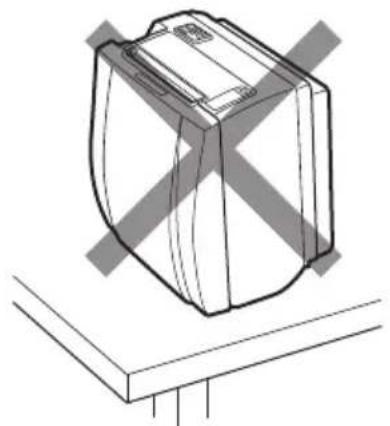

Technical line drawing of a mechanical component with cross-shaped cutouts, resting on a base (no text or symbols)

Vertical position

CAUTION

Do not use the printer under the following conditions.

■ Locations subject to vibration or instability.
■ Locations that are very dirty or dusty.
■ Locations where the printer is not level.

• The printer may fall and cause an injury.

• The quality of printing may deteriorate.

■ Oriented other than as specified.

- The printer may malfunction, be damaged, or cause an electric shock.

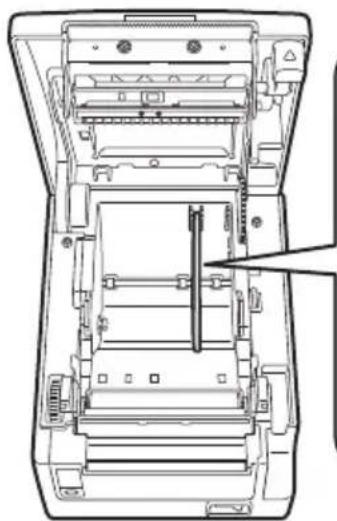

3.8 Partition for Paper Roll

Set the partition to the width of the paper roll you are loading.

The partition is set at the factory to the position shown below.

● For 3-inch type: 80-mm wide paper roll
- For 2-inch type: 58-mm wide paper roll, 60-mm wide paper roll (2-sheet partition installed.)

1. Turn off the power.
2. Press up on the cover open button to open the paper cover.

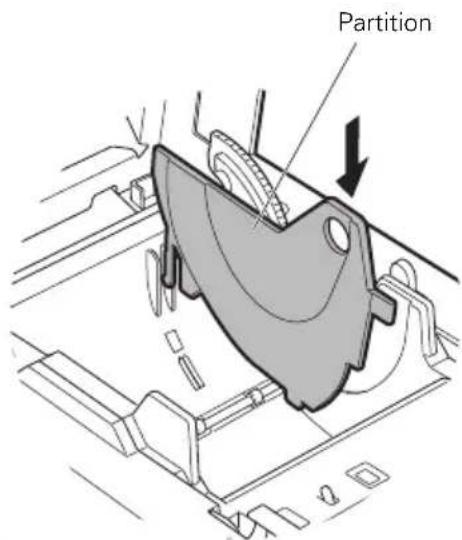

3. Press in the position shown by the arrow and set the partition in a slot that matches the width of the paper roll you are using. However, to use an 83-mm wide paper roll, remove the partition. Or, when you are using a 60-mm wide paper roll with the 2-inch type, remove the partition installed for 58-mm.
4. Refer to "5.3 Manual Setting of Memory Switches" to change the paper width settings.

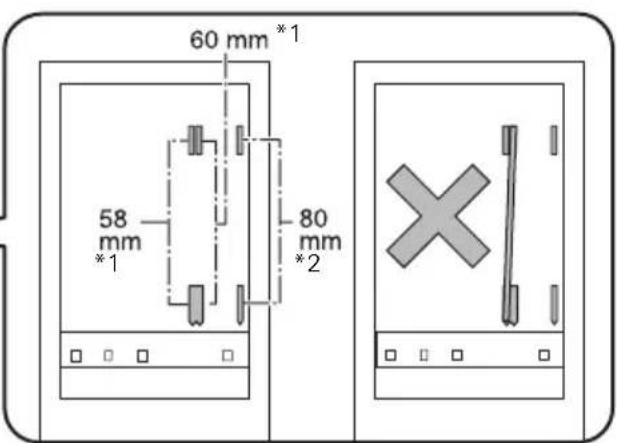

Partition

Technical line drawing of a mechanical device interior showing internal components and a hand pointing to a component (no text or symbols present)

60 mm *1 58 mm *1 80 mm *2

Notes:
*1: 2-inch type (58/60 mm)
*2: 3-inch type (80/83 mm)

CAUTION

Make sure the partition is not slanted when setting it for 58-mm or 60-mm paper rolls.

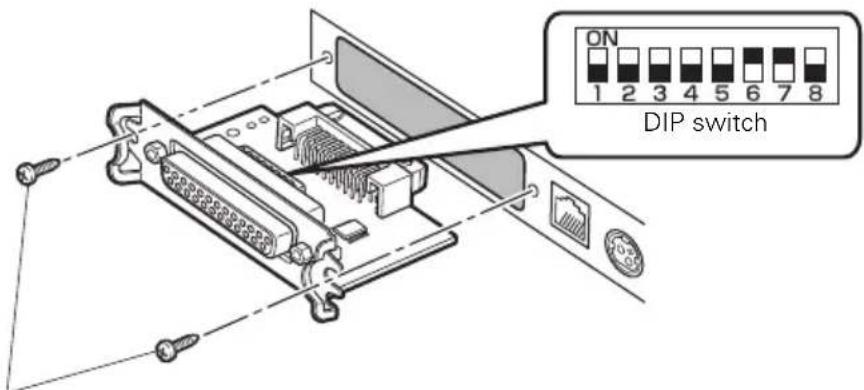

3.9 Setting the DIP Switch on the Serial Interface Board

1. Turn off the printer and unplug the power cord from the electric outlet.
2. Remove the mounting screws of the serial interface board.
3. Remove the serial interface board from the printer.
4. Set the DIP switch according to the following table.

ON 1 2 3 4 5 6 7 8 DIP switch

Serial interface board mounting screws

CAUTION

When setting the DIP switch, do not remove any screws except the serial interface board mounting screws.

The function of each switch is shown below. (Shaded values are factory settings. However, factory settings differ depending on the destination market.)

Switch no.	Function ON OFF
1	Communication condition setting	According to DIP switch settings	According to memory switch settings
2	Hand shake XON/XOFF		DTR/DSR
3	Bit length 7 bits		8 bits
4	Parity check Yes		No
5	Parity selection Even parity		Odd parity
6	Baud rate selection	Refer to table below.
7
8	INIT Reset		Invalid

Baud rate selection

Baud rate (bps)	Switch no.
	6	7
2400 OFF OFF
4800	ON	OFF
9600 OFF ON
19200	ON	ON

When switch no. 1 is set to OFF, you can use a command or a memory switch to select 1200, 38400, 57600, or 115200 bps.

3.10 Adjusting the Paper Near-end Sensor

Change the settings of the paper near-end sensor to set the position at which the near-end of the paper is detected.

1. Use a pointed object, such as a pen, to gently press the button to change the paper near-end sensor.
2. Press and hold down the button while moving the paper near-end sensor up and down. The sensor positions are shown below for the various diameters of the paper roll used.

(Unit: mm)

Sensor position	Exterior diameter when detected as near end	Exterior/ interior diameter of core of paper roll used
A	Approximately 31	18/ 12
B*	Approximately 23	18/ 12
C Paper near-end sensor function is off

Note:
*: Position of sensor when shipped from factory. However, factory settings differ depending on the destination market.

CAUTION

The diameter of the roll of paper that is detected is an estimate. Some variations may occur depending on the paper.

Button to change paper near-end sensor

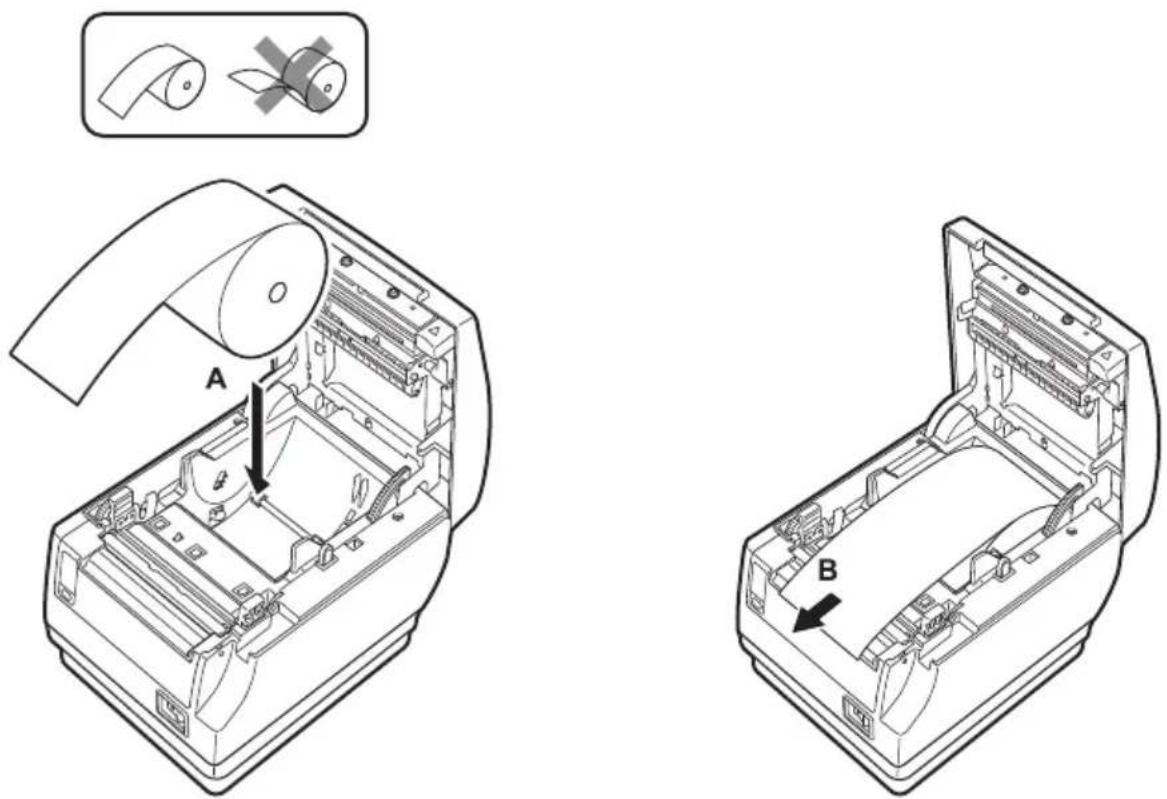

3.11 Loading Paper

1. Turn on the power.
2. Press up on the cover open button to open the paper cover.
3. Load the paper roll so that the printable side of the paper is facing up, as shown by arrow A.
4. Pull a few cm of paper straight out in the direction of arrow B.
5. Close the paper cover until you hear a click. Paper is fed and cut automatically (by the factory setting).

Refer to 5.3 Manual Setting of Memory Switches

CAUTION

■ Always use the specified types of paper rolls.
■ Confirm that the paper roll is set correctly.
■ If the paper is skewed and not coming straight out of the paper cover, open it and straighten the paper.
■ Always pull a few cm of paper straight out of the printer if you open the paper cover while paper is loaded.
■ Press on the center of the paper cover to close it securely.
■ Be careful of paper cuts while loading the paper.
■ Do not touch the print head, manual cutter, or auto cutter while the paper cover is open. Doing so may cause a burn or cut.

3.12 Attaching the Power Switch Cover

Attach this cover to prevent the power switch from being used.

1. Press the power switch cover onto the power switch compartment until it clicks.

Power switch cover

Put a screwdriver or other pointed object into the grooves on the power switch cover to remove it.

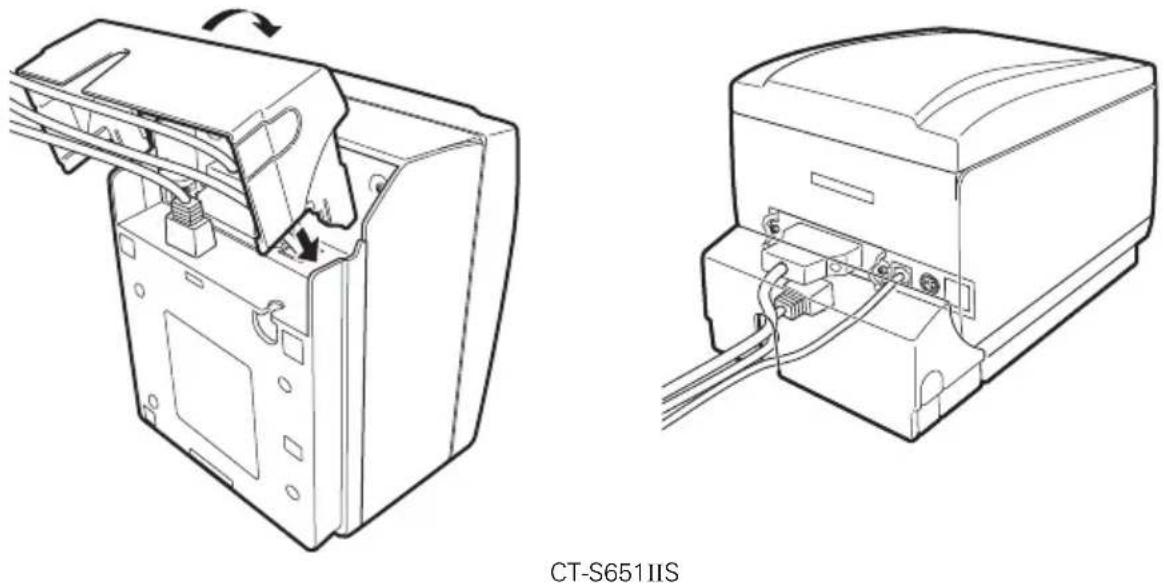

3.13 Attaching the Interface Cover

Attach the interface cover to the back of the printer.

The shape of the interface cover is different depending on the type of power source.

1. Press the interface cover as shown in the diagram until you hear it click.

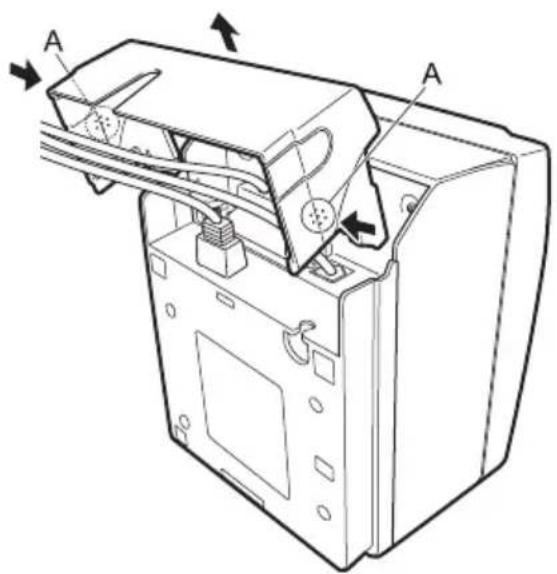

3.14 Removing the Interface Cover

Press in on both sides at the point indicated by A to remove the interface cover.

Technical diagram of a device with labeled components and directional arrows indicating assembly or movement.

CT-S651IIS

3.15 Installing a Driver

Drivers are included on the CD-ROM that comes with the printer.

Install the driver required by your printer.

For information about driver installation, functions, and operations, see the information provided on the CD-ROM for each driver.

Visit the site below to download the latest driver versions and information.

http://www.citizen-systems.co.jp/english/support/download/printer/driver/

3.16 Precautions for Creating Applications and Practical Operations

If printing is done immediately after the paper is partially cut and torn off, the top of the next print out may be distorted.

We recommend advancing the paper one line after cutting before printing.

If you are using a serial interface that has a slow data transmission speed, streaks may appear in the printouts when you are printing graphics or gradated text, which require large amounts of data.

USB interfaces may be susceptible to the effects of electromagnetic interference from the host or environment.

If this is the case, try using a cable with ferrite cores on both ends, which are very effective at eliminating EMI.

4. MAINTENANCE AND TROUBLESHOOTING

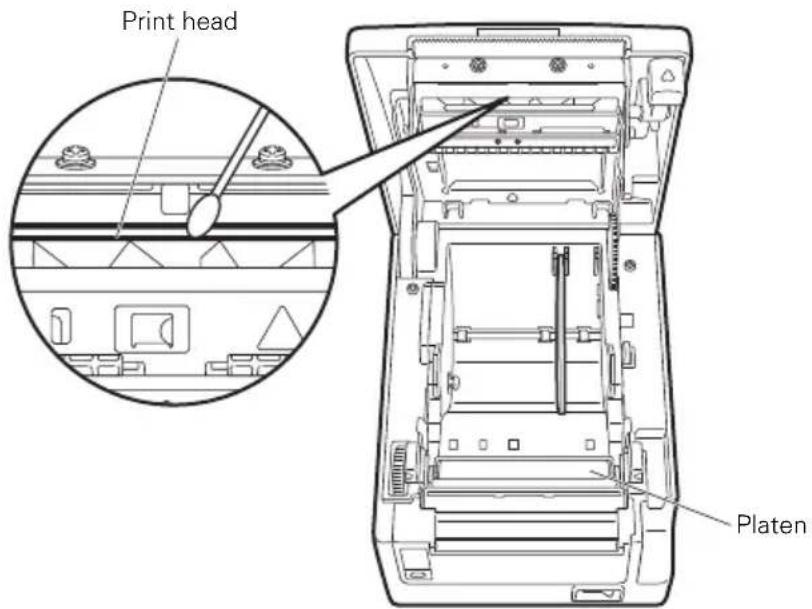

4.1 Periodic Cleaning

A dirty print head or platen may reduce printing quality or cause malfunctions. We recommend cleaning the printer periodically (every 2 to 3 months) as shown below.

1. Turn off the power.
2. Press up on the cover open button to open the paper cover.
3. Wait a few minutes until the print head cools.
4. Use a cotton swab dampened with ethyl alcohol to wipe off any dirt and dust that is on the print head and platen.

Print head Platen

CAUTION

■ The print head is hot immediately after printing. Do not touch it.
■ Do not touch the print head with bare hands or metal objects.

4.2 Clearing a Cutter Lock (1)

The ERROR LED flashes and the auto cutter blade remains extended because a foreign object or paper jam is obstructing it.

POWER PAPER ERROR FEED

If the ERROR LED is flashing, clear the locked cutter as shown below.

1. Turn on the power.
2. Press up on the cover open button to open the paper cover.

3. Remove any jammed paper including any scraps of paper. (Remove the paper roll that is loaded in the holder also.)

4. Reload the paper roll and close the paper cover.

CAUTION

■ The print head is hot immediately after printing. Do not touch it.
■ Do not touch the print head with bare hands or metal objects.

After doing the procedure in "Clearing a Cutter Lock (1)" and then opening the paper cover, if the blade of the auto cutter is extended, do the procedure in "Clearing a Cutter Lock (2)".

Refer to 4.3 Clearing a Cutter Lock (2)

4.3 Clearing a Cutter Lock (2)

The paper cover is designed to be opened by pressing up on the cover open button if the cutter locks. If the blade of the auto cutter still remains extended, use the following procedure to clear the locked cutter.

1. Turn off the printer and unplug the power cord from the electric outlet.
2. Press up on the cover open button to open the paper cover.
3. While pressing on the front cover release button with a pen or something, slide the front cover about 10 mm upward.

4. Rotate the front cover forward in the direction of arrow A.

5. Lift the protective sheet and turn the cutter gear in the direction of arrow B to return the auto cutter to a position where the paper cover can be opened.

Turn the cutter gear until the auto cutter blade retracts in the direction of arrow C. If the blade of the auto cutter does not move when you turn the cutter gear in the direction of arrow B, turn it in the other direction.

1. Remove whatever caused the cutter to lock.

2. Close the front cover.

Rotate the front cover in the opposite direction of arrow A, and push on the top of the front cover until it clicks.

1. Load a paper roll and close the paper cover.

2. Insert the power cord plug into an electric outlet and turn the power on.

Check that the POWER LED lights.

Protective sheet B Cutter gear A Front cover Front cover release button Auto cutter blade C

CAUTION

■ Before starting to do maintenance work, be sure to turn off the printer and unplug the power cord from the electric outlet.
■ Be careful not to touch the manual cutter while the front cover is open.
■ Be careful not to touch the opening for the auto cutter while the paper cover is open.
■ The print head is hot immediately after printing. Do not touch it.
■ Do not touch the print head with bare hands or metal objects.
■ If the above procedure does not retract the auto cutter, contact your Citizen Systems dealer.

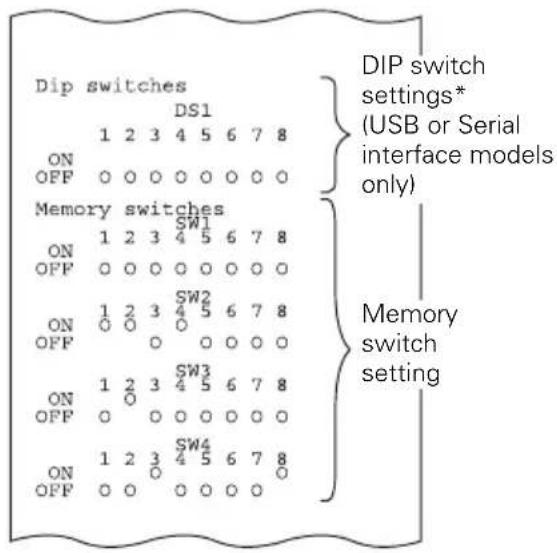

4.4 Self test

While paper is loaded, press and hold the FEED button while turning the power on. Hold the FEED button down for about one second and then release it to start self test. The printer prints its model name, version, DIP switch settings, memory switch settings, and a list of built-in fonts.

CT-S651II XXXX-XXXX 20XX-XX-XX PROG : BOT-XXX.XXX PPGA : TTP-XXX.XXX FONT : ANK-XXX.XXX FONT : XXX-XXX.XXX CONF : XXX-XX-X SUM : XXXX-XXXX Interface Type USB or Serial Serial Interface Baud rate : 9600 bps Data bit : 8 bits Parity : None Handshaking : DTR/DSR Buffer Size 4K Bytes Firmware version Interface Serial communication status (USB or Serial interface models only) Buffer size

Dip switches DS1 1 2 3 4 5 6 7 8 ON OFF ○○○○○○○○ Memory switches SW1 1 2 3 4 5 6 7 8 ON OFF ○○○○○○○○ ON 1 2 3 4 5 6 7 8 ON OFF ○○○○○○○ ON 1 2 3 4 5 6 7 8 ON OFF ○○○○○○○ ON 1 2 3 4 5 6 7 8 ON OFF ○○○○○○○ DIP switch settings* (USB or Serial interface models only) Memory switch setting

Note:
*: Printers with a USB interface do not have DIP switches, so the DIP switches all appear off on the self test printout.

4.5 Hexadecimal Dump Printing

Print received data in hexadecimal. If problems such as missing or duplicated data occur, this function allows you to check whether or not the printer is receiving data correctly.

How to do hexadecimal dump printing

1. Load paper.
2. While the paper cover is open, press and hold the FEED button while turning the power on, and then close the paper cover.
3. The printer prints "HEX dump print mode" followed by the received data printed in hexadecimal numbers and some characters.

How to stop hexadecimal dump printing

Do one of the following to stop printing.

• Press the FEED button three times in a row
• Turn off the power
  ● Receive a reset command from an interface

CAUTION

■ The printer prints “.” if there is no character corresponding to the data.
■ None of the commands function during hexadecimal dump printing.
■ If print data does not cover a complete line, press the FEED button to advance the paper.

Print example

HEX dump print mode

61 62 63 64 65 66 67 0A 0D 0D 0D 0D abcdefg.....

0D 0D 0D .....

4.6 Error Messages

- Paper-end

The end of the roll of paper is detected at two stages, paper near-end and paper-end.

When paper near-end is detected, the PAPER LED lights. Prepare a new paper roll.

When paper end is detected, the PAPER LED and ERROR LED light. Load a new paper roll.

- Paper cover open

Do not open the paper cover during printing. If the paper cover is opened, the ERROR LED lights or flashes. Check the paper and always pull a few cm of paper straight out of the printer before closing the paper cover. Printing resumes. Sending a command to resume printing may be required depending on the memory switch setting.

- Cutter locked

If the auto cutter cannot move because of a paper jam or something else, the ERROR LED flashes. Remove the cause of the trouble and press the FEED button. If the auto cutter still does not operate and the paper cover does not open, refer to "4.3 Clearing a Cutter Lock (2)".

Refer to 4.3 Clearing a Cutter Lock (2)

- Print head hot

When you print dense characters, dark images, or for an extended time in a hot environment, the print head temperature increases. If the print head exceeds a specified temperature, the printer stops printing and waits for the print head to cool. When this happens, the ERROR LED flashes. Printing resumes automatically when the print head cools.

The status display for various messages is shown below.

Status	POWER LED(green)	PAPER LED(orange)	ERROR LED(red)	Buzzer^*3
Paper near-end Lights Lights — No
Paper-end Lights Lights Lights Yes
Paper cover open or front cover open^*1	Lights — Lights Yes
Paper cover open or front cover open^*2	Lights — Yes
Cutter locked Lights — Yes
Memory error — Yes
Print head hot	Lights —
Low-voltage error	Lights — Yes
High-voltage error	Lights — Yes
Waiting for macro to execute		—	— No

Notes:

*1: If the paper cover or front cover is open in standby.
*2: If the paper cover or front cover is open when printing or feeding paper.
*3: Buzzer sounds when MSW5-1 (buzzer setting) is set to ON. Note, however, that some combinations of settings of MSW5-1 and MSW10-6 may change the condition in which buzzer sounds.

4.7 Paper Jams

Take care to avoid obstruction of the paper outlet and paper jamming around the outlet during printing.

If paper cannot get out of the printer, it can roll up on the platen inside the printer and cause an error.

If the paper wraps around the platen, open the paper cover and carefully pull the paper out.

4.8 Serial Interface Operation Precautions

While using the serial interface, certain printing conditions can cause white stripes in printouts and feed failure. To avoid these problems, change memory switch settings as described below.

1. Change MSW7-1 (serial baud rate) to a faster baud rate setting.
2. Change MSW10-2 (print speed) to a lower level.

CAUTION

Depending on the serial interface transmission speed, ambient temperature, print data duty, and other factors, changing the above settings may not eliminate the problems.

5.1 External Views and Dimensions

(Unit: mm)

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145 140

192 31 142 16 155

Built-in power supply type

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145

192 31 114

AC adapter type

5.2 Printing Paper

Use the paper shown in the following table or paper of the same quality.

Paper type Product name
Recommended thermal roll paper	TF50KS-E2D, TF50KS-E or TF60KS-E from Nippon PaperPD150R or PD160R from Ohji PaperP220AG, HP220A, HP220AB-1, F230AA, P220AB or PB670 (2-color paper) from Mitsubishi Paper

(Unit: mm)

Paper width 58⁺⁰₋₁ Maximum print area 48 (Initial setting) 4 6

Printable side φ83 or less D d 53-85 µm

Paper thickness (μm)	53-75 75-85
Core inner diameter d (mm)	12 25.4
Core outer diameter D (mm)	18 32

CAUTION

Use thermal paper that is wound as follows:

■ Not creased and fits tight to the core.
■ Not folded.
■ Not glued to the core.
■ Rolled with the printable side out.

5.3 Manual Setting of Memory Switches

Memory switches are used to set various printer settings. The memory switches can be set manually (set by hand on the printer) or by commands. This section explains how to perform manual settings.

For information on how to set the memory switches using commands, please refer to the Command Reference.

Quick setting mode

The settings for the memory switches for a replacement printer's manufacturer, model, paper width, and character spacing can be set at the same time to the optimum settings.

Do the settings while confirming the selected items on the printout.

1. Load paper.
2. While the paper cover is open, press and hold the FEED button while turning the power on.
3. Press the FEED button three times and close the paper cover.

The printer enters memory switch quick setting mode.

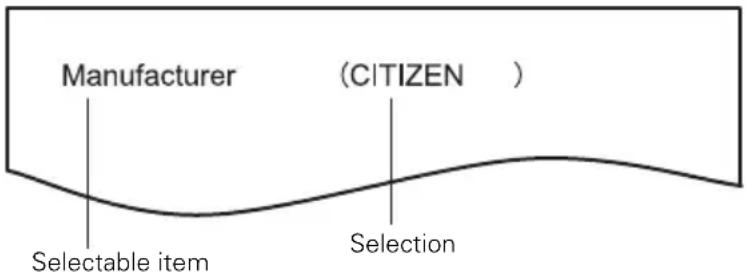

The selectable item "Manufacturer" and the selection are printed.

Manufacturer (CITIZEN ) Selectable item Selection

1. Press the FEED button.

A selection is printed in order through the cycle each time the FEED button is pressed.

Press the FEED button until the selection you want is printed.

1. Press the FEED button for at least two seconds.

The selection is set.

If there is another selectable item, it and the selection are printed.

1. Repeat steps 4 and 5 to select and set the printer's model, paper width, character spacing (EPSON T88 only).

When all the items are set, "Save To Memory" is printed.

1. Press the FEED button for at least two seconds.

The changed memory switch settings are saved and a list of them is printed.

The printer exits quick setting mode when printing is finished.

Selected item

Manufacturer	Model	Paper width	Character space
CITIZEN CBM1	000 58 mm	— Auto
		80 mm — Auto
	CT-S300 58 mm — WaitData Invalid 384dots —
				80 mm — WaitData Invalid 576dots	—
	CT-S2000	58 mm — Auto
		60 mm — Auto
		80 mm — Auto
		83 mm — Auto
EPSON	T88	58 mm	0dot
			1dot
		80 mm	0dot
			1dot
	203dpi 58 mm — WaitData Invalid 420 dots —
				60 mm — WaitData Invalid 436dots —
				80 mm — WaitData Invalid 576dots	—

Individual setting mode

Set the memory switches individually.

Do the settings while confirming the memory switch function and settings on the printout.

1. Load paper.
2. While the paper cover is open, press and hold the FEED button while turning the power on.
3. Press the FEED button twice and close the paper cover.

The printer enters the mode for setting memory switches individually.

The printer prints "Memory SW (1)" and the current setting, 0 (off) or 1 (on).

(The current settings for memory switches 7 to 13 are not printed.)

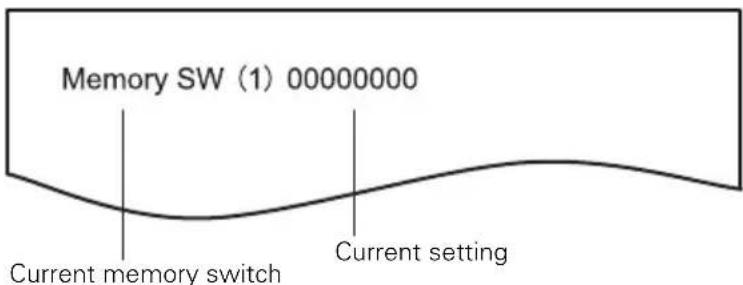

Memory SW (1) 00000000 Current memory switch Current setting

1. Press the FEED button.

The list of memory switches cycles through in order from "Memory SW (1)" → "Memory SW (2)" → ... "Memory SW (10)" or "Memory SW (13)" → "Save To Memory" → "Memory SW (1)" → each time the FEED button is pressed.

Press the FEED button until the number for the memory switch you want to change is printed.

5. Press the FEED button for at least two seconds.

A setting for the memory switch is printed, through the cycle, each time the FEED button is pressed for at least two seconds.

Press the FEED button for at least two seconds to cycle through the list until the function of the memory switch you want to change is printed.

Power ON Info (Valid) Memory switch function Current setting

6. Press the FEED button.

A setting is printed each time the FEED button is pressed in order through the cycle.

When the current settings are printed, the ERROR LED lights.

Press the FEED button until the setting you want is printed.

7. Press the FEED button for at least two seconds.

The selected settings are set.

The next memory switch function and settings are printed.

8. Repeat steps 5 to 7 to change different functions for the current memory switch number.

9. Open the paper cover and close it.

The changed memory switch settings are printed.

10. Repeat steps 4 to 9 to change functions for a different memory switch number.

11. Press the FEED button until "Save To Memory" is printed.

12. Press the FEED button for at least two seconds.

The changed memory switch settings are saved and a list of them is printed. The printer exits individual setting mode when printing is finished.

Memory switch initialization

Set all the memory switches to the factory settings.

1. Do steps 1 through 3 of the procedure to enter individual setting mode.

2. Press the FEED button until "Save To Memory" is printed.

3. Open the paper cover.

4. Press the FEED button for at least two seconds.

All memory switches change to the factory settings.

1. Close the paper cover.

The function of each memory switch is shown in the following table. (Shaded values are factory settings.)

Switch no.	Function OFF ON
MSW1-1	Power ON Info	Valid Not Send
MSW1-2	Buffer Size	4K bytes 45 bytes
MSW1-3	Busy Condition	Full/Err Full
MSW1-4	Receive Error	Print"?" No Print
MSW1-5	CR Mode	Ignored	LF
MSW1-6	Reserved	Fixed	—
MSW1-7	DSR Signal	Invalid	Valid
MSW1-8	Init Signal	Invalid	Valid
MSW2-1	Reserved	—	Fixed
MSW2-2	Auto Cutter	Invalid	Valid
*1	MSW2-3	Spool Print	Invalid
MSW2-4	Full Col Print	LineFeed	WaitData
MSW2-5	Resume aft PE	Next	Top
MSW2-6	Reserved	Fixed	—
MSW2-7	Reserved	Fixed	—
MSW2-8	PNE Sensor	Valid Invalid
MSW3-1	Resume Ctr Err	Valid Invalid
MSW3-2	PE signal by PNE	Valid	Invalid
MSW3-3	Parallel 31 Pin	Valid Invalid
MSW3-4	Reserved	Fixed	—
MSW3-5	Reserved	Fixed	—
MSW3-6	Reserved	Fixed	—
MSW3-7	CBM1000 Mode	Invalid	Valid
MSW3-8	Resume Open Err	Close	Command
MSW4-1	Reserved	Fixed	—
MSW4-2	Reserved	Fixed	—
MSW4-3	Feed&Cut at TOF	Invalid	Valid
MSW4-4	Reserved	Fixed	—
MSW4-5	Reserved	Fixed	—
MSW4-6	Reserved	Fixed	—
MSW4-7	Reserved	Fixed	—
MSW4-8	Partial Only	Invalid	Valid
MSW5-1	Buzzer	Valid Invalid
MSW5-2	Line Pitch	1/360	1/406
MSW5-3	USB Mode Virtual COM		Printer Class
MSW5-4	Reserved	Fixed	—
MSW5-5	Gradation Quality	Quality	Speed
MSW5-6	Reserved	Fixed	—
MSW5-7	Reserved	Fixed	—
MSW5-8	Reserved	Fixed	—
Switch no.	Function	OFF	ON
MSW6-1 Act.	For Driver Invalid Valid
MSW6-2 Character Space		Invalid Valid
MSW6-3 USB	Power Save Invalid		Valid
MSW6-4 Reserved		Fixed —
MSW6-5 Reserved		Fixed —
MSW6-6 Reserved		Fixed —
MSW6-7 Reserved		Fixed —
MSW6-8 Reserved		Fixed —

Switch no.	Function Initial setting	Setting value
*2 MSW7-1	Baud Rate	9600 bps	1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
*2 MSW7-2	Data Length	8bits	7bits, 8bits
MSW7-3	Stop Bit	1bit	1bit, 2bits
*2 MSW7-4	Parity	NONE	NONE, ODD, EVEN
*2 MSW7-5	Flow Control	DTR/DSR	DTR/DSR, XON/XOFF
MSW7-6	DMA Control	Valid	Valid, Invalid
MSW7-7	VCom Protocol	PC Setting	PC Setting, DTR/DSR, XON/XOFF
MSW8-1	Print Width	576dots	640 dots, 576 dots, 546 dots, 512 dots, 436 dots, 432 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-2	Paper Type	1 Color Normal	1 Color Normal, 2 Color Normal
MSW8-3	Top Margin	11mm	3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4	Line Gap Reduce	Invalid	Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5	Reduced Char V/H	100% / 100%	100% / 100%, 75% / 100%, 50% / 100%, 100% /75%, 75% / 75%, 50% / 75%
MSW8-6	Auto Side Shift	Invalid	Invalid, 1 dots, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
MSW8-7	Liner Free Mode	Invalid	Invalid, 1h, 6h, 12h, 18h, 24h, 5m, 10m, 15m, 20m, 30m
MSW9-1	Code Page	PC 437	PC 437, Katakana, PC 850, PC 858, PC 860, PC 863, PC 865, PC 852, PC 866, PC 857, WPC1252, Space page, PC 864, ThaiCode11 1Pass, ThaiCode11 3Pass, ThaiCode18 1Pass, ThaiCode18 3Pass, TCVN-3
MSW9-2	Int'Char Set	USA	USA, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark 2, Spain 2, Latin America, Korea, Croatia, China, Vietnam
MSW9-4	Multi-byte Char	Invalid	JIS(JPN), SJIS:CP932 (JPN), SJIS:X0213(JPN), GB18030(CHN), KS Hangul(KOR), EUC Hangul(KOR), BIG5(TWN), Invalid
MSW10-1	Print Density	100 %	70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %, 110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2	Print Speed	Level 9	Level 1, Level 2, Level 3, Level 4, Level 5, Level 6, Level 7, Level 8, Level 9
MSW10-3	ACK Timing	Before Busy	Before Busy, Same Period, After Busy
Switch no.	Function	Initial setting	Setting value
MSW10-4 Old Command		Invalid Invalid	CBM1, CBM2
MSW10-5 Buzzer Event		Not by C.Open	All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6 Buzzer Sound		Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW13-1 Security/Target		Low/All	Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5 BT Device Scan		Discoverable	No Response, Discoverable
MSW13-6 Auto Reconnect		Valid	Invalid, Valid

*1: If print data is very dense, the print head is hot, data transmission is slow, or some other conditions, the motor and printing may occasionally stop which causes white stripes in the printout. To print high-density data, set MSW2-3 (Spool Print) to ON to reduce striping, although this increases the time before printing starts.

For a serial interface, increase the transmission speed to prevent the motor from stopping.

*2: The values for memory switches MSW7-X are only effective when DIP switch no. 1 is set to OFF.

FRANÇAIS

PRÉCAUTIONS GÉNÉRALES

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

• iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
  ● EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Ethernet is a registered trademark of Fuji Xerox Corporation.
• Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  ● CITIZEN is a registered trademark of Citizen Watch Co., Ltd. Japan
  ● All other trademarks are the property of their respective owners.
• Citizen Systems use these trademarks in accordance with the license of relevant owners.

PRÉCAUTIONS DE SÉCURITÉ...QUI DEVRAIENT ÊTRE OBSERVÉES RIGOUREUSEMENT

Technical diagram of an electrical enclosure with warning symbols indicating thermal hazard and explosion hazard

CETTE ÉTIQUETTE SIGNALE LE RISQUE DE BRÛLURES LIÉES À LA TEMPÉRATURE ÉLEVÉE DE LA TÊTE D'IMPRESSION ET LE RISQUE DE COUPURES OCCASIONNÉES PAR LES MÉCANISMES DE DÉCOUPE MANUELS ET AUTOMATIQUES LORSQUE LE CAPOT DU PAPIER EST OUVERT.

Technical line drawing of a mechanical component or housing (no text or symbols)

Line drawing of a rectangular electronic device with a closed lid and ventilation slots (no text or symbols)

ET: Ethernet (type standard)

ES: Ethernet (type multi-fonction)

UP: Powered USB

BT: Bluetooth

WF: WiFi W5:WiFi (5.0GHz)

● PAPER LED (orange)

Technical line drawing of a connector assembly with pins and connectors (no text or symbols)

Interface série

Technical line drawing of a mechanical component with directional arrows indicating assembly or movement (no text or symbols)

Interface parallèle

Diagram of two USB connectors connected to a power outlet (no text or symbols)

Line drawing of a cable connector inserted into a socket, showing wiring and mounting bracket (no text or symbols)

Vue de face

10100BASE

Interface Ethernet Interface Powered USB

Broche

Diagram of a cable connector with an attached USB port (no text or symbols)

Bluetooth + USB LAN sans fil + LAN

Diagram of a USB cable connector with an attached switch (no text or symbols)

ATTENTION

Signal	Broche	Broche		Signal
FG	1 1 FG
TXD	2 2 TXD
RXD	3 3 RXD
CTS	5 4 RTS
DSR	6 6 DSR
SG	7 7 SG
DTR	20		20 DTR

Câble 9 broches - 25 broches

Ordinateur		Imprimante
Signal	Broche Broche		Signal
RXD 2	TXD
TXD 3	RXD
DTR 4	RTS
SG 5	DSR
DSR 6	SG
CTS 8	20 DTR

ATTENTION

Pure electrical circuit lines without any symbols

Print server homepage

Menu

Print server configuration

Printer status

LAN I/F information

Copyright (C) 2010 CITIZEN SYSTEMS JAPAN CO.,LTD. All Rights reserved.

Diagram of a device rear panel with ports and connectors (no text or labels)

Wireless LAN board HOME | STATUS | CONFIG CITIZEN SYSTEMS Logout Welcome • Click STATUS to show Wireless LAN board status. • Click CONFIG to change the setting of Wireless LAN board.

Line drawing of a rectangular electronic device with a handle and mounting base (no text or symbols)

Position horizontale

Technical line drawing of a mechanical component with cross-shaped cutouts, resting on a base (no text or symbols)

Position verticale

ATTENTION

Line drawing of a device casing with labeled ports and an arrow pointing to a component (no text or symbols present)

Technical line drawing showing two views of a device with internal components and wiring (no text or symbols)

CT-S651IIS

Technical diagram of a device with labeled components and directional arrows indicating assembly or movement.

CT-S651IIS

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145 140

192 31 142 16 155

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145

192 31 114

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

• iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
• EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Ethernet is a registered trademark of Fuji Xerox Corporation.
• Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  ● CITIZEN is a registered trademark of Citizen Watch Co., Ltd. Japan
  ● All other trademarks are the property of their respective owners.
• Citizen Systems use these trademarks in accordance with the license of relevant owners.

Technical diagram of an electrical enclosure with warning symbols indicating thermal hazard and explosion hazard

Line drawing of a mechanical device with no visible text or symbols

CT-S651IIS

Line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

WF: WiFi W5:WiFi (5,0 GHz)

● PAPER LED (orange)

Technical line drawing of a connector assembly with a USB cable and connector pin (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating assembly or movement (no text or symbols)

Diagram of two USB connectors connected to a power outlet (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram of a USB cable connector with an attached port (no text or symbols)

Bluetooth + USB WLAN + LAN

Diagram of an Ethernet cable connector with a USB port, showing connection point and cable (no text or symbols)

VORSICHT

Signal	Pin Pin		Signal
FG	1 1 FG
TXD	2 2 TXD
RXD	3 3 RXD
CTS	5 4 RTS
DSR	6 6 DSR
SG	7 7 SG
DTR	20		20 DTR

PC

Signal	Pin Pin		Signal
RXD 2	TXD
TXD 3	RXD
DTR 4	RTS
SG 5	DSR
DSR 6	SG
CTS 8	20 DTR

VORSICHT

Pure electrical circuit lines without any symbols

SchalterStatus-LED

Print server homepage

Menu

Print server configuration

Printer status

LAN I/F information

Copyright (C) 2010 CITIZEN SYSTEMS JAPAN CO.,LTD. All Rights reserved.

Wireless LAN board HOME | STATUS | CONFIG CITIZEN SYSTEMS Logout Welcome • Click STATUS to show Wireless LAN board status. • Click CONFIG to change the setting of Wireless LAN board.

Line drawing of a rectangular electronic device with a handle and mounting base (no text or symbols)

Technical line drawing of a mechanical component with cross-shaped cutouts and base plate (no text or symbols)

Technical diagram showing two views of a device's internal structure with labeled parts A and B, including a magnified inset of the top view.

VORSICHT

Technical line drawing showing two views of a device with internal components and wiring (no text or symbols)

CT-S651IIS

Technical diagram of a device with labeled components and directional arrows indicating assembly or movement.

CT-S651IIS

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145 140

192 31 142 16 155

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145

192 31 114

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

• iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
  ● EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Ethernet is a registered trademark of Fuji Xerox Corporation.
• Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  ● CITIZEN is a registered trademark of Citizen Watch Co., Ltd. Japan
  ● All other trademarks are the property of their respective owners.
• Citizen Systems use these trademarks in accordance with the license of relevant owners.

PRECAUZIONI DI SICUREZZA ..DA OSSERVARE RIGOROSAMENTE

Technical diagram of an electrical enclosure with warning symbols indicating thermal hazard and explosion hazard

QUESTA ETICHETTA INDICA IL RISCHIO DI USTIONE PER VIA DELLE ALTE TEMPERATURE PRESENTI SULLA TESTINA DI STAMPA E IL RISCHIO DI FERIRSI CON LA TAGLIERINA MANUALE E AUTOMATICA QUANDO IL COPERCHIO DELLA CARTA È APERTO.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

CT-S651IIA

Technical line drawing of a connector assembly showing cable, connector, and pin (no text or symbols)

Interfaccia seriale

Diagram of a mechanical component with arrows indicating assembly or movement (no text or symbols present)

Diagram of two USB connectors connected to a power outlet (no text or symbols)

Diagram of a cable connector inserted into a socket, showing wiring and mounting bracket (no text or symbols)

Vista anteriore

1310C/BASE

Interfaccia Ethernet Interfaccia Powered USB

Pin

Diagram of a USB cable connector with an attached rectangular device (no text or symbols)

Diagram of a cable connector with an attached USB port (no text or symbols)

Bluetooth + USB Wireless LAN + LAN

ATTENZION

Pure electrical circuit lines without any symbols

Print server homepage

Menu

Print server configuration

Printer status

LAN I/F information

Copyright (C) 2010 CITIZEN SYSTEMS JAPAN CO.,LTD. All Rights reserved.

Wireless LAN board HOME | STATUS | CONFIG CITIZEN SYSTEMS Logout Welcome • Click STATUS to show Wireless LAN board status. • Click CONFIG to change the setting of Wireless LAN board.

Line drawing of a rectangular electronic device with a handle and mounting base (no text or symbols)

Technical line drawing of a mechanical component with cross-shaped cutouts, resting on a base (no text or symbols)

Posizione verticale

ATTENZION

Line drawing of a device casing with ports and an arrow pointing to a labeled component (no text or symbols present)

Technical line drawing showing two views of a computer case with internal components and wiring (no text or symbols)

CT-S651IIS

Technical diagram of a device with labeled components and directional arrows indicating assembly or movement.

CT-S651IIS

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145 140

192 31 142 16 155

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

145

192 31 114

N. switch Funzione OFF ON
MSW1-1 Power ON Info		Valid Not Send
MSW1-2 Buffer Size		4K bytes 45 bytes
MSW1-3 Busy Condition		Full/Err Full
MSW1-4 Receive Error		Print"?" No Print
MSW1-5 CR Mode		Ignored LF
MSW1-6	Reserved	Fixed	—
MSW1-7	DSR Signal	Invalid	Valid
MSW1-8	Init Signal	Invalid	Valid
MSW2-1	Reserved	—	Fixed
MSW2-2	Auto Cutter	Invalid	Valid
*1 MSW2-3	Spool Print	Invalid	Valid
MSW2-4	Full Col Print	LineFeed	WaitData
MSW2-5	Resume aft PE	Next	Top
MSW2-6	Reserved	Fixed	—
MSW2-7	Reserved	Fixed	—
MSW2-8	PNE Sensor	Valid	Invalid
MSW3-1	Resume Ctr Err	Valid	Invalid
MSW3-2	PE signal by PNE	Valid	Invalid
MSW3-3	Parallel 31 Pin	Valid	Invalid
MSW3-4	Reserved	Fixed	—
MSW3-5	Reserved	Fixed	—
MSW3-6	Reserved	Fixed	—
MSW3-7	CBM1000 Mode	Invalid	Valid
MSW3-8	Resume Open Err	Close	Command
MSW4-1	Reserved	Fixed	—
MSW4-2	Reserved	Fixed	—
MSW4-3	Feed&Cut at TOF	Invalid	Valid
MSW4-4	Reserved	Fixed	—
MSW4-5	Reserved	Fixed	—
MSW4-6	Reserved	Fixed	—
MSW4-7	Reserved	Fixed	—
MSW4-8	Partial Only Invalid		Valid
MSW5-1 Buzzer		Valid	Invalid
MSW5-2	Line Pitch	1/360 1/406
MSW5-3 USB Mode Virtual COM			Printer Class
MSW5-4	Reserved	Fixed	—
MSW5-5	Gradation Quality	Quality	Speed
MSW5-6	Reserved	Fixed	—
MSW5-7	Reserved	Fixed	—
MSW5-8	Reserved	Fixed	—
N. switch	Funzione	OFF	ON
MSW6-1 Act.	For Driver Invalid Valid
MSW6-2 Character Space		Invalid Valid
MSW6-3 USB Power Save Invalid			Valid
MSW6-4 Reserved		Fixed —
MSW6-5 Reserved		Fixed —
MSW6-6 Reserved		Fixed —
MSW6-7 Reserved		Fixed —
MSW6-8 Reserved		Fixed —

N. switch Funzione		Impostazione iniziale	Valore impostato
*2 MSW7-1	Baud Rate	9600 bps 12	00 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
*2 MSW7-2	Data Length	8bits 7bits	8bits
MSW7-3	Stop Bit	1bit	1bit, 2bits
*2 MSW7-4	Parity	NONE	NONE, ODD, EVEN
*2 MSW7-5	Flow Control	DTR/DSR	DTR/DSR, XON/XOFF
MSW7-6	DMA Control	Valid	Valid, Invalid
MSW7-7	VCom Protocol	PC Setting	PC Setting, DTR/DSR, XON/XOFF
MSW8-1	Print Width	576dots	640 dots, 576 dots, 546 dots, 512 dots, 436 dots, 432 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-2	Paper Type	1 Color Normal	1 Color Normal, 2 Color Normal
MSW8-3	Top Margin	11mm	3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4	Line Gap Reduce	Invalid	Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5	Reduced Char V/H	100% / 100%	100% / 100%, 75% / 100%, 50% / 100%, 100% /75%, 75% / 75%, 50% / 75%
MSW8-6	Auto Side Shift	Invalid	Invalid, 1 dots, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
MSW8-7 Liner Free Mode		Invalid	Invalid, 1h, 6h, 12h, 18h, 24h, 5m, 10m, 15m, 20m, 30m
MSW9-1	Code Page	PC 437	PC 437, Katakana, PC 850, PC 858, PC 860, PC 863, PC 865, PC 852, PC 866, PC 857, WPC1252, Space page, PC 864, ThaiCode11 1Pass, ThaiCode11 3Pass, ThaiCode18 1Pass, ThaiCode18 3Pass, TCVN-3
MSW9-2	Int'Char Set	USA	USA, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark 2, Spain 2, Latin America, Korea, Croatia, China, Vietnam
MSW9-4	Multi-byte Char	Invalid	JIS(JPN), SJIS:CP932 (JPN), SJIS:X0213(JPN), GB18030(CHN), KS Hangul(KOR), EUC Hangul(KOR), BIG5(TWN), Invalid
MSW10-1	Print Density	100 %	70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %, 110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2	Print Speed	Level 9	Level 1, Level 2, Level 3, Level 4, Level 5, Level 6, Level 7, Level 8, Level 9
N. switch	Funzione	Impostazione iniziale	Valore impostato
MSW10-3	ACK Timing	Before Busy	Before Busy, Same Period, After Busy
MSW10-4	Old Command	Invalid Invalid	CBM1, CBM2
MSW10-5	Buzzer Event	Not by C.Open	All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6	Buzzer Sound	Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW13-1	Security/Target	Low/All Low	w/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5	BT Device Scan	Discoverable	No Response, Discoverable
MSW13-6	Auto Reconnect	Valid	Invalid, Valid

Note:

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

• iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
  ● EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Ethernet is a registered trademark of Fuji Xerox Corporation.
• Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  ● CITIZEN is a registered trademark of Citizen Watch Co., Ltd. Japan
  ● All other trademarks are the property of their respective owners.
• Citizen Systems use these trademarks in accordance with the license of relevant owners.

NORMAS DE SEGURIDAD..QUE DEBEN SER SEGUIDAS ESTRICTAMENTE

Technical diagram of an electrical enclosure with warning symbols indicating thermal hazard and safety warning.
