Primetab P10 - Tablet TrekStor - Free user manual and instructions

Product type	Tablet
Brand	TrekStor
Model	Primetab P10
Dimensions (W x H x D)	259 x 154 x 8.4 mm
Weight	Approximately 500 g
Operating system	Android™ 7.0 (Nougat)
Processor	MT8163 quad-core up to 1.5 GHz
RAM	2 GB DDR3
Internal storage	32 GB
Screen	10.1-inch Full HD IPS (1920 x 1200 pixels)
Camera (front/rear)	2 MP (front) / 5 MP (rear)
Connectivity	Wi-Fi 802.11 a/b/g/n (2.4 GHz), Bluetooth® 4.0
Ports	Micro-USB 2.0, Micro-HDMI®, 3.5 mm audio jack, microSD card slot
Power supply	USB power adapter (100-240 V, 5 V / 2 A)
Battery	Lithium-polymer, video playback time up to 6 hours
Sensors	GPS, G-sensor
Speakers	Stereo
Expandable storage	MicroSD (HC/XC) up to 128 GB
Maintenance	Clean with a soft, dry cloth; avoid moisture and extreme temperatures
Safety	Safety instructions: do not expose to water, do not open the charger, use only the supplied adapter
Warranty	24 months (statutory warranty)
After-sales service	Contact TrekStor for spare parts and repairs

Frequently Asked Questions - Primetab P10 TrekStor

Why is the displayed storage capacity lower than advertised?

The total capacity of 32 GB includes the operating system and system applications, which reduces the available user space. This difference is normal.

No sound comes from the tablet, what should I do?

Check that no headphones are plugged in (the speaker is then disabled). Make sure the volume is not on silent and is set high enough.

My Wi-Fi network does not appear in the list, how can I connect?

Enable Wi-Fi in settings. If the network is hidden (hidden SSID), go to Wi-Fi settings, tap the three dots, select 'Add network' and enter the SSID and password.

The tablet turns off by itself, what is the cause?

This usually happens when the battery reaches a critical level. Recharge the tablet as soon as the warning message appears to avoid a complete discharge.

The tablet does not turn on, what can I do?

Plug in the charger for at least 30 minutes, then try turning it on by holding the power button for 5 seconds.

How to free up storage space when internal memory is full?

Transfer media files (photos, videos) to a microSD card or computer, and uninstall unnecessary apps via Settings > Apps.

Can I install apps on an SD card?

No, apps are only installed on the tablet's internal memory. However, you can move some app data to the SD card if the option is available.

How to access files on a USB flash drive or memory card?

Use an OTG adapter for the USB drive. Insert the microSD card into the slot. A file manager (preinstalled or downloaded) allows you to browse folders.

How to reset the tablet to factory settings?

Go to Settings > Backup & reset > Factory data reset, then confirm. All data will be erased. You can also use Recovery mode (off, hold Volume - and Power).

Play Store apps are not downloading, why?

Make sure you are connected to the internet (Wi-Fi) and signed in to a Google account. Check that storage space is sufficient and that the Android version is compatible.

USER MANUAL Primetab P10 TrekStor

multi-touch 10 points

Gaming: 3D Games, G-Sensor Games, Classic Games

Formats image pris en charge : JPEG, PNG, GIF, BMP

Formats audio lisibles : MP3, WAV, OGG, FLAC, AAC

Batterie: Lithium-polymère (3,7 V / 6600 mAh / 24,42 Wh)

Illustration of a hand interacting with a blue screen displaying a water surface, with no visible text or symbols.

Faire défiler

Android and Google Play are trademarks of Google Inc. Use of these trademarks is subject to Google Permissions.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TREKSTOR GmbH is under license. Other trademarks and trade names are those of their respective owners.

Intel, Intel Atom and the Intel Inside logo are trademarks of Intel Corporation in the U.S. and/or other countries.

TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.

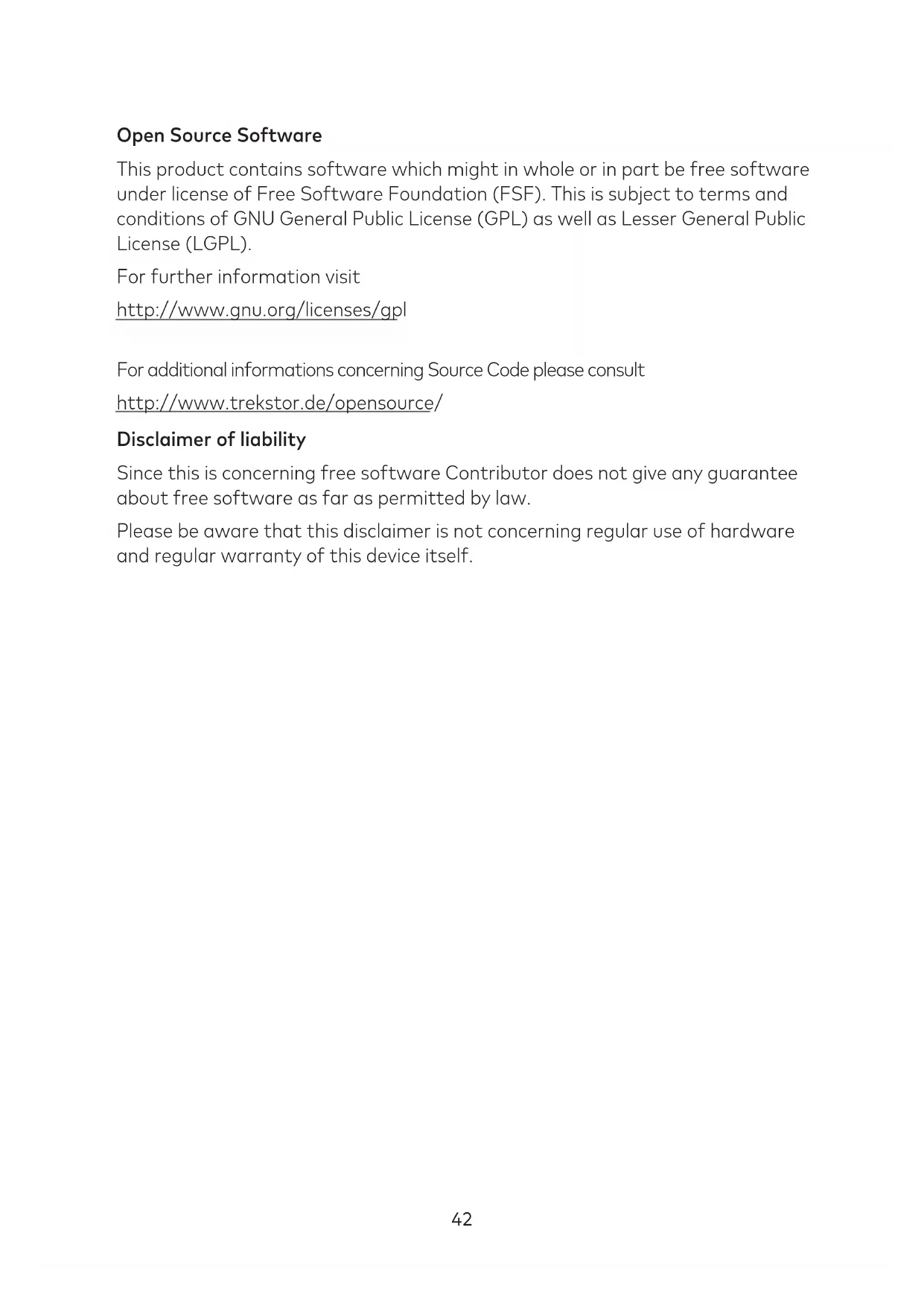

Open Source Software

This product contains software which might in whole or in part be free software under license of Free Software Foundation (FSF). This is subject to terms and conditions of GNU General Public License (GPL) as well as Lesser General Public License (LGPL).

For further information visit

http://www.gnu.org/licenses/gpl

For additional informations concerning Source Code please consult

http://www.trekstor.de/opensource/

Disclaimer of liability

Since this is concerning free software Contributor does not give any guarantee about free software as far as permitted by law.

Please be aware that this disclaimer is not concerning regular use of hardware and regular warranty of this device itself.

EU DECLARATION OF CONFORMITY

TREKSTOR

DEINE TECHNIK

As manufacturer and importer respectively: TREKSTOR GmbH | Berliner Ring 7 | D-64625 Bensheim, Germany

herewith declares that the products

Product: PRIMETAB P10 - WIFI (TFQCOAW01232)

Type: Mobile Internet Device

comply with the following directive(s):

.2014/35/EU Low-voltage directive

•2014/53/EU Radio Equipment Directive

•2009/125/EC Energy - Related - Products - Directive (ErP) i.V.m. VO (EU) Nr. 278/2009

•2011/65/EU Restriction of the use of certain hazardous substances

The following norms were consulted to assess conformity:

-EN 55022:2010+AC:2011: Electromagnetic compatibility

- EN 55024:2010: Information technology equipment - Immunity characteristics - Limits and methods of measurement (CISPR 24:2010)

- EN 61000-3-2:2014: Harmonic Current Emission

- EN 61000-3-3:2013: Voltage Fluctuation and Flicker

- EN 61000-4-2:2009: Electrostatic Discharge

-EN 61000-4-3:2006+A1:2008+A2:2010: RF electromagnetic field immunity tests

- EN 61000-4-4:2012: Fast transients

- EN 61000-4-5:2014: Surges

- EN 61000-4-6:2014: Injected current

. EN 61000-4-8:2010: Power-frequency magnetic field

-EN 61000-4-11:2004: Voltage dips, short interruptions and voltage variations immunity tests

- EN 62209-2:2010: Human exposure to radio frequency fields from hand-held and bodymounted wireless communication devices

- EN 50566:2013 SAR: Product standard to demonstrate compliance of radio frequency fields from handheld and body-mounted wireless communication devices used by the general public (30 MHz - 6 GHz)

- EN 62479:2010 SAR: Basic restrictions related to human exposure to electromagnetic fields (10 MHz to 300 GHz)

- EN 300 328 V1.9.1: Electromagnetic compatibility and Radio spectrum Matters (ERM); Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques

- EN 301 489-1 V1.9.2 EMC and ERM: Part 1: Common technical requirements

•EN 301 489-17 V2.2.1 EMC and ERM: Part 17: Specific conditions for 2,4 GHz wideband transmission systems

- EN 50581:2012: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances

- EN 50563:2011+A1:2013: External a.c. d.c. and a.c. a.c. power supplies. Determination of no-load power and average efficiency of active modes.

- EN 50332-1:2013: Sound system equipment: Headphones and earphones - Maximum sound pressure level measurement

- EN 50332-2:2013: Sound system equipment: Headphones and earphones - Maximum sound pressure level measurement

- EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013: Information technology equipment - Safety - Part 1: General requirements

The CE symbol confirms that this product conforms with the above mentioned norms and regulations.

The manufacturer also declares the conformity of the product according to the following directives:

.2006/1907/EC REACH: Regulation concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals

•2013/1272/EU PAH: REACH restricting the use of polycyclic aromatic hydrocarbons

.2004/850/EC SCCP: REACH restricting the use of short chain chlorinated paraffins
