Product Type	Upright Freezer
Brand	Candy
Model	CFZE5485WK
Dimensions (approx.)	85 x 55 x 60 cm (H x W x D)
Net Weight (approx.)	35 kg
Power Supply	230 V ~ 50 Hz
Refrigerant	R600a (isobutane)
Climate Class	SN, N, ST, T (from +10°C to +43°C)
Temperature Adjustment	3-position thermostat: MIN, NORMAL, MAX
Freezing Capacity (24h)	Approximately 10 kg
Number of Drawers	3 freezer drawers
Defrost Function	Manual (periodic defrosting required)
Door Opening Direction	Reversible (left or right)
Adjustable Feet	2 adjustable feet at the front
Included Accessories	Ice cube tray, spacing wedge
Cleaning	Warm water and mild soap; vacuum condenser annually
Safety	Child lock not specified; unplug before maintenance
Spare Parts	Contact Candy after-sales service
Repairability Index	Not communicated
Warranty	Refer to the provided conditions

Frequently Asked Questions - CFZE5485WK CANDY

How to adjust the temperature of my Candy CFZE5485WK freezer?

Use the thermostat inside. It offers three positions: MIN (least cold), NORMAL and MAX (coldest). Adjust according to your needs and the ambient temperature.

What is the climate class of this freezer?

It supports climate classes SN (+10°C to +32°C), N (+16°C to +32°C), ST (+16°C to +38°C) and T (+16°C to +43°C). Install it in a room respecting these temperatures.

How to reverse the door opening direction?

Unplug the appliance, empty it and tilt it back. Remove the top cover, unscrew the top hinge, then the bottom hinge. Turn the bottom hinge bracket over and reassemble everything. Consult the manual for detailed steps.

How to defrost the freezer?

Unplug the appliance, remove the food and wrap it. Leave the door open with a container to collect the water. Never use sharp objects. Once defrosted, dry the inside and plug it back in.

What foods can I freeze and for how long?

You can freeze fresh foods. The maximum quantity in 24 hours is indicated on the rating plate (approximately 10 kg). Respect the storage times and do not refreeze thawed food.

How to clean my freezer?

Unplug it. Clean the inside with a cloth dampened with warm water and mild soap. Do not use abrasive products. Vacuum the condenser at the back once a year to save energy.

What to do in case of a power outage?

Avoid opening the door. Food stays frozen for several hours (temperature rise time). If the outage is long, consume thawed food quickly.

How to save energy with this freezer?

Install it away from heat sources, do not put hot food in, do not overload, defrost regularly, do not set too low a temperature, and clean the condenser.

What to do if the freezer is not cooling enough?

Check that the thermostat is in the correct position, that the door closes properly, that the condenser is clean, that ventilation is adequate, and that the appliance is not in direct sunlight. If the problem persists, contact customer service.

Can I install the freezer in an unheated garage?

Yes, if the ambient temperature stays within the climate class range (e.g., SN: +10°C to +32°C). Below +10°C, the freezer may not work properly.

USER MANUAL CFZE5485WK CANDY

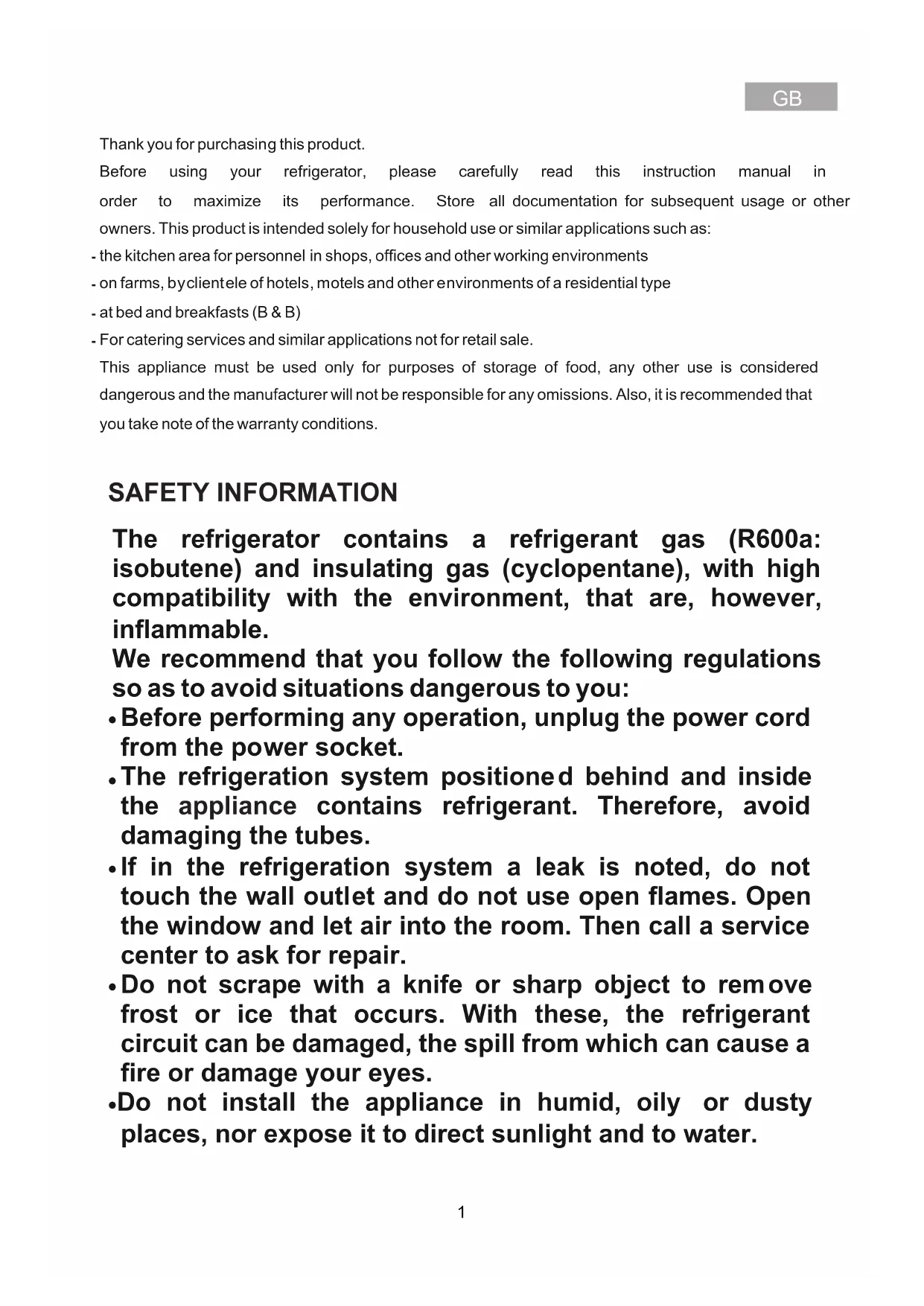

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent usage or other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• For catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

The refrigerator contains a refrigerant gas (R600a:isobutene) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

We recommend that you follow the following regulations so as to avoid situations dangerous to you:

• Before performing any operation, unplug the power cord from the power socket.
• The refrigeration system positioned behind and inside the appliance contains refrigerant. Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.
• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or inflammable materials.

• Do not use extension cords or adapters.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

- Do not use mechanical devices or other equipment to hasten the defrosting process.

- Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

- Do not use or store inflammable sprays, such as spray paint, near the appliance, it could cause an explosion or fire.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

- Do not store medicine or research materials in the appliance. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

- Do not place objects and/or containers filled with water on the top of the appliance.

- Do not perform repairs on this appliance. All interventions must be performed solely by qualified

personnel.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

•Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

Scrapping old appliance

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose

properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the m

ark on this product, we are confirming compliance to all relevant

European safety, health and environmental requirements which are applicable in legislation for this product.

Energy Saving

For better energy saving we suggest :

Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.

Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.

Do not excessively stuff foods so as to ensure proper air circulation.

Defrost the appliance in case there is ice to facilitate the transfer of cold.

In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.

Open or keep the doors of the appliance open as little as possible

Avoid adjusting the setting to temperatures too cold.

Remove dust present on the rear of the appliance

SINGLE DOOR FREEZER

Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.

CONTROL PANEL

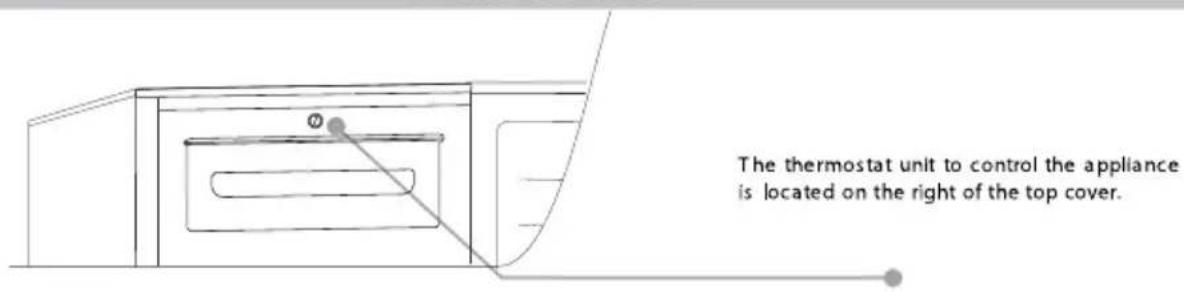

The thermostat unit to control the appliance is located on the right of the top cover.

DEFROSTING and FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see "gure 2). Freezing is guaranteed with any knob setting.

(Figure 2)

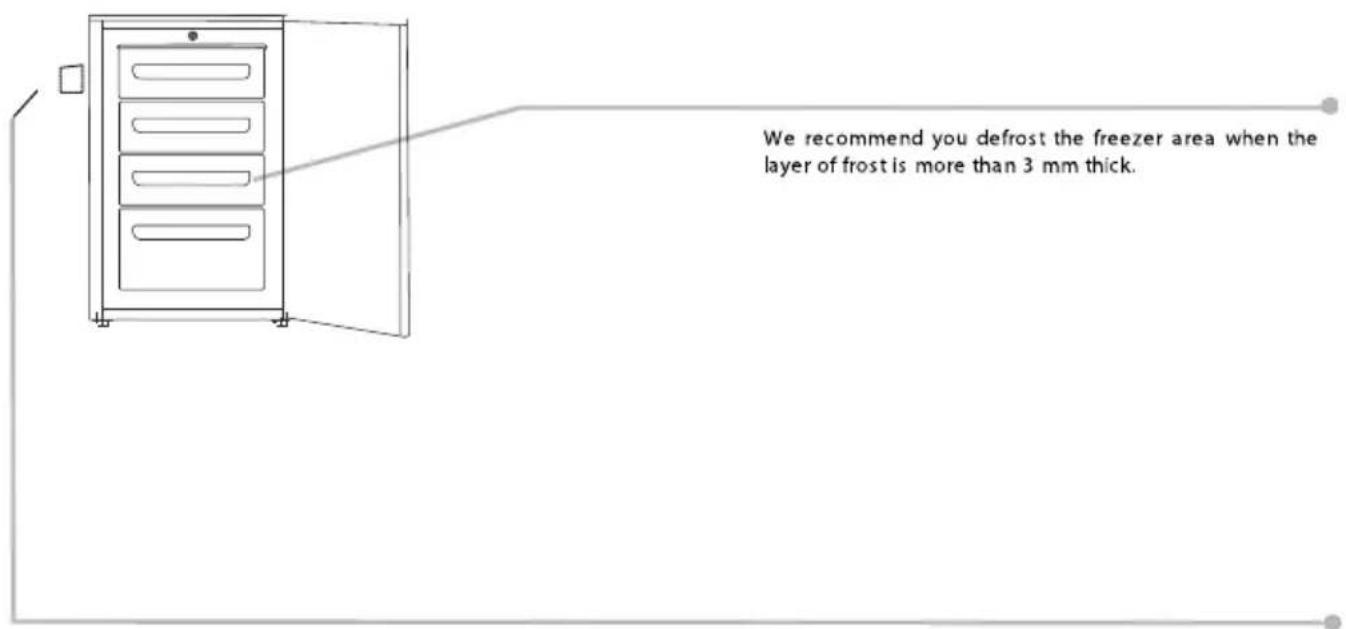

We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick.

NB. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the surface of the evaporator tubes and wires. In this case, turn the knob to lower settings (MIN).

In order to reverse the opening of the doors, follow the indications in relation to the insert and hinge type your product is made up of.

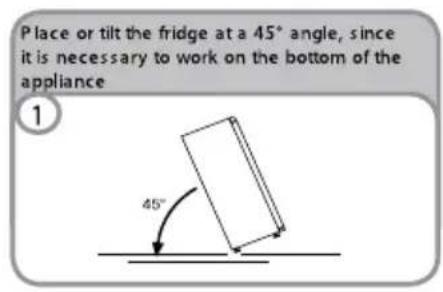

Place or tilt the fridge at a 45° angle, since it is necessary to work on the bottom of the appliance 1 45°

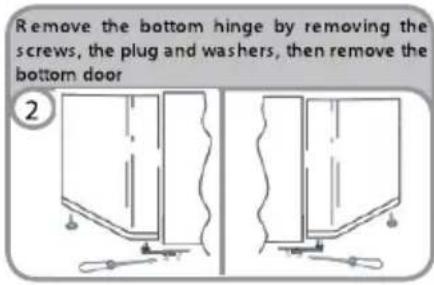

Remove the bottom hinge by removing the screws, the plug and washers, then remove the bottom door 2

Remove the caps (A) and (B), loosen the screws and partially remove the panel. 3

Unscrew the right hinge 4

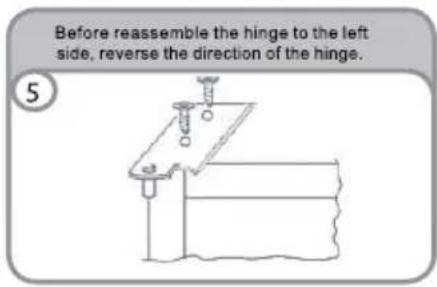

Before reassemble the hinge to the left side, reverse the direction of the hinge.

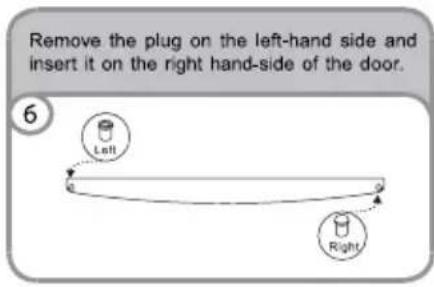

Remove the plug on the left-hand side and insert it on the right hand-side of the door. 6 Left Right

Reassemble the hinges and doors working from bottom to top, 1 2 7 ① ②
