IR350 - Radio HAMA - Free user manual and instructions

Product type	Internet Radio
Brand	Hama
Model	IR350
Power supply	230 V AC via included power supply unit
Connections	AUX IN jack (3.5 mm), Headphone jack (3.5 mm), Update port
WiFi	Yes (estimated 802.11 b/g/n)
Display	Yes, non-touch
Controls	POWER, MENU, PRESET, INFO, MODE, HOME, BACK, 7 PRESET keys, Volume/ENTER/NAVIGATE knob
Presets	7 direct keys
Available languages	German, English, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish, Czech, Slovak
Setup wizard	Yes, automatic on first startup (English)
Cleaning	Slightly damp lint-free cloth, no harsh detergents
Safety	Do not open, unplug if not used for a long time, avoid moisture and shocks
Repairability	Do not repair yourself, contact a qualified technician
Dimensions (estimated)	Approximately 200 x 120 x 80 mm
Weight (estimated)	Approximately 0.5 kg

Frequently Asked Questions - IR350 HAMA

How to turn on the Hama IR350 radio?

Plug the power adapter into a power outlet, then press the POWER button on the front panel.

How to change the interface language?

Press MENU > Settings > Language, then select your language and confirm with ENTER or OK.

How to connect the radio to my WiFi network?

Make sure your router is on and the Internet connection is active. On first startup, a setup wizard guides you. You can also start the setup via MENU.

Can I use the radio without an Internet connection?

The Hama IR350 radio is primarily an Internet radio. Without WiFi, you can use the AUX IN input to connect an external source (MP3 player, etc.).

How to adjust the volume?

Use the VOLUME / ENTER / NAVIGATE rotary knob on the front panel. Turn it to increase or decrease the volume.

How to save a favorite station?

Listen to the desired station, then press and hold one of the PRESET 1 to 7 keys until the preset number flashes. The station is then saved.

What to do if the radio does not turn on?

Check the power adapter connection and ensure the power outlet is working. If the device remains off, contact Hama customer service.

How to clean the radio?

Use a slightly damp lint-free cloth. Avoid harsh detergents and do not let moisture enter the device.

Can the radio receive DAB+ or FM?

According to the manual, the radio is an Internet radio. It does not mention a DAB+ or FM tuner. It receives stations only via the Internet.

Where to find the declaration of conformity?

The declaration of conformity according to directive 2014/53/EU is available on the website www.hama.com.

USER MANUAL IR350 HAMA

Be 1 2 3 4 5 6 7 VOLUME OK NAVIGATE 0 0 H 0 M 0 D

Quick Guide

Kurzanleitung

Further information and features are available on:

QR code image containing encoded data, no visible human-readable text

00054851

QR code image containing encoded data, no visible human-readable text

8 9 10 11 12 13 14 1 2 3 4 5 6 7 VOLUME OK NAVIGATE 15 1 2 3 4 5 6 7 16 AUX INUPDATE PORT D C IN 20

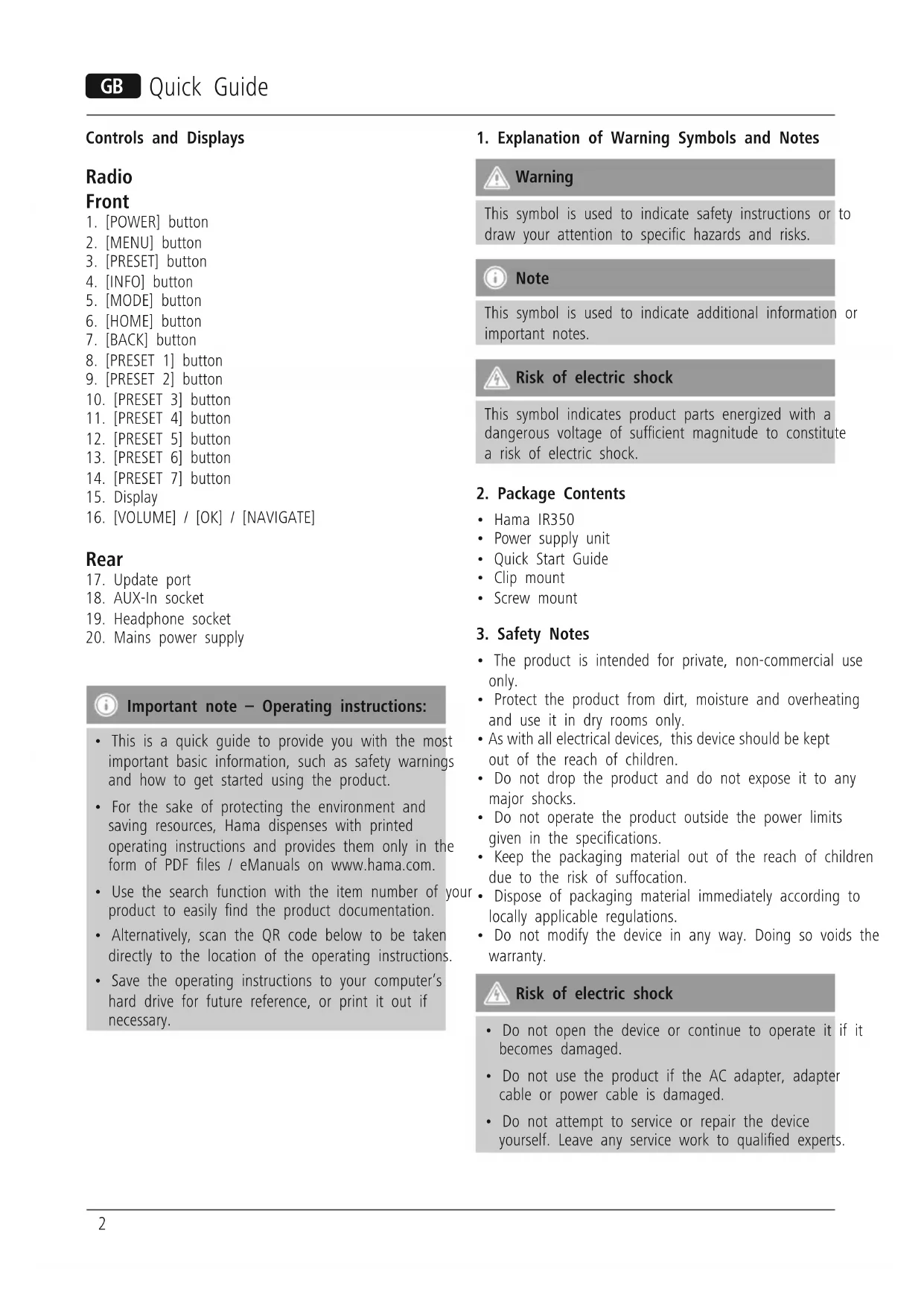

Controls and Displays

Radio

Front

1. [POWER] button
2. [MENU] button
3. [PRESET] button
4. [INFO] button
5. [MODE] button
6. [HOME] button
7. [BACK] button
8. [PRESET 1] button
9. [PRESET 2] button
10. [PRESET 3] button
11. [PRESET 4] button
12. [PRESET 5] button
13. [PRESET 6] button
14. [PRESET 7] button
15. Display
16. [VOLUME] / [OK] / [NAVIGATE]

Rear

1. Update port
2. AUX-In socket
3. Headphone socket
4. Mains power supply

Important note – Operating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF files / eManuals on www.hama.com.
• Use the search function with the item number of your product to easily find the product documentation.
• Alternatively, scan the QR code below to be taken directly to the location of the operating instructions.
• Save the operating instructions to your computer's hard drive for future reference, or print it out if necessary.

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

Risk of electric shock

This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

2. Package Contents

• Hama IR350
• Power supply unit
• Quick Start Guide
• Clip mount
• Screw mount

3. Safety Notes

• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• As with all electrical devices, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

Warning – Batteries:

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking exploding.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not throw batteries in a fire.
• Keep batteries out of the reach of children.

4. Before starting

Setting up a network connection

4.1 WLAN (wireless network)

• Ensure that the router is switched on, is functioning correctly and that there is a connection to the internet.
• Activate the WLAN function of your router.
• Follow your router's operating instructions as regards the correct functioning of the WLAN connection.
• Then proceed directly as described under section 5, 'Getting started'.

5. Getting started

5.1 Switching the device on

- Connect the power cable to a properly installed power socket.

Warning

• Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.

• Disconnect the product from the power supply using the on/off switch — if this is not available, unplug the power cord from the socket.

• Wait until the radio initialisation procedure has finished.

• Press the [POWER] button to switch the radio on.

5.2 Language and setup wizard

The first time the system starts the radio uses English. To change this, proceed as follows:

Press [MENU] > System settings > Language > Select language

Confirm your selection by pressing the [ENTER] or [OK] button.

Note

- You can choose from the following languages: English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish, Czech and Slovak.

6. Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store it in a clean, dry place out of direct sunlight.

7. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

8. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

9. Recycling Information

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

10. Declaration of Conformity

Hama GmbH & Co. KG hereby declares that the device complies with the essential requirements and other relevant provisions of Directive 2014/53/

EU. See www.hama.com for the declaration of conformity with the relevant directive.

00054844

00054851

Hotline: [phone] (Ger/Ang)

86652 Monheim/ Germany

www.hama.com

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
