TP700 - Teppanyaki plate INVENTUM - Free user manual and instructions

Frequently Asked Questions - TP700 INVENTUM

USER MANUAL TP700 INVENTUM

Black rectangular grater with metal handles and a small pressure gauge attached, shown against a white background (no text or symbols visible)

1. safety instructions page 8
2. appliance description page 10
3. before first use page 10
4. grilling page 10
5. cleaning & maintenance
   Guarantee & after sales Service

page 11

page 21

Deutsch

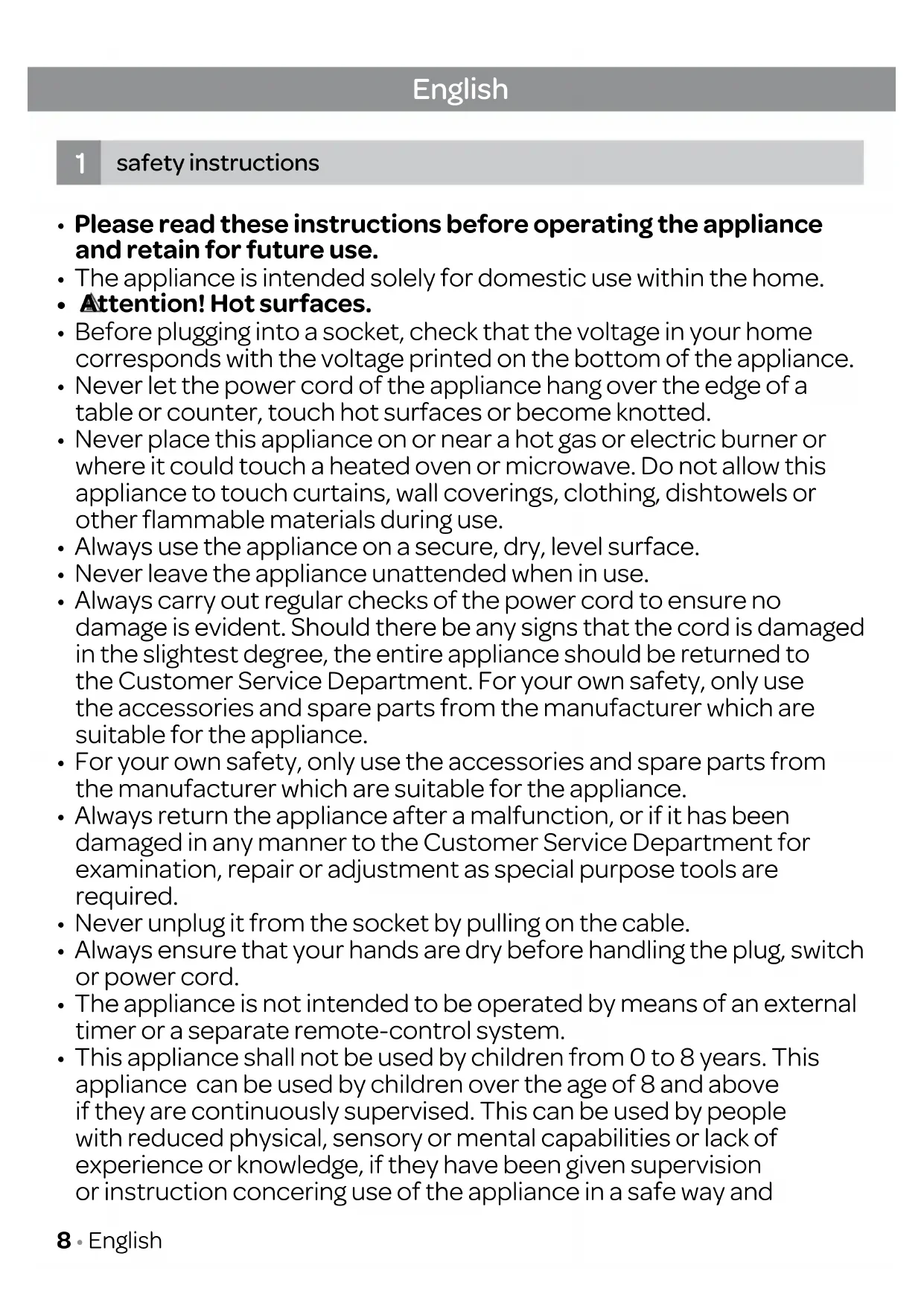

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Hot surfaces.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• Never unplug it from the socket by pulling on the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and maintenance shall not be made by children.

• Children must not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- This appliance is only intended to be used in household and not in:

- staff kitchen areas, in shops, offices and other working environments;

- by clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments

- farm houses.

- Unplug the appliance as soon as you have finished using it and when you are cleaning it.

- If an extension cord is used, check the marked electrical rating of the extension cord to the electrical rating on the appliance. Make sure that it can not be pulled on by children or tripped over unintentionally.

- Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.

- Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.

- Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.

- If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

- Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

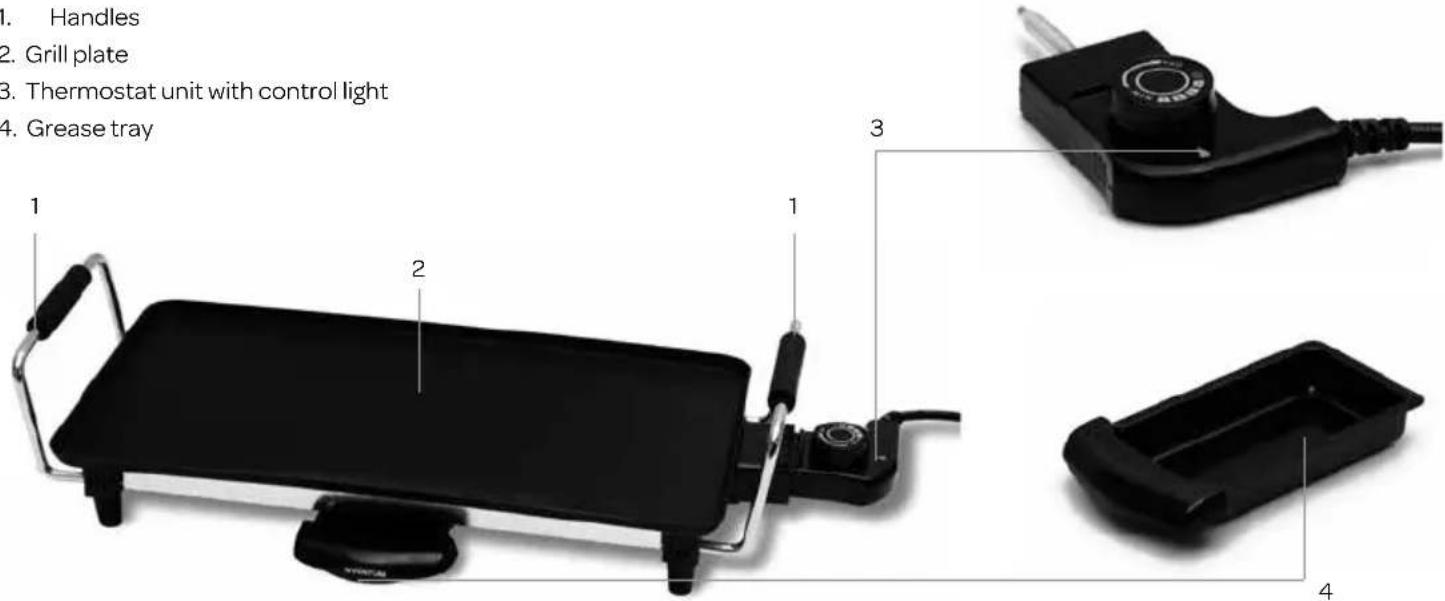

2 appliance description

1. Handles
2. Grill plate
3. Thermostat unit with control light
4. Grease tray

1. Handles 2. Grill plate 3. Thermostat unit with control light 4. Grease tray 1 2 3 4

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and the separate parts, such as the grease tray and the thermostat unit and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation.

Place the appliance on a heat resistant flat and stable surface and make sure there is 15 cm free space around the appliance.

Clean the appliance with a damp cloth and dry it with a dry cloth. Rinse the grease tray and dry thoroughly. The appliance must not be cleaned in the dish washer.

The appliance has a protective layer which should be removed before the first use. Switch the appliance on for about 10 minutes on the maximum position 5 without any food on it.

Plug the thermostat unit in the connection point and make sure it is pushed in completely. Make sure the thermostat button is set on «OFF» before you switch on the appliance. Before plugging into a socket, check that the voltage in your home corresponds with voltage printed on the appliance.

There can be a slight development of smoke from the protective layer which is now burning of. After removing the protective layer you can now switch the appliance off or begin using it.

4 grilling

Plug the thermostat unit in the connection point and make sure it is pushed in completely. Make sure the thermostat button is set on «OFF». Slide the grease tray under the appliance.

Before plugging into a socket, check that the voltage in your home corresponds with voltage printed on the appliance.

Make sure no one can trip over the power cord or the extension cord.

Turn the thermostat button to the desired setting 1-2-3-4-5. The control light will light up. As soon as the appliance has reached the set temperature the control light will go out.

Preheat the appliance during 10 minutes. After preheating the appliance is ready to use.

Attention: The thermostat will switch on and off as the thermostat in the appliance maintains the correct temperature.

Place the food you want to prepare on the teppanyaki grill.

Use a low setting for slowly grilling delicate dishes such as fish filets and use a high setting to sear meat quickly, grilling vegetables or a whole fish.

The minimum temperaturee is 80^ C at setting 1 and the maximum temperature is 230^ C at setting 5.

Avoid touching the hot surfaces during cooking.

Always defrost the food before cooking it.

The teppanyaki grill has a non-stick coating. Because of the non-stick coating you can prepare food in a healthy way, without the use of butter or oil.

As soon as you have finished preparing the food, turn the thermostat button back to «OFF» and unplug the appliance.

5 cleaning & maintenance

Clean the appliance after each use to prevent remains of food sticking to it.

Always unplug the appliance and remove the thermostat unit. Let it cool down completely before cleaning or storing. The appliance is easier to clean when it is still a little warm.

Wipe the appliance with a soft cloth or kitchen towel. To remove baked food residu use a soft sponge with warm water and some washing up liquid.

The grease tray can be cleaned with soapy water. Rinse the grease tray and dry thoroughly. The grease tray is dish washer safe.

Never use any abrasives! Never immerse the appliance, power cord or plug into water or other liquids.

Decoloration of the teppanyaki grill only affects the looks of the appliance and does not influence the functioning.

Make sure the appliance is clean and dry before storing. Store the appliance preferably in the original box. Do not place anything on top of the appliance to prevent damaging the non-stick coating.

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
