| Product type | Water recycling system for cleaning |
| Brand | Miele |
| Model | WRG 02 |
| Tank capacity | 160 L |
| Total tank weight | ~200 kg |
| Net filter weight (incl. pump) | ~70 kg |
| Tank dimensions (L × W × H) | 687 × 726 × 540 mm |
| Filter dimensions (L × W × H) | 555 × 270 × 548 mm |
| Power supply | 230 V, 50 Hz, 380 W |
| Pump flow rate (at 2 m height) | 9 000 L/h |
| Pump flow rate (at 5 m height) | 6 000 L/h |
| Maximum drain temperature | 95 °C |
| Drain connection diameter | 75 mm |
| Installation type | Wall-mounted, on compatible Miele base |
| Included accessories | 4 angle brackets, 4 screws, 4 wall anchors |
| Main function | Recycling cleaning water for Miele machines |
| Recommended maintenance | Regular draining and cleaning of the filter |
| Safety instructions | Installation by a professional in accordance with local standards |
Frequently Asked Questions - WRG 02 MIELE
What is the role of the WRG 02?
The WRG 02 is a water recycling system that filters and reuses cleaning water from Miele machines, thus reducing water consumption.
What are the dimensions of the tank?
The tank measures 687 mm wide, 726 mm deep, and 540 mm high.
What is the tank capacity?
The tank capacity is 160 liters (42.3 gallons).
How to install the WRG 02?
Installation must be carried out by an authorized installer. The unit is attached to the wall using the supplied brackets. Check the wall's strength before installation.
What is the required power supply?
The WRG 02 requires a 230 V, 50 Hz power supply with a power of 380 W.
How to maintain the filter?
Empty and clean the filter regularly according to the instruction manual. Use the drain valve provided for this purpose.
What is the pump flow rate?
The flow rate varies depending on height: up to 9 000 L/h at 2 meters, and 6 000 L/h at 5 meters.
What accessories are included with the device?
The package contains 4 angle brackets, 4 screws, and 4 wall anchors for installation.
Is the WRG 02 compatible with all Miele machines?
It is designed to work with compatible Miele cleaning machines, such as the WS and PW models. Consult the manual for precise compatibility.
What is the maximum drain water temperature?
The maximum temperature of the discharged water is 95 °C (203 °F).
User questions about WRG 02 MIELE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Cleaning solution in PDF format for free! Find your manual WRG 02 - MIELE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WRG 02 by MIELE.
USER MANUAL WRG 02 MIELE

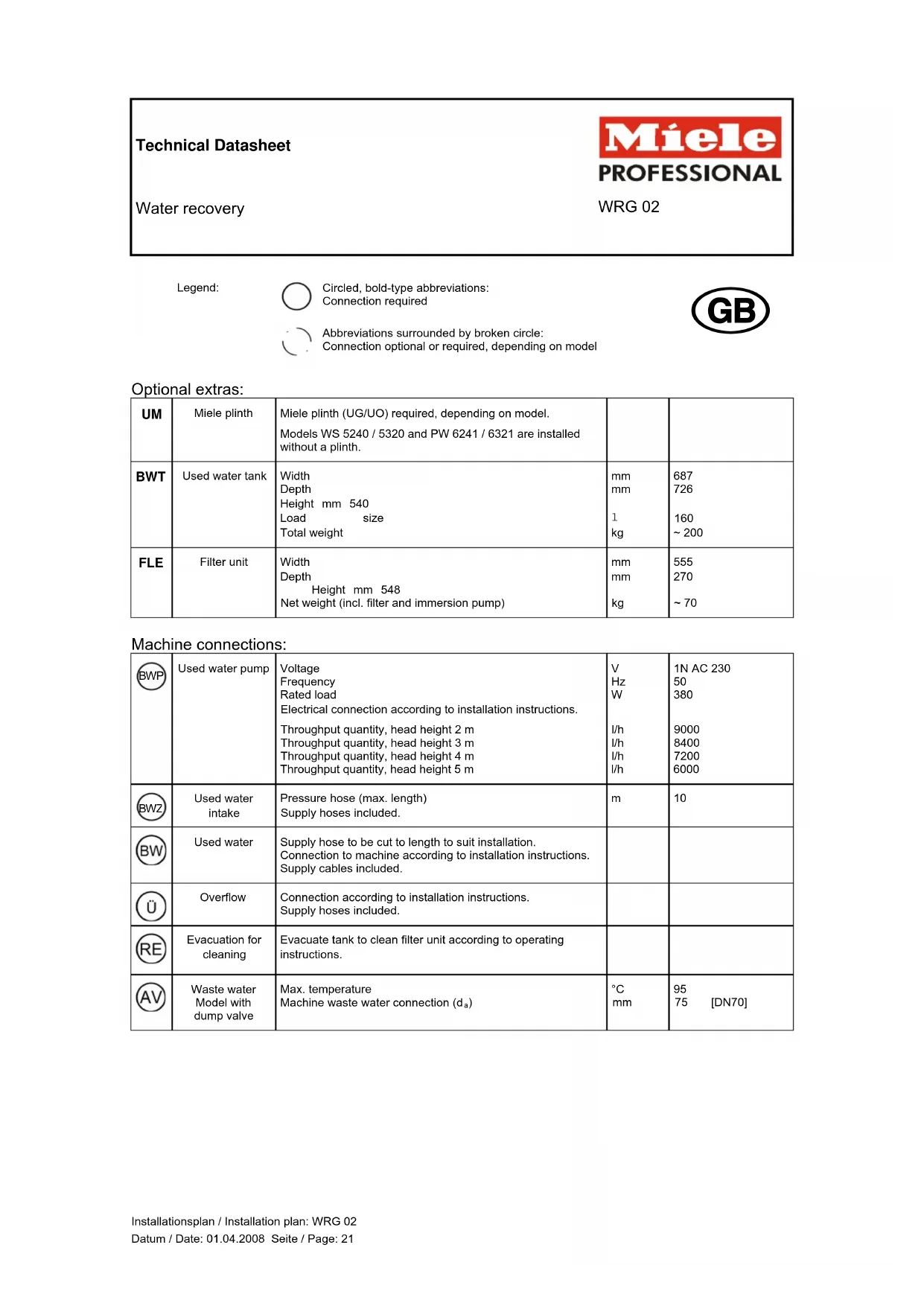

Installationsplan / Installation plan
Installatietekening Plan d'installation Piano di installation
Plano de instalacion Plano de instalacao Eeio ykataoanc
Asennusohje Installasjonsplan Installationsplan
Circled, bold-type abbreviations: Connection required
Abbreviations surrounded by broken circle: Connection optional or required, depending on model
Optional extras:
| UM | Miele plinth | Miele plinth (UG/UO) required, depending on model. Models WS 5240 / 5320 and PW 6241 / 6321 are installed without a plinth. | ||
| BWT | Used water tank | Width | mm | 687 |
| Depth | mm | 726 | ||
| Height mm 540 | l | 160 | ||
| Load size | kg | ~ 200 | ||
| Total weight | ||||
| FLE | Filter unit | Width | mm | 555 |
| Depth | mm | 270 | ||
| Height mm 548 | kg | ~ 70 | ||
| Net weight (incl. filter and immersion pump) |
Machine connections:
| BWP | Used water pump | Voltage Frequency Rated load Electrical connection according to installation instructions. Throughput quantity, head height 2 m Throughput quantity, head height 3 m Throughput quantity, head height 4 m Throughput quantity, head height 5 m | V Hz W I/h I/h I/h I/h | 1N AC 230 50 380 9000 8400 7200 6000 |
| BWZ | Used water intake | Pressure hose (max. length) Supply hoses included. | m | 10 |
| BW | Used water | Supply hose to be cut to length to suit installation. Connection to machine according to installation instructions. Supply cables included. | ||
| ü | Overflow | Connection according to installation instructions. Supply hoses included. | ||
| RE | Evacuation for cleaning | Evacuate tank to clean filter unit according to operating instructions. | ||
| AV | Waste water Model with dump valve | Max. temperature Machine waste water connection (da) | °C mm | 95 75 [DN70] |
| AW | Waste water | Max. temperature °C 95 Machine waste water connection (da) On-site drain (di) mm 75 [DN70 Max. transient throughput Vented drainage required. If ventilation is insufficient, fit Miele kit, Mat. no. 05238090. Drain manifolds serving several machines must be of sufficient cross-section. | mm l/min | 75 [DN70] connector] 200 |
| B | Fittings (supplied) | 4 × fastening material 4 × screws DIN 571 (Ø × length) 4 × rawl plugs (Ø × length) The supplied set of fasteners can be used for concrete ≥ B15 and solid masonry ≥ MZ15. Alternative fasteners should be used on non-standard wall types. Load-bearing capacity of wall should be checked before installation. | mm mm | 7 × 85 10 × 80 |
| Installation should only be carried out by authorised fitters in accordance with valid regulations! Observe installation plan for washer-extractor and relevant installation instructions! All rights reserved! Dimensions in mm | ||||
Technical Datasheet
Water Recycling System
PROFESSIONAL
WRG02
Legend:
Circled, bold-type abbreviations: Connection required
Abbreviations surrounded by broken circle: Connection optional or required, depending on model
Options/Accessories:
| UM | Miele plinth | Miele plinth (UG/VO) depending on appliance model Appliances WS 5240 / 5320 and PW 6241 / 6321 are installed without a plinth | ||
| BWT | Water tank Height 2 Fill amount Total we | Width 27 1/16" 687 mm Depth 28 9/16" 726 mm 1 1/4" 540 mm nt 42.3 gal 160 l ght ~ 441 lbs ~ 200 kg | ||
| FLE Height Net | Filter Height 21 9/16" 548 mm weight (including filter and pump) ~ 154 lbs ~ 70 kg | Width 21 7/8" 555 mm Depth 10 5/8" 270 mm |
Machine connections:
| BWP | Water pump | Voltage 1 N AC 230 V 1N AC 230 V Frequency Fuse rating Make electrical connection as per installation instructions. Delivery rate at a discharge height of 6' 6 3/4" (2 m) Delivery rate at a discharge height of 9' 10 1/8" (3 m) Delivery rate at a discharge height of 13' 1 1/2" (4 m) Delivery rate at a discharge height of 16' 4 7/8" (5 m) | 50 Hz 380 W 2,380 gal/h 2,220 gal/h 1,900 gal/h 1,590 gal/h | 50 Hz 380 W 9.000 l/h 8.400 l/h 7.200 l/h 6.000 l/h |
| BWZ | Water intake | Water pressure hose (max. length) Connecting lines included with unit. | 32' 9 11/16" | 10 m |
| BW | Water | Trim length of hose connection to fit appliance model. Connect the appliance as per the installation instructions. Connecting lines included with unit. | ||
| ü | Overflow | Connect as per the installation instructions. Connecting lines included with unit. | ||
| RE | Cleaning-emptying | Emptying for cleaning the filter unit as per instructions for use. | ||
| AV | Drainage via dump valve | Max. temperature Machine drain connection (da) | 203 °F 2 15/16" 75 mm | 95 °C |
| AW | Waste water connection | Max. temperature 203 °F 95°C Machine drain connection (da) 2 15/16" 75 mm On-site drain connection (di) 2 15/16" 75 mm Max. flow rate 52.8 gal/min 200 l/min Vented drainage required. If ventilation is insufficient, fit Miele kit, Mat. no. 05238090. Drain manifolds serving several machines must be of sufficient cross-section. | ||
| B | Fittings (supplied) | 4 × metal angles brackets 4 × screws (Diameter × length) 7 mm× 85 mm 4 × wall anchors (Diameter × length) 10 mm× 80 mm The mounting set supplied can be used for concrete ≥ B15 and unperforated masonry ≥ MZ15. For other wall types use appropriate mounting sets to be supplied by customer. Before starting installation, verify load-bearing capacity of installation wall. | ||
| Installation should only be carried out by authorized installers in accordance with all local and national regulations! Observe installation instructions when installing machine! All rights reserved! | ||||
