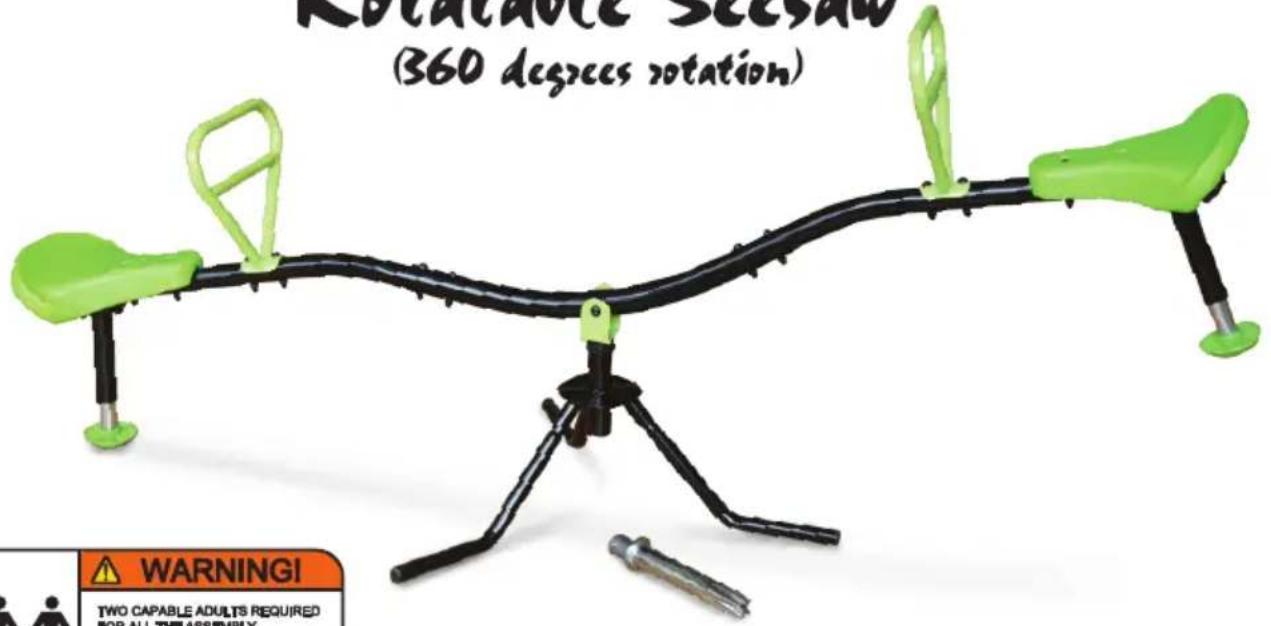

USER MANUAL Spinner 360 EXIT
(360 dcsccs rotation)
WARNING!
TWO CAPABLE ADULTS REQUIRED
FOR ALL THE ASSEMBLY
PROCEDURE FALURE TO FOLLOW
THIS WEARING COULD BE USED FOR THE EXTERNS AND INDOES
BOPPOX DAMAG
WARNING!
ES SIND ZWEI PERSONEN
ERFORDERLICH FÜR DIE MONTAGE
ERNSTIG LETSEL EN/OF SCHADE
AAN BEZITTINGEN
AVERTISSEMENT!
IDEUX PERSONNES SONT NECESSAIRES
POUR L'ASSEMBLEE. SUIVEZ CET
AVERTISSEMENT SOUS PEINE
D'ENCOURIR DES BLESSURES GRAVES
ET/OU DES DEGATS MATRIELS.
C E
WARNING
CHOKING HAZARD
small parts
Adult assembly required
retain for future reference
English4
Deutsch8
Nederlands12
Français16
20

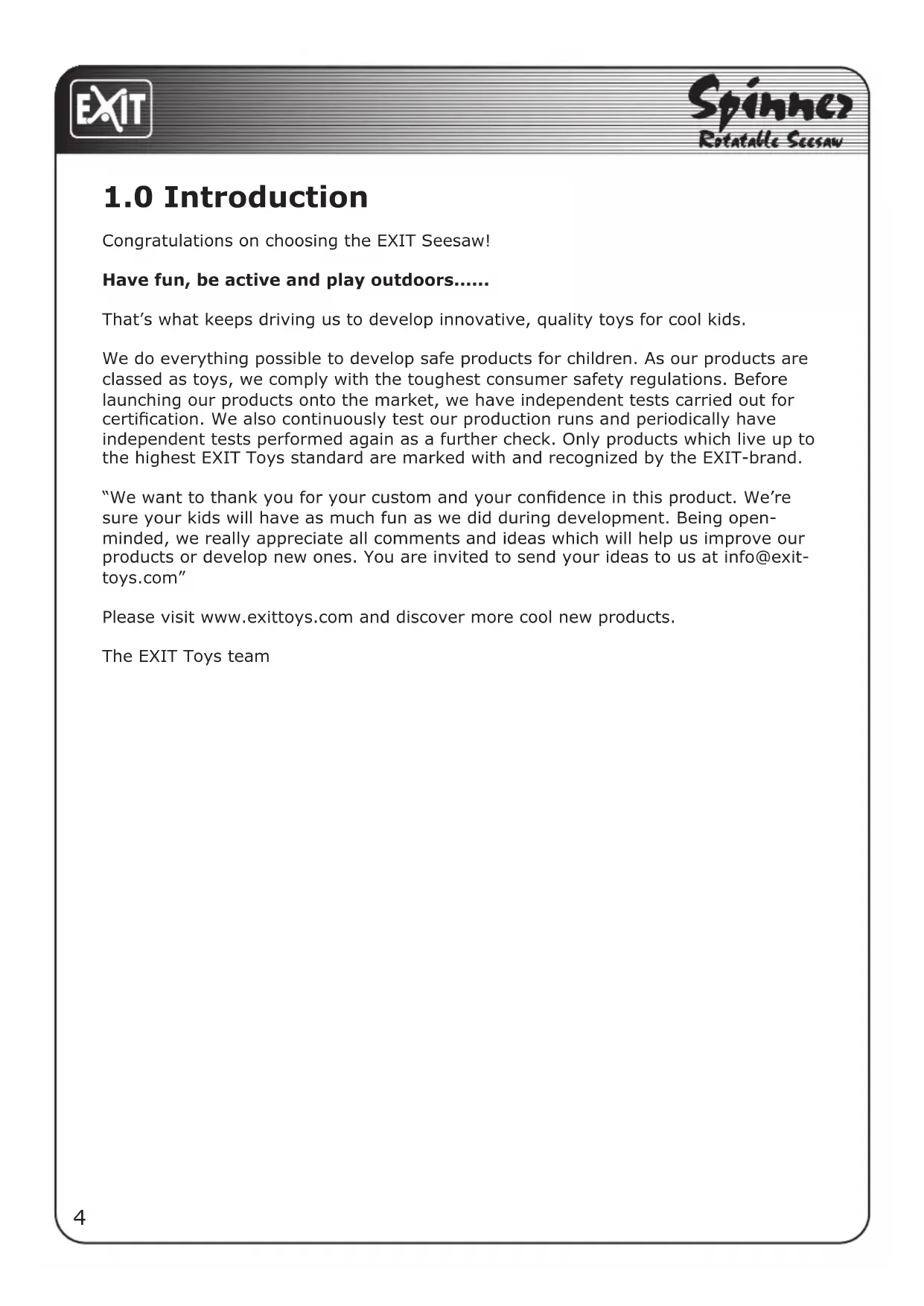

1.0 Introduction
Congratulations on choosing the EXIT Seesaw!
Have fun, be active and play outdoors.....
That's what keeps driving us to develop innovative, quality toys for cool kids.
We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.
"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at info@exittoys.com"
Please visit www.exittoys.com and discover more cool new products.
The EXIT Toys team
2.0Warnings for safe use:
- Adult supervision is required at all times when the Seesaw is used by children.
- To reduce risk of entanglement, keep small children away from the Seesaw area at all times.
- When properly assembled and used as intended, this Seesaw is designed to provide many hours of playing enjoyment.
- Never let children climb on the Seesaw as this can result in the seesaw falling over causing serious injury or death.
- The metal frame of the Seesaw will conduct electricity. Lights, extension cords, and all such electrical equipment must never be allowed to come in contact with the seesaw.
- Inspect the Seesaw before each use. Make sure all parts are correctly and securely positioned and attached. Tighten any loose hardware. Replace any worn, defective, or missing parts.
- Wear comfortable clothing free of hooks, snaps, drawstrings or anything which may snag or catch in the Seesaw. Remove jewelry, necklaces, and earrings.
- Read all instructions and complete all assembly before using.
3.0 Assembly and Installation Instructions
- Adequate overhead clearance is essential. Provide clearance for wires, tree limbs, and other possible hazards.
- Lateral clearance is essential. Place the Seesaw away from walls, structures, fences, and other play areas. Maintain a clear space on all sides of the seesaw. A minimum of 3m from frame edge is recommended.
- Never set-up the Seesaw in heavy rain, wind or storm conditions, especially storms.
- When moving the assembled Seesaw, have at least two people evenly the frame to lift the Seesaw off the ground.
- Place the Seesaw on a level surface before use.
- Secure the Seesaw against unauthorized and unsupervised use.
4.0 Care and Maintenance Instructions
Inspect the Seesaw before each use and replace any worn, defective, or missing parts.
The following conditions could present potential hazards:
- A bent or broken frame or support system.
- Sharp protrusions on the frame or suspension.
- Loosened or missing hardware, system.
5.0 Guarantee Conditions & Service
The owner of this product has the following guarantees on the product:
- 1 years from date of purchase on the frame (regular use).
- A 3-month guarantee is given on the other parts (regular use).
- The guarantee only applies for material/construction errors of the product and/or parts thereof.
The guarantee is not applicable and/or is invalidated in the following cases:
- The Seesaw has been handled without due care, has been involved in an accident, or has been fitted with non-approved parts.
- The Seesaw has not been assembled as per instructions or has not been correctly maintained.
- Parts fitted afterwards do not match the Seesaw's technical specifications or original parts have not been used or have not been fitted correctly.
- The Seesaw is used for professional purposes (hire, schools, etc.).
- Technical repairs to the Seesaw were not carried out professionally.
- Replacement of parts were not carried out on time.
The owner of the Seesaw can only claim a guarantee by presenting the original bill for the purchase to Dutch Toys Group or the dealer from whom the product was bought.
If the claim under the guarantee is refused, then all costs incurred must be paid by the owner.
Guarantee is not transferable to third parties.
1.0 Einführung
- Anchor connector 1pc
- Ground Spikes 1pc
11 M8X17 Bolt 4 pcs
13 M8X62 Bolt 4 pcs
15 M6X15 Bolt 2 pcs
18 M8 Washer 4 pcs
6mm Hex Key 1 pc
12 M8X50 Bolt 8 pcs
14 M10X75 Bolt 1 pc
16 M8 Cap Nut 12 pcs
19 M8 Spring Washer 4 pcs
17 M10 Cap Nut 1 pc
20 Spare cap 1 pc

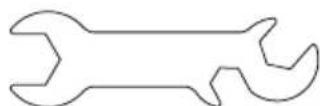

Wrench 1 pc
TOOLS REQUIRED / ERFORDERLICHES WERKZEUG / BENODIGD GEREEDSCHAP / OUTILS NECESSAIRES
- Two (2) Capable Adults
Large and Small Adjustable Wrenches
- Tape Measure
-
2 or #3 Phillips Screwdriver
- Hammer
- Safety Glasses
Assembly steps / Montageschritte / Montage / Assemblée
Step 1 / Schritt 1 / Stap 1 / Étape 1
EN: Insert the three support poles (2) into the turret assembly (1). Make sure the buttons snap into place.
Do not tighten the bolt completely to ensure that the change point turns smoothly.
EN: Attach the seat pole assembly (4) to the rotation pole assembly (3) using two M8X50mm bolts (12) and two M8 locknuts (16). Repeat this step on the other side of the weight system.
EN: Attach the handle (5) to the seat pole assembly (4) using two M8X50mm bolts (12) and two M8 locknuts (16). Repeat this step on the other side of the weight system.
EN: Install the plate (6) to the seat pole assembly (4) using two M8X65mm bolts (13) and two M8 locknuts (16). Repeat this step on the other side of the weight system.
EN: Install the buffer pole assembly (7) to the seat pole assembly (4) using two 8X20mm bolts (11), two M8 spring washers (19) and two M8 washers (18). Repeat this step on the other side of the weight system.
EN: Install the cushion (8) to the buffer pole assembly (7) using M6X15mm bolts (15). Repeat this step on the other side of the weight system. Note: Make sure all the bolts in the steps above are tightened.
EN: If the multi-sport net is used outdoors, insert the anchor connector (9) into the turret assembly (1) as shown. Make sure the button snaps into place.
EN: Select a flat surface of ground or grass, making sure the assembly unit is at a distance of minimum 3m from other structures or obstructions. Using a steel or rubber mallet, drive the ground spike (10) into the ground. Then insert the matching anchor connector (9) into the ground spike (10) as shown.
NOTE: If you do not use the assembly outdoors, use the spare cap (20) to cover the ground spike (10).
