USER MANUAL TKG PZP 1000 KALORIK

Multifunctional cooker

Sertāelectrica multi-functions

I/B Version 110519

TKG PZP 1000

230V~50Hz 1500W

Front cover page (first page)

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use.

From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage. All repairs should be made by a competent qualified electrician. Should the cord be damaged, it must be replaced by an identical cord. Therefore, please contact the nearest customer service.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

Do not clean the appliance like a casserole and never immerse it in liquids.

Never use the appliance outside and always place it in a dry environment.

Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Do not use any other cord than the one provided with the appliance or a cord of similar composition, as it is made up of heat protection devices which are necessary for the good working of your appliance and for your security.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Stand the appliance on a table or flat surface.

Make sure the cord never comes into contact with the hot parts of the appliance.

The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles.

The appliance must be heated by its heating element only.

Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur.

Switch off and unplug the appliance when not in use.

Only cook consumable food.

Provide proper ventilation when using the appliance.

Do not cover the appliance with anything.

Be extremely cautious as oil and fat preparations might catch fire if overheated.

• Your appliance should never be operated via an external timer or a separated remote control system.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

TKG PZP 1000 - 110519

CAUTION: DO NOT USE THE APPLIANCE FOR MORE THAN ONE HOUR WHEN FUNCTIONING AT MAXIMUM TEMPERATURE.

BEFORE FIRST USE

• Attach the handle to the lid if necessary. To do so, loosen the screw from the handle, insert it in the hole of the lid, from inside to outside, and tighten the handle on the outer part of the lid without forcing.
  Clean the grill and the accessories (Cf. "Cleaning and care"). It is recommended to heat up the appliance for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the (new) smell.
• Ventilate the room during this period.

OPERATION

• Insert the plug with thermostat into the appliance (cf "Assembly") making sure that the temperature button is on the "MIN" position and put the plug in the power socket.
• Select the cooking temperature using the thermostat knob. The pilot light will come on, indicating that the appliance is heating.
• Preheat the cooker to reach the ideal cooking temperature. When the appliance reaches the desired temperature, the pilot light will go out. The pilot light goes on and off while the appliance is working to indicate that the set temperature is maintained.
• Now put the foodstuffs in the cooker.
• When foodstuffs are wholly baked, they can be kept warm by setting the thermostat knob to « MIN ».
  The baking times vary according to the nature of the foodstuffs and to your personal taste. Never use your appliance for more than one hour with the thermostat set on the maximum temperature.
• When baking is finished, turn the button to the "MIN" position and disconnect the cooker.

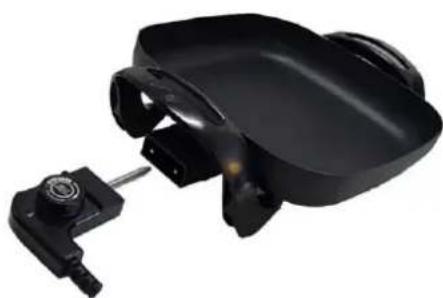

ASSEMBLY

PRACTICAL HINTS

• Frozen food should always be thawed before it is baked.
• Never scratch the special non-stick coating since it would lose its non-adhesive properties. Use a wooden spatula or a heat resistant plastic spatula.

TKG PZP 1000 - 110519

Temperature settings

Setting	Temperature in °C	Use
MIN-1		Keeping warm
2	100°C	Fish, vegetables, fried foodstuffs, hamburger
3-4	150°C - 200°C	Meat, pancakes, scrambled eggs, bacon
5	240°C	Pizza

CLEANING AND CARE

Before cleaning, put the thermostat in MIN position and make sure that the plug has been removed from the mains supply socket.
- Allow the appliance to cool down thoroughly and unplug the thermostat from the appliance.
- Never immerse the appliance totally in water or any other liquid, especially the electric connection point. The appliance may only be immersed halfway, at the side opposite to the connection point, and not beyond the half of the product. However, should there be water on the electric connection, wait until the appliance is completely dry before using it anew.
- Wipe the outer surfaces of the cooker with a damp cloth and dry afterwards.
- Do not use harsh abrasive cleaners as these might damage the non-stick coating.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
