Easy to read power voltage Use Control Controller N21 +3.3 N5 + power supply tester

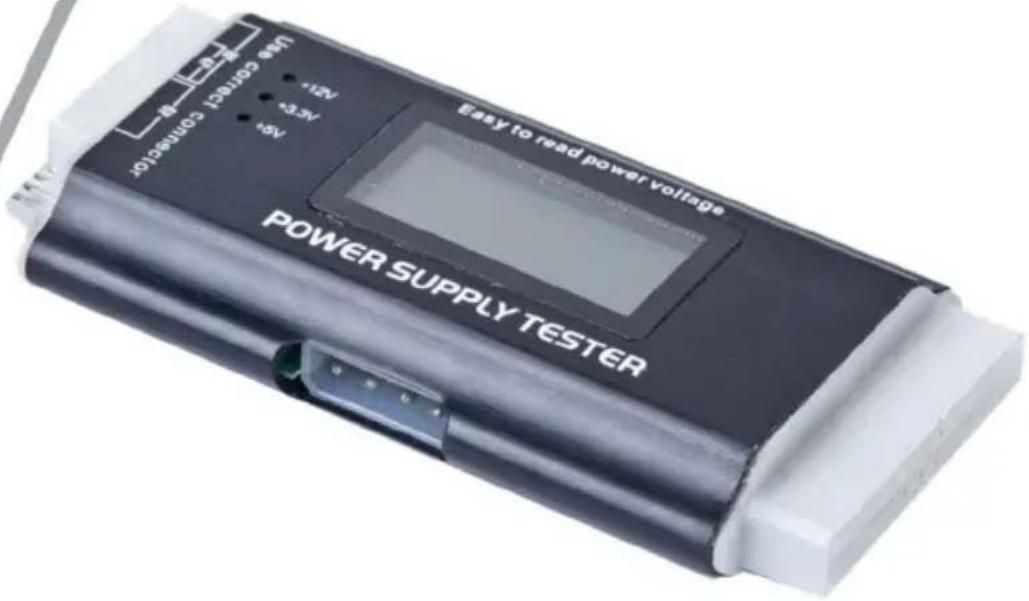

POWER SUPPLY TESTER WITH LCD SCREEN

TESTEUR D'ALIMENTATION AVEC ECRAN LCD

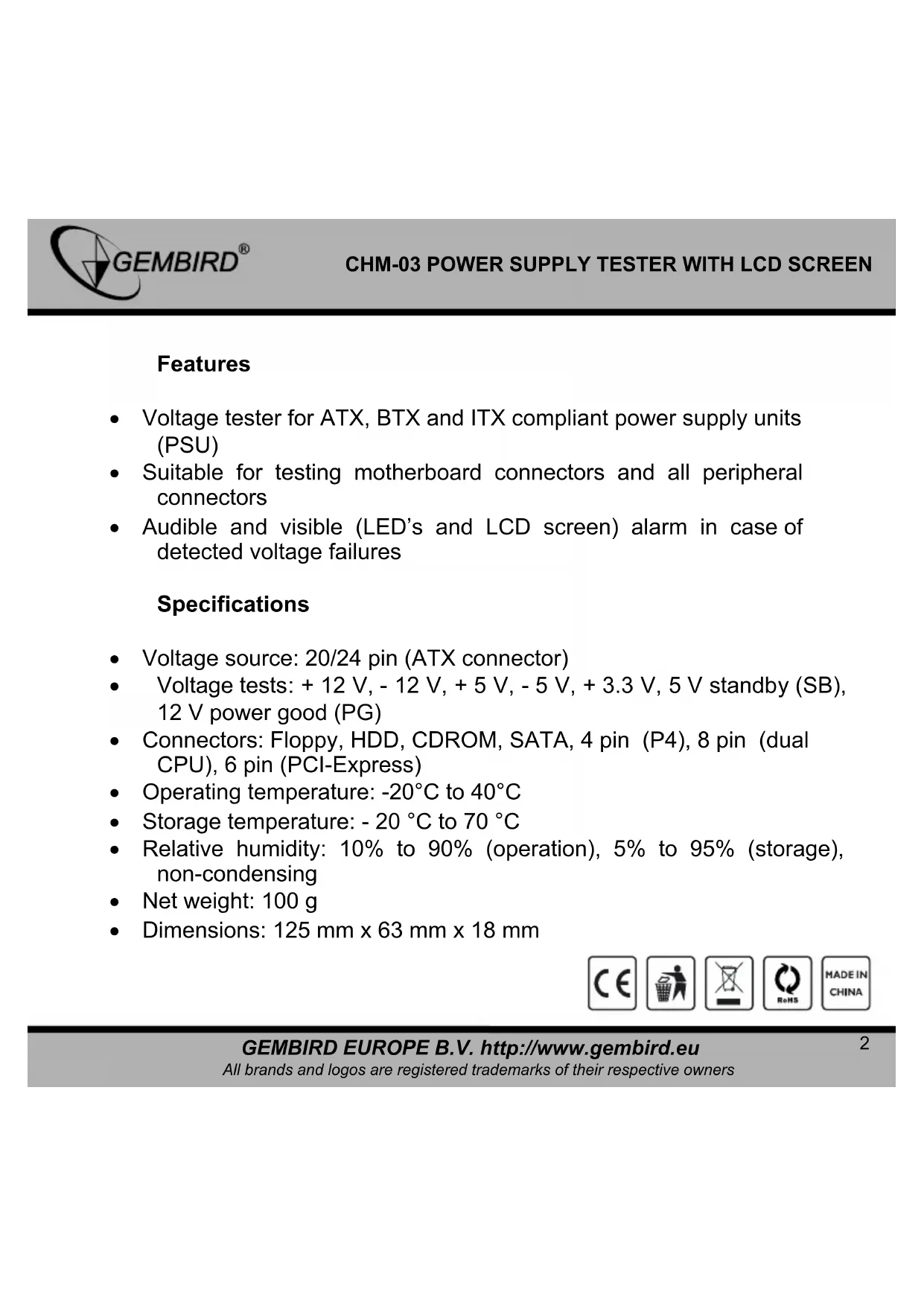

• Voltage tester for ATX, BTX and ITX compliant power supply units (PSU)
• Suitable for testing motherboard connectors and all peripheral connectors
• Audible and visible (LED's and LCD screen) alarm in case of detected voltage failures

Specifications

• Voltage source: 20/24 pin (ATX connector)
• Voltage tests: + 12 V, - 12 V, + 5 V, - 5 V, + 3.3 V, 5 V standby (SB), 12 V power good (PG)
- Connectors: Floppy, HDD, CDROM, SATA, 4 pin (P4), 8 pin (dual CPU), 6 pin (PCI-Express)
• Operating temperature: -20°C to 40°C
• Storage temperature: - 20 °C to 70 °C
- Relative humidity: 10% to 90% (operation), 5% to 95% (storage), non-condensing
• Net weight: 100 g
• Dimensions: 125 mm x 63 mm x 18 mm

CE ReHS MADE IN CHINA


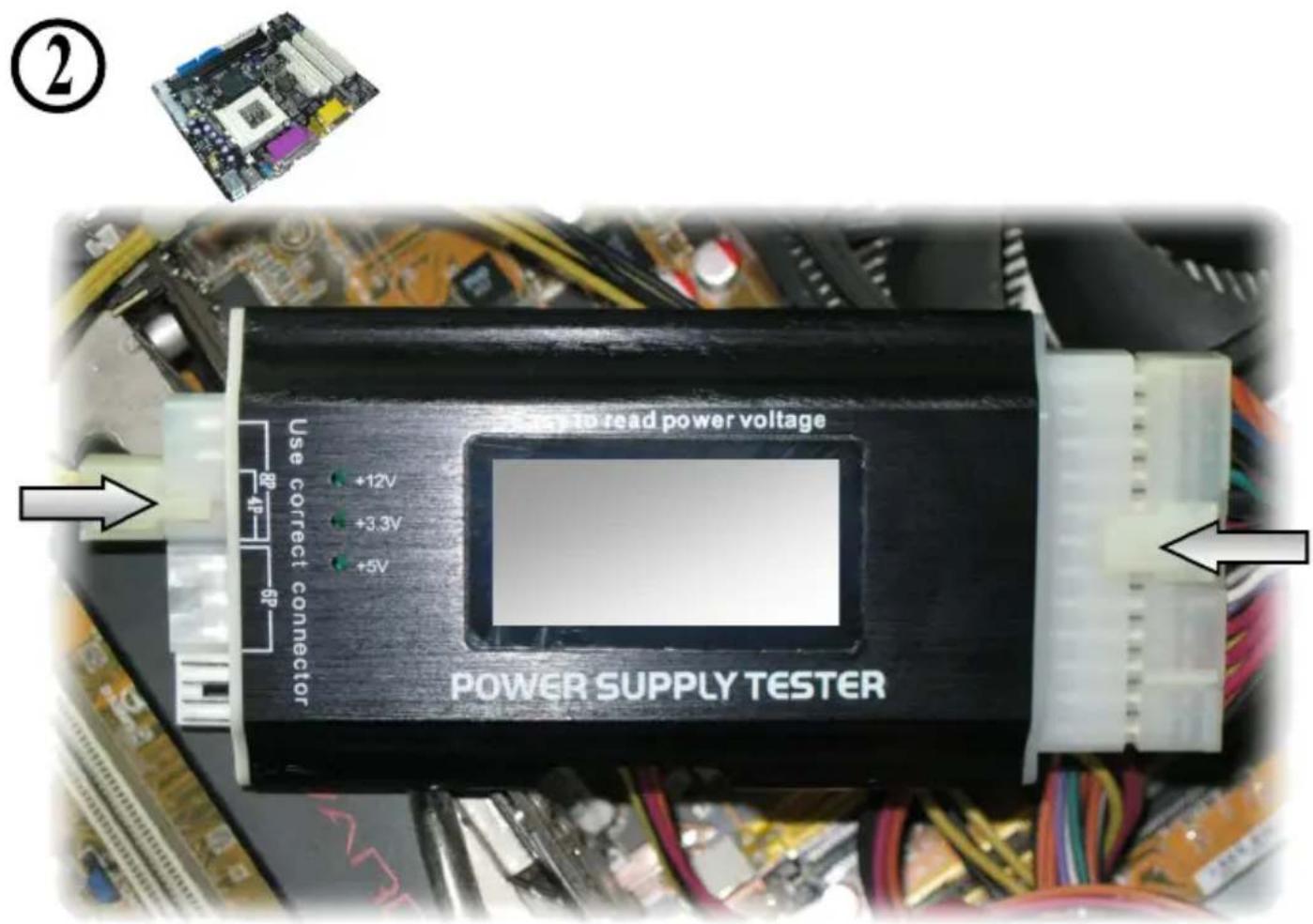

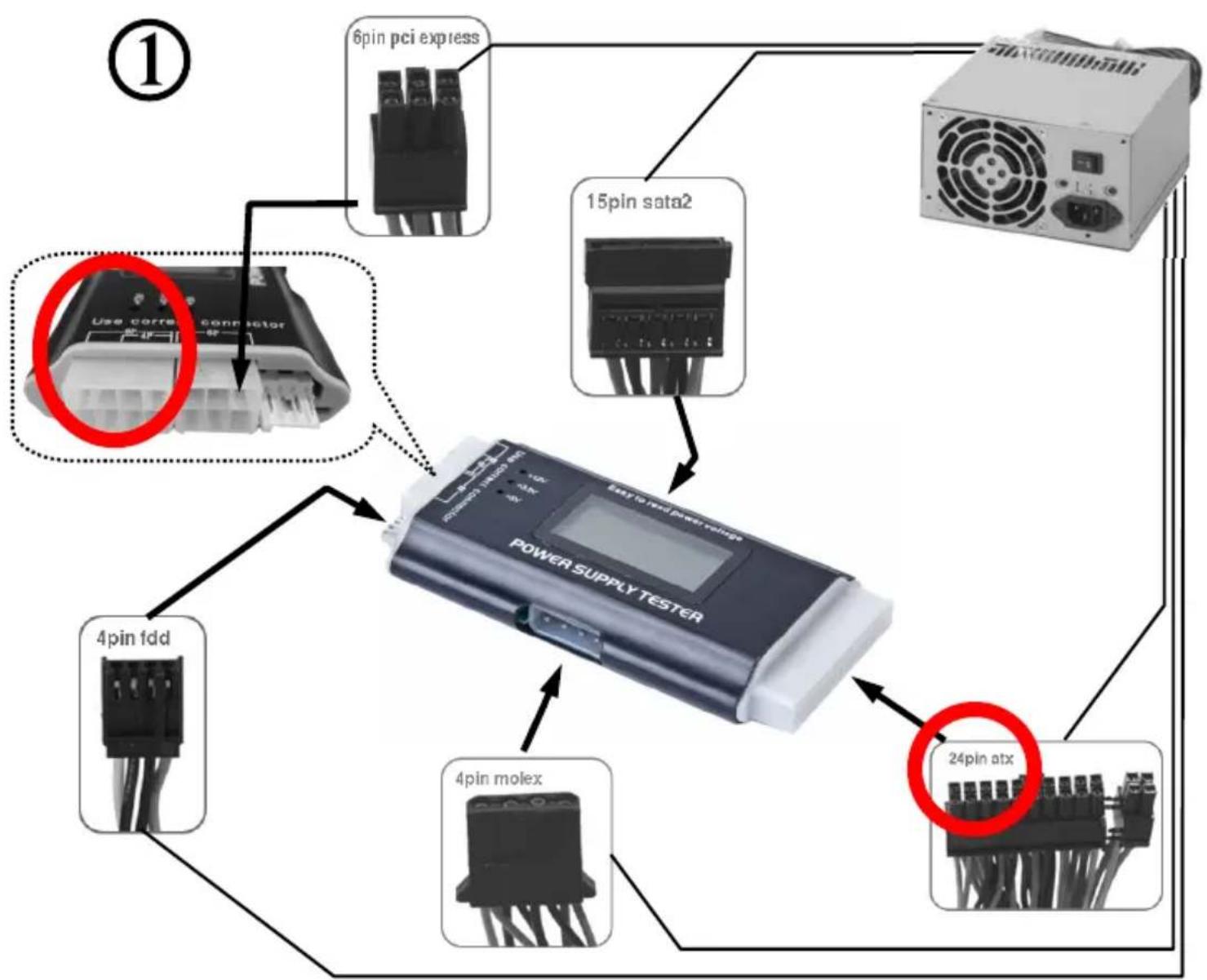

to read power voltage Use correct connector +12V +3.3V +5V POWER SUPPLY TESTER ②

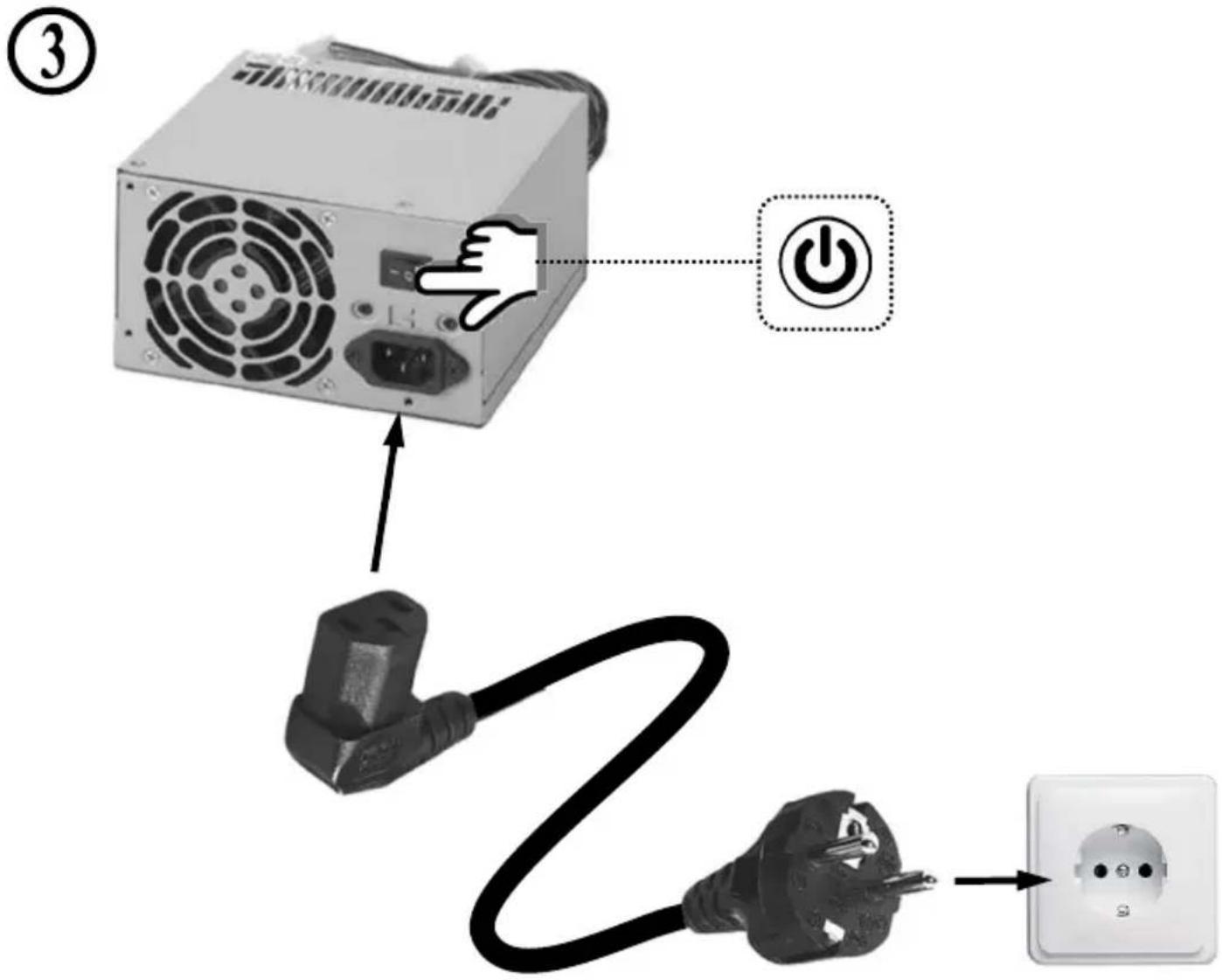

Diagram showing power connection from a computer to an electrical outlet, with labeled components and a hand pointing to the power button.

Diagram showing musical notation with three notes and a checkmark inside a circle, indicating a sequence or progression.

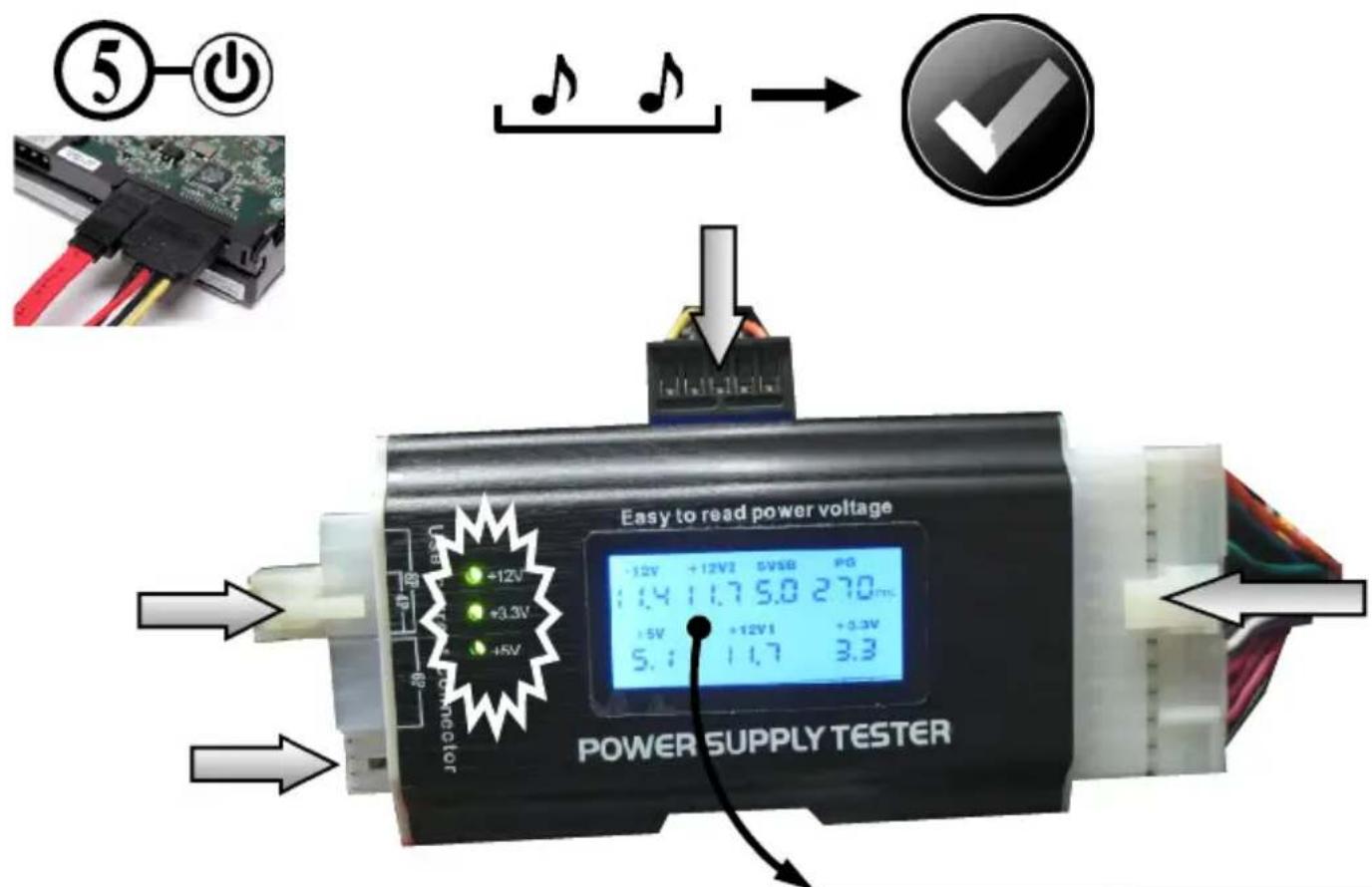

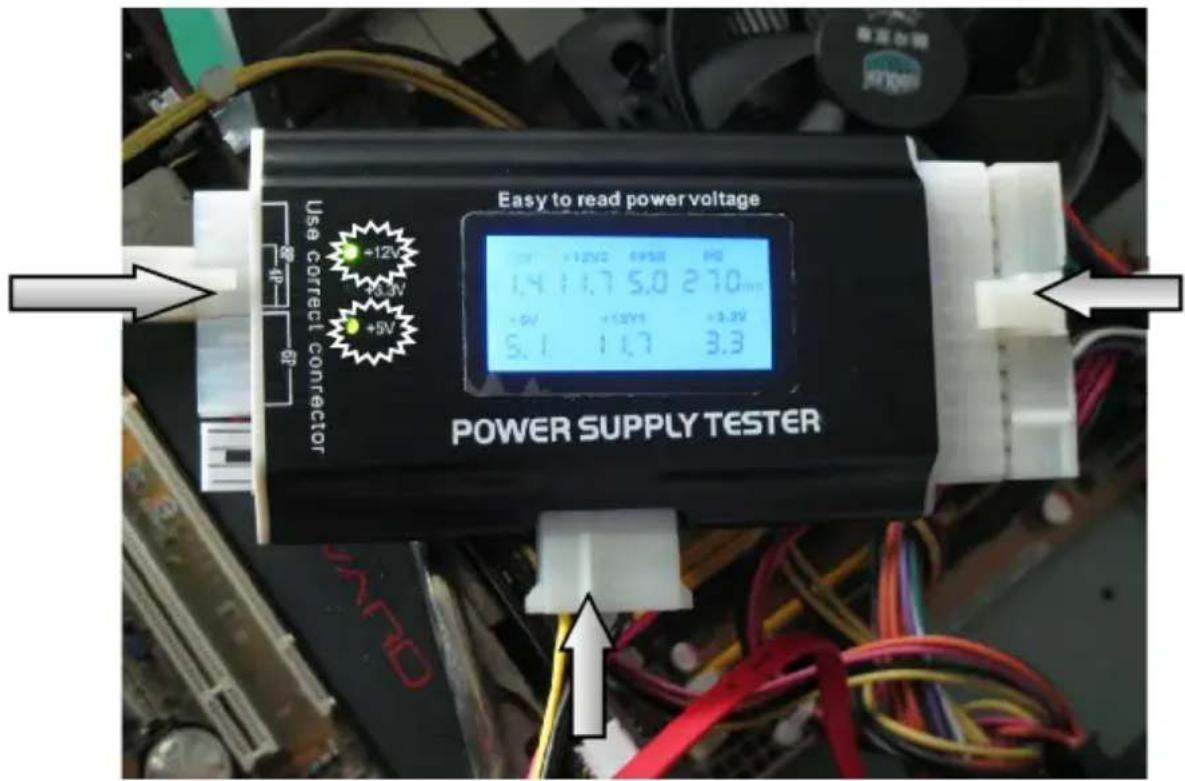

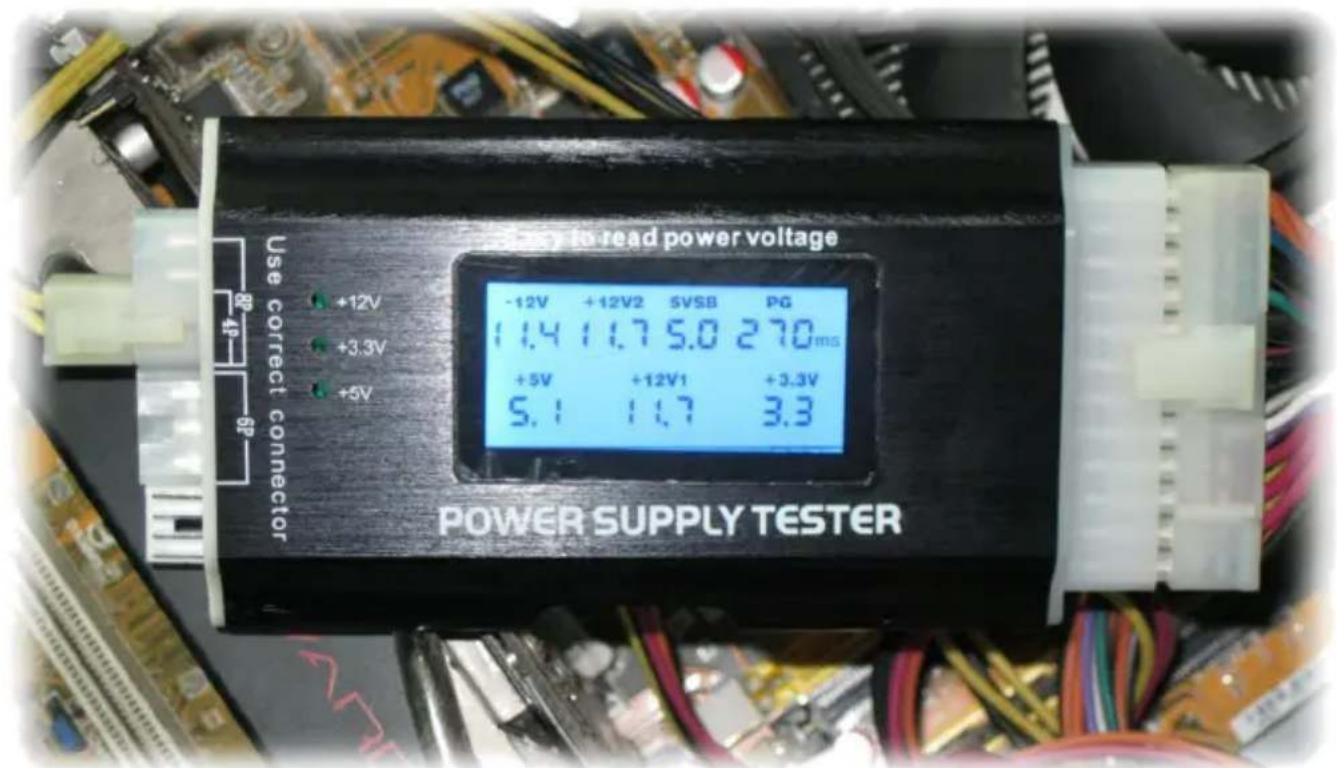

Use correct connector +12V +3.3V +5V -12V +12V2 SVSB PG 11.4 11.7 5.0 270ms +5V +12V1 +3.3V 5.1 11.7 3.3 POWER SUPPLY TESTER

⑤—○ → Easy to read power voltage +12V +12V2 5VSB PD +4 11.7 5.0 27.0 +5V +12V1 +0.3V 5. : 11.7 3.3 POWER SUPPLY TESTER

Test voltage	Normal output range
+12V +5V,+3.3V,5VSB	-5% ... +5%
-12V,-5V	-10% ... +10%
PG	200 ... 500 ms

Use correct connector +12V +3.3V +5V Easy to read power voltage POWER SUPPLY TESTER

Close-up of a hand holding a white connector with multiple colored wires, next to a computer monitor (no visible text or symbols)

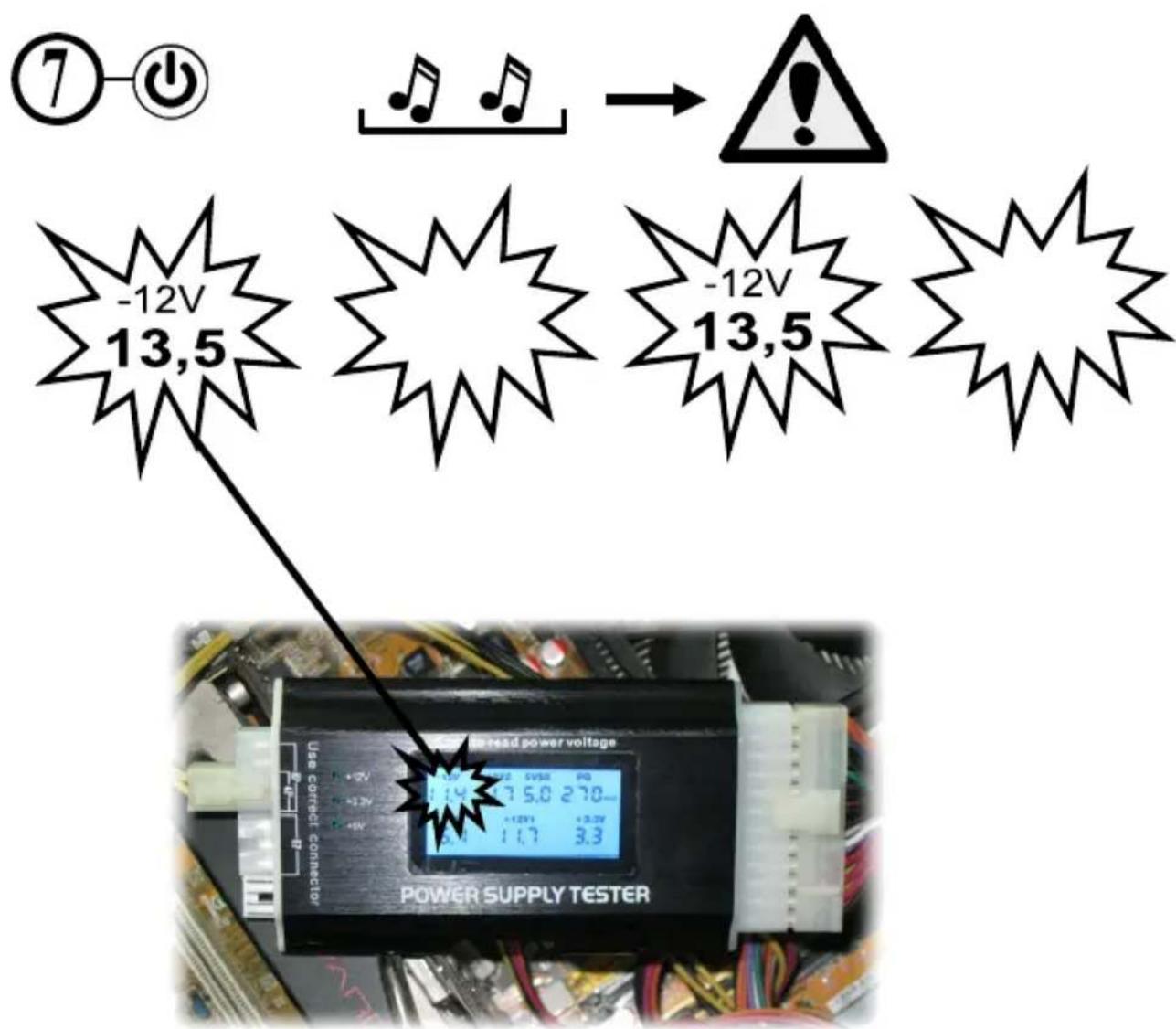

⑦-① -12V 13,5 -12V 13,5 Use correct connector Power supply tester +2V +2.2V +5V +1.4V +7.5V +5.0V +2.7V +1.2V +1.7V +3.2V +3.3V +1.7V +3.3V

Black circular icon with an exclamation mark symbol (no text or numbers)

Simple line drawing of a hand washing hands with water droplets falling (no text or symbols)

Safety warning sign showing sun and illness with crossed lines indicating no injury or absence

Hand-drawn sketch of a hand using a screwdriver to adjust or repair a component (no text or symbols)

Simple line drawing of a device with a crosshair and abstract shapes, no text or symbols present.
