ASSEMBLY AND USE INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

QUALITY GUARANTIES:

• Our stroller is made according to the European standards EN 1888/2003.
• This product is guaranteed for a period as stated by the laws in force.
• All the defects and deteriorations caused by the wrong use, by the non respect of the standards of security, by the non respect of the mentioned assembly and use instructions or by modifications made on the item can't be claimed.
• The natural wear of time and the damages caused by the improper or wrong use can't be claimed.
• Scratches, wear of time, opacity or the turning yellow of the parts caused by the rubbing, by the improper use of detergents, sweat or atmospheric phenomenons cannot be considered as manufacturing defects.
• Wrong washing and not dry fabrics can create moulds and cannot be considered as manufacturing defects.

IMPORTANT!:

BEFORE USE THIS ITEM, READ CAREFULLY INSTRUCTIONS AND ASSEMBLING SEQUENCE TO AVOID USELESS DANGER TO YOUR BABY!

THROW AWAY AND KEEP OUT OF BABY'S REACH THE POLY BAGS OF THE PACKING, THEY MIGHT BE RISKS OF SUFFOCATION!

1- After remove and thrown away poly- bags and packing, open the stroller and at the same time unlock the two levers on the handlebars (Pic. 1); pull upwards opening the stroller completely and check it's correctly locked (Pic. 2).

2- Verify that the rotation system lock is unlocked (Pic. 3). Insert front wheels (Pic. 4) pressing until it CLICKS into place. Front wheels are swivel; to lock them, lift the lever.

3- Insert the rear wheels, keeping the brakes outwards (Pic. 5) pressing until it CLICKS. Insert the brakes lead into the special slot (Pic. 6a - Pic. 6b). Thanks to the system of “one touch-two brakes”, to set the brakes, press on one of the two levers (Pic. 7). To release the brakes, lift the lever. ALWAYS SET THE BRAKES WHEN THE STROLLER IS NOT MOVING AND ON NOT PLANE SURFACES!

4- To fix the seat, insert hinges into holes, pressing buttons; push well till the end (Pic. 8). Put the regulators of position into theirs leads (Pic. 9). Place the sit, fix the padding sides to the armrests (Pic. 10a - Pic. 10b). Fix the lateral buttons of the backrest (Pic. 11). To install the footrest, insert it into the two hinges of regulation (Pic. 12). Fasten the buttons of the seat at the frame (Pic. 13) and put the crotch belt into its hole (Pic. 14).

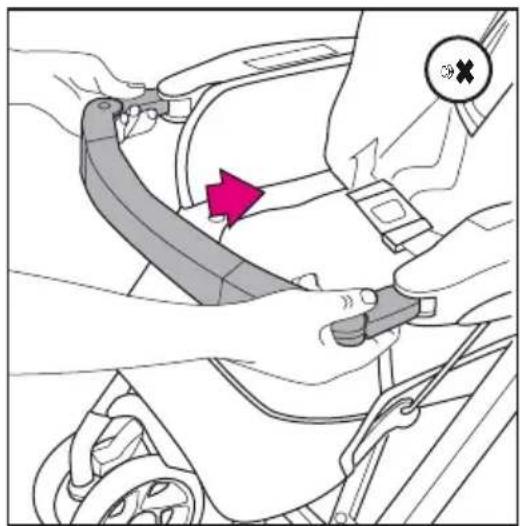

5- To fix the safety front bar, remove the safety-caps (Pic. 15) from both armrest. ATTENTION: WHEN YOU HAVE REMOVED THE CAPS, PLEASE KEEP THEM OUT OF BABY'S REACH! RISKS OF SUFFOCATION! Insert the front bar in the both parts (Pic. 16), press the pin until the end (Pic. 17).

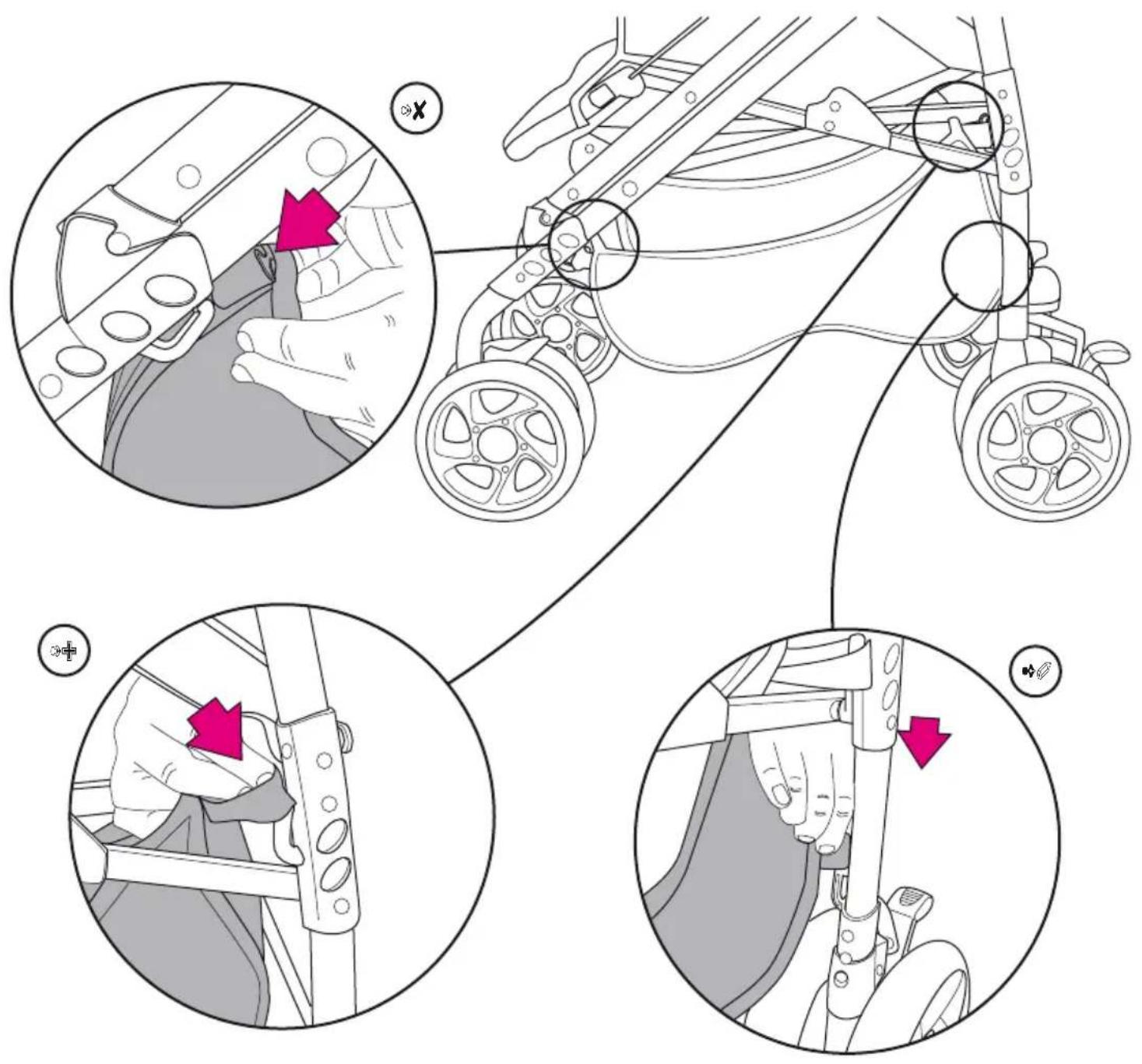

6- Our stroller has a basket. Insert first the front holes into the hooks (Pic. 18) and then the rear ones (Pic. 19 Pic. 20). Repeat this operation for both sides. ATTENTION: DO NOT LOAD WITH MORE THAN 5 KG WEIGHT.

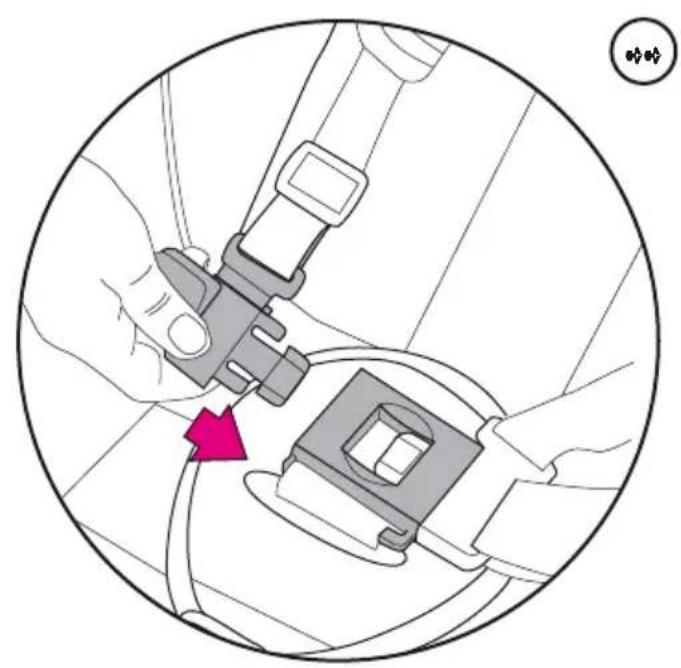

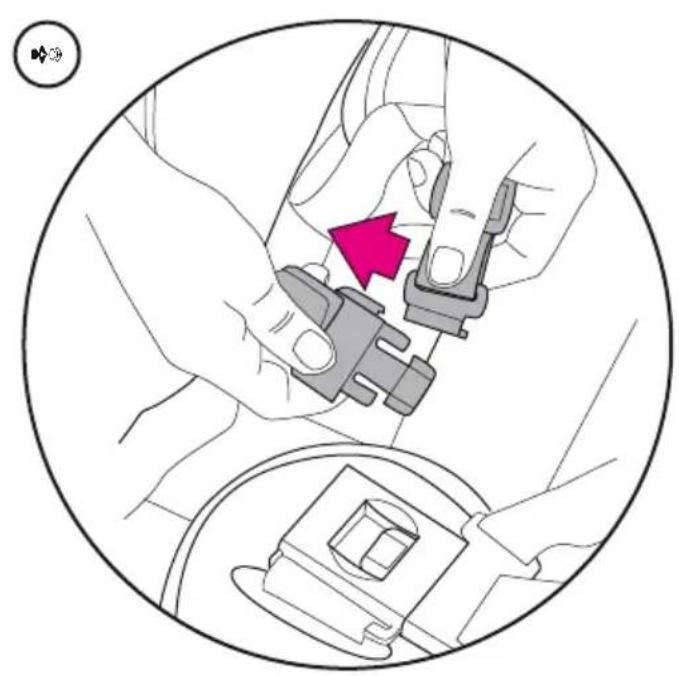

7- Insert the slide of the strap in the buckle of the belts (Pic. 21), pressing well till the end. Put the buckle into the opening (Pic. 22). Repeat these operations for the other belt. WARNING: ALWAYS USE SAFETY BELTS AND CROTCH STRAP, PROPERLY ADJUSTED AND FIXED!
8- To assembled the canopy, fix it into its own holes (Pic. 23). Hook it at the buttons on the frame (Pic. 24) and on the seat (Pic. 25). To lock the canopy, pushing on the plastic compass (Pic. 26). Our canopy is provided with a zip, to take a part off, using it in the more hot seasons and having more airing.

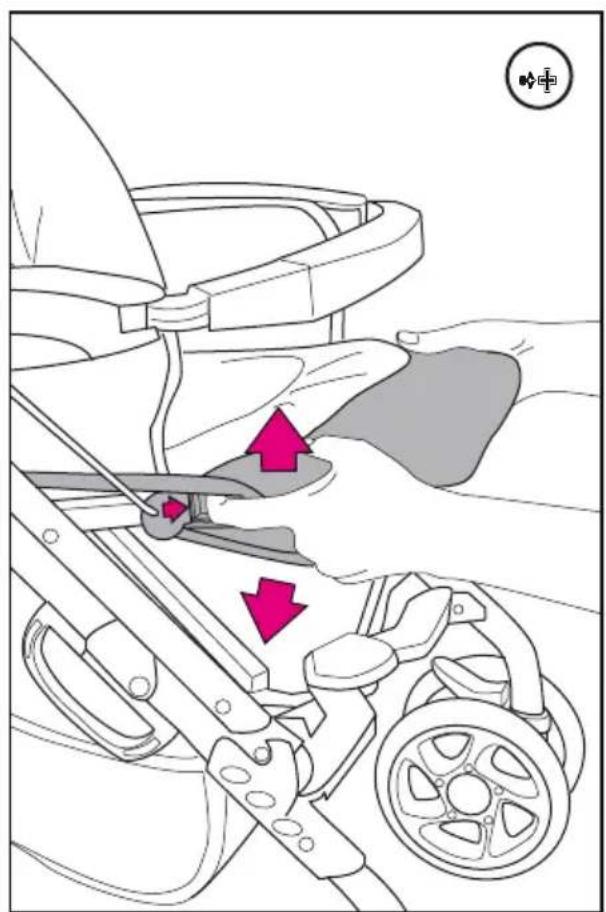

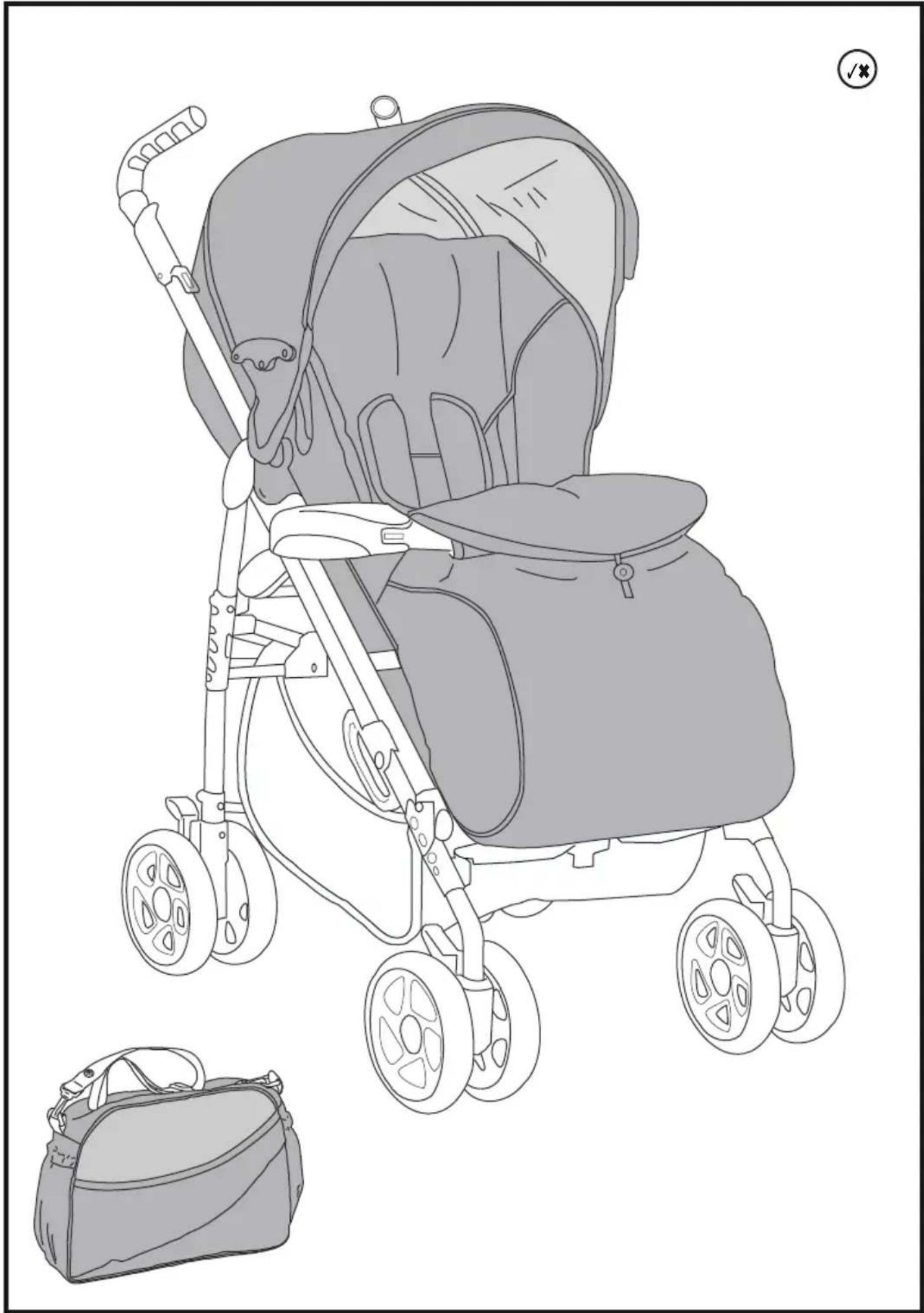

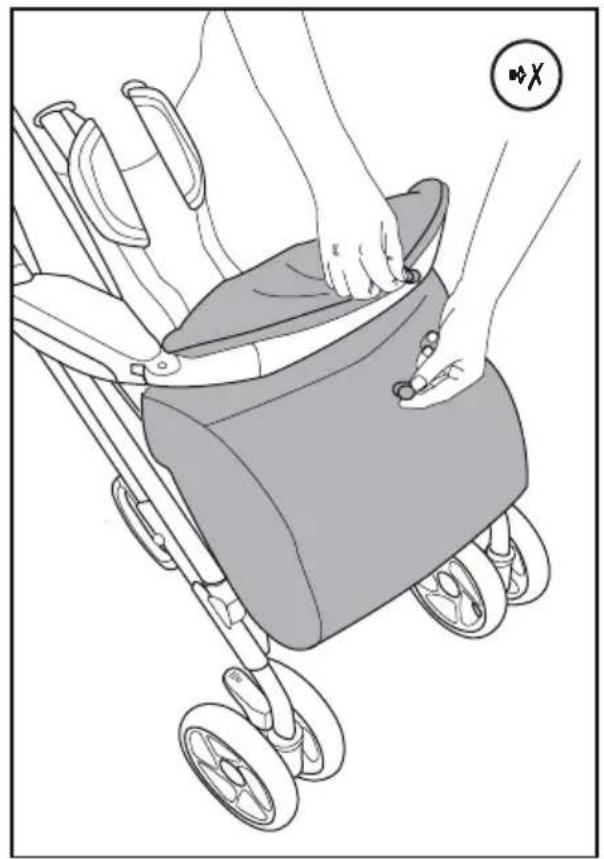

9- The stroller include a . comfortable foot-cover for cool period. Insert it under the footrest from down to up, let it pass around the front bar and insert the button in its hole (Pic. 27). Now your stroller is ready to be used (Pic. 36). Be sure it is well opened, strongly assembled and stable, check there are no broken, damaged, or missing parts.

REGULATIONS:

Seat is adjustable in 4 positions. To regulate it, pull its lever and push downwards the seat (Pic. 28) until selected position. To lift the seat up, push it up. The footrest is adjustable in 2 positions. Pull the two buttons on the supports at the same time, and push it downwards (Pic. 29).

CLOSING:

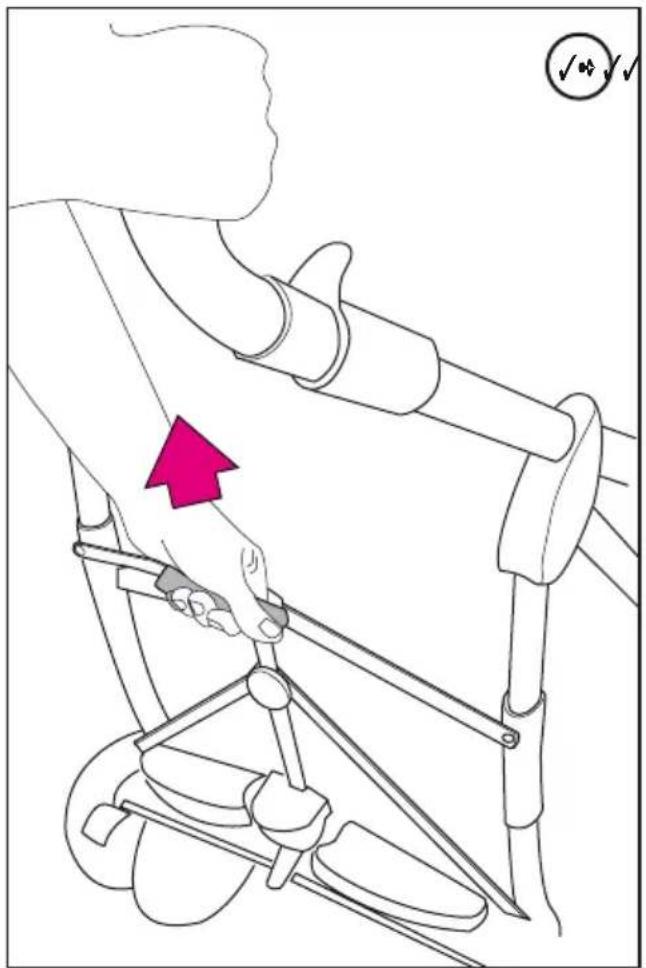

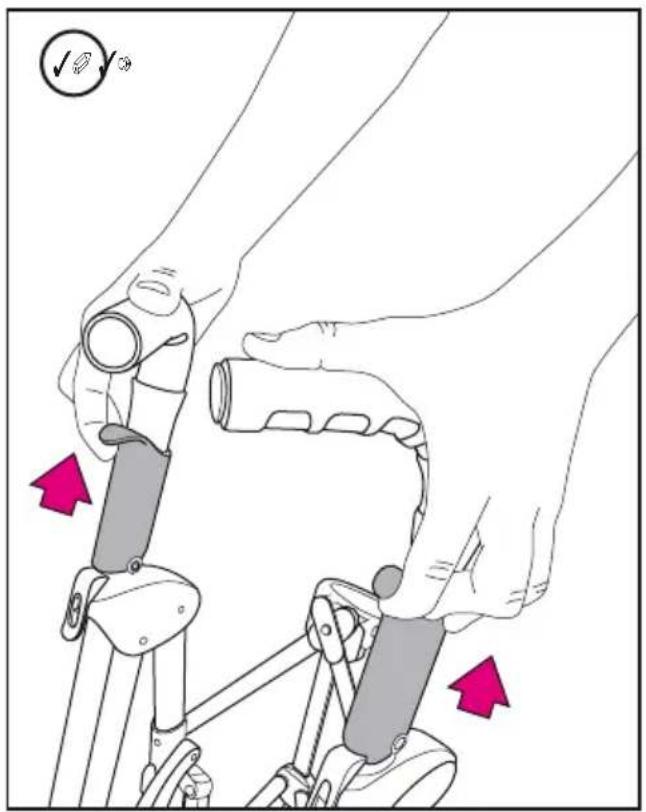

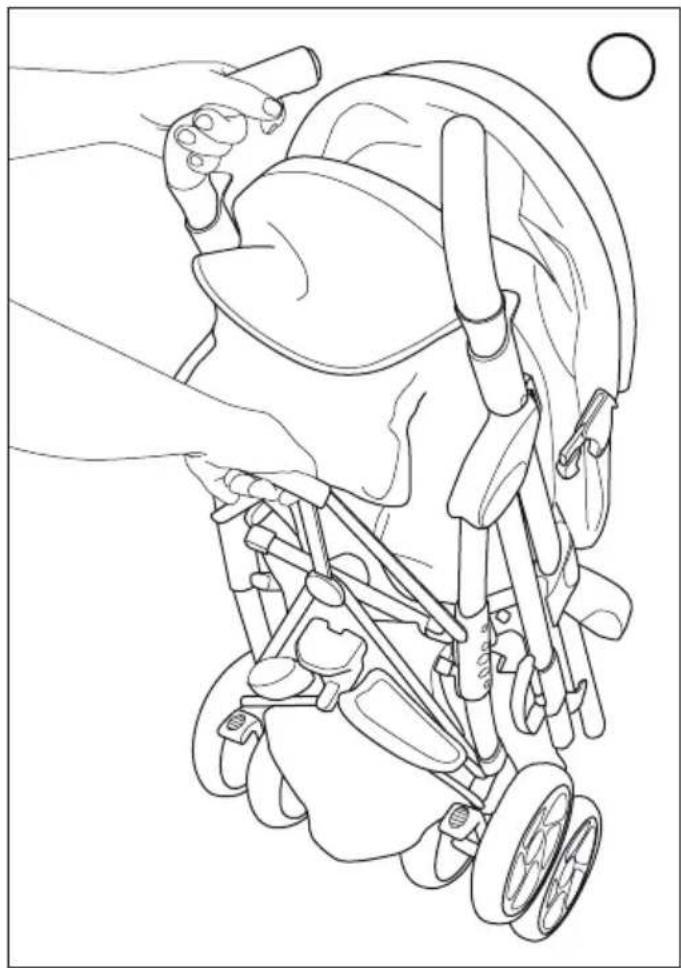

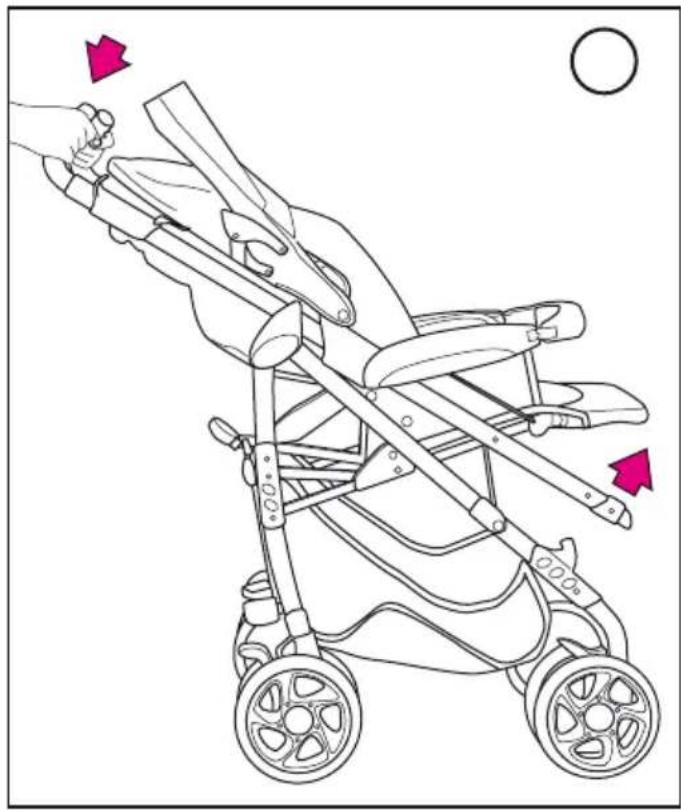

To close the stroller, unlock the levers upwards (Pic. 30) press lightly the handles downwards (Pic. 31) grip the closing handle behind the seat (Pic. 32) and pull until it is complete closed (Pic. 33). To open the stroller, read from the point 1 of the session ASSEMBLING.

WARNING:

NEVER MAKE ANY OPENING OR CLOSING OPERATIONS OF THE STROLLER IF BABIES OR OTHER OBJECTS ARE INSIDE.

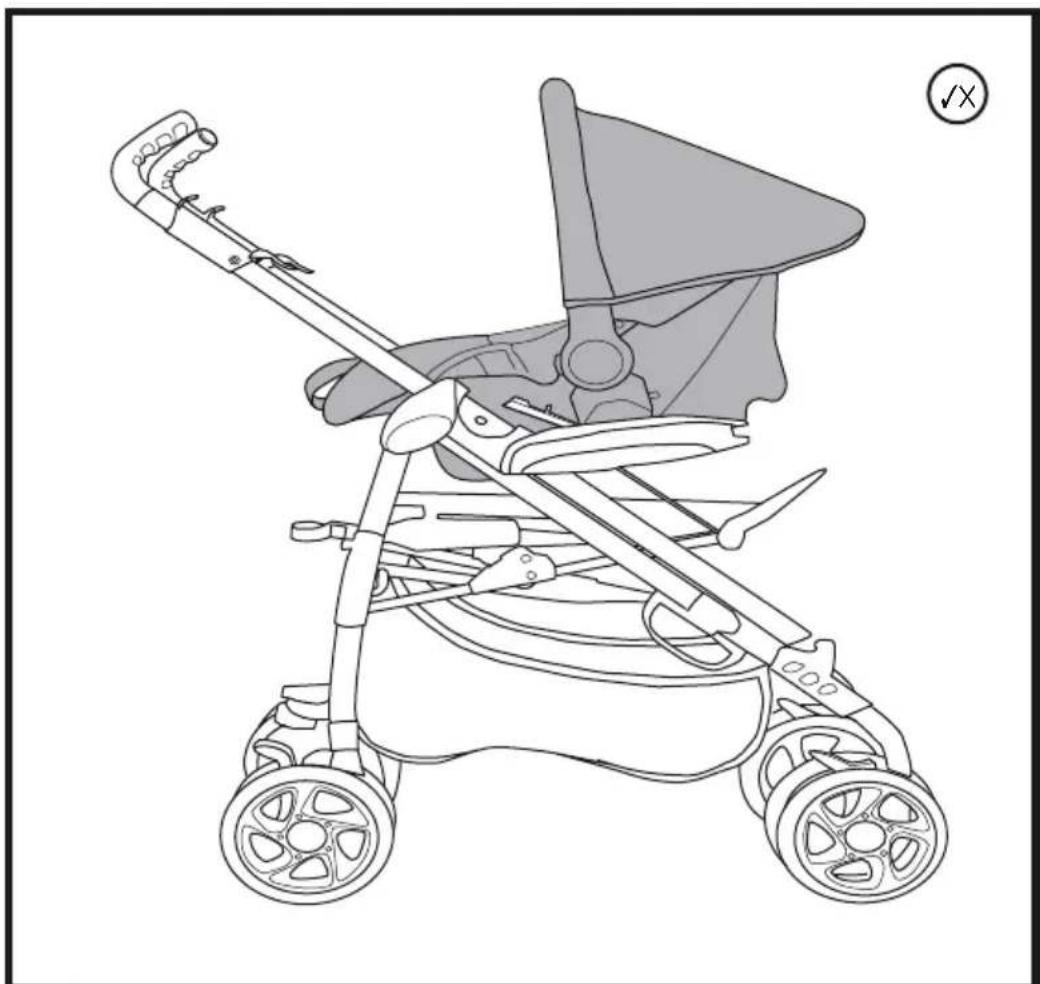

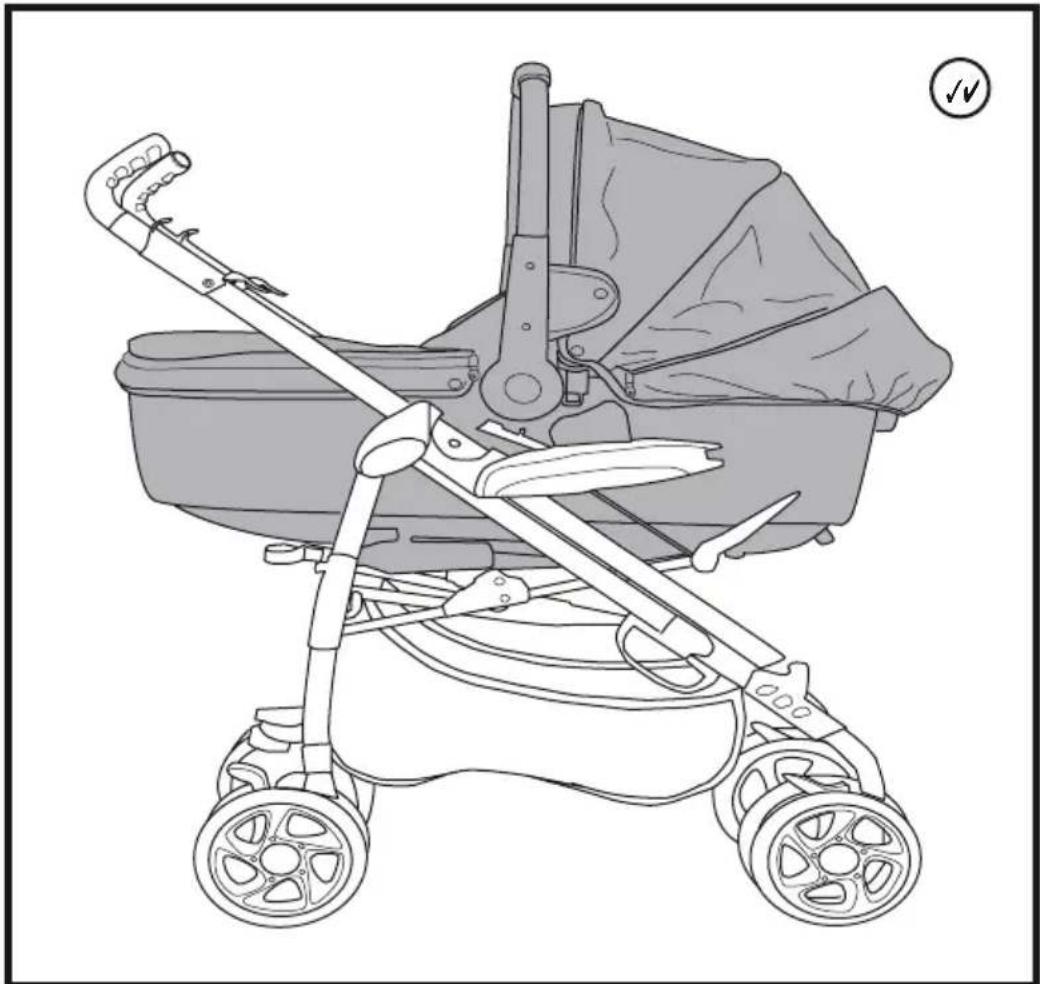

This item can be used together with our pram (Fig. 34) or with our car seat GROUP 0+, model “PRIMUS” (Fig. 35). For use, see their own instructions.

WARNINGS:

BEFORE ASSEMBLING THE STROLLER READ CAREFULLY THESE INSTRUCTIONS, KEEP THEM FOR FUTURE REFERENCE. THE NON-OBSERVANCE OF THESE WARNINGS AND USE INSTRUCTIONS COULD CAUSE SERIOUS CONSEQUENCES TO YOUR BABY'S SAFETY.

• WARNING: NEVER LEAVE YOUR CHILD UNATTENDED, WITHOUT THE SUPERVISION OF AN ADULT.
• Before using, check all locking systems correctly work and all components are not defected or damaged, in this case DO NOT USE THE STROLLER.
• ATTENTION: This stroller is studied to bring only one child by time.
• WARNING: Any weight attached on handles change stroller stability and may affect its stability and safety.
• Storage basket can load maximum weight of 5 Kgs, any overload might make it unstable.
• Throw away and keep out of baby's reach the poly-bags of the packing, they might be risks of suffocation.
• WARNING: This item is not suitable to run or skate.
• This stroller has safety belts and crotch strap. Always use them properly adjusted and fixed.
• Strollers must be used and assembled only by adults.
• Keep the stroller far from sources of heat, current-taps, ovens, fires, windows,... and any other type of danger.
• Check that the item doesn't have any loosened or improperly assembled screw, or any other elements which can injure your baby. DO NOT USE IT WITH BROKEN, DAMAGED OR MISSING COMPONENTS.
• ATTENTION: This stroller is not suitable for babies under 6 months.
• Use the stroller for children over 6 months age and to 15Kgs. maximum.
• ALWAYS LOCK WHEELS WHEN MAKE ANY STOPS!
• NEVER LEAVE THE BABY INSIDE STROLLER ON TILTED OR STEEP SURFACES, even if wheels are locked.
• Take babies far away from stroller.
• Do not make any modification that could affect the safety of the item.
• WARNING: Do not make any opening or closing operation of the stroller with baby or any object inside. Keep the baby away when you open or close the item.
• If the raincover is fitted, never leave the stroller with baby inside under the sun to prevent risk of overheating.
• The front bar is not studied to support the weight of a child and neither to let sit on an adult.
• The front bar is not planed to substitute the safety belts.
• For the care of the stroller see “CARE AND MAINTENANCE OF THE PRODUCT”.

CARE AND MAINTENANCE OF THE PRODUCT

• You can not take cover away on this stroller.
• Use dish-clothes with warm water and neutral detergents to clean the fabrics and the plastic parts.
• Do not use solvents. Do not bleach. Dry perfectly the item before using it or putting it away.
• Dry very well all the iron parts to avoid the rust.
• Keep the stroller in dry place and away from sun to avoid damages or changes on materials.
• Use only spare parts approved and supplied by the manufacturer.
