USER MANUAL Small The Bastard
MANUAL & STARTERS GUIDE
SMALL & COMPACT EDITION
Designed by The Bastard in The Netherlands
DE GARANTIE


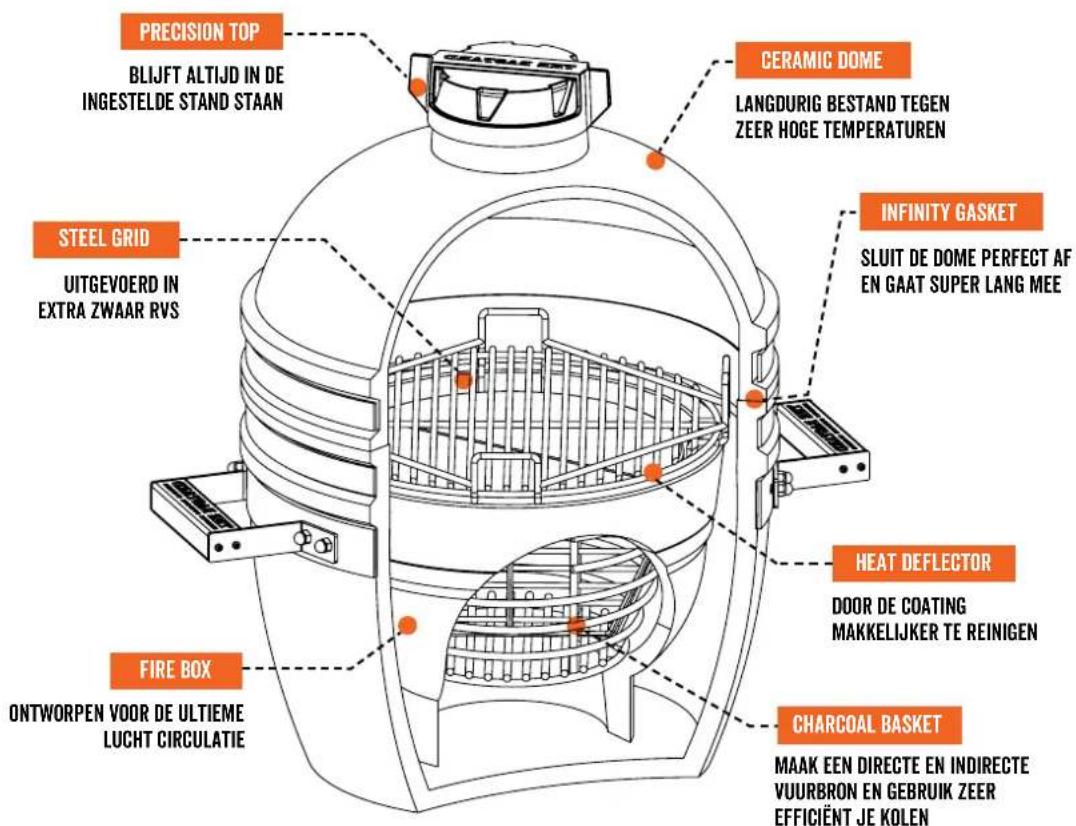

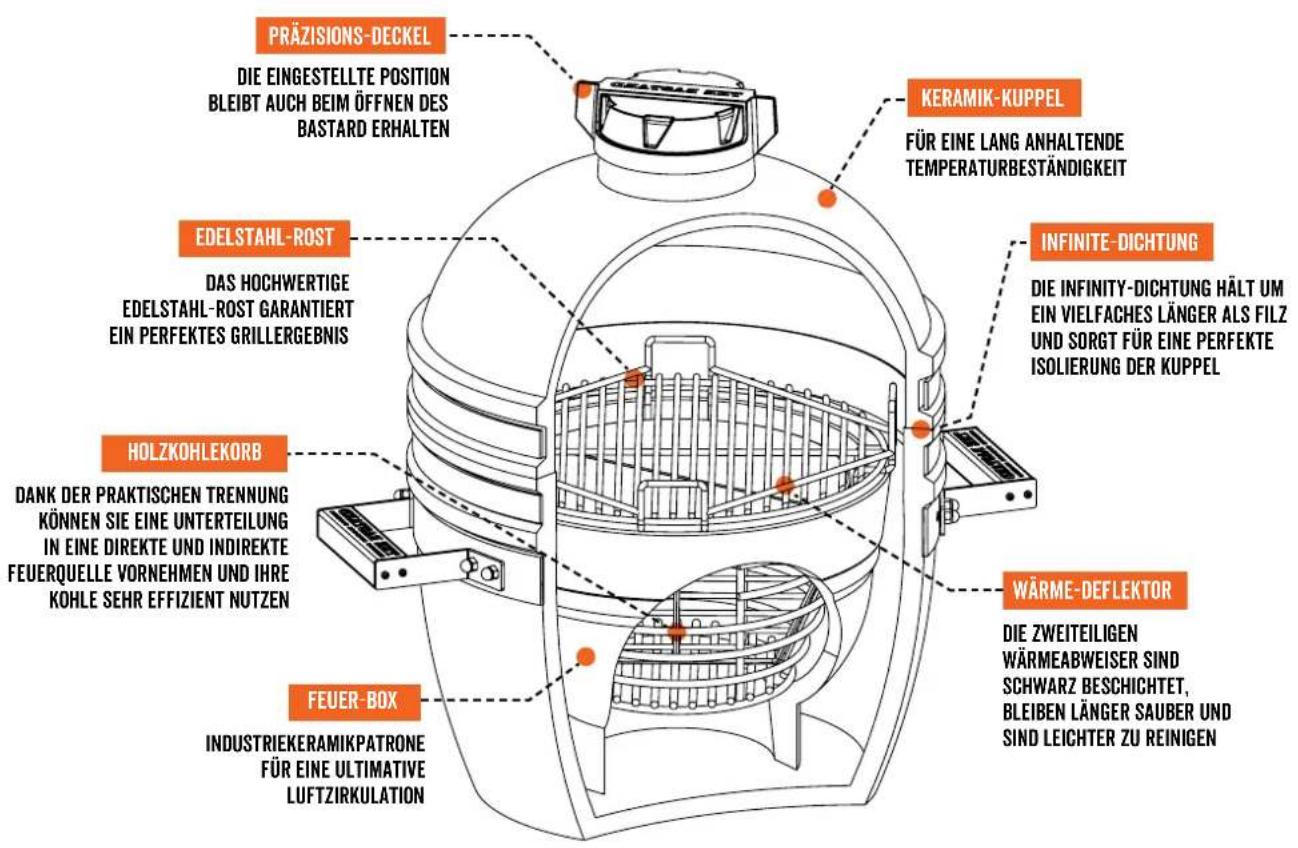

THE BASTARD WHAT'S IN THE BOX?

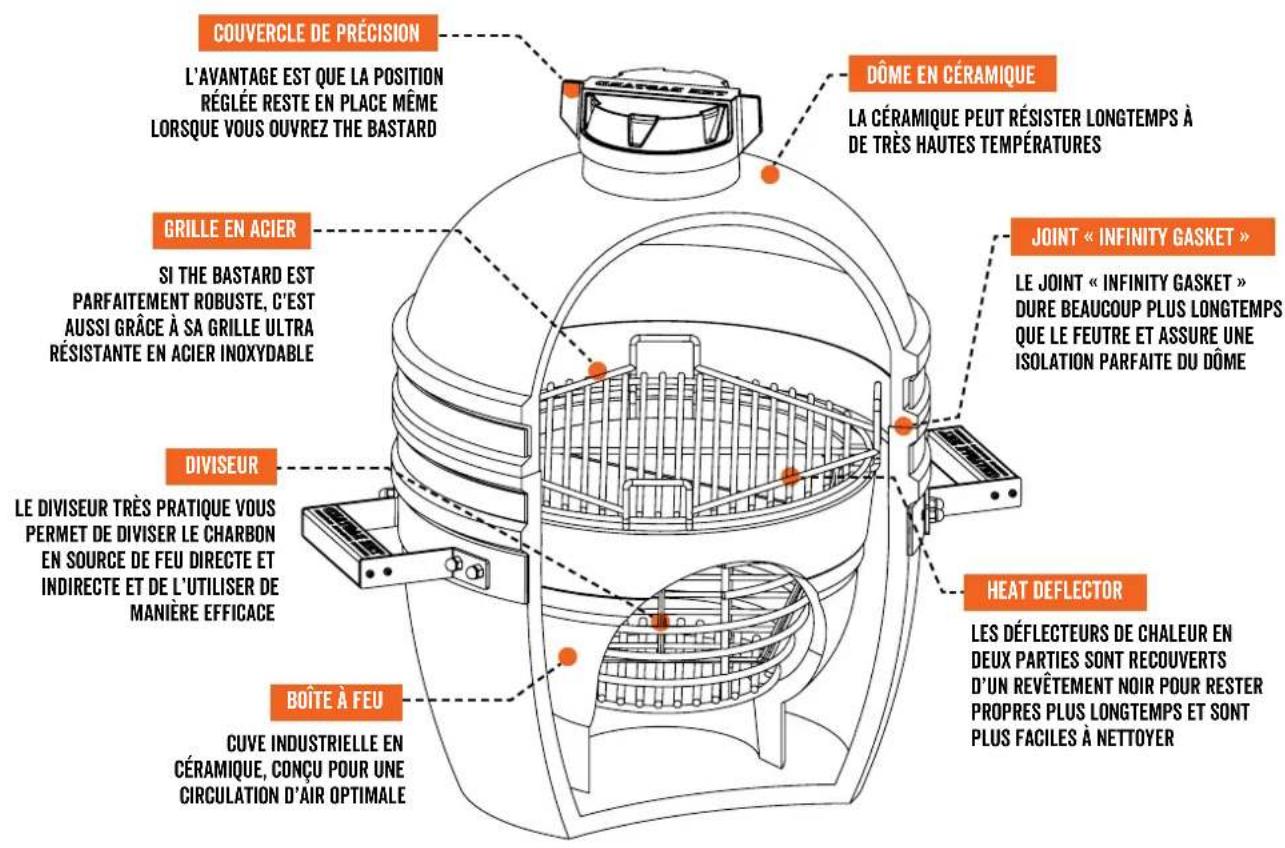

THE BASTARD ONDERDELENLIJST

NB: THE BASTARD SMALL INCLUDES 1X FULL MOON COATED PLATE SETTER
THE BASTARD
KLAAR MAKEN VOOR GEBRUIK
ERIN TILLEN
THE BASTARD VULLEN
EINDELIJK IS HET ZOVER.
THE BASTARD
ENDLESS
POSSIBILITIES
2
GRILL SEARING-HOT MET EEN HALVE MAAN GRID, MET DAARNAAST EEN INDIRECTE ZONE MET DE GRILL VERHOGER BOVEN DE HEAT DEFLECTOR
3
DE WOK\*
DE PLATESETTER OP Z'N KOP WERKT PERFECT IN COMBINATIE MET EEN WOK.
PLANKING SALMON
SERVES 4 | 160 °C, INDIRECT.
SERVES 4 | 120 °C, INDIRECT.
THE BASTARD
MUST HAVES
THERE ARE TWO THINGS YOU REALLY SHOULD KNOW ABOUT US.
One, we are Dutch and two, we are obsessed with outdoor cooking. The Bastard was born out of love for Dutch Design, meaning we strive to supply only the best materials. Now is the time for you to create the ultimate BBQ moments!
Designed by The Bastard in The Netherlands
THE GAURANTEE
Register your warranty with unique serial number under the hinge cover at https://registration.thebastard.com. In addition, subscribe to the newsletter here and receive weekly recipes and stay informed about the best events.


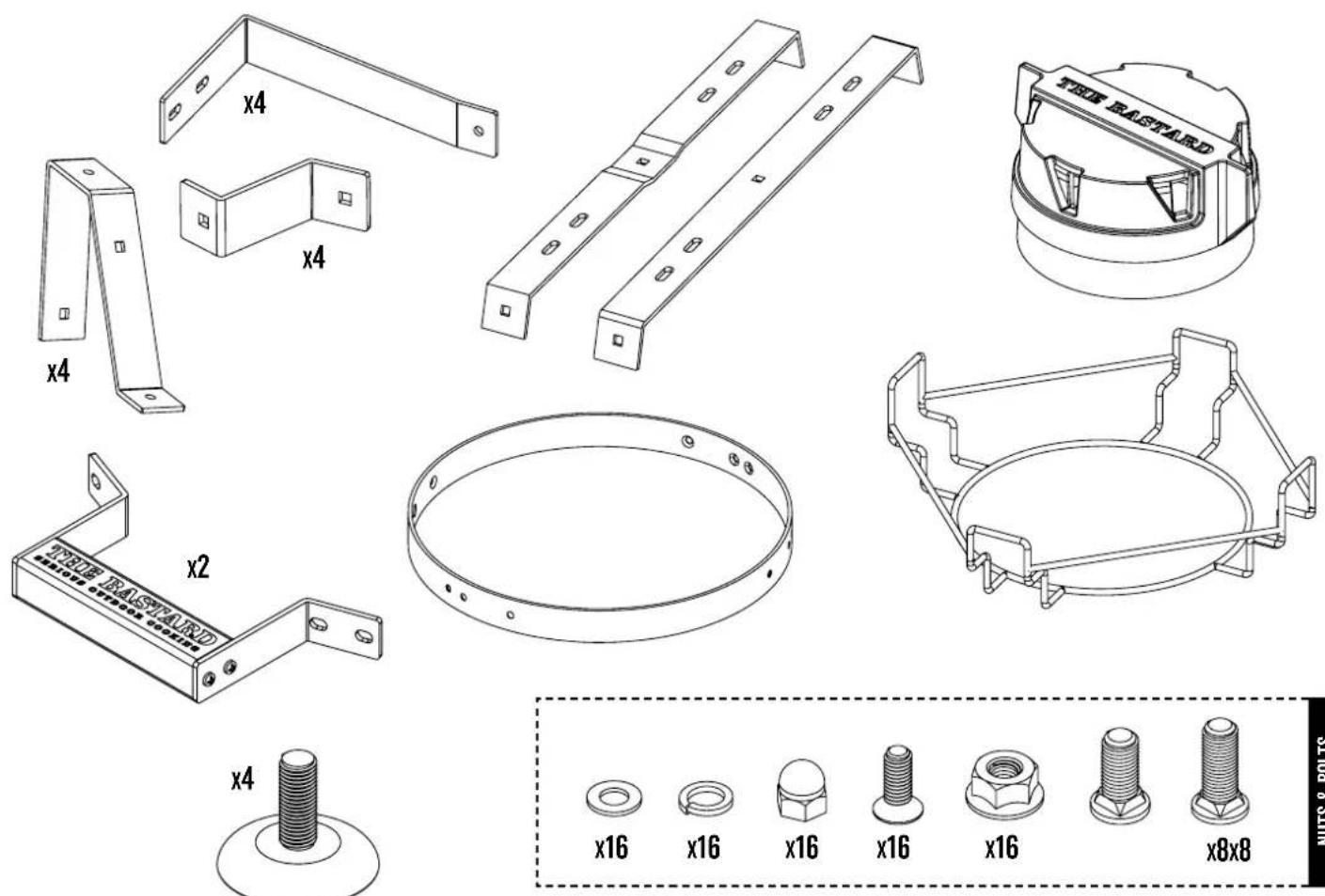

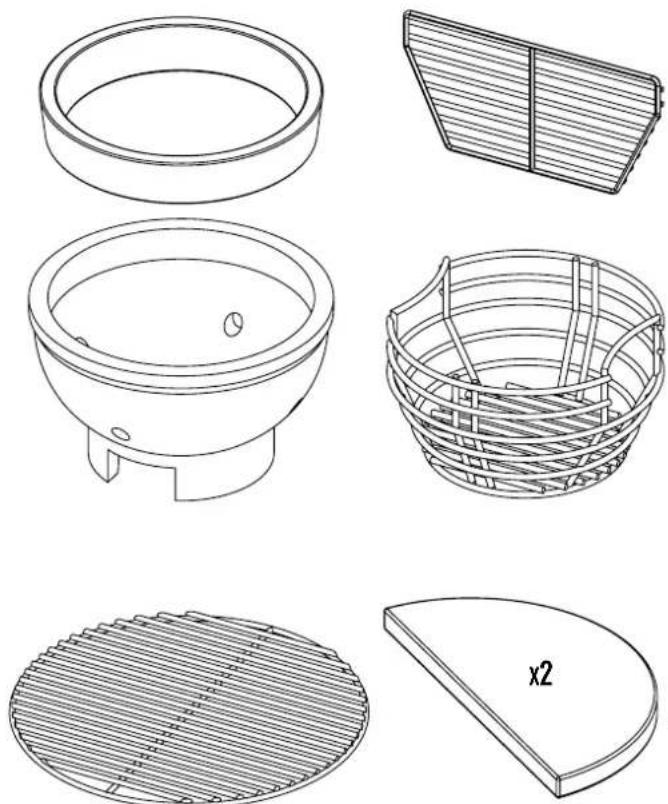

THE BASTARD WHAT'S IN THE BOX?
PREPARING THE BASTARD FOR USE.

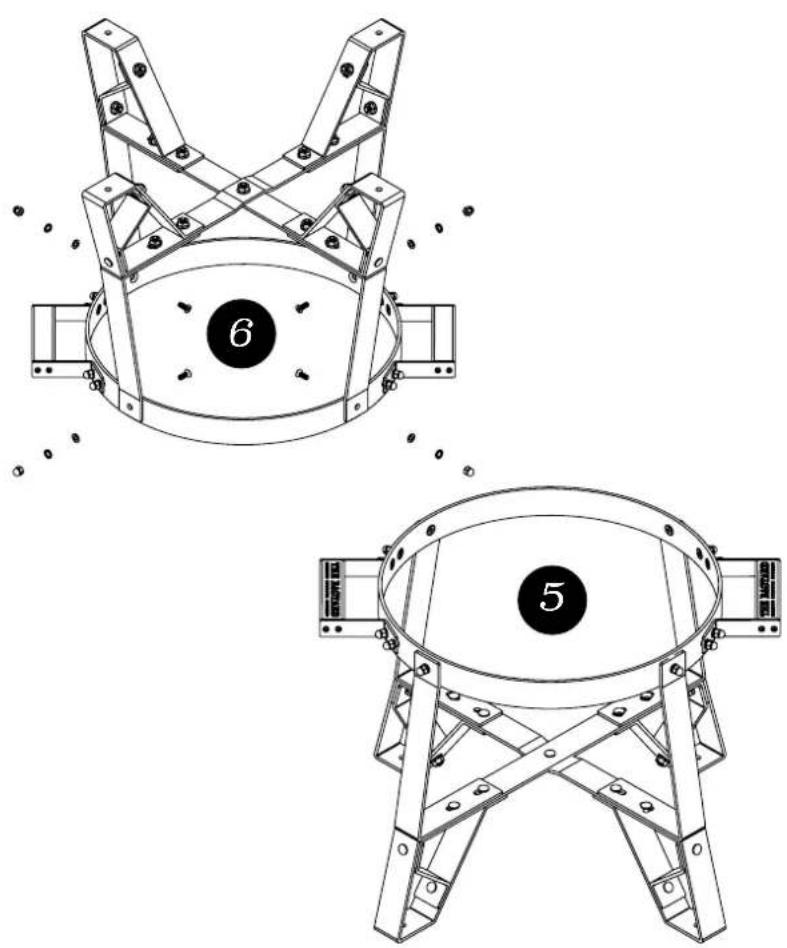

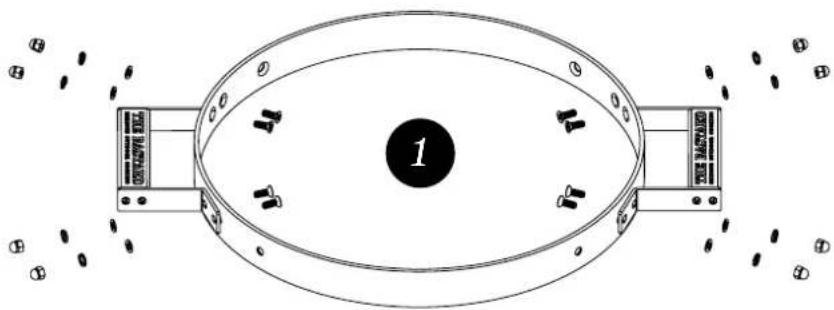

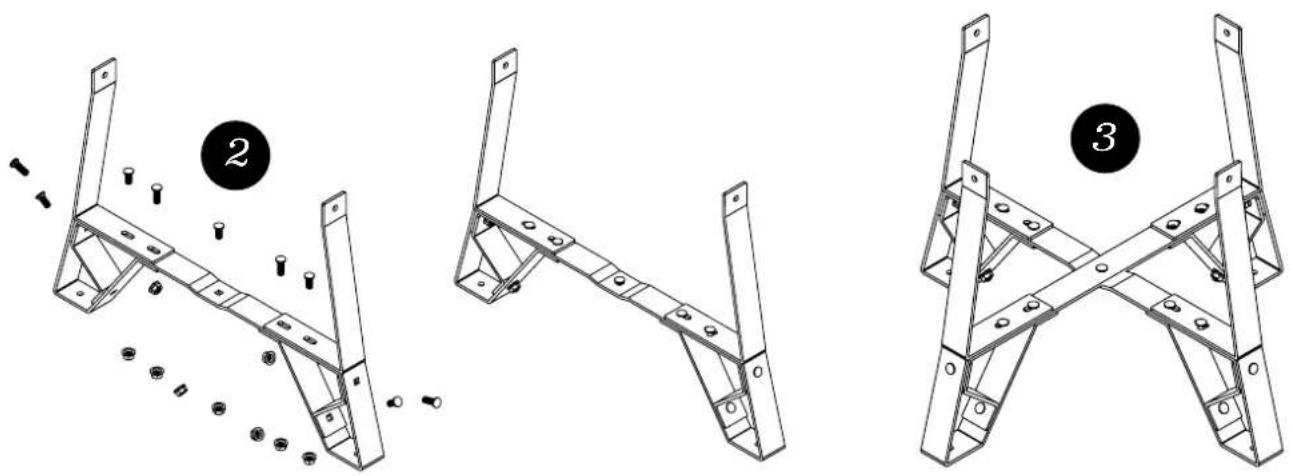

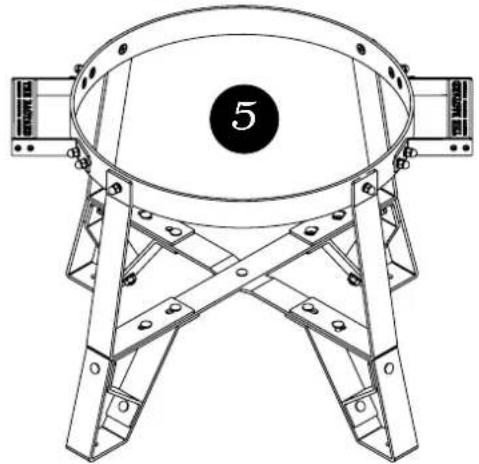

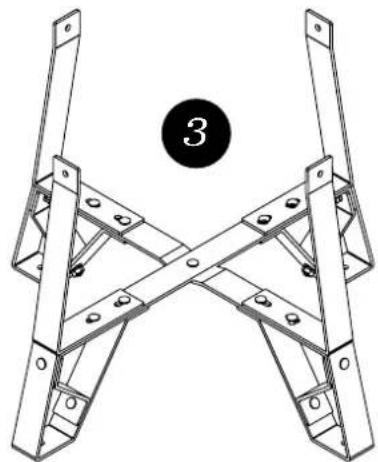

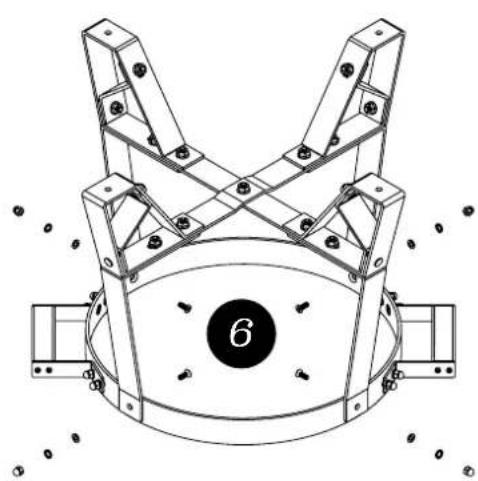

Step 1: Assembling the base
Step 2: Placing the Bastard in the base
Step 3: Filling the Bastard

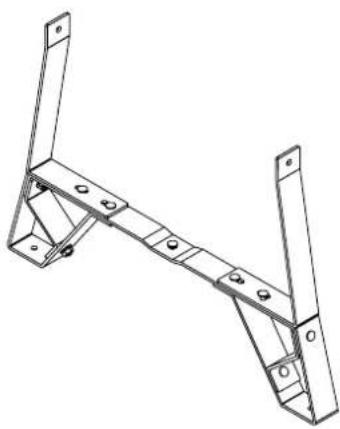

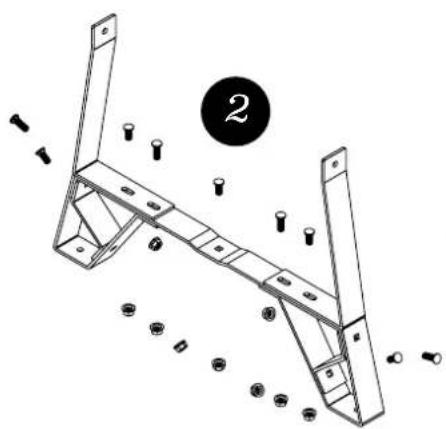

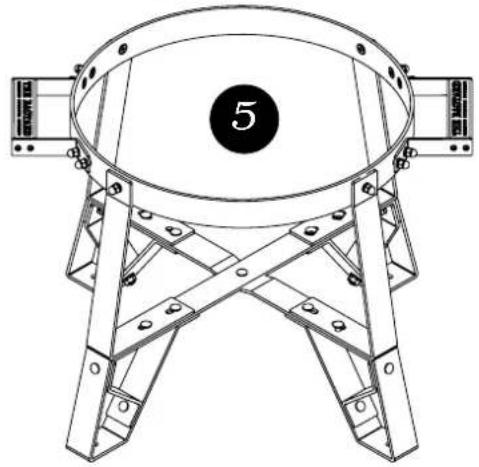

THE BASE


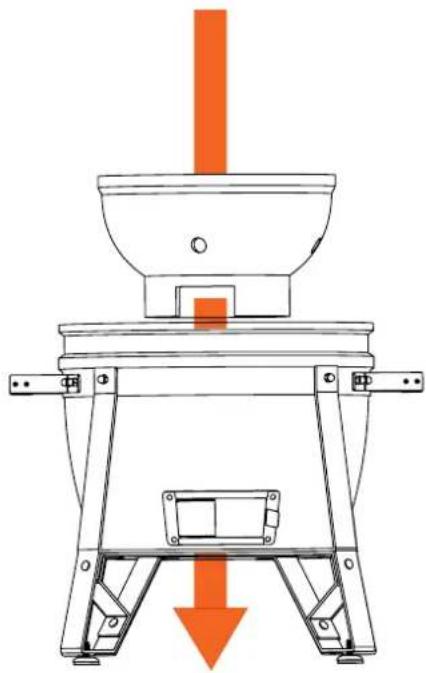

PART TWO
Once the base has been assembled, you can lift The Bastard into it.
- Remove the Fire Ring, Fire Box, and any other packing materials.
- Please note! The heavy weight of The Bastard makes it difficult to adjust.
- Make sure the Fire Box opening is facing the air inlet (to the front) (image or photo for clarification)


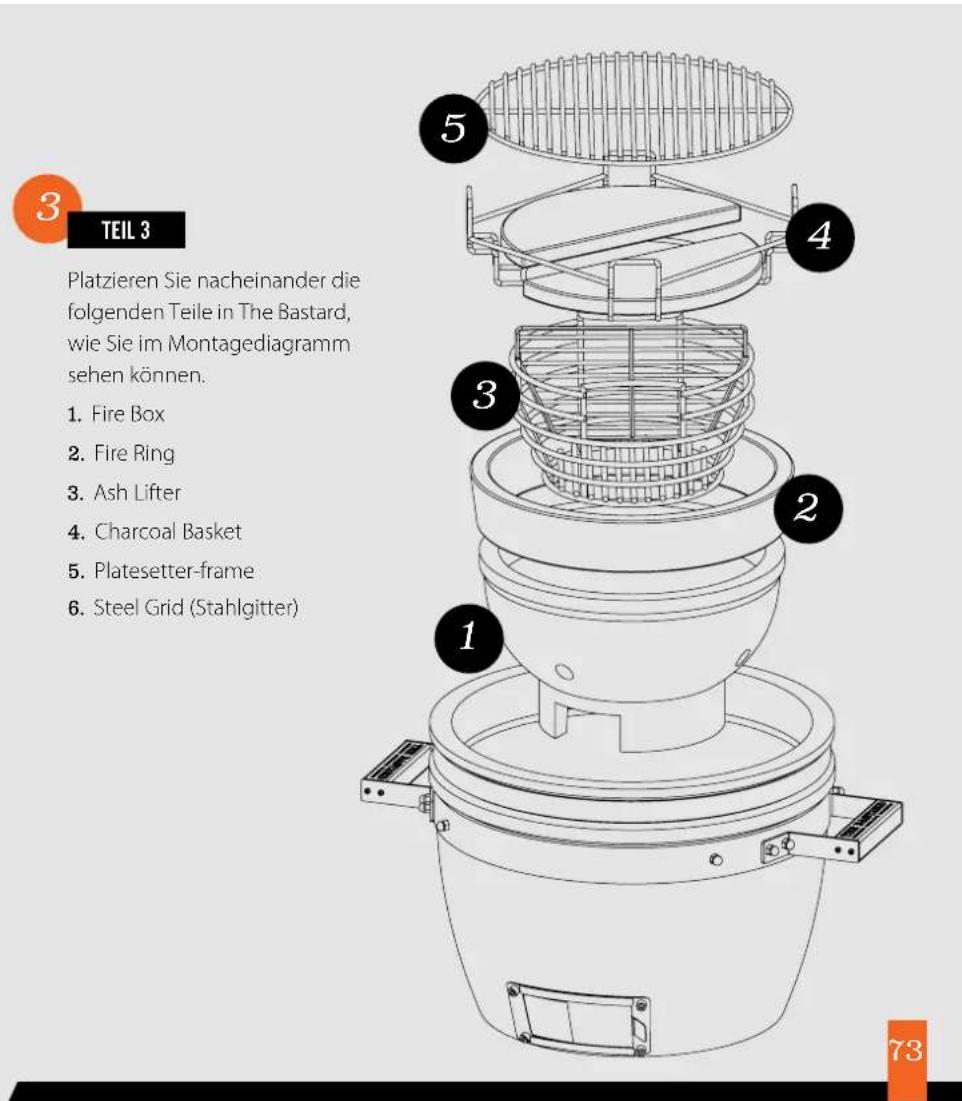

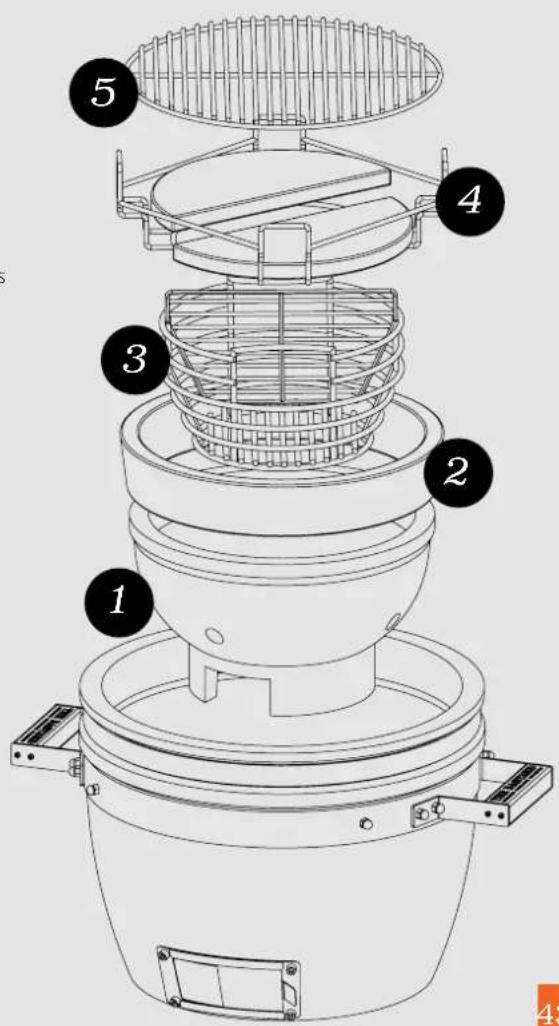

PART THREE
One by one you, place the following parts in The Bastard, as is shown in the assembly diagram.
- Fire Box
- Fire Ring
- Ash Lifter
- Charcoal Basket
- Platesetter-frame

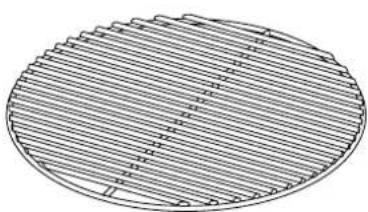

- Steel Grid (stainless steel grid)
AT LAST THE TIME HAS COME.
Time to light The Bastard.
WE HAVE LISTED THE STEPS FOR YOU.
- Check that all nuts and bolts are properly tightened.
- Put the wheels on the brake.
- Make sure the air inlet is in line with the Fire Box.
- Fill the Fire Box up to the Fire Ring with good quality charcoal (large pieces). This ensures better air circulation and hence better temperature control.
- Use firelighters made of natural material or fire starters. Never use chemical firelighters, spirits or other liquids. The ceramic is porous and when chemicals are used, they can penetrate the ceramic and impart flavour to the food. Our One minute lighter makes things even easier.

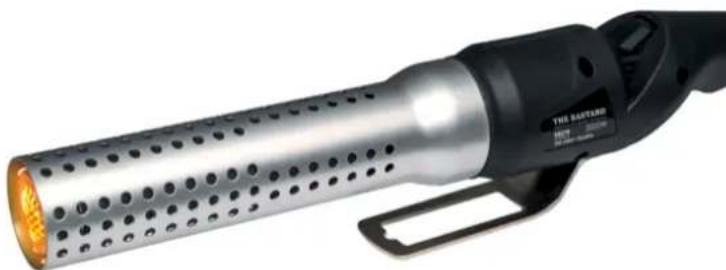

LIGHT UP ON:
1 focal point is ± 100 degrees Celsius - low & slow session.
2 focal points is ± 150 degrees Celsius
3 focal points ± 200 degrees Celsius - high & fast session.
It isn't really necessary to wait until all the coals have turned grey. Pay attention to the temperature - 10 degrees before the desired temperature, adjust the air inlet to stabilise the temperature. The longer you leave the dome open, the higher the temperature can become. Make sure that you don't go too high as lowering the temperature takes more time.
Slowly heat The Bastard the first 3 times to a maximum of 225-250 degrees Celsius. The more places you create focal points, the faster it goes... So watch out for this! Close the dome in time to avoid the temperature getting too high.
Beginners recipes for these temperatures are: Moink Balls, Planked Salmon or Caponata Siciliana.
After cooking, close the air inlet and outlet to put out the flame. Always allow your kamado to cool down slowly. Next time, you can simply light the remaining charcoal, but do remove the ash.
If you have used The Bastard 3 to 5 times, it is wise to check all screws and bolts.
You don't have to burn The Bastard clean!

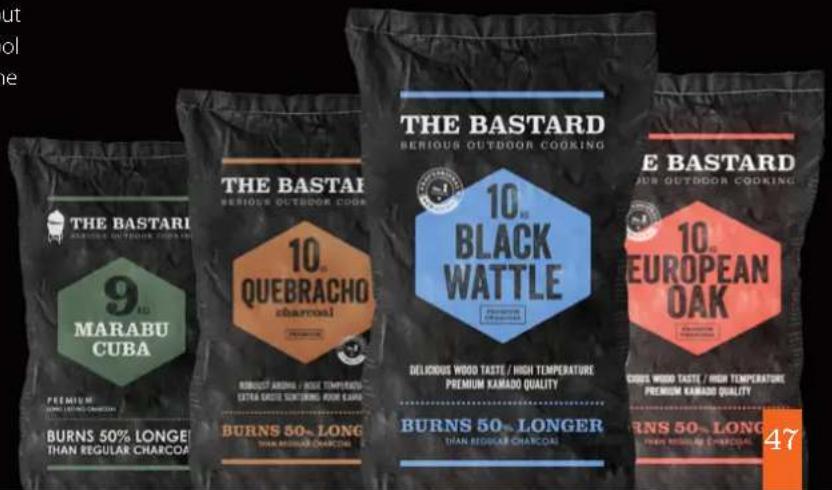

BB197 // Charcoal Marabu 0kg
BB190 //Paraquay White Quebracho 10kg?
BB190 //Black Wattle 10kg
BB190 // European Oak 10kg
MASTER THE FIRE
It is important that you gently heat The Bastard to 225-250 degrees Celsius the first 3 times you use it. The Bastard's strength is that you can keep the temperature very stable. With little effort, you can maintain the temperature at 80-90°C for up to 12 hours. Or you can easily raise the temperature to 250°C.
You can control the temperature with the Precision top and the air inlet. The more air you allow into The Bastard, the more the temperature will rise. This means that closing the air inlet and the Precision top will lower the temperature.
SAFETY TIPS
Never use The Bastard indoors or in an enclosed space. Ensure sufficient ventilation. Otherwise, you run the risk of carbon monoxide poisoning.
Between the edges of the ceramic dome and the base is a fibreglass gasket. Never remove this. It provides an airtight seal so that you can properly regulate the temperature.
Once The Bastard is lit, never leave it unattended and keep children and pets at a safe distance.
Never use fuels such as petrol, turps, white spirits, alcohol or other similar chemicals to light or relight The Bastard.
Do not use The Bastard on wooden terraces, or on any other combustible surfaces, such as dry grass, wood chips or leaves, and keep it at least 2 metres away from combustible objects.
Allow the Bastard to cool completely before moving it. It is safer to pull The Bastard with a base on wheels backwards on the hinge than to push it.
Please note, the Precision top is made of cast iron! This means that it can get very hot. If your fingers can take the heat, you might be able to give it a few taps to adjust it. Otherwise, use the heat resistant gloves from our range.
CAUTION
WHEN OPENING THE DOME!
The Bastard burns extremely efficiently due to the minimal supply of oxygen. If you wish to open the dome, the sudden supply of oxygen may create a large flame. No cause for alarm, as this is preventable. Hence, when opening the dome, start by opening it slightly. This allows the oxygen to gradually reach the fire, preventing flame jets. Subsequently, you can fully open the dome. This is called “burping” and ensures that the oxygen ratio inside and outside the kamado is in balance, so that no dangerous situations arise.
HOW DO I CONTROL THE TEMPERATURE OF MY BASTARD?
First select the position of the bottom slide and then adjust with the upper disc. Do this carefully with small taps. Otherwise you won't have enough control. The temperature of The Bastard can then suddenly rise or fall sharply. This can be avoided by allowing about 5 minutes for the Bastard to reach the right temperature.
The surface area of the air inlet is determined by how far the bottom slide is open and how much ash is left in it. The more ash there is, the less oxygen the kamado suctions and hence the more difficult it is to get it to a higher temperature.
TEMPERATURE
80-120 °C
120 - 160 °C
160 - 200 °C
200 - 250 °C
250 - 325 °C
325+ °C
TURN OFF
PRECISION TOP







DAMPER


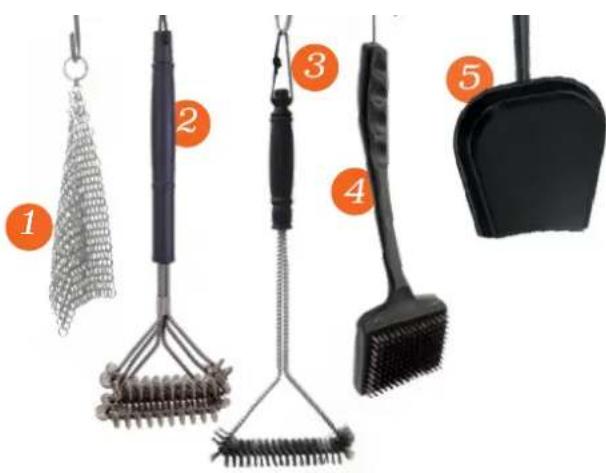

Regularly remove the ash from the bottom of the Bastard. After a maximum of four sessions, clean the barbecue completely (do not burn it clean). This is the best way to maintain the air flow. If you remove the fire ring and fire box before completely emptying The Bastard, do not leave the lid open. The Bastard is at risk of toppling over without the counterweight of the Fire Ring and Fire Box. It is best to keep the ceramic clean with the Cleaner & Polish. This will remove the fine dirt and apply a protective layer to the ceramic.
The Precision top is made from enamelled cast iron. It does NOT need to be burned in, but is immediately ready for use. Over time, all kinds of fat, grease and tar will build up on the Precision top - this can be scrubbed off and washed with hot water.
- The Bastard
Cast Iron Scrubber // BB089
- The Bastard
Double Brush // BB405
- The Bastard
BBQ Brush Small // BB114
- The Bastard
BBQ Brush // BB113
-
The Bastard Ash Pan
-
The Bastard
Rain Cover Large // BB022L
REGULAR MAINTENANCE
Check all nuts and bolts. Please bear in mind that "fixed is fixed". There is no need to lash the Bastard down completely! You see, steel expands and contracts when the temperature changes
Spray all moving parts with WD-40
Polishing the ceramic. Fat, soot and other grease does deposit. To remove these, you can use our Ceramic Cleaner.
Check the felt in the Precision top and between the dome and base and replace when necessary.
Replace rusted nuts and bolts immediately so as to avoid not being able to get them off again!
Check whether your thermometer is properly calibrated by putting it in boiling water and checking whether it reads 100 degrees.
THE BASTARD
GETTING READY FOR WINTER
Make sure you prepare The Bastard for freezing weather:
- Clean it thoroughly, remove all food residues, open the air slides and remove the cast iron precision top. This is the best way for The Bastard to breathe.
- Spray the metal bolts and hinges regularly with WD-40. Check and tighten where necessary.
- Remove the charcoal in the inner tray.
- Place a moisture absorber in The Bastard.
- If any mould has formed on the inside after the winter, this won't do any harm. Easily resolve this by firing up The Bastard once.
- Keep tables indoors to prevent mould.
THE BASTARD
ENDLESS
POSSIBILITIES

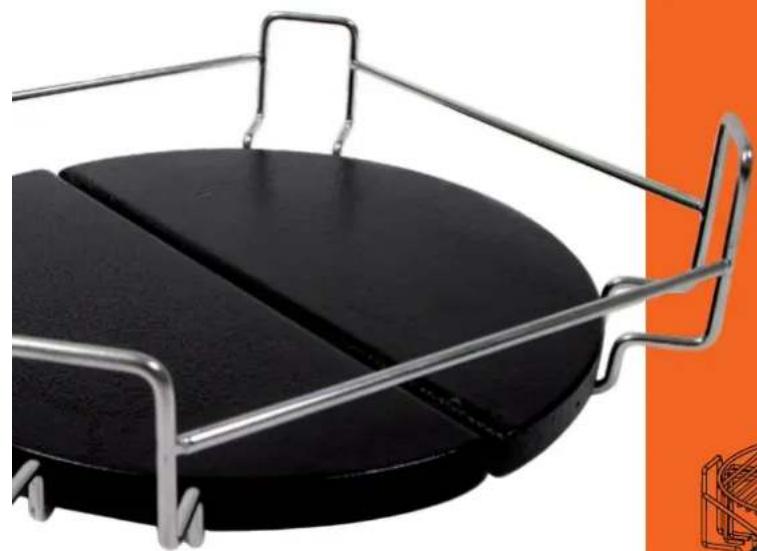

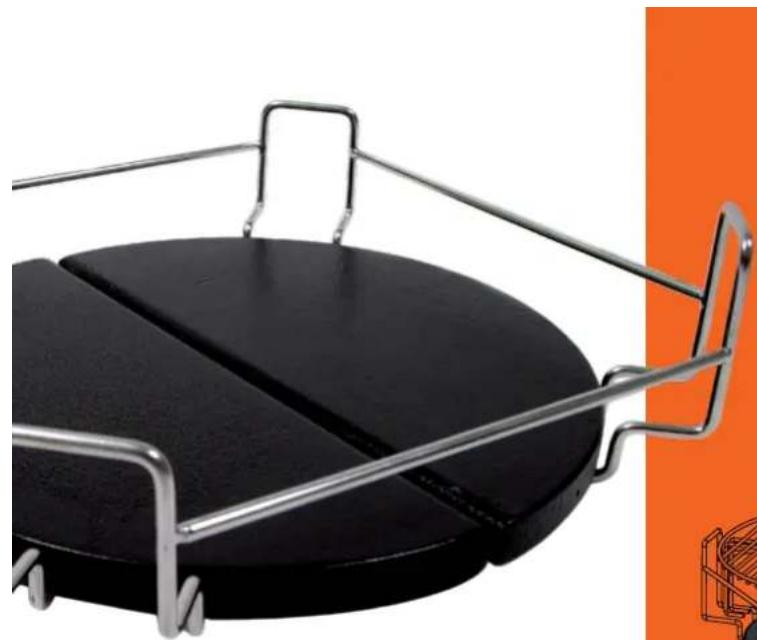

The heat-resistant conductors prevent direct heat, essential for low and slow cooking. Perfect to pair with many Bastard accessories, check out a few suggestions to the right.
1

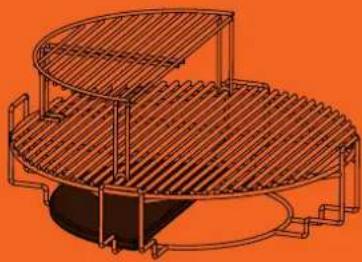

GRILL ELEVATOR\*
GAIN EXTRA SPACE AS WELL AS THE ABILITY TO COOK DISHES AT DIFFERENT TEMPERATURE LEVELS SIMULANTAEOUSLY.
2

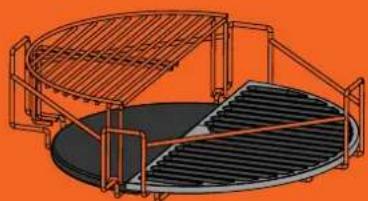

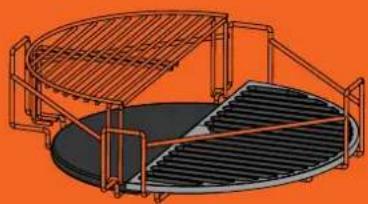

GET YOUR GRILL SEARING HOT WITH A HALF-MOON GRID. ADD AN INDIRECT ZONE WITH THE GRILL ELEVATOR.


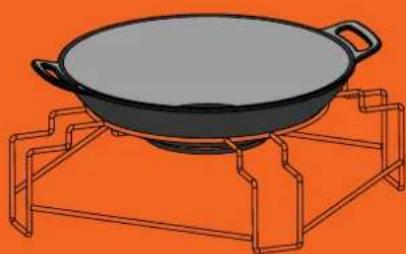

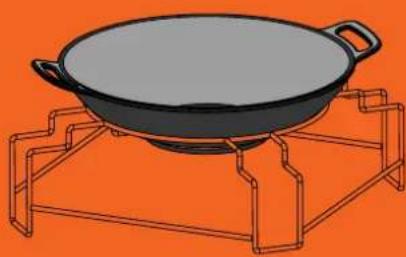

THE WOK\*
FLIP THE PLATE SETTER UPSIDE DOWN AND YOU HAVE THE PERFECT SPOT FOR YOUR BASTARD WOK.
PLANKING SALMON
SERVES 4 | 160 °C, INDIRECT.
This is a guarantee of success. The smell and taste of the smoking cedar wood promises something very wonderful. How delicious simple can be. For us, this is a favourite that is often revisited.
The Bastard Smoke Plank Red Cedar // BB304
½ salmon side of 500 g, 1 tsp sesame oil, Salt & freshly ground black pepper to taste, 1 tsp paprika powder, 2-3 tsp honey, 1 lemon, sliced Large ceder plank and The Bastard Plate Setter
THE METHOD
Allow the cedar plank to soak for at least 1 hour in a container of water.
Place the salmon portions with the skin down on the plank.
Spread the top of each piece well with sesame oil and sprinkle with salt, black pepper and paprika powder.
Drizzle with honey and place one or two slices of lemon on each piece of salmon.
Place the salmon plank on the grating above the plate setter of the Bastard and put on the lid. Let it cook for 8 to 12 minutes.
SERVES 4 | 120 °C, INDIRECT.
Some ground beef in a ball with bacon around it. That sounds like an incredibly good idea. Moink balls are a modern classic on the BBQ. In one bite, you find ground meat, bacon, rub, sauce and smoke.
IN THE CART
12 tsp sea salt - 1 tbsp chopped garlic - 12 tsp fresh-ground black pepper - 12 tsp dried oregano - 1 tsp dried parsley - 20 g Parmesan cheese, grated - 60 ml milk - 1 egg, beaten - 30 g spiced breadcrumbs - your favourite BBQ rub - 20 slices of bacon - your favourite BBQ sauce - honey.
Also needed: plate setter - cocktail sticks.
THE METHOD
Mix the ground meat with sea salt, garlic, black pepper, oregano, parsley, Parmesan cheese, milk, egg and breadcrumbs.
Make balls the size of a golf ball and roll them through the BBQ rub. Wrap the balls with bacon and secure the bacon with cocktail sticks. Mix the BBQ sauce with the honey (two parts sauce, one part honey). Place the balls on the grate above a plate setter and leave them in the Bastard for about 45 minutes to 1 hour.
Spread the sauce over the balls and leave them on the Bastard for another 30 minutes.
For more recipes and inspiration, go to www.thebastard.com.


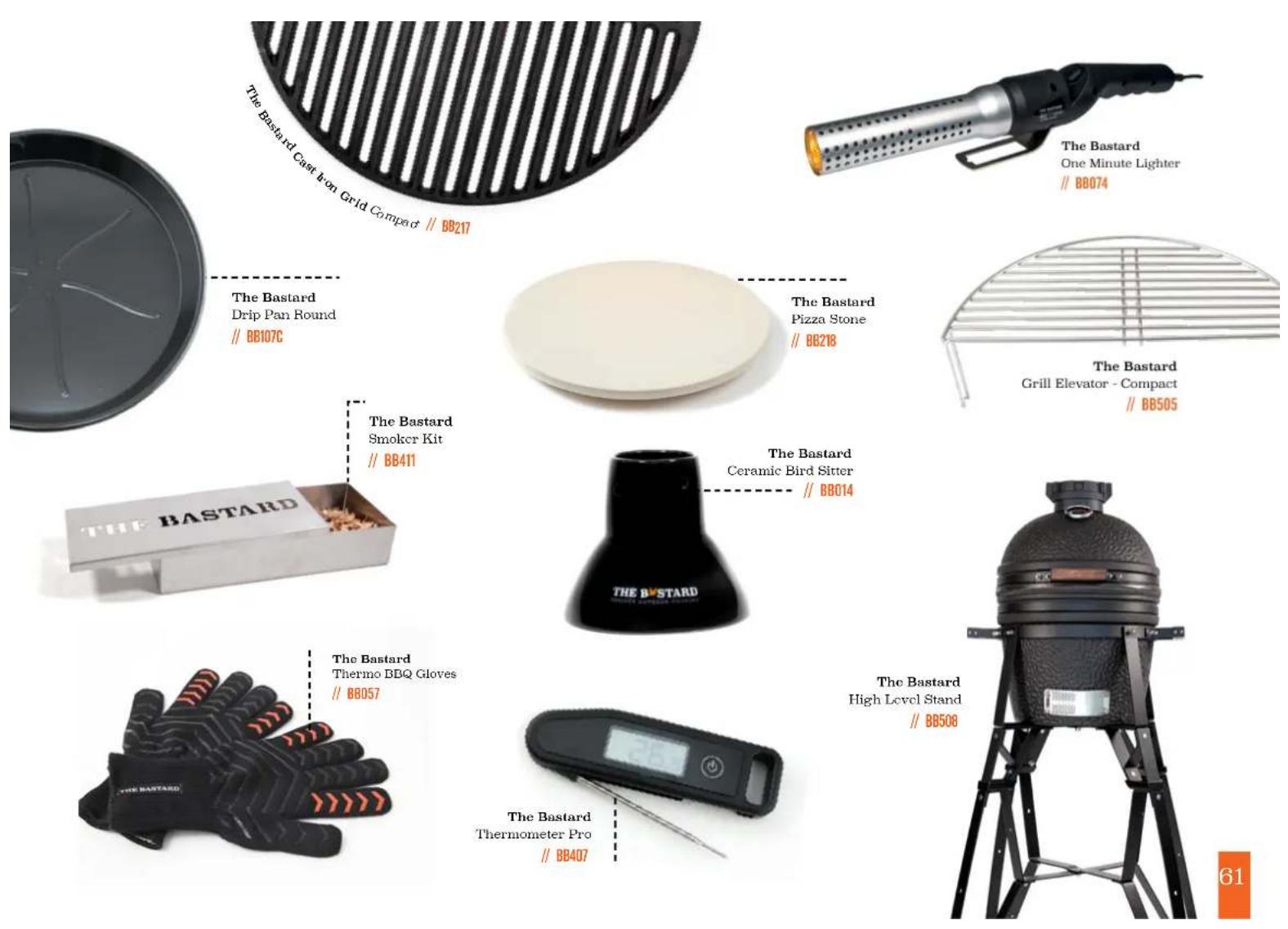

MUST HAVES
Do you really want the best from your Bastard? Then be sure to arm yourself with the right gear. We've gathered a collection of our favourite suggestions or visit www.thebastard.com to see the entire range.
Person pouring sauce from a bottle labeled 'READY TO SALAN' into a large open-glassed meat pan, with flames and steam rising (no text or symbols on main subject)DE
THE BASTARD
IN DER VERPACKUNG
THE BASTARD ERSATZTEILLISTE
Wenn das Gestell
EINDELIJK IS HET ZOVER.
UNENDLICHE
MOGLICHKEITEN
2
DER WOK*
DER UMGEDREHTE
WÄRMEABWEISER FUNKTIONIERT
PERFEKT IN KOMBINATION MIT EINEM WOK.
PLANKING SALMON
MUST HAVES
THE BASTARD
DANS
L'EMBALLAGE
LISTE DES PIÈCES DU BASTARD
THE BASTARD PRÉPARER LE BASTARD AVANT UTILISATION.
ÉTAPE 2
ÉTAPE 3
LE GRAND
MOMENT EST.
ENFIN ARRIVE.
ENDLESS
POSSIBILITIES
Illustration of a wok mounted on an orange stand (no text or symbols)* VENDU SÉPARÉMENT
PLANKING SALMON
POUR 4 | 160 °C, INDIRECTEMENT.
POUR 4 | 120 °C, INDIRECTEMENT.
MUST HAVES
For more information on The Bastard visit the home of serious outdoor cooking:
THEBASTARD.COM
200°Fahrenheit B.V. - Ir. Lelyweg 8 - 2031 CD Haarlem - The Netherlands
