USER MANUAL CNB406T INVENTUM

Black and white photo of a INVENTUM blender with black lid and control knob (no visible text or symbols on body)

1. safety instructions page 8
2. appliance description page 10
3. before first use page 10
4. using the blender page 11
5. tips page 11
6. cleaning & maintenance page 11

General terms and conditions of service and warranty page 23

Deutsch

- stand P = pulse stand

- stand O = uit.

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! avoid touching the blades when the device is operating.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before plugging into a socket, check whether the voltage in your home corresponds with the voltage printed at the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or in such a place where it could touch a heated oven or microwave. Do not allow this appliance to come in contact with curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs of damage to the power cord in the slightest degree, the entire appliance should be returned to the Customer Service Department.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• If the mains connection cable is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Never unplug it from the socket by pulling the cable.
  • Always ensure that your hands are dry before handling the plug or power cord.
• An electrical appliance is not a toy and should therefore always be placed outside of the reach of children. Children are not always able to understand potential risks. Keep the appliance and its cord out of reach of children less than 8 years.
  • This appliance may be used by children over the age of 8 and by

8 • English

people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely, and are fully aware of the consequent risks of use.

• Children must not play with the appliance.
- Cleaning and user maintenance must not be performed by children unless supervised.
- Unplug the appliance as soon as you have finished using it and when you are cleaning it.
- Never immerse any part of the main body, power cord and plug into water or any other liquid to protect yourself against electrical hazards.
- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas, in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
• Bed and Breakfast type environments

• farm houses.

• When the appliance is used for other purposes than intended, or is when it is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with them.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved Service Centre.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

English • 9

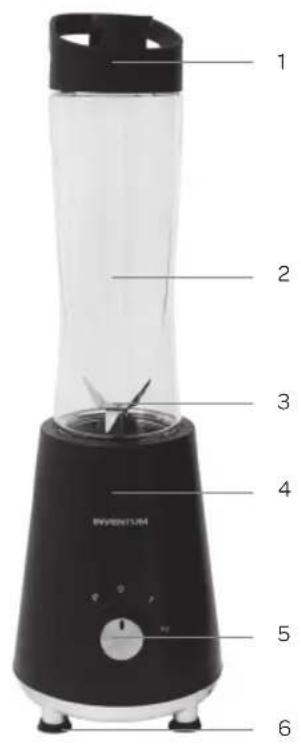

2 appliance description

1. Lid with drinking spout - 2 x
2. Bottle to-go - 2x
3. Knive assembly
4. Base
5. Control knob with speed settings
6. Feet with suction cups

1 2 3 4 5 6 BENNTUM

1 2 3

3 before first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the mixer on a flat and stable surface. Rinse all the accessories - bottles, knives and lids - with warm soapy water and dry them thoroughly. Wipe the base with a damp cloth. Always roll out the cord completely.

When the mixer is in use, the ingredients will be transported along the sides of the bottle to the top and will come down through the middle. This system guarantees that even ice cubes will be completely crushed.

Make sure that all the parts are dry before you use the appliance.

• Place the mixer on a flat and stable surface as soon as you have rolled out the cord. The mixer has suction cups at the bottom. These ensure the mixer will stand steady. Attention: the suction cups function best on a smooth clean surface. Practice a few times to disassemble and assemble the mixer without any ingredients.
• The base contains the motor. Because of it's size, the housing is very stable.
• The control knob regulates the speed of the mixer. The mixer has 2 speeds and a pulse (ice crush) setting.

- setting P = pulse

- setting O = off

- setting 1 = lowest speed

- setting 2 = highest speed

- The mixer can crush ice cubes with the pulse setting. This means that the mixer is only activated when you turn the knob to the pulse setting. As soon as you let go of the button the mixer will be deactivated.

10 • English

4 using the blender

Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.

1. Place the blender on a flat, clean and dry surface.
2. Make sure that the blender is not activated.
3. Put the ingredients in the bottle and lock it by firmly turning on the blade set. Turn the drinks bottle around and place it upright on the motor base unit. Make sure that the ▽ indications are in line and click the bottle tight by turning it slightly to the left.
4. Switch the blender on by selecting a position with the position button. Attention: Do not activate the mixer constantly, this can cause engine problems. Do not use the mixer for more than 1 minute continuously, wait 1 minute before you operate it again.
5. When the blender has finished mixing switch the button to off (0) and wait until the blades have stopped turning.
6. Click the bottle loose - do not turn too far - and lift it from the motor base unit. Attention: if you turn the bottle too far you turn the bottle off the blade set and the contents will flow out of the bottle.
7. Turn the drinks bottle around, remove the blade set and firmly turn the lid with drinking spout onto the drinks bottle. You're ready to go!

Attention: you cannot make warm dishes in the to-go drinks bottle.

5 tips

• When the bottle is cracked, do not use the mixer anymore. This could lead to damage while using the mixer.
  • Always add liquid ingredients before adding solid ingredients in the mixer.
  • The mixer mixes best when you do not add pieces which are too large.
  • Always add a half a cup of liquids when you crush ice cubes.
• When the ingredients stick to the sides of the jug or are not mixed properly, shut off the engine: wait until the knives have stopped turning. Remove the bottle and shake it before mixing further.
  • To prevent the ingredients from being blend to small, take into account that the mixer mixes in seconds, not minutes!

6 cleaning & maintenance

Always unplug the cord from the socket before cleaning the appliance.

• Wipe the base with a damp cloth. Do not use any abrasive or strong detergents.
• Never place the appliance, the power cable or the plug in water or any other liquid.
• Remove the knives from the bottle. Be careful, the knives are extremely sharp. Clean the knives as a whole do not try to take them apart. Attention: do not use any abrasive or strong detergents.
• The following parts can be cleaned by hand: the bottles, the knife assembly and the lids. 🚠 Be careful when cleaning the knife assembly. The knives are very sharp.

Deutsch

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
