USER MANUAL BW700 ALECTO

• Food at room temperature

• Food from the fridge

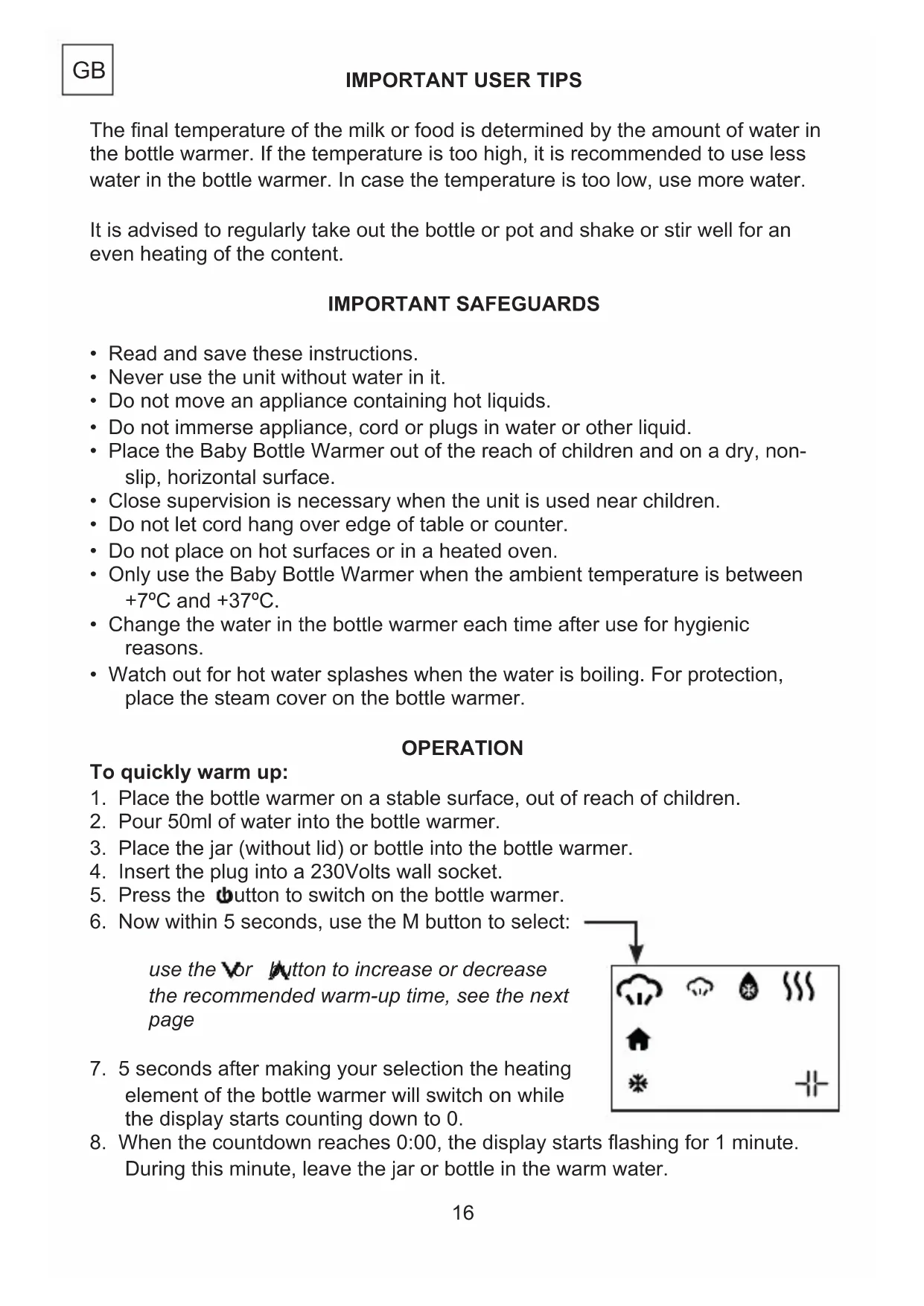

The nal temperature of the milk or food is determined by the amount of water in the bottle warmer. If the temperature is too high, it is recommended to use less water in the bottle warmer. In case the temperature is too low, use more water. It is advised to regularly take out the bottle or pot and shake or stir well for an even heating of the content. IMPORTANT SAFEGUARDS

• Read and save these instructions.

• Never use the unit without water in it.

• Do not move an appliance containing hot liquids.

• Do not immerse appliance, cord or plugs in water or other liquid.

• Place the Baby Bottle Warmer out of the reach of children and on a dry, non- slip, horizontal surface.

• Close supervision is necessary when the unit is used near children.

• Do not let cord hang over edge of table or counter.

• Do not place on hot surfaces or in a heated oven.

• Only use the Baby Bottle Warmer when the ambient temperature is between +7ºC and +37ºC.

• Change the water in the bottle warmer each time after use for hygienic reasons.

• Watch out for hot water splashes when the water is boiling. For protection, place the steam cover on the bottle warmer. OPERATION To quickly warm up:

1. Place the bottle warmer on a stable surface, out of reach of children.

2. Pour 50ml of water into the bottle warmer.

3. Place the jar (without lid) or bottle into the bottle warmer.

4. Insert the plug into a 230Volts wall socket.

5. Press the button to switch on the bottle warmer.

6. Now within 5 seconds, use the M button to select:

use the or button to increase or decrease the recommended warm-up time, see the next page

7. 5 seconds after making your selection the heating

element of the bottle warmer will switch on while the display starts counting down to 0.

8. When the countdown reaches 0:00, the display starts ashing for 1 minute.

During this minute, leave the jar or bottle in the warm water.

169. After this minute 5 beeps are emitted while the bottle warmer switches itself

10. Remove the bottle/jar from the bottle warmer and shake the milk or stir the

food to ensure an even temperature.

11. First check the temperature of the food with the back of your hand before

feeding your baby, to ensure the food is at a temperature that’s safe for your baby.

• If the temperature is too low, briey put the bottle or jar back into the warm water of the bottle warmer. You don’t have to switch the device on again. The water will still be warm enough. Perhaps next time you could increase the warm-up time somewhat.

• If the temperature is too high, let the milk or food cool down and next time set a somewhat shorter warm-up time. To slowly heat up:

1. Place the bottle warmer on a stable surface, out of reach of children.

2. Place the jar (without lid) or bottle into the bottle warmer.

3. Fill up the space between the bottle warmer and the bottle or jar

with tap water at room temperature. Fill with water until you reach the same level as the milk or food in the jar. When lling, never exceed the maximum mark indicated.

4. Insert the plug into a 230Volts wall socket.

5. Press the button to switch on the bottle warmer.

Amount of milk: 60ml 90ml 120ml 150ml 180ml 210ml 240ml 270ml jar: 120gr 200gr Plastic 2:00 2:03 2:22 2:30 2:35 3:00 3:15 3:20 Glass 1:40 1:50 2:10 2:18 2:22 2:40 3:00 3:05 Food at room temperature Plastic 2:16 2:37 3:20 3:46 4:10 4:25 4:40 4:55 Glass 2:05 2:15 3:03 3;25 3:55 4:06 4:25 4:38 Food from the fridge 2:20 2:30 3:10 4:00 Depending on the amount of milk or food, the initial temperature and the material of the bottle or jar, you may have to adjust the warm-up time. The following chart only serves as a reference:

6. Now within 5 seconds, use the M button to select:

7. Use the or button to select the starting tem-

perature; for food at room temperature or for food from the fridge.

8. 5 seconds after making your selection the heating

element of the bottle warmer will switch on while the display starts counting down to 0.

9. When the warm-up time is nished, 5 beeps are

emitted and the bottle warmer will switch itself off.

10. Remove the bottle/jar from the bottle warmer and shake the milk or stir the

food to ensure an even temperature.

11. First check the temperature of the food with the back of your hand before fee-

ding your baby, to ensure the food is at a temperature that’s safe for your baby.

• If the temperature is too low, briey put the bottle or jar back into the warm water of the bottle warmer. You don’t have to switch the device on again. The water will still be warm enough. The next time you may want to pour some more water into the bottle warmer.

• If the temperature is too high, let the milk or food cool down and the next time pour a little less water into the bottle warmer. To defrost:

1. Place the bottle warmer on a stable surface, out of reach of children.

2. Place the jar or bottle with the frozen food into the bottle warmer.

3. Fill up the space between the bottle warmer and the bottle or jar

with tap water at room temperature. Fill with water until you reach the same level as the milk or food in the jar. When lling, never exceed the maximum mark indicated.

4. Insert the plug into a 230Volts wall socket.

5. Press the button to switch on the bottle warmer.

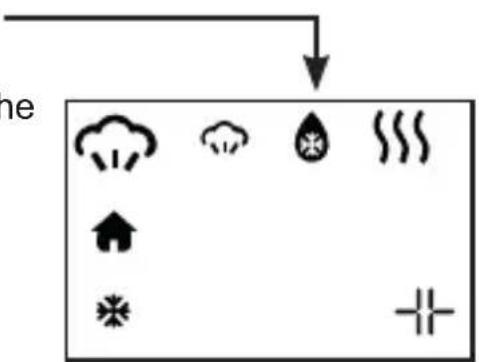

6. Now within 5 seconds, use the M button to select

7. 5 seconds after making your selection the heating

element of the bottle warmer will switch on while the display starts counting down to 0.

8. After the 20 minutes defrosting time, 5 beeps are

emitted and the bottle warmer switches itself off. To sterilize paciers:

1. Place the bottle warmer on a stable surface, out of reach of

2. Pour 65ml of water into the bottle warmer. (see the short marking

3. Put the paciers you’d like to sterilize down into the bottle warmer.

4. Place the steam cover onto the bottle warmer to both keep the

heat inside and to prevent hot splashes from harming you. max19 KEEP IN MIND THAT THIS STEAM COVER MAY BECOME VERY HOT DURING USE.

5. Insert the plug into a 230Volts wall socket.

6. Press the button to switch on the bottle warmer.

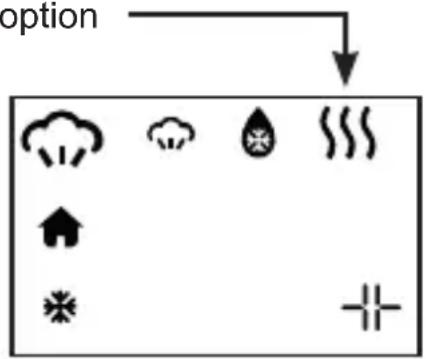

7. Now within 5 seconds, use the M button to select the option

8. 5 seconds after making your selection the heating

element of the bottle warmer will switch on while the display starts counting down to 0. During the sterilizing process, the display icon will rotate.

9. After the 5 minutes sterilizing time (or longer, the

sterilizing lasts untill all the water is evapora- ted), 5 beeps are emitted and the bottle warmer switches itself off.

10. Attention: the steam cover may become very hot. First wait several minutes

until the temperature has decreased sufciently for you to safely remove the steam cover. Use kitchen pliers (not included) to remove the paciers from the bottle warmer. MAINTENANCE INSTRUCTIONS Cleaning: Disconnect the Baby Bottle Warmer from the mains socket (or the cigarette lighter socket) and allow it to cool down. Clean the container and the outside of the Baby Bottle Warmer with a damp cloth. Never immerse the Baby Bottle Warmer in water. Do not use cleaning orscouring agents. Decalcify: Hard water deposits must be removed. To do this use white vinegar only. Pour the vinegar into the tank at mid-level, allow to rest until the hard water deposits have been completely eliminated. Rinse well and wipe with a damp cloth.

If a fault occurs, consult the Alecto service centre at WWW.ALECTO.NL Under no circumstances should you try to repair the Baby Bottle Warmer yourself; do not dismantle. Servicing should be performed by qualied service personnel only.
