USER MANUAL Cosy 30.5019.01 TFA

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will pre- vent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

• Long-term radar up to 30 days detects constant risk of mould

• Innovative graphic shows humidity values like on a radar screen.

• Display of current temperature and humidity

• Connection with WeatherHub gateway enables numerous additional functions via smartphone app

• This product is exclusively intended for the range of application described above. The product should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are not permitted. Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.

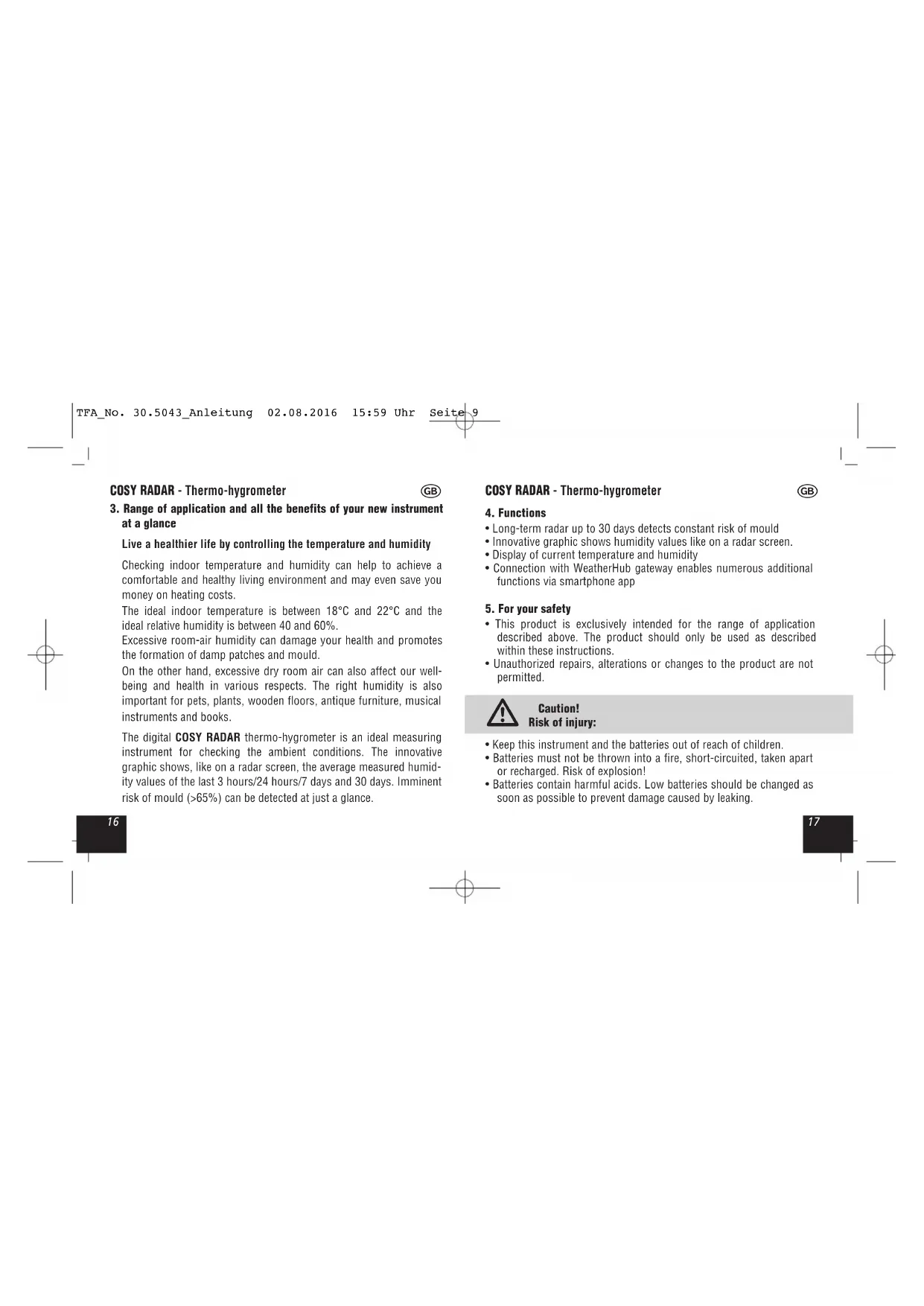

3. Range of application and all the benefits of your new instrument

at a glance Live a healthier life by controlling the temperature and humidity Checking indoor temperature and humidity can help to achieve a comfortable and healthy living environment and may even save you money on heating costs. The ideal indoor temperature is between 18°C and 22°C and the ideal relative humidity is between 40 and 60%. Excessive room-air humidity can damage your health and promotes the formation of damp patches and mould. On the other hand, excessive dry room air can also affect our well- being and health in various respects. The right humidity is also important for pets, plants, wooden floors, antique furniture, musical instruments and books. The digital COSY RADAR thermo-hygrometer is an ideal measuring instrument for checking the ambient conditions. The innovative graphic shows, like on a radar screen, the average measured humid- ity values of the last 3 hours/24 hours/7 days and 30 days. Imminent risk of mould (>65%) can be detected at just a glance. TFA_No. 30.5043_Anleitung 02.08.2016 15:59 Uhr Seite 91918 COSY RADAR - Thermo-hygrometer

• Open the battery compartment and insert two new AAA 1.5V batter- ies. Ensure the battery polarity is correct.

• All LCD segments will be displayed for about two seconds.

• The indoor temperature and the humidity appear on the display.

• The unit is ready for use.

• After getting started, the black bars will be flashing on the display.

• The device measures the relative humidity every 6 seconds and cal- culates an average value.

• The innovative mould radar display shows graphically on a timeline (last 3 hours / 24 hours / 7 days and 30 days) the averages that were reached.

• When data is collected for the corresponding period, the black bars will appear permanently.

• The relative humidity values are shown on a grid of tenths: > 75% = 80 > 65% = 70 > 55% = 60 > 45% = 50 > 35% = 40 > 25% = 30 <= 25% = 20

• Never use a combination of old and new batteries together, nor bat- teries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries. Important information on product safety!

• Do not expose your device to extreme temperatures, vibrations or shocks.

• Protect it from moisture.

10. Table stand or wall mounted

• Hole for wall mounting with a nail/screw.

• For table standing use the attached support.

• Note: Since humidity levels within rooms can vary greatly according to its location, mount the unit so that it will monitor the conditions at a place likely to be subjected to most problems.

11. Care and maintenance

• Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the product for a long period of time.

• Keep the instrument in a dry place.

11.1 Battery replacement

• Change the batteries when the battery symbol appears on the dis- play.

• Open the battery compartment and insert two new AAA 1.5 V batter- ies. Make sure the polarities are correct.

• Close the battery compartment again.

9. Additional features with the WeatherHub Smarthome System

1. Connection with WeatherHub gateway

• The data is transmitted through the gateway and Internet to a server and can be monitored anytime on your smartphone.

• The connection with the WeatherHub gateway enables numerous additional functions via free smartphone app (German, English and French).

2. Additional connection with WeatherHub outdoor temperature/

humidity transmitter

• Monitors room ambient and outdoor conditions at the same time and gives ventilation advice, e.g. if opening or closing the win- dows will improve the indoor climate, and further recommenda- tions for heating / dehumidification / humidification.

9.1 Required accessories

• WeatherHub Starter Set with gateway, e.g. cat. no. 31.4001.02,

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in ordinary household waste. The consumer is obliged to take end-of- life devices to a designated collection point for the dispos- al of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Problem Solution No / Incorrect indication ➜ Ensure that the battery polarity is correct ➜ Change the batterie If your device fails to work despite these measures contact the supplier from whom you purchased it.

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batter- ies in ordinary household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to pro- tect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead TFA_No. 30.5043_Anleitung 02.08.2016 15:59 Uhr Seite 122524 COSY RADAR - Thermo-hygrometer

• Mode d'emploi Maximum radio-frequency power: < 25mW Power consumption 2 x AAA 1.5 V Batteries Dimensions 104 x 20 (77) x 104 mm Weight 84 g (instrument only) No part of this manual may be reproduced without written consent of TFA Dost- mann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage. EU declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 30.5043 is in com- pliance with Directive 2014/53/EU. The full text of the EU declaration of conformi- ty is available at the following internet address: www.tfa-dostmann.de E-Mail: info@tfa-dostmann.de TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D-97877 Wertheim, Germany 07/16 TFA_No. 30.5043_Anleitung 02.08.2016 15:59 Uhr Seite 132726 COSY RADAR - Thermo-hygromètre
