MCL3LDFRT - Deep fryer Magic Chef - Free user manual and instructions

Product type	Electric deep fryer
Brand	Magic Chef
Model	MCL3LDFRT
Dimensions (H x W x D)	218 mm x 226 mm x 411 mm (8.6 x 8.9 x 16.2 inches)
Power supply	120 V ~ 60 Hz
Power	1650 W
Pot capacity	Between Min and Max marks (oil)
Materials	Stainless steel, heat-resistant plastic
Heating element	With safety switch, removable
Thermostat	Adjustable, with green heat indicator
Indicator lights	Red power indicator, green heat indicator
Safety function	Non-automatic zero thermostat, safety shutdown
Basket	With foldable handle, can be hung on pot rim
Lid	With viewing window and handle
Power cord	Magnetic, removable
Care and cleaning	Pot and basket dishwasher safe; heating element and control panel wiped with damp cloth
Included accessories	Basket, lid, heating element with control panel
Spare parts and repairability	Spare parts available on request; repairs by authorized technician
Warranty	1 year parts and labor (contiguous US, Alaska, Hawaii, Puerto Rico)
Intended use	Domestic use only, indoors

Frequently Asked Questions - MCL3LDFRT Magic Chef

How to use the Magic Chef MCL3LDFRT deep fryer?

Fill the pot with oil between the Min and Max marks. Place the lid, plug in the appliance, set the desired temperature with the control knob. Wait until the green light turns off to indicate the oil is at temperature, then gently lower the basket containing the food.

What types of oil can I use?

It is recommended to use liquid oil. Solid fats (lard) can be used after melting them at low temperature beforehand.

How to clean the deep fryer?

Let the appliance cool completely. Remove the heating element and control panel (do not immerse them). The pot and basket are dishwasher safe. Wipe the housing with a damp cloth.

How often should the oil be changed?

The oil should be changed after about 10 uses or if it becomes dark. Change all oil at once, do not mix new and used oil.

What to do if the fryer stops heating?

Check that the heating element is properly engaged (safety switch). If the zero thermostat has activated, press the reset button on the back of the control panel after cooling.

Can I use the fryer without oil?

No, the fryer must always be filled with oil between the Min and Max marks. Using it empty can damage the appliance and cause a fire.

Why does the oil overflow?

This may be due to excess oil (exceeding the Max mark) or an overfilled basket. Reduce the amount of oil or food.

How to avoid oil splashes?

Make sure the food is dry before placing it in the oil. Do not put water into hot oil. Lower the basket gently.

Can I store used oil?

Yes, filter the cooled oil to remove residues, then store it in an airtight container in a cool, dry place (not in the refrigerator). Change it after 10 uses.

What to do in case of a fire in the fryer?

Do not pour water! Close the lid to smother the flames and unplug the appliance. Use a damp cloth if necessary.

USER MANUAL MCL3LDFRT Magic Chef

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR DEEP FRYER AND KEEP IT FOR FUTURE REFERENCE.

Model MCL3LDFRT

PRODUCT REGISTRATION

Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef product.

CONTENTS

PRODUCT REGISTRATION 2
IMPORTANT SAFETY INSTRUCTIONS 4
SPECIFICATIONS 6
PARTS AND FEATURES 7
BEFORE USE 8
OPERATINGINSTRUCTIONS 9
CARE AND MAINTENANCE 11
TROUBLESHOOTING. 12
LIMITED WARRANTY 13

IMPORTANT SAFETY INSTRUCTIONS

This manual contains Safety Instructions, Installation and Operating Instructions, and Troubleshooting Tips. Please carefully read this manual before using your deep fryer for instructions on how to use and maintain the product properly. Be sure to follow the safety instructions to avoid injury or damage to the product.

Keep this manual. When passing on/selling the device to a third party, the manual must be handed over along with the device.

Before calling for service, please make sure unit is installed and being used correctly, and read the troubleshooting section.

WARNING: When using your appliance, follow the precautions listed below:
NOTE: Specifications may change at any time without notice.

1. Read all instructions.
2. This appliance is for household use only. It is not intended for outdoor or commercial applications. DO NOT use appliance for other than intended use.
3. Before using, check that the voltage of wall outlet corresponds to the rating plate.
4. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, try a different outlet or contact a qualified electrician. DO NOT attempt to modify the plug in any way.
5. DO NOT turn the deep fryer on unless it is full of oil. ALWAYS ensure that it is filled with oil between the minimum and maximum level marks on the inside of the Bowl.
6. WARNING: Avoid using the appliance for long periods, as this can result in the oil overheating, causing a fire.
7. CAUTION: DO NOT add water to the oil. This is extremely dangerous and may cause the oil to splatter out of the bowl.
8. CAUTION: DO NOT touch the hot oil.
9. DO NOT leave the appliance unattended while it is in use.
10. Close supervision is necessary when any appliance is used by or near children.
11. Some Parts of the appliance get very hot when in operation. DO NOT touch hot surfaces. Use caution when unit is in use, and ALWAYS use handles or knobs.
12. ALWAYS set the temperature control to the lowest possible temperature, and unplug the fryer as soon as you have finished cooking the food.
13. ALWAYS turn off and unplug from the outlet when not in use and before cleaning. Allow unit to cool down before putting on or taking off parts, and before cleaning the appliance.
14. To protect against electrical shock do not immerse cord, plugs, or the whole unit in water or other liquid.
15. DO NOT operate the unit or handle the plug with wet hands.
16. Only use the appliance in a dry and well ventilated room.
17. This appliance should not be operated by anyone with reduced physical, sensory or mental capabilities or does not have experience with this type of equipment, unless under supervision.

18. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

19. ALWAYS place unit on a level, stable, heat resistant surface. DO NOT use on carpet, vinyl, cloth, etc. and DO NOT move during operation.

20. DO NOT use near or below curtains or other combustible materials.
21. DO NOT cover the appliance.
22. DO NOT let the cord hang over edge of table or counter or touch hot surfaces.
23. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
24. DO NOT operate any appliance with a damaged cord or plug; or after the appliance malfunctions or is damaged in any manner. Contact customer service for assistance.
25. DO NOT modify or repair the unit by yourself.
26. A short power-supply cord (or detachable power-supply cord) should be used to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use and:
    a. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
    b. The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over.
27. DO NOT unplug your appliance by pulling on the power cord. ALWAYS grasp the plug firmly and pull it straight out from the outlet.
28. DO NOT roll the cord up or wind it around the appliance.
29. CAUTION: If a fire starts in the fryer, DO NOT try to put it out with water. Close the lid and try to smother the flames with a damp cloth or wet towel.
30. The use of accessories not recommended by the appliance manufacturer may cause injuries.
31. DO NOT use outdoors.
32. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
33. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
34. Be sure handle is properly assembled to basket and locked in place. See detailed assembly instructions.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

SPECIFICATIONS

Dimensions (W x H x D) 8.6" x 8.9" x 16.2" (218 mm x 226 mm x	411 mm)
Power Supply 120V ~ 60Hz
Rated Power 1650W

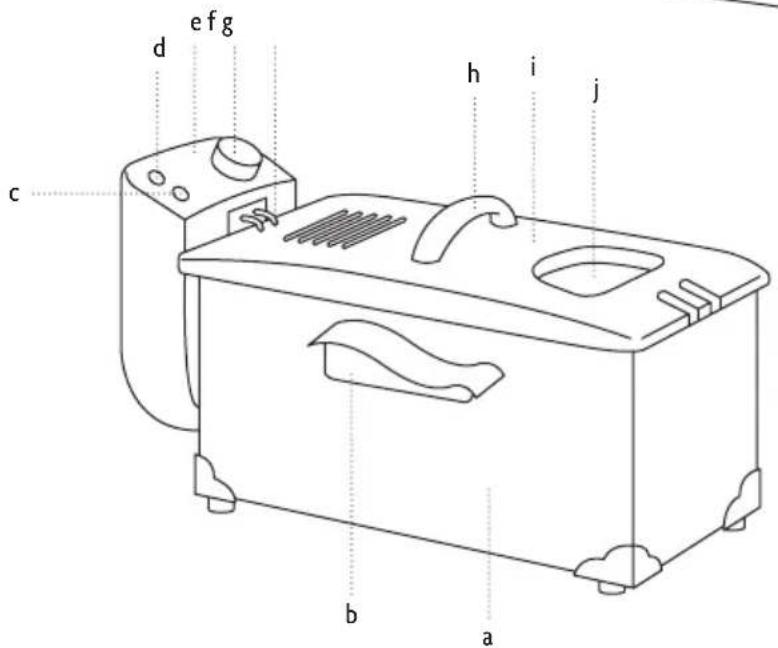

PARTS AND FEATURES

Figure 2

a. Housing
b. Housing carrying handle
c. Power indicator
d. Heat Indicator

e. Control panel with power cord
f. Temperature control
g. Heating element
h. Lid handle

i. Lid
j. Viewing Window
k. Bowl
I. Basket

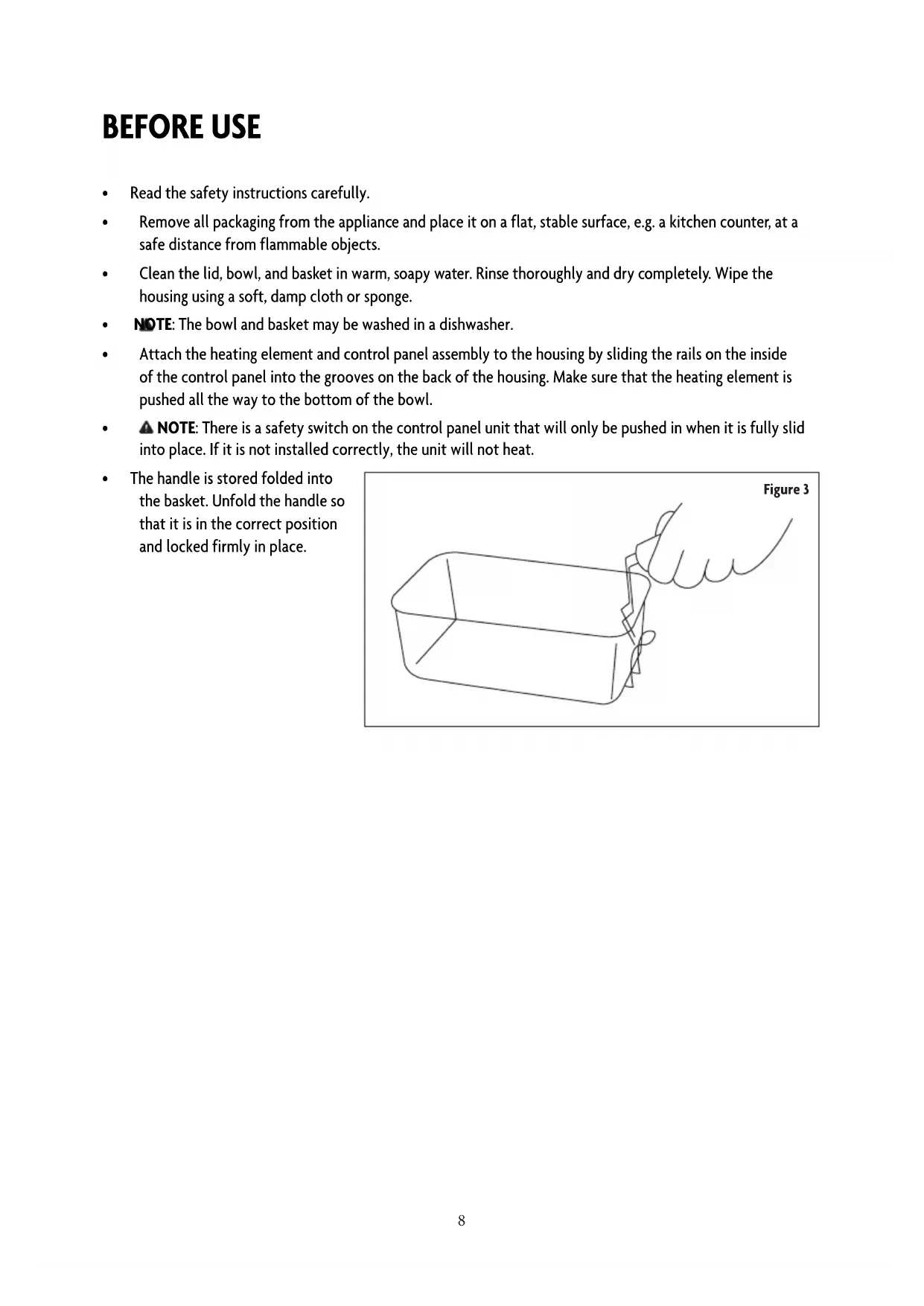

BEFORE USE

• Read the safety instructions carefully.
• Remove all packaging from the appliance and place it on a flat, stable surface, e.g. a kitchen counter, at a safe distance from flammable objects.
• Clean the lid, bowl, and basket in warm, soapy water. Rinse thoroughly and dry completely. Wipe the housing using a soft, damp cloth or sponge.
  NOTE: The bowl and basket may be washed in a dishwasher.
• Attach the heating element and control panel assembly to the housing by sliding the rails on the inside of the control panel into the grooves on the back of the housing. Make sure that the heating element is pushed all the way to the bottom of the bowl.
• NOTE: There is a safety switch on the control panel unit that will only be pushed in when it is fully slid into place. If it is not installed correctly, the unit will not heat.
  The handle is stored folded into the basket. Unfold the handle so that it is in the correct position and locked firmly in place.

OPERATING INSTRUCTIONS

DEEP FRYING

1. ALWAYS make sure the deep fryer is turned off when starting.

2. Pour the oil into the bowl so that the fill level falls between the "Min" and Max" marks.

NOTE: It is recommended to use liquid oil. Lard or solid fats can be used, but must be melted prior to using by placing small pieces of it into the bowl and warming it on the lowest setting. Once it is fully melted, you can set the control to the required cooking temperature.

1. Place the lid on the bowl.

2. Attach the magnetic cord and plug the fryer in; the red power indicator will light.

3. Set the desired temperature by turning the temperature control knob. The green heat indicator will light and remain lit while the fryer is heating up. Once the unit reaches the set temperature, the green heat indicator light will turn off.

NOTE: The heat indicator will turn on and off while the fryer is in use, as needed to maintain the selected temperature.

1. DO NOT add food until the required temperature is reached.

2. Remove the lid and carefully lower the basket with the food into the bowl. Make sure the oil level does not rise to the top of the bowl.

NOTE: ALWAYS hold the basket handle firmly when fitting or removing the lid.

CAUTION: When putting food into or removing it from the fryer, hot oil may splatter. Take care when removing the lid, as hot steam may be released.

There is a non-auto resetting thermostat built in the product. If the deep fryer has been in use for a prolonged time, the built-in thermostat will activate and cut off the current to protect the appliance from overheating. Reset the thermostat by pushing the indicated button on the back of the control panel, after the heating element has cooled down, to enable the deep fryer to function normally again.

AFTER COOKING

1. Carefully lift the basket out of the oil and use the clips to hang it on the front edge of the bowl.

CAUTION: Handle may be hot after extended use.

1. Allow the oil to drip from the food before removing from the basket.

2. Set the temperature control knob to the lowest setting and unplug from the outlet.

3. Allow the fryer to cool for at least 1-2 hours before emptying the oil, moving, or cleaning.

CAUTION: DO NOT attempt to move the deep fryer while it is hot.

FOOD PREPARATION TIPS

• ALWAYS make sure that the food is dry before lowering it into the hot oil.
  Ensure that the food is roughly the same size so that it cooks evenly. Avoid very thick pieces.
  Some types of food should be breaded before being cooked in the deep fat fryer.
  Make sure you remove as much ice as possible from frozen food. However, it does not need to be defrosted before cooking.
  DO NOT fill the basket above the max mark on the metal plate under the handle.

BASIC DEEP FRYING GUIDE

	Temperature Time
Breaded Chicken Fillets 350°F (175°C) 12-15 minutes
Onion Rings 350°F (175°C) 3 minutes
Breaded Fish Fillets 350°F (175°C) 5-6 minutes
Large Prawns 350°F (175°C) 3-5 minutes
French Fries 350°F (175°C) 5-6 minutes
Battered Broccoli 365°F (185°C) 2-3 minutes

NOTE: ALWAYS check internal temperature of meats to make sure they are fully cooked.

CARE AND MAINTENANCE

CLEANING THE DEEP FRYER

Once the oil has cooled, pour it into an appropriate storage container and wipe out the bowl with a paper towel.
Clean the Housing, Bowl, Lid and basket using hot soapy water. The Bowl and Basket may be cleaned in a dishwasher if desired.
DO NOT use of strong or abrasive cleaners on the deep dryer or its accessories. NEVER use a steel wool or scrubbing brush to clean the appliance, as this may damage the finish.
DO NOT immerse the heating element or control panel in water or any liquid. Remove the control panel and heating element before cleaning the appliance. Wipe these parts clean with a soft damp cloth or sponge.

CAUTION: DO NOT attempt to move, drain, or clean the deep fryer with hot oil in it. ALWAYS allow the oil to cool completely before handling.

HANDLING AND STORING OIL

• ALWAYS make sure all oil is completely cool before handling.
• Remove any food residue from the oil after use.
  Filter the oil regularly. Filters for deep frying oil are available, or pour through cheesecloth to filter.
  The oil should be changed once it has been used approximately 10 times. All the oil should be changed at the same time; DO NOT mix old and new oil. The old oil should be disposed of as per local regulations.
• Store the oil in an airtight container in a dry, cool and dark place. (It is not necessary to refrigerate).

STORING THE DEEP FRYER

• Ensure the fryer is completely cooled down before storing.
  NEVER store it while it is hot or wet.
  Thoroughly clean and dry all parts before storing.
• Store appliance in a clean, dry place.

TROUBLESHOOTING

Problem Possible	Cause Solution
Unpleasant odor Oil is old		Change oil after about 10 uses or if it darkens in color
Oil overflows the bowl	Too much oil added to the bowl Reduce the amount of oil
	Too much food in the basket Reduce the amount of food being fried
Food is not crispy	Cooking time is too short Adjust the cooking time
	Too much food in the basket Only fill basket to about 2/3 full
Unit will not power on Safety shut off switch has been activated Press the reset button.

LIMITED WARRANTY

MC Appliance Corporation warrants each new Deep Fryer to be free from defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at the company's option, for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. A copy of the dated sales receipt/invoice is required to receive warranty service, replacement or refund.

This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii and Puerto Rico. This warranty does not cover the following:

• Damages due to shipping damage or improper installation.

• Damages due to misuse or abuse.

Content losses due to failure of the unit.

Repairs performed by unauthorized service agents.

Service calls that do not involve defects in material and workmanship such as instructions on proper use of the product or improper installation.

• Replacement or resetting of house fuses or circuit breakers.

• Failure of this product if used for other purposes than its intended purpose.

Disposal costs for any failed unit not returned to our factory.

Any delivery/installation costs incurred as the result of a unit that fails to perform as specified.

• Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician is not available.

The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

Refunds for non repairable products are limited to the price paid for the unit per the sales receipt.

This warranty is non transferable. This warranty applies only to the original purchaser and does not extend to any subsequent owner(s).

Limitations of Remedies and Exclusions:

Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.

Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Model

Parts

Labor

Type of Service

MCL3LDFRT

One Year

One Year

Carry In

For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service or order parts.

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef® logo is a registered trademark of CNA International, Inc.

www.mcappliance.com Printed in China

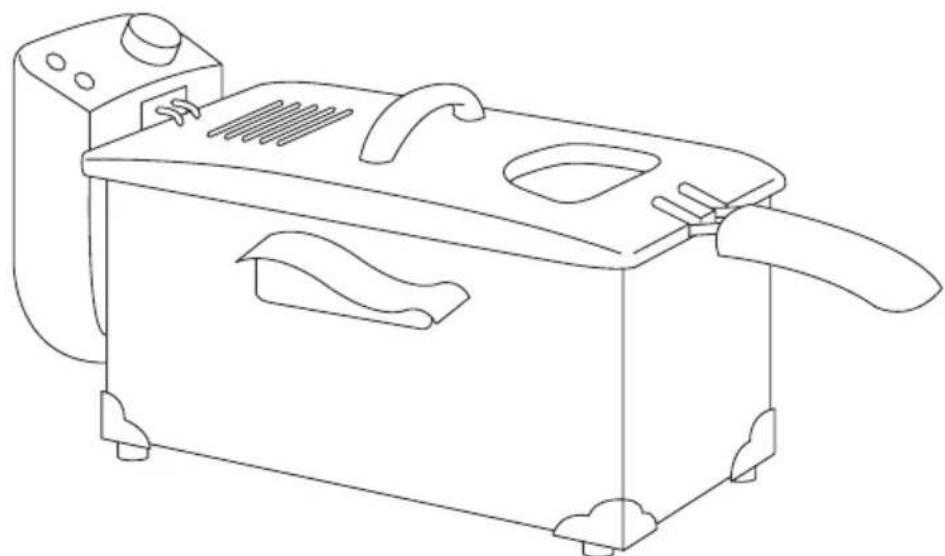

Freidora de immersion

Manual del usuario

POR FAVOR LEA ATENTAMENTE ESTE MANUALANTES DE USAR SU FREIDORA DE INMERSION Y CONSERVETO PARA FUTURAS REFERECIAS.

Modelo MCL3LDFRT

REGISTRO DEL PRODUCTO
