HWMS660 - Soundbar SAMSUNG - Free user manual and instructions

Product Type	Soundbar
Brand	Samsung
Model	HWMS660
Dimensions (W x H x D)	1060,0 x 78,0 x 130,5 mm
Weight	6,2 kg
Power Supply	100-240 V AC, 50/60 Hz
Standby Consumption	4,0 W (all network ports active)
Speakers	6 woofers, 3 tweeters (4 Ω)
Supported Audio Formats	LPCM 2ch, Dolby Audio, DTS
Connectivity	HDMI ARC, optical input, AUX, Bluetooth, Wi-Fi
Sound Modes	Standard, Music, Clear Voice, Sport, Cinema
Special Features	Surround, Smart Mode, DRC, Auto Power Link, Anynet+
Included Accessories	Remote control, AA x2 batteries, wall mounts, installation guide, support feet
Additional Options	Wireless subwoofer, SWA-9000S surround speakers (not included)
Safety	Auto power off, surge protection, electric shock instructions
Maintenance	Clean with a soft dry cloth, avoid liquids
Installation	Wall-mounted (kit included) or on stand
TV Compatibility	Samsung Smart TV (2014 and later)
Software Update	Automatic via Wi-Fi when the soundbar is in standby
Warranty	Contact Samsung customer service

Frequently Asked Questions - HWMS660 SAMSUNG

How do I connect the soundbar to my TV?

You can connect the soundbar via an HDMI ARC cable, an optical cable, or wirelessly via Bluetooth or Wi-Fi. For an HDMI connection, plug the cable into the HDMI OUT (TV-ARC) port on the soundbar and into the HDMI IN (ARC) port on the TV. Then select the mode "D.IN" or "TV ARC".

How do I use the Bluetooth function?

Press the Source button to select the BT mode. If the display shows "BT READY", press and hold the Source button for 5 seconds to switch to BT PAIRING mode. On your mobile device, search for "[AV] Samsung Soundbar MSxxx" in the Bluetooth list and connect.

What should I do if no sound comes out of the soundbar?

Check that the volume is not muted (press the VOL button) and that the level is not at zero. Make sure the correct source is selected (D.IN, HDMI, etc.). If the sound is still absent, restart the soundbar and the TV. In Bluetooth mode, check the distance (< 10 m).

How do I install the soundbar on the wall?

Use the provided wall mounting guide to mark the hole locations. Drill holes, insert wall plugs if necessary, then fix the screws. Attach the wall brackets to the back of the soundbar, then slide the soundbar onto the screws to secure it.

How do I update the soundbar software?

The update is automatic when the soundbar is connected to the internet via Wi-Fi and in standby. You can also download the full manual and updates from the Samsung Support website.

What if the remote control does not work?

Replace the batteries (AA x2) respecting polarity. Check that there is no obstacle between the remote and the soundbar. If the problem persists, use the physical buttons on the soundbar itself.

How do I adjust the bass volume?

Use the BASS button on the remote. Press Up or Down to adjust the level from -6 to +6. If a subwoofer is connected, the BASS button controls the subwoofer volume.

How do I activate Surround mode?

Press the Surround button on the remote. ON mode broadcasts sound through all speakers for an immersive experience; OFF mode reproduces the original sound.

Can I connect a subwoofer or additional speakers?

Yes, you can connect a wireless subwoofer and surround speakers (model SWA-9000S, sold separately). Use the WIRELESS port on the back of the soundbar and the electronic key provided with these accessories.

What should I do if there is sound distortion?

Check the Bluetooth connection: the distance must not exceed 10 meters. Move away interference sources (microwaves, Wi-Fi routers). Reduce the volume or disable Surround mode if necessary.

USER MANUAL HWMS660 SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground).
	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

WARNING

- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

USER MANUAL

See this manual for safety instructions, product installation, components, connections, and product specifications.

Illustration of a person sitting on a couch next to a laptop and TV (no text or symbols)

FULL MANUAL

You can access the Full Manual on Samsung's on-line customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from the website. (http://www.samsung.com/support)

Design, specifications and App screen are subject to change without prior notice.

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ____ 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar 3

Bottom Panel of the Soundbar 4

03 Connecting the Soundbar 5

Connecting Electrical Power ____ 5

04 Connecting to your TV 7

Method 1. Connecting with a Cable ____ 7

- Connecting using an Optical Cable ____ 7

- Connecting a TV using an HDMI Cable 8

Method 2. Connecting Wirelessly ____ 9

- Connecting a TV via Bluetooth ____ 9

- Connecting via Wi-Fi 11

05 Connecting an External Device 13

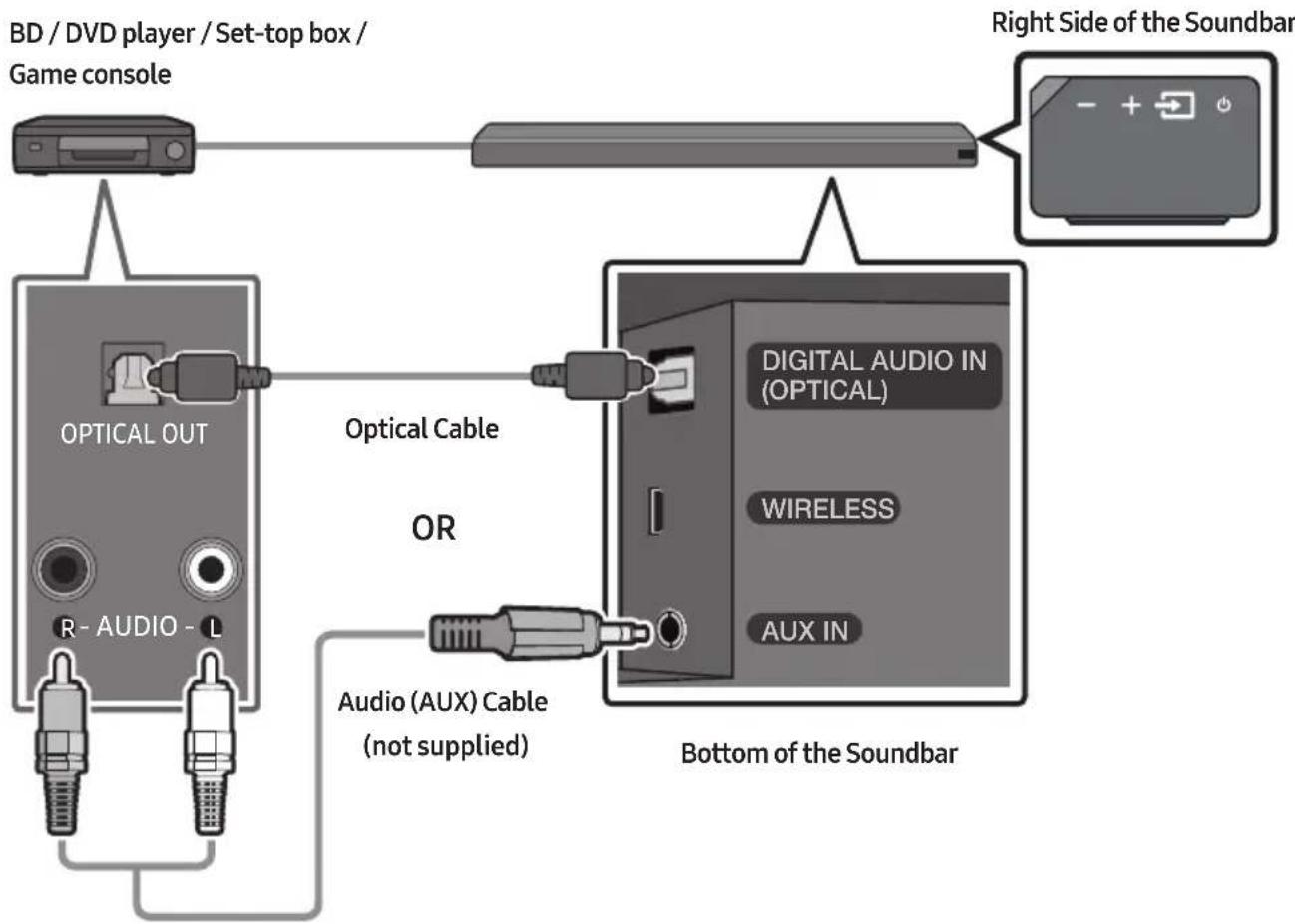

Connecting using an Optical or Analogue Audio (AUX) Cable 13

Connecting using an HDMI Cable 14

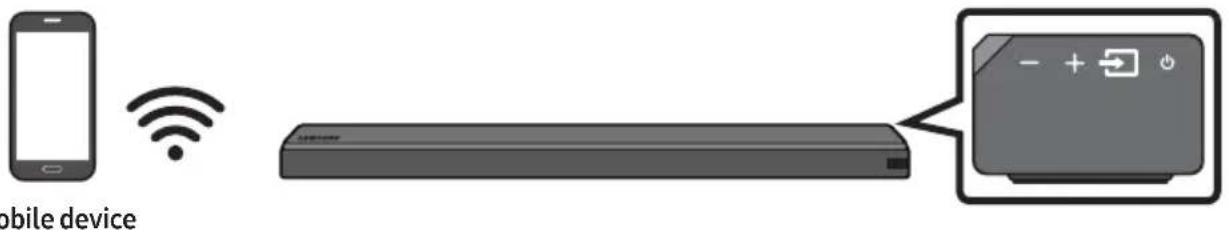

06 Connecting a Mobile Device 15

Method 1. Connecting via Bluetooth ____ 15

Method 2. Connecting via Wi-Fi (Wireless Network) ____ 18

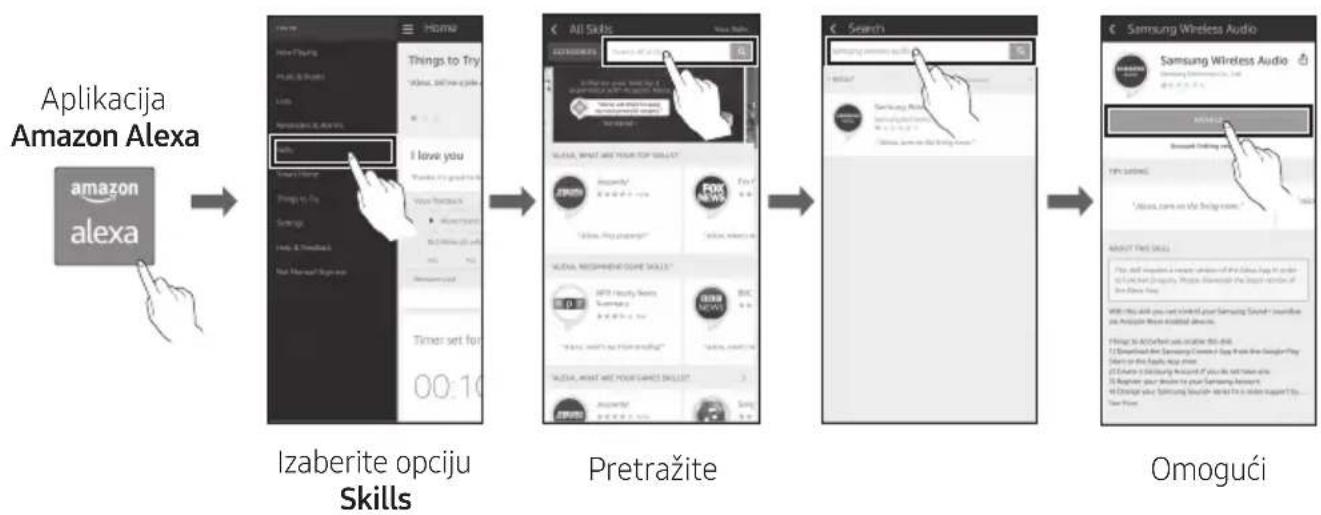

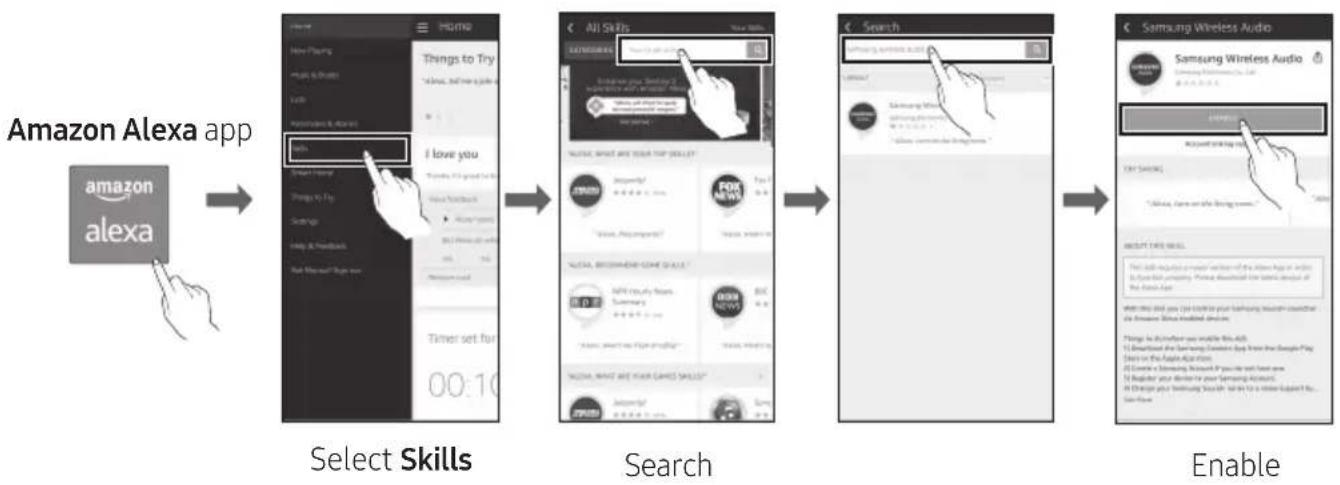

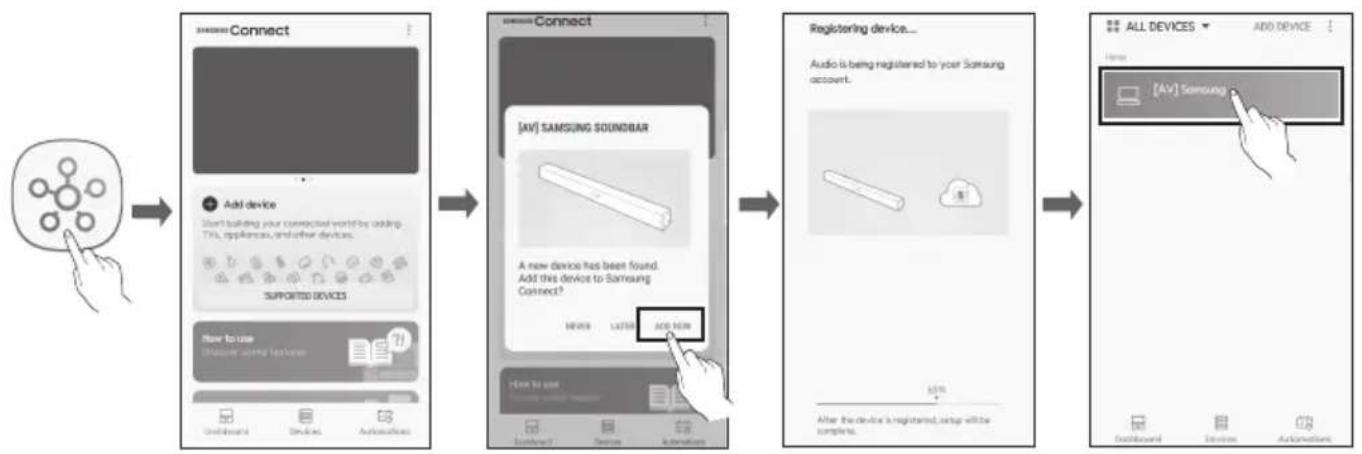

07 Connecting an Amazon product 20

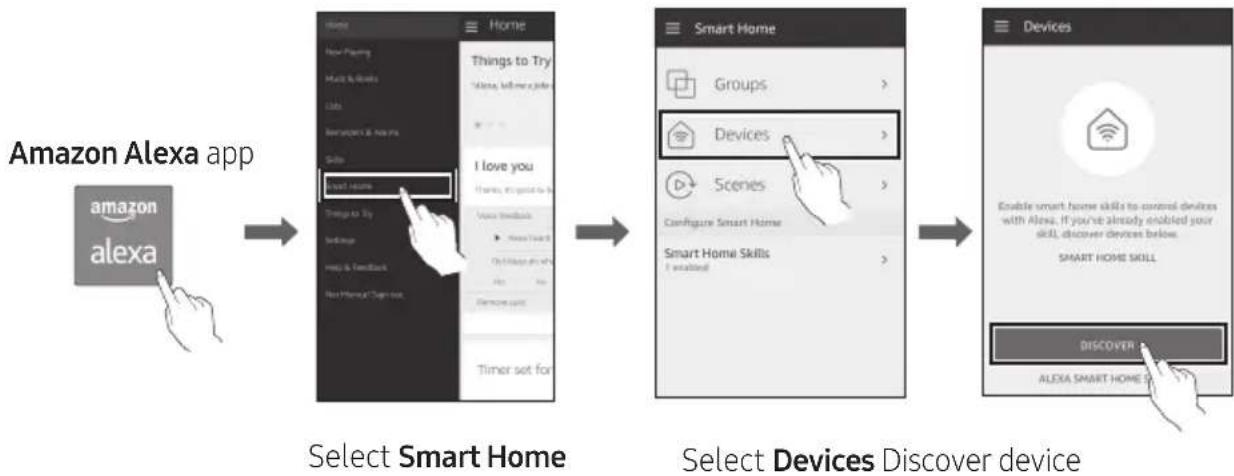

08 Controlling your Soundbar with an Amazon device 23

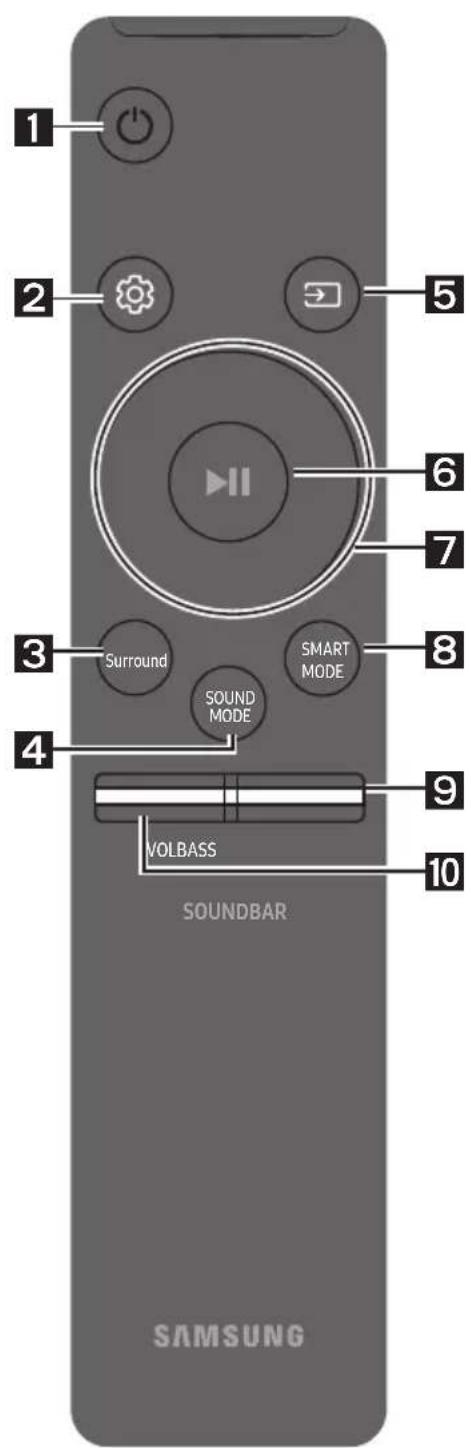

09 Using the Remote Control 24

How to Use the Remote Control ____ 24

Adjusting the Soundbar volume with a TV remote control 27

Using the Hidden Buttons ____ 28

Output specifications for the different sound effect modes ____ 28

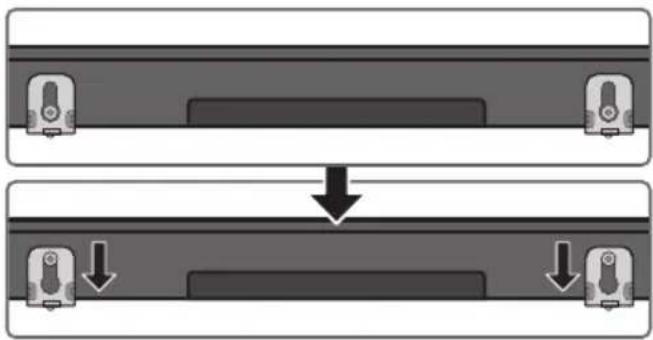

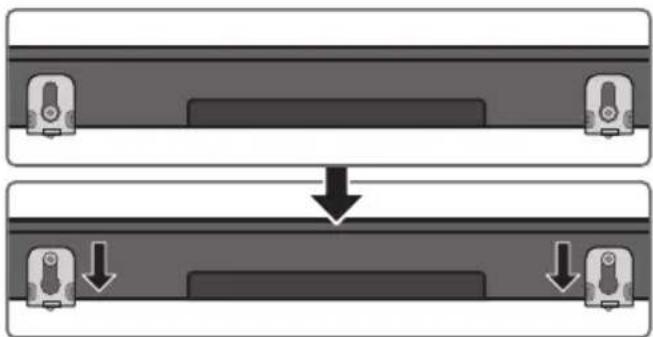

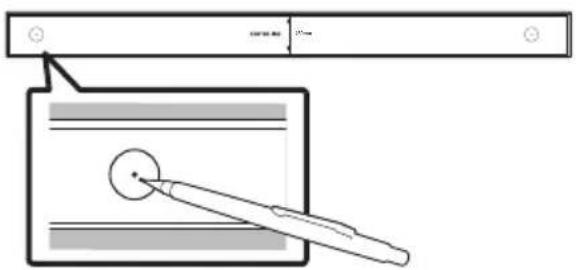

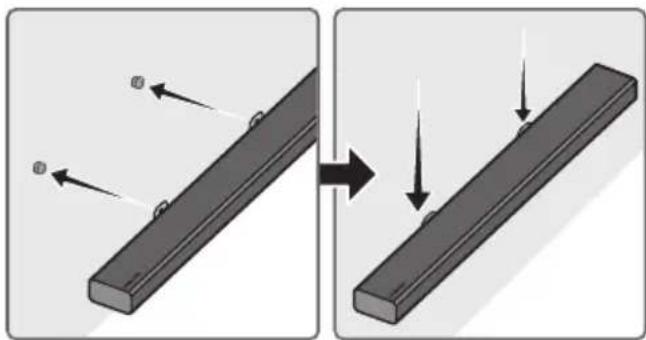

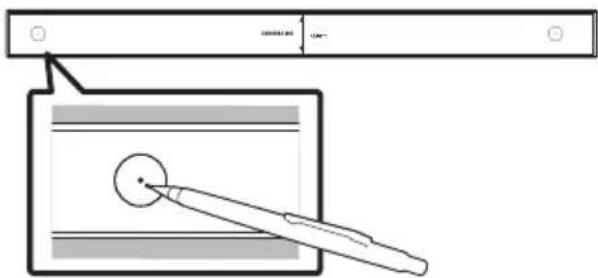

10 Installing the Wall Mount 29

Installation Precautions 29

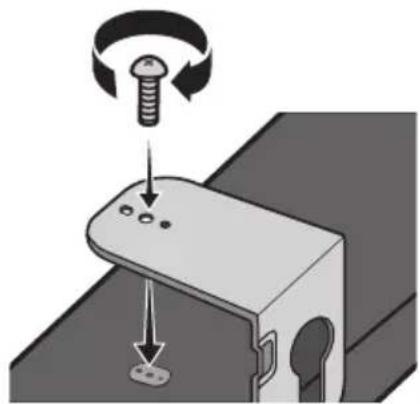

Wallmount Components 29

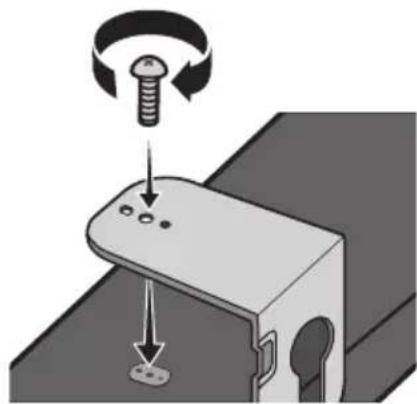

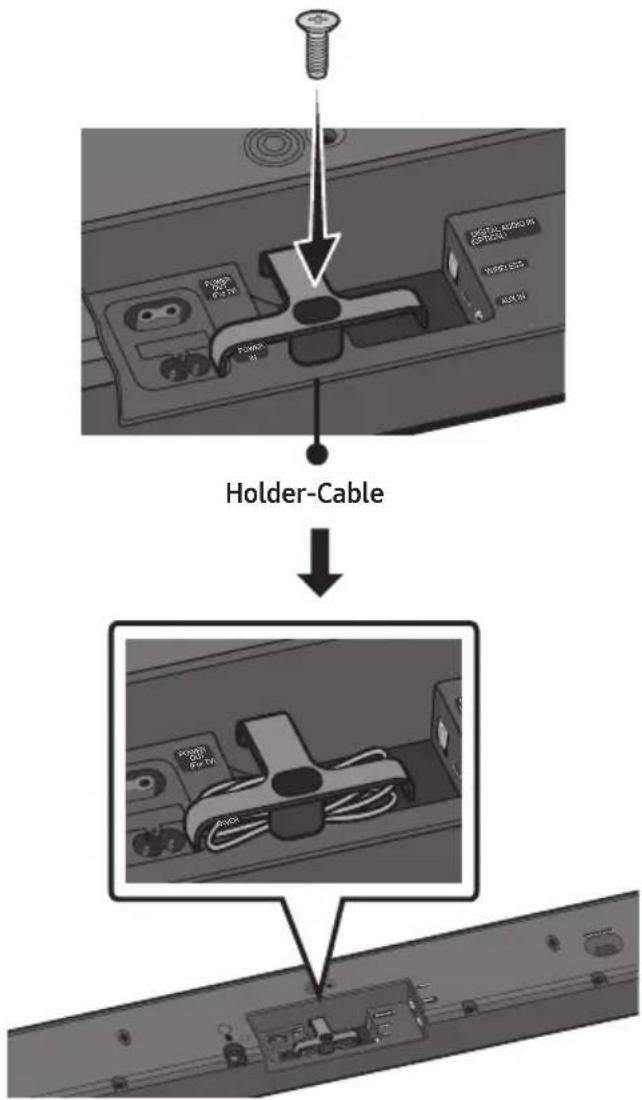

Assembling the Holder-Cable 31

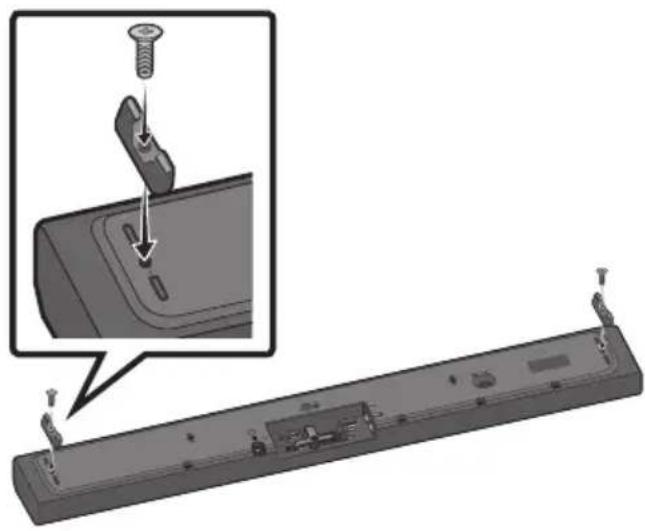

Installing the Holder Foot 32

11 Software Update 32
12 Troubleshooting 33
13 Licence 34
14 Open Source Licence Notice 34
15 Important Notes About Service 35
16 Specifications and Guide 35

Specifications 35

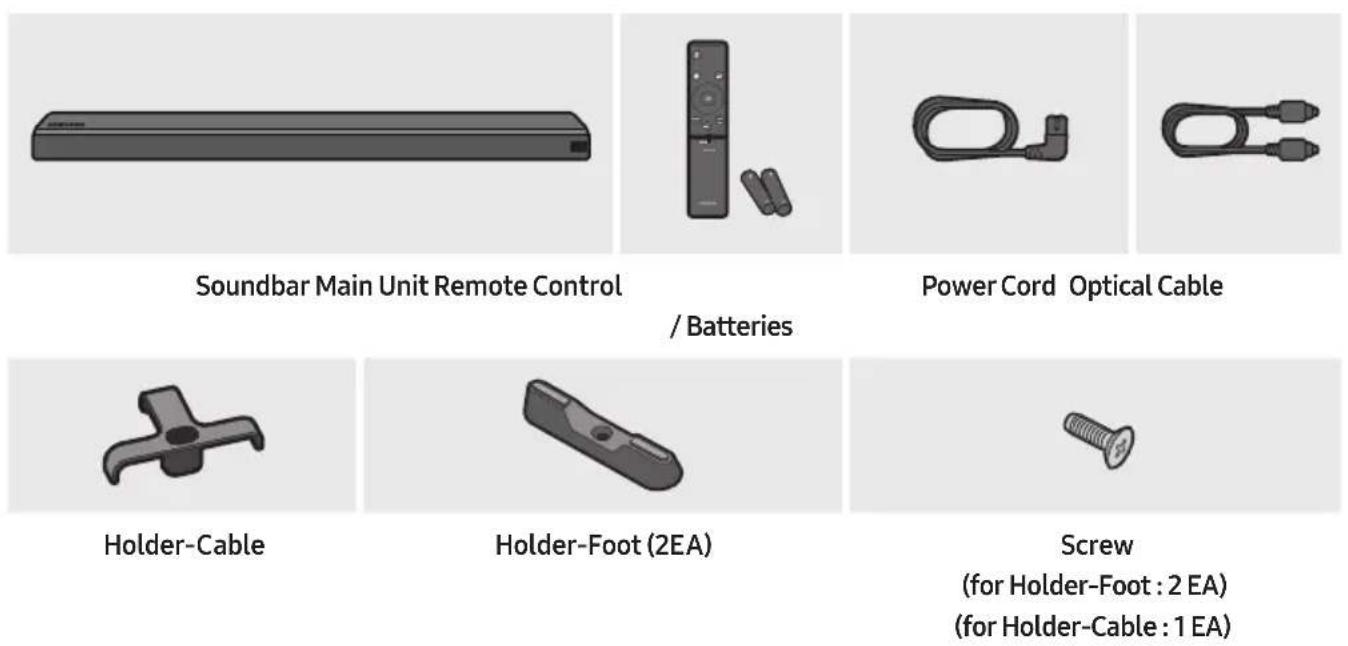

01 CHECKING THE COMPONENTS

(for Holder-Foot : 2 EA)
(for Holder-Cable : 1 EA)

• For Soundbar wall mounting components, see page 29.
  • See page 31 for instructions on how to use the Holder-Cable.
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• The appearance of the accessories may differ slightly from the illustrations above.

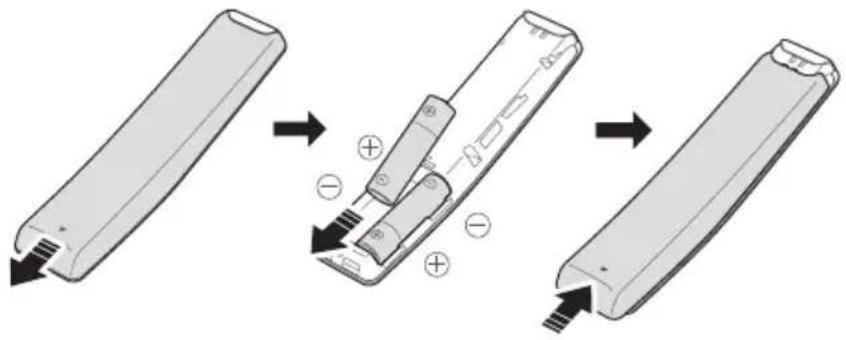

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

02 PRODUCT OVERVIEW

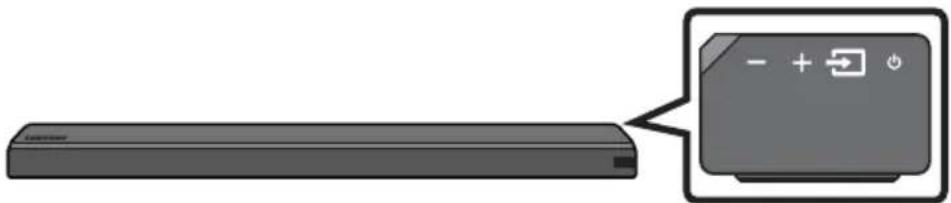

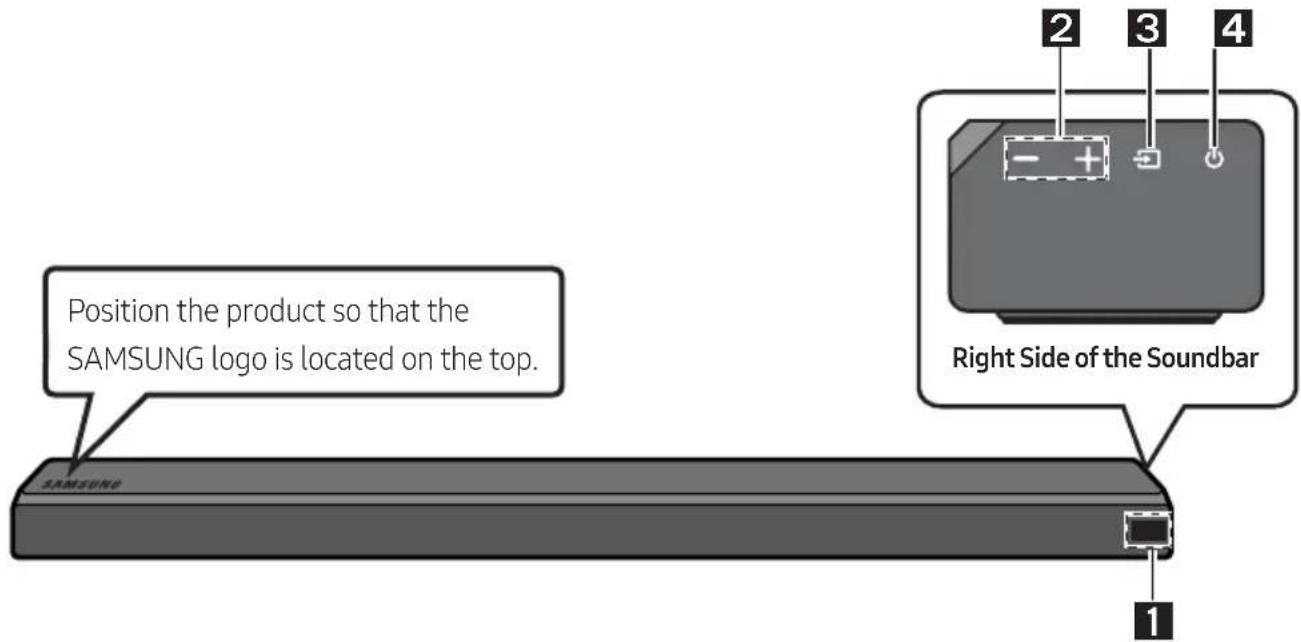

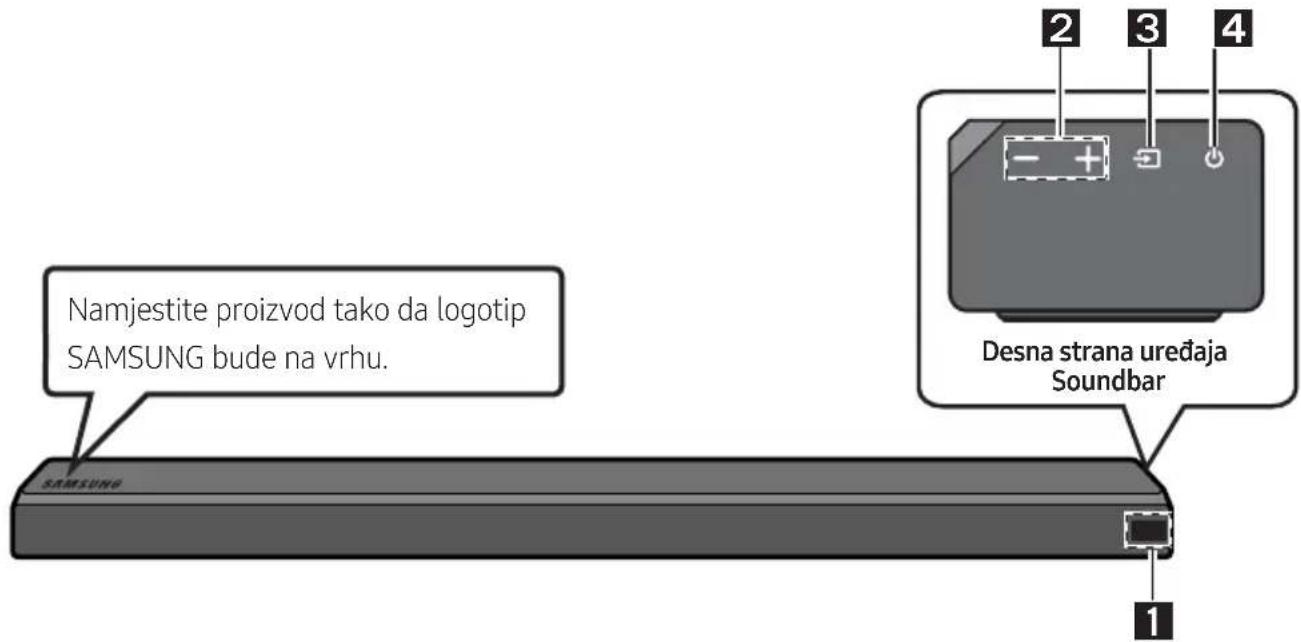

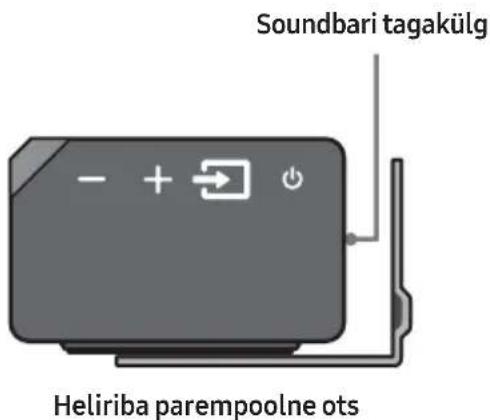

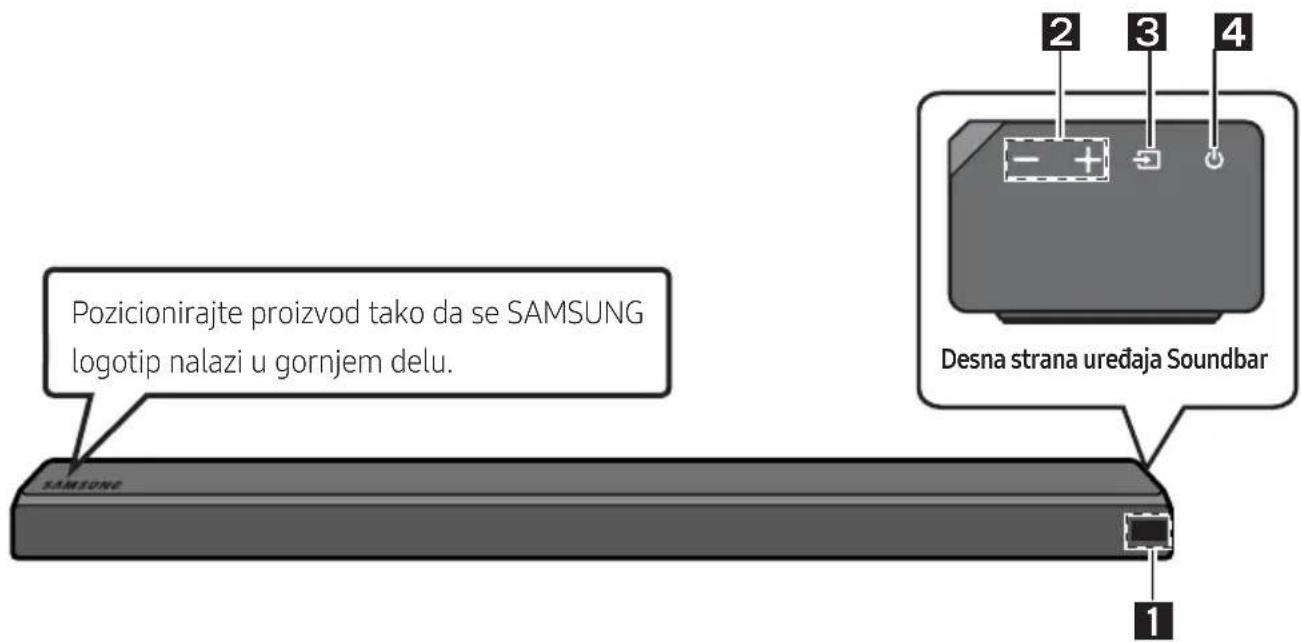

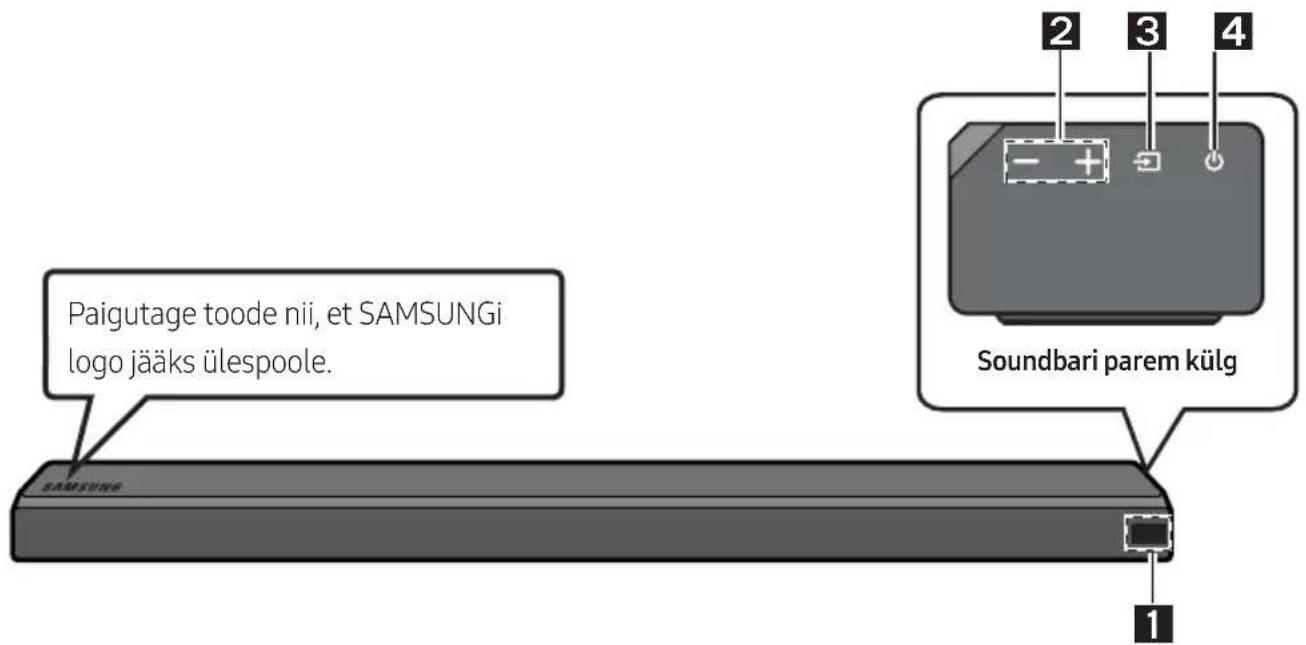

Front Panel / Right Side Panel of the Soundbar

1	DisplayDisplays the product's status and current mode.
2	-/+ (Volume) ButtonAdjusts the volume.When adjusted, the volume level appears on the Soundbar's front display.
3	(Source) ButtonSelects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	ARC (HDMI OUT) input	D.IN → TV ARC (Auto conversion)
	AUX input AUX
	HDMI input HDMI

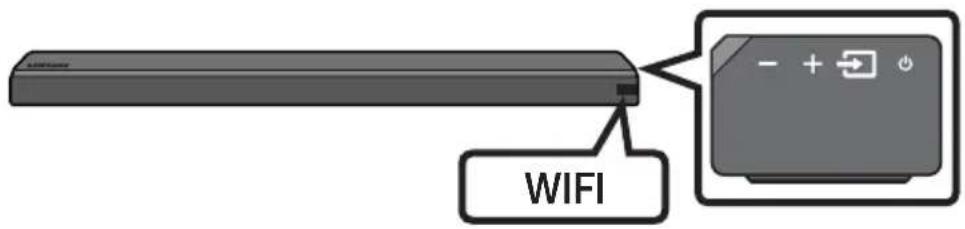

	Wi-Fi mode WIFI
	BLUETOOTH mode BT
	• To turn on "BT PAIRING" mode, change the source to "BT" mode, and then press and hold the(Source) button for more than 5 seconds.
4	[7x3w](Power) ButtonTurns the power on and off.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

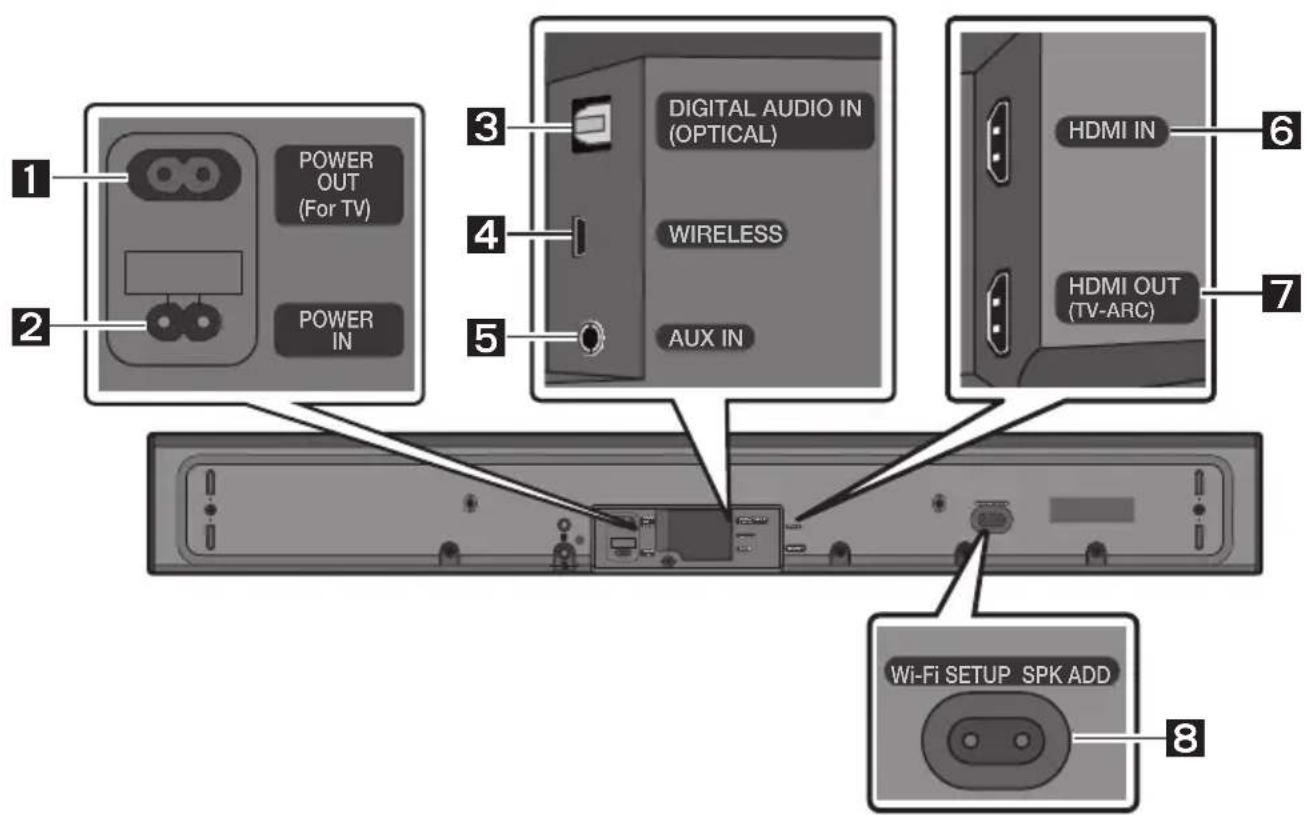

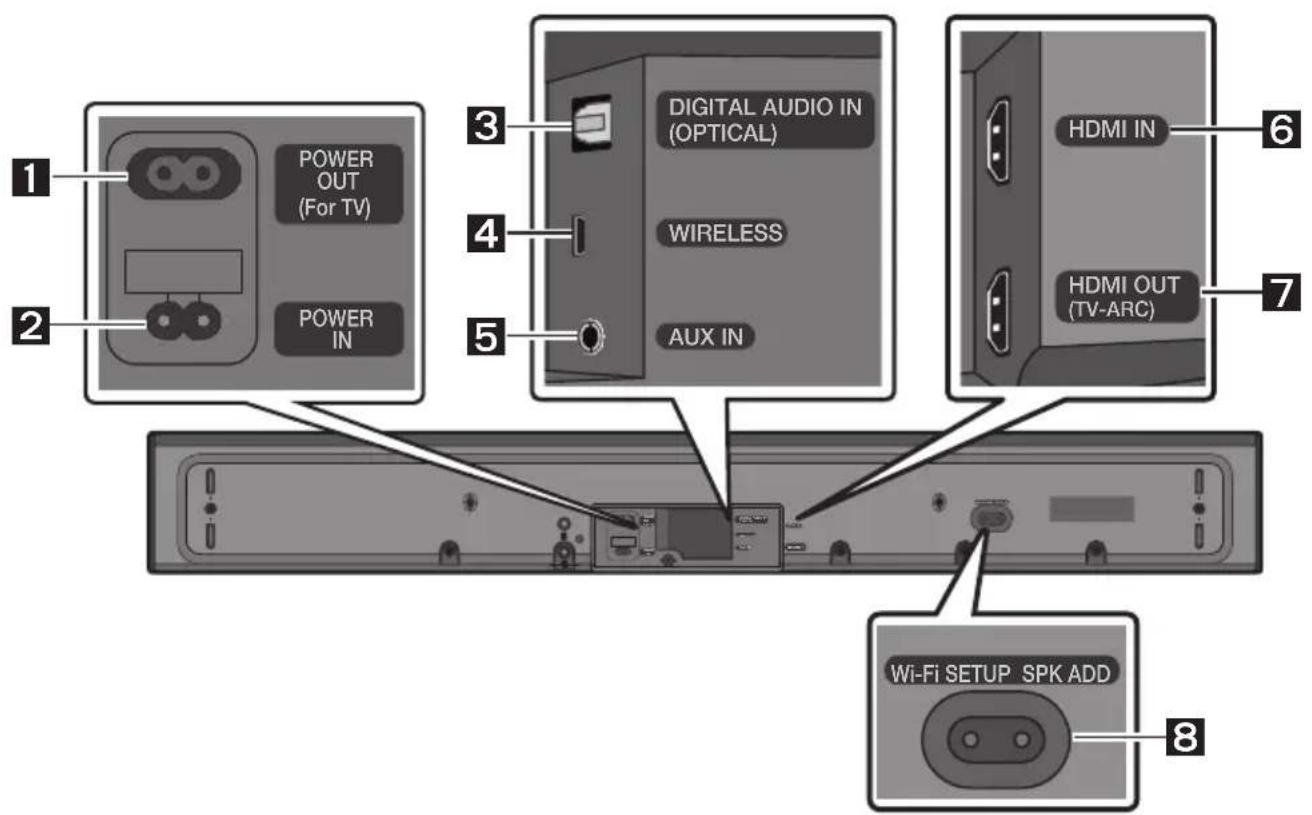

Bottom Panel of the Soundbar

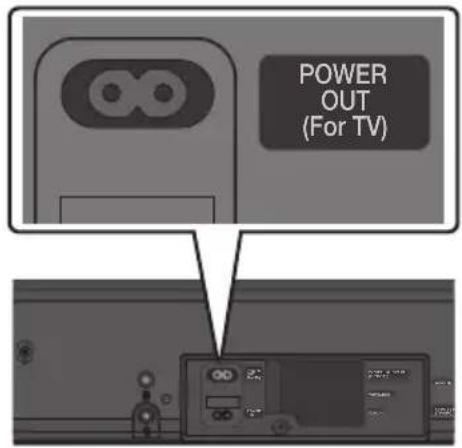

1	POWER OUT (For TV)Connect the power cord of a Samsung TV connected to the Soundbar and mounted on the wall using a Wall Mount Kit (WMN300SB - not supplied).
2	POWER INConnect the Soundbar's AC power cable.
3	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device.
4	WIRELESSAttach the wireless dongle that connects the Soundbar to surround speakers and a subwoofer wirelessly. (The surround speaker, subwoofer, and wireless dongle are sold separately.)The WIRELESS jack is not USB-compatible.The availability of subwoofers differs by area. Check the availability at http://www.samsung.com/support.
5	AUX INConnect to the Analogue output of an external device.
6	HDMI INInputs digital video and audio signals simultaneously using an HDMI cable.Connect to the HDMI output of an external device.
7	HDMI OUT (TV-ARC)Connect to the HDMI (ARC) jack on a TV.
8	Wi-Fi SETUP / SPK ADDConnect to a wireless network (Wi-Fi) via theSamsung Multiroomapp.

• When disconnecting the power cable from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR

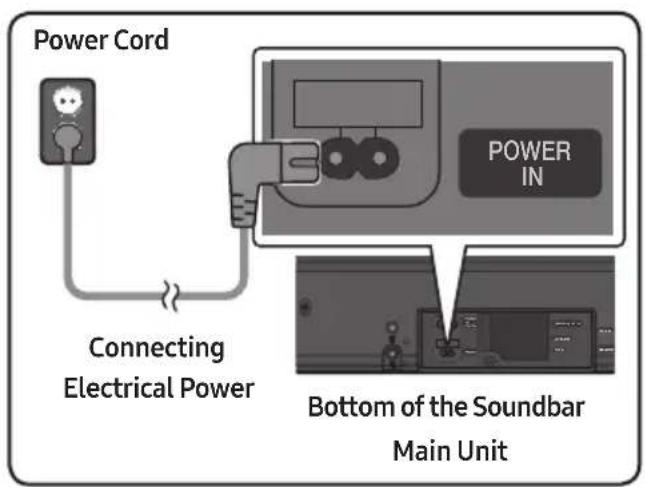

Connecting Electrical Power

- For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

- Connect the supplied power cable to the POWER IN jack.

Bottom of the Soundbar Main Unit

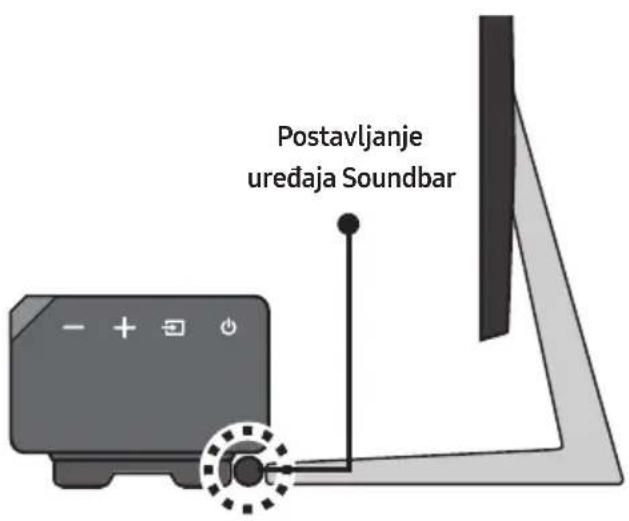

- The POWER OUT jack is used to provide power to a Samsung TV mounted on the wall using a Wall Mount Kit (WMN300SB - not supplied).

- The POWER OUT jack can connect only to Samsung TVs that use a 2-pin power cord and consume 400 W or less. (Connecting the jack to a device that consumes more than 400 W may damage the Soundbar or cause a malfunction.)

For a list of Samsung TVs that are compatible with the WMN300SB Wall Mount Kit and the

POWER OUT jack, see the WMN300SB

Wall Mount Kit user manual.

You can view the manual on line at

http://www.samsung.com/support.

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to a selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.
• When using optical cable, this feature can be supported by 2017 Samsung Smart TVs that support Bluetooth.
• This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When broadcasting signals are Dolby Digital and the setting for "Digital Output Audio Format" is PCM on your TV, it is recommended to change the setting to Dolby Digital. When the setting is changed, you can experience better sound quality. (The menu may differ depending on the TV manufacturer.)

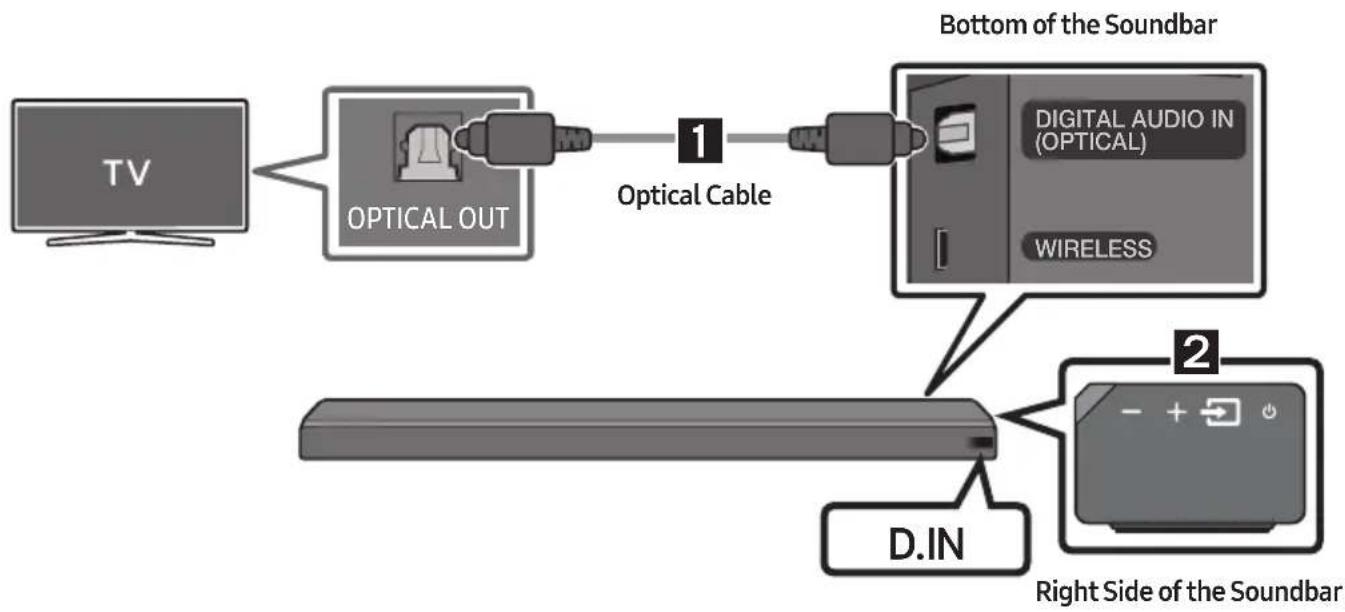

Connecting using an Optical Cable

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.
2. Press the → (Source) button on the right side panel or remote control, and then select the "D.IN" mode.

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable.

2. Press the → (Source) button on the right side panel or on the remote control, and then select "D.IN".

3. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off.

Circular gray button with a play symbol icon at center (no text or symbols)

• Auto Power Link is set to ON by default.

(To turn off this function, turn off Auto Power using the Soundbar.)

- Depending on the connected device, Auto Power Link may not function.

- This function is only available in the "D.IN" mode.

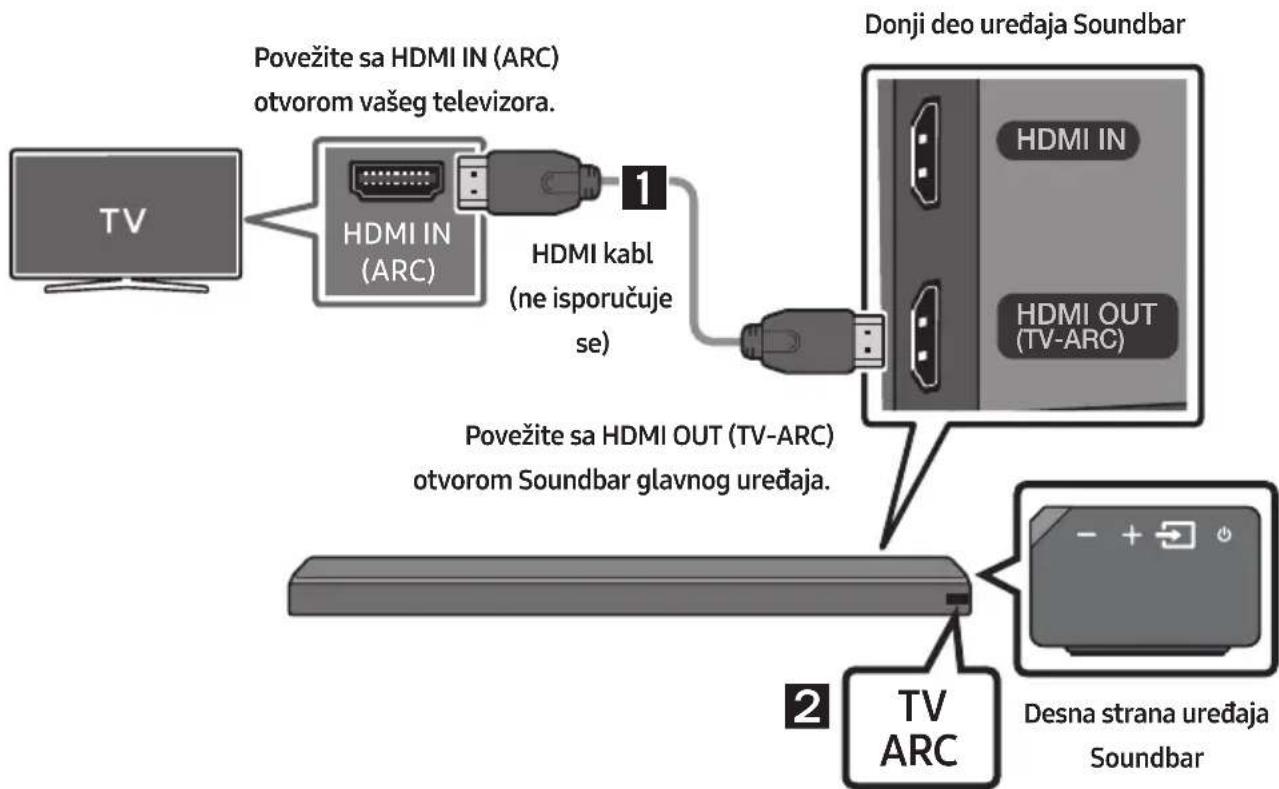

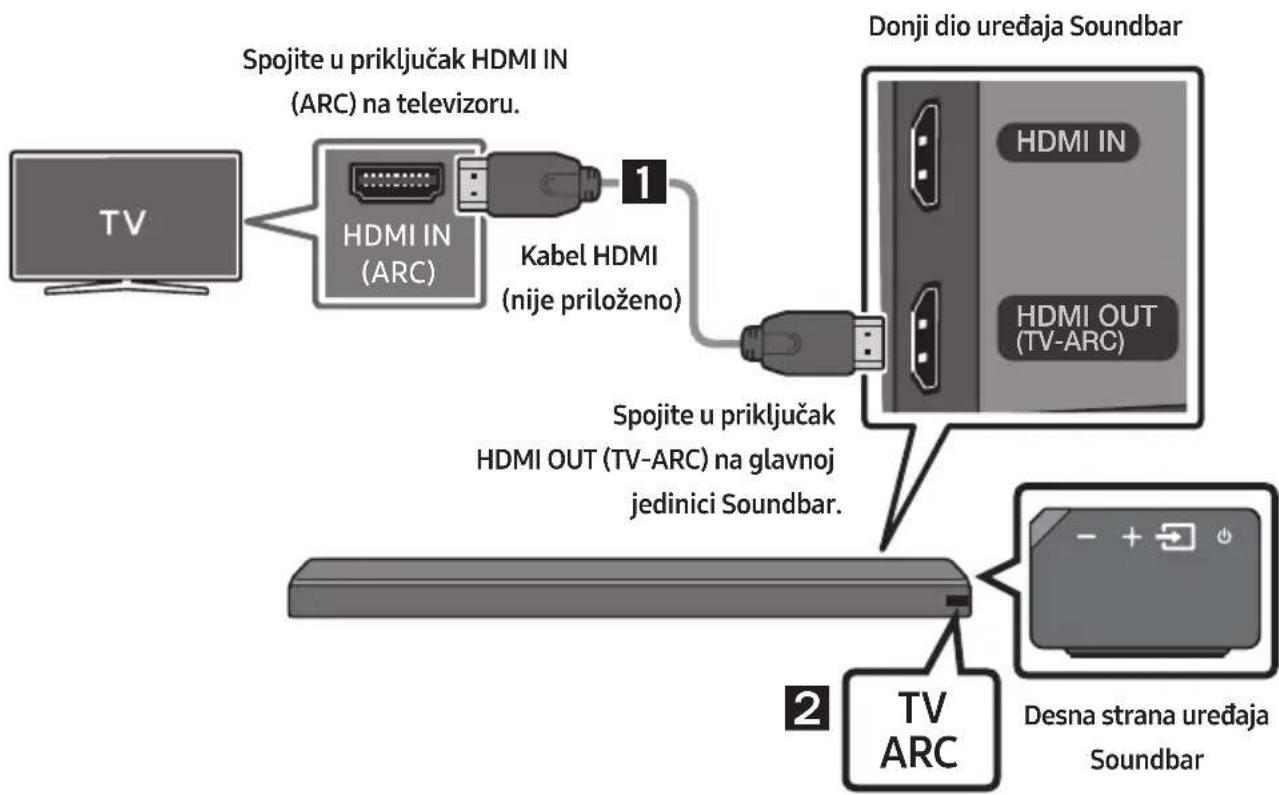

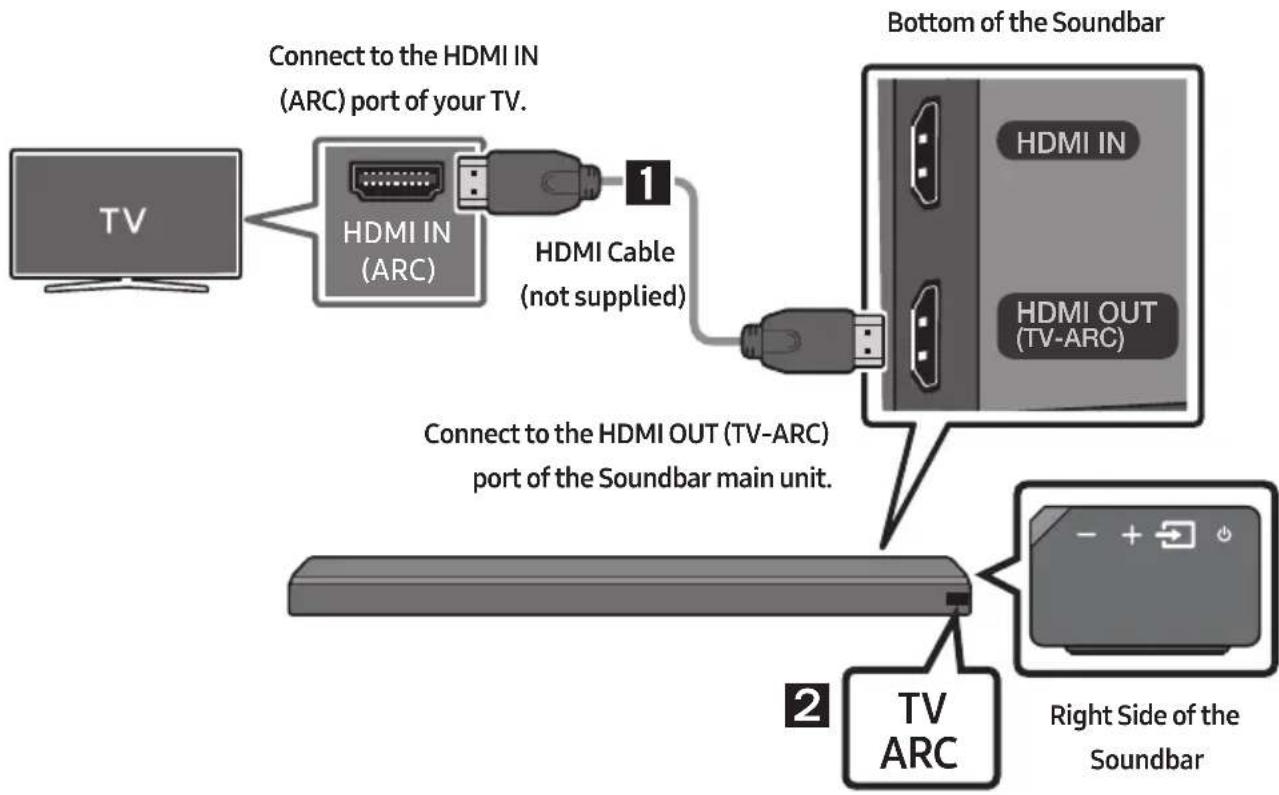

Connecting a TV using an HDMI Cable

1. With the Soundbar and TV turned on, connect the HDMI cable (not supplied) as shown in the figure.

2. "TV ARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

- If TV sound is inaudible, press the (Source) button on the remote control or on the right side of the Soundbar to switch to "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

- If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the cable is connected to the correct port.

- Use the volume buttons on the TV's remote control to change the volume of the Soundbar.

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• Anynet+ must be turned on.
• This function is not available if the HDMI cable does not support ARC.

Method 2. Connecting Wirelessly

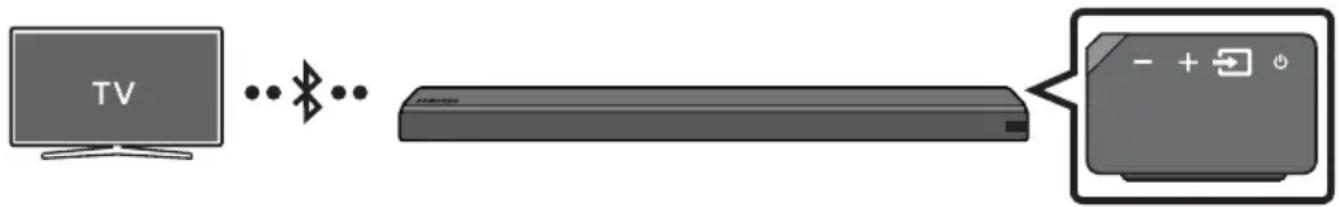

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- Only one TV can be connected at a time.

The initial connection

1. Press the → (Source) button on the right side panel or on the remote control, and then select "BT".
2. Change "BT" to "BT PAIRING".

- If "BT READY" appears, press and hold the ➞ (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display "BT PAIRING".

1. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)
2. Select "[AV] Samsung Soundbar MSxxx" from the list on TV's screen.

An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV Bluetooth device list. To connect to the Soundbar, select the message and establish a connection.

- When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

1. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If the previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar MSxxx") appears in the list, delete it.
• In "BT" mode, press and hold the → (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING" mode.
  Then, select "[AV] Samsung Soundbar MSxxx" from the TV's search list.

What are the BT READY and BT PAIRING statuses?

• BT READY : In this mode, you can search for previously connected TVs or connect to the Soundbar from a previously connected mobile device.
• BT PAIRING : In this mode, you can connect to a new device. (While in "BT" mode, press and hold the → (Source) button for more than 5 seconds on the right side of the Soundbar or on the remote control.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Disconnecting the Soundbar from the TV

Press the → (Source) button on the right side panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)
• To cancel automatic Bluetooth connection between the Soundbar and TV, press the ▶II (Play/Pause) button on the remote control for 5 seconds in "BT READY" status. (Toggle On → Off)

Pre-connection Checklist

1. Confirm that your Samsung smart TV was released after 2014. This function is compatible only with Samsung smart TVs released after 2014.
2. Make sure your Wireless router (Wi-Fi) is ready and working.
3. Make sure that the TV is connected to the Wireless router (your Wi-Fi network).

Step 1: Connecting the Soundbar to Wi-Fi

1. Press the → (Source) button on the right side of the Soundbar or on the remote control to select "WIFI" mode.

- When using selected Samsung TV (2016 or 2017 Samsung smart TVs that support Bluetooth.)

- If you select "WIFI" mode when the TV is turned on, the TV screen displays a pop-up window providing instructions on how to automatically connect the Soundbar to a wireless router (Wi-Fi). Refer to instructions in the pop-up window of TV.

1. Connect your mobile device (smartphone, tablet etc.) to the Wi-Fi network the TV is connected to.
2. Install and launch the Samsung Multiroom app on your mobile device (smartphone, tablet etc.).

1. Follow the instructions in the app screen on the mobile device to connect the Soundbar to your Wi-Fi network.

Step 2 : Configuring Settings on the TV

- If the TV disconnects from your wireless network after you change the input source to the Soundbar, use the TV menu to connect the TV to the network again.

For TVs released in 2017

1. Home menu → Settings (💡) → Sound → Sound Output → Select [AV] Soundbar MSxxx (Wi-Fi)
2. The Soundbar outputs TV sound.

For TVs released in 2016

1. Home menu → Settings (💡) → Sound → Sound Output → Select [AV] Samsung Soundbar MSxxx (Wi-Fi)
2. The Soundbar outputs TV sound.

For TVs released in 2015

1. Home menu → Sound → Speaker List → Select [AV] Samsung Soundbar MSxxx (Wi-Fi)
2. The Soundbar outputs TV sound.

For TVs released in 2014

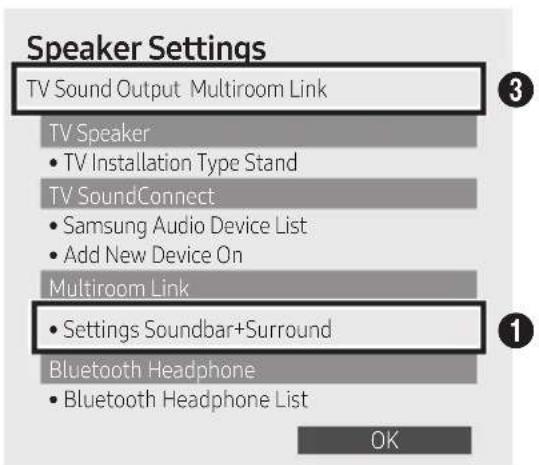

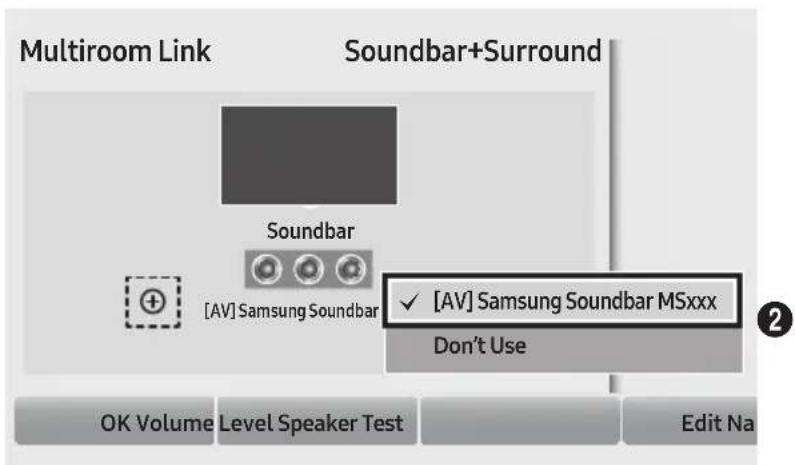

1. Home menu → Sound → Speaker Settings → Select Multiroom Link - Settings → Soundbar+Surround.

2. From the Soundbar menu item, select "[AV] Samsung Soundbar MSxxx" and then select "OK".

3. Home menu → Sound → Speaker Settings → Select TV Sound Output → Multiroom Link

1. The Soundbar outputs TV sound.

NOTES

• The TV and Soundbar must be connected to the same wireless network (Wi-Fi).
• If your wireless router (Wi-Fi) uses a DFS channel, you will not be able to establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.
• If the 5GHz Wi-Fi connection is not smooth, use the 2.4GHz bandwidth.

05 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analogue Audio (AUX) Cable

Optical Cable

1 Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable.
② Select "D.IN" mode by pressing the →(Source) button on the right side panel or on the remote control.

OR

Audio (AUX) Cable

1 Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
② Select "AUX" mode by pressing → (Source) button on the right side panel or on the remote control.

Connecting using an HDMI Cable

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.
2. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on your TV.
3. Press the → (Source) button on the right side panel or on the remote control, and then select "HDMI".
4. "HDMI" mode is displayed on the Soundbar display panel and sound plays.

06 CONNECTING A MOBILE DEVICE

Method 1. Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- You cannot connect more than one Bluetooth device at a time.

The initial connection

1. Press the → (Source) button on the right side panel or on the remote control, and then select "BT".
2. Change "BT" to "BT PAIRING".

- If "BT READY" appears, press and hold the → (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display "BT PAIRING".

1. Select "[AV] Samsung Soundbar MSxxx" from the list.

- When a Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] "BT" appears in the front display.

1. Play music files from the device, connected via Bluetooth, through the Soundbar.

If the device fails to connect

• If the previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar MSxxx") appears in the list, delete it
• In "BT" mode, press and hold the → (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING" mode.
  Then, select "[AV] Samsung Soundbar MSxxx" from the Bluetooth device search list.

What are the BT READY and BT PAIRING statuses?

• BT READY : In this mode, you can search for previously connected TVs or connect to the Soundbar from a previously connected mobile device.
• BT PAIRING : In this mode, you can connect to a new device. (While in "BT" mode, press and hold the

(Source) button for more than 5 seconds on the right side of the Soundbar or on the remote petrol.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
  • The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once you have paired the Soundbar to a Bluetooth device, selecting "[AV] Samsung Soundbar MSxxx" from the device's scanned devices list will automatically change the Soundbar to "BT" mode.

- Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".
• Soundbar cannot be paired to another Bluetooth device, while using the Bluetooth function.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the → (Source) button on the right side panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

Method 2. Connecting via Wi-Fi (Wireless Network)

• Connect a single Soundbar to Wi-Fi to access a variety of music streaming services and Internet radio. Connect multiple Soundbars to Wi-Fi to use grouped playback or stereo sound mode.
• To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the Samsung Multiroom app is required.

The initial connection

1. Press the → (Source) button on the right side of the Soundbar or on the remote control to select "WIFI" mode.

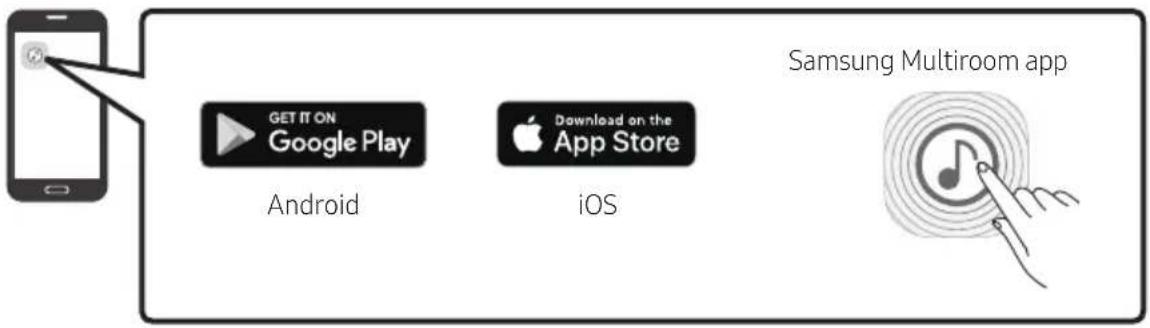

1. Install and launch the Samsung Multiroom app on your mobile device (e.g. smartphone or tablet).

1. Follow the instructions in the app screen on the mobile device to connect the Soundbar to Wi-Fi.

Installing an additional Soundbar when Samsung wireless speakers are already in use

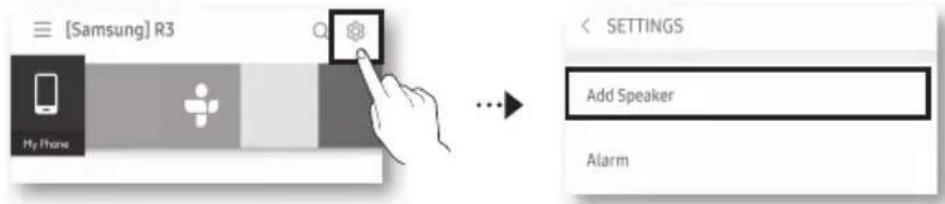

1. On the Home screen of the Samsung Multiroom app, select Settings (💡) at the top, and then select "Add Speaker".

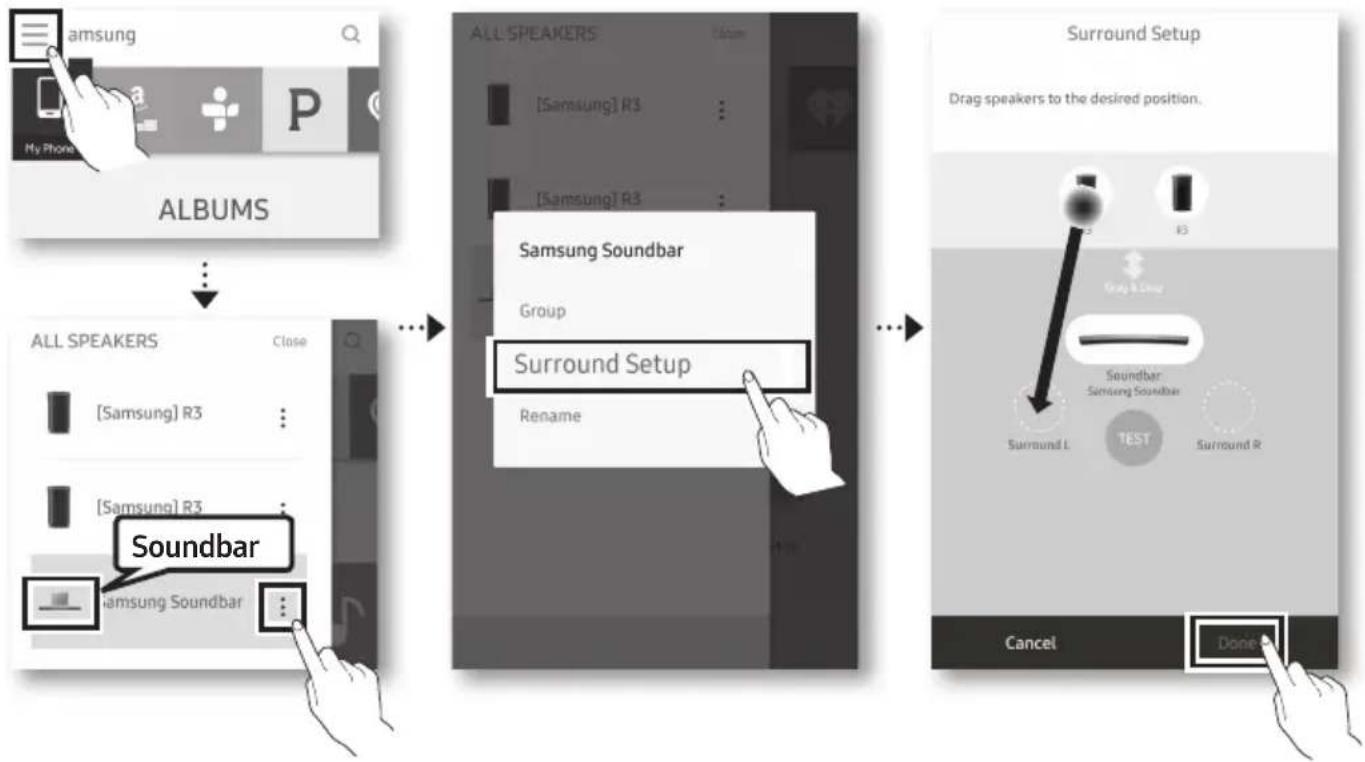

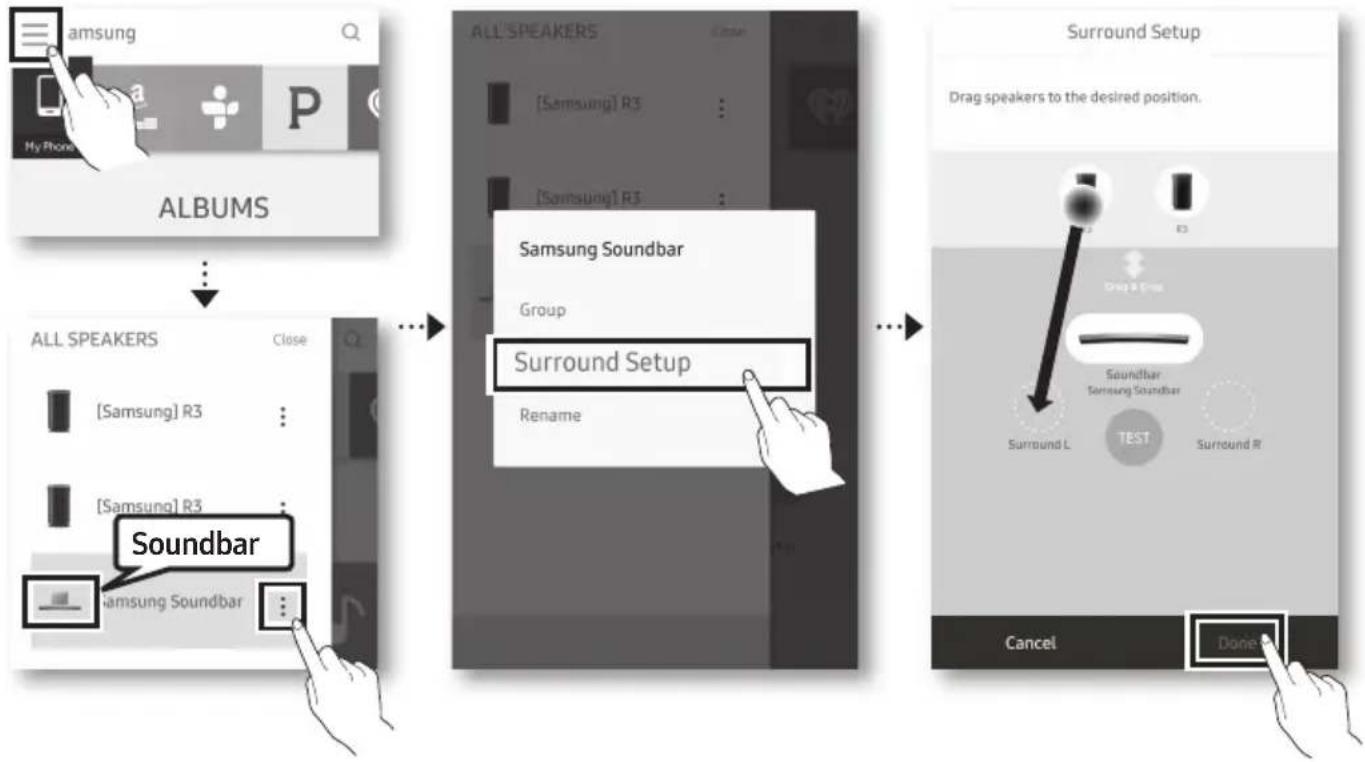

1. To connect the Soundbar to 2 Samsung wireless speakers and configure a surround sound system, follow the steps shown below. (You cannot set up a surround sound system using one audio device and one Soundbar.)

① Touch≡to go to the list of all speakers.
② Touch: on the right of the Soundbar model name.
③ Touch Surround Setup. Select Done after dragging the speaker to the desired location.

④ The Surround connection is complete.

- To connect an additional SWA-9000S (not supplied), disconnect the Samsung wireless speakers from the Soundbar to disable the surround sound system. (If connecting the surround speakers without disconnecting SWA-9000S, sound is played via both the Samsung wireless speaker and the Surround speaker.)

07 CONNECTING AN AMAZON PRODUCT

Connect and use with an Amazon product (Amazon Echo)

Use an Amazon Echo product to control your speakers and enjoy music services provided by Amazon Echo.

1. Install SmartThings app to your mobile device.

1. Launch the app and follow the instructions on the screen to register (add) your Soundbar in the app.

• Automatic pop-up may not be available in some mobile devices.

If this is the case, select and complete "Add device" from the app menu. Your Soundbar is now added to the app.

Launch App Add speakersAuto pop-up

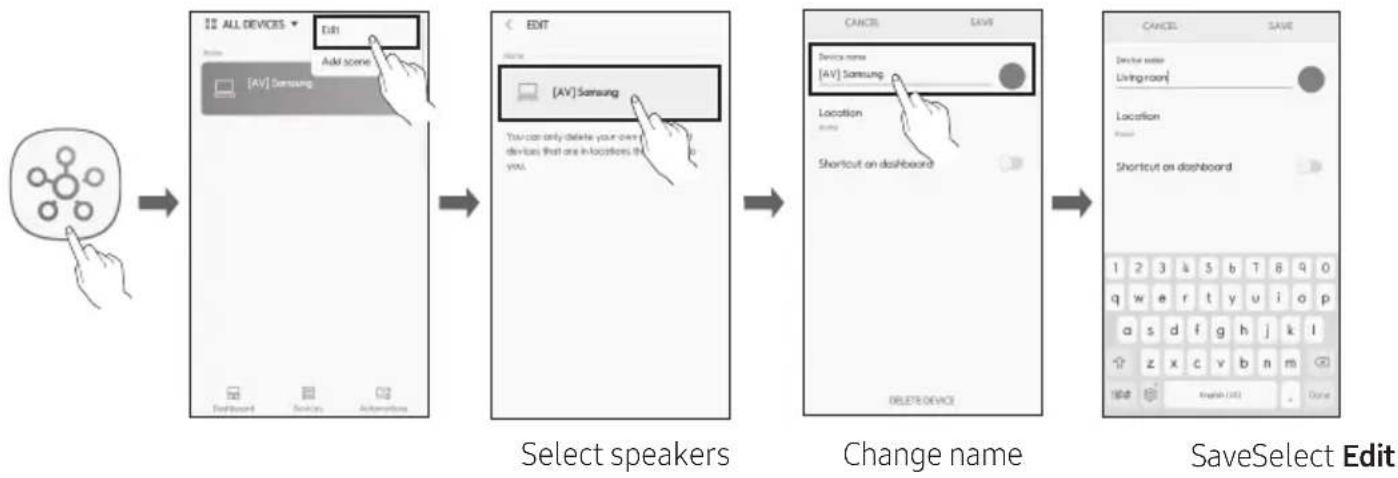

1. In SmartThings app, change your Soundbar name to one that can be recognized by your Amazon device.

(Example: Samsung, Soundbar, Living Room, Family Room, Bedroom, Office, etc.)

CAUTION

- Amazon devices may not recognize names that contain elements such as special characters.

1. In Alexa app, search "Samsung Wireless Audio" in Skills and select "ENABLE".

- Skip this step if you have the Skills set up already.

1. From Smart Home tap in Alexa app, complete "Discover Device".

    subgraph "Select Smart Home"
        D["Home"] --> E["How Planning"]
        E --> F["Music & Games"]
        F --> G["Lists"]
        G --> H["Barrington & New York"]
        H --> I["Sells"]
        I --> J["Smart Home"]
        J --> K["Things to Try"]
        K --> L["I love you"]
        L --> M["Features, image, text"]
        M --> N["User feedback"]
        N --> O["Help/Help & Feedback"]
        O --> P["New Personal Sign In, etc."]
        P --> Q["Timer set for"]
    end

    subgraph "Select Devices Discover device"
        R["Smart Home"] --> S["Groups"]
        S --> T["Devices"]
        T --> U["Scenes"]
        U --> V["Configure Smart Home"]
        V --> W["Smart Home Skills"]
        W --> X["I enabled"]
    end

    A --> B --> C --> D --> E --> F --> G --> H --> I --> J --> K --> L --> M --> N --> O --> P --> Q --> R
    R --> S --> T --> U --> V --> W --> X --> Y["Discover"]
    R --> Z["Devices"]
    Z --> AA["Enable smart home skills to control devices with Alexa. If you've already enabled your skill, discover devices below. SMART HOME SKILL"]
    Z --> AB["DISCOVER"]

08 CONTROLLING YOUR SOUNDBAR WITH AN AMAZON DEVICE

1. Use voice commands to enjoy musics available on your Amazon device.

- The Amazon Echo service you can use with your speakers is limited to musics. Other services provided by Amazon Echo, such as news and weathers, can be accessed on your Amazon Echo product.

• This feature may not be available in some countries.

- This service is provided by Amazon and can be terminated at any time, Samsung does not assume responsibility of service availability.

Use voice commands to control speakers.

Trigger + Command + Speaker name

Use the Speaker name you used when adding it to Alexa app.

Action Voice Command
To search an audio device added to theSmartThingsaccount connected to theAmazon Alexaaccount	"Alexa Discover devices"

* Use voice commands for speakers named "Living room"

Action Voice Command
To set the volume level to 5	"Alexa Set the volume to 5 on Living room"
To increase the volume level	"Alexa Volume up on Living room"
To mute the sound "Alexa Mute on Living room"
To listen to radio station named KISS FM	"Alexa Play Kiss FM on Living room"
To play the next song	"Alexa Next song on Living room"
To stop the audio	"Alexa Stop on Living room"
To turn the audio on "Alexa Turn on Living room"
To turn the audio off "Alexa Turn off Living room"

09 USING THE REMOTE CONTROL

How to Use the Remote Control

1	Power	Turns the Soundbar on and off.
2	Sound Control	You can select from TREBLE, SYNC, REAR LEVEL, or REAR SPEAKER ON/OFF.To adjust the TREBLE volume, select Sound Control TREBLE, and then use the Up/Down buttons to adjust the volume within the -6 to +6 range.Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable (Left/Right) and each can be adjusted to a setting between -6 to +6 (Up/Down).If the video and audio between the TV and your Soundbar are not synchronised, select SYNC in Sound Control, and then set audio delay between 0~300 milliseconds by using the Up/Down buttons.If surround speakers (not supplied) are connected, select REAR LEVEL and use the Up/Down buttons to adjust the volume within the -6 to +6 range.The REAR SPEAKER function can be turned ON/OFF by using the Up/Down buttons.Audio Sync is only supported in some functions.

3	Surround	The Surround Sound function adds depth and a sense of space to sound.Each time you press this button, ON and OFF alternate.ON: Play sound over all the speakers.OFF: You can hear the sound of the original source channel from several speakers.
4	SOUND MODE	You can select the desired sound effect by choosingSTANDARD,MUSIC,CLEAR VOICE, SPORTS, or MOVIE.Select the “STANDARD” mode if you want to enjoy the original sound.DRC (Dynamic Range Control)Lets you apply dynamic range control to Dolby Digital tracks. If you press and hold the SOUND MODEbutton while in standby mode, DRC (Dynamic Range Control) turns on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)
5	Source	Press to select a source connected to the Soundbar.BT PAIRING modeTo turn on “BT PAIRING” mode in “BT” mode, press and hold the→(Source) button for more than 5 seconds. See page 15 for details.Auto Power Down FunctionThe unit turns off automatically in the following situations.-D.IN / WIFI / BT Mode: If there is no audio signal for 5 minutes.-HDMI Mode: If there is no audio signal for 15 minutes.-AUX Mode:-If the Audio (AUX) Cable is disconnected for 5 minutes.-If there is no KEY input for 8 hours when the Audio (AUX) Cable is connected. (Auto Power Down function can be turned off only in that case.)-To turn off Auto Power Down function, while in “AUX” mode, press and hold the▶II button for 5 seconds. “ON-AUTO POWER DOWN” / “OFF-AUTO POWER DOWN” appears on the display.
6	Play / Pause (BT/Wi-Fi)	Press the▶II button to pause a music file temporarily.If you press the button again, the music file plays.
7	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.
		Press Up/Down/Left/Right on the button to select or set functions.RepeatTo use the repeat function, press theUpbutton.Music SkipPress theRightbutton to select the next music file. Press theLeftbutton to select the previous music file.Anynet+ / Auto Power LinkYou can turn Anynet+ and Auto Power Link on or off.Anynet+ and Auto Power Link are controlled by theRightandLeftbuttons respectively.- Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with the Samsung TV's remote control.Press and hold theRightbutton for 5 seconds to toggle Anynet+ ON and OFF.- Auto Power Link : If the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV.Press and hold theLeftbutton for 5 seconds to toggle Auto Power Link ON and OFF.- Anynet+ / Auto Power Link are set to ON by default.
8	SMART MODE	Automatically optimises sound effects to suit the scene currently playing.The mode turns on or off each time the button is pressed.
9	BASS	Push the button up or down to adjust the BASS volume within the -6 to +6 range.To set the BASS volume level to 0, press the button.When a Subwoofer (not supplied) is connected, the BASS button switches to the Subwoofer Key. Push the button up or down to adjust the subwoofer volume either to -12 or within the -6 to +6 range. To set the subwoofer volume level to 0, press the button.

Push the button up or down to adjust the volume.

- Mute

Press the VOL button to mute the sound. Press it again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

Use the TV menu to set the TV speaker on a Samsung TV to external speakers. (For more information, see the TV's user manual.)

- After installing the Soundbar, you can adjust the Soundbar's volume using the IR remote control that came with a Samsung TV. (If you do not want to use this function, when the Soundbar is on, press and hold the Surround button for 5 seconds. "OFF-TV REMOTE" appears in the Soundbar's display and the function turns off.) To adjust the volume using only the Samsung TV remote control, press and hold the Surround button for more than 5 seconds until "SAMSUNG-TV REMOTE" appears in the Soundbar display.

- Each time the Surround button is held for 5 seconds, the mode switches in the following order: "SAMSUNG-TV REMOTE" (Default mode) → "OFF-TV REMOTE" → "ALL-TV REMOTE".

- To adjust the Soundbar volume with the remote control that came with a TV made by a third party manufacturer, turn the Soundbar on, press and hold the Surround button for 5 seconds ("OFF-TV REMOTE" appears on the Soundbar's display), release the Surround button, and then press and hold the Surround button again for more than 5 seconds. ("ALL-TV REMOTE" appears on the Soundbar's display.)

• This function may not be available, depending on the remote control.
  – Manufacturers supporting this function:

VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

Using the Hidden Buttons

Hidden Button		Reference page
Remote Control Button Function
Surround	TV remote control On/Off	page 27
(Source)	BT Paring	page 15
(Play / Pause)	Auto Power Down On/Off(AUX mode)	page 25
Left Auto Power Link	ON/OFF page 7
Right	Anynet+ ON/OFF	page 26
(Sound Control)	7 Band EQ	page 24
SOUND MODE	DRC ON/OFF (Standby)	page 25

Output specifications for the different sound effect modes

Effect Input			Output
			Except Wireless Rear Speaker Kit	Include Wireless Rear Speaker Kit
Surround	ON	2.0 ch	2.0 ch 4.0 ch
		5.1 ch 3.0 ch	5.0 ch
SOUND MODE	STANDARD	2.0 ch	2.0 ch 4.0 ch
		5.1 ch 3.0 ch	5.0 ch
	MUSIC	2.0 ch	2.0 ch 2.0 ch
		5.1 ch 3.0 ch	5.0 ch
	CLEAR VOICE	2.0 ch	3.0 ch 5.0 ch
		5.1 ch 3.0 ch	5.0 ch
	SPORTS	2.0 ch	3.0 ch 5.0 ch
		5.1 ch 3.0 ch	5.0 ch
	MOVIE	2.0 ch	3.0 ch 5.0 ch
		5.1 ch 3.0 ch	5.0 ch

• Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

10 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

- Diameter: M5

– Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

Two technical illustrations of screw components: a pulley and a threaded screw (no text or symbols)

Holder-Screw (2 EA) Screw (2 EA)

Simple line drawing of a mobile phone slot (no text or symbols)

Bracket-Wall Mount (2 EA)

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.
- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

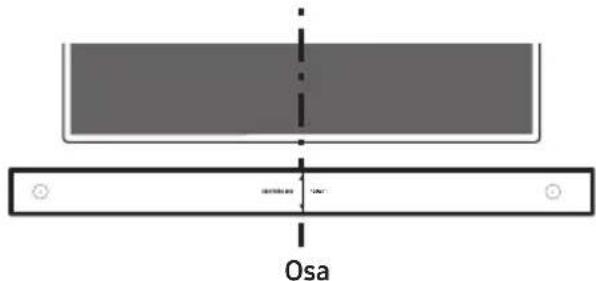

1. Align the Paper Template's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

1. Use a sharp object, such as a pen or pencil, to mark the holes' positions, and then remove the Wall mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

Diagram showing a screw being inserted into a pulley and rotating around it, with no text or symbols present.

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar, using 2 Screws.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Right end of Soundbar

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols present)

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that Bracket-Wall Mounts rest securely on the Holder-Screws.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Assembling the Holder-Cable

As shown in the image, use the supplied Screw to fix the Holder-Cable to the Soundbar, and then use the Holder-Cable to organise any cables.

Installing the Holder Foot

If you are not mounting the Soundbar on the wall, use the 2 provided screws to attach the 2 Holder Feet to the bottom of the Soundbar as shown below.

- Note that the stands of certain Samsung TVs are designed to provide a fixed place for the Soundbar. To finalise the installation of the Soundbar, you place the Holder Feet of the Soundbar on the legs of the stand.

Diagram showing a screw being inserted into a device's internal panel, with an inset highlighting the component (no text or symbols present)

11 SOFTWARE UPDATE

When the Soundbar is connected to the Internet, software updates automatically occur even when the Soundbar is turned off.

- To use the Auto Update function, the Soundbar must be connected to the Internet. The Wi-Fi connection to the Soundbar will be terminated if its power cord is disconnected or the power is cut off. If the power is cut off, turn on the Soundbar and reconnect it.

12 TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord plugged into the outlet?

→Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?

→Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

→See the Bluetooth connection sections on pages 9 and 15.

Sound is not produced.

Is the Mute function on?

→ Press the VOL button to cancel the function.

Is the volume set to minimum?

→Adjust the Volume.

The remote control does not work.

Are the batteries drained?

→Replace with new batteries.

Is the distance between the remote control and

Soundbar main unit too far?

→ Move the remote control closer to the Soundbar main unit.

Cannot connect to the TV.

If connected via a wired network

→ Check if the cable is connected correctly. (Check the port name to make sure that the cable is connected to the correct port.) (See the corresponding page regarding each connection method.)
→ Press the → (Source) button on the right side of the Soundbar or on the remote control to check if the mode is correct.

If connected via a wireless network

→Connected via Bluetooth

1. Switch the Soundbar to "BT PAIRING" mode, and then use the TV to search again. (See page 9 for details.)

→Connected via Wi-Fi

1. Check if the TV is a compatible model.

- Only Samsung smart TVs released after 2014 are supported.

1. Check if the TV is connected to Wi-Fi.

- If the TV is not connected to Wi-Fi, use the network menu on the TV to establish a connection. (See the TV user manual.)

1. Check if the Soundbar is connected to Wi-Fi.

- When connected, the Soundbar is found in the list of speakers when

Samsung Multiroom app is run on the mobile device (e.g. smartphone or tablet). (See page 18 for details.)

1. Check for a DFS channel.

- If your wireless router (Wi-Fi) is using a DFS channel, you cannot establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.

13 LICENCE

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS

Licensing Limited. DTS, the Symbol, DTS in

combination with the Symbol, and DTS Digital

Surround are registered trademarks or

trademarks of DTS, Inc. in the United States

and/or other countries. © DTS, Inc. All Rights

Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• The Spotify Software is subject to third party licences found here: www.spotify.com/connect/third-party-licenses.
• For more information about Spotify Connect, please visit www.spotify.com/connect

14 OPEN SOURCE LICENCE NOTICE

For further information on Open Sources used in this product, please visit the website:

http://opensource.samsung.com

15 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
  • An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

- You will be informed of the administration fee amount before a technician visits.

16 SPECIFICATIONS AND GUIDE

Specifications

GENERAL	Weight	6.2 kg
	Dimensions (W x H x D)	1060.0 x 78.0 x 130.5 mm
	Operating Temperature Range	+5°C to +35°C
	Operating Humidity Range	10 % ~ 75 %
HDMI Video		1080p, 1080i, 720p, 576p, 480p2160p@24/25/30Hz 4:4:42160p@60/50Hz 4:2:0
Speaker		Woofer x 6, Tweeter x 3, 4ohm
Supported play formats		LPCM 2ch, Dolby AudioTM (supporting Dolby® Digital), DTS
Wireless device output power	Wi-Fi max transmitter power	100mW at 2.4GHz -2.4835GHz, 5.15GHz-5.35GHz & 5.47GHz-5.725GHz
	BT max transmitter power	100mW at 2.4GHz - 2.4835GHz

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice
• Weight and dimensions are approximate.
- For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

Precaution : The product will restart automatically if you turn on/off Wi-Fi/Ethernet.

Overall Standby Power Consumption (W)(All the network ports are “ON” condition)		4.0W
Wi-Fi/Ethernet Port deactivation method		Press Wi-Fi SETUP button on the product for 30 seconds to turn Wi-Fi/Ethernet On / Off.
Bluetooth Port deactivation method		Press SPK ADD button on the product for 30 seconds to turn Bluetooth On / Off.

- Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

The 5GHz WLAN(Wi-Fi or SRD) function of this equipment may only be operated indoors.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

РЪКОВОДСТВО НА ПОТРЕБИТЕЛЯ

Illustration of a person sitting on a sofa next to a desk with a laptop (no text or symbols visible)

ПЪЛНО РЬКОВОДСТВО

Circular play button icon with no text or symbols

Two technical illustrations of screw components: a pulley and a threaded screw (no text or symbols)

Simple line drawing of a mobile phone slot (no text or symbols)

Скоба за монтаж на стена (2 бр.)

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Diagram showing a device's internal components being inserted into a panel, with an inset highlighting the insertion step (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols)

KORISNIČKI PRIRUČNIK

Pogledajte ovaj priručnik za sigurnosne upute, instalaciju proizvoda, komponente, povezivanje i specifikacije proizvoda.

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols)

POTPUNI PRIRUČNIK

Potpunom priručniku možete pristupiti putem web-centra službe za korisnike skeniranjem QR koda. Kako biste vidjeli priručnik na vašem računalu ili mobilnom uređaju preuzmite ga s mrežne stranice u obliku dokumenta. (http://www.samsung.com/support)

Four black electronic devices: a rectangular remote, a control unit, a flexible cord, and a coiled cord (no text or symbols visible)

Glavna jedinica Soundbar Daljinski
Kabel za napajanje Optički kabel

Three mechanical component images: a handle, a clip, and a screw (no text or symbols)

Držač kabela Potporne nožice (2 komada) Vijak
(za potporne nožice : 2 komada) (za držač kabela : 1 komada)

• Za komponente za postavljanje Soundbara na zid pogledajte stranicu 29.
• Upute za uporabu Držač kabela potražite na str. 31.
• Dodatne komponente ili kabele možete kupiti putem Samsungovog servisnog centra ili Službe za korisničku podršku tvrtke Samsung.
• Izgled dodatnog pribora može se malo razlikovati od gornjih crteža.

Umetanje baterija prije upotrebe daljinskog upravljača (AA baterije X 2)

02 PREGLED PROIZVODA

Prednja ploča / Ploča na desnoj strani uređaja Soundbar

1	ZaslonPrikazuje status proizvoda i trenutni način.
2	Gumb -/+ (Glasnoća)Prilagođava glasnoću.• Prilikom prilagođavanja razine glasnoća se prikazuje na prednjem zaslonu uređaja Soundbar.
3	Gumb (Izvor)Odabir načina unosa izvora.
	Način unosa Zaslon
	Optički digitalni ulaz D.IN
	Unos ARC (HDMI OUT)	D.IN → TV ARC (Automatska pretvorba)
	Unos AUX AUX
	Unos HDMI HDMI
	Način Wi-Fi WIFI
	Način BLUETOOTH BT
	• Za uključivanje načina „BT PAIRING" promijenite izvor u način „BT", a zatim pritisnite i držite gumb (Izvor) duže od 5 sekundi.
4	Gumb (Napajanje)Uključuje i isključuje napajanje.

Način unosa Zaslon
Optički digitalni ulaz D.IN
Unos ARC (HDMI OUT)	D.IN → TV ARC (Automatska pretvorba)
Unos AUX AUX
Unos HDMI HDMI
Način Wi-Fi WIFI
Način BLUETOOTH BT

• Kad priključite kabel napajanja, tipka napajanja radi još 4 do 6 sekundi.
• Kad uključite napajanje ove jedinice, početak reprodukcije zvuka kasnit će 4 do 5 sekundi.
• Ako želite uživati u zvuku koji se reproducira samo putem uređaja Soundbar, zvučnike televizora morate isključiti u izborniku Postavke zvuka televizora. Pogledajte priručnik TV-a koji je isporučen uz TV.

Donja ploča uređaja Soundbar

1	POWER OUT (For TV)Priključite kabel za napajanje televizora Samsung povezanog sa sustavom Soundbar i montiranog na zid pomoću kompleta za zidnu montažu (WMN300SB – nije isporučen).
2	POWER INSpojite kabel za napajanje izmjeničnom strujom sustava Soundbar.
3	DIGITAL AUDIO IN (OPTICAL)Povežite na digitalni (optički) izlaz vanjskog uređaja.
4	WIRELESPriključite hardverski ključ za bežičnu vezu kojim se sustav Soundbar bežično povezuje sa surround zvučnicima i subwooferom (surround zvučnik, subwoofer i hardverski ključ za bežičnu vezu prodaju se zasebno).Utičnica WIRELESS nije kompatibilna s USB uređajima.Dostupnost subwoofera ovisi o području. Dostupnost možete provjeriti na http://www.samsung.com/support.
5	AUX INPovežite na analogni izlaz vanjskog uređaja.
6	HDMI INUnosi digitalne video i audio signale istovremeno pomoću kabela HDMI.Povežite na izlaz HDMI vanjskog uređaja.
7	HDMI OUT (TV-ARC)Povežite s priključkom HDMI (ARC) na televizoru.
8	Wi-Fi SETUP / SPK ADDPovežite se s bežičnom mrežom (Wi-Fi) putem aplikacije Samsung Multiroom.

Circular gray button with a play symbol and double arrow icon (no text or symbols)

• Auto Power Link postavljeno je na ON prema zadanim postavkama.
  (Za isključivanje ove funkcije isključite Auto Power pomoću Soundbara.)
• Ovisno o povezanom uređaju Auto Power Link možda neće raditi.
• Ova je funkcija dostupna samo u načinu „D.IN”.

Povezivanje televizora pomoću kabela HDMI

1. S uključenim Soundbarom i TV-om priključite kabel HDMI (nije priložen) kao što je prikazano na slici.

2. „TV ARC“ se prikazuje u prozoru zaslona glavne jedinice Soundbar i zvuk televizora se reproducira pomoću Soundbara.

3. Ako se zvuk televizora ne čuje, pritisnite gumb ➞ (Izvor) na daljinskom upravljaču na desnoj strani Soundbara kako biste promijenili način u „D.IN”. Na zaslonu se prikazuju „D.IN” i „TV ARC” u nizu i zvuk s televizora se reproducira.

4. Ako se „TV ARC” ne prikazuje u prozoru zaslona glavne jedinice Soundbar, provjerite je li kabel priključen u ispravan priključak.
5. Upotrijebite gumbe za prilagođavanje glasnoće na daljinskom upravljaču TV-a kako biste promijenili glasnoću na uređaju Soundbar.

NAPOMENE

Početno povezivanje

1. Pritisnite gumb ➞ (Izvor) na ploči zdesna ili na daljinskom upravljaču, a zatim odaberite „BT”.
2. Promijenite „BT“ u „BT PAIRING“.

- Ako se pojavi natpis „BT READY“ pritisnite i držite gumb ➞ (lzvor) na ploči na desnoj strani uređaja Soundbar ili na daljinskom upravljaču dulje od 5 sekundi kako bi se prikazalo „BT PAIRING”.

1. Odaberite način Bluetooth na TV-u. (Za više informacija pogledajte korisnički priručnik TV-a.)
2. Odaberite „[AV] Samsung Soundbar MSxxx“ s popisa na zaslonu televizora.

Dostupni Soundbar je prikazan kao „Need Pairing” ili „Paired” na popisu uređaja Bluetootha. Za priključivanje na Soundbar odaberite poruku i uspostavite vezu.

- Kad je televizor priključen na prednjem zaslonu Soundbara pojavljuje se [Naziv TV-a] → „BT”.

1. Da biste povezali Soundbar s 2 bežična zvučnika Samsung i konfigurirali sustav surround zvuka, slijedite dolje navedene korake (Sustav surround zvuka ne možete postaviti pomoću jednog audiouređaja i jednog sustava Soundbar).

① Dodimite da biste otvorili popis svih zvučnika.
② Dodirnite desno od naziva modela sustava Soundbar.

③ Dodirnite Surround Setup. Odaberite Done nakon što ste povukli zvučnik na željeno mjesto.

08 UPRAVLJANJE SUSTAVOM SOUNDBAR PUTEM UREĐAJA AMAZON

Two technical illustrations of screw components: a pulley and a threaded screw (no text or symbols)

Vijak (2 komada)

Vijak držača (2 komada)

Simple line drawing of a mobile phone slot (no text or symbols)

Zidni nosač (2 komada)

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Illustration of a remote control device with power and signal icons (no text or symbols)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols present)

Diagram showing a screw being inserted into a device's internal components, with an inset highlighting the insertion area (no text or symbols present)

11 AŽURIRANJE SOFTVERA

Kada je Soundbar povezan s internetom, softver se ažurira automatski, čak i kada je Soundbar isključen.

- Da biste upotrijebili funkciju Auto Update (Autom. ažur.), proizvod mora biti povezan s internetom. Bežična veza sa sustavom Soundbar prekinut će se ako se kabel za napajanje sustava isključi ili ako dođe do prekida napajanja. Ako se napajanje isključi, uključite sustav Soundbar i ponovno ga povežite.

12 RJEŠAVANJE PROBLEMA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• Softver Spotify predmet je licence treće strane koju možete pronaći ovdje: www.spotify.com/connect/third-party-licenses.
• Za više informacija o softveru Spotify Connect posjetite stranicu www.spotify.com/connect

14 OBAVIJEST O LICENCI ZA UPORABU SOFTVERA OTVORENOG KODA

Za dodatne informacije o otvorenom kodu korištenom u ovom proizvodu, posjetite: http://opensource.samsung.com

15 VAŽNA NAPOMENA VEZANA UZ SERVIS

• Slike u ovom korisničkom priručniku služe kao samo kao referenca i mogu se razlikovati od stvarnog izgleda proizvoda.
• Moquća je naplata administrativne pristojbe u slučaju

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

UŽIVATELSKÁ PŘÍRUČKA

Illustration of a person sitting on a couch next to a laptop and desk (no text or symbols)

KOMPLETNÍ PŘÍRUČKA

Three mechanical component icons: a handle, a clip, and a screw (no text or symbols)

02 POPIS VÝROBKU

Circular play button icon with double arrow symbol (no text or numbers)

První připojení

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Simple line drawing of a mobile phone bracket (no text or symbols)

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram of a device with power and signal icons (no text or symbols)

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

BENUTZERHANDBUCH

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

VOLLSTÄNDIGES HANDBUCH

Diagram showing three stages of battery internal structure: open, open with internal contacts, and closed (no text or symbols)

02 PRODUKTÜBERSICHT

Circular play button icon with no text or symbols

Bluetooth-Gerät

    subgraph Smart Home auswählen
        D["Home"] --> E["Things to Try"]
        E --> F["I love you"]
        F --> G["Features, help me like"]
        G --> H["User feedback"]
        H --> I["Smart Home Skills (inferred)"]
        I --> J["Groups"]
        I --> K["Scenes"]
        I --> L["Configure Smart Home"]
        I --> M["Smart Home Skills (inferred)"]
    end

    subgraph Devices auswählen
        N["Devices"] --> O["Enable smart home skills to control devices with Alexa, if you've already enabled your skill, discover devices below. SMART HOME SKILL"]
        P["Discover"] --> Q["ALEXA SMART HOME"]
    end

08 STEUERN IHRER SOUNDBAR MIT EINEM AMAZON-GERÄT

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts Digital Surro

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

TÄIELIKUST KASUTUSJUHENDIST

02 TOOTE ÜLEVAADE

Soundbari esipaneel / parempoolne paneel

Circular gray button with a play symbol and double arrow icon (no text or numbers)

Käivitage rakendus Kölarite lisamineAutomaatne hüpikaken

1. Leidke rakenduse Alexa jaotises Skills valik „Samsung Wireless Audio“ ja valige „ENABLE“.

    subgraph "Rakingus Amazon Alexa"
        A1["amazon alexa"]
        A2["Redacted with hand icon"]
    end

    subgraph "Valige Smart Home"
        B1["Home: 3.0x 1.0x 0.5x 0.2x 0.1x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.0x 0.1"]
        B1 --> B1a["Things to Try"]
        B1 --> B1b["Thanks, I'm good to a"]
        B1 --> B1c["I love you"]
        B1 --> B1d["Thank you with"]
        B1 --> B1e["Check if you need to add"]
        B1 --> B1f["Thank you with"]
        B1 --> B1g["Thank you with"]
        B1 --> B1h["Thank you with"]
        B1 --> B1i["Thank you with"]
        B1 --> B1j["Thank you with"]
        B1 --> B1k["Thank you with"]
        B1 --> B1l["Thank you with"]
        B1 --> B1m["Thank you with"]
        B1 --> B1n["Thank you with"]
        B1 --> B1o["Thank you with"]
        B1 --> B1p["Thank you with"]
        B1 --> B1q["Thank you with"]
        B1 --> B1r["Thank you with"]
        B1 --> B1s["Thank you with"]
        B1 --> B1t["Thank you with"]
        B1 --> B1u["Thank you with"]
        B1 --> B1v["Thank you with"]
        B1 --> B1w["Thank you with"]
        B1 --> B1x["Thank you with"]
        B1 --> B1y["Thank you with"]
        B1 --> B1z["Thank you with"]
        B1 --> B1w
        B1 --> B1v
        B1 --> B1w
        B1 --> B1v
        B1 --> B1w
        B1 --> B1v
    end

    subgraph "Valige Smart Home"
        C1["Smart Home"] --> C2["Groups"] --> C3["Devices"] --> C4["Scenes"] --> C5["Configure Smart Home"]
        C5 --> C6["Smart Home Skills"] --> C7["Enabled"] --> C8["Device"] --> C9["Disable smart home skills to control devices with Alexa, If you've already enabled your skill, discover devices below, SMART HOME SKILL"] --> C9
    end

    subgraph "Valige Devices Otsi seadet"
        D1["Devices"] --> D2["Enable smart home skills to control devices with Alexa, If you've already enabled your skill, discover devices below, SMART HOME SKILL"] --> D3["DISCOVER"] --> D4["ALEXA SMART HOME SKILL"]
    end

08 SOUNDBARI JUHTIMINE AMAZONI SEADMEGA

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Hoidikkruvi (2 tk) Kruvi (2 tk)

Simple line drawing of a mobile phone bracket (no text or symbols)

Seinakinnituskronsteini (2 tk)

1. Asetage Seinakinnitusjuhik vastu seinapinda.

• Seinakinnitusjuhik peab olema loodis.
• Kui teler on seinale kinnitatud, paigaldage Soundbar vähemalt 5 cm telerist allapoole.

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

- Kokkupanekul veenduge, et Seinakinnituskronstein riputusosad jääksid Soundbari taha.

1. Paigaldage Soundbar koos selle külge kinnitatud Seinakinnituskronstein, riputades Seinakinnituskronstein seinal olevatele Hoidikkruvi.

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols present)

1. Libistage Soundbari alla, nagu on allpool näidatud, nii et Seinakinnituskronstein toetuksid Kruvihoidikutele.

- Sisestage Kruvihoidikutele Seinakinnituskronstein laia (alumisse) ossa ja seejärel libistage Seinakinnituskronstein allapoole, nii et Seinakinnituskronstein toetuksid kindlalt Kruvihoidikutele.

Kaablihoidiku paigaldamine

Diagram showing a screw being inserted into a device's internal components, with an inset highlighting the insertion area (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• Spotify Software allub muu osapoole litsentsidele, mille leiate siit: www.spotify.com/connect/third-party-licenses.
• Lisateavet Spotify Connecti kohta vt veebisaidilt www.spotify.com/connect.

14 AVATUD LÄHTEKOODI LITSENTSI TEATIS

Illustration of a person sitting on a couch next to a computer (no text or symbols visible)

MANUEL COMPLET

Diagram showing three stages of battery charging process: open, closed, and closed again (no text or symbols)

02 PRÉSENTATION DU PRODUIT

Circular play button icon with no text or symbols

Appareil Bluetooth

Connexion initiale

    subgraph Legend
        G["Hand with 'Hello' icon"] --> H["Home: Amazon Alexa"]
        H --> I["Home: Amazon Alexa"]
        I --> J["Home: Amazon Alexa"]
        J --> K["Home: Amazon Alexa"]
        K --> L["Home: Amazon Alexa"]
        L --> M["Home: Amazon Alexa"]
        M --> N["Home: Amazon Alexa"]
        N --> O["Home: Amazon Alexa"]
        O --> P["Home: Amazon Alexa"]
        P --> Q["Home: Amazon Alexa"]
        Q --> R["Home: Amazon Alexa"]
        R --> S["Home: Amazon Alexa"]
        S --> T["Home: Amazon Alexa"]
        T --> U["Home: Amazon Alexa"]
        U --> V["Home: Amazon Alexa"]
        V --> W["Home: Amazon Alexa"]
        W --> X["Home: Amazon Alexa"]
        X --> Y["Home: Amazon Alexa"]
        Y --> Z["Home: Amazon Alexa"]
        Z --> AA["Home: Amazon Alexa"]
        AA --> AB["Home: Amazon Alexa"]
        AB --> AC["Home: Amazon Alexa"]
        AC --> AD["Home: Amazon Alexa"]
        AD --> AE["Home: Amazon Alexa"]
        AE --> AF["Home: Amazon Alexa"]
        AF --> AG["Home: Amazon Alexa"]
        AG --> AH["Home: Amazon Alexa"]
        AH --> AI["Home: Amazon Alexa"]
        AI --> AJ["Home: Amazon Alexa"]
        AJ --> AK["Home: Amazon Alexa"]
        AK --> AL["Home: Amazon Alexa"]
        AL --> AM["Home: Amazon Alexa"]
        AM --> AN["Home: Amazon Alexa"]
        AN --> AO["Home: Amazon Alexa"]
        AO --> AP["Home: Amazon Alexa"]
        AP --> AQ["Home: Amazon Alexa"]
        AQ --> AR["Home: Amazon Alexa"]
        AR --> AS["Home: Amazon Alexa"]
        AS --> AT["Home: Amazon Alexa"]
        AT --> AU["Home: Amazon Alexa"]
        AU --> AV["Home: Amazon Alexa"]
        AV --> AW["Home: Amazon Alexa"]
        AW --> AX["Home: Amazon Alexa"]
        AX --> AY["Home: Amazon Alexa"]
        AY --> AZ["Home: Amazon Alexa"]
        AZ --> BA["Home: Amazon Alexa"]
        BA --> BB["Home: Amazon Alexa"]
        BB --> BC["Home: Amazon Alexa"]
        BC --> BD["Home: Amazon Alexa"]
        BD --> BE["Home: Amazon Alexa"]
        BE --> BF["Home: Amazon Alexa"]
        BF --> BG["Home: Amazon Alexa"]
        BG --> BH["Home: Amazon Alexa"]
        BH --> BI["Home: Amazon Alexa"]
        BI --> BJ["Home: Amazon Alexa"]
        BJ --> BK["Home: Amazon Alexa"]
        BK --> BL["Home: Amazon Alexa"]
        BL --> BM["Home: Amazon Alexa"]
        BM --> BN["Home: Amazon Alexa"]
        BN --> BO["Home: Amazon Alexa"]
        BO --> BP["Home: Amazon Alexa"]
        BP --> BQ["Home: Amazon Alexa"]
        BQ --> BR["Home: Amazon Alexa"]
        BR --> BS["Home: Amazon Alexa"]
        BS --> BT["Home: Amazon Alexa"]
        BT --> BU["Home: Amazon Alexa"]
        BU --> BV["Home: Amazon Alexa"]
        BV --> BW["Home: Amazon Alexa"]
        BW --> BX["Home: Amazon Alexa"]
        BX --> BY["Home: Amazon Alexa"]
        BY --> BZ["Home: Amazon Alexa"]
        BZ --> CA["Home: Amazon Alexa"]
        CA --> CB["Home: Amazon Alexa"]
        CB --> CC["Home: Amazon Alexa"]
        CC --> CD["Home: Amazon Alexa"]
        CD --> CE["Home: Amazon Alexa"]
        CE --> CF["Home: Amazon Alexa"]
        CF --> CG["Home: Amazon Alexa"]
        CG --> CH["Home: Amazon Alexa"]
        CH --> CI["Home: Amazon Alexa"]
        CI --> CJ["Home: Amazon Alexa"]
        CJ --> CK["Home: Amazon Alexa"]
        CK --> CL["Home: Amazon Alexa"]
        CL --> CM["Home: Amazon Alexa"]
        CM --> CN["Home: Amazon Alexa"]
        CN --> CO["Home: Amazon Alexa"]
        CO --> CP["Home: Amazon Alexa"]
        CP --> CQ["Home: Amazon Alexa"]
        CQ --> CR["Home: Amazon Alexa"]
        CR --> CS["Home: Amazon Alexa"]
        CS --> CT["Home: Amazon Alexa"]
        CT --> CU["Home: Amazon Alexa"]
        CU --> CV["Home: Amazon Alexa"]
        CV --> CW["Home: Amazon Alexa"]
        CW --> CX["Home: Amazon Alexa"]
        CX --> CY["Home: Amazon Alexa"]
        CY --> CZ["Home: Amazon Alexa"]
        CZ --> DA["Home: Amazon Alexa"]
        DA --> DB["Home: Amazon Alexa"]
        DB --> DCX["Home: Amazon Alexa"]
        DCX --> DD["Home: Amazon Alexa"]
        DD --> DE["Home: Amazon Alexa"]
        DE --> DF["Home: Amazon Alexa"]
        DF --> DG["Home: Amazon Alexa"]
        DG --> DH["Home: Amazon Alexa"]
        DH --> DI["Home: Amazon Alexa"]
        DI --> DJ["Home: Amazon Alexa"]
        DJ --> DK["Home: Amazon Alexa"]
        DK --> DL[Xia/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/My Home/
    end

    style Legend

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Vis (2 pièces)

Simple line drawing of a mobile phone case (no text or symbols)

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Diagram showing a screw being inserted into a device panel, with an inset close-up highlighting the component (no text or symbols present)

11 MISE À JOUR DU LOGICIEL

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

ΠΛΗΡΕΣ ΕΓΧΕΙΡΙΔΙΟ

Circular gray button with a play symbol icon at center (no text or symbols)

08 XEIPIEMOΣ TOY SOUNDBAR ME ΣΥΣKEYH AMAZON

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Diagram showing a screw being inserted into a pulley and then being inserted into a screw, with no text or symbols present.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing a device with a screw being inserted into a panel, with an inset close-up highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

FELHASZNÁLÓI KÉZIKÖNYV

Illustration of a person sitting on a sofa next to a desk with a laptop (no text or symbols visible)

TELJES KÉZIKÖNYV

02 A TERMÉK ÁTTEKINTÉSE

Circular play button icon with no text or symbols

Bluetooth eszköz

    subgraph Válassza a Skills opciót
        B1["Home: Amazon Alexa"]
        B2["Things to Try: I love you"]
        B3["I Love you?"]
        B4["Thank you?"]
        B5["Thank you?"]
        B6["Thank you?"]
        B7["Thank you?"]
        B8["Thank you?"]
        B9["Thank you?"]
        B10["Thank you?"]
        B11["Thank you?"]
        B12["Thank you?"]
        B13["Thank you?"]
        B14["Thank you?"]
        B15["Thank you?"]
        B16["Thank you?"]
        B17["Thank you?"]
        B18["Thank you?"]
        B19["Thank you?"]
        B20["Thank you?"]
        B21["Thank you?"]
        B22["Thank you?"]
        B23["Thank you?"]
        B24["Thank you?"]
        B25["Thank you?"]
        B26["Thank you?"]
        B27["Thank you?"]
        B28["Thank you?"]
        B29["Thank you?"]
        B30["Thank you?"]
        B31["Thank you?"]
        B32["Thank you?"]
        B33["Thank you?"]
        B34["Thank you?"]
        B35["Thank you?"]
        B36["Thank you?"]
        B37["Thank you?"]
        B38["Thank you?"]
        B39["Thank you?"]
        B40["Thank you?"]
    end

Falikonzol sín

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Simple line drawing of a mobile phone case (no text or symbols)

Fali Konzol (2 db)

Diagram showing a screw being inserted into a pinhole, with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two stages of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

MANUALE UTENTE

Illustration of a person sitting on a bed next to a desk with a laptop (no text or symbols)

MANUALE COMPLETO

02 PANORAMICA DEL PRODOTTO

Circular play button icon with two vertical bars, no text or symbols present

Dispositivo Bluetooth

    subgraph App
        E["amazon alexa"]
        F["Home"]
        G["Things to Try"]
        H["Info"]
        I["About/About & Accounts"]
        J["Sells"]
        K["Smart Home"]
        L["I love you"]
        M["There's, it's going to to"]
        N["Make Facebook"]
        O["Remove lights"]
        P["Hot & Feedback"]
        Q["Hot, Hello! Sign out"]
        R["Timer set for"]
    end

    subgraph Device
        S["Groups"]
        T["Devices"]
        U["Scenes"]
        V["Configure Smart Home"]
        W["Smart Home Skills"]
        X["1 enabled"]
    end

    subgraph Individua
        Y["Discover"]
        Z["ALEXA SMART HOME Skill"]
        AA["Enable smart home skills to control devices with Alexa. If you've already enabled your skill, discover devices below. SMART HOME SKILL"]
    end

08 CONTROLLARE LA SOUNDBAR CON UN DISPOSITIVO AMAZON

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Simple line drawing of a mobile phone slot (no text or symbols)

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/

DROŠĪBAS INFORMĀCIJA

DROŠĪBAS BRĪDINĀJUMI

LAI SAMAZINĀTU ELEKTRISKĀS STRĀVAS TRIECIENA RISKU, NENOŅEMIET PĀRSEGU (VAI KORPUSA AIZMUGURI). IERĪCES IEKŠPUSĒ NEATRODAS NEVIENA DETAļA, KURAS APKOPE BŪTU JĀVEIC LIETOTĀJAM. UZTICIET APKOPI KVALIFICĒTIEM APKOPES SPECIĀLISTIEM.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

LIETOTĀJA ROKASGRĀMATA

Illustration of a person sitting on a couch next to a computer monitor (no text or symbols present)

PILNĀ ROKASGRĀMATA

02 IZSTRĀDĀJUMA PĀRSKATS

Circular play button icon with two vertical bars, no text or symbols present

Bluetooth ierice

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Diagram showing a screw being inserted into a pulley and then being inserted into a screw, with no text or symbols present.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two states of a rectangular object with arrows indicating direction, no text or symbols present

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

12 PROBLÉMU NOVĚRŠANA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

NAUDOTOJO VADOVAS

Illustration of a person sitting on a couch next to a desk with a computer (no text or symbols visible)

IŠSAMUS VADOVAS

02 GAMINIO APŽVALGA

Circular play button icon with no text or symbols

„Bluetooth“ jrenginys

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Varžtas (2 EA)

Simple line drawing of a mobile phone slot (no text or symbols)

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

11 PROGRAMINĖS JRANGOS NAUJINIMAS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a chair next to a desk with a laptop (no text or symbols visible)

PEŁNY PODRĘCZNIK UŻYTKOWNIKA

Four black electronic devices: a rectangular remote, two connected cables, and two USB connectors (no text or symbols visible)

Three mechanical component icons: a handle, a clip, and a screw (no text or symbols)

02 OPIS PRODUKTU

Circular play button icon with a double arrow symbol at center (no text or numbers)

Simple icon showing a smartphone and Wi-Fi symbol (no text or labels)

Illustration of a remote control unit with a button labeled '− + ↻' pointing to it (no text or symbols on the device itself)

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating direction (no text or symbols present)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

MANUAL DE UTILIZARE

Illustration of a person sitting on a couch next to a laptop and desk (no text or symbols)

MANUAL COMPLET

02 DESCRIERI

Circular play button icon with no text or symbols

Lansare aplicatie Adăugare-up automat
difuzoare

Two technical illustrations of screw components: a pulley and a threaded screw (no text or symbols)

Şurub suport (2 EA) Şurub (2 EA)

Simple line drawing of a mobile phone slot (no text or symbols)

Suport de fixare pe perete (2 EA)

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two states of a mechanical component before and after disassembly, with arrows indicating movement direction (no text or symbols present)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Diagram showing a screw being inserted into a device panel, with an inset highlighting the component (no text or symbols present)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

15 NOTĂ IMPORTANTĂ DESPRE SERVICE

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

KORISNIČKI PRIRUČNIK

Pogledajte ovaj priručnik za bezbednosna uputstva, postavljanje proizvoda, komponente, povezivanje i specifikacije proizvoda.

Illustration of a person sitting on a sofa next to a laptop and TV (no text or symbols visible)

KOMPLETAN PRIRUČNIK

Kompletnom priručniku možete pristupiti u Samsung centru korisničke podrške na mreži tako što ćete skenirati QR kôd. Da biste pogledali priručnik na vašem računaru ili mobilnom uređaju, preuzmite priručnik u formatu dokumenta sa internet stranice. (http://www.samsung.com/support)

Dizajn, specifikacije i ekran „Aplikacija“ su podložni izmenama bez prethodnog obaveštavanja.

SADRŽAJI

01 Provera Komponenata 2

02 PREGLED PROIZVODA

Prednji panel/panel sa desne strane uređaja Soundbar

1	EkranPrikazuje status proizvoda i trenutni režim.
2	Dugme -/+ (Jačina zvuka)Podešava jačinu zvuka.Kada se podesi, nivo jačine zvuka se prikazuje na prednjem ekranu uređaja Soundbar.
3	Dugme Izvor)Bira režim ulaza izvora.
	Režim ulaza Ekran
	Optički digitalni ulaz D.IN
	ARC (HDMI OUT) ulaz	D.IN → TV ARC (automatska konverzija)
	AUX ulaz AUX
	HDMI ulaz HDMI
	Wi-Fi režim WIFI
	BLUETOOTH režim BT
	Da biste uključili režim „BT PAIRING“, promenite izvor na režim „BT“, a zatim pritisnite i zadržite dugme Izvor) duže od 5 sekundi.
4	Dugme (napajanje)Uključuje i isključuje napajanje.

Režim ulaza Ekran
Optički digitalni ulaz D.IN
ARC (HDMI OUT) ulaz	D.IN → TV ARC (automatska konverzija)
AUX ulaz AUX
HDMI ulaz HDMI
Wi-Fi režim WIFI
BLUETOOTH režim BT

Circular gray button with a play symbol icon, no text or symbols present

Povezivanje televizora pomoću HDMI kabla

1. Kada su uređaj Soundbar i televizor uključeni, povežite HDMI kabl (ne isporučuje se) kao što je prikazano na slici.

2. „TV ARC“ će se pojaviti u prozoru ekrana glavnog uređaja Soundbar i uređaj Soundbar će reprodukovati zvuk sa televizora.

3. Ako se ne čuje zvuk sa televizora, pritisnite dugme (Izvor) na daljinskom upravljaču ili na desnoj strani uređaja Soundbar da biste prešli na režim „D.IN“. Na ekranu se redom prikazuje „D.IN“ i „TV ARC“, a zvuk sa televizora se reprodukuje.

4. Ako se „TV ARC“ ne prikazuje u prozoru ekrana glavnog uređaja Soundbar, proverite da li je kabl povezan na odgovarajući port.
5. Koristite dugmad za jačinu zvuka na daljinskom upravljaču televizora da biste promenili jačinu zvuka uređaja Soundbar.

NAPOMENE

• HDMI je interfejs koji omogućava digitalni prenos video i audio podataka samo sa jednim priključkom.
• Ako televizor poseduje ARC priključak, povežite HDMI kabl sa HDMI IN (ARC) priključkom.
• Preporučujemo da koristite HDMI kabl bez jezgra ako je moguće. Ako koristite HDMI kabl sa jezgrom, koristite onaj čiji je prečnik manji od 14 mm.
• Anynet+ mora biti uključen.
• Ova funkcija nije dostupna ako HDMI kabl ne podržava ARC.

1. Da biste povezali uređaj Soundbar sa 2 Samsung bežična zvučnika i konfigurisali sistem okružujućeg zvuka, pratite korake prikazane u nastavku. (Ne možete da podesite sistem okružujućeg zvuka korišćenjem jednog uređaja za zvuka i jednog uređaja Soundbar.)

① Dodirnite da biste otišli na listu svih zvučnika.
② Dodirnite: sa desne strane sa nazivom modela uređaja Soundbar.
③ Dodirnite Surround Setup. Izaberite Done nakon što prevučete zvučnik na željenu lokaciju.

④ Veza okružujućeg zvuka je potpuna.

NAPOMENA

- Da biste povezali dodatni SWA-9000S (nije isporučeno), otkačite Samsung bežične zvučnike sa uređaja Soundbar da biste onemogućili sistem okružujućeg zvuka. (Ako povezivanje zvučnika za okružujući zvuk bez otkačinjanja uređaja SWA-9000S, zvuk se reprodukuje putem Samsung bežičnog zvučnika i zvučnika za okružujući zvuk.)

07 POVEZIVANJE AMAZON PROIZVODA

Povežite i koristite sa Amazon proizvodom (Amazon Echo)

Koristite Amazon Echo proizvod da biste upravljali zvučnicima i uživali u muzičkim uslugama koje pruža Amazon Echo.

1. U aplikaciji Alexa, pretražite „Samsung Wireless Audio“ u opciji Skills i izaberite „ENABLE“.

- Preskočite ovaj korak ako ste već podesili opciju Skills.

©

08 UPRAVLJANJE SOUNDBAR UREĐAJEM POMOĆU AMAZON UREĐAJA

1. Koristite glasovne komande da biste uživali u muzici dostupnoj na Amazon uređaju.

- Usluga Amazon Echo, koju možete da koristite sa zvučnicima, ograničena je na muziku. Ostalim uslugama koje pruža Amazon Echo, kao što su vesti i vreme, može se pristupiti putem Amazon Echo proizvoda.

Two technical illustrations of mechanical fasteners: a pulley and a screw (no text or symbols)

Zavrtanj držača (2 komada)
Zavrtanj (2 komada)

Nosača za montažu na zid (2 komada)

1. Postavite Vodicu za montažu na zid na zidnu površinu.

2. Vodicu za montažu na zid mora biti nivelisana.

3. Postavite uređaj Soundbar najmanje 5 cm ispod televizora, ako je televizor montiran na zid.

1. Poravnajte Osa papirnog šablona sa sredinom televizora (ako montirate uređaj Soundbar ispod televizora), a zatim pričvrstite Vodicu za montažu na zid za zid koristeći traku.

- Ako ne montirate uređaj ispod televizora, postavite Osa na sredinu oblasti za montiranje.

1. Pomoću oštrog predmeta, kao što su olovka ili hemijska olovka, označite položaje rupa, a zatim izvadite Vodicu za montažu na zid.

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

1. Montirajte 2 Nosača za montažu na zid u odgovarajućoj orijentaciji na dnu uređaja Soundbar, pomoću 2 Zavrtnja.

Diagram showing a screw being inserted into a device with a circular arrow indicating rotation (no text or symbols present)

- Prilikom sklapanja noseći delovi Nosač za montažu na zid treba da se nalaze sa zadnje strane uređaja Soundbar.

Diagram showing a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device's internal panel, with an inset highlighting the component (no text or symbols present)

11 AŽURIRANJE SOFTVERA

Kada je uređaj Soundbar povezan sa internetom, softverske ispravke se automatski obavljaju čak i kada je uređaj Soundbar isključen.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• Softver Spotify je predmet licenci nezavisnih proizvođača koje možete pronaći ovde :
  www.spotify.com/connect/third-party-licenses.
• Za dodatne informacije o funkciji Spotify Connect posetite www.spotify.com/connect

14 OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Za dodatne informacije o otvorenim izvornim kodovima korišćenim u ovom proizvodu posetite veb lokaciju: http://opensource.samsung.com

15 VAŽNA NAPOMENA O SERVISIRANJU

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

POUŽÍVATELŠKÁ PRÍRUČKA

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols)

ÚPLNÁ PRÍRUČKA

02 OPIS PRODUKTU

Circular gray button with a play symbol and double arrow icon (no text or numbers)

Prvé pripojenie

Prvé pripojenie

Two mechanical components: a pulley and a screw, shown side by side (no text or symbols)

Skrutka (2 ks)

Skrutka držiaka (2 ks)

Simple line drawing of a mobile phone slot (no text or symbols)

Diagram showing a screw being inserted into a pulley and then being inserted into a screw, with no text or symbols present.

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Illustration of a remote control device with buttons and power symbol (no text or labels)

Pravý koniec zariadenia Soundbar

Diagram showing a mechanical component before and after assembly, with arrows indicating direction (no text or symbols)

Diagram showing a screw being inserted into a device's internal panel, with an inset highlighting the component (no text or symbols present)

11 AKTUALIZÁCIA SOFTVÉRU

Ked'je zariadenie Soundbar pripojené k internetu, softvér sa aktualizuje automaticky, aj ked'je zariadenie Soundbar vypnuté.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

UPORABNIŠKI PRIROČNIK

Illustration of a person sitting on a sofa next to a desk with a laptop (no text or symbols visible)

POPOLNI PRIROČNIK

3D rendered mechanical component with a cross-shaped handle and central hole (no text or symbols)

Držalo za kabel

3D rendered image of a gray mechanical component with a circular hole and rounded body (no text or symbols)

Noga nosilca (2 kosa)

Simple line drawing of a screw (no text or symbols)

Vijak
(za nogo nosilca: 2 kosa)
(za držalo za kabel: 1 kos)

02 PREGLED IZDELKA

Circular play button icon with no text or symbols

Osnovna povezava

Smart home and devices integration flowchart showing Amazon Alexa interacting with Izberite Smart Home and Iskanje Naprave, with device selection and navigation steps.

08 UPRAVLJANJE ZVOČNIKA SOUNDBAR Z NAPRAVO AMAZON

Two technical illustrations of mechanical components: a pulley and a screw (no text or symbols)

Držalo vijaka (2 kosa) Vijak (2 kosa)

Simple line drawing of a mobile phone slot (no text or symbols)

Diagram showing a screw being inserted into a housing, with motion arrows indicating direction (no text or symbols)

1. Na spodnji del zvočnika Soundbar z Dvema vijakoma (2) pravilno namestite Dva stenska nosilca (2).

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Illustration of a remote control panel with buttons and power symbol (no text or labels)

Diagram showing two stages of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Zvočnik Soundbar potisnite dol, kot je prikazano spodaj, tako da se Stenski nosilci varno zasidrajo na Vijake nosilca.

- Vijake nosilca vstavite v širok (spodnji) del Stenskih nosilcev, nato pa Stenske nosilce potisnite navzdol, da se Stenski nosilci varno zasidrajo na Vijake nosilca.

Diagram showing a screw being inserted into a device's internal components, with an inset highlighting the insertion area (no text or symbols present)

11 POSODOBITEV PROGRAMSKE OPREME

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Spotify®

• Za programsko opremo Spotify veljajo licence tretjih oseb, ki so na voljo na naslovu:
  www.spotify.com/connect/third-party-licenses.
• Podrobnejše informacije o funkciji Spotify Connect najdete na naslovu
  www.spotify.com/connect

14 OBVESTILO O ODPRTOKODNIH LICENCAH

© 2017 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Contact Centre	Web Site
■ Europe
UK 0330 SAMSUNG (7267864)		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 00349021 72678		www.samsung.com/es/support
PORTUGAL 808 207 267		www.samsung.com/pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 815 56480		www.samsung.com/no/support
DENMARK 707 019 70		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN 0771 726 786		www.samsung.com/se/support
POLAND	801-172-678* lub [phone]** (koszt połączenia według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA	0800-SAMSUNG (0800-7267864)[Only for Dealers] 0810-112233	www.samsung.com/at/support

Country Contact Centre		Web Site
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA 072726 786		www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
MONTENEGRO	020 405 888
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
ALBANIA 045 620 202		www.samsung.com/al/support
BULGARIA	*3000 Цена в мрежата0800 111 31 , Безплатна телефонна линия	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel GRATUIT	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
LITHUANIA 8-800-77777		www.samsung.com/lt/support
LAT VIA	8000-7267	www.samsung.com/lv/support
ESTONIA 800-7267		www.samsung.com/ee/support
