USER MANUAL DE24307M SIEMENS

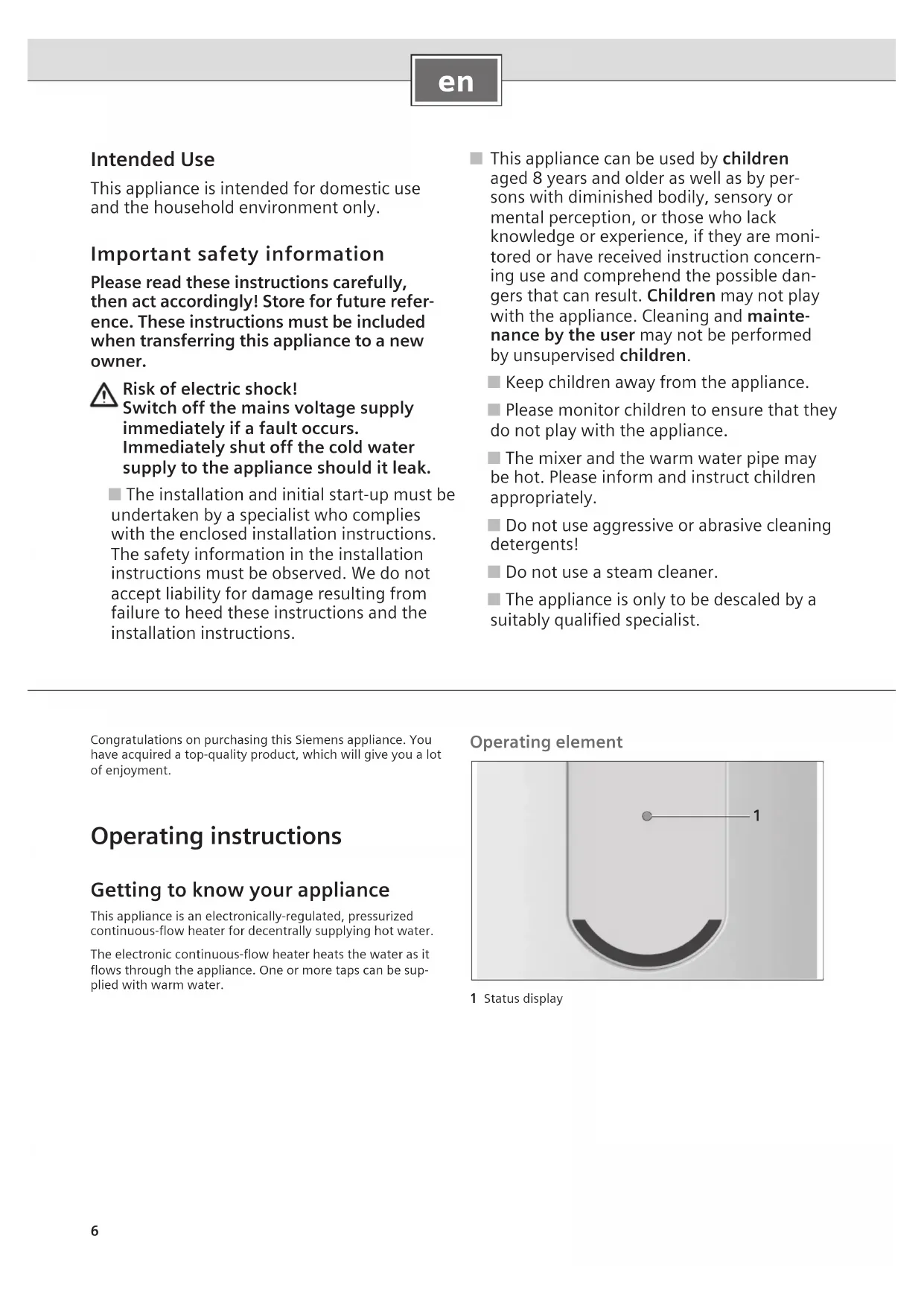

Intended Use This appliance is intended for domestic use and the household environment only. Important safety information Please read these instructions carefully, then act accordingly! Store for future refer- ence. These instructions must be included when transferring this appliance to a new owner. Risk of electric shock! Switch off the mains voltage supply immediately if a fault occurs. Immediately shut off the cold water supply to the appliance should it leak. ■ The installation and initial start-up must be undertaken by a specialist who complies with the enclosed installation instructions. The safety information in the installation instructions must be observed. We do not accept liability for damage resulting from failure to heed these instructions and the installation instructions. ■ This appliance can be used by children aged 8 years and older as well as by per- sons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are moni- tored or have received instruction concern- ing use and comprehend the possible dan- gers that can result. Children may not play with the appliance. Cleaning and mainte- nance by the user may not be performed by unsupervised children. ■ Keep children away from the appliance. ■ Please monitor children to ensure that they do not play with the appliance. ■ The mixer and the warm water pipe may be hot. Please inform and instruct children appropriately. ■ Do not use aggressive or abrasive cleaning detergents! ■ Do not use a steam cleaner. ■ The appliance is only to be descaled by a suitably qualified specialist. Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment. Operating instructions Getting to know your appliance This appliance is an electronically-regulated, pressurized continuous-flow heater for decentrally supplying hot water.The electronic continuous-flow heater heats the water as it flows through the appliance. One or more taps can be sup-plied with warm water. Operating element

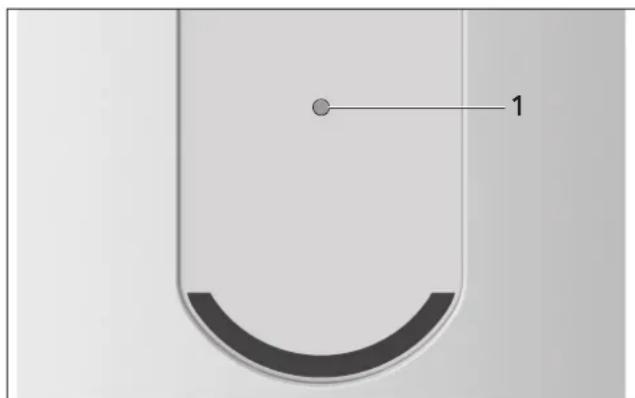

Operating the appliance Switching the appliance on and off The continuous-flow heater switches on and heats the water when the warm water tap is opened. It switches off again if the water tap is closed. The factory default setting for the warm water outflow tem- perature is 55 °C. Note: The electronic control unit senses the input water’s temperature and rate of flow and automatically adjusts the power consumption in order to obtain the set output water temperature (up to the power limit). Increasing the water temperature If the supply water temperature is low and the flow-rate is high, then it may happen that the set output water tempera- ture is not obtained because the power limit is exceeded. This is signalled by rapid flashing of the status display. ■ If this happens, then slightly close the warm water tap. Status display LED Appliance status Off Off Lights green On Flashes green (1/s) The set temperature is not obtained; the rate of water flow is too high for appliance rating (the appliance has reached the power limit). See “A fault, what to do?” Flashes green (2/s) Cold-water rinse-through phase Flashes red See “A fault, what to do?” Startup after power failure ■ Open the warm water tap fully and allow water to flow until it is warm. Using the appliance after switching off the water supply ■ Switch off the appliance (unscrew the fuse in the fusebox). ■ Open the warm water tap and keep it open until the air has been completely forced out of the water pipe. ■ Switch the fuse back on again. ■ Open the warm water tap fully and allow water to flow for at least one minute, Only then (for safety reasons) will the appliance begin to heat. The appliance is now ready to operate. Winter operation Note: It is possible in winter that the supply temperature of the water is reduced and the required outlet temperature is no longer achieved. ■ Reduce the water flow at the tap until the desired water temperature is reached. Cleaning ■ Only wipe off the appliance using a moist cloth. ■ Do not use acidic or abrasive cleaning materials. ■ Do not use a steam cleaner. Customer Service We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find the numbers on the ratings plate on the inner side of the front flap. The contact information for your country can be found on the last pages of these instructions. Environmentally-friendly disposal ■ Dispose of the packaging in an environmentally sound manner. This appliance is labelled in accordance with Euro- pean Directive 2012/19/EU concerning used elec- trical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as appli- cable throughout the EU. Please ask your specialist retailer about current disposal facilities. Subject to change without notice.8

A fault, what to do? Attention! Repairs must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user. If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel. Faults that the customer can troubleshoot himself Fault Cause Solution Water flow-rate is too low The filter in either the water tap or the showerhead is clogged. Remove the filter and either clean it or descale it. The water is not warm. The fuse in the fusebox has tripped/blown. Check the fuse in the fusebox. The supply temperature has dropped or the appliance has reached the power limit. Reduce the water flow at the tap until the de- sired water temperature is reached. LED status display flashes red. Fault in the appliance Please contact customer service. If the fault could not be eliminated, please call customer service. Faults that the customer service specialist should troubleshoot Fault Cause Solution Water flow-rate is too low despite cleaning of filter using the water tap or showerhead A filter in the appliance is clogged. Get a servicing expert to clean the appliance. Faults that are automatically remedied Fault Cause Solution From time to time, cold water flows out. The air sensor in the appliance detects air in the water and momentarily switches the heating element off. After a few seconds, the continuous-flow heater automatically goes back into operation. Guarantee The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.9
