USER MANUAL Airsec 800 AF Krüger

Operating instructions

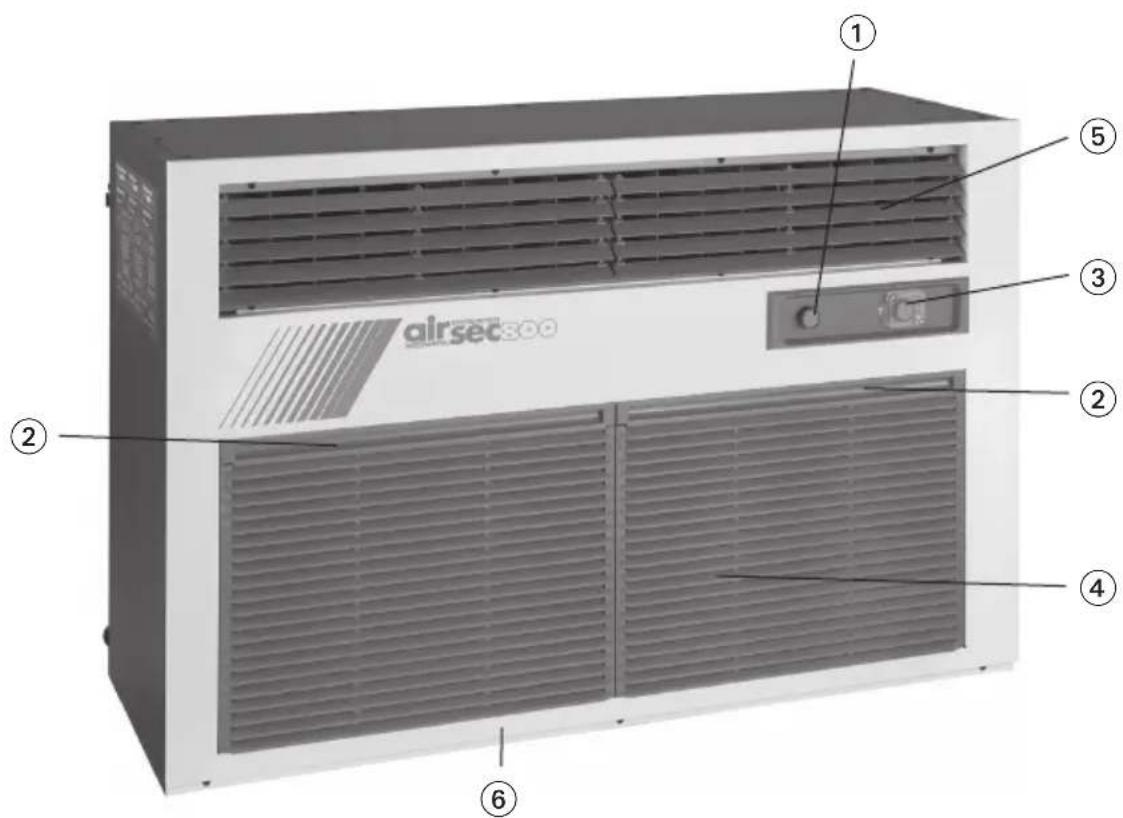

①

Ein-/Aus-Schalter Interrupteur principal en/hors Interuttore acceso/spento On/Off switch

②

Transport / Entreposage

Please read these operating instructions carefully. They contain important information regarding the use, safety and maintenance of this machine.

Keep these instructions in a safe place and hand them on to any subsequent users of the equipment.

This machine may only be used for the purpose for which it was designed as specified in these instructions. Make sure that you comply with the following safety advice.

SAFETY ADVICE

• This machine is not a toy. Children do not realise the potential dangers associated with electrical equipment. The machine should therefore be used and stored out of reach of children.
• The dehumidifier may only be installed in accordance with the relevant national regulations for connecting such equipment.
• Never insert fingers or other objects into the openings on the machine because of the risk of injury.
  Always switch off the machine when not in use.
• Make sure the electric cable does not come into contact with hot surfaces.
• Unplug the mains plug:

a) in the event of malfunctions b) before cleaning the equipment c) after use

• Never remove the mains plug from the socket by pulling the lead or with wet hands.

• Never drag the machine by the mains cable.

• Don't pull or push the machine over sharp edges.

• Do not use an extension cable unless you have made sure that it is in proper working condition. If you are using a cable roll, unroll the entire cable.
• Do not start the machine (unplug mains plug immediately) if:

a) the machine or mains cable is damaged.
b) you suspect there may be a defect in the equipment as a result of being dropped or similar

In this case, the machine must be checked by a refrigeration specialist and repaired if necessary.

• The machine must never be used in standing water. If this occurs, the machine must first of all be unplugged or the fuse removed before anyone steps into the water.
• Do not sit or place heavy objects on the machine.
• No liability can be accepted for any damage if the machine is misused or is not repaired by specialist personnel. In this case, the warranty is void.

WHAT IT IS DESIGNED TO DO

This machine has been designed specifically for drying rooms.

HOW IT WORKS

Moist air from the room is moved by a fan over a cold coil connected to the refrigeration unit. The humidity condenses on the coil and drops down as water into the collector. The air is then reheated by the condenser to its incoming temperature before being released back into the room.

INSTRUCTIONS

Transportation and storage

The machine should whenever possible be transported in an upright position. If it is transported on its side, the machine must be placed in an upright position and left for at least two hours before being connected to the mains and started.

If the machine is not going to be used for a significant period of time, the water tank and housing must be cleaned with a damp cloth and then rubbed dry before storage.

Installing the dehumidifier

• Fit the enclosed fixing rail to the wall (if possible, on an internal wall to prevent the build-up of condensation behind the machine)
• Attach the machine to this rail and secure with the left and right-hand screws
• Ensure a safe distance of 8 cm to flammable parts
• Operating temperatures: min. + 8 ∞C, max. + 30 ∞C

Water drainage

Water should, wherever possible, be drained away directly.

• Attach the connection piece (special accessory) to the direct discharge outlet (6) on the underside of the unit
• Slide the hose (special accessory) over the connection piece
• Place the hose end in the discharge pipe (preferably with an air trap)

If the water is collected in a bucket, the bucket must be checked regularly and always emptied. Depending on the temperature and moisture content of the air, the bucket can fill 1-2 times daily.

Failure to empty the bucket will lead to water damage.

Starting the machine

Before starting the machine for the first time:

The incoming power line must be fitted with a 13 amp fuse.
- Insert the mains plug into the socket.
- Check that the hygrostat (3) is set to the required value.

You can adjust the drying level by changing the hygrostat (3) setting.

Each time before you start drying:

• Close doors and windows
• Switch the appliance on at the pushbutton switch (1), the pushbutton switch will illuminate blue.

The clothes drier works automatically, i.e. as long as the humidity in the room remains above the preset value, it continues to operate. As soon as the desired level of humidity is reached, the dehumidifying function of the dehumidifier stops. If the humidity level in the room rises again, it automatically begins to work again.

Each time after you have finished drying:

• Switch the appliance off at the pushbutton switch (1).

Cleaning

The refrigeration unit is hermetically sealed and the fan bearings are provided with lifetime lubrication. These parts are therefore maintenance-free.

• Wipe the housing with a damp cloth.
  Take hold of the filter grips (2) at the top of the front grill (4). Pull the filter upward and remove.
• Remove dust from air filter using a brush and replace

If it becomes particularly dirty, the inside of the machine will need to be cleaned. This must be performed by a refrigeration specialist.

TROUBLESHOOTING

Please check the following points before taking the machine to a specialist dealer.

A. Machine does not start

Is the mains plug correctly inserted?
Is the fuse in your fusebox OK?
Is the mains cable or extension cable (if used) OK?
Is the hygrostat controller correctly set (to approx. 45% relative humidity)?

B. Machine is running constantly

Is the hygrostat controller set to approx. 45% relative humidity?
- Are the doors and windows closed?

C. The machine is not dehumidifying the room properly

Is the air circulation in the room adequate? Does the room have sufficient air circulation? The air outflow louvers can be repositioned to change the airflow direction, they must not be closed however.
- Are the intake and outlet openings free of obstructions?
Is the room temperature too high or too low (see section on Installation)?
Is the filter clean?

If you have checked the above points and still not managed to rectify the fault, the machine must be taken to a refrigeration specialist for inspection.

DISPOSAL

Because the dehumidifier contains a refrigerant, it requires special disposal. Please contact your specialist dealer or local waste disposal authority.

KRUGER

Krüger + Co. AG 0848 370 370

9113 Degersheim 071 372 82 82

6930 Bedano 091 945 46 45

3900 Brig-Glis 027 924 84 24

8157 Dielsdorf 044 855 28 00

1072Forel 0217810781
