EN

Coby® Kyros® Internet Tablet

Quick Start Guide...... Page 2

ES

About the Touchscreen....8

Protective Film 8

Touchscreen Actions....8

About the Orientation Sensor ....10

Charging the Tablet 10

Inserting a Memory Card....10

Resetting the Tablet....11

GETTING STARTED....12

Turning the Tablet on and off 12

Turning the Screen On and Off (Standby) .....13

Unlocking the Screen 13

Home Screen at a Glance 14

About Applications 15

Preinstalled Applications....16

Installing Applications ....17

About Widgets 18

About Notifications....18

CONNECTING TO THE INTERNET......20

Requirements 20

Connect to a Wi-Fi network....21

BROWSING THE WEB......23

MANAGING APPLICATIONS ......27

OPTIONAL CONNECTIONS 30

Connecting to a Computer 30

Connecting Headphones 31

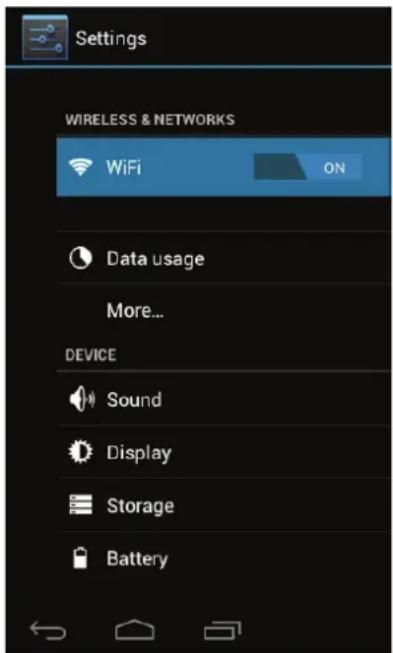

SETTING THE SYSTEM OPTIONS ....32

SPECIFICATIONS......33

SUPPORT....34

SAFETY NOTICES......35

Thank You

Congratulations on your purchase of a Coby ^® Kyros ^® Internet Tablet. This guide is provided to help you get started quickly with your player; please read it carefully and save it for future reference.

For detailed instructions, up-to-date information, and helpful tips, please visit the Coby website at www.cobyusa.com.

This manual is available for download from the Coby website as a PDF file.

To view PDF documents, download and install the free Adobe Acrobat reader from the Adobe website at www.adobe.com.

Package Contents

Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product.

♦ Cob Kyros ^® Internet Tablet
♦ Protective pouch
USB cable
Power adapter

This package may contain plastic bags or other materials that pose a hazard to children. Be sure to safely dispose of all packing materials after opening.

Features

✦ Browse the Web. Visit your favorite websites
- Check your e-mail Keep in touch with friends and family
Watch YouTube™ videos
Browse the world's most popular video-sharing community
Read your favorite books Download thousands of books with the included E-book reader *
Discover thousands of apps for Android™ Games, applications, and more with the installed marketplace
Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking
Enjoy your media library anywhere Portable powerhouse plays popular music, video, and photo formats
* microSDHC memory card reader Increase your storage capacity (up to 32 GB supported)

• Automatic orientation detection Read any way you want; the display adjusts automatically!
  * Reading books in the ePub format requires the included E-book reader application.

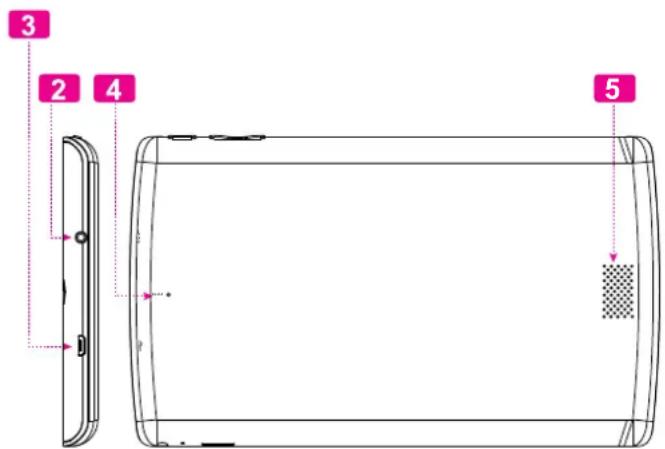

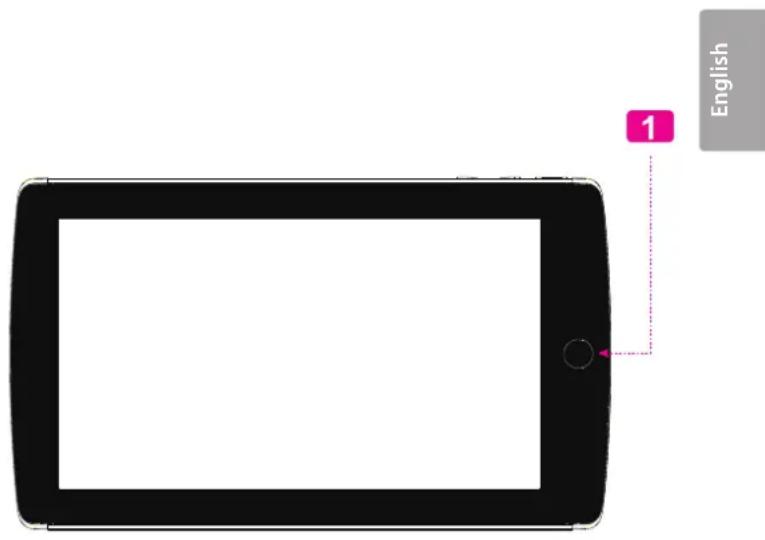

Getting to Know the Internet Tablet

Unit at a Glance

NameDescription
1 Back key Press to		return to the previous screen. If the keyboard is on the screen, press to close the keyboard.

1 English

NameDescription
2 Power jack (DC input)		Charge and power the tablet with the included power adapter.
3 U5B 2.0 Hi-speed port		Connect to a computer to transfer data (e.g., music, videos, photos, files).
4 Reset key Press to reset the tablet if it freezes or otherwise behaves abnormally. (Use a paperclip or other small object to gently press this key.)
5 Speaker Speaker output is automatically muted when using headphone Jack.

3 2 4 5

NameDescription
6 Volume + key		Press to increase the volume level.
7 Volume - key		Press to decrease the volume level.
8 Power key Press to turn the unit on, or to turn the screen on and off.Press and hold to access the Power Off menu.
9 microSDHC card slot		Load external microSDHC memory cards here.
10 Headphone jack		Audio output connection for headphones.Note:Speaker output is automatically disabled when headphones are connected to the player.

7 6 8

9 10

About the Touchscreen

Your tablet comes equipped with an easy-to-use touch-screen.

Our MID7034 with resistive touchscreen requires slight pressure on the plastic screen to activate tablet's functions. This may be done with a single finger or plastic stylus.

Our MID7036 with capacitive multi-touchscreen requires-gentle fingertip touch on the glass screen to activate tablet's functions. Multiple fingers may be used to perform gestures (e.g. 2-finger picture zoom).

Please note on MID7036: Your finger tips must not be covered. A stylus may be used. Make sure it is for capacitive touchscreens.

Protective Film

A thin film has been applied to the touchscreen to protect it during shipping. The protective film should be removed before use. To remove it, simply take a corner of the film and peel it away from the screen.

Touchscreen Actions

You can control the functions of the tablet by using the touchscreen. To control the tablet with the touchscreen, use your fingertip or stylus to manipulate icons, buttons, menu items, the on-screen keyboard, and other items displayed on the screen.

You can perform the following actions on the touchscreen using your fingertip or stylus.

Note: You must use capacitive stylus on multi-touch capacitive screens.

Touch: To activate an on-screen item (e.g., application icons, buttons, menu items, and the letter/symbols of the on-screen keyboard), simply touch them with your fingertip or stylus.
Touch and Hold:	Some on-screen items have an alternate action if you touch and hold it (e.g., opening an alternate menu, or to activate the drag function). To touch and hold an item, touch the item and do not lift your fingertip/stylus until the action occurs.
Drag: Drag an on	on-screen item to change its position (e.g., an application icon on the home screen).To drag an item, touch and hold it for a moment, then without lifting your fingertip/stylus, move your fingertip/ stylus on the screen until the item reaches its target destination.
Swipe: Swipe up	down on the screen to scroll through a list. On some screens, you may be able to swipe left/right to change the view.To swipe, touch the screen and then quickly move your fingertip/stylus across the screen without lifting your fingertip/stylus. Do not pause on the screen with your fingertip/stylus at the initial point of contact or you may accidentally drag an item instead.
Double-tap: Quickly tap the screen twice on a webpage or other application screen to zoom (the application must support the double-tap/zoom function). Within the browser, double-tapping a webpage section will cause the browser to zoom and fit that section to the width of the screen.

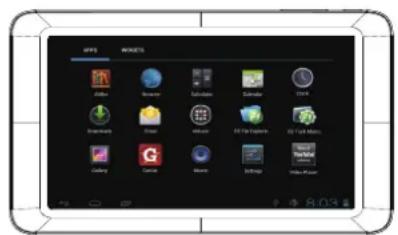

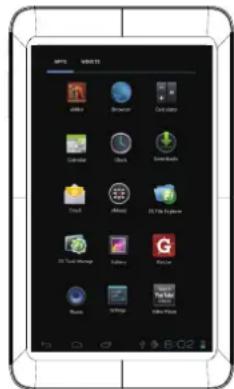

About the Orientation Sensor

The tablet contains a sensor that will automatically change the orientation of most screens as you rotate the tablet. The sensor works best when the tablet is rotated perpendicular to the ground (i.e., when the tablet is held upright and not fat on its back).

iMIPS NEWSETS Adobe Browser Edmonton Explorer COSK Smartphone Fiber iTunes 40000000000 3D Max Galaxy Camera Mission Settings Video Player

APIs VOLUME 32 Adobe Browser Outdoor Colorful Click Downloads Cloud (Akada) QQ The Explorer QQ Touch Manage Gallery Focal Phone Rooks Internet Video Phone

The orientation sensor can be turned on and off in the Display settings menu.

Charging the Tablet

The tablet comes with a built-in rechargeable lithium-polymer battery.

Before using the tablet, the battery should be charged fully. Press lower right corner settings, next to battery icon is charging percentage.

To charge the battery:

1. Plug one end of the included power adapter into an AC 100-240V outlet.
2. Plug the other end of the included power adapter into the Power jack on the tablet.
3. Disconnect the power adapter when the tablet is fully charged.

The battery used in this device may present a fire or chemical burn if mistreated. Do not disassemble, incinerate, or heat the device. Do not leave the device in a place subject to direct sunlight, or in a car with its windows closed. Do not connect the device to a power source other than that which is indicated here or on the label as this may result in the risk of fire or electric shock.

Inserting a Memory Card

The tablet accepts microSDHC memory cards. Insert a memory card into the microSDHC card slot to:

★ Increase the memory capacity of your tablet
Play media files stored on the memory card (e.g., music, video, or photo files).

To insert a memory card:

1. Align the memory card with the card slot. The metal contacts of the memory card should face down away from the LCD screen.
2. Slide the card into the spring-loaded slot. Push the card in until it clicks into place.

Do not attempt to insert objects other than a microSDHC memory card into the card slot. A compatible memory card should fit easily into the card slot; if you encounter resistance, check the alignment of the card. Do not attempt to force the card in.

Avoid touching the gold contacts of the memory card.

To release and remove a memory card:

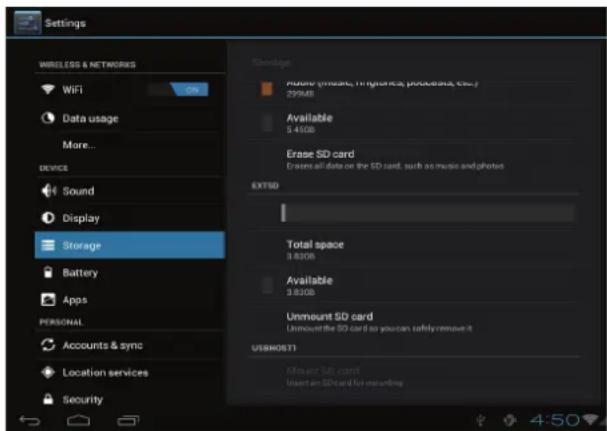

1. UNMOUNT the memory card.

a. From the home screen, tap the Launcher Tab, and then touch Settings to show the settings menu.
b. Touch Storage to show the storage settings.
c. Touch Unmount SD card to prepare the memory card for safe removal.

Settings WIRELESS & NETWORKS WIFI Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Storage Available Erase SD card Erases all data on the SD card, such as music and photos EXTSD Total space 3.8308 Available 3.8308 Unmount SD card Unmount the SD card so you can safely remove it USBHOST1 Insert 36 card Insert an SD card for mounting

1. Push the card further into the slot until you hear a click. The card will spring out of the slot.
2. Grasp the card by its edge to remove it.

To avoid damage and data corruption, do not remove a memory card while data is being written to or read from the card. For example, do not remove a card while playing a music file stored on the card.

Resetting the Tablet

Reset the tablet if it should freeze and not respond or otherwise malfunction.

1. Disconnect your tablet if it is connected to a computer.
2. Press the reset button on the bottom of the unit. see "Getting to Know your Internet tablet" section for reference.

Getting Started

Turning the Tablet on and off

To turn the tablet on:

+ Press and hold the Power key until the LCD screen turns on and you see Coby Logo, then wait until you see the Unlock screen.

To turn the tablet off:

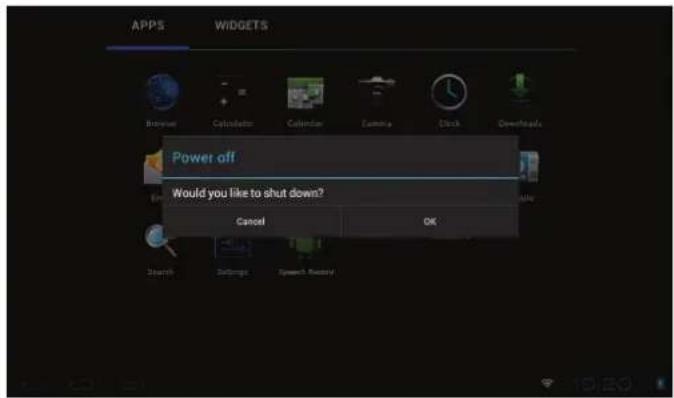

1. Press and hold the Power key until the confirmation message appears.

APP5 WIDGETS Browser Calculator Calculator Gamma Clock Downloads Power off Would you like to shut down? Cancel OK Search Helping Speech Review

1. Touch OK to turn off the tablet.

Turning the Screen On and Off (Standby)

When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on.

To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 15 seconds and 30 minutes). This Sleep option can be found in the Display menu.

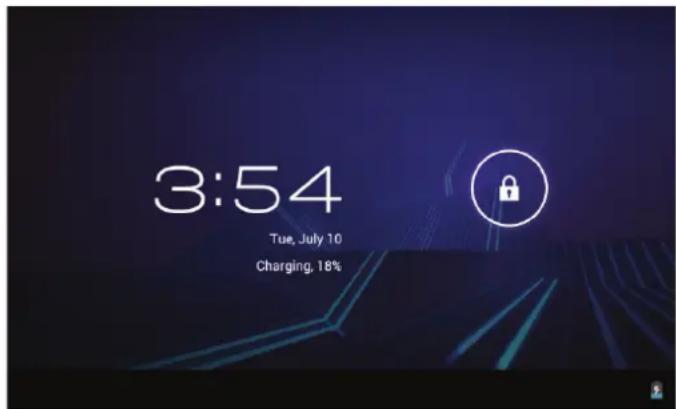

Unlocking the Screen

When the screen turns off, you will have to unlock the screen when you turn it back on.

To unlock the screen, touch and drag the lock icon to the edge of the circle that appears.

3:54 Tue, July 10 Charging, 18%

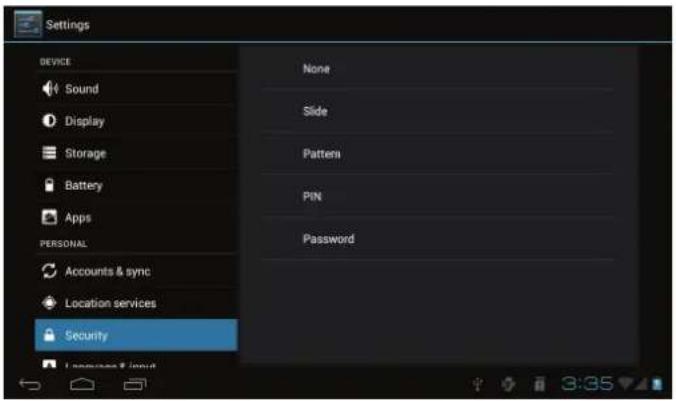

If a password has been set, enter the password to finish unlocking the screen. The Screen Unlock password can be set in the Security settings menu.

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security None Slide Pattern PIN Password

WARNING: Please write down your password lock pattern/PIN/Password. Misplacing or forgetting this method will lock the user out. Recovering the unit will reset the device back to factory defaults. ALL YOUR DATA & PROGRAMS WILL BE LOST.

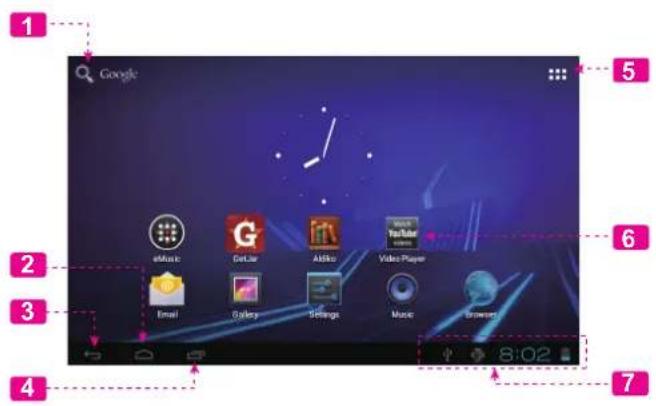

Home Screen at a Glance

The home screen is the starting point for all of the features of your tablet.

1 Google 2 eMusic 3 Email 4 Golary 5 DeJar 6 Allicia 7 Video Player 8:02

NameDescription
1	Google Search	Touch to search with Google browser.
2	Home icon	Touch to back to the central Home Screen.
3	Back icon Touch	to back to the previous screen.
4	Recent Apps	Touch to display the list of thumbnail images of apps you have worked recently. Touch an App to open it.
5	Launcher Tab	Open the Launcher to view the list of all Applications and Widgets installed on the tablet. Touch the Launcher tab to open the Launcher.
6	Icons Touch an icon to open an application or folder.
7	Notification bar	Shows notification icons such as time, battery level, and the network signal strength; touch the bar to open the full Notifications panel. Touch a Notification icon to display more detail.

About Applications

To open an application, touch the application icon on the home screen or in the Launcher.

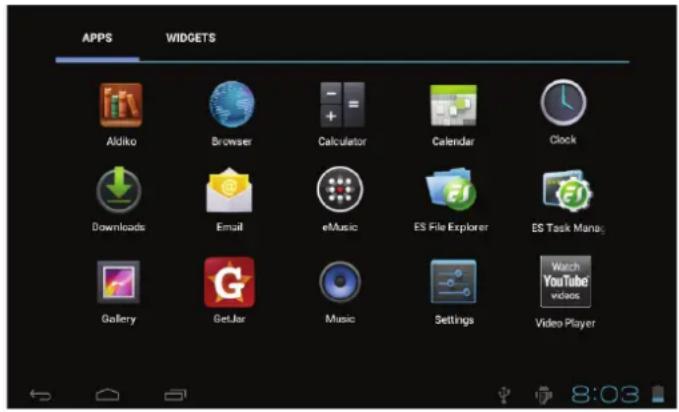

Launcher screen:

APPS WIDGETS Aldiko Browser Calculator Calendar Clock Downloads Email eMusic ES File Explorer ES Task Manager Gallery GetJar Music Settings Watch YouTube videos Video Player

The screen shown above is for illustrative purposes only. Coby reserves the right to modify and improve the final list of applications available on the tablet.

Preinstalled Applications

Some applications have been installed on your tablet for your convenience. These applications include:

		Download and read thousands of e-books.Supports the ePub standard.
		Browse the web.
		Display the calendar or record events and appointments to manage your schedule.
		Perform simple mathematical operations.
		View the current time, or set an alarm.

	Get $10 of music from eMusic.
	Check your e-mail.
	View and manage files stored on the tablet.Visithttp://www.estrongs.com/en/products/file-explorer.htmlfor more information.
	Turn off background apps to conserve battery power.Visithttp://www.estrongs.com/en/products/task-manager.htmlfor more information.
	View photos and videos, plus edit photos.
	Access to thousands of apps with GetJar Marketplace.
	Play music.
	Access the Settings menu to adjust the tablet's options.
	Launch the mobile YouTubeTM browser page to watch internet videos.

Installing Applications

You can also download an install additional applications from the device's applications marketplace, the web browser, or other sources.

The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.

Your Coby Mobile Internet Device may include access to, or information on, content, products, applications and services from third parties. Your use of such third party content, products, applications and services is at the discretion of such third party and expressly governed by such third party's terms of use, including any such third party's privacy policies, for such content, products, applications and services. Coby Electronics Corporation is not responsible for and expressly disclaims all warranties of any kind with respect to all such third party content, products, applications and services. Coby Electronics Corporation will not be responsible for any loss, costs, or damages incurred due to your access to or use of third party content, products, applications or services.

About Widgets

Widgets are self-contained applications that you can place on the Home screens to access your favorite features.

Adding Widgets to a Home Screen

1. Navigate to the Home screen which you want to place the Widget on.
2. Touch the Launcher Tab.
3. Touch WIDGETS to show all widgets, and then hold on a widget icon to add it to the Home screen.

Removing Widgets

Touch and hold the Widget until Remove icon appears at the top side of the screen, then drag the Widget to the Remove icon to remove it.

X Remove

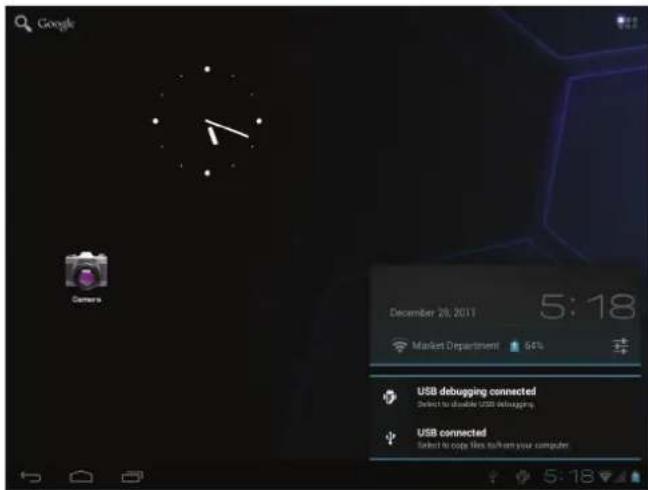

About Notifications

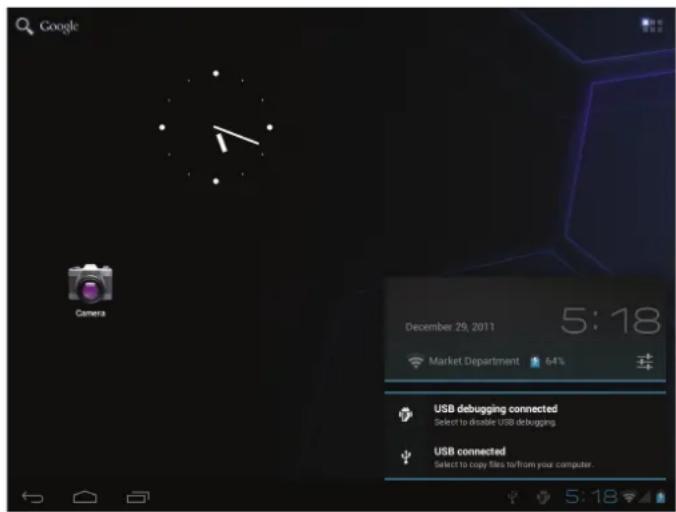

The icons that appear in the Notification bar at the bottom right corner of the screen alerts you when new messages arrive or alarms or other application events occur.

View and respond to the notifications by opening the full Notifications panel.

+ Touch the Notification bar to open the Notifications panel.

Google Camera December 29, 2011 5:18 Market Department 64% USB debugging connected Select to double USB debugging. USB connected Select to copy files to own your computer.

To respond to a notification:

Touch a notification in the list; the Notifications panel will close and the application associated with the notification will launch.

To close the Notifications panel:

◆ Touch any other area of screen except the Notifications panel, or;
✦ Touch the Back icon.

Connecting to the Internet

This tablet can utilize Wi-Fi data networks to connect to the Internet.

✿ Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be affected by your surrounding environment and Wi-Fi router. In general, being closer to Wi-Fi router improve performance.

Requirements

In order to connect to the Internet, you will need either of the following:

A wireless router or access point with a broadband Internet connection

The tablet has 802.11 b/g/n Wi-Fi radio. The tablet will also work on wireless routers that only support 802.11 b/g.

A minimum connection speed of 64 Kbps is recommended. Faster speeds will enable a better Internet experience.

You will need to know the name of your network (SSID), as well as the password or other credentials if your network is secured. These settings can usually be found on the administration webpage of your wireless router.

Please refer to your wireless router's documentation for help, or ask your network administrator for details.

You may encounter open Wi-Fi networks, or "hot spots." These networks are usually configured so that you can simply connect to them without needing to know its settings; the tablet will obtain all the information it needs from the router automatically.

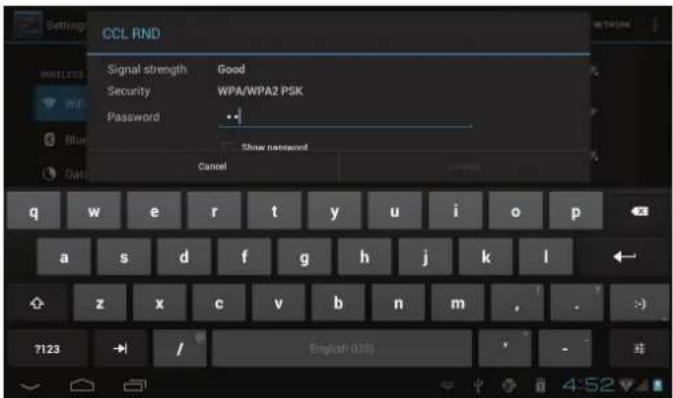

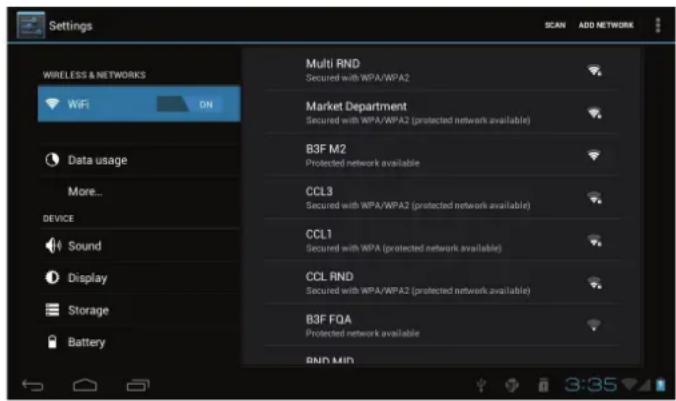

Connect to a Wi-Fi network

The Notification bar displays icons that indicate your tablet's Wi-Fi status.

	Connected to a Wi-Fi network (waves indicate connection strength).
[no icon]	There are no Wi-Fi networks in range, or the Wi-Fi radio is off.

1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi:

a. Go to the Home screen:

Touch the Home icon.

b. Open the Launcher screen:

Touch the Launcher Tab, then touch Settings.

c. Open the Wireless & networks menu:

Touch WIRELESS & NETWORKS.

d. Open the Wi-Fi settings menu:

Touch WiFi.

e. Make sure that the Wi-Fi option box is set to ON: Touch and slide the block right to enable the Wi-Fi connection.

Settings WIRELESS & NETWORKS WiFi ON Multi RND Secured with WPA/WPA2 Market Department Secured with WPA/WPA2 (protected network available) B3F M2 Protected network available CCL3 Secured with WPA/WPA2 (protected network available) CCL1 Secured with WPA (protected network available) CCL RND Secured with WPA/WPA2 (protected network available) B3F FQA Protected network available RND MID

When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks.

If a network that you have connected to previously is found, the tablet will connect to it.

If you don't see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the SCAN icon that located on the top right corner of the screen.

1. Select an available Wi-Fi network to connect to:

In the same Wi-Fi settings menu above, touch a network in the list.

If the network is open, the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.

If the network is secured (as indicated by a Lock icon), the tablet will prompt you to enter a password or other credentials. Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm.

CCL RND Signal strength Good Security WPA/WPA2 PSK Password Show password Cancel q w e r t y u i o p a s d f g h j k l z x c v b n m ?123 / English (U.S)

When you have successfully connected to a Wi-Fi network, the Notifications bar at the bottom of the screen will show a Wi-Fi signal indicator.

To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual.

Browsing the Web

The Browser application lets you visit webpages and find information on the web. Keep up with the news, your friends, or enjoy video from YouTube™, the world's most popular video-sharing community.

To use Browser, the tablet must be connected to the Internet. Read the section "Connecting to the Internet" to learn how to connect to the Internet.

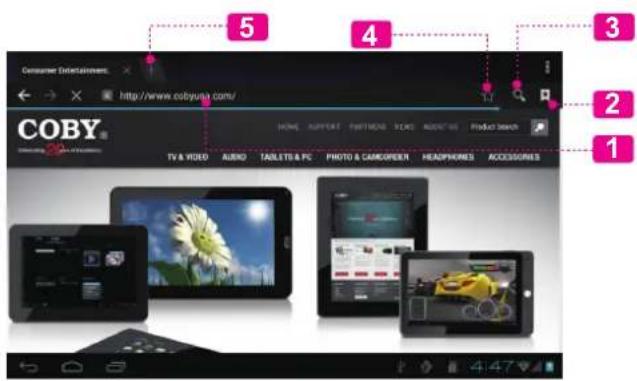

To open Browser, touch the Browser icon on the Home screen or in the Launcher.

COBY 5 http://www.cobyyika.com/ 6 TV & VIDEO AUDIO TABLETS & PC PHOTO & CABLEER HEADPHONES ACCESSORIES 1 2 3 4 5 6 4.47

NameDescription
1	Address bar Displays the address (URL) of the current page. Touch the bar to enter a new address or to search the web.
2	Goto Bookmarks icon	Touch to view bookmarks, to view your most visited sites, or to view your browser history.
3	Search icon	Touch to search with Google browser.
4	Add Bookmark icon	Touch to add bookmarks.
5	New Window (+) Creates new browser window.

Some common Browser actions are described below.

To go to a webpage.

1. Touch the Address bar at the top of the Browser screen. The keyboard will open automatically. (If the Address bar is not visible, drag the page down to return to the top of the Browser screen.)

2. Use the keyboard to enter the ad-dress (URL) of the webpage (e.g., www.cobyusa.com).

3. Touch Enter key to open the webpage.

Webpage not available Google Facebook Mood Facebook Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself Myself

Tab q w e r t y u i o p T23 a s d f g h j k l ◇ z x c v b n m . . G .com / -

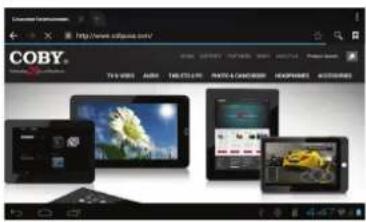

To bookmark a webpage.

Bookmark your favorite webpages in order to visit them quickly without entering a URL.

1. Go to the web-page that you want to bookmark
2. Touch the Add Bookmark icon.
3. If desired, you can modify the name of the bookmark or its location (URL address). Otherwise, touch OK to finish adding the book-mark.

To go to a bookmarked webpage.

1. Touch the Goto Bookmark icon.

2. Touch a bookmark tile to open it.

	www.xia.com	www.	www.	www.

+ To delete a bookmarked webpage.

1. Touch the Goto Bookmark icon.

2. Touch and hold a bookmark tile to open the option menu.

http://www.google.com.hk/

Open

Open in new tab

Edit bookmark

Add shortcut to home

Shar link

Copy link URL

Delete bookmark

Set as homepage

1. Touch "Delete bookmark".

Delete Delete bookmark "Google"? Cancel OK

1. Touch "OK" to confirm.

Browser menu

While viewing a webpage, touch the icon show as right to open the Browser Menu, the icon is locate on the top right corner of the screen, the options are:

✦ Refresh: Refresh the current webpage.
Forward: Go to the next webpage.
New tab: Open the webpage in a new window, under a new tab.
New incognito tab: Open the webpage in a new window, under a new tab, and the pages you view in the new window will not appear in your browser history or search history. See the on-screen explanation of going incognito.
Share page: Use Email to send the webpage URL.
Find on page: Search for content on the current page.

★ Request desktop site:

Save for offline reading: Save this page onto the internal memory, then you can read it when the internet connection is disable.

Page info: View information about the current page, including the URL.

Settings: Customize the Browser.

Managing Applications

Downloading and installing new applications to your tablet can extend its functionality in many ways.

You can download and install applications from the included Applications store. To open the Applications store:

1. Touch the Launcher icon.
2. Touch the Apps Marketplace icon.

When installing an application, it will tell you what functions it needs to control and if it needs access to your data. Make sure you review these access requirements carefully before completing the installation.

Paket Hadits Do you want to install this application? Allow this application to: • Network communication full Internet access Cancel Install

Be especially cautious with applications that request access to many functions or to a significant amount of your data. You are responsible for the results of applications installed on your tablet.

You can learn more about GetJar, and browse for applications by visiting their website at www.getjar.com.

Some developers allow you to download and install applications directly from their website.

Your Coby Mobile Internet Device may include access to, or information on, content, products, applications and services from third parties. Your use of such third party content, products, applications and services is at the discretion of such third party and expressly governed by such third party's terms of use, including any such third party's privacy policies, for such content, products, applications and services. Coby Electronics Corporation is not responsible for and expressly disclaims all warranties of any kind with respect to all such third party content, products, applications and services. Coby Electronics Corporation will not be responsible for any loss, costs, or damages incurred due to your access to or use of third party content, products, applications or services.

To uninstall an application:

1. From the Home screen, touch the Launcher Tab.
2. Touch Settings to open the Settings menu.

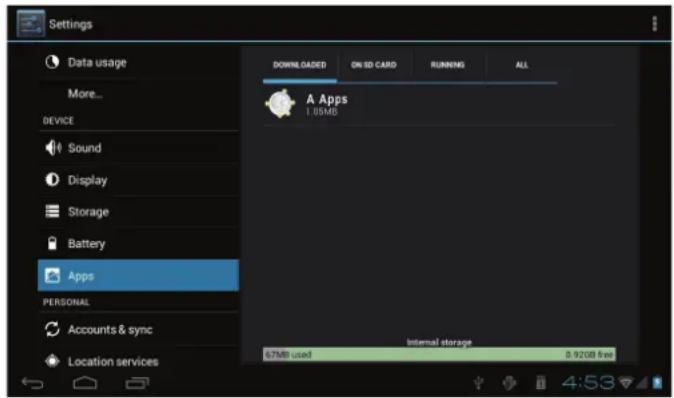

3. Touch Apps, a list of all applications installed on the tablet will display on screen.

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services DOWNLOADS ON SD CARD RUNNING ALL A Apps 1.6SME Internal storage 67MB used 8.92GB free

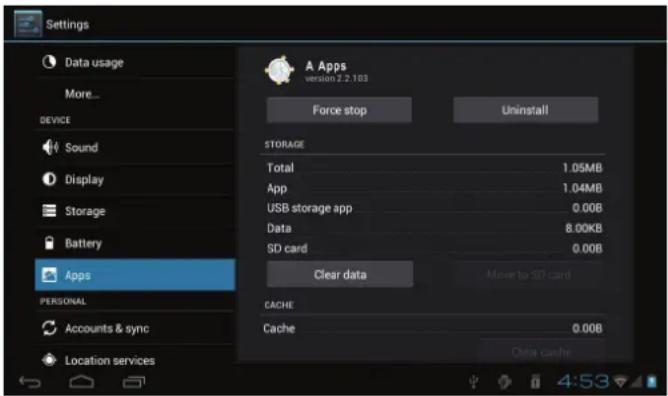

1. Touch the name of the application you want to uninstall; the Application Info screen will open.

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services A Apps version 2.2.103 Force stop Uninstall STORAGE Total 1.05MB App 1.04MB USB storage app 0.00B Data 8.00KB SD card 0.00B Clear data Move to SD card CACHE Cache 0.00B Clear cache

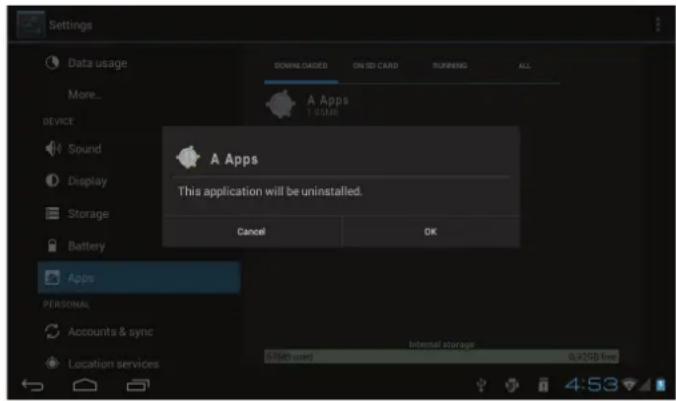

1. Touch Uninstall. The tablet will prompt you to confirm.

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services DOWNLOADS ON SD CARD RUNNING ALL A Apps 1.5/1648 A Apps This application will be uninstalled. Cancel OK internal storage 0.32GB Free

1. Touch OK to uninstall the application.

Or you can uninstall an application from the Launcher screen directly. Touch and hold an application icon until the Uninstall icon Uninstall appears, drage the application icon to the Uninstall icon to uninstall the application.

Optional Connections

Connecting to a Computer

Connect the tablet to a computer to transfer files.

1. Connect your tablet to the computer.

With the included USB cable:

Plug the small end of the cable into the USB 2.0 Hispeed connector of the tablet.
Plug the large end of the cable into an available USB 2.0 Hi-speed port on the computer.

When your tablet is connected, a USB icon will appear in the Notification bar.

4:52

- Touch the Notification bar to open the notifications panel.

Google Camera December 29, 2011 5:18 Market Department 64% USB debugging connected Select to disable USB debugging USB connected Select to copy files to/from your computer.

The Tablet's "mass storage mode" is compatible with many operating systems including: Microsoft® Windows® XP, Vista, 7 or higher and Mac OS or Linux.

2. Mount the storage drive.

Touch USB connected to mount the tablet's built-in storage, then touch "Turn on USB storage" and "OK" when prompted to confirm. When mounted, you can copy files to/from your computer to it.

Your tablet will be recognized by the computer as a Removable Storage drive. Drag and drop files between your tablet and the computer. To learn more about copying files, please refer to the documentation included with your computer or operating system.

Connecting Headphones

Connect a pair of headphones (or earphones) to the tablet to enjoy media in private.

Lower the volume level of the tablet before connecting headphones, and then slowly raise the volume to a comfortable listening level.

The headphones must have a 3.5 mm (1/8 in) plug.
When headphones are connected, speaker output will be disabled automatically.

Hearing experts advise against the constant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice.

Setting the System Options

Open the system settings menu to adjust how the tablet looks and functions.

Many applications will have their own settings; refer to the documentation provided by the application developer to learn more.

To open the Settings menu:

1. From the Home screen, touch the Launcher Tab.
2. Touch Settings to open the Settings menu.

The settings are grouped by category. Touch a category to open and adjust its settings on the right side.

Settings WIRELESS & NETWORKS WiFi ON Data usage More... DEVICE Sound Display Storage Battery

Specifications

Please visit www.cobyusa.com for the latest product information. Design, specifications, and manual are subject to change without notice.

Processor Cortex	^TM -A5 (1 GHz)
RAM 512 MB
Storage Built-in-Storage	storage is model dependant and indicated on product packaging. (e.g. -4 = 4GB, -8 = 8GB) ^1 microSDHC card slot (max. 32GB supported)
Display	MID7034: 7.0" TFT LCD (800 x 480), resistive touchscreenMID7036: 7.0" TFT LCD (800 x 480), capacitive touchscreen
Networking Wi-Fi IEEE 802.11 b/g/n
Audio Output 3.5 mm headphone
PC Interface	USB 2.0 Hi-speed
Additional Features	Built-in microphone speaker
Operating System	Android ^TM 4.0

Power

Rechargeable Li-poly battery Power Adapter (DC 5V)2

1 1GB= 1 Billion bytes. Available storage capacity will be less due to operating system and pre-installed software applications. Actual formatted capacity will vary.
^2 Battery life will vary based on settings, usage and other factors.

Support

If you have a problem with this device, please check our website at www.cobyusa.com for Frequently Asked Questions (FAQ) and product updates. If these resources do not resolve the problem, please contact Technical Support.

Coby Electronics Technical Support

Email: [e-mail]

Web: www.cobyusa.com

Phone: For US Residents: 877-302-2629, Monday-Friday (9:00AM-9:00PM EST) For Canadian Residents: 855-542-8917, Monday-Friday (8:00AM-8:00PM EST)

Safety Notices

CAUTION

WARNING: SHOCK HAZARD. DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

For Customer Use:

Enter below the serial number that is located on the rear of the unit. Retain this information for future reference.

Model No.

Serial No.

WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.

Protect your hearing: Hearing experts advise against the constant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice.

Note: If the product suddenly has no response or powers off, an electrostatic discharge may be the cause. In this circumstance, please follow the procedures below for recovery:

• Turn off the unit by pushing and holding the slide button at the right (Power off position) for 15 seconds.
• Turn on the unit again

FCC Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Important Safety Instructions

1. Read Instructions: All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions: The safety and operating instructions should be retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments: Use only attachments recommended by the manufacturer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).
8. Ventilation: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventila-

tion is provided or the manufacturer instructions have been adhered to.

1. Power Sources: This product should be operated only from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.
2. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
3. Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shout-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
4. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
5. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if

the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service.

1. Replacement Parts: When replacement parts are required, be sure that your service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
2. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition.
3. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Legal and Trademark Notices

Coby is trademarks of Coby Electronics Corporation.

Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.

Portions of the artwork used for this package are modifications based on work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

microSDHC Logo is a trademark of SD-3C, LLC.

USB is a registered trademark of USB Implementers Forum, Inc.

YouTube™ is a trademark of Google, Inc.

All other trademarks and logos are property of their respective owners unless indicated otherwise.

Black rectangular tablet device with a blank screen and a small circular button, no text or symbols present.

Settings WIRELESS & NETWORKS WiFi Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Storage Done (please, http://www.pondate.sse/) Available 5.493B Erase SD card Erase all data on the SD card, such as music and photos EXTSD Total space 3.830B Available 3.830B Unmount SD card Unmount the SD card so you can safely remove it USBHOST1 Musiad SD card Inject an SD card for mounting

APPS WIDGETS Bikcscen Calculator Calendat Camera Clock Downloads Power off Would you like to shut down? Cancel OK Search Settings Speech Record

3:54 Tue, July 10 Charging, 18%

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security None Side Pattern PIN Password

1 Google 2 Music G Gluo Alofa Video Player Email Gallery Settings Music Gamebox 3 4 5 6 7 8:02

Google Camera December 29, 2011 5:18 Market Department 64% USB debugging connected Select to disable USB debugging. USB connected Select to copy files turn am your computer.

Settings WIRELESS & NETWORKS WiFi ON Multi RND Secured with WPA/WPA2 Market Department Secured with WPA/WPA2 (protected network available) B3F M2 Protected network available CCL3 Secured with WPA/WPA2 (protected network available) CCL1 Secured with WPA (protected network available) CCL RND Secured with WPA/WPA2 (protected network available) B3F FQA Protected network available RND MID Data usage More... DEVICE Sound Display Storage Battery SCAN ADD NETWORK

Close-up of a black keyboard with standard menu bar and numeric keypad visible

COBY http://www.coibye.com/ TV & DVD AIRS TELESTREAM AUTO & COLDERS HEADWIRE ACCESSORIES

Bookmark this page Label Consumer Entertainment Products On the Go | C0BY Address http://www.cobyusa.com/ Account Local Add to Bookmarks Cancel OK

Screenshot of a web browser interface displaying multiple app icons with Chinese labels, likely for product or service management.

http://www.google.com.hk/

Open

Open in new tab

Edit bookmark

Add shortcut to home

Shar link

Copy link URL

Delete bookmark

Set as homepage

1. Toque "Delete bookmark" (borrar marcador).

Delete Delete bookmark "Google"? Cancel OK

Paket Hadits Do you want to install this application? Allow this application to: • Network communication full Internet access Cancel Install

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services DOWNLOADED ON SD CARD RUNNING ALL A Apps 1.65MB Internal storage 67MB used 8.920B free

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services A Apps version 2.2.188 Force stop Uninstall STORAGE Total 1.05MB App 1.04MB USB storage app 0.00B Data 8.00KB SD card 0.00B Clear data Move to SD card CACHE Cache 0.00B Clear cache

Settings Data usage More... Myers Sound Display Storage Battery Apps Properties Accounts & sync Location services A Apps This application will be uninstalled. Cancel OK Internal Storage AutoDrive

Google Camera December 20, 2011 5:18 Market Department 64% USB debugging connected Select to disable USB debugging USB connected Select to copy files from your computer

Settings WIRELESS & NETWORKS WiFi ON Data usage More... DEVICE Sound Display Storage Battery

Especificaciones

Conditions requises 97

GESTION DES APPLICATIONS......104

CONNEXIONS OPTIONNELLES......107

File Edit View Help File Edit View Insert Tools Help Calendar Click Download Download File Edit Print Download File Text Manager Library Excel Book Ed qiao Email Page

Settings WIRELESS & NETWORKS WiFi Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Manager More (please, log/other, pod/data, etc.) 239MB Available 5.430B Erase SD card Erase all data on the SD card, such as music and photos EXTSD Total space 5.830B Available 5.830B Unmount SD card Unmount the SD card so you can safely remove it USBHOST1 Mount SIM card Instruct an SD card for mounting

APPES WIDGETS Power off Would you like to shut down? Cancel OK

3:54 Tue, July 10 Charging, 18%

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security None Side Pattern PIN Password

Google Camera December 29, 2011 5:18 Market Department 54% USB debugging connected Select to disable USB debugging. USB connected Select to copy files to finish your computer.

Settings WIRELESS & NETWORKS WiFi ON Multi RND Secured with WPA/WPA2 Market Department Secured with WPA/WPA2 (protected network available) B3F M2 Protected network available CCL3 Secured with WPA/WPA2 (protected network available) CCL1 Secured with WPA (protected network available) CCL RND Secured with WPA/WPA2 (protected network available) B3F FQA Protected network available RND MIN

Webpage not available Overview Webpage not available Webpage The worksheet at 100% temporarily shown on Suggestions: • More user needs • Shared file needs • Quick the ads Google Google might be Google Google Google Google Google

Tab q w e r t y u i o p F123 a s d f g h j k l z x c v b n m , . G com / -

Paket Hadits Do you want to install this application? Allow this application to: • Network communication full internet access Cancel Install

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services DOWNLOADED ON SD CARD RUNNING ALL A Apps 1.65MB Internal storage 67MB used 0.92GB free

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services A Apps version 2.2.188 Force stop Uninstall STORAGE Total 1.05MB App 1.04MB USB storage app 0.00B Data 8.00KB SD card 0.00B Clear data Move to CD card CACHE: Cache 0.00B Cloud buttons

Settings Data usage More... A Apps A Apps This application will be uninstalled. Cancel OK Access: Cancel Access: Cancel Access: Cancel

Google Camera December 29, 2011 5:18 Market Department 64% USB debugging connected Select to disable USB debugging USB connected Select to copy files to/from your computer.

Settings WIRELESS & NETWORKS WiFi ON Data usage More... DEVICE Sound Display Storage Battery

Coby Electronics Technical Support

Courriel : [e-mail]

Internet : www.cobyusa.com

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Coby Electronics Corp.

1991 Marcus Ave, Suite 301

Lake Success, NY 11042

www.cobyusa.com

www.ecoby.com

Coby is a registered trademark of Coby Electronics Corporation. Printed in China.
