COMPACTOR SAFETY....3

INSTALLATION INSTRUCTIONS....4

Unpacking 4

Location Requirements....4

Electrical Requirements 5

Undercounter Installation....5

COMPACTOR USE....7

How Your Compactor Works....7

Loading....8

Starting Your Compactor....8

Using Compress (Locked) Cycle 8

Using the Air Filter....8

Removing a Filled Bag 8

Installing a New Bag 9

COMPACTOR CARE....9

Changing the Air Filter....9

Cleaning....9

TROUBLESHOOTING ....11

ASSISTANCE OR SERVICE....12

In the U.S.A. 12

In Canada 12

Accessories....12

WARRANTY 13

TABLE DES MATIÈRES

SÉCURITÉ DU COMPACTEUR....16

INSTRUCTIONS D'INSTALLATION....17

Déballage....17

ASSISTANCE OU SERVICE....26

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name ____

Address ____

Phone number ____

Model number ____

Serial number ____

Purchase date

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

• Read all instructions before using the compactor.
  ■ Close supervision is necessary when used by or near children. Do not allow to be used as a toy, or to run unattended at any time. Lock Key Switch when not in use and store key out of reach of children.
  ■ Do not touch moving parts.
  ■ Do not operate with a damaged cord set, plug, motor, or after damage in any manner. Have the compactor examined, repaired or adjusted by an authorized serviceperson.
  ■ Use only for intended use as described in this manual. Do not use other than manufacturer's recommended attachments.

■ Do not compact toxic or volatile flammable material such as oily rags and insect sprays. Do not compact lighted cigarettes, cigars, or other hot or burning items. Do not overload the compactor.
■ Do not take apart the compactor. Incorrect reassembly can cause electric shock when subsequently used.
■ Handle a loaded trash bag with care. Sharp objects can pierce the bag and cause injury. Do not overload trash bag with heavy material such as glass.
■ This compactor is intended for household use only.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

INSTALLATION INSTRUCTIONS

Installer: Leave Use and Care Guide with the homeowner.

Homeowner: Keep Use and Care Guide for future reference and for local electrical inspector's use if required.

Unpacking

WARNING

Excessive Weight Hazard

Use two or more people to move and install compactor.

Failure to do so can result in back or other injury.

IMPORTANT:

■ You may want to wear gloves when moving compactor.
■ Begin in the room where the compactor will be located.

1. Remove compactor from shipping carton. Follow the instructions on the shipping carton.
2. Remove all packaging materials such as tape and shipping pads.
3. Use a mild detergent and warm water to remove waxy residue caused by shipping material.
4. Dry thoroughly with a soft cloth. For more information, see "Cleaning."
5. Be sure the power cord is attached to the cord clip on the rear of the compactor.

Simple line drawing of a vertical rectangle with an attached curved line and two small blocks, labeled 'A' at top left (no text or symbols on the diagram itself)

A. Cord clip

1. Place two of the corner posts from the packaging on the floor near the compactor.
2. Press the foot pedal to open the compactor drawer and remove any shipping materials or other items from the drawer.

NOTE: Do not remove the compactor bag.

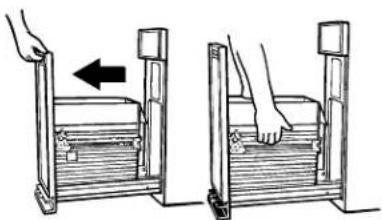

1. Grasp the front of the drawer and tilt it backwards slightly while pulling forward to clear the drawer stops.
2. Grasp sides of drawer and lift drawer out of compactor.
3. Place the drawer on the 2 corner posts.

Illustration of two hand presses in a storage or lifting device, showing internal compartments and a double-headed arrow indicating motion (no text or symbols)

1. Place the other 2 corner posts on the floor to the side of the compactor.
2. Grasp the sides of the compactor cabinet and put compactor on its side on top of the corner posts.
3. Remove the shipping base from the bottom of the compactor.

Technical diagram showing hands assembling a structural component with labeled parts A, B, and C

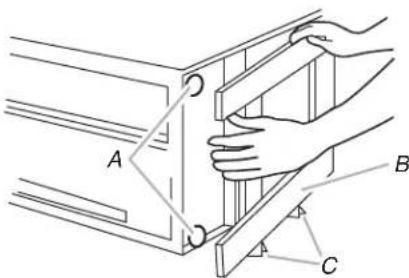

A. Leveling legs B. Shipping base C. Corner posts

1. Tilt compactor to upright position. Leave the drawer out of the compactor.

Location Requirements

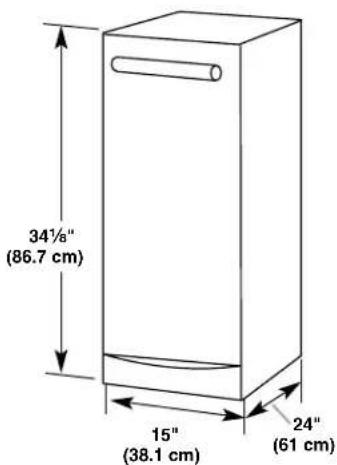

Product dimensions

34½" (86.7 cm) 15" (38.1 cm) 24" (61 cm)

Cutout dimensions

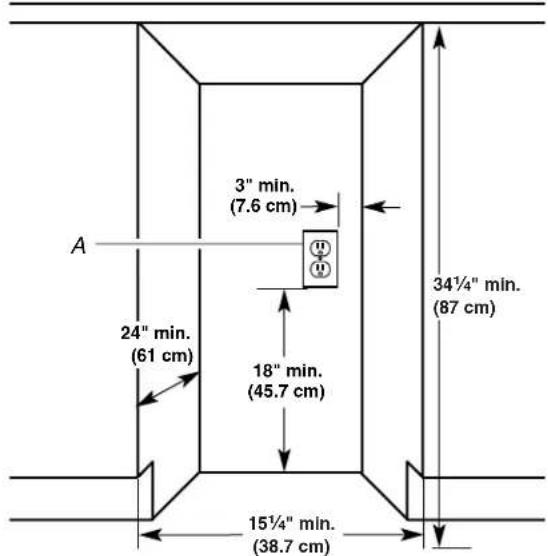

A 24" min. (61 cm) 3" min. (7.6 cm) 18" min. (45.7 cm) 15½/4" min. (38.7 cm) 34½/4" min. (87 cm)

A. Grounded electrical outlet must be a minimum of 3" (7.6 cm) away from surrounding cabinets or nearby walls as shown. It can be placed either to the left or the right side of the product.

Clearance dimensions

B A

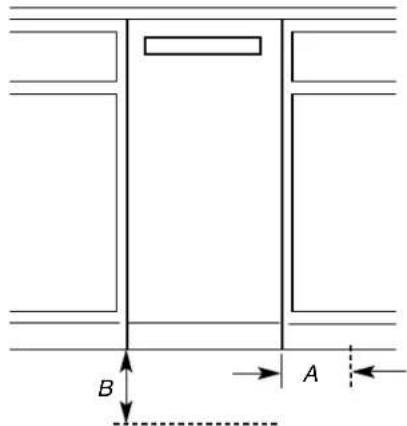

A. Leave 6" (15.2 cm) of clearance space to the right side of the compactor in order to remove the compactor bags. B. Leave 23" (58.4 cm) of clearance in front of the compactor in order to fully open or remove the compactor drawer.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Recommended Grounding Method

This compactor is for use on a single phase, 115-volt, 60 Hz, AC only, 15- or 20-amp fused and properly grounded circuit and is equipped with a grounding plug as shown below. It is recommended that a separate circuit serving only this appliance be provided.

This compactor must be grounded while in use to reduce the risk of electric shock. The compactor is equipped with a three-conductor cord and 3 prong grounding-type plug to fit the proper grounding-type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Do not connect the green (or green and yellow) wire to a live terminal. Do not modify the plug attached to the compactor; use with a grounded receptacle.

Undercounter Installation

NOTE: Proper installation is your responsibility. Make sure you have everything necessary for correct installation. It is the personal responsibility and obligation of the customer to contact a qualified installer to assure that electrical installation meets all national and local codes and ordinances.

Tools needed:

Gather the required tools and parts before starting installation.

■ Level ■ Phillips No. 2 screwdriver
■ Tape measure ■ Flat-head screwdriver
■ Pliers ■ 5/16" Box-end wrench
■ Scissors ■ Utility knife

IMPORTANT:

■ To avoid damaging floor covering, slide compactor onto cardboard or hardboard before moving compactor across floor.
■ Do not allow the rear frame of the compactor to touch the floor covering when lifting or moving compactor.

Undercounter Installation

1. Measure the height of your cabinet opening. The top of the compactor should be at least 18 " (3 mm) from the top of the cabinet opening.

The rear wheels are preset for a cabinet height of 3418 " (87 cm). See Position "1" in the following picture.

To adjust for other cabinet opening heights:

■ Loosen self-tapping screw just enough to clear stud from hole in Position "1."

■ Move the rear wheel and stud to Position "2" or "3" as needed for your cabinet opening measurement: Position "2": 34^716 " to 34^1116 " (87.5 to 88.1 cm) Position "3": 34^13_16 " to 35" (88.4 to 88.9 cm) NOTE: To level the compactor in position "3," you may need to add shims under the front leveling legs.

■ Tighten screw. Repeat for other rear wheel.

B 1 2 3 A C D

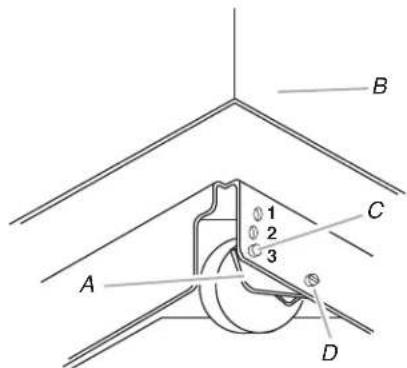

A. Wheel bracket assembly
B. Cabinet
C. Locating stud
D. Self-tapping screw (pivot)

1. Use pliers to lower front leveling legs away from cabinet. Adjust legs so there will be a 18 " (3 mm) to 14 " (6.4 mm) space between the top of the compactor and the top of the cabinet opening. Stand the compactor upright.
2. Move the compactor close to its final location.
3. To install handle:

■ Insert screws into the holes from the inside of the drawer.
■ Place handle on the front of the drawer and align handle screw holes with screw ends.

1. Tighten screws snugly.

Diagram showing a mechanical or structural component with labeled parts A, B, and C, including directional arrows and curved lines.

A. 2 screws inserted into holes from inside of drawer
B. Top of drawer
C. Handle installed on drawer front

1. Plug into a grounded 3 prong outlet.
2. Determine if you want the compactor cabinet frame or drawer front flush with the kitchen cabinet face.

Using the two #8-18 x 1/2" (13 mm) screws, install the retaining brackets to cabinet top as needed: the screws are supplied for position 2.

■ If the compactor frame is to be flush with the cabinet front, place retaining bracket screws through "1."
■ If the compactor drawer front is to be flush with the cabinet front, place retaining bracket screws through "3."
If the compactor is to be midway between "1" and "3," leave the retaining bracket screws through "2."

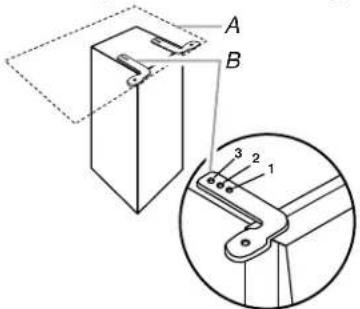

A B 3 2 1

A. Countertop
B. Retaining bracket

1. Slowly lift the front slightly and roll compactor into the cabinet opening.

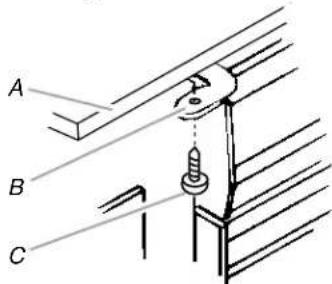

2. Using the two #8-18 x 1/2" (13 mm) screws (provided), fasten the retaining brackets to the countertop with the mounting screws.

Countertop Mounting

A B C

A. Countertop
B. Retaining bracket
C. Mounting screw

NOTE: If the retaining brackets cannot be attached to the underside of countertop, attach mounting clips (provided) to brackets. Fasten compactor to kitchen cabinet face with the screws through the mounting clips.

Cabinet-front Mounting

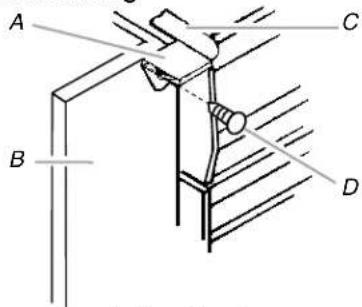

A B C D

A. Mounting clip
B. Cabinet face
C. Retaining bracket
D. Screw

1. Grasp sides of compactor drawer and place the wheels of the drawer into the tracks. Lift at the handle so drawer will go over drawer stops. Close drawer. Make sure the drawer

opens and closes freely. If the toe guard rubs against floor, see "Adjusting the Toe Guard" for further instructions.

Adjusting the Toe Guard

If the toe guard rubs the floor covering, the toe guard clearance may be changed as follows:

1. Mark on each side of the toe guard the amount of toe guard that rubs the floor covering.
2. Remove the drawer from the compactor. (See Steps 7-9 in the "Unpacking" section.)
3. Use a ruler and a pencil or chalk to draw a line between the marks on each side of toe guard.
4. Use scissors or utility knife to cut toe guard along line.
5. Replace drawer. If toe guard still rubs floor covering, repeat steps 1-4.

Installing a Custom Panel

Dimensions

Use these dimension drawings to create a custom panel for use without a trim kit. The panel should be a minimum of 12 " (1.3 cm) thick.

29 ¾" Max (74.6 cm) 15" Max (38.1 cm)

Installation

1. Align the bottom of the custom panel with the bottom of the exterior drawer front and rest the panel on the rest tab.
   NOTE: The bottom of the custom panel should not extend below the bottom rest tab which is located at the lower center of the exterior drawer front.

2. Secure the custom panel to the exterior drawer front by using four #8 x 1" wood screws from the inside drawer front at the locations shown in the picture. There are 7 holes available for use.

3. Attach a 15" x ½" quarter-round filler along the top inside edge of the drawer front using glue or screws.

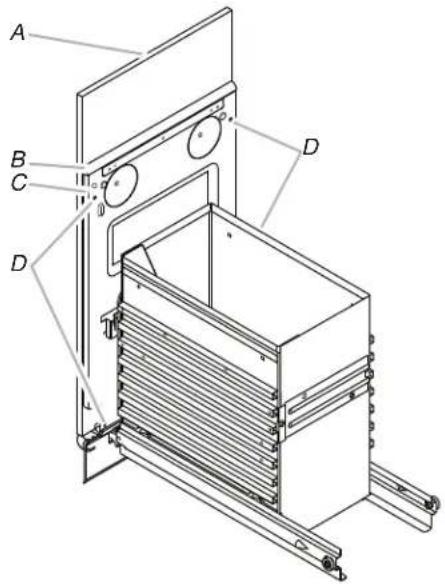

A B C D D

A. Custom panel
B. 15" x 1/2" quarter round
C. Drawer front
D. Four #8 x 1" wood screws placement: 7 holes are available for use

COMPACTOR USE

How Your Compactor Works

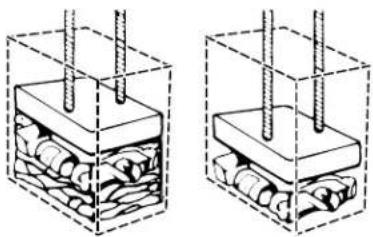

The compacting ram is the part of the compactor which compresses the trash. The compacting ram stops 7" (178 mm) from the bottom of the drawer. You will not see compacting of trash until the drawer is more than 12 full.

NOTE: You may hear a noise when glass breaks. Strong glass bottles may not break. The trash in a full compactor bag will be about 14 the size of its original bulk.

Two identical diagrams of a container with embedded blocks and vertical rods, no text or symbols present.

Load bulky trash, bottles, and cans in the center of the drawer. Bottles or cans not placed in the center may become caught between the ram and the drawer. The Drawer Monitor Switch will sense a "misload" and causes the ram to return to the "up" position without compacting.

Cross-sectional diagram of a vehicle inside a vehicle cabin (no text or symbols)

Loading

IMPORTANT: Do not push items down into compactor with hands or feet.

NOTE: You will not see compacting of trash the first few times you load the compactor. The compactor drawer should be about 12 full before the compactor can begins compressing the load.

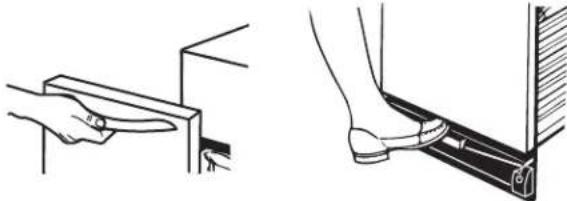

1. Open the drawer. Lift and pull the handle or press the foot pedal to open the drawer.

NOTE: Pressing the foot pedal opens the container only 3" to 6" (7.6 cm to 15.2 cm), dependent upon the load.

Two technical line drawings showing a hand holding a rectangular object and a foot adjusting a wall-mounted device (no text or symbols present)

1. Place trash in compactor.

■ Wrap or cover wet or messy trash.

■ Do not compact items that may develop offensive odors such as raw meat, fish, grapefruit rinds, disposable diapers, or personal hygiene items.

■ Load bottles or cans on their sides in the center of the drawer. Do not load bottles in an upright position.

Illustration of a vehicle inside a vehicle cabin (no text or symbols visible)

1. Close the drawer.

Starting Your Compactor

1. Open drawer. Load trash.

2. Turn Key-Knob to ON position.

3. Set Compress Cycle switch to OFF.

4. Close drawer.

5. Press the foot-actuated START button in with your toe to start the compacting cycle.

NOTE: When the compacting cycle is completed, open the drawer and turn the Key-Knob to OFF. Remove the Key-Knob and store it out of children's reach.

Illustration of a human leg and foot with a mechanical component, no text or symbols present

Using Compress (Locked) Cycle

The Compress (Locked) Cycle extends the use of the bag by putting constant pressure on the trash to keep it from springing back. Regular use of a compress cycle can increase bag capacity up to 25 percent.

During Compress Cycle, the ram will stay in the down position for extra compacting. The drawer is locked and cannot be opened when the ram is down.

For best results, use the Compress Cycle for at least 30 minutes at a time.

1. Lift and pull the handle or press the foot pedal to open the compactor drawer.

2. Set compactor Compress Cycle switch to ON.

1. Close drawer.

2. Press the foot-actuated START button in with your toe to start the compacting cycle.

NOTE: During the compacting cycle, the drawer remains locked until you press the foot-actuated START button to raise the ram.

Using the Air Filter

1. Set the Air Filter switch to ON. The fan creates air movement in the compactor for odor removal.

NOTE: The Air Filter only works when the Key-Knob is in the ON position.

1. If you hear noise while the compactor is not in use, it might be the fan has been left on.

2. Set the Air Filter switch to OFF to turn off the fan.

Removing a Filled Bag

When the trash is compacted to the top of the drawer, remove the bag. If the bag is too heavy, compact less trash before emptying it in the future.

1. Pull the drawer completely open.

2. Remove top of bag from bag retainer buttons. Pull up all four bag cuffs. Close bag with a twist tie.

1. Release drawer side latch. Tilt drawer to the right. This releases pressure on the bag making it easier to remove the bag.

1. Lift out bag.

NOTE: Fully compacted trash bags can be heavy. Be sure to handle with care.

Line drawing of hands performing a manual task on a bag (no text or symbols present)

1. Latch the drawer if it was unlatched.

Installing a New Bag

Do not use any kind of bag other than those designed specifically for use in your compactor. Order replacement compactor bags through your local dealer or by calling the toll-free number on the cover or in the “Assistance or Service” section.

IMPORTANT:

Before installing a new bag, be sure:

■ The drawer latch is securely locked.

■ The drawer is clean and free of debris.

NOTE: An unlatched drawer can cause the drawer monitor switch to stay open. This will make the ram return and the compactor will continue to run. Attempt to push the drawer inwards to stop the compactor. The continuous running of the compactor can also be attributed to debris in the drawer area. If it is difficult to open or close the drawer this may be due to either the drawer latch not being locked or debris in the drawer area.

1. Place folded bag into the drawer. Open bag and pull top edges over the drawer top.

Line drawing of a person pressing down on a wooden plank (no text or symbols)

1. Lock bag in place by pulling the four prepunched holes over the bag retainer buttons. Holes will expand over the buttons without damaging the bag.

2. Press inside of bag against the drawer bottom, sides and corners for a smooth fit.

Illustration of a person's legs resting on a wooden plank (no text or symbols)

NOTE: The ram can and will tear improperly installed bags.

COMPACTOR CARE

Your new compactor is designed to give you many years of dependable service. However, there are a few things you are expected to do in order to properly maintain your compactor. This section will tell you how to clean and care for your compactor.

Before cleaning the compactor, turn the Key-Knob to the OFF position.

NOTE: Any services other than those outlined in this section should be performed by an authorized service technician.

Changing the Air Filter

It is recommended that you use the charcoal air filter located under the filter cover.

To order the correct replacement charcoal filters, call the toll-free number listed on the cover or in the "Assistance or Service" section.

1. Insert fingertips in the air filter cover and pull until the side tabs release. Then, lift the cover to release the bottom tabs.

Hand inserting a card into a tab (no text or symbols visible)

1. Remove the deodorizer puck, if one exists. To order new deoderizer pucks, call the toll free number listed on the cover.

2. Remove the air filter by pulling the top edge of the filter. The filter should pull out easily. Throw away used filter.

Hand inserting a small object into a rectangular device (no text or symbols visible)

1. To replace air filter, push the replacement filter into place.

2. Insert the bottom tabs of the air filter cover and push in until the side tabs snap into place.

Cleaning

Before cleaning the compactor, turn the Key-Knob to the OFF & LOCK position and remove it.

NOTE: Any services other than those outlined in this section should be performed by an authorized service technician.

Cleaning Exterior Surfaces

1. Wash exterior surfaces (including stainless steel) with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Rinse and dry thoroughly with a soft cloth.
2. Wipe up spills immediately. Some foods can damage the finish if left on the compactor surface.

Cleaning Inside the Drawer

NOTE: You may want to wear gloves when cleaning inside the drawer.

1. Pull drawer completely out until it stops.

2. Remove the bag. See "Removing a Filled Bag."

3. Press down on the drawer latch.

1. Hold the drawer latch open and tilt the side of the drawer out until the lock clears the drawer front. Remove the drawer side by lifting it out of the drawer

Simple line drawing of two hands opening a rectangular container (no text or symbols)

1. Wash the interior of the drawer with a clean sponge or soft cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.
2. If the drawer side was removed, slide it back into the tilted position.
3. Press the drawer latch down while pushing the drawer side to the upright position.
4. Latch the drawer side.
5. Close the drawer.

Cleaning Inside the Cabinet

NOTE: You may want to wear gloves when cleaning inside in the cabinet.

1. Pull the drawer out until it stops.

NOTE: Look to see how the drawer rollers move in the tracks and disengage them. It will be easier to replace the drawer after you have finished cleaning.

Diagram of a hand pressing down an open wooden door with a black arrow indicating left motion (no text or symbols)

1. Lift the front of the drawer to clear the stops.
2. Grasp the drawer on the sides and pull it out the rest of the way. Set the drawer down gently.

1. Vacuum the inside of the cabinet. Liquid spills or wet trash should be cleaned up by hand, or by using a vacuum designed to pick up liquids.

Illustration of a hand using a tool to adjust or install a component on a metal bracket (no text or symbols visible)

1. Wash the inside of the cabinet with a clean sponge or soft cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.
2. To replace the drawer, grasp it by the sides and insert the rollers onto the tracks.
3. Lift the front of the drawer and push it in fully past the stops.

Cleaning the Ram

NOTE: You may want to wear gloves when cleaning the ram.

1. Wipe glass particles off of the ram cover with a cloth or paper towels. Throw the towel away.
2. Remove foods with a clean sponge or soft cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Cleaning Before a Vacation

If you will be away for more than a couple of days, remove the compactor bag. Remove the Key-Knob and store it out of children's reach.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Trash is not compacting

Is the drawer less than half-full? Drawer must be more than half full before trash is compacted. The ram stops 7" (178 mm) from the bottom of the drawer.

Your compactor won't operate

■ Is the power supply cord unplugged? Plug into a grounded 3 prong outlet.
■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
Is the drawer completely closed? Is the drawer latch locked? Close the drawer firmly and start the compactor again. Be sure the latch is locked.
Is the Key-Knob turned to ON? Turn the Key-Knob to ON. See "Starting Your Compactor."
- Did you press the foot-actuated start button? See "Starting Your Compactor."

The drawer won't open

Is the Compress Cycle engaged? Drawer remains LOCKED until you reset by engaging the foot-actuated Start button. Turn the compress Cycle off by pushing the Compress switch to OFF.
■ Is the drawer latch open? Push on the drawer front in an attempt to raise the ram. Be sure the latch is locked.
Is the ram all the way up? Drawer will open only when ram is fully raised. Engage the foot-actuated Start button. See "Starting your compactor."

There is not enough compaction or force

■ Do you use the Compress cycle frequently enough? Compacting works best when the Compress cycle is used. Keep trash compressed for a minimum of 30 minutes.

Bottles don't break

Factors that affect bottle breakage: Bottles will not break every time. The thickness of the bottle's glass and the content of the trash load below it may keep the bottle from breaking.
Is the latch locked? Push on the drawer front to attempt to engage the drawer monitor switch. Open drawer and be sure the latch is locked.
- Did the foot actuated Start switch not engage? Is the lever that pushes the Start switch in been bent? Push on the lever to stop the compactor. If needed, bend the lever back into position.
Is there debris in the drawer area? This will cause the door to disengage from the drawer monitor switch causing the compactor to keep running. This can also prevent the compactor from starting.

The compactor keeps running

The drawer is hitting the cabinet

■ Is there 18 " (3.2mm) clearance on either side? The cabinet opening should be 1514 " (38.7cm) minimum.
■ Has the compactor been installed more towards one side of the cabinet? Center the compactor in the cabinet.

The compactor is moving during operation.

■ Are the retaining brackets installed to the cabinet? See "Countertop Mounting" or "Cabinet-front Mounting".

The drawer is wobbly

■ Is the latch locked? An unlatched door will be quite wobbly. By design, the front door will wobble slightly.

The compactor is noisy

■ The noise could be normal operation: The compactor is driven by a steel chain and steel sprockets.
Is the fan on? The fan will make a humming noise when on. Set the Air Filter switch to OFF to turn the fan off.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check

“Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

In the U.S.A.

If the problem is not due to one of the items listed in the "Troubleshooting" section...

Call the dealer from whom your appliance was purchased, or call Jenn-Air at 1-800-JENNAIR (1-800-536-6247) to locate an authorized service company. When calling, please know the purchase date and the complete model and serial number of your appliance. Be sure to retain proof of purchase to verify warranty status.

If the dealer or service company cannot resolve your problem, write to:

Jenn-Air® Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Web address: www.jennair.com

Or call: 1-800-JENNAIR (1-800-536-6247).

U.S. customers using TTY for deaf, hearing impaired or speech impaired, call: 1-800-688-2080 (Monday - Friday, 8:00 a.m. - 8:00 p.m. Eastern Time).

NOTE: When writing or calling about a service problem, please include the following information:

1. Your name, address and daytime telephone number.
2. Appliance model number and serial number.
3. Name and address of your dealer or servicer.
4. A clear description of the problem you are having.
5. Proof of purchase (sales receipt).

User's guides, service manuals and parts information are available from Jenn-Air Brand Home Appliances, Customer eXperience Center.

In Canada

If the problem is not due to one of the items listed in the "Troubleshooting" section...

Call the dealer from whom your appliance was purchased, or call Jenn-Air at 1-800-JENNAIR (1-800-536-6247) to locate an authorized service company. When calling, please know the purchase date and the complete model and serial number of your appliance. Be sure to retain proof of purchase to verify warranty status.

If the dealer or service company cannot resolve your problem, write to:

Jenn-Air® Appliances

Customer eXperience Center

200-6750 Century Ave.

Mississauga, ON L5N 3A7

Web address: www.jennair.ca

Or call: 1-800-JENNAIR (1-800-536-6247).

NOTE: When writing or calling about a service problem, please include the following information:

1. Your name, address and daytime telephone number.
2. Appliance model number and serial number.
3. Name and address of your dealer or servicer.
4. A clear description of the problem you are having.
5. Proof of purchase (sales receipt).

User's guides, service manuals and parts information are available from Jenn-Air Brand Home Appliances, Customer eXperience Centre.

Accessories

To order a color custom panel and handle, contact your local authorized dealer.

In the U.S.A. visit our webpage www.jennair.com/accessories or call 1-800-JENNAIR (1-800-536-6247).

In Canada, visit our webpage www.whirlpoolparts.ca or call: 1-800-807-6777.

Replacement Bags - Call for Part Number.

Charcoal Air Filter - Part Number 4151750

Deoderizer puck - Part Number W10540355

Color Custom Panel and Handle:

Panel Kits:

Part Number W10267290 (White panel)

Part Number W10267300 (Black floating glass panel)

Handles:

Part Number W10540356 (Stainless Steel handle)

Part Number: W10222161 (White handle)

Part Number: W10222162 (Black handle)

JENN-AIR® MAJOR APPLIANCE WARRANTY

Applies to products purchased prior to April 1, 2015

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
3. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products including but not limited to consumables or cleaning products not approved by Jenn-Air.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Jenn-Air within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Jenn-Air servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
11. Replacement parts or repair labor for major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance.
12. Removal or replacement of trim, decorative panels, flooring, cabinetry, islands, countertops, drywall or other built-in fixtures that interfere with servicing, removal or replacement of the product.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

If outside the 50 United States and Canada, contact your authorized Jenn-Air dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” you may find additional help by checking the “Assistance or Service” section or by calling us at 1-800-JENNAIR (1-800-536-6247). 2/13

JENN-AIR®

MAJOR APPLIANCE LIMITED WARRANTY

Applies to products purchased on or after April 1, 2015

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https://jennair.custhelp.com.
2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Jenn-Air Customer eXperience Center

1-800-JENNAIR (1-800-536-6247)

https://jennair.custhelp.com

If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies.

TWO YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For two years from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Jenn-Air parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Jenn-Air.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Jenn-Air within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Jenn-Air servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO TWO YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

NOTES

SÉCURITÉ DU COMPACTEUR

Simple line drawing of a rectangular frame with a curved cable and two connected components (no text or symbols)

Illustration of two hand positions lifting a wooden frame, showing mechanical components and movement (no text or symbols)

Technical diagram showing hands assembling a mechanical part with labeled points A, B, and C

Diagram showing a mechanical or structural component with labeled points A, B, and C, and directional arrows indicating motion or force.

Technical diagram showing labeled components A, B, C, and D with intersecting lines and a central mechanical component.

Technical diagram of a mechanical device with labeled components A, B, C, D and internal structure

Two identical diagrams of a container with embedded blocks and vertical rods, no text or symbols present.

Line drawing of a car inside a vehicle (no text or symbols)

Chargement

Line drawings showing a hand interacting with a wall-mounted device and a foot adjusting the panel (no text or symbols)

Diagram of a vehicle inside a vehicle cabin, showing internal components and structural lines (no text or labels)

1. Fermer le tiroir.

Diagram of a foot and ankle joint with a curved mechanical component, showing motion direction (no text or symbols)

Line drawing of hands performing a manual task on a bag (no text or symbols present)

Line drawing of a person pressing down on a wooden table (no text or symbols)

Line drawing of a person's legs and feet resting on a wooden plank (no text or symbols)

Hand inserting a card into a tab (no text or symbols visible)

Hand inserting a textured object into a rectangular panel (no text or symbols visible)

Illustration of hands holding a rectangular object with a handle, no text or symbols present

Diagram of a hand opening a mechanical device with an arrow indicating left motion (no text or symbols present)

Illustration of a hand using a tool to clean or brush a surface, no text or symbols present

Line drawing of a hand cleaning a wall-mounted shelf (no text or symbols)

ASSISTANCE OU SERVICE

Adresse Internet : www.jennair.ca

http://www.jennair.ca

1-800-JENNAIR (1-800-536-6247)
