Product type	Terrestrial observation spotting scope
Brand	Praktica
Model	Highlander 1545x60
Magnification	15x to 45x (zoom)
Objective lens diameter	60 mm
Focusing	Dual focusing (coarse and fine)
Eyecup	Rotating, adjustable for use with or without glasses
Sunshade	Sliding, with integrated observation guide
Waterproofing	Yes, O-ring seal and nitrogen purging to prevent fogging
Warranty	25-year international (5 years labor included)
Maintenance	Microfiber cloth provided; regular lens cleaning
Included accessories	Lens caps, microfiber cloth
Usage	On a sturdy tripod (not included)

Frequently Asked Questions - Highlander 1545x60 Praktica

How to adjust the eyecup for use with or without glasses?

Turn the rotating eyecup: counterclockwise until it stops if you use the instrument without glasses, and clockwise if you wear glasses.

How to change the magnification?

Turn the zoom ring on the eyepiece to increase or decrease magnification. Low magnifications provide a brighter image, high magnifications allow you to see finer details.

How to focus?

Use the dual focusing system: first turn the coarse focus knob to get a sharp image, then refine with the fine focus knob.

Can I use the spotting scope if I wear glasses?

Yes, adjust the eyecup by turning it clockwise until it stops. You can then observe comfortably with your glasses.

Is the spotting scope waterproof and fog-proof?

Yes, it is equipped with an O-ring seal ensuring waterproofing and filled with dry nitrogen to prevent internal fogging.

How to clean the lenses?

Use a soft lens brush to remove dust, then the supplied microfiber cloth in circular motions. For deep cleaning, use isopropyl alcohol applied to the cloth (never directly on the lens).

How to store the spotting scope when not in use?

Replace all lens caps and store it in a dry, ventilated place. For long-term storage, place it in an airtight plastic bag with a moisture-absorbing packet.

Should I use a tripod?

Yes, it is essential to mount the spotting scope on a sturdy tripod before use to ensure stability and sharp images.

What is the sliding sunshade for?

The sunshade reduces glare and reflections. It also includes an observation guide to easily locate your subject; you can rotate it to change the guide's position.

What is the warranty for this product?

The spotting scope is covered by a 25-year international warranty against defects in materials and workmanship. The first 5 years include labor. Wear parts (caps, eyecups, etc.) are excluded.

USER MANUAL Highlander 1545x60 Praktica

Thank you for purchasing a PRACTICA Highlander spotting scope. Please read the instructions carefully before using the spotting scope to ensure proper use and care. For more information, visit www.pRACTICA.com

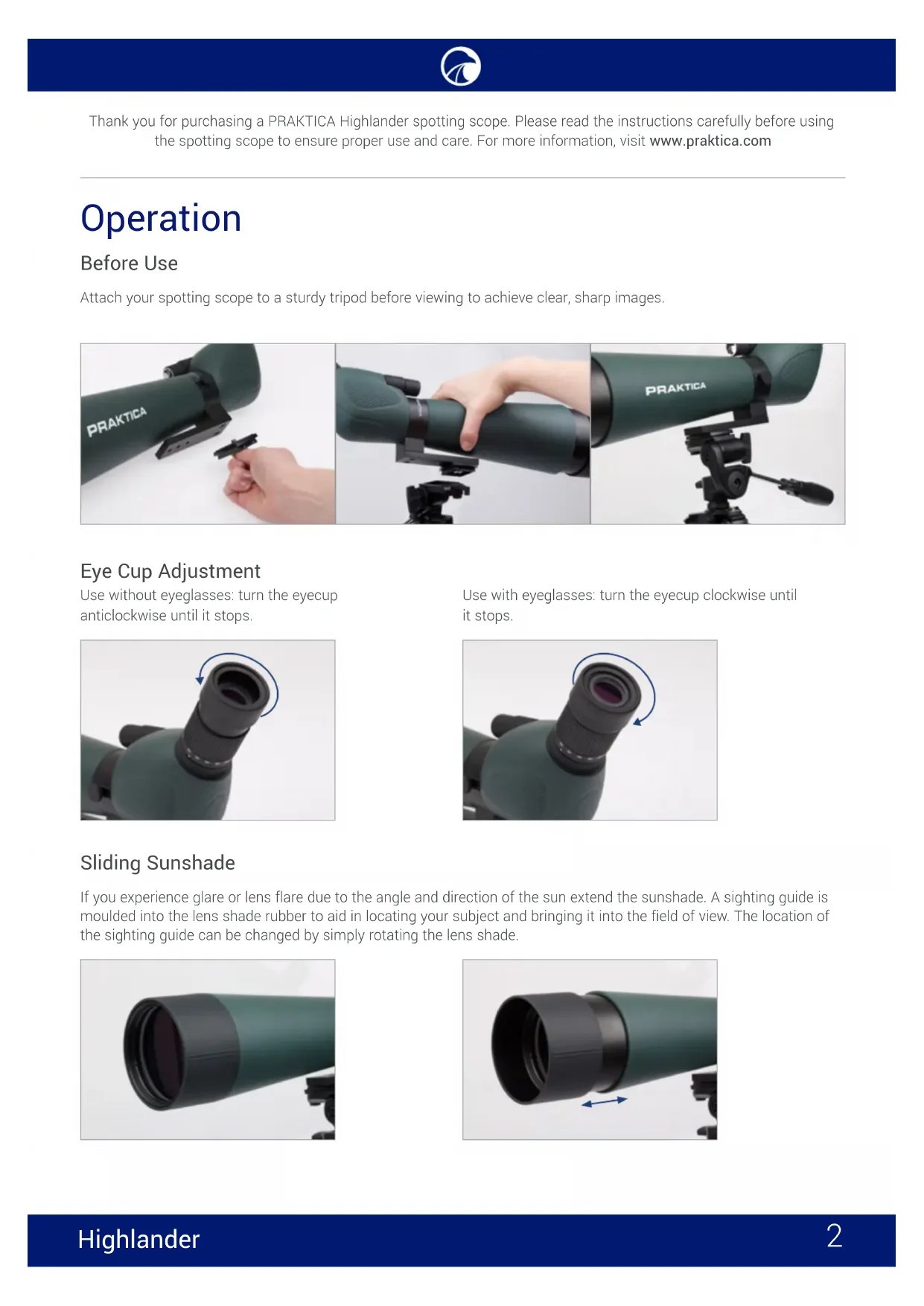

Operation

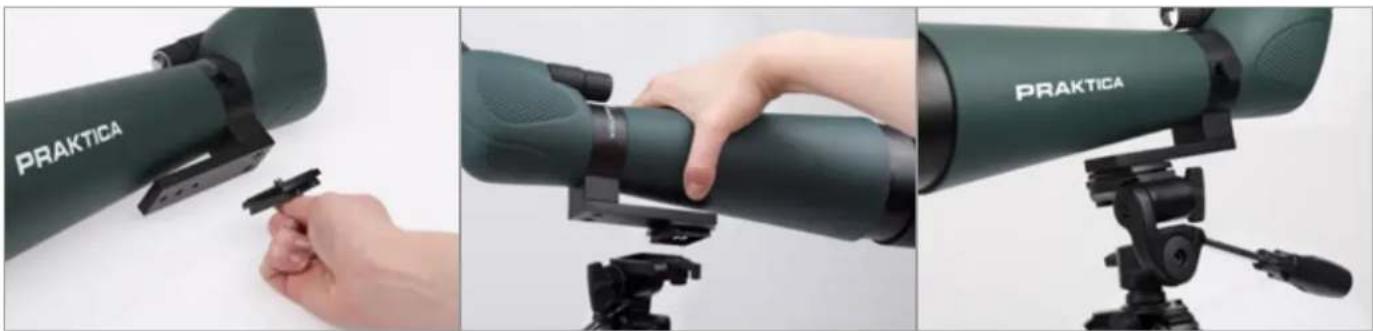

Before Use

Attach your spotting scope to a sturdy tripod before viewing to achieve clear, sharp images.

Eye Cup Adjustment

Use without eyeglasses: turn the eyecup anticlockwise until it stops.

Use with eyeglasses: turn the eyecup clockwise until it stops.

Sliding Sunshade

If you experience glare or lens flare due to the angle and direction of the sun extend the sunshade. A sighting guide is moulded into the lens shade rubber to aid in locating your subject and bringing it into the field of view. The location of the sighting guide can be changed by simply rotating the lens shade.

Changing the Magnification

Increase magnification by turning the adjustment ring to the left (anticlockwise)

Decrease magnification by turning the adjustment ring to the right (clockwise)

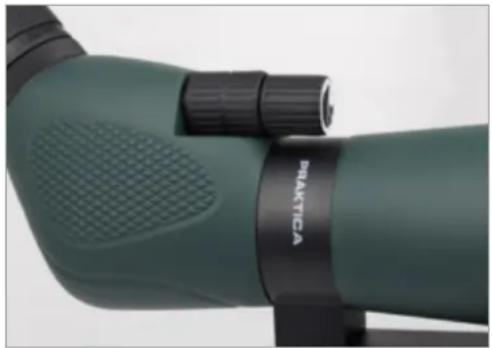

Focusing

The Highlander spotting scope features a dual focus system that includes a main and a fine focus. To focus the spotting scope, slowly rotate the main focus knob until the image in the eyepiece is clear and sharp. For fine adjustment slowly rotate the fine focus knob until the image in the eyepiece is clear and sharp.

Waterproof and Fogproof

The spotting scope is O-ring sealed for complete moisture protection and filled with dry nitrogen gas to prevent the housing from fogging internally.

Maintenance & Care

Cleaning

Remove any dust on the lenses with a soft lens brush. To remove any dirt or finger prints, clean with the supplied micro-fibre cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and will eventually cause permanent damage. The included washable microfiber cleaning cloth is ideal for routine cleaning. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the microfiber cloth. For a more thorough cleaning we recommend the use of a lens/optics cleaning kit available at most photo or optical shops. Additionally photographic lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

Storage

Please protect your spotting scope from jolts and jars and do not force any of the moving parts beyond their limits.

Protect the optics of your spotting scope by applying all lens caps when not in use.

You should also store your spotting scope in a well-ventilated and dark place. A wet spotting scope should be dried before storage.

When storing for an extended period of time, place the spotting scope in a plastic bag or airtight container with a desiccant.

Warranty

PRACTICA grant a worldwide warranty of 25 years from the date of purchase in accordance with the following conditions:

If defects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that products are updated, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.
