USER MANUAL 964 Sanipottie DOMETIC

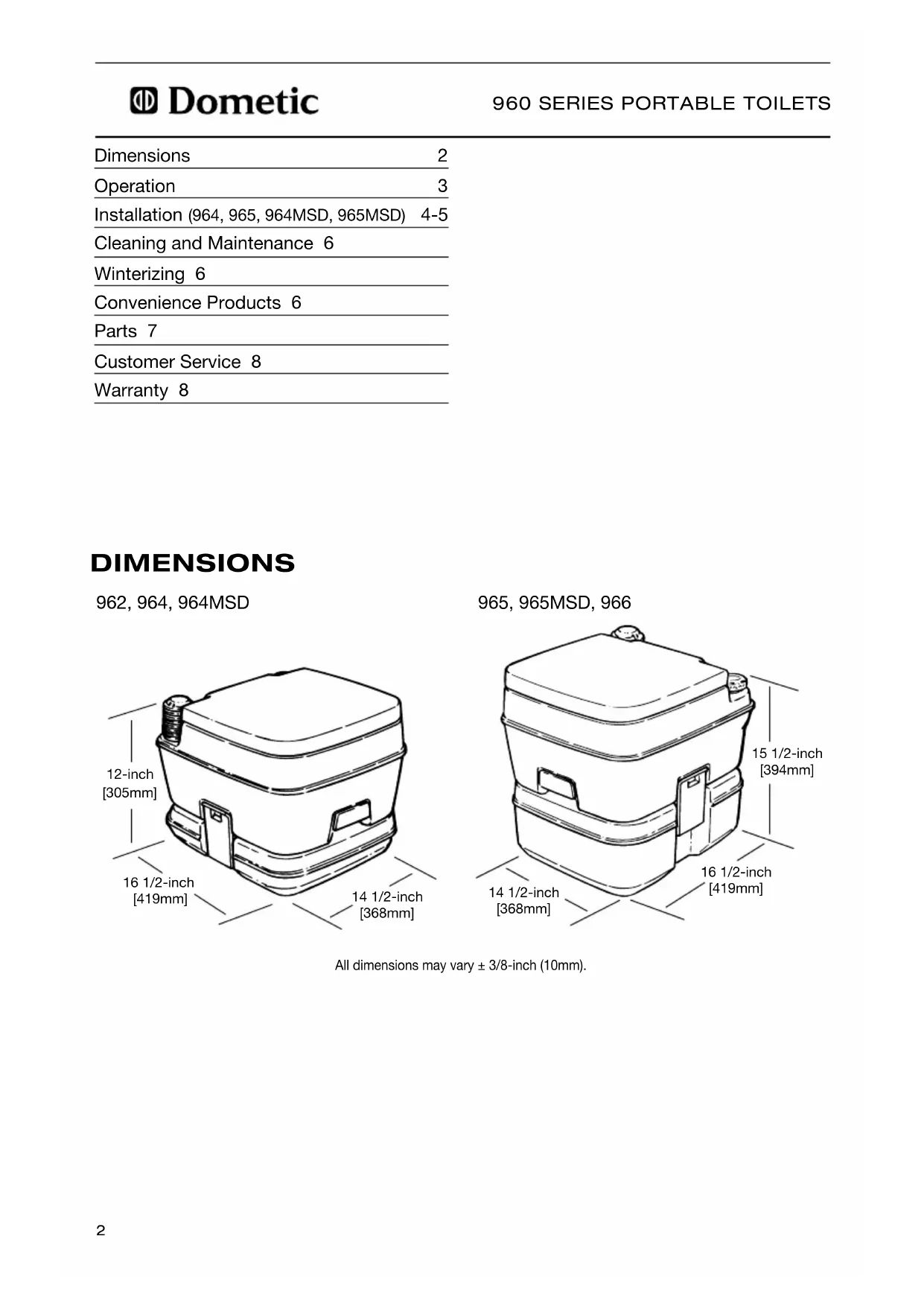

Dimensions 2 Operation 3 Installation

(964, 965, 964MSD, 965MSD) 4-5

Cleaning and Maintenance 6 Winterizing 6 Convenience Products 6 Parts 7 Customer Service 8 Warranty 8 962, 964, 964MSD All dimensions may vary ± 3/8-inch (10mm). 965, 965MSD, 966 DIMENSIONS 14 1/2-inch [368mm] 16 1/2-inch [419mm] 12-inch [305mm] 14 1/2-inch[368mm]16 1/2-inch[419mm]15 1/2-inch[394mm]3 MSD Models: Pull ush handle to open ush valve. Pump out holding tank through boat’s discharge ttings according to boat manufacturer’s instructions. Prepare toilet for use

CAUTION! With seat lid closed, pull flush handle to open slide valve, then push to close. This relieves air pressure that may be created in lower holding tank due to changes in temperature or altitude.

2. Remove water cap and ll upper tank.

3. Pull ush handle to open slide valve.

4. Pour deodorant directly into lower tank,

CAUTION! BEFORE EACH USE, with seat lid closed, pull flush handle to open slide valve, then push to close. This relieves air pressure that may be created in lower holding tank due to changes in temperature or altitude. Empty holding tank CAUTION! MAKE SURE slide valve handle is all the way in.

1. Unlatch upper unit by disengaging side

latches and lift from holding tank.

2. Carry holding tank to permanent toilet

pump to add water to bowl before use.)

3. Pull ush handle to release waste into lower

4. Press bellows pump one or more times to

rinse bowl. Push ush handle to close valve.

3. Remove cap and empty contents into

4. Rinse tank thoroughly, replace cap and

reassemble unit and prepare for use.

Dometic marine toilet systems must be installed according to Dometic’s recommended procedures. Equipment damage, injury to personnel or death could result from improper installation. DOMETIC CORPORATION

FROM IMPROPER INSTALLATION, SERVICE OR

OPERATION OF THIS PRODUCT. WARNING! HAZARD OF FLOODING – If the toilet system is connected to ANY through-the-hull ttings, properly installed seacocks MUST be installed in all piping connected to through-the- hull ttings. Seacocks MUST be easily accessible to all users of the toilet system or secondary valves fitted in hoses where they are easily accessible. ALWAYS close seacocks when toilet system is not in use (even if boat is unattended for a brief period. All valves MUST be full bore valves and marine quality. Screw-to-close gate valves are not recommended. Failure to comply can result in ooding which can cause loss of property and life. WARNING! HAZARD OF FLOODING – If toilet is connected to ANY through-the-hull ttings, ALL exible hoses must be of marine sanitation quality and must be secured to ANY ttings (such as those at seacock, vented loop or toilet) with two stainless steel, worm-drive hose band clamps at each connection. Connections MUST be checked frequently for integrity. Failure to comply can result in flooding which can cause loss of property and life. WARNING! HAZARD OF FLOODING – If toilet rim is below the waterline at ANY time (during any conditions of heel, load or trim) and is connected to ANY through-the-hull fittings, properly positioned ventilated (vented) loops MUST be installed in discharge piping to prevent potential back siphonage of seawater into the boat. Failure to do so can result in ooding which can cause loss of property and life. INSTALLATION Models 964, 965 Models 964MSD, 965MSD WARNINGS BE SURE TO READ INSTRUCTIONS COMPLETELY BEFORE INSTALLING PORTABLE TOILET.

1. Position portable toilet in desired location.

Make sure of adequate clearance for lid and seat in “up” position and clearance at the sides to unlatch and remove top tank.

2. Open side clasps by pulling outward at top

3. Place hold-down brackets, with mounting

holes facing away from toilet, under the tank and align with grooves. See Figure 1.

4. Use pencil or awl to mark location of hold-

down bracket mounting holes.

deck with screws provided.

7. Set portable toilet between brackets and

latch in place with side clasps. MOUNTING BRACKETS Figure 15 All boats with xed toilets in U.S. waters and in the waters of some other countries are required to have an operable, permanently installed marine sanitation device (MSD). Series 960 MSD models, when permanently installed in a boat, are holding tank or Type III systems as dened by the U.S. Coast Guard. Type III systems permit operation of the toilet without direct discharge of untreated waste after every ush. Type III systems can be discharged at marina dockside pump-out stations or, if in coastal waters, a minimum of three miles offshore. Overboard discharge capability must remain secured while within the three-mile limit. If an overboard discharge pump is activated by a keyed switch in the toilet compartment, the key must be removed at all times except when discharge pump is operating and in the process of vessel operation. Sewage from any source should not be discharged directly into boating waters. If you are interested in learning more about this issue, please visit our website at www.Dometic.com. This symbol appears on the discharge fitting of MSD models. Models 964MSD, 965MSD Models 964MSD, 965MSD WARNINGS

MARINE SANITATION REGULATIONS

INSTALLATION Portable toilets are legally acceptable for use in vessels not having permanently installed toilets, as determined by the United States Coast Guard. However. some states and the Canadian province of Ontario require a permanently installed portable toilet, such as the 964MSD and 965MSD. Installation Possibilities 1-1/2” Deck Waste Fitting 2” Hose Clamp 3/4” Hose Clamp 3/4” Hose Clamp 5/8” Vent Fitting (included) 5/8” Vent Hose 5/8” Thru-hull Vent Fitting (installed above water line) SeaLand OdorSafe Plus Sanitation Hose 1-1/2” Swivel Nut (included) 1-1/2” Gasket (included) 1-1/2” Hose Adapter (included) 964MSD/965MSD Rear View Remove Cap From Bottom Tank Vent Adapter Fresh Water Tank Holding Tank Remove 1-1/2” Cap & Plug From Bottom Tank Waste Discharge Adapter 964MSD/965MSD Dockside Pumpout Direct Overboard Discharge To Remote Holding Tank Dockside Pumpout6

960 SERIES PORTABLE TOILETS

Cleaning For most effective cleaning, use SeaLand

Toilet Bowl Cleaner. It’s intended for use with all Dometic toilets. If you cannot nd it in your area, contact Dometic for your nearest dealer. If it is not available, you can also use most non-abrasive bathroom and toilet bowl cleaners (Bar Keeper's Friend

spray cleaner, Clorox

toilet bowl cleaner, etc.). Follow label instructions. Maintenance If ush handle becomes difcult to pull, lubricate slide valve seals with silicone spray. Use When using the Dometic portable toilet in cold or winter weather, the addition of nontoxic antifreeze designated for potable water systems provides safe winter protection. Use amounts specied on container that are safe for use with 4 gallons (15 l) of water. NOTE: Never use alcohol-based or automotive-type antifreeze in freshwater systems. Storage To store Dometic portable toilet during the winter:

1. Empty freshwater tank and holding tank.

2. Make sure all water is cleared from freshwater tank’s water lines by pressurizing tank and

pushing ush button until no water enters bowl. A small amount of water may remain in bottom of freshwater tank but will be harmless during winter storage.) SeaLand

brand products are specially developed to work best in Dometic portable toilets. There are no better holding tank deodorizers and rapid-dissolving tissues available. To deodorize holding tank, follow instructions on package. Toilet System Deodorant Charge Charging Procedure Liquid Granulated or Toss-in Packet Portable toilet See directions

deodorant container One 2 oz. (57 g) packet with 1 pint (.47 l) of water Add directly to waste holding tank WINTERIZING CONVENIENCE PRODUCTS

Seat lid and seat – parchment Seat lid and seat – platinum

Dometic Corporation warrants, to the original purchaser only, that this Dometic portable toilet, if used for personal, family or household-like purposes, and if installed according to Dometic’s recommended procedures, is free from defects in material and workmanship for a period of one (1) year from the date of purchase. If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase. Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are to be borne by the purchaser-user. EXCLUSIONS IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE, ALTERATION, FOREIGN OBJECTS DEPOSITED IN THE TOILET, OR USE OF UNAUTHORIZED COMPONENTS. THIS INCLUDES FAILURES WHICH MAY RESULT FROM NOT FOLLOWING THE WINTERIZATION OR CLEANING PROCEDURES AS DESCRIBED IN THIS MANUAL. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF ONE (1) YEAR FROM DATE OF PURCHASE. IMPLIED WARRANTIES No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein. Implied warranties, including those of merchantability and tness for a particular purpose, are limited to one (1) year from the date of purchase for products used for personal, family or household-like purposes, and ninety (90) days from the date of purchase for products placed in commercial or business use. OTHER RIGHTS Some states do not allow limitations on the duration of an implied warranty, and some states do not allow exclusions or limitations regarding incidental or consequential damages; so, the above limitations may not apply to you. This warranty gives you specic legal rights, and you may have other rights which vary from state to state. To obtain warranty service, rst contact your local dealer from whom you purchased this product.
