USER MANUAL RTHD421S Royal Sovereign

Thank you for choosing Royal Sovereign Touchless Automatic Hand Dryer. Please read and retain these instructions. This manual will provide you with valuable information necessary for the proper instructions, care and maintenance of your hand dryer. Installation should be done by a qualified electrician. Improper installation, alteration, service and use of this hand dryer can result in serious personal injury or damage to the unit.

If you have questions regarding the installation, use or operation of the hand dryer, please call Royal Sovereign customer service.

Because our products are subject to continuous improvement, Royal Sovereign reserves the right to modify product design and specifications without notice and without incurring any obligation. E&OE

CONTENTS

IMPORTANT SAFETY INFORMATION 4

DESCRIPTION 5

GENERAL USAGE 6

MOUNTING THE UNIT 6

HEATING CONTROL 7

HAND DRYER ON / OFF 7

IMPORTANT SAFETY INFORMATION

Please read this manual thoroughly prior to installation. To reduce the risk of fire, electric shock, or personal injury.

PLEASE NOTE THE FOLLOWING PRECAUTIONS:

1. Do not allow the hand dryer to be used for any purpose other than drying hands. Use this unit only in the manner intended.
2. If service is required, turn the power OFF.
3. Any metallic items in contact with the hand dryer must be grounded.
4. The hand dryer is designed for indoor use only.
5. If the electrical outlet you intend to use is not adequately grounded, you should have a qualified electrician install the proper outlet.
6. Do not use this unit with any extension cords or adapter plugs.
7. If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department.
8. Do not plug this cord into a loose electrical outlet.
9. Do not block air outlets or intake with obstacles.
10. Do not insert any objects into the hand dryer.
11. To clean the housing, use a soft cloth. Do not use any abrasive cleaning material as it may scratch the unit. Do not spray any cleaning liquids or water direction the hand dryer.

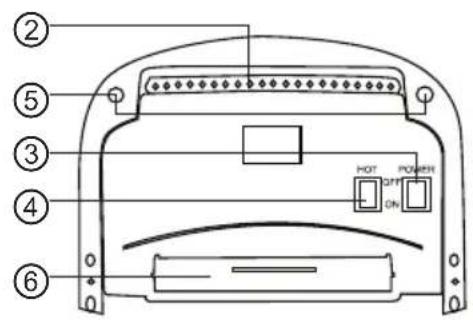

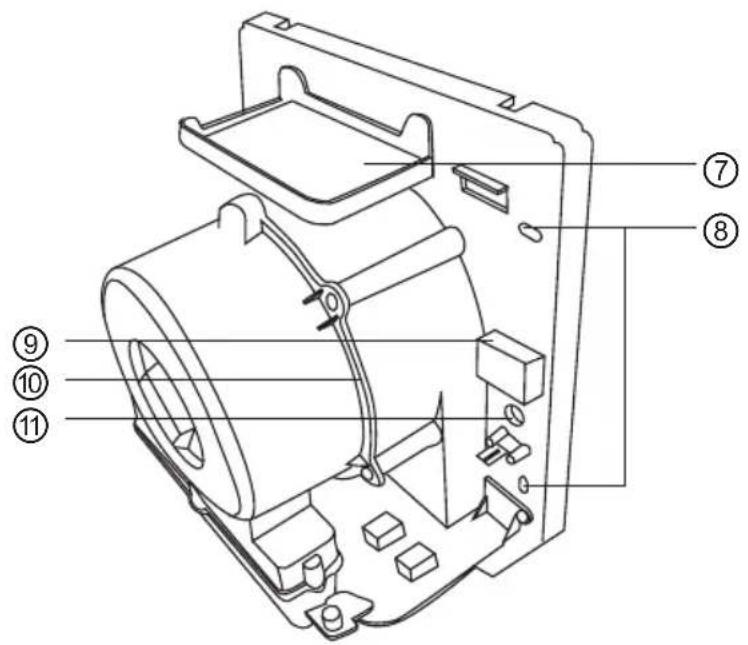

DESCRIPTION

1. Hand Dryer Cover
2. Air Nozzel Outlet
3. Power ON/OFF
4. Heat ON / OFF
5. Cover screws
   6.Filter
6. Circuit board
7. Drill Holes
8. Power cord socket
   10.Motor
9. Power supply hole

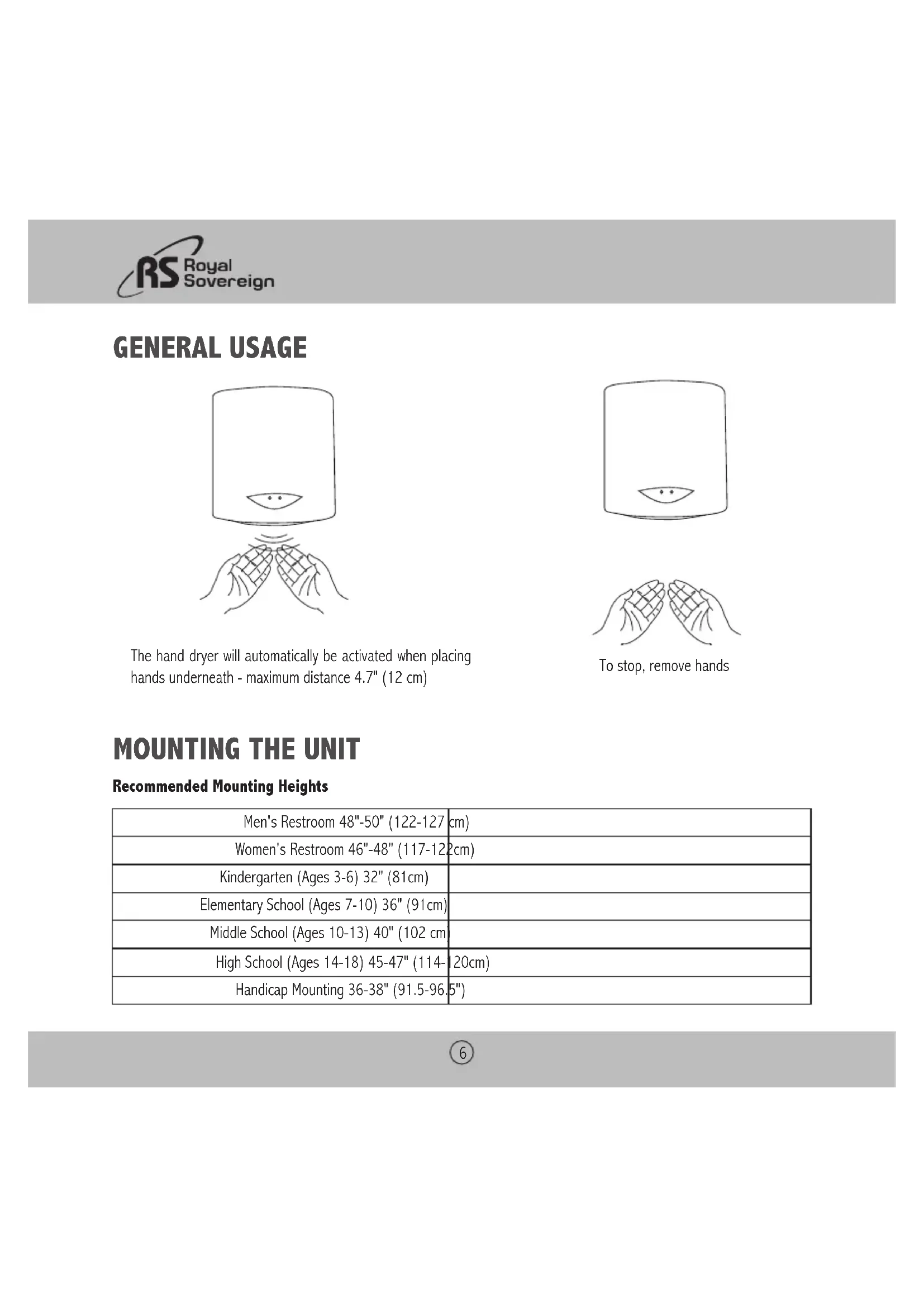

GENERAL USAGE

The hand dryer will automatically be activated when placing hands underneath - maximum distance 4.7'' (12 cm)

To stop, remove hands

MOUNTING THE UNIT

Recommended Mounting Heights

Men's Restroom 48"-50" (122-127 cm)
Women's Restroom 46"-48" (117-122 cm)
Kindergarten (Ages 3-6) 32" (81cm)
Elementary School (Ages 7-10) 36" (91cm)
Middle School (Ages 10-13) 40" (102 cm)
High School (Ages 14-18) 45-47" (114-	20cm)
Handicap Mounting 36-38" (91.5-96.5")

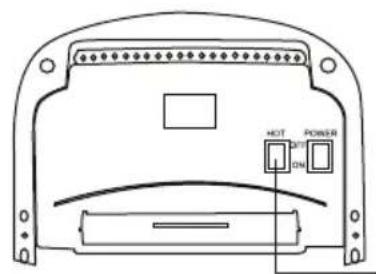

HEATING CONTROL

Heat switch

The hand dryer provides two different heat options to allow you to set the comfort setting.

Set to "ON" for warm dry of the hand.

Set to "OFF" for cool dry of the hands.

Note: The Heating Control is set to "ON" or Warm Dry mode.

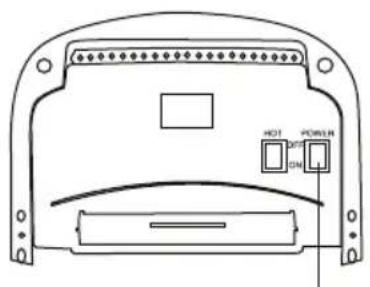

HAND DRYER ON / OFF

Power switch

The hand dryer has a ON/OFF setting to allow you to turn ON/OFF the hand dryer. The Hand Dryer should be set to "OFF" position during installation.

Note: The Hand Dryer is set to "ON". The unit will work "out of the box" once the power cable connection is connected.

The Royal Sovereign hand dryer provides maximum flexibility when installing the hand dryer. The hand dryer is plug and play ready. Simply connect 2 wires to the terminal slots - Positive (L) and Negative (N). A hard-wire option is also available, for those who do not want to use the supplied power supply. Simply use your own power cable (14 AWG or better)

INSTALLATION INSTRUCTION - STEP 1

Plug And play Ready Operation

To prepare the hand dryer for 'plug and play' ready operation, proceed as follows:

1. Remove the hand dryer cover.
2. Run the supplied power cable though the back power supply hole.
3. Attach the negative cable to the negative terminal (labeled N).
4. Attach the positive cable to the positive ground terminal (labeled L).
5. Proceed to the second step of installation.

Hard Wire Operation

You have the option of utilizing the supplied power cord, or by utilizing you own wires. To utilize the supplied power cord, proceed as per the instructions 'Plug and Play Ready Operation'. To utilize your own wires.

1. Feed wires though the power supply hole (14 AWG or better); tighten clamp down on wire.
2. Connect the wires to the slots on the terminal marked N and L

INSTALLATION INSTRUCTION - STEP 2

There are two different installation options for the hand dryer.

Option 1 - Semi- Permanent Installation - Option 1 is using the supplied mounting bracket. Simply attach the bracket to the wall for quick and easy installation (see below).

Option 2 - Permanent Installation (recommended) - Option 2 is using mounting screws to securely attach the hand dryer to the wall. Proceed as per below for for Permanent installation (see below).

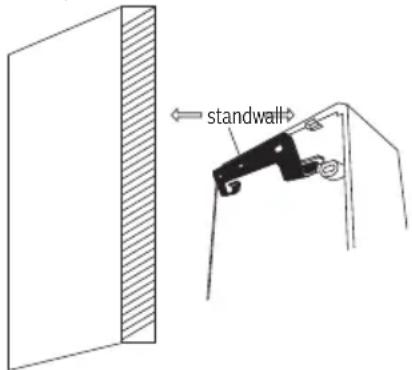

Semi- Permanent Installation (Using Mounting Bracket)

1. During installation, ensure the Power button is turned 'OFF' - Refer to Description of the manual.
2. Use the supplied Mounting bracket and mount the hand dryer at the ideal location (refer to Mounting the Unit - Recommended Mounting Heights) for placement.
3. Run the power cable to the electrical outlet. Ensure that the power cable is not exposed.
4. On the hand dryer turn the Power button 'ON'. Set the Heat Control button to the desired heat setting.

Permanent installation

1. Select the ideal mounting location for the hand dryer. Refer refer to Mounting the Unit - Recommended Mounting Heights - for placement

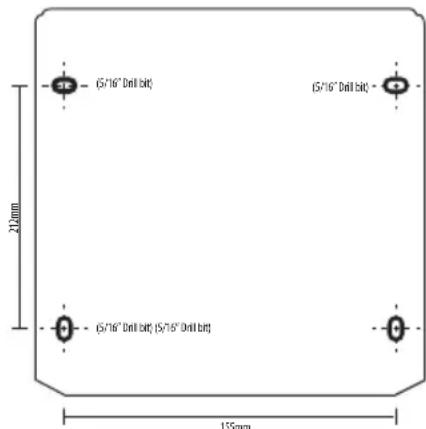

2. Use the supplied drill hole template sheet and proceed to mark and drill the holes as indicated.
3. If not done already, remove the hand dryer cover from the base, and follow Step 1 for connection of the wires (Positive/Negative).
4. During installation, ensure the Power button is turned 'OFF' - refer to HAND DRYER ON/OFF section. Use wall screws and mount the Hand dryer
5. For Plug and Play Operation, plug into the electrical outlet, ensuring the power supply cable is not exposed. For Hard Wired Installation, ensure that the unit has the required power and is connected properly.
6. Test the setting selected by placing your hand underneath the hand dryer.
7. Place the cover back on the Hand Dryer unit and tighten the screws.

MAINTENANCE

This hand dryer is equipped with an air filter to help prevent dust and debris from possibly damaging the motor and heating element. It is recommended that the filter be replaced or cleaned periodically to maintain ideal operation. For high volume usage it is recommended that you clean or replace the filter every six months. For lower volume usage, it is recommended that you clean or replace the filter once a year.

TROUBLESHOOTING

Hand Dryer is not warm	·The Heat option is turn OFF. Set to the ON position. ·Possible defective heat element. Needs to be replaced. Call Royal Sovereign customer service.
Hand Dryer does not start	·No Power to the Unit. Set to the ON position ·Defective Sensor - Replace the IR Sensor. Call Royal Sovereign customer service. ·Defective Motor - Replace the motor. Call Royal Sovereign customer service
Hand Dryer will not shut off	·The sensor is dirty or there is a reflection. Clean the IR Sensor. Ensure that there is no possible reflection from another object

SPECIFICATIONS

Model RTHD-421S
Voltage/Frequency 120V, 60HZ
IP Rating IP22
Motor Rate /Type BRUSHED
Power Switch ON/OFF
Heat Setting ON /OFF
Dimensions (w x d x h) 10" x 6.5"x	11.2" (25.4 x 16.5 x 28.4)
Weight 7 lbs (3.2 kg)

NEED HELP WITH INSTALLATION?

Royal Sovereign can help arrange professional certified installation of your hand dryer.

For more information:

USA:800-397-1025

Canada:866-961-6673

LIMITED EIGHTEEN MONTH WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for eighteen month from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

www.royalsovereign.com

RS CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF #: [phone]

FAX: [phone]

www.royalsovereign.ca
