Allure - Aroma diffuser Argoclima - Free user manual and instructions

Product type	Aroma diffuser
Brand	Argoclima
Model	Allure
Tank capacity	165 ml
Recommended area	30 m²
Power supply	AC adapter: input AC 100-240V, 50/60Hz; output DC 24V, 500mA
Dimensions	13.6 x 17 cm (diameter x height)
Control	Push button ON/OFF with 4 modes
Operating modes	Press 1: diffusion + light; press 2: fixed light; press 3: diffusion only; press 4: off
Auto shut-off	Yes, when water level is insufficient
Ceramic disc lifespan	Approximately 3000 hours
Diffusion type	Ultrasonic (by ceramic disc)
Recommended water	Mineral water (bottled or tap)
Essential oil quantity	3 to 6 drops per refill
Operating temperature	10 to 30 °C
Tank maintenance	Clean with a soft cloth and water, possibly diluted vinegar; do not use corrosive detergents
Cleaning the ceramic disc	With a cotton swab by gently rubbing, without scratching
Cleaning frequency	1 to 2 times per week
Safety	Do not inhale directly, do not cover while operating, unplug before cleaning, use by children 8+ under supervision
Body material	Not specified

Frequently Asked Questions - Allure Argoclima

How to fill the Allure Argoclima diffuser?

Place the diffuser on a flat surface, remove the covers, pour mineral water (or tap water) up to the 165 ml mark without exceeding, add 3 to 6 drops of essential oil soluble in water, replace the covers and plug in the adapter.

What water to use in the diffuser?

It is recommended to use mineral water (bottled or tap). Do not use distilled or demineralized water.

How to change the ambient light color?

Press the button once to turn on diffusion and light. A second press fixes the color of your choice. A third press turns off the light while maintaining diffusion.

What to do if the diffuser shuts off automatically?

This means the water level is too low. Unplug the device, empty the tank (avoiding the air outlet), then fill it with water to the mark and plug back in.

How to clean the diffuser?

Unplug the device, remove the covers and empty the water through the spout (never through the air outlet). Clean the inside with a soft cloth and a little water, or diluted white vinegar. Gently rub the ceramic disc with a cotton swab without scratching.

Can you use pure essential oils without water?

No, it is strictly forbidden to use pure essential oils or room fragrance without water. Always pour water first.

What is the maximum water volume?

The maximum volume is 165 ml. Do not exceed the indicated mark in the tank.

How long does the ceramic disc last?

The lifespan of the ceramic disc is approximately 3000 hours of use.

Can the device be used by children?

Yes, from 8 years under adult supervision and after receiving safety instructions. Children must not play with the device or perform cleaning without supervision.

What to do if water gets inside the device?

Unplug the diffuser immediately and let it air dry for at least 3 days before reusing.

USER MANUAL Allure Argoclima

Read the instructions carefully and keep in a safe place.

Please carefully read this manual and keep it in a safe place

EN

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Only to be used as an ambiance diffuser; not to be inhaled.
• Use in an environment between 10^ and 30^ .
• The appliance is only to be used with the power supply unit provided with the appliance.
• For optimal maintenance, use mineral water (bottled or tap water). Do not exceed the maximum water level (165 ml). Always pour the water before adding essential oils or home fragrance.
• Do not use pure essential oils, nor home fragrances without water.
• Continuous use of the diffuser may, in the long term, damage the product and shorten its lifespan.
• Unplug the appliance before any manipulation such as cleaning or refilling operations for example. Empty the tank when the appliance is not in use.
• Do not remove the lid or cover the diffuser when the appliance is in use.
• Change frequently the water in the tank to avoid any dirt building up that may damage the appliance.
• Clean the water tank every week. Do not use chemical products (such as acids, alkaline, etc.) or any corrosive detergents to clean the appliance. Do not immerse.
• In case of water infiltrations into the appliance, unplug the diffuser immediately and leave it to dry for at least 3 days before reusing it.

The producer is not responsible for damages caused by wrong use of device.

PRECAUTIONS FOR USE

A detailed diagram of the components is available on the last page.

1. Place the diffuser on a flat and stable surface and away from the edge.
2. Remove the diffuser's covers.
3. Pour mineral water (bottled or tap water) into the water tank up to the maximum level indicated (165 ml).
4. Then add a few drops of water soluble fragrance (3-6 drops) to the water tank.
5. Replace the covers on the diffuser.
6. Insert the adaptor's connector into the DC jack input at the back side of the diffuser.
7. Plug the adaptor into the outlet.

MAINTENANCE

You are advised to change frequently the water in the tank and clean the diffuser once or twice a week, particularly if you want to change the fragrance to be diffused.

1. Turn the appliance off and unplug it.

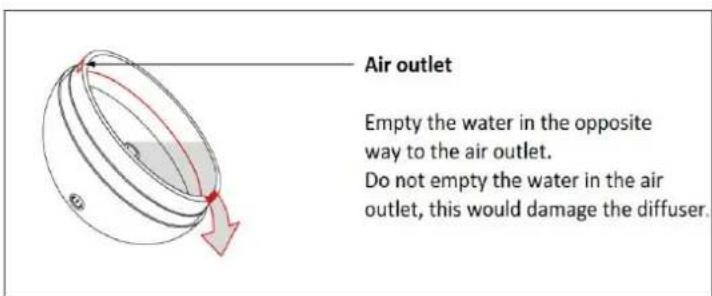

2. Remove the covers and pour the water into the tank. Empty the water using the water spout, located in the opposite direction to the air outlet. Do not empty the water in the air outlet, this would damage the diffuser.
3. Clean the inside of the diffuser with a soft damp cloth and a little water. If needed, use a little white vinegar strongly diluted. Do not use corrosive detergents. Carefully rub the ceramic disc with a cotton bud being careful about not to scratch it.

This diffuser has an ON / OFF button located at the base of the diffuser.

1. Press once to start the diffusion and the lighting ambiance.
2. Press a second time to set the color of the ambiance lighting of your choice; the diffusion is continuing.
3. Press a third time to turn the ambiance lighting off; the diffusion is continuing.
4. Press a fourth time to switch completely the diffuser off.

When the water level in the tank is too low or at zero, the diffuser stops automatically. In that case, top the water up by following the « Precautions for use » steps to go back to a normal working.

FEATURES

• Input power supply: AC 100-240V, 50/60Hz
  Output power supply: DC24V 500mA
• Ceramic disc lifespan: +/- 3000 hours

Tank capacity : 165 ml
- Dimensions : 0 13,6 x H 17 cm
- Recommended for a surface of : 30m²

INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2012/19/EU

This appliance may not be scrapped with domestic waste at the end of its life cycle. We call your attention to the crucial role played by the consumer in the re-use, recycling and other forms of recovery of such waste.

The appliance must be scrapped by a sorted waste disposal centre or by returning it to the retailer (no charge is levied for this service), when you purchase a new equivalent appliance.

Sorted disposal of electric and electronic equipment prevents the negative effects on the environment and human health resulting from improper scrapping, and also allows the materials from which it is made to be recovered and recycled, with significant savings in terms of energy and resources.

The sorted disposal requirement is indicated by the crossed waste bin label affixed to the appliance.

Improve your life wwwargonlma.com

Empty the water using the water spout, located in the opposite direction to the air outlet. Do not empty the water in the air outlet, this would damage the diffuser.
