Aroma diffuser User manual

INDEX

1. Safety instructions 24
2. Power cord safety tips 25
3. Technical information 25
4. Features and operating instructions 25
   5.Maintenance 26
5. Warranty / Disposal / Technical change 27

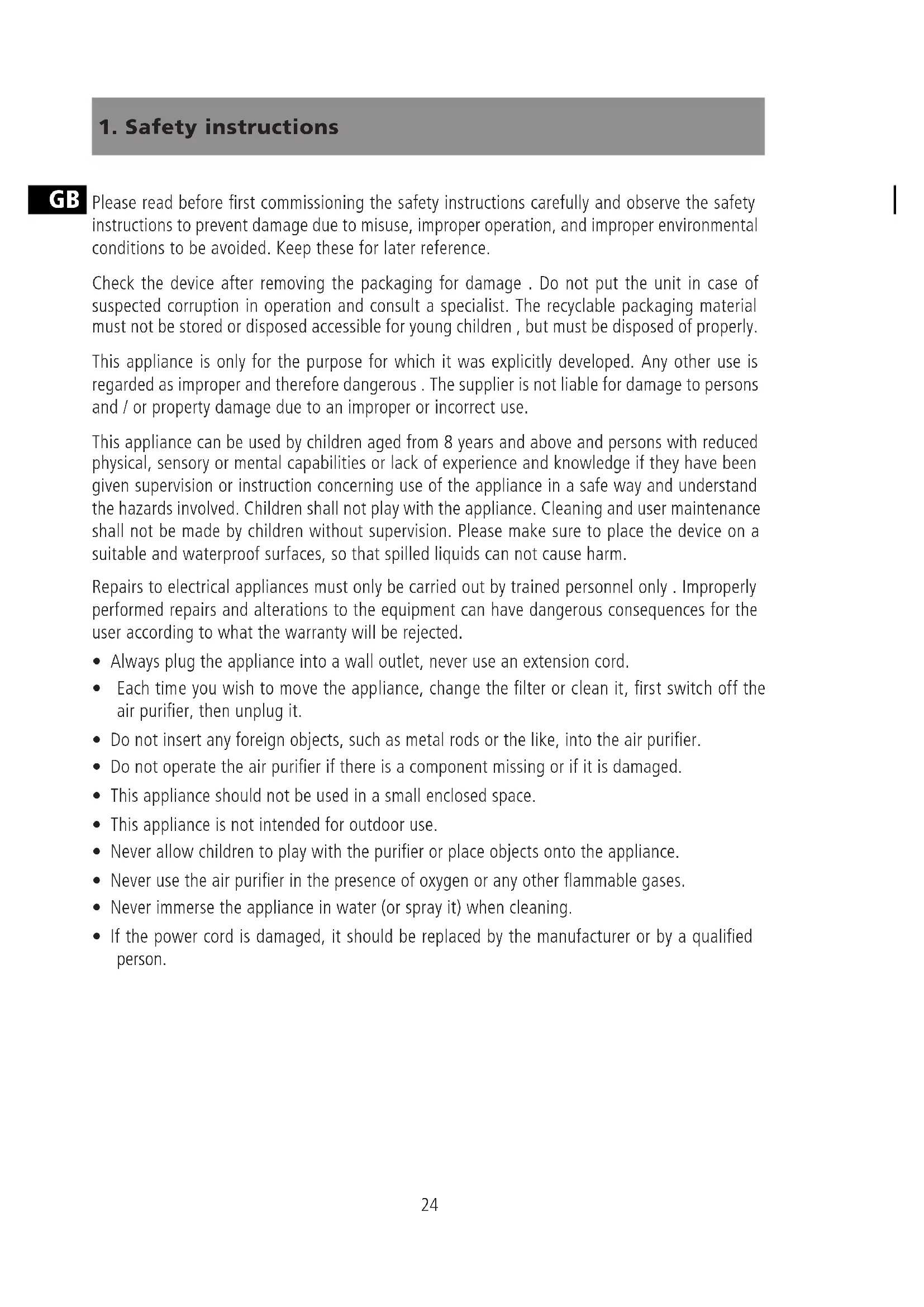

1. Safety instructions

GB

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and/or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• Always plug the appliance into a wall outlet, never use an extension cord.
  Each time you wish to move the appliance, change the filter or clean it, first switch off the air purifier, then unplug it.
• Do not insert any foreign objects, such as metal rods or the like, into the air purifier.
• Do not operate the air purifier if there is a component missing or if it is damaged.
• This appliance should not be used in a small enclosed space.
• This appliance is not intended for outdoor use.
• Never allow children to play with the purifier or place objects onto the appliance.
• Never use the air purifier in the presence of oxygen or any other flammable gases.
• Never immerse the appliance in water (or spray it) when cleaning.
• If the power cord is damaged, it should be replaced by the manufacturer or by a qualified person.

2. Power cord safety tips:

• Never pull or drag on the cord or the appliance.
• To insert the plug, grasp it firmly and put it into outlet.
• To disconnect the appliance, grab the plug and remove it from the outlet.
• Before each use, inspect the power cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced and the power cord replaced. Please return it to our Service Department or to an authorized service representative.
• Never wrap the cord tightly around the appliance, as this could cause the cord to fray and break.
• Do not operate the appliance if the power cord shows any damage, or if the appliance works intermittently or stops working.

GB

3. Technical information

Model: Sofia

Voltage: 5V DC

Rated Power: 6 Watt

Tank Capacity: 1.5 L

Net Weight: 0.86 kg

Dimensions: 220 × 220 × 200 ~mm

Accessories:

Adapter (1 pc)

USB line (1pc)

Operating manual (1 pc)

4. Features and operating instructions

• 2 powers supplies: USB line; AC/DC adapter (the power line with the switch)

• 4 pcs of LED and UV light. If you press the power button to start the appliance, the lamps will blink.

• Fill the water container with clean water up to the minimum line.

• Add the recommended amount of pure essential oil into the water. Only plant essences that are soluble in cold water may be used. If other essences or perfume oils are used, optimal effectiveness cannot be guaranteed and no warranty can be provided in the event of any damage to the appliance.
• Make sure the top is covered, then put the plug into the socket. The appliance starts operating.

5. Maintenance

GB Filling in Water

Make sure the power is off. Take off the upper body, and fill water into the transparent tank. Make sure to fill the water no higher than the «MAX» level and no lower than the «MIN» level marked on the outside of the tank. Then take the upper body and put it in the right place.

Do not let water get into the upper body of the appliance. If there is water on the appliance when taking off the upper body, you must put the upper body vertically or in an inclined position, place it on a dry towel or use a towel to dry the body of the appliance. Do not put the appliance on its back in order to avoid water flowing into the body of the appliance and thus shorten its operating life.

right

wrong

Draining and Cleaning

Please change the water in time when it has not been used for a long time or if it is contaminated. The steps are as below:

• Turn off the power and unplug the appliance.
  Take off the upper body.
• Pour the dirty water from the inside of the tank and clean the tank. If necessary, you may also add some detergent into the water for cleaning purposes.
• Take the upper body and put it in the right place.
• The appliance only needs cleaning every 3 months.

Notice:

• The water-washing system will not work if there is not enough water filled in, so please add water above the "MIN" level before turning on the appliance.
• The appliance should be placed on a level surface. When carrying, please hold the bottom firmly.
• Clean the surface of the body with a cloth.
• Make sure nothing is put above the airflow outlet.
• The appliance has a humidifying function. If your room is already very moist please choose airflow at a low speed or turn off the appliance.
• If the appliance is not used for a long time, empty the water and keep the tank dry.

6. Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.

Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

EN 55022:2010

EN 55024:2010
