USER MANUAL CoolBreeze 5000 SVM SUNTEC

Black outdoor stand with a circular fan and radial blades, no visible text or symbols.

Sicherheitshinweise

Technical diagram of an air fan assembly with numbered parts and a scale indicator

Montage

Montage des Kopfes:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Do not use the appliance for other than its intended use. Other applications may cause fire. For domestic indoor use only.
• Do not use multiple sockets or extension cords.

- Please do not leave the appliance unattended.

- Do not attempt to repair, disassemble or change the appliance by yourself.

- The use of accessory not recommended by the manufacturer, e.g. time switches, may cause harm.

- Remove the appliance from the wall socket when it is not in use, before cleaning and in case of malfunctions. Pull on the power plug, not on the power cord.

- Never use the appliance with wet hands.

- Do not insert any objects into the appliance as this may cause electric shocks, fire or damages to the appliance.

- Never immerse the appliance, it's cord and plug into water or other liquids.

- To avoid overheating, the power cord should be pulled out completely.

- The power cord must be laid in such a way that nobody can trip over it.

- The fan must not be placed near heat sources or combustible materials (curtains, upholstered furniture, etc.).

- The front and rear part of the cover grille must be firmly put together.

- Please make sure that the ventilation parts are not blocked and free from dust or foreign objects.

Note

For ecological reasons, we use the non-visible area of the stand as a stand exclusively heavy weight recycled material.

To safeguard the environmental idea, we do not also for environmental reasons, a thorough cleaning of this weight because it is not visible during operation.

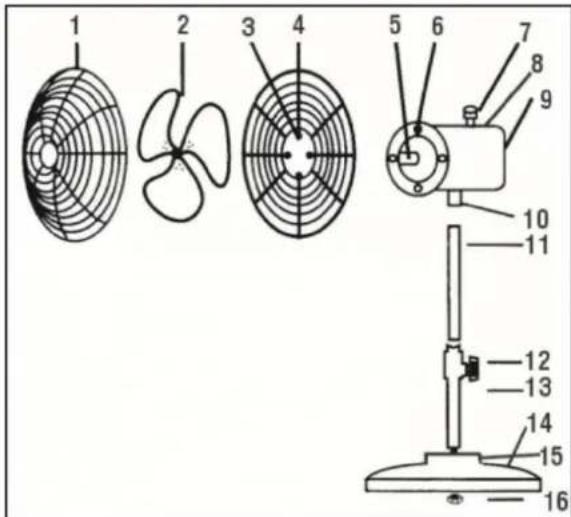

Components

1	Cover grid, front
2	Wings
3	Cover grid, rear
4	Screw hole
5	Motor shaft
6	Screw hole
7	Oscillation knob
8	Adjustment knob
9	Motor housing
10	Nozzle
11	Rod extension, top
12	Screw
13	Rod extension, bottom
14	Weight
15	Base
16	Mounting screw

Technical diagram of a fan assembly with numbered parts and exploded view, likely for industrial equipment labeling.

Assembly

Head Assembly:

STEP1: Unscrew the 4 lock screw on the face of the fan housing, handle the rear grill to the motor housing by matching its 4 screw hole to the 4 screw hole on the front motor housing, then screw the lock screw to lock the rear grill and the front motor housing.

STEP2: insert the motor shaft into the fan blade by matching the motor shaft spindle to the D-shaped cut-out on fan blade, then screw the lock screw.

STEP3: Center the front grill. Allganing the logo, so it is horizontal and parallel to the floor, place onto the rear grill, and snap in place. Secure by tightening the grill button screw at the bottom of the rear grill.

Pole Assembly:

Unscrew the screw in locking shaft at the bottom of fan housing. insert the upper extension pole to the locking shaft with the right hole position.

Base/Pole Assembly:

Unscrew the screw at the bottom of the lower extension pole, and insert the pole through the base, then handtighten the base screw to securely fasten the lower extension pole to the base.

How to use

Speed control

Turn the rotary switch to "I, II, III" to set the fan speed. Turn the rotary switch to "0" to turn the fan off.

Oscillation

Push down the oscillation knob and the fan will oscillate.

Pull up the knob, the fan will not oscillate.

Technical information

	CoolBreeze 5000 SVM gunmetal grey
Operating voltage:	220-240V~ / 50Hz
Power consumption	60W

Cleaning

• Always disconnect the appliance from the power outlet before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents such as steel wool.
• If you do not use the appliance for a long period of time, please store it in a dry place protected from dust.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
- A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
• If you want to make a complaint, please bring the entire device in its original packaging and with proof of

purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.

• Without a proof of purchase, generally there will be no repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
- The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
- The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness,

KLIMATRONIC and the Sun-Logo are registered trademarks. © 2020/01 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

Technical diagram of a fan assembly with numbered parts and labeled parts

Montaje

Information technique

© 2020 KLIMATRONIC® CoolBreeze

Technical diagram of a fan assembly with numbered parts and labeled parts

Montaggio

Technical diagram of a fan assembly with numbered parts and labeled parts

Montage

Montage van de kop

© 2020/01 SUNTEC WELLNESS GMBH

Technical diagram of a fan assembly with numbered parts and labeled parts

Assembleia

Technical diagram of a fan assembly with numbered parts and labeled parts

Sastavljanje

Sastavljanje glave:

KORAK1: Odvrnite 4 pričvrsna vijka na prednjem dijelu kućišta ventilatora, obuhvatite stražnju mrežu kućišta motora tako da se 4 rupe za vijke u njoj poklapaju s 4 rupe za vijke na prednjem dijelu kućišta motora, zatim pritegnite pričvrsni vijak kako biste pričvrstili stražnju mrežu i prednje kućište motora.

KORAK2: Umtenite osovinu motora u lopaticu ventilatora tako da se vreteno osovine motora poklapa sa isključnom sklopkom u obliku slova D na lopatici ventilatora pa zatim zategnite pričvrsni vijak.

KORAK3: Centrirajte prednju mrežu. Poravnajte logotip tako da bude vodoravno i paralelno uz pod, postavite ga na stražnju mrežu te pustite da uskoči u ležište. Pričvrstite ga zatezanjem vijaka mreže na dnu stražnje mreže. Sastavljanje šipke:

Odvrnite vijak u pričvrsnoj drški na dnu kućišta ventilatora, umetnite gornju produžnu šipku u pričvrsnu dršku s pravilno postavljenom rupom.

Sastavljanje baze/šipke Odvrnite vijak na dnu donje produžne šiške pa šipku umetnite kroz bazu, zatim rukom zategnite vijak baze kako biste donju produžnu šipku čvrsto pritegnuli za bazu.

Način funkcioniranja

Kontrola težine

Okrenite dugme na "I, II, III" da biste podesili brzinu. Okrenite dugme na "0" da biste isključili napajanje.

Okretanje

Pritisnite na odgovarajuće dugme. Ventilator se pokreće amo-tamo. Povucite dugme prema gore da biste zaustavili okretanje.

Specifikacije

	CoolBreeze 5000 SVM gunmetal grey
Radni napon	220-240V~ / 50Hz
Potrošnja snage	60W

Čišćenje

Technical diagram of a fan assembly with numbered parts and labeled parts

Sestavljanje

Technical diagram of a fan assembly with numbered parts and labeled parts

Montáž

Montáž hlavy:

Technical diagram of a fan assembly with numbered parts and labeled parts

Utasítások

Közgyülés a fej:

Technical diagram of a fan assembly with numbered parts and labeled parts

Montaż

Montaż głowicy:

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany

suntec® Wellness

Garantiecertificaat

SUNTEC WELLNESS GMBH

HOLZSTRAße 2

40221 DÜSSELDORF

NÉMETORSZÁG

www.suntec-wellness.de

Garanciajegy

vásárlás helye

vásárlás dátuma

cikkszám/EAN

Kedves Vásárló,
