Product type	Tri-band gaming router
Dimensions	288.5 x 281.2 x 63.3 mm
Weight	1.1 kg
Power supply	12V/4A (power adapter included)
Main features	Tri-band Wi-Fi AC5400, 8 external antennas, Gigabit ports (4 LAN, 1 WAN), USB 3.0 ports, WPA2/WPA3 security, parental controls, VPN server
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use liquid or abrasive products.
Safety	Keep away from water, fire, and moisture. Do not disassemble, repair, or modify. Use only the supplied adapter.
Spare parts and repairability	Repair by a certified professional. Spare parts not available at retail.
General information	Limited 3-year warranty. TP-Link brand. Compliant with directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

Frequently Asked Questions - Archer C5400X TP-LINK

What to do if the authentication window does not appear?

Check that the address http://tplinkwifi.net or http://192.168.0.1 is correct. Try another browser. Make sure your computer is set to obtain an IP address automatically. Restart the router and disable/re-enable the network card.

What to do if I cannot access the Internet?

Connect a computer directly to the modem to check the connection. If it works, access the router's management interface and rerun the quick setup. Restart the router. For cable modems, enable MAC address cloning.

How to reset the router to factory defaults?

With the router powered on, press and hold the Reset button until the LEDs flash briefly. You can also do this from the management interface.

What to do if I forgot the password for the web management interface?

Reset the router (see question 3). Then create a new password or use admin as the default username and password.

What to do if I forgot the Wi-Fi network password?

The default password is printed on the label under the router. Log in to the management interface to view or change it.

How to configure the router via the Tether app?

Scan the QR code in the manual or download the Tether app from the App Store or Google Play. Follow the instructions to manage your router (block devices, parental controls, etc.). Note: the TL-WR820N model is not supported.

How to install the antennas?

Screw the 8 supplied antennas onto the connectors on the back of the router. Turn them clockwise until they are securely fastened. They can be oriented to optimize the signal.

How to connect the modem to the router?

Turn off the modem and remove its battery if possible. Connect an Ethernet cable from the modem to the Internet (WAN) port of the router. Turn on the router, then the modem.

Where to find the default Wi-Fi name and password?

They are printed on a label located under the router. The SSID and password are shown. Use them to connect before making any changes.

What safety instructions should be followed?

Keep the device away from water, fire, and moisture. Do not attempt to disassemble or repair it yourself. Use only the supplied adapter. Observe areas where wireless communications are prohibited.

USER MANUAL Archer C5400X TP-LINK

TP-Link Technologies Co. Ltd

South Buildingfocns 1,345and 28floors 1-4, Centre Science

& Technology Park, Sherman Rd., Sansher, Shengren, China

TP Link Deutschland GmbH Robert Bosch Straße 9,65719 Hofheim Taurus Germany

TP-Link UK Limited Unc 2 & 3 Review 142 141 Cardiff Road Reading RS3 8EW

TEinkitalaStVaGobetti2420053Carruson sur NeviglioM

TP-Link France SARL Baitement Ecuatour 16-18 avenue Morane Saunier, 78140

Veliy-Vilcochley France

TF-Link Bilgi Teknoloji Tic, Llc. 51. Sanal Mewki, Barabas Cai Shiyaji Sofak No:1572 Ke,344

34775Unowyolalb

TP Link IBERAS.L.Cale Ointanovces 17.3E29050 Machd, Span

TF-link Netherlands BV, Antwerp, The Netherlands 18, 3428 ME Niedergecon

TP-LinkNordic AB Forumyager 14, Pen 13, 13153, Nocka Sweden

TP-Link Helles Ltd. Marathonodromou 77, Narouai 1b1 27, Greece

MWSTP-LinkPortugalUnipessoalUda.Avenida daLixerdade,1245.7E,1250-143Linhxg,Portugal

Specifications are subject to change without notice. This is a registered trademark of TP Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP Link Technologies Co., Ltd. Copyright © 2019 TP Link Technologies Co. Ltd. All rights reserved.

www.tp-link.com

For technical support, the user guide and more information, please visit https://www.tp-link.com/support

2106508267.BFV2.1.2

tp-link

Quick Installation Guide

Wireless Router

mge may differ from your usual production

CONTENTS

01 / Deutsch
05/English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

Hardwareinstallation

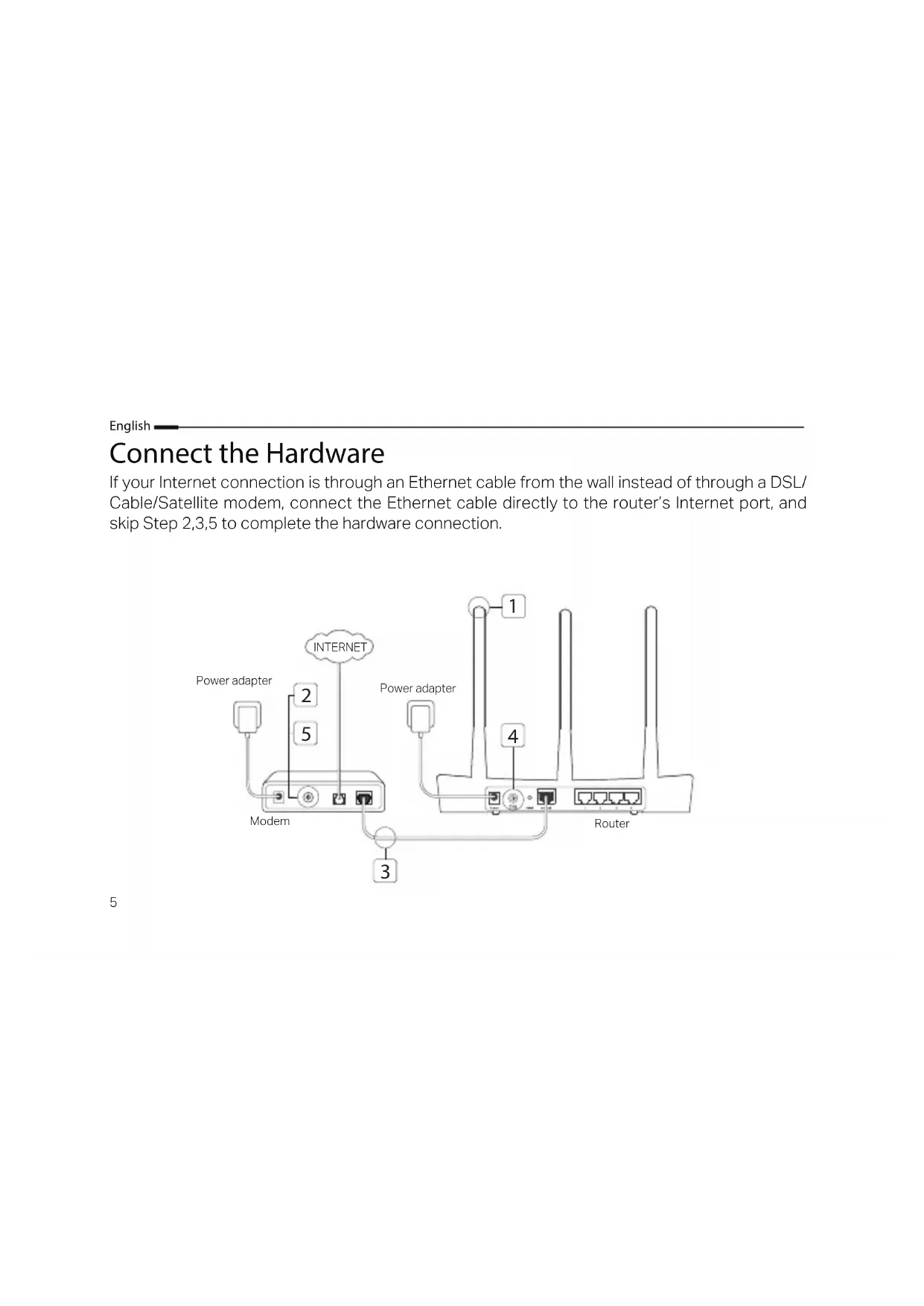

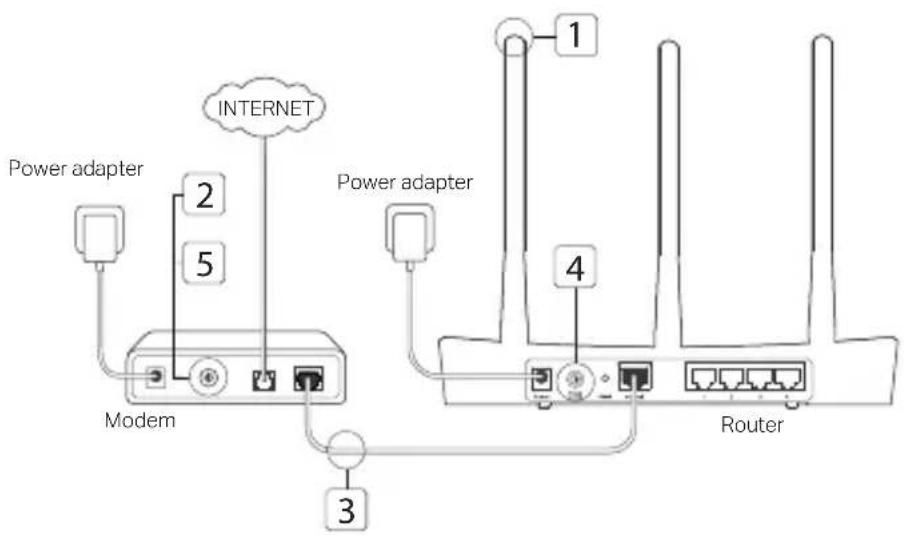

Connect the Hardware

If your Internet connection is through an Ethernet cable from the wall instead of through a DSL/ Cable/Satellite modem, connect the Ethernet cable directly to the router's Internet port, and skip Step 2,3,5 to complete the hardware connection.

1 Install the antennas. If the antennas are already fixed, move to the next step.
2 Turn off the modem, and remove the backup battery if it has one.
3 Connect the modem to the Internet (or WAN) port on your router with an Ethernet cable.
4 Turn on the router, and wait for it to start.
5 Turn on the modem.

Configure via Web Browser

1 Connect your computer to the router (Wired or Wireless).

Wired: Turn off the Wi-Fi on your computer and connect your computer to the router's LAN (1/2/3/4) port using an Ethernet cable.

Wireless:

Connect your computer to the router wirelessly. The SSID and Wireless Password are on the router's label.

2 Enter http://tplinkwifi.net or http://192.168.0.1 in the address bar of a web browser. Create a password for future login attempts, or use admin for both username and password for some routers. Note: If the login window does not appear, please refer to FAQ > Q1.
3 Go to Quick Setup page, and follow the step-by-step instructions to complete the initial configuration.

Enjoy!

Now your wired and wireless devices can connect to the internet!

Note: If you have changed the SSID and wireless password during the configuration, use the new SSID and wireless password to join the wireless network.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

• TL-WR820N is not supported on Tether app currently. Please configure your router via a web browser at http://tplinkwifi.net or http://192.168.0.1.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login window does not appear?

If the computer is set to a static or fixed IP address, change the setting to obtain an IP address automatically. Verify that http://tplinkwifi.net or http://192.168.0.1 is correctly entered in the web browser. Alternatively, enter http://192.168.1.1 in the web browser.
- Use another web browser and try again.
- Reboot your router and try again.
- Disable and enable the network adapter in use again.

Q2. What can I do if I cannot access the internet?

• Check if the Internet is working properly by connecting a computer directly to the modem via an Ethernet. If it is

not, contact your Internet Service Provider.

• Open a web browser, enter http://tplinkwifi.net or http://192.168.0.1 and run the Quick Setup again.
• Reboot your router and try again.
• For cable modem users, reboot the modem first. If the problem still exists, log into the Web Management page of the router to clone MAC address.

Q3. How do I restore the router to its factory default settings?

• With the router powered on, press and hold the Reset button on the router until all the LEDs turn on momentarily.
• Log in to the web management page of the router to restore the router to factory settings.

Q4. What can I do if I forgot my web management password?

Refer to FAQ >Q3 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

Q5.What can I do if I forgot my wireless network password?

• If you have not changed the default Wireless Password, it can be found on the product label of the router.
• Log in to the web management page of the router to retrieve or reset your wireless password.

Note: To learn more about the router, please go to the website https://www.tp-link.com to download the user guide of your router.

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

ALLA ANDRA GARANTIER, GOTTGÖRANDEN OCH VILLKOR.

Gjelder kun for producer merket TP-Link.

DENNE GARANTIEN GIR DEG SPESIFISERTE, RETTSLIGE RETTIGHETER, OG I TILLEGG KAN DU HA ANDRE RETTIGHETER SOM VARIOERER ETTER JURISDIKSJON (ETTER LAND).

I DEN UTSTREKNING DET ER TILLATT I HENHOLD TIL LOKAL LOVER DENNE GARANTIEN OG LØSNINGENE SOM HER ER FREMSATT EKSLUSIVE OG ERSTATTER ALLE ANDRE GARANTIER, LØSNINGER OG BETINGELSER.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
