USER MANUAL PG 8536 SEVERIN

5. Main support tube

10. Switch panel housing

12. Power cord with plug

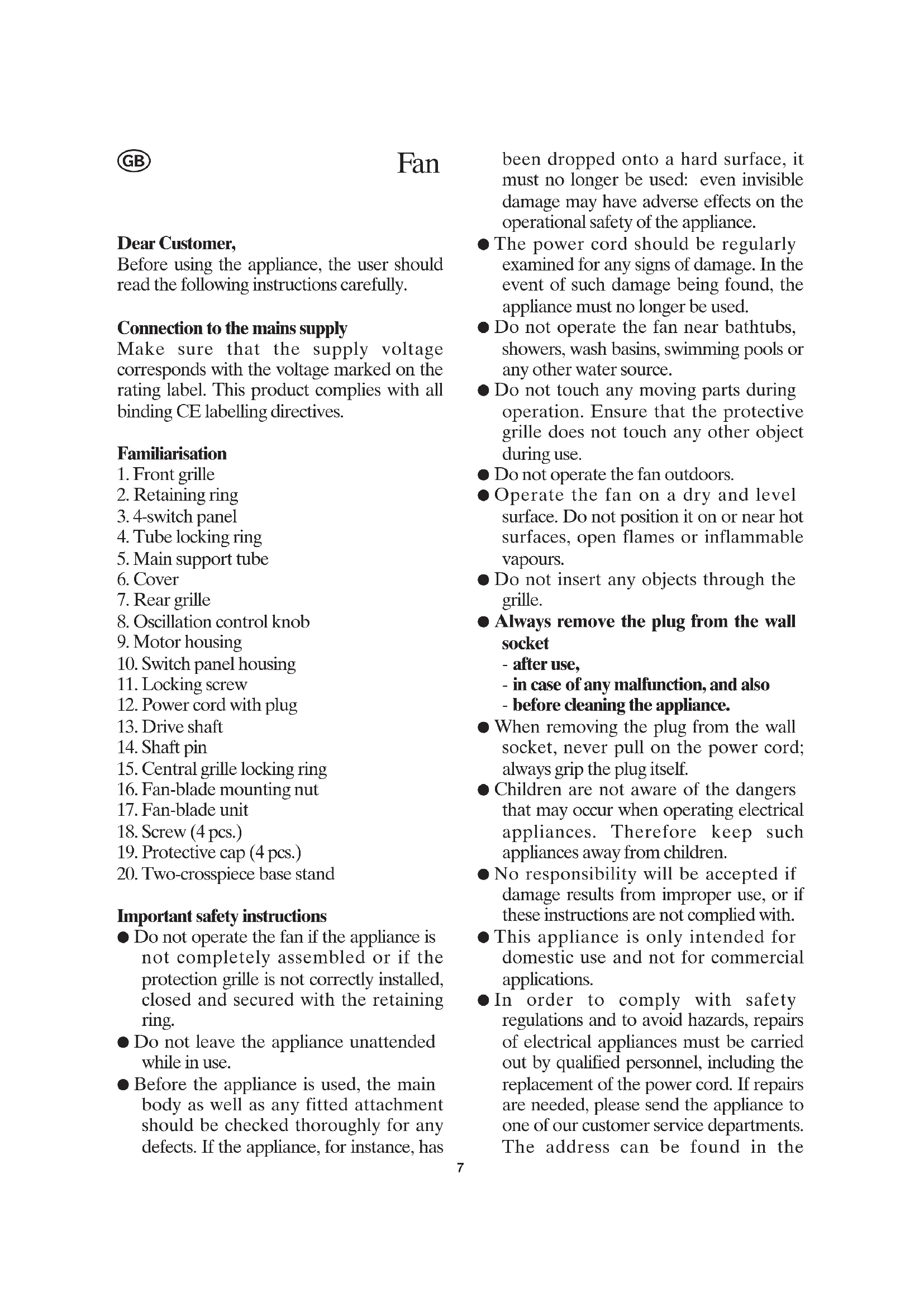

Important safety instructions ● Do not operate the fan if the appliance is not completely assembled or if the protection grille is not correctly installed, closed and secured with the retaining ring. ● Do not leave the appliance unattended while in use. ● Before the appliance is used, the main body as well as any fitted attachment should be checked thoroughly for any defects. If the appliance, for instance, has been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. ● The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used. ● Do not operate the fan near bathtubs, showers, wash basins, swimming pools or any other water source. ● Do not touch any moving parts during operation. Ensure that the protective grille does not touch any other object during use. ● Do not operate the fan outdoors. ● Operate the fan on a dry and level surface. Do not position it on or near hot surfaces, open flames or inflammable vapours. ● Do not insert any objects through the grille. ● Always remove the plug from the wall socket - after use, - in case of any malfunction, and also - before cleaning the appliance. ● When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ● Children are not aware of the dangers that may occur when operating electrical appliances. Therefore keep such appliances away from children. ● No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with. ● This appliance is only intended for domestic use and not for commercial applications. ● In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the

Fan appendix to this manual. Before using the appliance for the first time Remove all packaging completely before the appliance is used for the first time. Fan-blade unit and grille assembly

Remove the central grille locking ring from the motor housing by turning it anti-clockwise.

Put the rear grille in position. The two alignment pins on the motor housing must fit into the corresponding slots in the rear grille.

Fit the central grille locking ring and turn it clockwise to tighten it.

Push the fan-blade unit onto the drive shaft; ensure that the pin on the shaft is properly engaged in the corresponding recess on the unit.

Fit the fan-blade mounting nut and turn it anti-clockwise to tighten it.

Place the retaining ring onto the rim of the rear grille. (The retaining ring locking screw may have to be loosened).

Place the front grille in front of the rear grille into the retaining ring and tighten the retaining ring screw. Ensure that both grille rims are correctly positioned in each of the corresponding recesses inside the retaining ring. Tube-assembly mounting

Place the protective caps on each end of the base crosspieces. The ends may be compressed to facilitate fitting the caps, which click audibly into place.

Fit the two parts of the base stand into each other.

Loosen the screws on the base stand.

Fit the main support tube and secure it with the screws on to the base stand.

Turn the tube locking ring anti-clockwise to loosen it and push the cover down the main supporting tube until it sits firmly on the base stand.

Pull out the inner support tube as far as desired; then fit the tube locking ring and turn it clockwise to tighten it.

Fit the motor housing onto the tube assembly and secure it by tightening the locking screw. Operation

Insert the plug into a suitable wall socket.

To adjust the tilt angle of the fan head, simply push the head upwards or downwards. The fan head assembly automatically locks into its various positions.

In addition, the oscillation function can be engaged by pushing the control knob in.

The fan speed is adjustable by means of the four separate switches in the switch panel. At the ‘0’ setting, the fan is switched off. General Care and Cleaning ● Remove the plug from the wall socket before cleaning. ● To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water. ● Do not use abrasives or harsh cleaning solutions.

If it becomes necessary, clean the fan with a dry lint-free cloth only. Disposal Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points. Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not 8been modified, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase. 9Chère Cliente, Cher Client, Avant d’utiliser cet appareil, veuillez lire attentivement les instructions suivantes. Branchement au secteur Assurez-vous que la tension d’alimentation correspond à la tension indiquée sur la plaque signalétique de l’appareil. Ce produit est conforme à toutes les directives relatives au marquage “CE”. Familiarisez-vous avec votre appareil
