USER MANUAL Activator 8583 BRAUN

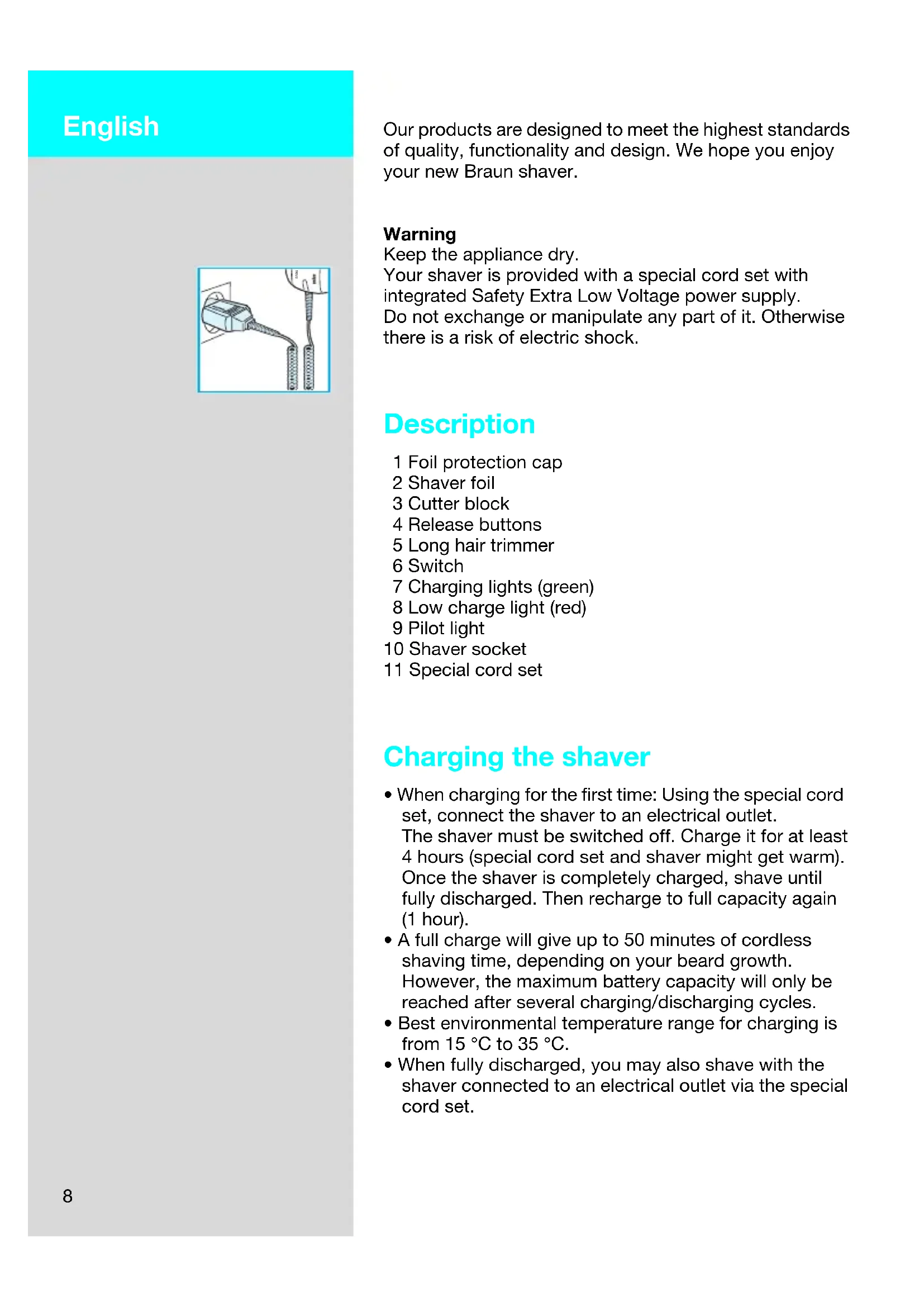

5644319_Activator_8588/83_S4_66 Seite 7 Montag, 11. April 2005 11:11 118 Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun shaver. Warning Keep the appliance dry. Your shaver is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock. Description 1 Foil protection cap 2 Shaver foil 3 Cutter block 4 Release buttons 5 Long hair trimmer 6 Switch 7 Charging lights (green) 8 Low charge light (red) 9 Pilot light 10 Shaver socket 11 Special cord set Charging the shaver

• When charging for the first time: Using the special cord set, connect the shaver to an electrical outlet. The shaver must be switched off. Charge it for at least 4 hours (special cord set and shaver might get warm). Once the shaver is completely charged, shave until fully discharged. Then recharge to full capacity again (1 hour).

• A full charge will give up to 50 minutes of cordless shaving time, depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.

• Best environmental temperature range for charging is from 15 °C to 35 °C.

• When fully discharged, you may also shave with the shaver connected to an electrical outlet via the special cord set.

English 5644319_Activator_8588/83_S4_66 Seite 8 Montag, 11. April 2005 11:11 119 Indicator lights Pilot light (9): The shaver is connected to an electrical outlet. Model 8588: When the shaver is fully charged, all five charging lights (7) will light up (20% per light), provided the shaver is connected to an electrical outlet or switched on. Model 8583: The green single charging light (7) shows that the shaver is being charged. When fully charged, the charging light flashes or goes off. If later on, the charging light comes on again, this indicates that the shaver is being recharged to maintain its full capacity. The red low charge light (8) flashes when the battery capacity has dropped below 20%, provided the shaver is switched on. The remaining capacity will then be sufficient for 2 to 3 shaves. Shaving Switch positions off = (switch is locked) Press and push up the switch to operate the shaver: 1 = Shaving with the pivoting head (the pivoting cutting system automatically adjusts to every contour of your face). 2 = Shaving with the pivoting head locked at an angle (to permit shaving in difficult areas, e.g. under the nose). 3 = The long hair trimmer is activated (for trimming sideburns, moustache and beard).

5644319_Activator_8588/83_S4_66 Seite 9 Montag, 11. April 2005 11:11 1110 Cleaning Never use water to clean the shaver! For easy cleaning after each shave, switch the shaver off. Press the release buttons to lift the shaver foil (do not remove the foil completely). Switch on the shaver for approx. 5–10 seconds so that the shaved stubbles can fall out. Then remove the shaver foil and tap it out on a flat surface. Using the brush, clean the cutter block and the inner area of the pivoting head. However, do not clean the shaver foil with the brush as this may damage the foil. Keeping your shaver in top shape About every four weeks, clean the cutter block with Braun cleaning agents. Put a drop of light machine oil onto the long hair trimmer and the shaver foil. Preserving the batteries In order to maintain the optimum capacity of the re- chargeable batteries, the shaver has to be fully discharged (through normal use) every 6 months approximately. Then recharge the shaver to full capacity. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time. Tips for the perfect shave

• We recommend that you shave before washing, as the skin tends to be slightly swollen after washing.

• Hold the shaver at right angles (90°) to the skin. Stretch your skin and shave against the direction of beard growth.

• To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn.

off oil 5644319_Activator_8588/83_S4_66 Seite 10 Montag, 11. April 2005 11:11 1111 Replacing the shaving parts To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: part no. 8000) Environmental notice This appliance is provided with nickel-hydride recharge- able batteries. To protect the environment, do not dispose of the appliance in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or appropriate collection sites. However, if you prefer to dispose of the appliance yourself, remove the batteries as shown. Caution: Opening the housing will destroy the appliance and invalidate the guarantee. Subject to change without notice. This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC. Electric specifications see printing on the special cord set. At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.
