USER MANUAL Lissea RF7210 ROWENTA

Instructions for use

Notice d'emploi

Gebruiksaanwijzing

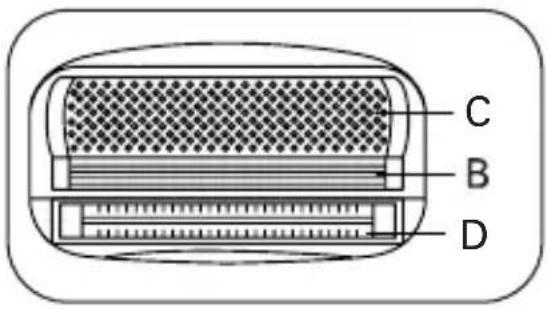

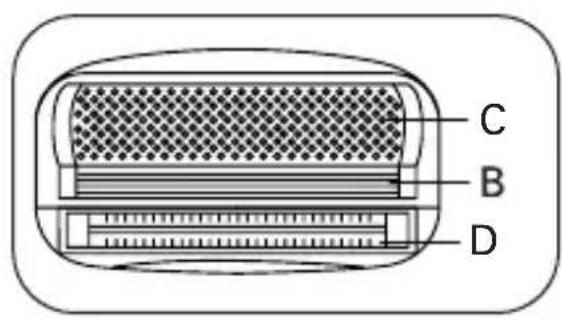

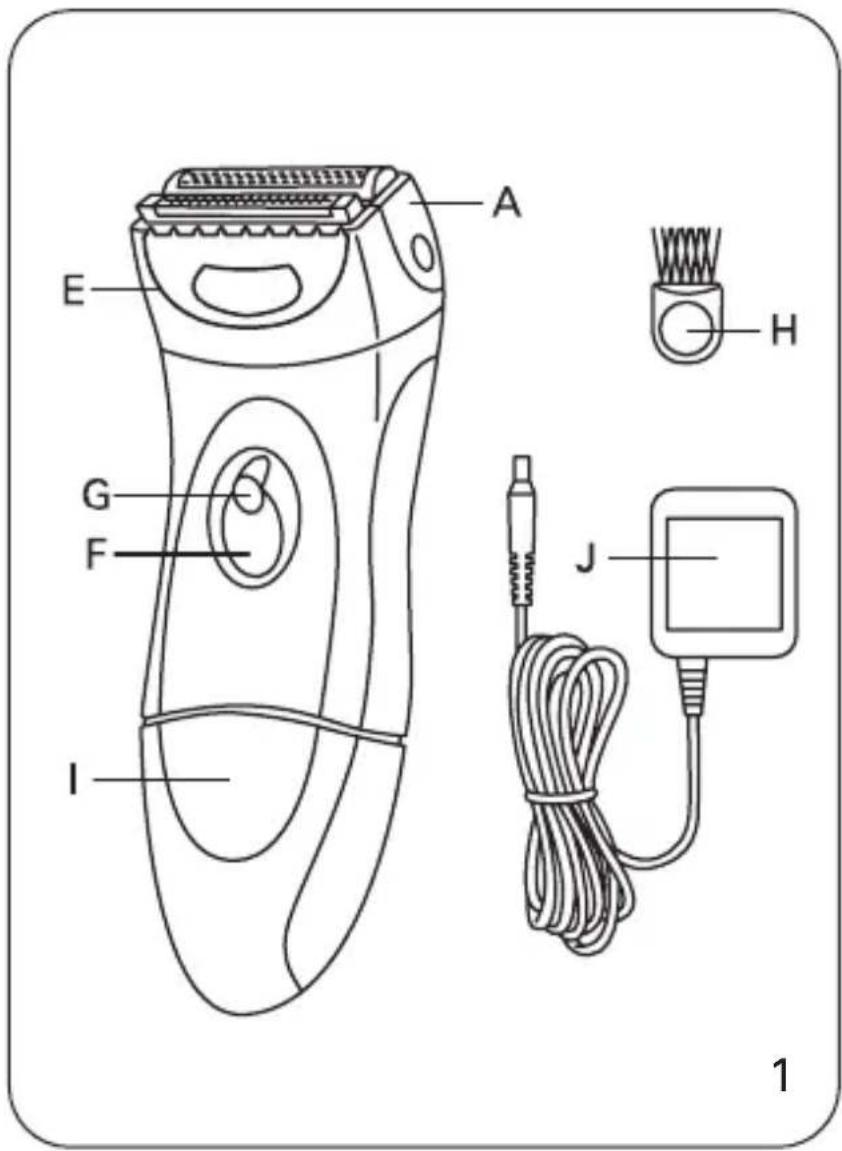

A-Removable shaving head
B-Skin tensor
C-Micro-screen
D- Floating trimmer
E- Fold-away comb
F- On/off switch

G- "Lock system" button

H- Cleaning brush

I- Battery compartment cover.

Dual system only (RF7210)

J- Power lead and power supply unit

• Skin tensor feature

Your shaver is equipped with a skin tensor feature for safer, closer and faster shaving.
- Floating trimmer function

Your shaver features a mobile trimmer wich flexes to the contours of your body for a

close shave even in the most sensitive areas.

• Retractable comb function

Your appliance is equipped with a comb designed for sensitive areas, which guides hairs and prevents razor burn, irritation and micro-cuts

2. FOR YOUR SAFETY

• Operating voltage:

• Mains operation: 230 V AC. Ensure that this voltage corresponds to your mains voltage. Incorrect connection to the power supply may cause irreparable damage, which is not covered by the guarantee.

• Battery operation : requires 2 x1.5 V DC batteries. Ensure that only LR6 1.5 V AA batteries are used.
• Mains model : mains mode only
• Dual system model : mains or battery operated.

Important : Do not immerse the appliance, the power lead or the power supply unit in water.

• The appliance is designed for domestic and personal use only.
• This appliance cannot be used in the shower or the bath.
• Do not leave the appliance for long periods of time at temperatures below 0^ or above 40^ (behind a window, in direct sunlight, for example).
• Do not expose the appliance to direct sunlight, for long periods of time.
• Never use the appliance if it is not working properly or if it has been dropped (non-visible damage may make the appliance unsafe).
• When the appliance is in use, the clippers must not come into contact with eyelashes, hair, clothing or any other objects, in order to avoid any injury risk or jamming. Always keep the appliance out of the reach of children.
• Do not use the appliance: on your face, on broken or irritated skin, or if you suffer from dermatological conditions : eczema, varicose veins, skin inflammation, beauty spots, acne, warts, birth marks, etc.
• Unplug the shaver before cleaning, changing the shaving head or any other manipulation.
• Never use an electrical extension lead in your bathroom.
• This shaver can be taken to pieces using special tools; to avoid risks, repair jobs of any kind must be carried out by the manufacturer, the manufacturer's after-sales service or any other fully qualified person.
• Should shaver not function correctly, please contact our consumer service department, your retailer or approved service centre.

3. TIPS FOR USE

• Mains model : mains mode only
• Dual system model : mains or battery operated.

A- PREPARING YOUR SKIN

• Before shaving : ensure that your skin is perfectly clean and dry.
• Do not apply cream or moisturising milk.

B- USING THE SHAYER

Fit the lead to the shaver. Plug the power supply unit into an electrical mains socket (230 V). Ensure that the locking switch (F) is not activated. Otherwise press it again.

Battery operation

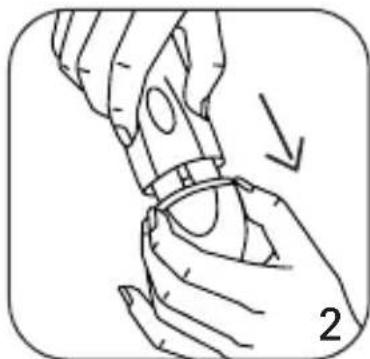

The shaver operates with two LR6 type alkaline batteries (1.5 V AA). The appliance must be unplugged from the mains supply before removing the batteries. To insert and/or replace the batteries, open the shaver's casing by pulling the battery cover downwards (FIG 2). Insert the batteries in the correct direction, as indicated. Press the locking switch (F) while turning the On/Off switch On (1).

C- SHAVING

1) Remove the shaving head's protective cover.
2) Turn the switch to 1 (on).
3) Start shaving :

• Legs :

• Long hair :

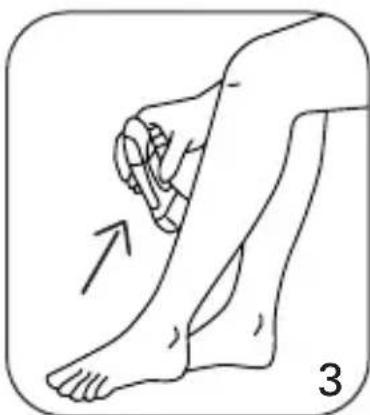

use the clippers first. Hold the appliance slightly tilted towards you and move it slowly against the lie of the hair (FIG 3).

• Short hair :

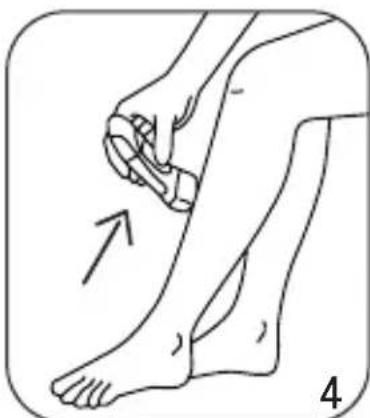

use the microscreen. Hold the appliance at right angles to the skin and move it slowly against the lie of the hair (FIG 4).

Underarms and bikini line :

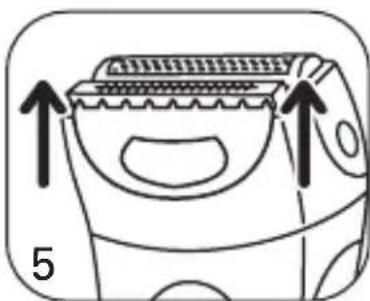

We recommend that you use the retractable comb in the up position for these 2 delicate areas (fig. 5).

To improve efficiency, stretch your skin with your other hand, in order to raise the hairs. In this way, you will obtain a closer shave, with little or no irritation.

If your skin becomes irritated, apply a small quantity of talcum powder. Wait for 24h before applying perfume or deodorant under your arms.

4) To stop the shaver, turn the switch back to position O (off). The locking switch will be activated automatically.

5) Unplug the power supply unit after use and replace the protective cover.

4. CLEANING

Important : always clean the appliance's shaving head after use.

Regular maintenance of the shaving head preserves the shaver's efficiency and extends its lifespan.

1) Ensure that your shaver is unplugged.
2) Remove the protective cover.

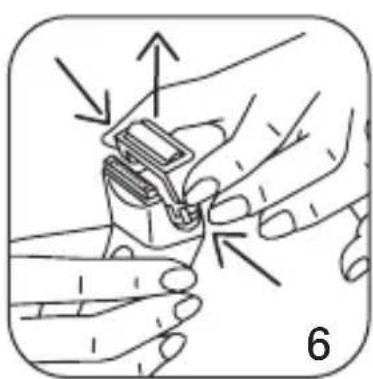

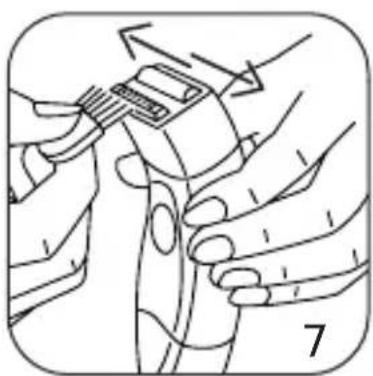

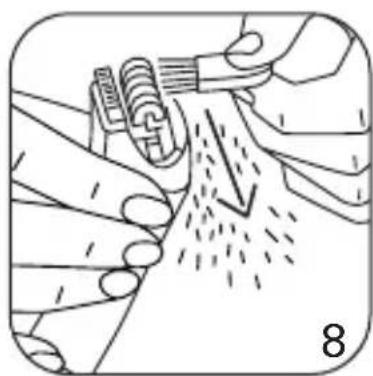

3) Release the micro-screen support by pressing on the locking clips and pulling upwards (FIG 6). Carefully remove all hair by blowing on and beneath the micro-screen. Clean the shaving head also, with the brush. Never use the brush to clean the micro-screen (FIG 7/8).
4) The blade unit and trimmer should be lightly oiled from time to time with sewing machine oil or similar. Put the top part of the shaving head back into place.

CAUTION! Do not press against the micro-screen when replacing it.

5) Put the protective cap back in place on the shaving head.

5. ENVIRONNEMENT PROTECTION FIRST!

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a collection point.

6. IN THE EVENT OF PROBLEMS

If your shaver is not giving the best possible results !» :
- Did you remember to hold your skin taut while shaving?
- Have you cleaned the shaving head properly (see §4)?
- Have you remembered to oil your shaver?
- Is your shaver head worn? You can have it replaced at one of our approved services centres.
- « Having difficulty getting it to work!»:
- Have you unlocked the lock system?
- Have you inserted the batteries the right way round (RF7210)?

A dire attentivement avantemploi...

1. DESCRIPTION DE VOTRE APPAREIL

G-Touche "Lock system"

G- ByToH Lock system

H- Yetuca 3a nouchTahe

I-Kanaue Ha otdeeneHneTo 3a 6aTeepn

(6n-cntema camo RF7210)

J-3apraHNO yCTPOINCTBO

-Функцязаи3пьBaHeHa KOKkata

3a no-cnrypno, no-rnaKo n no- 6bp3o 6pbcheHe BaunrT ypeE

chabdeH cyctpoCTBO 3a n3nBaHe Ha Koxkata.

·Функци npOBnKHa nOdctpRbaua rnaBa

Baunr ype e o6opudbaH c noBnXHa noCTprRbua rna, KOrTo nDeaHc ce npncno6ra KaM fOpMnte Ha BaWeTo TAno 3a No-npeu3HO 6pbcHe, DOpN B cyBCTBNTENHTe 30HN.

·Функця npn6npauch ce rpe6eH

Baunrypee o6opydban c rpe6eh, cneuaHNO npncno6eh 3a

YyBCTBNTENHTE 30HN, KOITo HAcOyBa KOCMITE N NO TO3N HaYN Ce n36yRBA npNbPbNAHeTO, pa3Dpa3BaHeTo Ha KoxaTa N MKNpONop3BaHnra.

2. BE3ONACHOCT

Pa60THo HanpeXeHne:

PnB KIOUbaHe B MpeKaTa: 230 V AC. IpOBepTe daHToBa HAnpeKeHne CbOTBeTCTBa Ha HAnpeKeHneTO BB BaWaTa eNeKtpuYecka NHCTaNaUra.

BcKa rpeKa npn BKnIOUbaHeTo MoKe Da npeN3BnKa HENOpaBNM NOBpeN, KOITOr rapaHcIra THe NOKpBa.

C 6aTePn: 2 6aTePn ot 1.5 V DC. N3non3BaIte camo 6aTePn ot 1.5 V AA ot TnL R6.

To3n ypeE npedHa3HaeH cmo 3a NnHNO3BaHe B DOMaHa cpea.

Baxho: He notanrte ypea, ka6ena nn 3apnHOTO yCTPOcTBO BbB B0da.

To3n ypeH He MoKe Da ce n3non3Ba noD dywa nn BbB BaHaTa.

He octabraye ypea npoBxntno Bpeme npTemnepaTpyn no 0 n ha40 (Ha npimep, do CTbKNo Ha cnBHc).

He n3naraTe ypeDa npoDbJxKtEnHO BpeMe Ha dIpeKTHa cIbHueBa CBETnHa.

Hnkora He n3non3BaTe ypea, aKO He pa6OTn npabINHO mNcne KaTo e naHaJI (HeBnDnMITE deΦeKTH Morat Da 6bDat onachn 3a BaWata cnryphocT).

·Korato ypebT pa60n, 6pbcheuTe rnaBn He 6nBa Da Bn3aT B docer C Mmrtne, Kocata, dpexnte nn KaKBTO n da e npedMeT, 3a da ce n36erHe BCaKaBpck OT HapaHbAhe nn 6noknpaHe Ha ypea. Hnkora He ro OCTabrte Ha macto, DOctbnHO 3a deua.

He n3non3BaIte ypea: Bbpxy IuIeTo cn, Bbpxy HapaHeHa nn pa3pa3HeHa KOxka, aKO cTpaIate OT depMaTOIorHn 3a6OJIbaHn: ek3ema, pa3wnpeHH BeHN, KoxHN Bb3paleHn, 6eHN, aKHe, 6paabN, pOJINn neTHa n np.

• YpeT da ce n3KIOUBA npEa BcRA Ka MaHnYnaun (NouchTaHe, CmHa Ha rnaBa n np.) i cne ynoTpe6a.

He n3noi3BaIe eIeKtpnueckn ydbnxnten B 6aHra.

Ako ypeT He pa60n npaBnHIO, MoJcBbpxKeTe ce c Hauata notpe6ntcka cnx6a nn C Baun npoDaBuH nn cepBn3eH ueHTbp.

TAPAHLIM

BaunrypeeepnepHa3HaueHcmoDomaHa ynoTpe6a.

He moke da ce n3no3Ba KaTo npocnoHaen ype.

TapaHunraCTaba HnOxHa n HeBaIiHa B cIyau Ha ynoTppe6a, pa3nUHa OT npenOpbuaHaTa B yka3aHnra 3a ynoTppe6a.

3. INPENOPbKN 3A NOJ3BAHE

-ModenRF5210:camo nocpeCTBOM BKJIIOUBAHe B eIeKtpnueckata Mpeka
- Moen RF7210:came nopeCTBOM BKIOUbaHe B eIeKtpueckaTa MpeKa nn c 6atepn

A- NOДГOTВЯHE HA KOKATA
