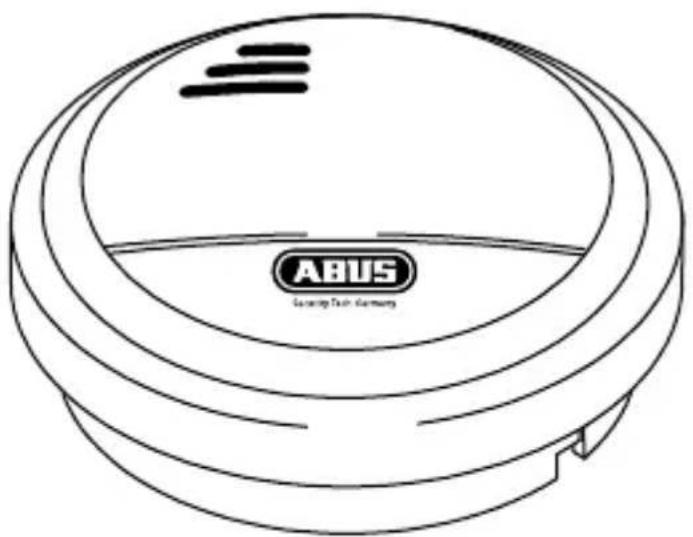

Brand	Abus
Model	RM40 Li
Category	Smoke detector
Detection type	Photoelectric (reflection)
Power supply	1 lithium 9 V battery (included)
Battery life	Up to 2 years
Alarm sound level	≥ 85 dB at 3 m
Operating temperature	0 °C to +40 °C
Relative humidity	0 % to 90 %
Radio frequency	868 MHz
Maximum radio range	30 m (in open space)
Max. number in network	32 detectors
Monitored area (indoor)	Up to 40 m²
Height	35 mm
Diameter	102 mm
Weight (with battery)	Approx. 150 g
Standards	EN 14604:2005/AC:2008
Device lifespan	10 years
Warranty	2 years
Installation	On the ceiling, at least 15 cm from the wall
Maintenance	Clean with a vacuum cleaner or a soft brush
Networking	Wireless, up to 32 detectors
Silence function	Yes (via test button)

Frequently Asked Questions - RM40 Li ABUS

How to test the RM40 Li smoke detector?

Press the test button (lower segment of the cover) for about 1 second. The test alarm (3 tones) sounds 4 times and the LED flashes. This confirms proper operation.

What to do in case of false alarm?

First ensure your safety. If you are sure it is a false alarm (steam, dust), press the test button to activate silent mode. The LED continues to flash. The alarm resets automatically when the smoke has dissipated.

How to network multiple RM40 Li detectors?

Press the test button on the first detector for 2 seconds until the LED flashes slowly (addressing mode). Do the same with the second detector. The two devices pair automatically within 60 seconds. You can connect up to 32 detectors.

Where to install the smoke detector?

Install it on the ceiling, preferably in the center of the room. Avoid kitchens, bathrooms, garages, and drafty areas. Maintain a distance of at least 15 cm from walls and 50 cm from corners.

When to replace the battery of the RM40 Li?

When the detector beeps every 30 seconds (about 30 days before depletion). Replace it with a quality 9 V lithium battery (e.g., EVE CR9V-P). After replacement, perform a function test.

Does the detector work during a power outage?

Yes, it is powered by a 9 V lithium battery. It remains operational even without electricity.

How to clean the smoke detector?

Gently vacuum the ventilation openings or use a soft brush. For stubborn dirt, wipe the surface with a slightly damp cloth (mild detergent). Do not let water enter the inside.

What is the radio range between detectors?

The maximum range is 30 meters in open space. Obstacles (walls, partitions) may reduce this distance.

What to do if the detector beeps every 30 seconds?

This indicates a low battery or a fault in the smoke chamber. First check the battery. If the beeping persists after replacement, the detector may be defective.

How to factory reset the detector?

Press and hold the test button. After 2 seconds, the LED flashes slowly; after about 7 seconds, it flashes faster. Then release the button: a short beep confirms the reset. All radio connections are deleted.

USER MANUAL RM40 Li ABUS

Security Tech Germany

ABUS Luxury Taxi Germany

User manual

Wireless Smoke alarm device

Manuel utilisateur

Architectural floor plan showing room layout and structural elements (no text or labels)

2

> 4 m 50 cm

30-50 cm 6 m 50 cm

3

Technical line drawing of a mechanical component with internal parts and external housing (no text or symbols)

Inhaltsverzeichnis

Wireless Smoke alarm device

ABUS

Security Tech Germany

ABUS Gaining Seat Germany

User manual Wireless Smoke alarm device

GB

0786-CPD-21145

EN 14604:2005/AC:2008

Please read carefully through this instruction for use before starting up! Smoke detectors help save lives! Please keep save this instruction for use!

Device description

1 5 2 4 3 ABUS ablyl&b lany

Architectural floor plan showing room layout and structural elements (no text or labels)

2

> 4 m 50 cm

30-50 cm 6 m 50 cm

3

Technical line drawing of a mechanical component with internal parts and external housing (no text or symbols)

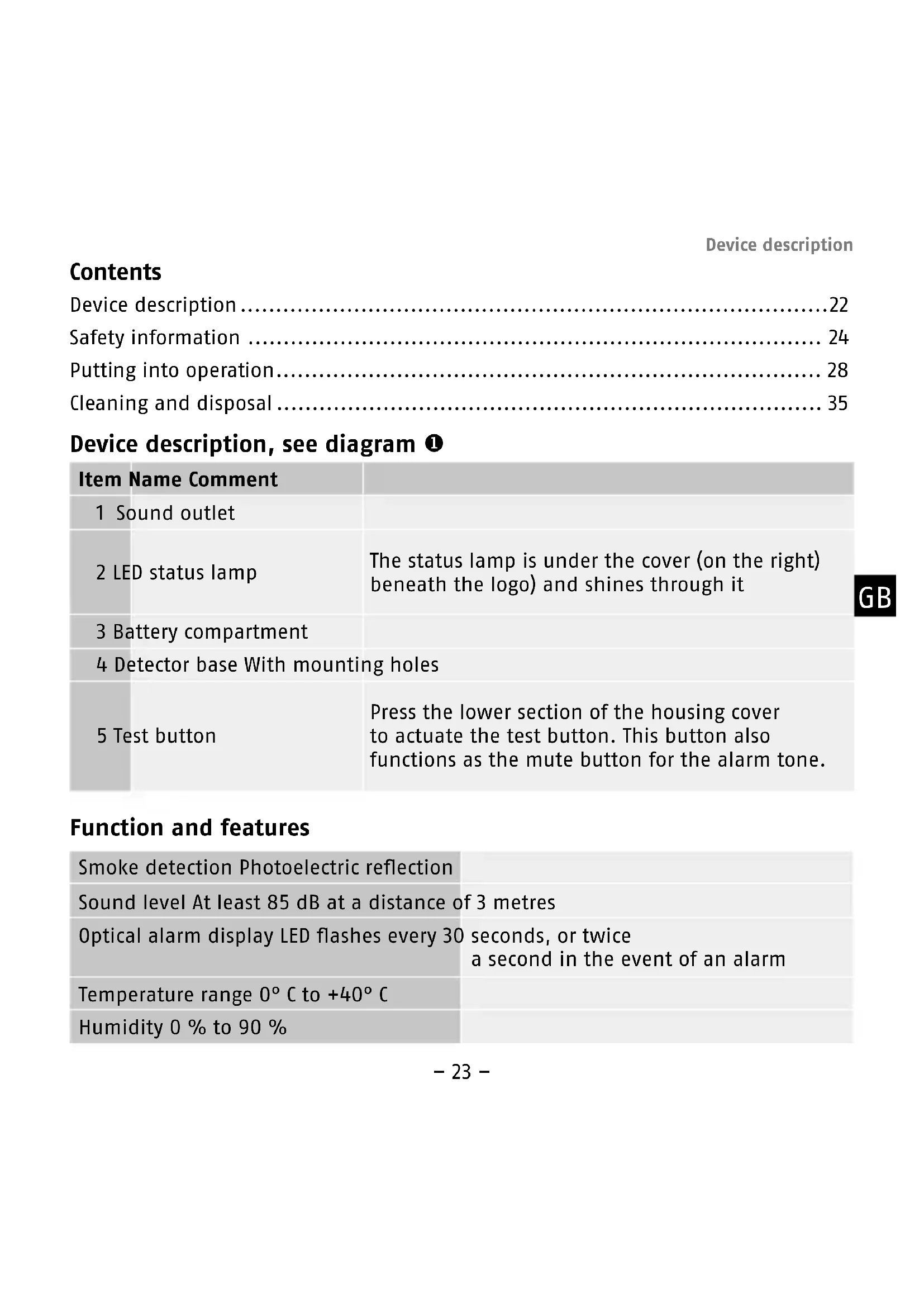

Contents

Device description 22

Safety information 24

Putting into operation.... 28

Cleaning and disposal 35

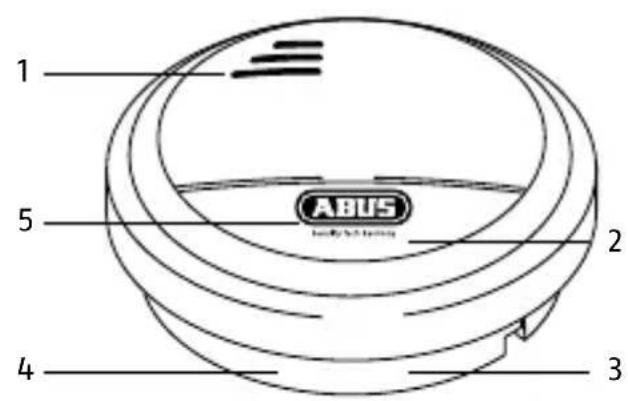

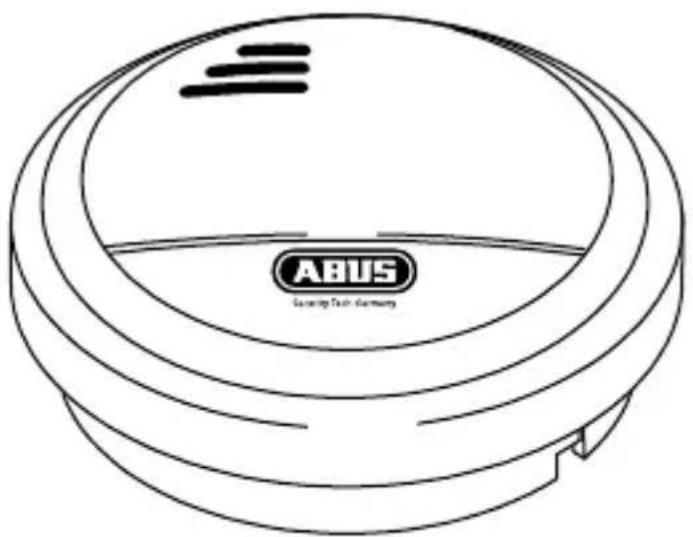

Device description, see diagram ①

Item Name Comment
1 Sound outlet

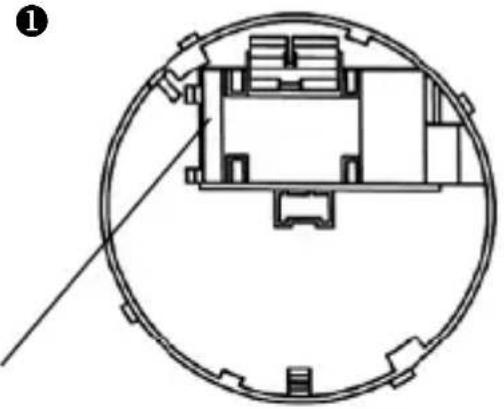

2 LED status lamp	The status lamp is under the cover (on the right) beneath the logo) and shines through it
3 Battery compartment
4 Detector base With mounting holes
5 Test button	Press the lower section of the housing cover to actuate the test button. This button also functions as the mute button for the alarm tone.

Function and features

Smoke detection Photoelectric reflection
Sound level At least 85 dB at a distance of 3 metres
Optical alarm display LED flashes every 30 seconds, or twicea second in the event of an alarm
Temperature range 0°C to +40°C
Humidity 0 % to 90 %

Device description
Safety information

Power supply 1 x 9 V alkali block battery
Power consumption Max. 40 mA
Environmental conditions Only approved for indoor use
Wireless frequency 868 Mhz
Wireless range Up to 30 m
Networking Up to 32 detectors
Battery service life Up to 2 years
Audible battery warning Approx. 30 days before discharge
Height 35 mm
Diameter 102 mm
Applied standards EN 14604-2005

The manufacturer reserves the right to make technical modifications at any time.

Scope of delivery

• ABUS RM40Li wireless smoke detector incl. battery
• This user manual
• Installation material

Explanation of symbols

The following symbols are used in this manual and on the device:

Symbol	Signal word	Meaning
	Warning	Indicates risk of injury or health hazards.
	Warning	Indicates risk of injury or health hazards caused by electrical voltage.
	Important	Indicates possible damage to the device/accessories.

Note Indicates important information.

Warning

- The wireless smoke detector does not detect gas, steam, heat or fires. Detectors with special sensors are required for this.

• People with hearing impairments may not be able to hear the alarm. Special alarms with visible signalisation are available for such cases.
- Wireless smoke detectors help save lives. Therefore, for safety's sake, you should regularly test the battery and the operation of the detector. For day-to-day use, remember that the wireless smoke detector cannot prevent fires but simply provides signalisation in the event of one. For your own safety, please replace smoke detectors every ten years at the latest.
- Very high electromagnetic radiation can cause malfunctions. Therefore, do not install the detector near strong magnets or devices which produce electromagnetic radiation.

The wireless smoke detector works optically by measuring smoke particles that penetrate into its measurement chamber. When the alarm threshold is exceeded, a loud alarm sounds. The alarm is switched off as soon as there is no more smoke in the measuring chamber.

• Monitoring area: 40 m²
• Battery operated (1x 9 V battery) within a room
• Automatic battery state monitoring
• Optical LED indicator lamp and acoustic alarm
- Simple installation

Safety information

Warning

Observe the following instructions to prevent any failure of the device:

• Do not cover the device.
• Do not paint over the device or cover it with wallpaper.
• Never open the device or attempt to repair it, as its function can then no longer be guaranteed. Failure to observe this instruction will invalidate the warranty.
• Do not use the device if it has been dropped or damaged in any other way.
• If you pass on the device to someone else, you must include this user manual.

Before operation

Warning

• Keep children away from the packaging – there is a risk of suffocation.
• Remove all packaging material before using the device.

Intended use

Only use the device for the purpose which it was designed and built for.

Any other use is considered inappropriate. This device may only be used for the following purpose(s):

• Detecting fire/smoke in private households

What to do when you hear the alarm?

• Leave the premises immediately. Every second counts – there is no time to get dressed or gather valuable belongings. Use the emergency escape routes.
• Warn your fellow residents and make sure they also leave – especially children and people with impaired hearing.
• Do not open doors without first checking the surface. Do not open a door if it is hot or you see smoke under it. Use an alternative escape route. If the surface is cool, push against it with your shoulder, slightly open it and be prepared to close it again if there is heat, smoke or fire behind it.
• If there is smoke in the air, keep close to the floor and breathe through a damp cloth if possible.
• Close the doors after leaving the room.
• Once you have left the building, go to the agreed assembly point and do not go back inside.
• Call the fire brigade from outside the burning building.
• Notify the fire brigade of the situation inside the building.

What to do if there is a false alarm?

• A false alarm can occur due to very high air humidity, the build-up of smoke whilst cooking or a large build-up of dust, for example.
• If the alarm sounds, first get yourself to safety. If you are certain that it is a false alarm, you can mute the alarm tone by pressing the test button. The alarm will continue to be indicated optically by the flashing LED.
• The smoke detector will switch off automatically once the smoke particles have left the smoke chamber inside the detector.

Putting into operation

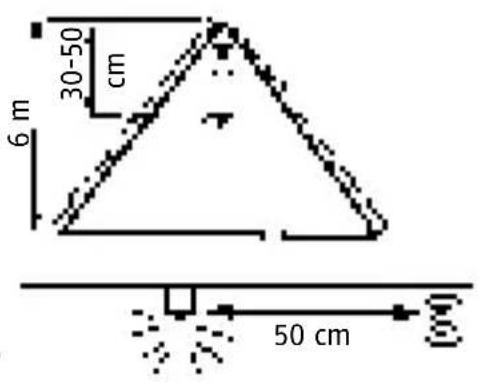

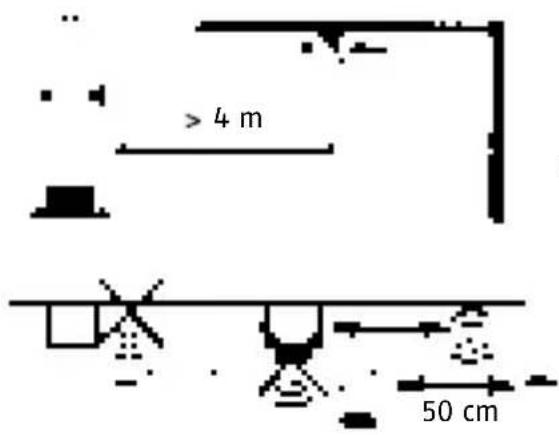

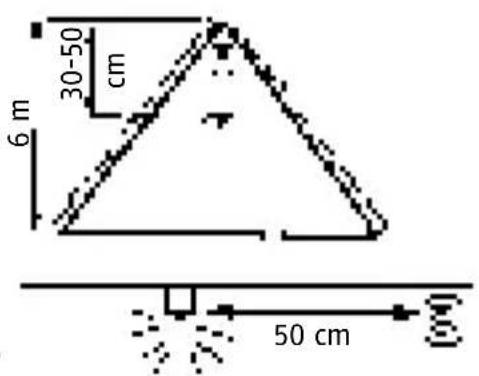

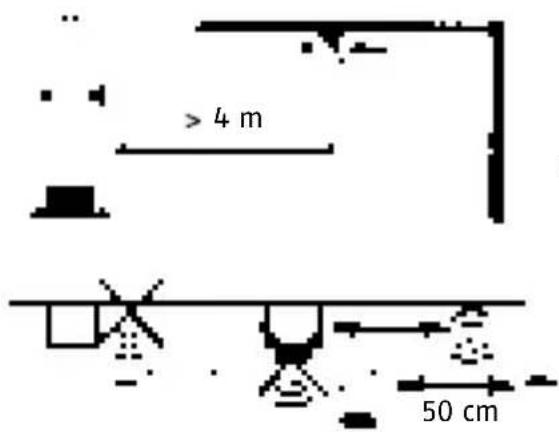

For recommended installation locations, see diagram ②

• Position the wireless smoke detector directly on the ceiling in the centre of the room.
• Priority rooms: living rooms, bedrooms and children's playrooms.
• If you have more than one bedroom, each one should be fitted with a wireless smoke detector.
• To monitor corridors, you should also fit wireless smoke detectors there, because stairwells are particularly susceptible to fires due to the chimney effect. Long corridors might require several smoke detectors.
• When fitting on the ceiling, make sure that the smoke detectors are at least 15 cm from the side walls and 50 cm from the corners.

Warning

Avoid the following locations to prevent malfunctions of the wireless smoke detector:

• Places where expected temperature variations are greater than the ambient operating temperature (+0 °C to +40 °C).
• Places where draughts can keep smoke away from the detector, such as near windows, doors or ventilation shafts.
• Places where vapour, increased air humidity or exhaust fumes may trigger false alarms, e.g. in kitchens, bathrooms or garages.
• Places where dust or dirt could impair the function of the smoke detector.
• The highest point in rooms with gable ceilings. The distance to the highest point of the gable should be at least 30 cm.

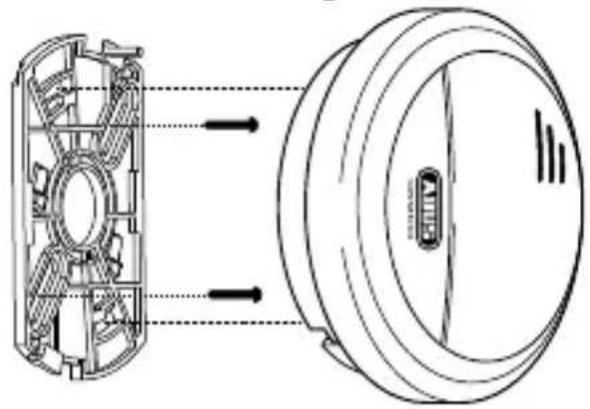

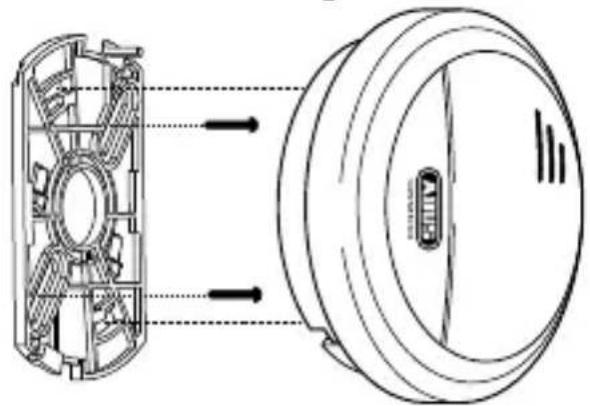

For installation and attachment, see diagram ③

Warning

In marking out the drill holes, make sure there are no electrical wires, pipes or other important components behind them.

• If in doubt, consult an expert before drilling.

• If you are fitting the wireless smoke detector in a vehicle (such as a camper or caravan), you must contact the manufacturer or your local dealer first for information on the most suitable location.

• Loosen the wireless smoke detector from the base of the housing by turning it anticlockwise. Mark the drill holes through the base.

• Drill the holes, put in the plugs and screw in the base.
• Connect the battery with the correct polarity to the battery connector of the device and insert the battery into the device (see diagram ①). Fasten the wireless smoke detector by twisting it clockwise onto the base. The detector has a safety device that prevents installation without a battery.
• If you cannot fasten the wireless smoke detector to the base: Check whether the battery is correctly inserted and connected.

Operation and function test

• The wireless smoke detector is ready for use as soon as you put in the battery.
• The smoke detector can be used alone or with other RM40 Li detectors connected wirelessly, offering a greater level of safety.
• Under the housing cover there is an indicator lamp which flashes every 30 seconds to show that the battery is correctly inserted and is delivering enough power to generate an alarm.
• Check the function of the smoke detector at regular intervals. Press the test button (the lower section of the housing cover) for approx. 1 second. If you hear a signal, the device is working properly and can be fastened. The test signal (3 beeps) sounds 4 times in total and the integrated LED flashes too.

Putting into operation

• Alternatively, you can use the RM test spray available from ABUS to test the wireless smoke detector. If the RM test spray enters the detection chamber, an alarm should sound, so that you can test whether the wireless smoke detector is working properly.
• After each teaching process and test alarm, the devices require a 10 minute calibration period in order to exchange enough data packets. Please do not initiate a test alarm during this time.

Networking the wireless smoke detectors

- Please note: do not network another model of wireless smoke detector with this one. This may lead to improper functioning and it cannot be guaranteed that the device will operate problem-free.

• If the test mode on one detector in a network is activated, all other networked detectors will produce a signal too.
• If one of the detectors in the network detects an alarm, all other detectors in the network will raise the alarm.
• If the battery in one detector is low, this will be indicated directly by the affected detector. In addition, this will also be indicated by all networked detectors every 4 hours by 2 beeps and a flashing LED.

Networking the detectors

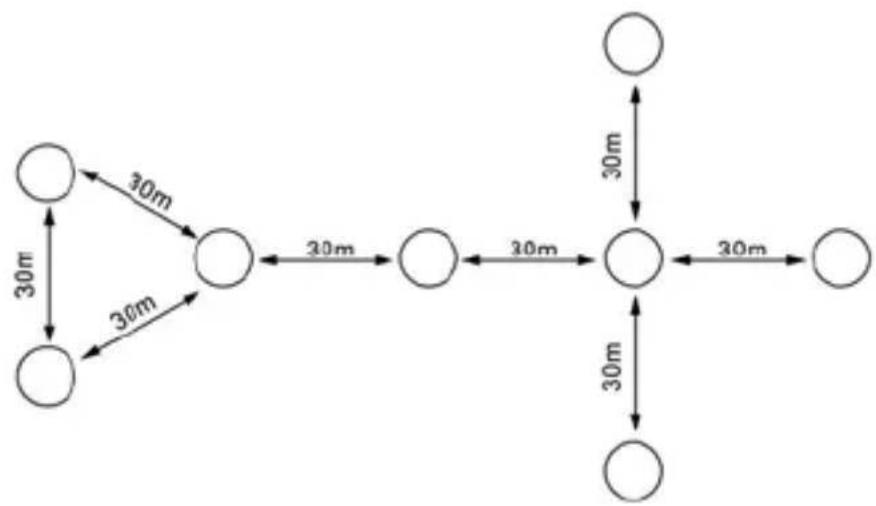

You will require at least two RM40 Li wireless smoke detectors to be able to create a wireless detector network. A maximum of 32 detectors can be networked. Due to the network connection, the distance between individual detectors must be a maximum of 30 m. The wireless range can be negatively influenced by the structural surroundings. The RM40Li detectors can be cascaded, meaning that the detectors are not connected in one direction only, so the alarm signal can be transmitted from the first to the last in a chain.

Putting into operation

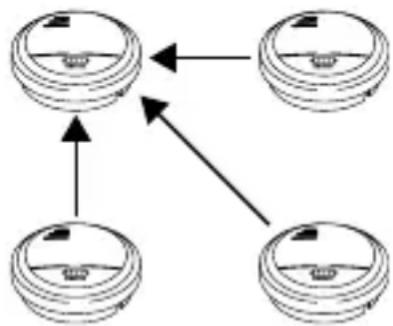

This means that when a detector receives an alarm signal, it forwards the signal on to the detectors it is connected to.

GB

>50 cm >50 cm

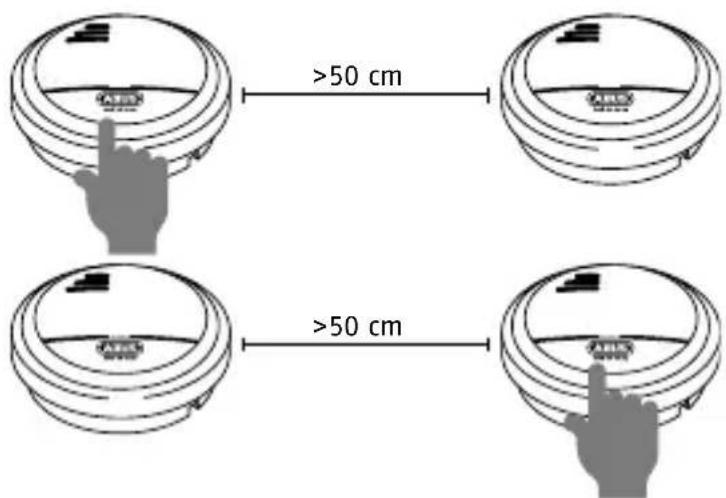

1. Press the test button on the detector for approx. 2 seconds, until the LED flashes slowly, roughly once a second. The detector is now in addressing mode.

Putting into operation

1. Press the test button on the second detector for approx. 2 seconds to set this detector in addressing mode too.

2. The detectors exit addressing mode automatically after 60 seconds.

3. The addressing process can take up to 60 seconds. When the detectors have been successfully trained, the LED on both detectors lights up for around 5 seconds, after which the detectors exit addressing mode. If this was not successful, the detector will return to standard mode automatically after 60 seconds.

4. If you wish to connect several detectors together, you will need to define a central detector, with which you can connect the other detectors. Proceed with points 1 to 4 as described to connect the detectors in a network.

5. The detectors will exchange their addressing data with another.

Reset default factory settings/separate network connections

In order to reset the smoke detectors to the default factory settings

• Press the test button and hold it down.
  • After approx. 2 seconds the LED will flash once a second. After another 5 seconds the LED will flash more frequently (approx. twice a second).
• Now let go of the button. If a short beep is heard, the procedure was successful. All network connections between the detectors have then been separated.

Muting the detector

If an alarm has been triggered, the wireless smoke detector can be muted by pressing the test button. In the case of networked detectors, the mute button on the activated detector can also silence the alarm of the other networked detectors.

Please note that in all other cases the muting only applies to the detector whose test button has been pressed. The mute remains active until the alarm is automatically reset. See the following table for differences in the signal when the detector is muted.

Audible and visual signals

Mode Audible Visual	Notes
Standby –		LED flashes every 30 seconds
Testing 3 beeps 4 times		LED flashes twice a second
Smoke chamber fault	Beeps once every 30 seconds	LED flashes twice a second
Restforing the factory settings	Short beep LED flashes twice
Fault in smoke chamber	Beeps once every 30 seconds	LED flashes every 30 seconds	Acoustically and visually out of sync
Standalone operation
Alarm	Beeps once a second	LED flashes twice a second
Muting the detector –		LED flashes once a second
Low battery	Beeps once every 30 seconds	LED flashes every 30 seconds	Acoustically and visually in sync

Putting into operation

Mode Audible Visual	Notes
Networked detector
Alarm	Beeps once a second	LED flashes twices a second
Muting the detector – –
Low battery	Beeps twice every 4 hours	Flashes twice every 4 hours	Acoustically and visually in sync
Addressing –		Flashes once a second
Addressing successful	–	LED lights up for 5 seconds

Replacing the battery

• If the battery is low, the wireless smoke detector beeps twice a minute (for up to 30 days) to remind you to replace the battery.
• You must change this battery when you hear this signal.
• Even so, the wireless smoke detector remains functional in this condition.
• You must test the wireless smoke detector each time you change the battery.
• Carry out the test as detailed above to check if the functioning and the network connection can still be guaranteed.

Note

To ensure a long service life and reliable operation, we recommend using the following high-quality lithium batteries:

• Lithium: EVE CR9V-P

The lifetime of the battery can be negatively affected by frequent alarms, dirt, large variations in the temperature or similar environmental influences.

After changing the battery, the low battery warning may continue for a further 10 minutes, due to the nature of the network. Check the functionality after testing the battery.

Alarms and error signals

When the alarm threshold is exceeded, a loud alarm sounds.

• The alarm continues sounding as long as there is smoke in the detection chamber.
• The alarm is only switched off when there is no more smoke in the detection chamber.

Maintenance and inspection

A smoke detector must always be at least once a year in accordance with DIN 14676 are checked for functionality. A functional test can be triggered by short activation of the test button with this smoke alarm (5 in Figure 1). The LED flashes quickly and it includes a test alarm. To networked detectors also includes a test alarm.

Cleaning

• Dusty detectors must be cleaned. You can clean dust from the air vents of the detector using a vacuum cleaner or compressed air. If necessary, you can remove the dust with a brush.
• When changing the battery, carefully clean the detection chamber in the wireless smoke detector with a vacuum cleaner to remove any dust or dirt.
• You can clean the surface using a cloth slightly dampened in soapy water.

Cleaning and disposal

Important

- Do not allow water to penetrate inside the device.

- Do not clean the device in a dishwasher.

• Do not use sharp, pointed, abrasive or corrosive cleaning materials or hard brushes.
• Do not use chemicals.
• Do not use flammable liquids for cleaning.

Information on the EU directive on waste electrical and electronic equipment

To protect the environment, do not dispose of the device with domestic waste at the end of its service life. It can be disposed of at one of the appropriate collection points in your country. Please obey your local regulations when disposing of material.

Dispose of the device in accordance with EU directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the department of your local authority which is responsible for waste disposal. Used equipment can be disposed of, for example, by your local or municipal authority, the local waste disposal company or your dealer.

Information on handling batteries

• Make sure that batteries are kept away from small children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. If this happens, consult a doctor immediately.
• Do not charge normal batteries, heat them up or throw them into naked flames (they may explode).
• Change low batteries in good time.
• Always change all the batteries at the same time and use batteries of the same type.

Important

• Leaky or damaged batteries can cause chemical burns on contact with the skin. In this case, wear protective gloves. Clean the battery compartment with a dry cloth.
• Do not charge normal batteries, heat them up or throw them into naked flames (they may explode).

Important information on disposing of batteries

Your product uses batteries which are subject to the European directive 2006/66/EC and may not be disposed of with domestic waste. Find out about the regulations for the separate collection of batteries which apply in your country. Proper disposal of batteries helps prevent harm to health and the environment.

Batteries that contain harmful chemicals are labelled with these signs:

Pb = battery contains lead

Cd = battery contains cadmium

Hg = battery contains mercury

Guarantee

• ABUS products are designed and manufactured with the greatest care and tested according to the applicable regulations.
• The warranty only covers defects caused by material or manufacturing errors that occurred before the product was purchased. If there are demonstrable material or manufacturing errors, the wireless smoke detector will be repaired or replaced at the warrantor's discretion.
• In such cases, the warranty ends when the original two-year warranty period expires. All further claims are expressly rejected.
• The warranty does not cover the batteries supplied.

Cleaning and disposal

• ABUS will not be held liable for defects and damage caused by external influences (e.g. transport, use of force, operating errors), inappropriate use, normal wear and tear or failure to observe the instructions in this manual.
• In the event of a warranty claim, the original receipt with the date of purchase and a short description of the problem must be supplied along with the wireless smoke detector.
• If you discover a defect on your wireless smoke detector which existed at the time of purchase, contact your dealer directly within the first two years.

Declaration of conformity

ABUS August Bremicker Söhne KG, Altenhofer Weg 25, 58300 Wetter hereby declares that the Wireless smoke alarm RM40Li (Article No.: 55811) is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

The full EU Declaration of Conformity text can be found at: www.abus.com.

Radio frequency: 868,082 MHz

Maximum transmission power: 10 dBm / 10 mW

Declaration of performance 201340 (RM40Li)

This smoke detector has been tested and certified as a construction product in accordance with Regulation EU 305/2011. It has been manufactured subject to monitoring by regular and independent inspections for unchanges in compliance with legal and normative requirements.

The respective declaration of performance can be found at www.abus.com

Please enter the smoke detector model (RM40Li) in the search field at the top right and then go to downloads. Double click to select the declaration of performance. In addition, you can also find here the data sheet and operating instructions for the smoke detector.

Note

GB

RM40Li

Security Tech Germany

ABUS Gaining Seat Germany

Architectural floor plan showing room layout and structural elements (no text or labels)

2

> 4 m 50 cm

30-50 cm 6 m 50 cm

3

Technical line drawing of a mechanical component with internal parts and external housing (no text or symbols)

Sommaire

© ABUS | D-58292 Wetter (Germany)

www.abus.com

RM40Li

Draadloze Rookmelder

ABUS

Security Tech Germany

ABUS Gaining Seat Germany

Architectural floor plan showing room layout and structural elements (no text or labels)

2

> 4 m 50 cm

30-50 cm 6 m 50 cm

3

Technical line drawing of a mechanical component with internal parts and external housing (no text or symbols)

Inhoudsopgave

© ABUS | D-58292 Wetter (Germany)

RM40Li

Security Tech Germany

ABUS Gaining Seat Germany

Architectural floor plan showing room layout and structural elements (no text or labels)

2

> 4 m 50 cm

30-50 cm 6 m 50 cm

3

Technical line drawing of a mechanical component with internal parts and external housing (no text or symbols)

Indice

© ABUS | D 58292 Wetter (Germany)
