USER MANUAL RC160 Rival

READ AND SAVE THESE INSTRUCTIONS

SERVICE INSTRUCTIONS 1. Do NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the Warranty. 2. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the enclosed Warranty. 3. If you have any questions or comments regarding this unit’s operation or believe any repair is necessary, please write to our Consumer Service Department or visit our website at www.rivalproducts.comRIVALc/o THE HOLMES GROUP, INC.CONSUMER SERVICE DEPARTMENT13052 JURUPA AVENUEFONTANA, CA 92337

ONE (1) YEAR LIMITED WARRANTY

A. This Warranty applies only to the original purchaser of this product.B. This Warranty applies ONLY to repair or replacement of any supplied or manufactured parts of this product that,upon inspection by The Holmes Group, Inc. authorized personnel, is shown to have failed in normal use due todefects in material or workmanship. The Holmes Group will determine whether to repair or replace the unit. ThisWarranty does not apply to installation expenses.C. Operating this unit under conditions other than those recommended or at voltages other than the voltageindicated on the unit, or attempting to service or modify the unit, will render this WARRANTY VOID.D. Unless otherwise proscribed by law, The Holmes Group shall not be liable for any personal injury, property or anyincidental or consequential damage of any kind resulting from malfunctions, defects, misuse, improperinstallation or alteration of this product.E. All parts of this product are guaranteed for a period of 1 year as follows:1. Within the first 30 days from date of purchase, the store from which you purchased your product shouldreplace this product if it is defective in material or workmanship (provided the store has in-stockreplacement.) * If you intend to assert any claim in connection with the product, please follow theinstructions in paragraph F.2. Within the first twelve months from date of purchase, The Holmes Group will repair or replace the product ifit is defective in material or workmanship, subject to the conditions in paragraph G. F. If you have any other problem or claim in connection with this product, please write to our Consumer Service Department.G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty depends on your following these instructions if you arereturning the unit to The Holmes Group, Inc.:1. Carefully pack the item in its original carton or other suitable box to avoid damage in shipping.2. Before packing your unit for return, be sure to enclose:a) Your name, full address with zip code and telephone number,b) A dated sales receipt or PROOF OF PURCHASE,c) A check for return prepaid shipping and handling, and d) The model number of the unit and the problem you are having. (Enclose in an envelope and tape directly to the unit before the box is sealed.)3. The Holmes Group recommends you ship the package U.P.S ground service for tracking purposes.4. All shipping charges must be prepaid by you.5. Mark the outside of your package:RIVAL c/o THE HOLMES GROUP, INC.13052 JURUPA AVENUEFONTANA, CA 92337 This Warranty gives you specific legal rights, and you may have other rights which vary from state to state. The provisions of this Warranty are in addition to, and not a modification of, or subtraction from, the statutory warranties and other rights and remedies contained in any applicable legislation. To the extent that any provision of this Warranty is inconsistent with any applicable law, such provision shall be deemed voided or amended, as necessary, to comply with such law. RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 1POLARIZED PLUG This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

SAVE THESE INSTRUCTIONS

This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts inside. Do not attempt to service this product. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used the marked electrical rating of the extension cord should be at least as great as the electrical rating of the RICE COOKER. The cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally. Do not immerse base in water or other liquids. No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling. -E2- IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING.

2. Do not touch hot surfaces. Use pot holders when removing cover or

handling hot containers. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord, plug or

heating unit in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return appliance to Rival Customer Service (see warranty) for examination, repair or adjustment.

7. The use of accessory attachments not recommended by Rival may cause

8. Do not use outdoors.

9. Do not let cord hang over the edge of the table or counter, or touch

10. Do not place on or near a hot gas or electric burner, or in a heated

11. Extreme caution must be used when moving any appliance containing

12. To disconnect, remove plug from wall outlet.

13. Do not use this appliance for anything other than intended use.

14. To reduce the risk of electrical shock, cook only in removable container.

Do not pour liquid into outer pan. -E3- Congratulations on the purchase of your new RICE COOKER! You are now the proud owner of an extremely versatile appliance. You can expect perfect rice every time as well as prepare great soups and stews, steam vegetables and even bake a cake! Be sure to visit the Rival web site at www.rivalproducts.com for more about your RICE COOKER and the many different ways you can use it! RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 3ADDITIONAL IMPORTANT SAFEGUARDS

• CAUTION: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent risk of burns, fires or other damage to persons or property.

• All users of this appliance must read and understand this OWNER’S MANUAL before operating or cleaning this appliance.

• The cord of this appliance should be plugged into a 120 volt AC electrical outlet only.

• When using this appliance, provide adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.

• Do not leave appliance unattended during use.

• This appliance generates steam. Do not operate uncovered.

• If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance. Do not use the INNER POT or LID if cracked or chipped.

• This appliance is for household use only.

• Unplug the rice cooker when not in use.

• Use the rice cooker on a hard, flat surface. Do not place near heat, an open flame or on a soft surface (such as carpeting). Avoid placing it where it may tip over during use. Dropping the rice cooker may cause it to malfunction.

• Avoid electrical shock by unplugging before washing or adding water.

• To avoid burns, stay clear of the steam vent during cooking. Also, wait for the rice cooker to cool down completely before touching or cleaning the LID, INNER POT or heating plate.

• Never use the INNER POT on a gas or electric cooktop or an open flame.

• Do not leave the rice ladle or MEASURING CUP in the INNER POT while unit is on and in use.

• Please use measuring cup that was provided in the rice cooker. A standard measuring cup SHOULD NOT BE USED.

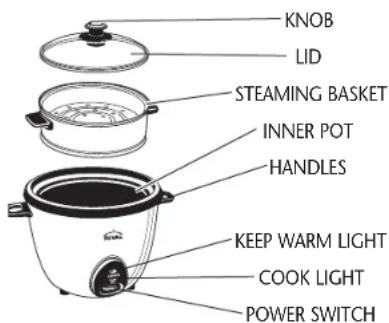

Clean the LID, INNER POT, RICE LADLE and MEASURING CUP, following the user maintenance instructions. DO NOT IMMERSE THE HEATING UNIT OF YOUR RICE COOKER IN WATER OR OTHER LIQUID. -E4- -E5- KNOB LID STEAMING BASKET INNER POT HANDLES

COOK LIGHT POWER SWITCH RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 5Measuring your rice is of extreme importance. Please do not discard the "rice cooker" measuring cup that is provided with this unit. This “rice cooker” measuring cup is the standard unit of measurement for this product. When this manual instructs you to add 7 cups of rice and add the corresponding amount of water to the "7" marking on the INNER BOWL, the instructions are referring to the “rice cooker” measuring cup that is included, not a standard U.S. measuring cup.

Measure the amount of rice you would like to cook. A 3/4 cup (180 ml) measuring cup is included with your rice cooker. The "rice cooker" measuring cup makes approximately 2 1/4 cups of cooked rice. NOTE: The rice cooker is capable of cooking up to 7 full "rice cooker" measuring cups of uncooked rice. Many varieties of rice can be used, including basmati, wild rice, black rice, Arborio, risotto, saffron rice, short and long grain. Do not use instant rice with this rice cooker. Whole grains such as barley can also be prepared with the rice cooker. Follow package directions.

Wash the measured rice in a separate bowl until the water is clear.

Place rice in the INNER POT and add the corresponding amount of water. For example, if you are making 7 cups of uncooked rice, add water to the "7" mark on the inner bowl. NOTE:Brown rice will take longer to cook than white rice.

Set the INNER POT into the rice cooker. Make sure that the INNER POT is in direct contact with the heating plate by turning it slightly from left to right until it properly fits onto the heating plate. NOTE: If the outside of the INNER POT is wet when placed in the rice cooker, this may cause a crackling noise until the unit heats up. Also, this may damage the inner working of the appliance, so always wipe the outside of the pot completely before use.

WARNING: Do not operate this appliance uncovered – steam is

Rinse rice – Bran gives an unpleasant smell to cooked rice. Be sure to rinse rice thoroughly. Rinsing with water effectively removes bran quickly and thoroughly. NOTE: Some rice suppliers suggest not rinsing rice because vitamins may be lost.

After use, wash the INNER POT and LID in warm, soapy water.

Rinse thoroughly and dry.

DO NOT keep the rice cooker in operation: When there is only a small amount of rice left in the POT. When rice ladle is inside the rice cooker. To warm up cold rice.

• DO NOT let water in the INNER POT boil dry. generated during use that could cause burns or other serious injuries.

Plug the cord into a 120-volt AC electrical outlet. Switch the rice cooker ON by pushing the button down. Make sure the COOK indicator light is illuminated. Steaming will begin shortly.

The switch will pop up and the KEEP WARM indicator light will come on when all the water in the rice cooker has evaporated. NOTE: You may need to add more water and set the rice cooker to COOK more than once depending on your own personal tastes.

After cooking,the KEEP WARM indicator light will illuminate. It is important to let the rice stand for 10-15 minutes of steaming without removing the LID. Carefully open the LID, taking care to avoid escaping steam. Use the rice ladle, or other long handled utensil, to mix the rice well to allow steam to escape. CAUTION: Steam will escape. Do not touch the INNER POT or heating unit until they have cooled.

Allow the appliance to cool completely before cleaning.

Disconnect the plug from the wall outlet when not in use. HOW TO USE YOUR RICE COOKER (CONTINUED) COOKING HINTS -E6- -E7- RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 7The steaming times in this chart are a guide and should be adjusted to suit the different quantities or thickness of food and to suit your own taste. *Altitude affects the temperature at which water boils and thus the cooking time. It’s especially true at high altitudes where longer cooking times are necessary. We have outlined a general guide to follow. Test for desired consistency when cooking times indicated have been reached. As you cook with this appliance, adapt times and measurements to your own personal tastes.

Clean and prepare your food or vegetables.

Place the INNER POT in the rice cooker. The length of steaming time is subject to your own personal tastes: depending if you prefer al denté (crunchy) or more well done steamed vegetables.

Measure appropriate amount of water and add to INNER POT. NOTE: You are able to steam rice and vegetables/food at the same time with the STEAMING BASKET resting on the INNER POT.

Place the STEAMING BASKET on the rim of the inner pot.

Add vegetables or food and put the LID onto the appliance. Switch to COOK position for the appropriate time as shown in the chart.

Please unplug this appliance after use.

1. The ingredients must be of superior excellence.

2. Select lean cuts of meat that will result in tender food and require

less cooking time. RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 9RECIPES POACHED EGGS Serve on English muffins with Canadian Bacon and Hollandaise Sauce for a special holiday breakfast. 6 eggs 1 tsp. white vinegar Fill rice bowl with 5 cups water and vinegar and set to COOK mode and cover with lid. When water begins to boil, carefully crack 6 eggs into egg poachers and place into rice bowl. Cook until whites are just set approximately 7-8 minutes. NOTE: Eggs can be poached on steamer rack in ramekins.

SOFT/HARD BOILED EGGS

Pour 4 cups water into rice bowl. Set unit to COOK mode. When water comes to a boil, place eggs in steamer rack and cover. Cook 6-8 minutes for soft boiled eggs and 12-14 minutes for hard boiled eggs.

APPETIZERS AND SIDE DISHES

Steamed Spicy Shrimp in Beer and Seasonings 1 beer 2 lbs. large shrimp, deveined, but with peels and 1 T. shrimp and crab boil tails left intact 1 tsp. cayenne 1 tsp. salt 4 cloves garlic, peeled and sliced Toss shrimp with 1/4 bottle of beer, 1 tsp. crab boil 1/2 tsp. cayenne and garlic. Add remaining ingredients to the rice bowl. Place shrimp in steamer basket and turn unit to COOK Mode. Cook just until shrimp turn pink. Avoid overcooking. Serves 4. Littlenecks with White Wine, Shallots and Tarragon Great as an appetizer or over pasta. 2 lbs littleneck clams, scrubbed well 1 cup dry white wine 2 T. butter 3 shallots, peeled and chopped 1 T. fresh tarragon chopped Place butter into bowl of rice cooker and sauté shallots on the COOK mode until they are fragrant and transluscent. Add white wine and littlenecks to rice bowl. Cook just until clams open. Discard any clams that do not open. Garnish with tarragon. -E10- -E11- This appliance should be cleaned after every use.

Unplug the rice cooker when not in use and before cleaning. Never immerse HEATING UNIT, cord or plug in water or any other liquids. Allow the rice cooker to cool completely before cleaning. NOTE: Use the rice ladle or wooden utensil to stir and remove food from the INNER POT. DO NOT use any metal utensils.

To clean the HEATING UNIT, lightly wipe the exterior with a damp cloth or sponge. Dry thoroughly with a soft cloth.

The INNER POT is coated with a non-stick coating to make clean up easier. To clean, remove the INNER POT from the rice cooker and fill with hot water from the tap. Let it sit for a while and then wash with hot soapy water. Rinse thoroughly and dry.

The "rice cooker" measuring cup, rice ladle and Lid can be washed in warm, soapy water. They are not dishwasher safe.

Make sure that the grains of rice do not stick to the heating plate in the bottom of the heating unit. If this occurs, remove immediately. If grains of rice are stuck onto the heating plate, a non-abrasive pad can be used to remove it. Polish the area for good contact between the heating plate and the bottom of the INNER POT. NOTE: Do not use abrasive cleaners, scouring pads or steel wool to clean the rice cooker.

Do not use bleach, vinegar or other harsh chemicals to clean the rice cooker.

HOW TO CLEAN YOUR RICE COOKER

3. Make sure that the Lid is secured on the rice cooker to prevent

escaping steam and requires longer cooking time.

4. DO NOT let food touch the water, or the food will boil not steam.

5. Always maintain the water level for continuous cooking.

6. Continue cooking foods that haven't been cooked through or not

cooked to your liking. HINTS FOR STEAMING (CONT.) RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 11RECIPES Steamed Stuffed Artichokes 1 lemon, sliced in quarters 4 small artichokes, washed, tops sliced off and 8 oz. bread crumbs stems trimmed 10 oz. grated Pecorino Romano cheese 1 bunch flat leaf parsley, chopped

1/2 tsp salt 1/2 tsp freshly ground pepper 1 Tbs extra virgin olive oil Fill rice cooker with lemon slices and 5 cups of water. Turn unit to COOK mode until water is boiling. Combine bread crumbs, cheese, parsley, salt and pepper. Spread artichoke leaves and fill pockets generously with bread crumb mixture until you reach the soft leaves near the center. Place artichokes in steamer rack. Drizzle olive oil on top of each artichoke. Put on lid, turn unit to COOK mode and cook until leaves are tender and pull away from heart easily. Check for done after approximately 30 minutes. Serves 4. Fresh Garlic and Basil Tomato Sauce This recipe makes a great tomato sauce for pizza or any pasta dish. Top pasta with sauce and grated cheese for a simple, quick vegetarian dinner. 2 T. olive oil 1 whole bulb garlic, peeled and coarsely chopped 1 28 oz. can of peeled tomatoes, 1 T. sugar Chopped coarsely 1 bunch fresh basil, torn Salt and pepper Heat olive oil in rice cooker bowl on COOK mode. Add garlic and season with salt and pepper. Cook until fragrant, stirring constantly, approximately 5 minutes. Add tomatoes and sugar. Cook until sugar has dissolved. Cool and add torn basil. Serves 4-6. SOUPS Lentils Soup with Pancetta 5 oz. pancetta (or bacon), diced finely 1 cup celery, diced 1 cup onion, diced 1 cup carrot, diced 10 cloves garlic, peeled and coarsely chopped 3 bay leaves 1 T. fresh thyme 1 lb. lentils, rinsed and drained 10 cups chicken stock 1/4 cup evaporated milk or cream 1/4 cup red wine 1 bunch scallions, sliced and sautéed until soft Saute pancetta in bowl of rice cooker set on the COOK mode. Drain off fat, reserving 1 Tablespoon. Place celery, onions, carrots, garlic, bay and thyme in rice bowl and sauté vegetables for approximately 10 minutes or until softened. Add lentils and broth RECIPES and continue cooking on COOK mode for 1 hour. Discard bay leaf and remove 2 cup lentils. With hand blender, puree soup until desired consistency. Add back the 2 cups of reserved lentils and stir in evaporated milk and red wine. Garnish with scallions. Serves 4-6. MAIN DISHES Steamed Halibut with Mirin and Brown Sugar Glaze 1 cup mirin 1 cup brown sugar 4 pieces halibut, approximately 6 oz. each 3 scallions, finely chopped 2 T. fresh cilantro leaves Place mirin and brown sugar in a sauce pan and cook on medium heat until it reduces and becomes a syrupy glaze. Fill rice cooker bowl with 4 cups of water. Coat halibut on all sides with glaze and place in steamer rack. Set unit to COOK mode and cook until halibut is not longer translucent in center, approximately 15 - 20 minutes. Garnish with scallions and cilantro. Serves 4. Tandori Marinated Chicken Breasts and Curried Rice Tandori Marinade 1 cup plain yogurt 2 lemons, juiced 2 tsp. cumin 2 cloves garlic, peeled and minced 4 chicken breasts 2 rice cooker measuring cups long grain rice 3 rice cooker measuring cups water 1 T. curry powder 1/2 cup yellow raisins 2 T. finely minced red onion 2 T. flat leaf parsley, chopped Mix together the marinade ingredients and coat chicken on all sides. Place in refrigerator and marinate for 2-4 hours. In rice bowl, add rice and water. Place chicken in steamer rack and cover with lid. Set on COOK mode until chicken is cooked, approximately 30 minutes. Add curry, raisins, onions and parsley to rice and serve with chicken. Serves 4. -E12- -E13- RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 13-E15--E14- RECIPES RECIPES DESSERTS Mexican Chocolate Custard 2 cups half and half 3/4 cup chocolate chips 3 T. unsweetened cocoa powder 1/3 cup light brown sugar, packed 1 large egg 3 large egg yolks 1 tsp. vanilla 1 T. cinnamon Fill rice cooker bowl with 4 cups of water. Set unit to COOK mode and put lid on unit. Bring water to a boil. Place half and half, chocolate chips and cocoa powder in saucepan. Heat to just below the boiling point. Whisk together sugar, egg, egg yolks, vanilla and cinnamon in a separate bowl. While whisking egg mixture, slowly pour in chocolate mixture. Fill custard cups and place in steamer rack. Cook in batches if cups do not all fit into unit taking care to ensure there is enough water boiling in rice bowl. Cook custard until slightly undercooked in center, approximately 15-20 minutes. Crème Caramel 1/3 cup sugar 2/3 cup water 2 cups half and half 1/2 cup sugar 2 tsp vanilla 1 egg 4 egg yolks Fill rice cooker bowl with 4 cups of water. Set unit to COOK mode and put lid on unit. Bring water to a boil. Set 1/3 cup sugar and water over medium heat in saucepan until it starts to darken to a rich golden brown. Whisk together sugar, egg, egg yolks and vanilla in a separate bowl. Place half and half and 1/2 cup sugar in saucepan set over medium heat and heat to just below the boiling point. While whisking egg mixture, slowly pour in hot half and half mixture. Fill ramekins and place in steamer rack. Cook in batches if ramekins do not all fit into unit taking care to ensure there is enough water boiling in rice bowl. Cook custard until slightly undercooked in center, approximately 15-20 minutes. To serve, loosen edge of custard with a knife and invert into bowl. To release caramel, place ramekins in microwave for approximately 45 seconds and pour over custard. Serves 4. Poached Pears 4 pears, peeled with stem left intact 2 cups white wine 2 cups water 1 cup sugar 1 lemon, zested Pour wine, sugar and water into rice cooker bowl. Place pears in, bottoms down, and place lid on unit. Set unit to COOK mode and poach until pears are softened but still hold their shape, approximately 30 minutes. Remove pears and continue to boil poaching liquid until reduced by half and becomes syrupy. Pour poaching sauce over pears and garnish with lemon zest. RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 15RC160/161/9100410000124RC160/16105EFM1Imprimé en Chine RC160 RC161 Cuit-riz Notice D’emploi
