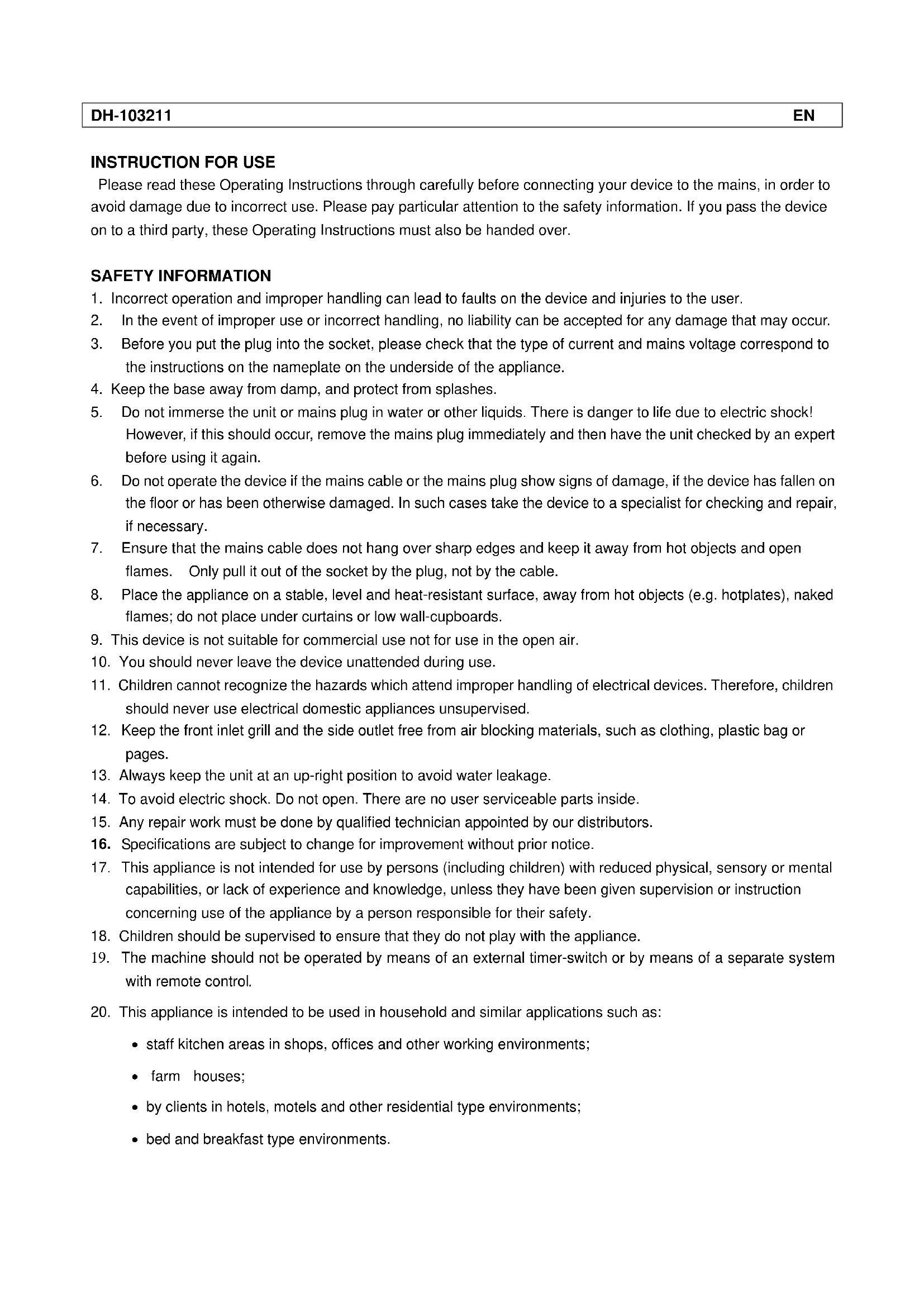

Please read these Operating Instructions through carefully before connecting your device to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the device on to a third party, these Operating Instructions must also be handed over.

SAFETY INFORMATION

1. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
2. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
3. Before you put the plug into the socket, please check that the type of current and mains voltage correspond to the instructions on the nameplate on the underside of the appliance.

4. Keep the base away from damp, and protect from splashes.

5. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

6. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

7. Ensure that the mains cable does not hang over sharp edges and keep it away from hot objects and open flames. Only pull it out of the socket by the plug, not by the cable.

8. Place the appliance on a stable, level and heat-resistant surface, away from hot objects (e.g. hotplates), naked flames; do not place under curtains or low wall-cupboards.

9. This device is not suitable for commercial use not for use in the open air.

10. You should never leave the device unattended during use.

11. Children cannot recognize the hazards which attend improper handling of electrical devices. Therefore, children should never use electrical domestic appliances unsupervised.

12. Keep the front inlet grill and the side outlet free from air blocking materials, such as clothing, plastic bag or pages.

13. Always keep the unit at an up-right position to avoid water leakage.

14. To avoid electric shock. Do not open. There are no user serviceable parts inside.

15. Any repair work must be done by qualified technician appointed by our distributors.

16. Specifications are subject to change for improvement without prior notice.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

18. Children should be supervised to ensure that they do not play with the appliance.

19. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

20. This appliance is intended to be used in household and similar applications such as:

21. staff kitchen areas in shops, offices and other working environments;

22. farm houses;
23. by clients in hotels, motels and other residential type environments;
    • bed and breakfast type environments.

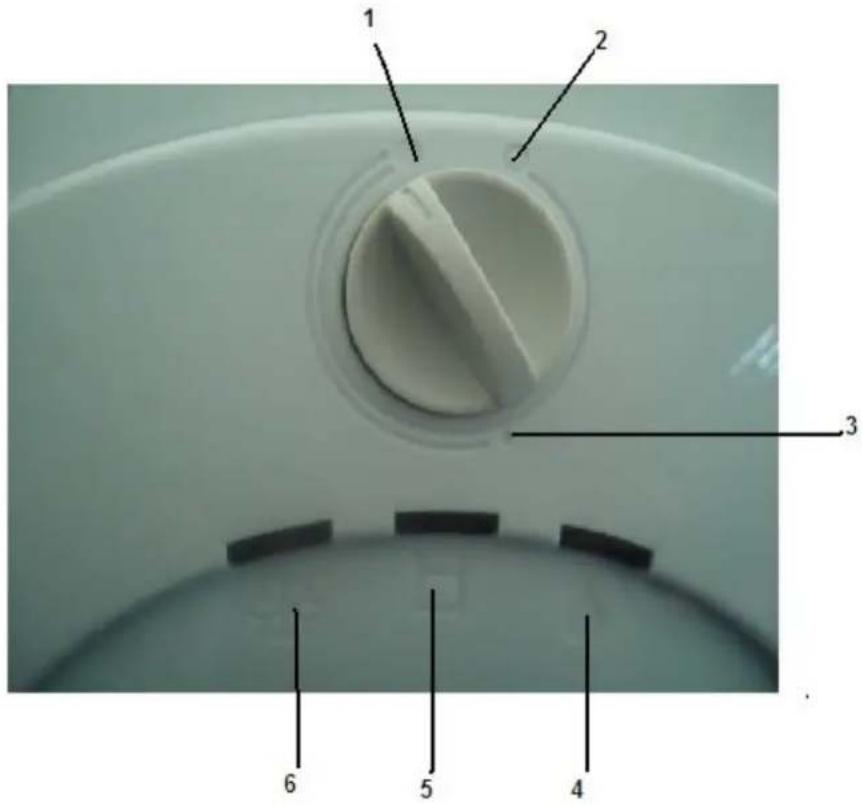

FUNCTIONAL CHARACTERISTICS

1 2 3 4 5 6

1. CONTINUE (Dehumidifier continuously removing moisture)
2. OFF (Dehumidifier stop removing moisture)
3. NOTMAL (Humidity control between 50%-60%)
4. RUNNING LAMP (When the lamp lights up which means dehumidifier is operating)
5. WATER FULL LAMP (When the water tank is full, the full tank lamp will light up, the dehumidifier will Stop operating immediately)
6. DEFROST LAMP (When operating under low temperature for a short period, the dehumidifier will starting defrost process, the indicating lamp will light up)

OPERATION

1. Ensure that the unit is connected to the power socket.
2. Make sure the water tank is placed in proper position (After plug on the machine for first time, if the water full tank lamp light up, just pull out the water tank then push it back to the proper position)
3. Turn clockwise the humidity control knob to the suitable humidity (usually at normal position) If the humidity indoor is over the set humidity, then the machine will start removing moisture..

Please turn the humidity control knob to the position of "continue" to make the machine works continuously when exploded to a high humidity environment.

1. When the humidity in the room reached the set humidity then the machine will stop operating.
2. When the humidity in the room is over the set humidity then the machine will start removing moisture again.
3. The circulation between point 3,4,5 is controlled by the set humidity.

REMOVABLE WATER TANK:

When the water tank is full, the indication lamp will light up, the machine will stop operating. Remove the water tank from the unit and pour the water out to the toilet or bathroom. Put the water tank back to it's proper position the machine will start operating again.

DEFROST:

When operating in low temperature (less than 12^ C) the surface of the evaporator will accumulate frost and effect the efficiency of the dehumidifier. When this happens the machine will go into periodic defrost mode automatically. This is quite normal. Defrost lamp will come on, the unit will operate in temperature down to 5^ C. Defrost time may vary. If the dehumidify freezes up turn the unit off for few hours and then restart, it is not recommended to use the dehumidifier in the temperature below 5^ C.

CONTINUOUS DRAINAGE

1. Continuous drainage under good condition.

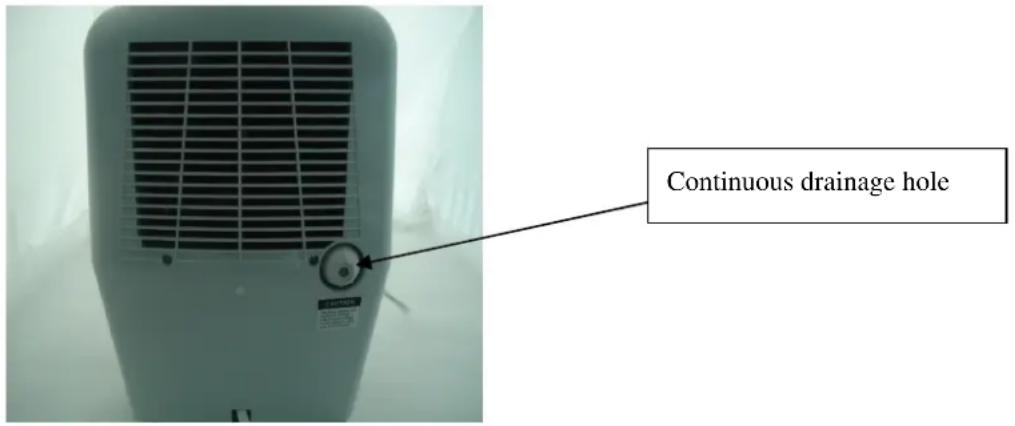

Continuous drainage hole

1) Put in the PVC hose into the back of the closed hole, then connect the PVC hose to the front.

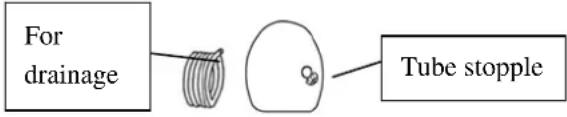

1, prepare PVC hose to drain out water (the hose sold in marker with inner dia. 13mm)2, Take out the stopple of the drainage outlet.	Back of the unit

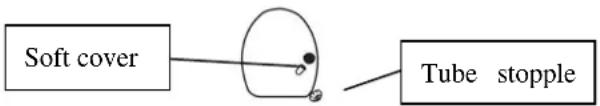

3, Take out the soft cover put it and tube stopple into the water tank for storage

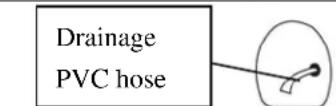

4, Connect the PVC hose with the drainage outlet.

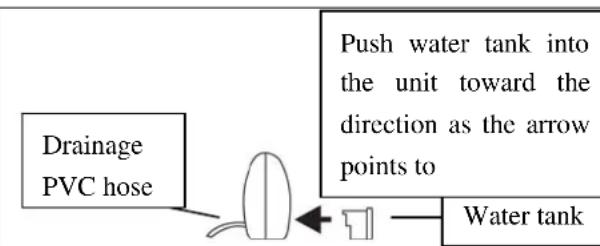

5, Place the water tank on its original location.

2) Put the water tank back, do according to the instructed way.

1. The proper way to place the water drainage PVC hose, when using continuous drainage, the PVC hose must be placed below the drainage hole, avoid uneven surfaces and do not "kink" the hose

CLEANING:

1. outer case

Wipe the shell with soft, slightly damp cloth; do not immerse water or any other liquid. Dry with a day cloth, do not use harsh abrasives or solvents.

2. Air filter cleaning

Air filter filters the dust and impurities from the air which may hinder the dehumidifying function, these should be regularly cleaned. To remove intake filter, remove the water tank and tip the appliance towards the rear at an angel of approximately 15 degrees. The filter is located behind the front grill and should be pull downwards to remove clean and replace.

SPECIFICATRION:

Power : 220-240V \~50Hz

Moisture removal: 10L/D(30°C 80% RH)

Power input: 180W

Operating temperature: 5°C - 35°C

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.
