Product Type	Canister Vacuum Cleaner
Brand	AFK
Model	BSC2300W.4
Power Supply	220-240 V ~ 50 Hz
Power	Not specified (standard power about 2000 W)
Dust Container Capacity	Not specified (standard capacity about 2 L)
Filter Type	HEPA filter and motor protection filter
Power Cord Length	Approximately 6 m (yellow mark for ideal length, red for maximum)
Included Accessories	Floor brush (2 positions), combination brush, extension tube, hose
Main Functions	Foot pedal on/off control, power adjustment, automatic cord rewinder, dust level indicator (red light)
Maintenance	Emptying container via bottom button, cleaning motor and HEPA filter twice a year
Safety	Do not vacuum water, flammable or burning materials; use only with motor filter in place; unplug before maintenance
Warranty	2 years from date of purchase
Weight	Not specified (standard weight about 5 kg)
Dimensions (L x W x H)	Not specified

Frequently Asked Questions - BSC2300W.4 AFK

How to start the BSC2300W.4 vacuum cleaner?

Unwind the cord by pulling the plug to the yellow mark (ideal length). Plug into a 220-240 V outlet. Press the ON/OFF pedal to start. Use the power adjustment to adapt suction.

How to stop and store the vacuum cleaner?

Press the ON/OFF pedal to turn off. Unplug the plug. Press the cord rewinder pedal to store it automatically.

How to empty the dust container?

Open the front cover by pressing the clip. Lift the container handle to remove it. Hold it over a trash can, press the bottom drain button: the lower part opens and dust falls out.

When and how to clean the filters?

Clean the motor protection filter and HEPA filter twice a year, or when visibly clogged. Remove them, rinse with clean water and let dry completely before reinserting. Replace a damaged filter.

What to do if the vacuum cleaner no longer sucks well?

Check that the dust container is not full (red light). Clean the filters. Check that no blockage obstructs the brush, tube or hose. If the problem persists, contact a service center.

Can I vacuum water with this device?

No, never vacuum water or flammable materials. This would damage the device and pose an electrical risk.

How to use the floor brush?

The brush has two positions: one for hard surfaces (e.g. tile) and one for soft surfaces (e.g. carpet). Select the position appropriate for the floor type.

What to do if the power cord is damaged?

Do not use the device. Have the cord replaced by a qualified professional or by after-sales service.

Is the vacuum cleaner covered by a warranty?

Yes, a 2-year warranty from the date of purchase. It covers material and manufacturing defects, but not damage due to misuse or unauthorized intervention.

Can I use the vacuum cleaner without the motor filter?

No, never use the vacuum cleaner without the motor protection filter. This could damage the motor and inhale fine dust.

USER MANUAL BSC2300W.4 AFK

Bodenstaubsauger (German)
Vacuum Cleaner (English)
Stofzuiger (Dutch)
Aspirateur (French)
Aspirapolyvere (Italian)
Aspirador (Spanish)
Dammsugare (Swedish)
Odkuracz (Polish)
Vysavač (Czech)

BSC-2300W.4

I) TEILEUBERSICHT FÜR DEN BSC-2300W.4

1. Connect the hose accessories: press the adaptors at both side of the hose end, then insert the hose into the hose socket.
2. Connect the extension tube to the curved hose end. Connect the different nozzle tools / floor brush to the tube for different cleaning purposes. The floor brush has two positions, one for hard/even and one for soft/textile surfaces - Choose the right one. Use combo brush for cleaning narrow surface.
3. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket.

Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power. Adjust it to the required level depending on the cleaning function.

1. Turn off the appliance:

After using, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket, press the cord pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

III) MAINTENANCE:

1. When the dust full indicator turns to red, it is time to clean the dust bag or replace with a new bag. To do that, please follow the instructions:

a) open the front cover by pressing the lock clip
b) Lift up the dust tank handle to take out the dust tank.
c) Situated the dust tank just above the dust bin.
d) Press the dust release button at bottom of dust tank, the dust tank lower base will open automatically and dust will come out from the dust tank.
e) Insert the dust tank back into the machine at the proper situation.

NOTE:

The motor protection filter, HEPA filter and the exhausted filter should be removed and rinsed twice a year or whenever it is visibly clogged. If the filter is damaged, a new filter should be replaced.

Power Cord Marking

NOTE: Do not exceed the red mark when pulling out the cord.

The yellow mark shows the ideal cable length.

WARNING: the plug must be removed from the power socket before any maintenance or replacement.

SAFETY INSTRUCTIONS:

1. For the first operation, it is advisable to read the manual carefully beforehand and keep it properly for future use.
2. Before the first operation, make sure the dust bag is properly installed.
3. Make sure the local power supply conforms to that on the rating label or in the instructions.
4. Do not vacuum water and inflammable material.
5. Do not vacuum burning material and hot ashes.
6. Do not use the cleaner without a motor protection filter.
7. Clean the dust bag when it becomes full.
8. If any blockage is found in brush, hose or tubes, the appliance can be reoperated only after the blockage is cleaned away.
9. If the dust bag is damaged, a new one must be replaced.
10. Do not store or use the appliance close to high temperature places.
11. Do not let children use the appliance.
12. If abnormal noise, smell, smoke, or any other irregularity occur during operation, turn off the switch and unplug it. Then contact your service centre for repair. Do not repair by yourself.
13. If the power cord, switch or motor are damaged, have them repaired or replaced only by qualified persons.

Do not run over the power cord.

Technical Data

Operating Voltage: 220 - 240V 50Hz

Power: 2000W(Nom), 2300W(Max)

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. During this period we will remedy all defects free of charge, which can be demonstrably attributed to material or manufacturing defects, by repair or exchange.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee.

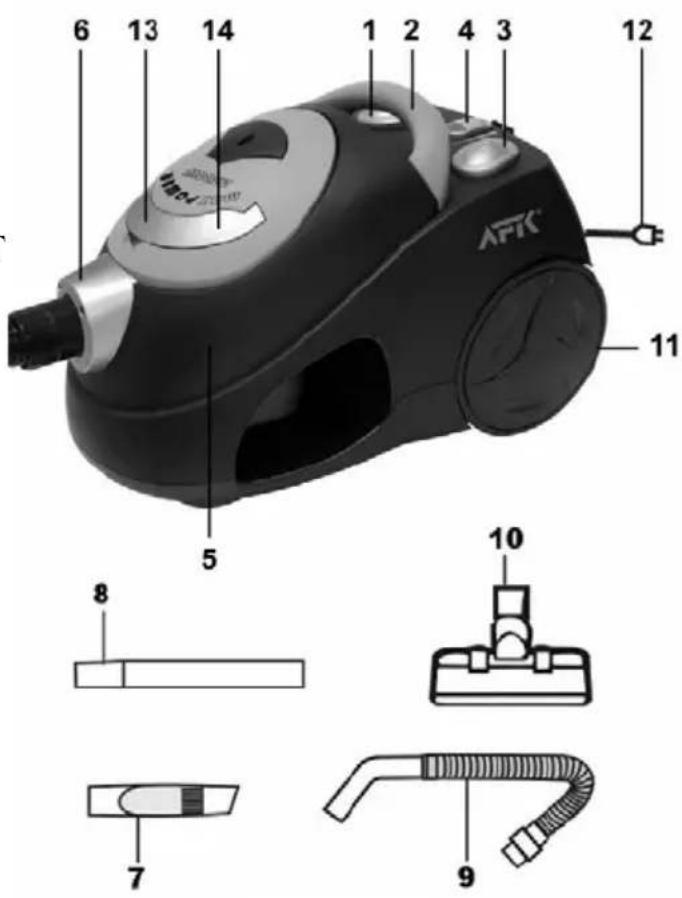

I) ONDERDELENLIJST VOOR BSC-2300W.4

1. AAN/UIT-VOETSCHAKELAAR
2. HANDGREEP
3. VOETSCHAKELAAR OM HET SNOER OP TE ROLLEN
4. SCHAKELAAR VOOR DE INSTELLING VAN DE ZUIGKRACHT
5. BEHUIZING
6. SLANGAANSLUITING
7. SPLEETMONDSTUK
8. VERLENGBUIS
9. SLANG
10. VLOERBORSTEL
11. WIEL ACHTERAAN
12. NETSNOER
13. STOFRESERVOIRGREEP
14. STOFRESERVOIR

II) GEBRUIK:

Puisance:2000W(Nom),2300W(Max)
