USER MANUAL WGD4800BQ WHIRLPOOL

CHECK YOUR VENT SYSTEM

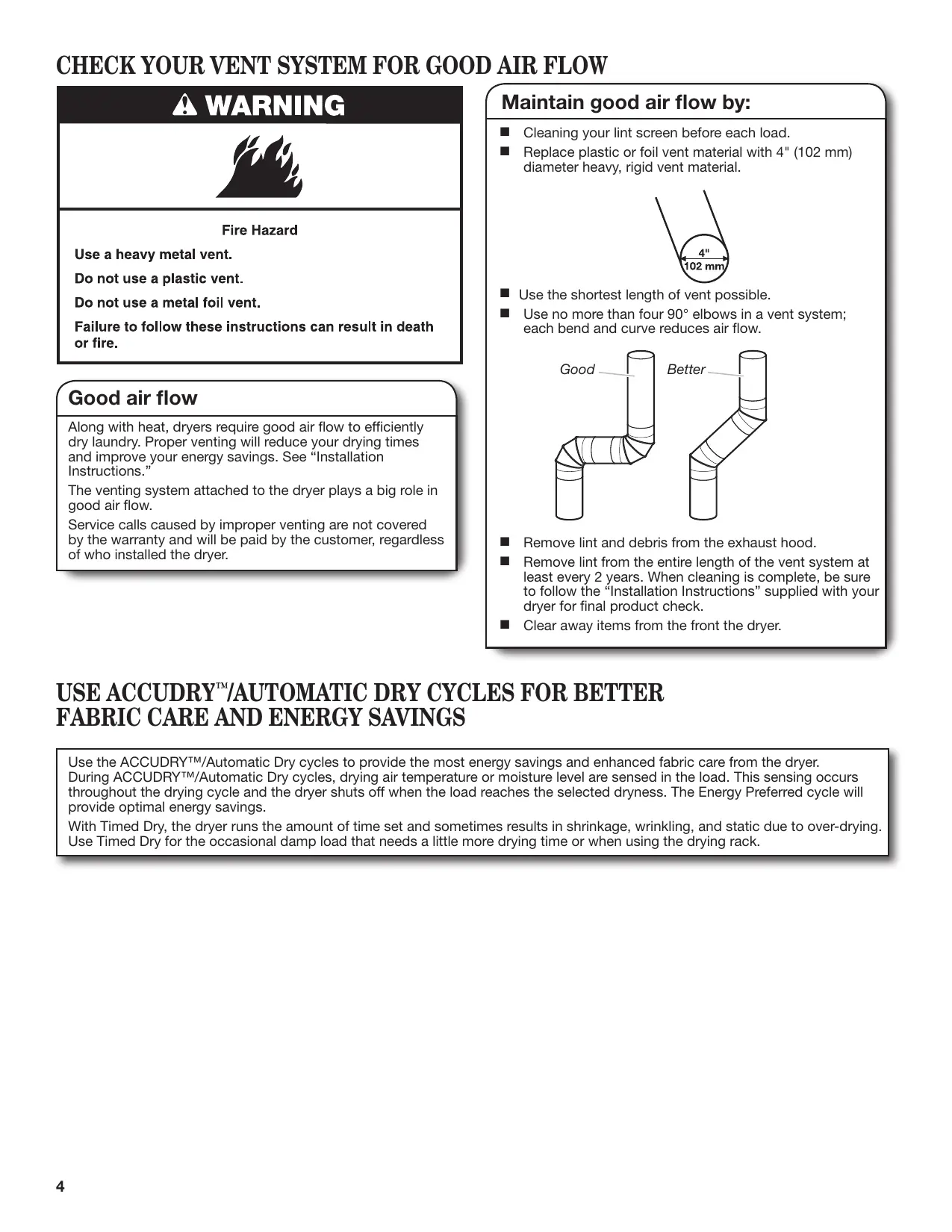

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW Maintain good air flow by:

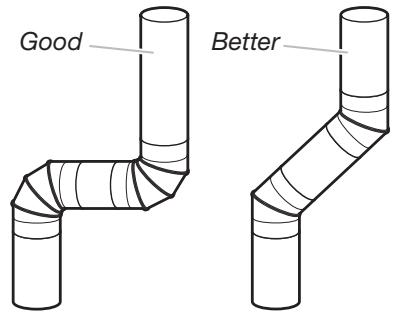

Cleaning your lint screen before each load. Replace plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material. n Use the shortest length of vent possible. n Use no more than four 90° elbows in a vent system; each bend and curve reduces air flow. Good Better Good air flow Along with heat, dryers require good air flow to efficiently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See “Installation Instructions.” The venting system attached to the dryer plays a big role in good air flow. Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer. Remove lint and debris from the exhaust hood. Remove lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the “Installation Instructions” supplied with your dryer for final product check. n Clear away items from the front the dryer.

Use the ACCUDRY™/Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During ACCUDRY™/Automatic Dry cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings. With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to over-drying. Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

Not all features and options are available on all models. Appearance may vary.

WRINKLE SHIELD™ Feature (on some models) When you are unable to remove a load of clothes from the dryer as soon as it stops, wrinkles can form. The WRINKLE SHIELD™ feature periodically tumbles, rearranges, and fluffs the load to help keep wrinkles from forming. n Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the WRINKLE SHIELD™ knob to on or off at any time before the cycle has ended.

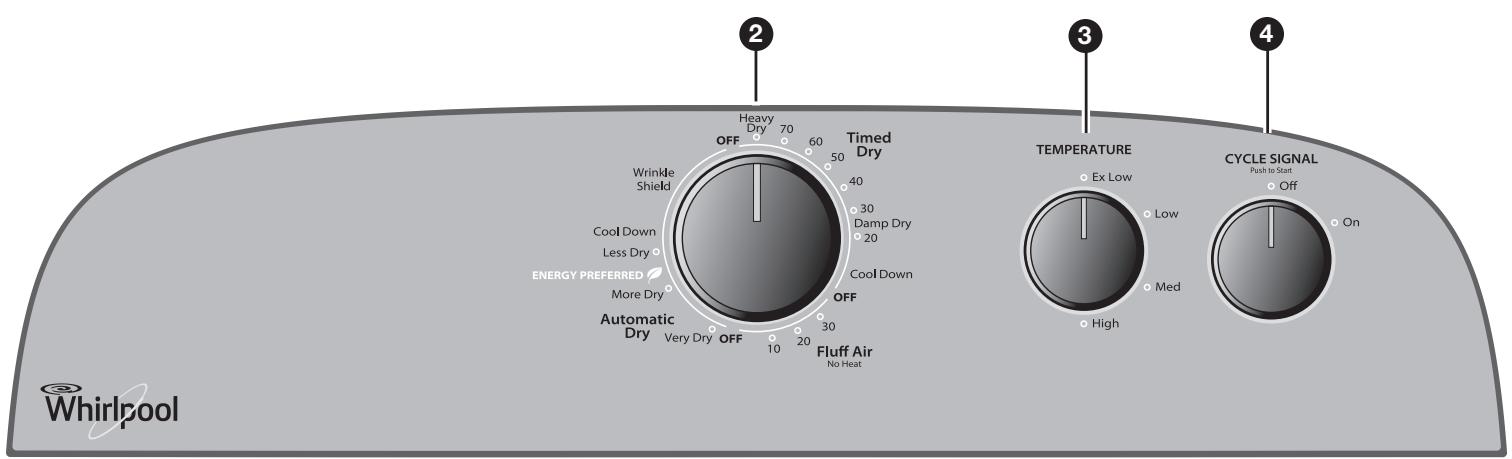

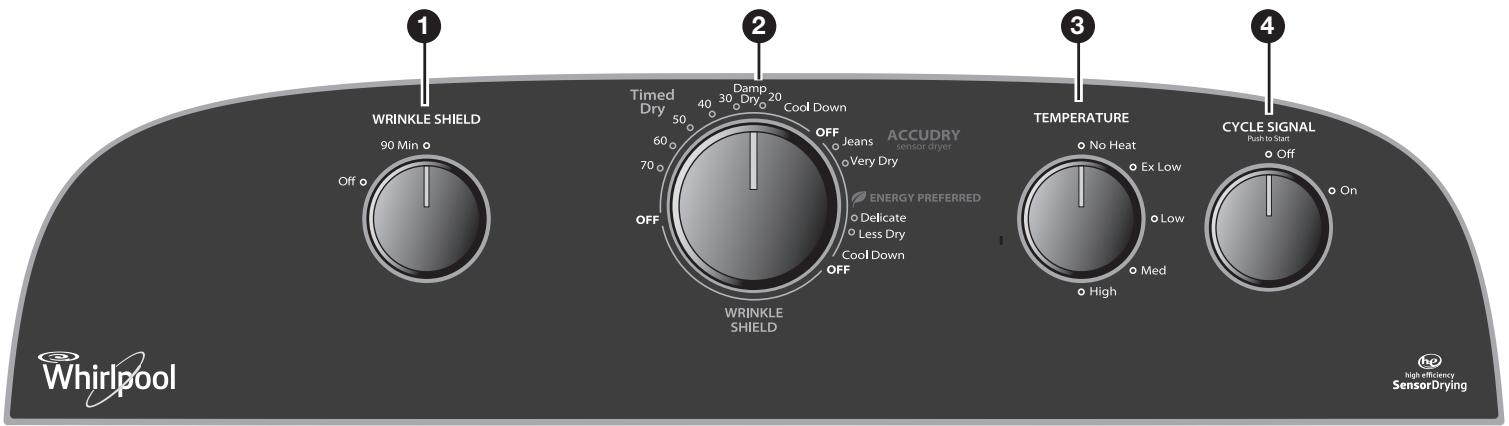

Use your Dryer Cycle Knob to select available cycles on your dryer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. TIMED DRY Will run the dryer for the specified time on the control. On models with a selectable temperature knob, you may choose a setting based on the fabrics in your load. Drying time and temperature will depend on your dryer model.

Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. NOTE: The No Heat temperature setting (on some models) is not available on ACCUDRY™ cycles. The Cycle Signal produces an audible sound when the drying cycle is finished. Promptly removing clothes at the end of the cycle reduces wrinkling. Turn the CYCLE SIGNAL knob to select the desired setting (On or Off). Press the PUSH to START knob to start the dryer. NOTE: When the Wrinkle Shield™ setting is selected and the Cycle Signal is on, the tone will sound every 5 minutes until the clothes are removed, or the Wrinkle Shield™ setting ends. Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. Gives the best drying in the shortest time. Drying time will vary based on fabric type, load size, and dryness setting.

Not all cycles and settings are available on all models. ACCUDRY™ - Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. Choose ENERGY PREFERRED cycle for optimal energy savings. Cycle: Temperature: Available Options: Jeans, heavy work clothes, towels Jeans, More, or Very Dry High Wrinkle Shield™ Temperature Cycle Signal Work clothes, medium weight fabrics, sheets Energy Preferred Medium Wrinkle Shield™ Temperature Cycle Signal Delicate or Less Dry Low Wrinkle Shield™ Temperature Cycle Signal Items to dry: Casual, shirts, pants, lightweight items, synthetics, delicates, athletic wear Cycle Details: Automatic cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. NOTE: If loads do not seem as dry as you would like, select More or Very Dry next time you dry a similar load. If loads seem drier than you like, select Less Dry next time you dry a similar load.

CYCLE GUIDE — TIMED DRY CYCLES

Not all cycles and settings are available on all models. TIMED DRY - Will run the dryer for the specified time on the control. Items to dry: Cycle: Temperature: Available Options: Cycle Details: Large or heavy items such as thick towels or robes Heavy Dry Any Temperature Choose high to dry large or heavy loads. Any load Damp Dry Any Temperature Dries items to a damp level or for items that do not require an entire drying cycle. Fluff Air No Heat Temperature No heat drying. Rubber, plastic, heat sensitive fabrics Setting the Drying Temperature If your dryer has multiple heat settings: A High temperature setting may be used for drying heavyweight items such as towels and work clothes. A Low to Medium temperature setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits.

Use the No Heat setting for foam, rubber, plastic, or heatsensitive fabrics. Line dry bonded or laminated fabrics. NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer. Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping.

1. Clean the lint screen

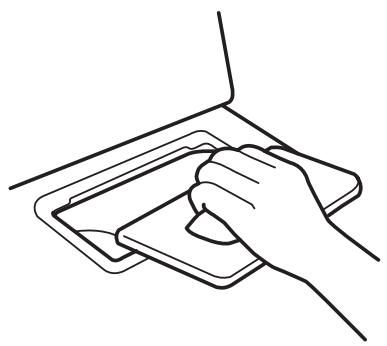

Clean the lint screen before each load. Pull the lint screen out of its holder. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Push the lint screen firmly back into place. For additional cleaning information, see “Dryer Care”.

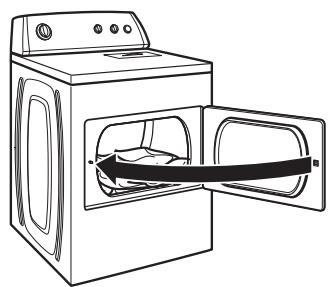

Place laundry in the dryer. Close the door. NOTE: Your model may have a different door than the one shown. Some models have drop down doors. Do not tightly pack the dryer; clothes should be able to tumble freely.

3. Select the desired cycle

5. Select Cycle Signal (if desired)

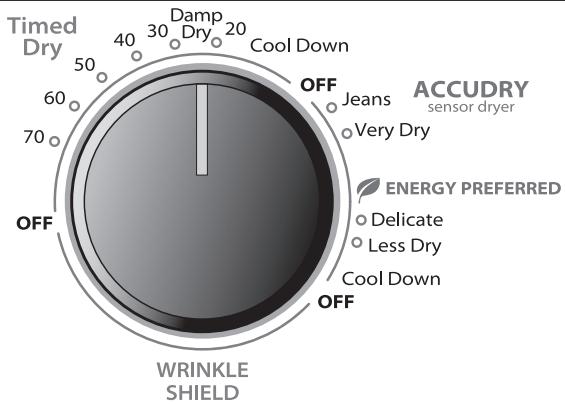

Turn the CYCLE SIGNAL knob to select the desired setting (On or Off). The Cycle Signal produces an audible sound when the drying cycle is finished. Promptly removing clothes at the end of the cycle reduces wrinkling. Select the desired cycle for your load. See the Cycle Guide for more information about each cycle. ACCUDRY™/AUTOMATIC DRY Cycles You can select a different dryness level, depending on your load, by turning the knob to dryness level. Selecting More or Very Dry, ENERGY PREFERRED, or Less Dry automatically adjusts the dryness level at which the dryer will shut off. Once a dry level is set, it cannot be changed without stopping the cycle. ACCUDRY™/AUTOMATIC DRY cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. NOTE: More or Very Dry removes more load moisture. ENERGY PREFERRED is used for a starting point for ACCUDRY™ cycles. Choose ENERGY PREFERRED for optimal energy savings. Less Dry removes less moisture and used for loads you may want to put on a hanger to complete drying.

4. Set cycle settings and options

Select cycle settings and options by turning the knob to the desired position. NOTE: Not all options and settings are available with all cycles. Temperature Turn the TEMPERATURE knob to change the drying temperature setting. See “Setting the Drying Temperature”. Wrinkle Shield™ feature (on some models) n Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the WRINKLE SHIELD™ knob to select on or off at any time before the cycle has ended. n On some models with a WRINKLE SHIELD™ cycle will automatically get 40 minutes of heat-free, periodic tumbling at the end of a cycle.

NOTE: When the Wrinkle Shield™ setting is selected and the Cycle Signal is on, the tone will sound every 5 minutes until the clothes are removed, or the Wrinkle Shield™ setting ends.

6. Press PUSH to START to

begin cycle Push and hold the PUSH to START knob to begin the cycle. Promptly remove garments after cycle has completed to reduce wrinkling. Use the Wrinkle Shield™ feature to avoid wrinkling when you are unable to remove a load from the dryer as soon as it stops. DRYER CARE Cleaning the dryer location Cleaning the lint screen Keep dryer area clear and free from items that would block the air flow for proper dryer operation. This includes clearing piles of laundry in front of the dryer. Every load cleaning The lint screen is located in the dryer. A screen blocked by lint can increase drying time. To clean:

1. Pull the lint screen out of its holder. Roll lint off the

screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove. Cleaning the dryer interior To clean dryer drum

1. Apply a liquid, nonflammable household cleaner to the

stained area of the drum and rub with a soft cloth until stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry these items inside out to avoid drum staining. Removing accumulated lint From Inside the Dryer Cabinet Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified servicer. From the Exhaust Vent Lint should be removed every 2 years, or more often, depending on dryer usage.

2. Push the lint screen firmly back into place.

IMPORTANT: n Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics. n If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint. See “Venting Requirements.” As needed cleaning Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes, or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls off while the screen is in the dryer. Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup. To wash:

1. Roll lint off the screen with your fingers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

Vacation, storage, and moving care Non-Use or Storage Care Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.

2. (For gas dryers only): Close shut off valve to gas supply

3. Clean lint screen. See “Cleaning the Lint Screen.”

Changing the drum light (on some models)

1. Unplug dryer or disconnect power.

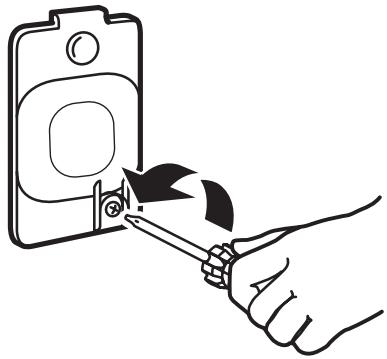

2. Open the dryer door. Locate the light bulb cover on

the back wall of the dryer. Using a Phillips-head screw driver, remove the screw located in the lower right-hand corner of the cover. Remove the cover. Moving Care For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use tape to secure dryer door.

WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. For direct-wired dryers:

1. Turn off power at fuse or breaker box.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

1. Unplug or disconnect power to dryer.

2. Close shutoff valve in gas supply line.

3. Disconnect gas supply line pipe and remove fittings

attached to dryer pipe.

4. Cap the open fuel supply line.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer Follow the “Installation Instructions” to locate, level, and connect the dryer.

3. Turn bulb counterclockwise. Replace the bulb with

a 10-watt appliance bulb only. Replace the cover and secure with the screw.

4. Plug into a grounded outlet or reconnect power.

TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Clothes are not drying satisfactorily, drying times are too long Dryer will not run Unusual sounds No heat Solution Possible Causes Lint screen clogged with lint. Lint screen should be cleaned before each load. Has the Fluff Air cycle or No Heat temperature setting been selected. Select the right cycle for the types of garments being dried. See “Cycle Guide.” Load too large and heavy to dry quickly. Separate the load to tumble freely. Exhaust vent or outside exhaust hood clogged with lint, restricting air movement. Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lint or replace exhaust vent with heavy metal or flexible metal vent. Make sure vent is not crushed or kinked. See “Installation Instructions”. Fabric softener sheets blocking the grill. Use only one fabric softener sheet, and use it only once. Exhaust vent not the correct length. Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. Make sure vent is not crushed or kinked. See “Installation Instructions”. Exhaust vent diameter not the correct size. Use 4" (102 mm) diameter vent material. Dryer located in a room with temperature below 45ºF (7ºC). Proper operation of dryer cycles requires temperatures above 45ºF (7ºC). Dryer located in a closet without adequate opening. Closet doors must have ventilation openings at the top and bottom of the door. The front of the dryer requires a minimum of 1" (25 mm) of airspace, and, for most installations, the rear of the dryer requires 5" (127 mm). See “Installation Instructions”. Door not closed completely. Make sure the dryer door is closed completely. PUSH to START knob not pressed firmly or held long enough. Press and hold the PUSH to START knob until you hear the dryer drum moving. Household fuse is blown or circuit breaker has tripped. Electric dryers use 2 household fuses or circuit breakers. The drum may be turning, but you may not have heat. Replace both fuses or reset the circuit breaker. If the problem continues, call an electrician. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualified electrician. Wrong type of fuse. Use a time-delay fuse. Dryer had a period of non-use. If the dryer hasn’t been used for awhile, there may be a thumping sound during the first few minutes of operation. A coin, button, or paper clip is caught between the drum and front or rear of the dryer. Check the front and rear edges of the drum for small objects. Clean out pockets before laundering. It is a gas dryer. The gas valve clicking is a normal operating sound. The four legs are not installed, or the dryer is not level front to back and side to side. The dryer may vibrate if not properly installed. See “Installation Instructions”. Clothing knotted or balled up. When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer. Household fuse is blown or circuit breaker has tripped. The drum may be turning, but you may not have heat. Electric dryers use 2 household fuses or circuit breakers. Replace both fuses or reset the circuit breaker. If the problem continues, call an electrician. Supply line valve not open. For gas dryers, make sure the supply line valve is open. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualified electrician.

TROUBLESHOOTING cont. First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Cycle time too short Possible Causes Automatic cycle ending early. Solution The load may not be contacting the sensor strips. Level the dryer. Use Timed Dry for very small loads. Change the Dry Level setting on ACCUDRY™/Automatic Dry cycles. Increasing or decreasing the Dry Level setting will change the amount of drying time in a cycle. Lint on load Lint screen clogged. Lint screen should be cleaned before each load. Stains on load or drum Dryer fabric softener not properly used. Add dryer fabric softener sheets at the beginning of the cycle. Fabric softener sheets added to a partially dried load can stain your garments. Drum stains are caused by dyes in clothing (usually blue jeans). These will not transfer to other clothing. Loads are wrinkled Load not removed from dryer at the end of the cycle. Select Wrinkle Shield™ feature to tumble the load without heat to avoid wrinkling. Dryer tightly packed. Dry smaller loads that can tumble freely reduce wrinkles from forming. You have recently been painting, staining, or varnishing in the area where your dryer is located. If so, ventilate the area. When the odors or fumes are gone from the area, rewash and dry the clothing. The electric dryer is being used for the first time. The new electric heating element may have an odor. The odor will be gone after the first cycle. Laundry items removed from the dryer before the end of the cycle. Allow Cool Down cycle to finish before removing laundry from dryer. All cycles are cooled slowly to reduced wrinkling and make it easier to handle. Items removed before Cool Down may feel very warm. A high temperature cycle was used, or a separate temperature control was set on high. Select a lower temperature and use an automatic drying cycle. These cycles sense the temperature or the moisture level in the load and shut off when the load reaches the selected dryness. This reduces overdrying. Odors Load is too hot

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters, or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Pick up and delivery. This major appliance is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool published installation instructions. 10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you think you need repair service, first see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. 10/11 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. Dealer name _____________________________________________ Address __________________________________________________ Phone number____________________________________________ Model number ____________________________________________ Serial number ____________________________________________ Purchase date ____________________________________________

Before calling for assistance or service, please check “Troubleshooting” or visit www.whirlpool.com/help. It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts or to order accessories We recommend that you use only FSP® Factory Specified Parts. These parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance. To locate FSP® replacement parts, assistance in your area, or accessories: Whirlpool Corporation Customer eXperience Center 1-800-253-1301 Whirlpool Canada LP Customer eXperience Centre www.whirlpool.com 1-800-807-6777 1-800-442-9991 (Accessories) www.whirlpool.ca www.whirlpool.com/accessories or call your nearest designated service center or refer to your Yellow Pages telephone directory. Our consultants provide assistance with In the U.S.A. and Canada ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States and Canada. You can write with any questions or concerns at: Whirlpool Corporation Customer eXperience Centre Customer eXperience Center Whirlpool Canada LP 553 Benson Road Unit 200-6750 Century Ave Benton Harbor, MI 49022-2692 Mississauga, Ontario L5N 0B7 In the U.S.A. ■ Features and specifications on our full line of appliances. ■ Installation information. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). Please include a daytime phone number in your correspondence.
