Kenia - Pan TAURUS - Free user manual and instructions

Product type	Quartz heating stove
Brand	Taurus
Model	Kenia
Installation	Wall-mounted, to be securely fixed
Minimum distance from floor	185 cm
Minimum distance from walls and ceiling	40 cm
Power supply	220-240 V ~ 50 Hz (estimated)
Recommended socket	10 A with earth
Power	1000-2000 W (estimated)
Operation indicator	Yes, on/off indicator light
Power selection	Yes
Overheat protection	Yes, do not cover the device
Child safety	Keep out of reach of children
Maintenance	Clean with a damp cloth, do not immerse
Cleaning	Unplug and wait for complete cooling
Repairability	Authorized technical service only
Use	Household only, do not dry laundry
Compliance	Directives 2006/95/EC and 2004/108/EC

Frequently Asked Questions - Kenia TAURUS

How to install the Kenia Taurus stove?

The device must be fixed to the wall using the existing holes. Respect a minimum distance of 185 cm from the floor and 40 cm from the walls and ceiling. Ensure that the wall mounting can support twice the weight of the device.

What is the minimum distance to be observed for installation?

The minimum distance between the floor and the bottom of the device is 185 cm. Leave a space of at least 40 cm between the device and walls, ceiling, or any other object.

Can I use the stove to dry laundry?

No, it is forbidden to use the device to dry textile clothing. This presents a fire risk.

How to clean the device?

Unplug the device and wait for it to cool completely. Clean it with a damp cloth, then dry it. Do not use solvents, acidic or abrasive products, and never immerse the device in water.

What to do if the power cord is damaged?

Do not use the device. The cable must be replaced by an authorized technical service. Do not attempt to repair it yourself.

Can I use a power strip or a timer?

No, do not use the device with a timer, programmer, or any automatic starting device. Plug it directly into a wall socket with earth.

Can the device be used in a bathroom?

No, do not use the device near a bathtub, shower, or swimming pool. It must not be exposed to humidity or rain.

How to know if the device is on?

The device is equipped with an on/off indicator (light) that lights up when the device is operating.

What to do in case of breakdown?

Unplug the device and contact an authorized technical support service. Do not attempt to disassemble or repair the device yourself.

How to dispose of the device at end of life?

Do not throw it away with household waste. Hand it over to a qualified waste manager for selective collection of electrical and electronic equipment (WEEE).

USER MANUAL Kenia TAURUS

Español

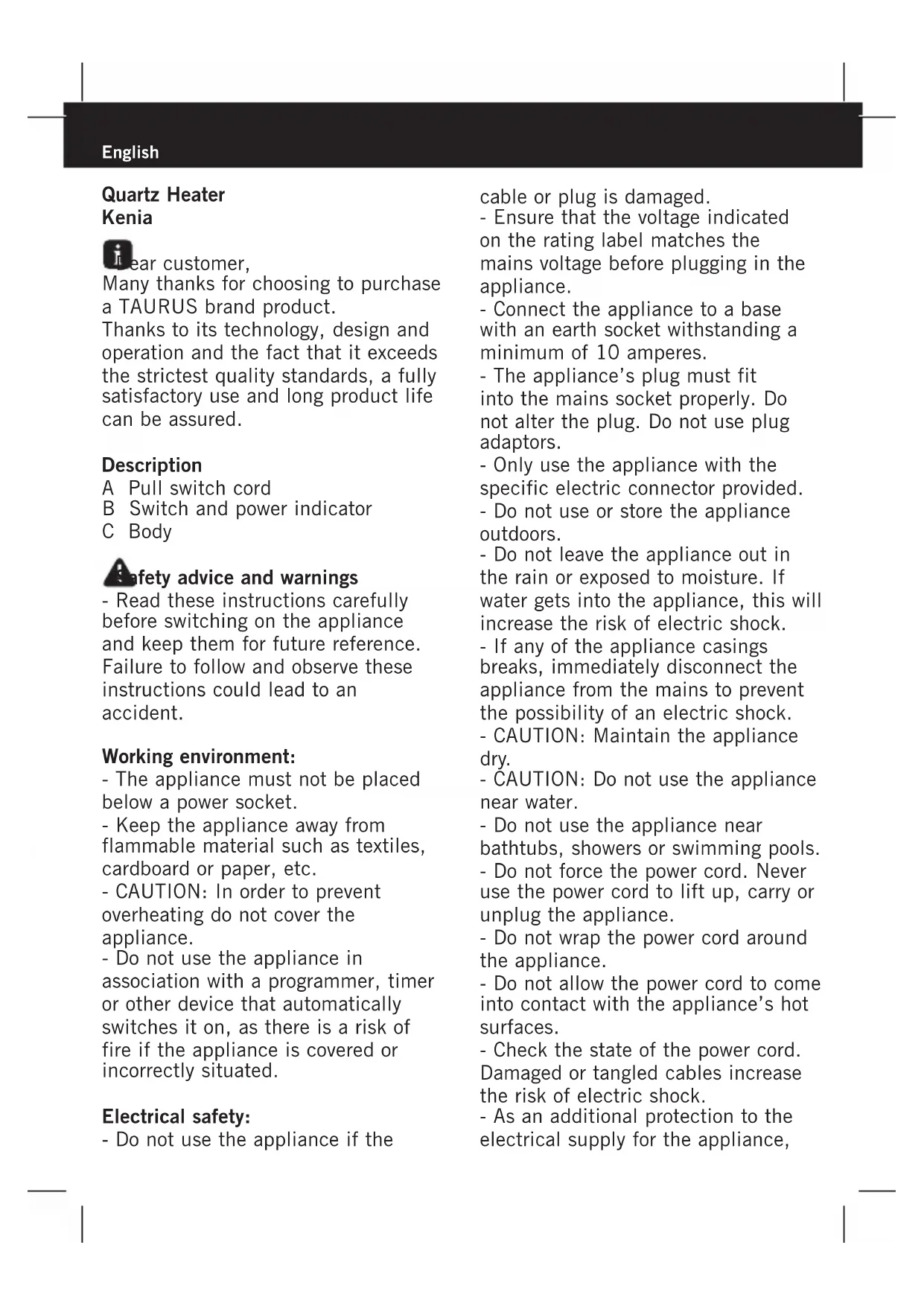

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Pull switch cord
B Switch and power indicator
C Body

afety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Working environment:

• The appliance must not be placed below a power socket.
• Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
• CAUTION: In order to prevent overheating do not cover the appliance.
• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on, as there is a risk of fire if the appliance is covered or incorrectly situated.

Electrical safety:

- Do not use the appliance if the

cable or plug is damaged.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Only use the appliance with the specific electric connector provided.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• CAUTION: Maintain the appliance dry.
• CAUTION: Do not use the appliance near water.
• Do not use the appliance near bathtubs, showers or swimming pools.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not allow the power cord to come into contact with the appliance's hot surfaces.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• As an additional protection to the electrical supply for the appliance,

it is advisable to have a differential current device with a maximum sensitivity of 30 mA. Ask for advice from a competent installer.

- Do not touch the plug with wet hands.

Personal safety:

- Do not touch metal parts or the body when it is operating, as it may cause serious burns.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not use the appliance to dry textiles of any kind.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Installation

- Be sure to remove all packaging material from inside the appliance.

• Respect the legal provisions concerning safety distances from other elements such as pipes, electrical connections, etc.
• Ensure that the appliance is level with respect to the floor.
• This appliance must be fixed into a wall. The minimum distance between the floor and the lower part of the appliance is 185 cm.
• Do not cover or obstruct any of the openings of the appliance.
• Do not cover or obstruct the sides of the appliance, and leave a minimum space of 40cm front other walls, ceiling...
• The plug must be easily accessible so it can be disconnected in an emergency.

Securing to the wall: Use the perforation template in order to mark the right position of the fixing rawplugs holes. Once the rawplugs was fitted on the wall, screw at least two of the screws. Ensure the right position of the appliance and screw all other screws, also tight firmly all of them. To avoid damaging the appliance, on recommend to use only the holes specifically made by the manufacturer.

- Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.

structions for use

Use:

• Unroll the cable completely before plugging it in.

• Connect the appliance to the mains.

• Turn the appliance on, by using the on/off switch.

• Select the desired power.

Once you have finished using the appliance:

- Turn the appliance off, using the on/off switch.

leaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

nomalies and repair

- Take the appliance to an authorised technical support service if a product damage or other problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

- This symbol means that product can't be covered.

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

Français

Pure horizontal bar with two vertical lines above and below, no text or symbols present

Pure horizontal bar with two vertical lines above and below, no text or symbols present

taurus

taurus

Avda. Barcelona, s/n

E 25790 Oliana

Spain

www.taurus.es

Product weight (approximate)

Kenia:

Gross Weight: 1,50 KG

Net Weight: 1,20 KG
